Viair 145 PSI High Speed Bolt On Platform - 30016

Viair 145 PSI High Speed Bolt On Platform - 30016

Upgrade your air power game with the Viair 145 PSI High-Speed Bolt-On Platform - the ultimate solution for quick air! This fully self-contained air source unit features dual Viair 400C Air Compressors, a 2-gallon 5-port air tank, and lightning-fast 1-minute fill times. With an impressive 4.55 CFM, it’s perfect for powering suspension systems, train horns, and inflating tires up to 40 inches. Plus, installation is a breeze with pre-wired and pre-plumbed components, a wiring harness, relay, fuses, and more. Get your Viair 145 PSI High-Speed Bolt-On Platform today and start blowing minds (and horns)!

• Dual Heavy-Duty Air Compressors
• Automatic Compressor Cycling
• 0-200 PSI Pressure Regulator

* Supply Voltage: 13.8 Volts

 * Supply Voltage: 13.8 Volts

Manual

• Viair 145 PSI High-Speed Bolt-On Platform Manual
• Viair 145 PSI High-Speed Bolt-On Platform Wiring Diagram
• Viair 145 PSI High-Speed Bolt-On Platform Dimensional Drawing

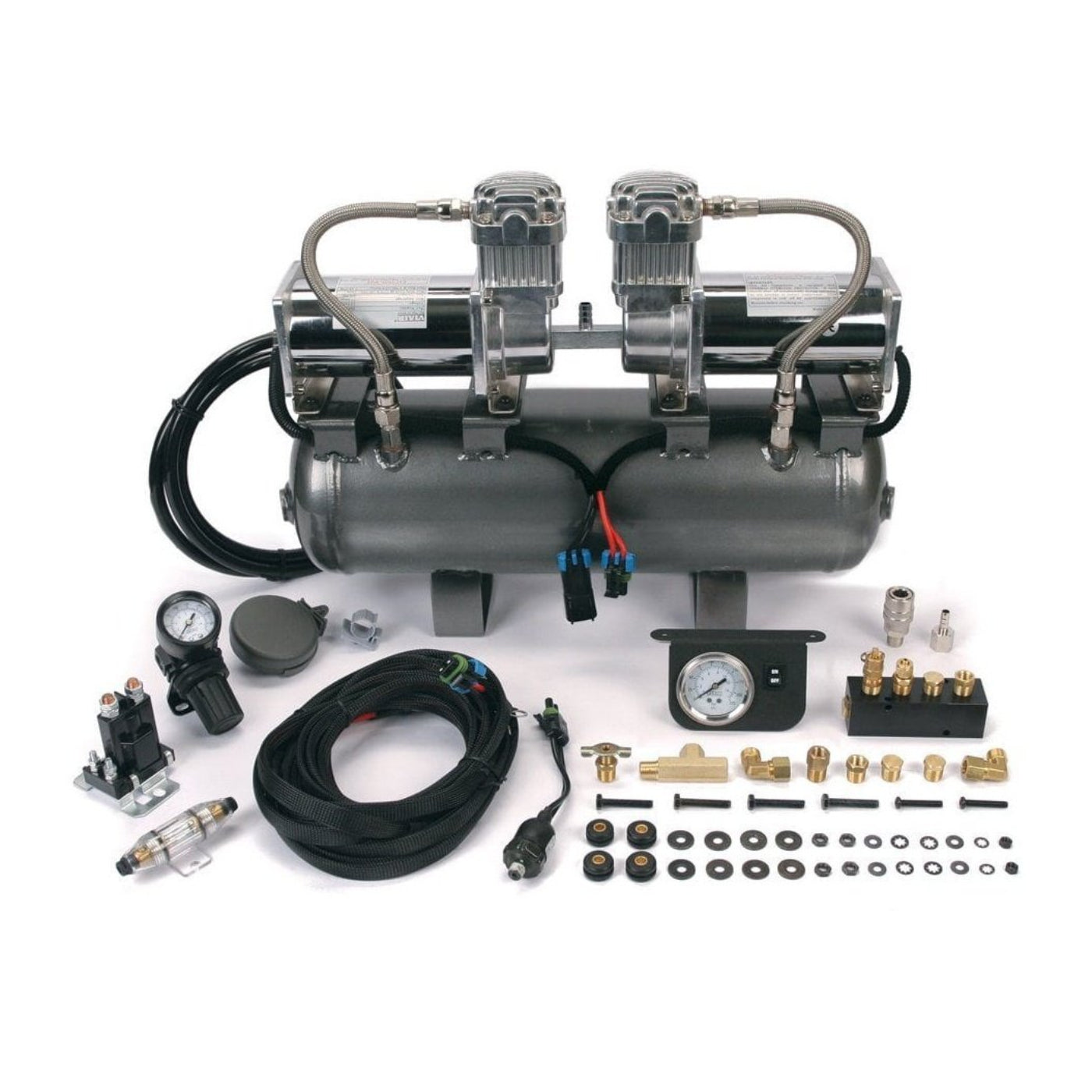

Includes

• Dual Viair 400c Air Compressors

• 2 Gallon 150 PSI Rated Tank

• Viair 110-145 PSI Pressure Switch With Leads

• Viair 0-200 PSI Pressure Regulator

• Viair 80 Amp Heavy Duty Relay

• Remote Air Source Relocation Kit

• Installation Instructions

Specifications

• Part Number: BO-240V
• Manufacturer: Viair
• Model: 30016
• Air Source Kit
• Operating Pressure: 150 PSI
• Length: 18.5″ (470.40 mm)
• Width: 5.9″ (149.86 mm)
• Weight: 30 lb (13.60 Kg)
• Height: 13.5″ (342.9 mm)
• Air Source Tank
• Volume: 2.0 gal (8.8 L)
• 1/4' NPT Ports: 4
• 1/8' NPT Ports: 1
• Length: 19″ (482.6 mm)
• Width: 6″ (152.4 mm)
• Height: 7.5″ (190.5 mm)
• Weight: 12.30 lb (5.58 Kg)
• Air Source Compressors
• Voltage: 12 Volts
• Max Amperage: 59 Amps
• Max Output: 4.55 CFM
• Maximum Duty Cycle: 33% @ 100 PSI
• Maximum Working Pressure: 150 PSI
• Length: 9″ (228.6 mm)
• Width: 4″ (101.6 mm)
• Height: 6.75″ (171.5 mm)
• Weight: 8 lb (3.63 Kg)

What Our Experts Think

• High-Performance Air Compression: The Viair 145 PSI High-Speed Bolt-On Platform delivers fast and efficient air compression, ideal for a variety of applications like tire inflation and air suspension systems.
• Compact & Durable Design: Built with a sturdy platform, it withstands tough conditions while maintaining a compact profile for easy installation and integration.
• Bolt-On Convenience: The pre-configured bolt-on system allows for quick and secure mounting, ensuring stability and ease of use.
• Impressive Pressure Capability: With a maximum pressure of 145 PSI, it is well-suited for heavy-duty tasks requiring reliable air delivery.
• Wide Application Range: Perfect for automotive, off-road, and industrial uses, providing versatility and efficiency in a range of scenarios.

Q&A

A: The Viair 30016 is a high-speed, bolt-on air compressor platform designed for efficient air delivery in automotive and industrial applications. It operates at up to 145 PSI and is built for durability and reliable performance.

Q: What are the key features of the Viair 30016?
A:

• High-Pressure Performance: Capable of reaching up to 145 PSI, suitable for various air applications like tire inflation and pneumatic tools.
• Bolt-On Platform: Includes a pre-configured mounting platform for secure and easy installation.
• Fast Operation: Designed for high-speed air delivery, minimizing inflation time.
• Durable Build: Constructed with high-quality materials to withstand heavy-duty use and harsh environments.
• Thermal Protection: Features built-in thermal overload protection for safety and prolonged lifespan.
• Compact Design: Offers a space-efficient footprint, making it ideal for mounting in tight spaces.

Q: What are the specifications of the Viair 145 PSI High-Speed Bolt-On Platform?

• Maximum Pressure: 145 PSI
• Duty Cycle: High duty cycle for continuous operation
• Mounting Type: Bolt-on platform for secure attachment
• Applications: Suitable for automotive, off-road, and industrial uses

Q: Who is the Viair 30016 best suited for?
A: This product is ideal for professionals and enthusiasts needing a robust air compressor for vehicle tires, air suspension systems, or pneumatic tool operations.

Q: Why choose the Viair 145 PSI High-Speed Bolt-On Platform?
A: The Viair 30016 provides a reliable, high-performance air delivery system that is easy to install and built for demanding applications, making it a trusted choice for both personal and professional use

Maintenance Tips

• Inspect Air Lines: Regularly check air hoses and fittings for leaks or wear. Replace damaged components immediately to maintain optimal pressure.
• Clean the Air Filter: Remove and clean the air filter regularly to ensure efficient airflow and prevent debris from entering the system. Replace the filter as needed.
• Tighten Bolts and Fittings: Periodically check and tighten all mounting bolts and air fittings to prevent vibrations from loosening them.
• Monitor Pressure Levels: Ensure the compressor operates within the recommended PSI range. Overloading can lead to premature wear.
• Check Electrical Connections: Inspect all electrical wiring and connectors for damage or corrosion. Secure loose connections and replace faulty wiring as necessary.
• Prevent Overheating: Avoid prolonged operation to prevent overheating. Allow sufficient cooldown periods during heavy or continuous use.
• Drain Moisture: Regularly drain the tank to remove moisture buildup, which can reduce efficiency and cause rust.
• Store Properly: When not in use, store the unit in a dry and dust-free environment to protect it from environmental damage.
