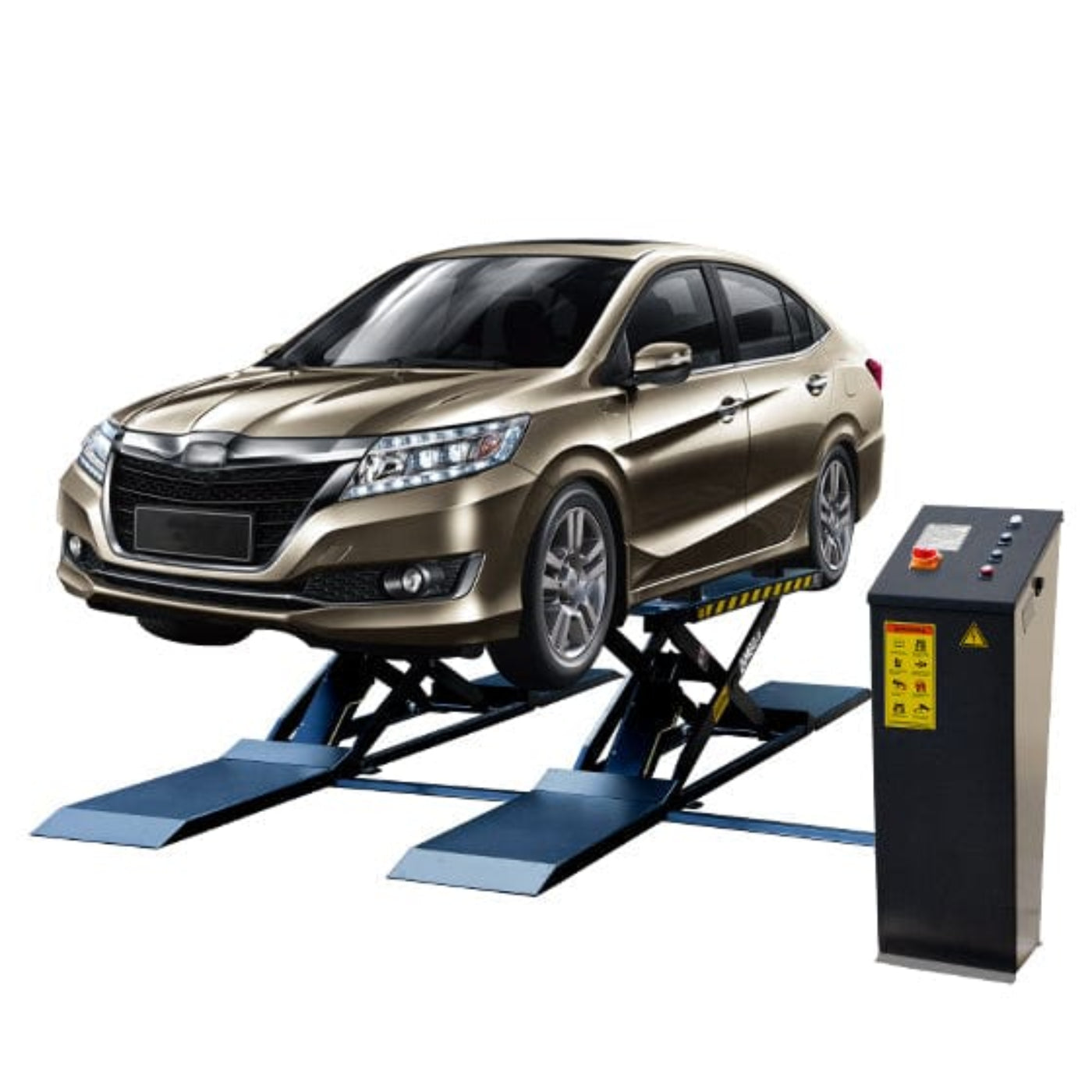

The AMGO MRL09 Mid Rise Scissor Lift

The MRL09 features a cutting-edge two-stage runway design, providing a sleek, low-profile entrance that allows a wide range of vehicles, including low-clearance cars, to access from either side. With its user-friendly operation and minimal maintenance requirements, it stands out as the perfect mid-rise lift for quick service applications. Let me know if you'd like further refinements!

Features

• 9,000lbs(4000kg) capacity
• Mid rise scissors lift, 24V Safety voltage control
• Dual hydraulic synchronization & hydraulic locking system
• The lifting scissors are made of thickened steel which is more strong
• Adjustable lift platform length, applicable to vehicles with different wheelbases
• Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles
• Flexible structure design, users can choose either flush mount or surface mount installation


Specfications

Images

Downloads

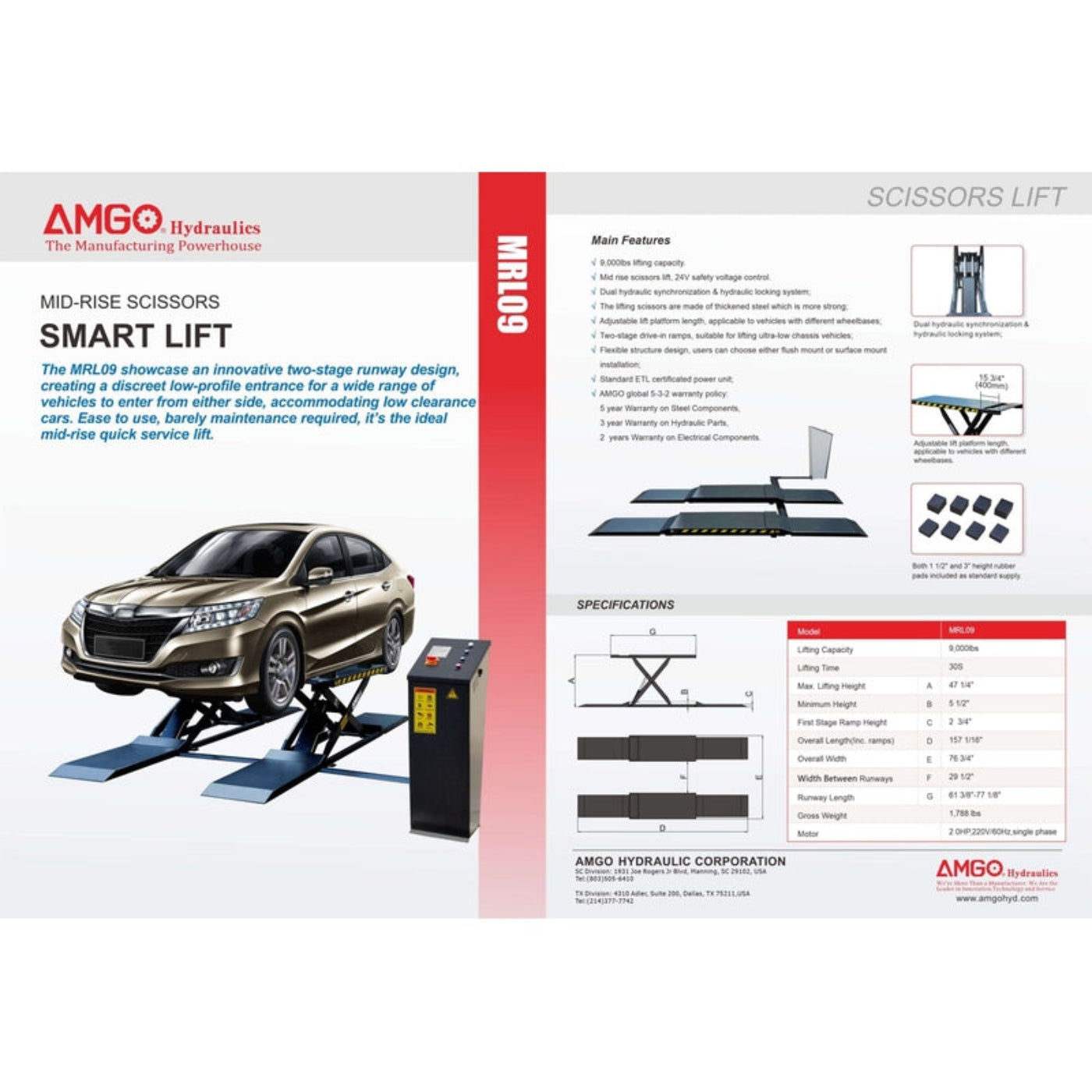

AMGO MRL09 Mid-Rise Scissors Lift Manual

What our Experts Think

• Ultra-Low Entry: Two-stage drive-in ramps with a 2 1/2″ clearance are ideal for ultra-low chassis vehicles.

• Versatile Installation: Supports both flush-mount and surface-mount configurations for flexible garage setups..

• Adjustable Platform: The platform length can be adjusted to accommodate vehicles with different wheelbases.

• Durable Construction: Made with thickened steel lifting scissors for enhanced strength and longevity.

Q&A

Q: What is the lifting capacity of the AMGO MRL09?
A: The MRL09 has a lifting capacity of 9,000 lbs, suitable for passenger vehicles and light trucks.

Q: What is the maximum lifting height?
A: The lift offers a maximum lifting height of 47 1/4 inches and a minimum height of 5 3/8 inches.

Q: How long does it take to lift a vehicle?
A: The lifting time is approximately 29 seconds.

Q: Is the MRL09 suitable for low-clearance vehicles?
A: Yes, the lift includes two-stage drive-in ramps with a first-stage height of 2 1/2 inches for low-clearance vehicles.

Q: What power requirements does the MRL09 have?
A: The lift operates on a 2.0 HP, 220V, 60Hz, single-phase power unit.

Maintenance Tips

• Lubrication: Apply lubricant to all moving parts to reduce wear and ensure smooth operation.

• Fasteners: Inspect all bolts, pins, and connectors for tightness; re-torque as necessary.

• Hydraulic System: Visually inspect all hydraulic hoses and lines for signs of wear or leakage.

Semi-Annual Maintenance

• Visual Inspection: Examine all moving parts for potential wear, interference, or damage.

• Cable Tension: Check and adjust the equalizer cable tension to ensure level lifting.

• Oil Cylinder Maintenance: Replace hydraulic oil every 12 months to extend the service life of the oil cylinder.

Operational Safety

• Power Off: Always turn off the power switch before performing any maintenance tasks.

• Safety Locks: Ensure all safety locks are engaged before operating the lift.

• Load Capacity: Do not exceed the rated load capacity of 9,000 lbs to prevent damage and ensure safety
