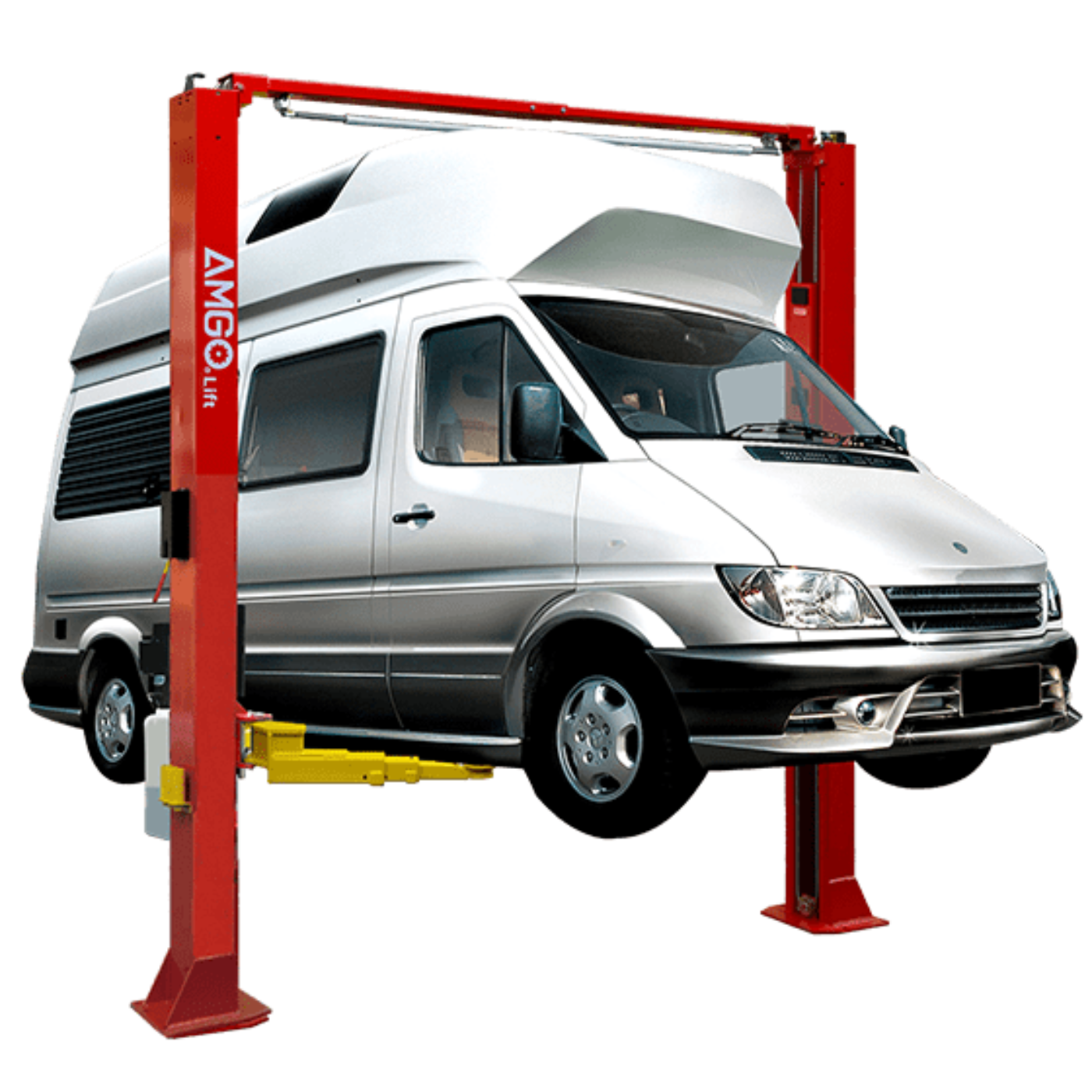

The AMGO OHX-10 2 Post Lift

The AMGO OHX-10 is renowned for its exceptional performance and sophisticated design. With a 10,000 lbs capacity, it is constructed with a single-piece column, a split-structure top beam, and extra-long carriages, ensuring effortless installation and simplified maintenance. Ideal for workshops and garages with ceilings over 12 feet, it offers an optional width extension and incorporates AMGO's Super Asymmetric technology, providing added convenience during loading.

 Features

• Dual hydraulic cylinders, designed and made on high standard, high quality seals.
• Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
• Single point safety release, allows the operator to disengage both columns simultaneously
• Self lubricating UHMW Polyethylene sliders and bronze bushings
• Clear floor design, provides unobstructed floor use
• Single piece column allowing for easier installation
• Stackable rubber pads and 1.5", 2.5", 5"
• Width adjustable kit optional. Part #21004
• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

• Meets or exceeds the standards prescribed by European Standard EN-1493

Specifications

Images

Downloads

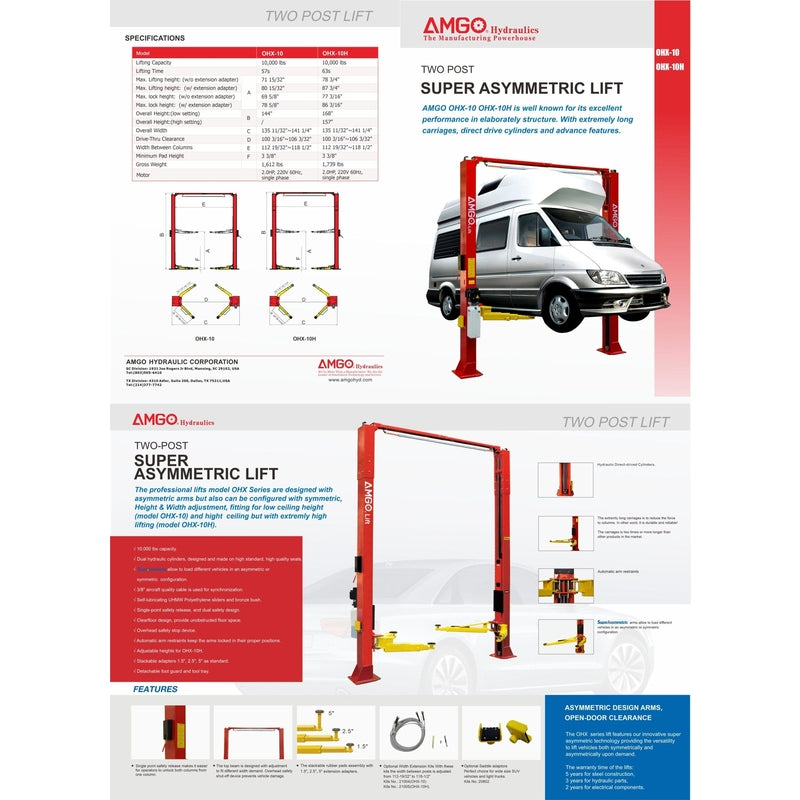

AMGO OHX-10 10,000 lbs 2 Post Lift Manual

What our Experts Think

• 10,000 lbs Capacity
  Suitable for handling cars, SUVs, and light trucks.

• Super Asymmetric Arms
  Offers both asymmetric and symmetric lifting options for flexibility.

• Clear Floor Design
  Provides unobstructed floor space, improving garage workflow.

• Overhead Safety Shut-off
  Helps prevent damage to vehicles during use.

• Durable and Low Maintenance
  Features self-lubricating sliders and bronze bushings for long-lasting performance.

• Single Point Safety Release
  Easily disengage both columns from one side for convenience.

Q&A

Q: What is the lifting capacity of the AMGO OHX-10?
A: The OHX-10 lifts up to 10,000 lbs, suitable for cars, SUVs, and light trucks.

Q: What is the maximum lifting height of the OHX-10?
A: The maximum lifting height is 71 15/32 inches, or 80 15/32 inches with extension adapters.

Q: What power does the OHX-10 require?
A: It operates on 220V single-phase power with a 2 HP motor.

Q: Does the OHX-10 have safety ?
A: Yes, it includes a single-point safety release and an overhead safety shut-off device.

Maintenance Tips

Daily Maintenance

• Visual Inspection: Check for any visible damage or wear on components.

• Hydraulic System: Inspect for leaks and ensure the hydraulic fluid level is adequate.

• Safety Devices: Test safety locks and emergency stop functions to ensure they are operational.

 Monthly Maintenance

• Anchor Bolts: Re-torque anchor bolts to 150 Nm to ensure secure mounting.

• Lubrication: Lubricate all moving parts, including cables, pulleys, and rollers, with appropriate lubricants.

• Hydraulic Hoses: Inspect hydraulic hoses for signs of wear or leakage.

• Safety Devices: Ensure all safety devices are in good condition and function properly.

• Rollers and Pins: Lubricate all rollers and pins with 90 wt gear oil or equivalent.

 Every Six Months

• Moving Parts: Conduct a visual inspection of all moving parts for possible wear, interference, or damage.

• Cable Tension: Check the equalizer tension of the cables and adjust them as necessary to ensure level lifting.

• Column Alignment: Verify that the columns are plumb and adjust if necessary.

• Rubber Pads: Inspect rubber pads and replace them if worn or damaged.

• Safety Devices: Reassess safety devices to ensure they are in good condition.
