AMGO SPL-6 Single Post Parking Lift - SPL-6

AMGO SPL-6 Single Post Parking Lift - SPL-6

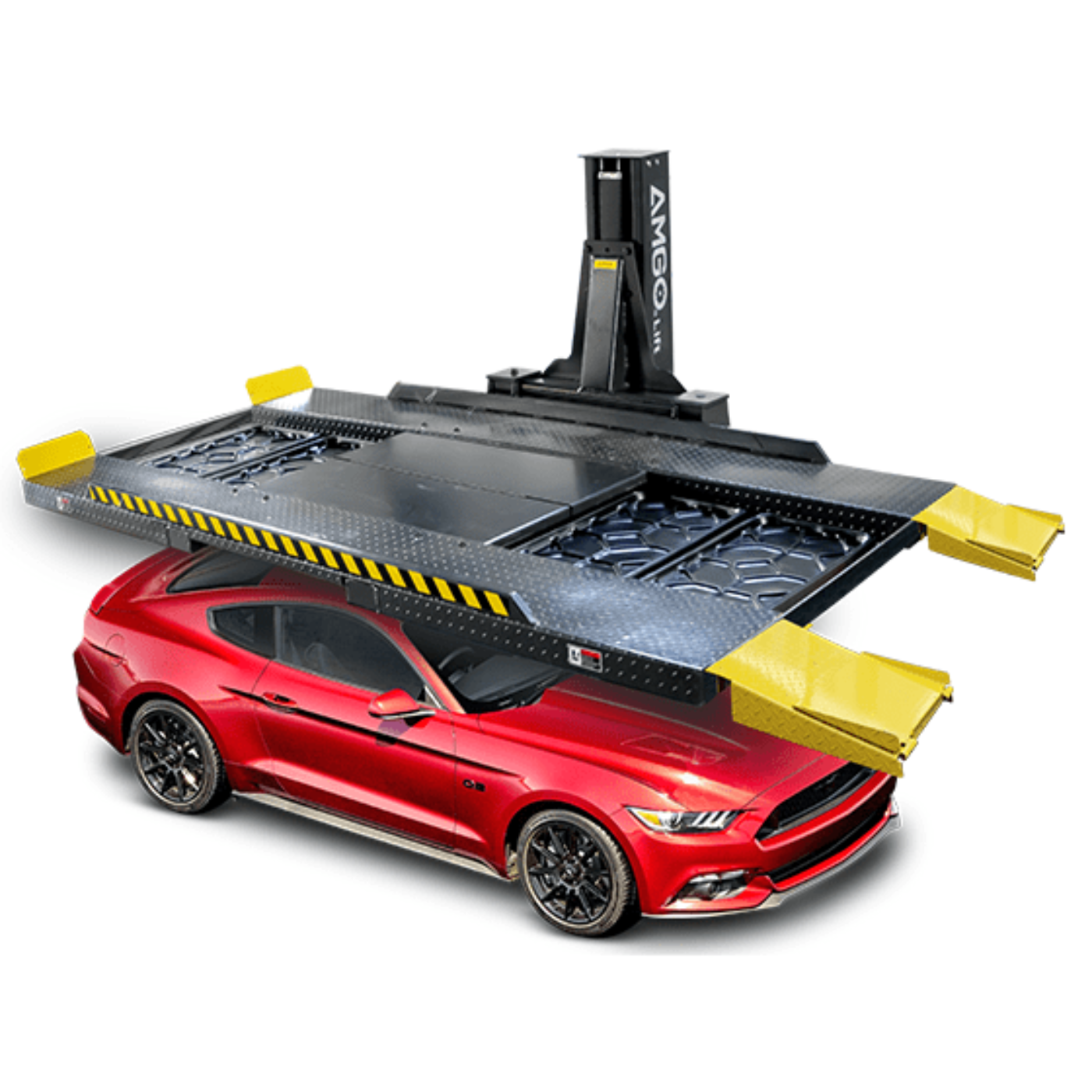

The AMGO SPL-6 Single Post Parking Lift

The SPL-6 commercial-grade parking lift has been upgraded with a more robust and stable design. Featuring AMGO's cutting-edge technologies, it offers space-saving benefits and effortless operation, making it the perfect parking solution for both residential garages and commercial facilities.

Features

• 6,000lbs lifting capacity
• Manual safety lock release
• Non slip lifting platform
• H-shaped lifting platform with reinforced column
• Low post height for low ceilings
• Suitable for home garages and commercial applications
• Reversible Drive in ramps (drive in from either side)

Specifications

Downloads

AMGO SPL-6 Single Post Parking Lift Manual

What our Experts Think

• Efficient Design: The SPL-6 offers a space-saving solution for parking, ideal for residential and commercial use.

• Durability: Built with high-quality materials to withstand heavy usage and harsh environments.

• Easy Installation: Simple setup process ensures minimal downtime and quick operation.

• Enhanced Functionality: Perfect for parking multiple vehicles in tight spaces without compromising on accessibility.

Q&A

Q: What is the lifting capacity of the AMGO SPL-6?
A: The SPL-6 has a lifting capacity of 6,000 lbs, ideal for most passenger vehicles and light trucks.

Q: What is the maximum lifting height?
A: The lift offers a maximum lifting height of 74 inches and a minimum height of 6 1/4 inches.

Q: How long does it take to lift a vehicle?
A: The lifting time is approximately 84 seconds at 110V and 32 seconds at 220V.

Q: Is the SPL-6 suitable for low-ceiling garages?
A: Yes, the SPL-6 is designed for low-ceiling garages with an overall height of 108 7/8 inches.

Q: What power requirements does the SPL-6 have?
A: The lift operates on either a 1.0 HP motor at 110V or a 2.0 HP motor at 220V, both single-phase.

Maintenance Tips

• Regularly inspect hydraulic lines, cables, and the lifting mechanism for wear or damage.

• Lubricate moving parts as needed to ensure smooth operation.

• Clean the lift after each use to prevent dirt build-up.

• Tighten bolts and check for any loose components.

• Keep the lift area dry to prevent rust and corrosion.

• Schedule annual professional maintenance for optimal performance.
