Bunn 38800.0000 LCA-2 LP Ambient Liquid Coffee Dispenser - BU388000000

Bunn 38800.0000 LCA-2 LP Ambient Liquid Coffee Dispenser - BU388000000

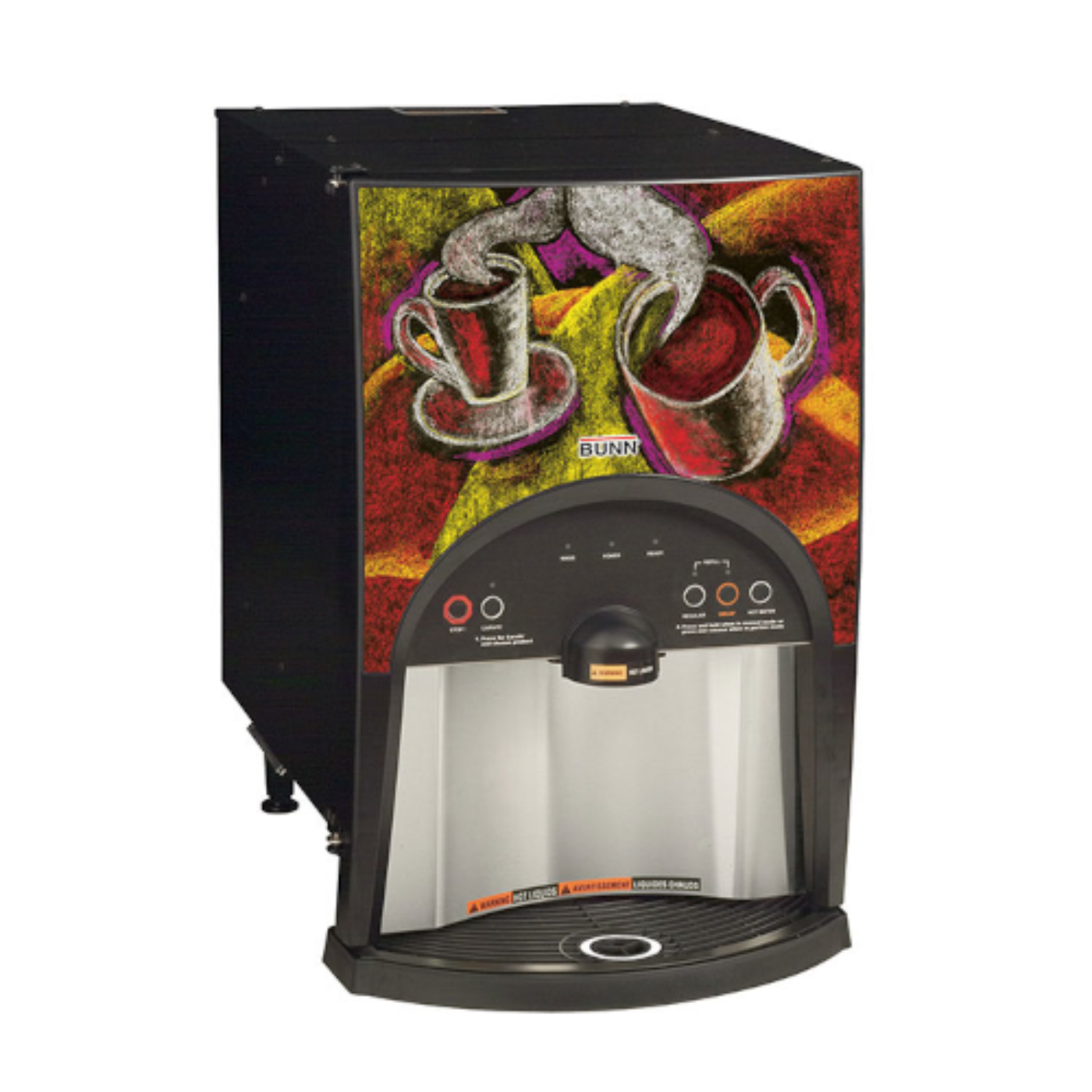

The Bunn 38800.0000 LCA-2 LP is an ambient liquid coffee dispenser. This unit features 2 dispense heads.

Features

• Accommodates two 1/2gal (1.9L) bag-in-box (BIB) containers
• Attractive appearance with shorter profile
• Serves two coffee products and hot water
• Set up for continuous dispense (by the cup) for self-serve applications or portion control to fill cups or carafes
• Refill or rinse LED lights alert the operator for concentrate or cleaning

Specifications

What our Experts Think

• Dual Dispense Heads: Accommodates two 1/2-gallon bag-in-box (BIB) containers, allowing the dispensing of two distinct coffee products and hot water.

• High Dispensing Capacity: Capable of dispensing over 120 (5 oz

• cups per hour, ensuring a steady supply during peak periods.

• Compact Design: With dimensions of 23.2" H x 15.6" W x 22.3" D, its low-profile design allows for placement under standard cabinetry, optimizing counter space.

• User-Friendly Operation: Offers both continuous dispense for self-serve applications and portion control to fill cups or carafes, catering to various service needs.

• Maintenance Alerts: Equipped with LED refill lights to alert when concentrate is low and rinse lights to indicate when cleaning is required, facilitating timely maintenance.

• Versatile Dispensing Ratios: Supports dispense ratios ranging from 25:1 to 100:1, allowing customization based on specific coffee concentrate requirements.

• Energy Efficient: Operates on 120V, drawing 12 amps with a power consumption of 1440 watts, balancing performance with energy efficiency.

Q&A

Q: What is the Bunn 38800.0000 LCA-2 LP Ambient Liquid Coffee Dispenser?
A: The Bunn 38800.0000 LCA-2 LP is a low-profile, ambient liquid coffee dispenser designed to serve two coffee products and hot water. It accommodates two 0.5-gallon bag-in-box (BIB) containers and can dispense over 120 (5 oz.) cups per hour.

Q: What are the dimensions and weight of the Bunn LCA-2 LP?
A: The dispenser measures 15.78 inches in width, 20.9 inches in depth, and 23.2 inches in height, with a weight of approximately 66.46 pounds.

Q: What are the electrical requirements for the Bunn LCA-2 LP?
A: It operates on 120V/60Hz/1-phase power, drawing 12 amps and consuming 1,440 watts. The unit comes with a cord and NEMA 5-15P plug for easy installation.

Q: Is the Bunn LCA-2 LP suitable for self-serve applications?
A: Yes, it is set up for continuous dispense (by the cup) for self-serve applications or portion control to fill cups or carafes, making it versatile for various service settings.

Q: What type of connector does the Bunn LCA-2 LP use?
A: The dispenser comes with a Scholle 1910LX connector for easy connection to bag-in-box containers.

Maintenance Tips

• Daily Cleaning:
• Funnel Components: Remove the funnel(s), funnel lid(s), and support(s). Rinse them under hot water to eliminate coffee oils, then wipe with a clean, damp cloth.
• Reservoir Draining: Drain the coffee reservoir(s) by opening the faucet until all coffee is dispensed.
• Exterior Surfaces: Wipe all exterior surfaces with a clean, damp cloth to maintain cleanliness and appearance.
• Sprayhead Maintenance:
• Regularly inspect and clean the sprayhead to ensure optimal water flow and prevent clogs. Refer to the user manual for detailed instructions on removing and reassembling the sprayhead.
• Hot Water Faucet Care:
• Regularly clean and sanitize the hot water faucet to prevent mineral buildup and ensure proper water flow. This is especially important if the faucet is used frequently for dispensing hot water.
• Water Quality:
• Use filtered water to prevent mineral buildup and extend the lifespan of the urn.
• Electrical Safety:
• Ensure the urn is properly connected to a 120/240V, 28-amp electrical outlet. Regularly inspect the power cord and plug for any signs of wear or damage.
• Professional Servicing:
• For comprehensive maintenance, servicing, or if you encounter issues beyond routine cleaning, consult the Bunn U3 Service Manual or contact Bunn's customer support for assistance.
