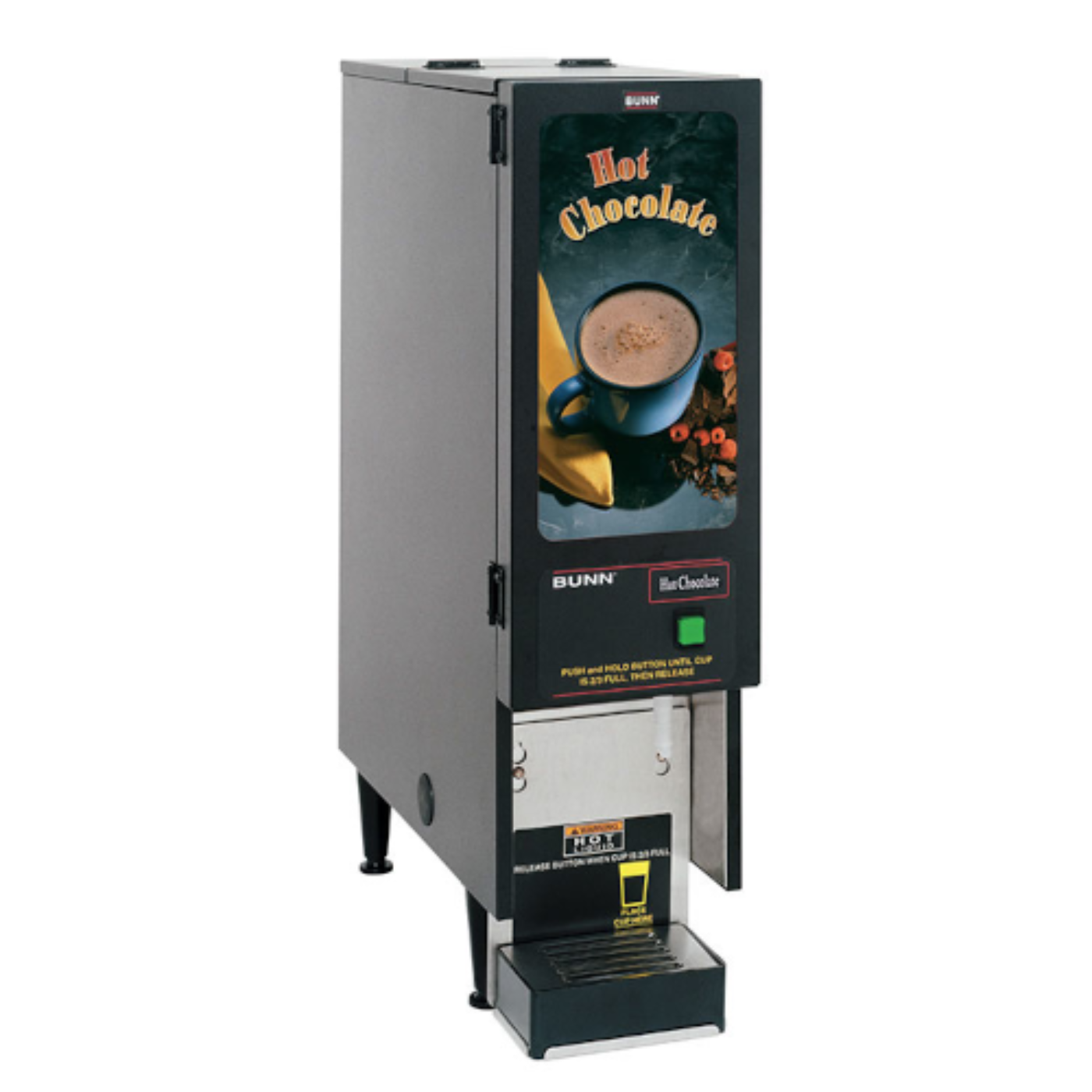

Bunn SET00.0203 FMD-1 Fresh Mix Dispenser - BUSET000203

Bunn SET00.0203 FMD-1 Fresh Mix Dispenser - BUSET000203

The Bunn SET00.0203 FMD-1 is a fresh mix dispenser. This unit features (1) 8 lb hoppers with a 5.2 gallon / hour capacity.

Features

• Adjustable legs and drip tray allows up to 7” (17.8cm) opening for 20oz cups
• Designed to be easily serviced from front and top of machine
• Improved automatic rinsing of whipper reduces run-on after beverage is dispensed
• Large easy-to-fill translucent hopper holds 8lb (3.6kg) of product, ensuring quick and timely refilling
• Lighted graphics merchandise drinks for maximizing profits
• Space saving narrow 8” (20.3cm) cabinet width
• Specially designed mixing system guarantees perfect beverages every time
• Variable speed motors allow control of product consistency in mixing chamber (.75 to 6.6 grams of powder per second

Specifications

What our Experts Think

• High Capacity: The Bunn FMD-1 Fresh Mix Dispenser offers a serving capacity of up to 4.2 gallons (15.9 liters) per hour, equating to approximately 67 cups (8 oz each) per hour, making it suitable for medium to high-demand environments.

• Efficient Mixing System: Equipped with variable speed motors, the dispenser allows precise control over the product consistency in the mixing chamber, dispensing between 0.75 to 6.6 grams of powder per second.

• Generous Hopper Capacity: The large, translucent hopper holds up to 8 lbs (3.6 kg) of product, ensuring quick and timely refilling, thereby reducing the frequency of maintenance.

• User-Friendly Design: Designed with adjustable legs and a drip tray, the dispenser accommodates cups up to 20 oz (591 ml), with an opening of up to 7 inches (17.8 cm), enhancing versatility for various cup sizes.

• Attractive Presentation: Featuring lighted graphics, the dispenser effectively merchandises drinks, maximizing visibility and potential sales.

Q&A

Q: What is the Bunn SET00.0203 FMD-1 Fresh Mix Dispenser?
A: The Bunn SET00.0203 FMD-1 is a commercial-grade beverage dispenser designed to prepare hot chocolate and other powdered beverages. It features a single 8-pound hopper and offers a serving capacity of up to 4.2 gallons per hour.

Q: What are the key features of the Bunn FMD-1 dispenser?
A: Key features include:

• Variable Speed Hopper Motor: Allows precise control over the ratio of powdered mix to hot water, dispensing between 0.75 to 6.6 grams of powder per second.

• Large Hopper Capacity: The translucent hopper holds up to 8 pounds (3.6 kg) of product, ensuring timely refills.

• Lighted Graphics: Illuminated front graphics enhance product visibility, aiding in merchandising and maximizing profits.

• Adjustable Dispensing: The drip tray and legs are adjustable, accommodating cups up to 20 ounces with a 7-inch (17.8 cm) opening.

• Efficient Mixing System: Designed to deliver consistent and high-quality beverages with every dispense.

Q: What are the dimensions and electrical specifications of the Bunn FMD-1 dispenser?
A: The dispenser measures 30 inches in height, 7.9 inches in width, and 21 inches in depth. It operates on 120 volts, consuming 1,800 watts and 15 amps, with a NEMA 5-15P plug included.

Q: How does the Bunn FMD-1 dispenser ensure beverage quality?
A: The dispenser's variable speed motor and specially designed mixing system allow for precise control over the beverage's consistency, ensuring each drink meets quality standards

Maintenance Tips

• Regular Cleaning: Clean the dispenser's exterior and interior components regularly using a soft cloth with mild, non-abrasive liquid detergent. Avoid abrasive cleaners to prevent surface damage.

• Hopper Maintenance: The large translucent hopper holds up to 8 lbs (3.6 kg) of product. Regularly inspect and clean the hopper to prevent clogs and ensure consistent product flow.

• Mixing System Care: The dispenser's specially designed mixing system ensures perfect beverages every time. Regularly inspect and clean the mixing chamber to prevent clogs and ensure consistent product flow.

• Whipper Maintenance: The improved automatic rinsing of the whipper reduces run-on after dispensing. Regularly inspect and clean the whipper to ensure optimal performance.

• Drip Tray and Legs: Adjustable legs and the drip tray allow up to a 7" (17.8 cm) opening for 20 oz cups. Regularly clean the drip tray and ensure the legs are properly adjusted for optimal operation.

• Water Quality: Use filtered or bottled water to minimize mineral deposits, which can affect performance and water quality.

• Electrical Safety: Ensure the dispenser is properly connected to a 120V, 15 amp electrical outlet with a NEMA 5-15P plug.

• Professional Servicing: For comprehensive maintenance, servicing, or if you encounter issues beyond routine cleaning, consult the Bunn FMD-1 Service Manual or contact Bunn's customer support for assistance.
