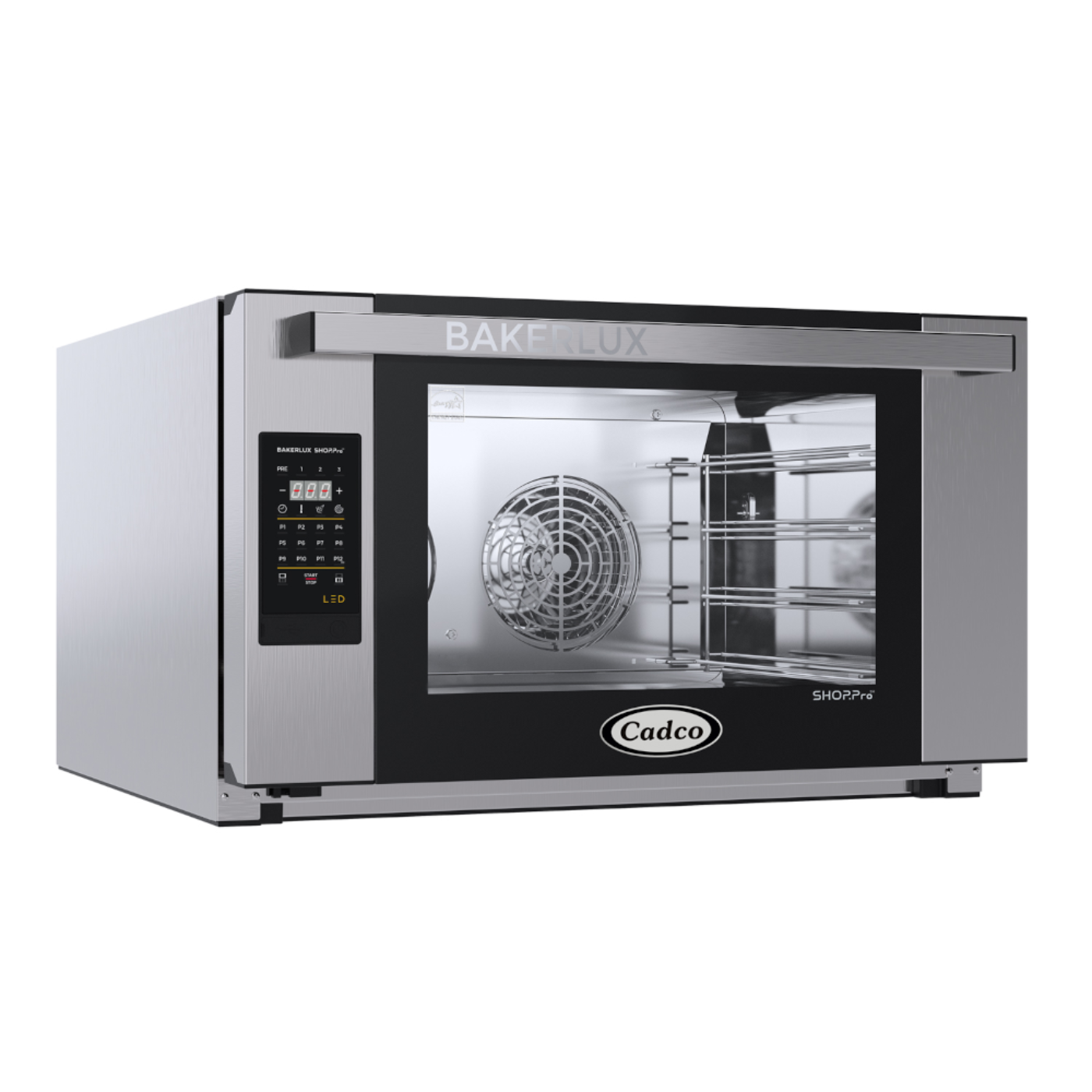

Cadco XAFT-04FS-TD Full-Size Bakerlux TOUCH Heavy-Duty Convection Oven - CDXAFT04FSTD

Cadco XAFT-04FS-TD Full-Size Bakerlux TOUCH Heavy-Duty Convection Oven - CDXAFT04FSTD

The Cadco XAFT-04FS-TD is a heavy-duty convection oven. It has advanced airflow technology that allows it to automatically reverse its fan for a more guaranteed even bake. Its cooking functions are programmable, including its time and temperature, and it offers USB programming for greater cooking flexibility. It has a temperature range of 175°-500° F, allowing operators to cook a variety of items. It comes with four wire shelves so more than one batch of the product can be baked at once.

The XAFT-04FS-TD has a heavy-duty construction. Its exterior is made of heavy-duty stainless steel and its door has a hinged design. It has an extra large motor as well to ensure the Convection Oven lasts for a long time.

It comes with several warranties (Please see "Specifications" below or call the factory for details) and is certified "Made in USA."

Features

• Advanced airflow design & automatically reversible fan for even baking
• USB programming capability
• 9 baking steps
• Digital programmable controls: Time, Temperature, Humidity
• Wi-fi
• Data driven cooking
• Heat settings from 175°-500° F
• Saves up to 99 programs including 12 “Quick Access” programs
• 4 wire shelves included
• Cooking chamber: 10-1/4” H x 19-1/4” W x 14” D (1.6 cu. ft.)
• 10 hour timer or continuous on
• Light flashes and unit beeps at end of cycle
• Heavy duty stainless steel construction
• Heavy duty door & hinge construction
• Extra large motor for long lasting use
• 2 fans; 2 fan speeds
• Interior LED light
• Auto shut off when door is opened
• Includes electro valve for direct plumbed water connection
• “Cool-touch” double wall glass door

Specifications

Video

What our Experts Think

• Capacity: Accommodates up to four full-size sheet pans on four wire shelves, each spaced 2-5/8 inches apart.

• Temperature Range: Adjustable from 175°F to 500°F, suitable for various cooking applications.

• Digital Touch Controls: Manages time, temperature, fan speed, and humidity settings with an intuitive interface.

• Programmable Settings: Stores up to 99 unique recipes, each with up to nine baking steps, facilitating consistent cooking results.

• Connectivity: Equipped with Wi-Fi and USB capabilities for importing and exporting recipes, enhancing operational efficiency.

• Fan System: Features two automatically reversible fans with dual-speed settings, ensuring even heat distribution.

• Humidity Control: Includes an electro valve for direct water connection, allowing precise humidity adjustments during cooking.

• Interior Lighting: LED lights illuminate the cooking chamber for easy monitoring without opening the door.

Q&A

Q: What are the dimensions and capacity of the XAFT-04FS-TD?
A: The oven's external dimensions are 31.5 inches in width, 19.63 inches in height, and 35.5 inches in depth. The cooking chamber measures 27.25 inches wide, 13.25 inches high, and 19 inches deep, providing a capacity of 4 cubic feet. It accommodates four full-size sheet pans (not included).

Q: What are the electrical specifications for this oven?
A: The XAFT-04FS-TD operates on 208-240 volts, consuming 7,600 watts at 32 amps. It is equipped with a NEMA 6-50P plug

Q: Is the XAFT-04FS-TD suitable for commercial use?
A: Yes, this oven is designed for heavy-duty commercial applications and is NSF and MET to UL & CSA standards certified, ensuring compliance with industry safety and sanitation requirements.

Q: What accessories are available for the XAFT-04FS-TD?
A: Optional accessories include

• Stands: Models OST-195-C and OST-195-CS provide sturdy support for the oven.

• Proofer: Model XAKPT-08FS-C for dough proofing needs.

• Stacking Kit: Model XWKQT-04EF-E allows for stacking multiple ovens to save space.

• Ventless Hood: Model XAKHT-HCFS enables operation without the need for external ventilation.

Q: What maintenance is recommended for the XAFT-04FS-TD?
A: Regular cleaning of the oven's interior and exterior surfaces is recommended. When using the humidity function, it's advisable to have a standard ice-machine filter installed to ensure water quality and prolong the lifespan of the oven's components.

Maintenance Tips

• Regular Cleaning:

• After each use, unplug the oven and allow it to cool completely.

• Wipe the stainless steel interior and exterior surfaces with a soft cloth and mild detergent; avoid abrasive cleaners to preserve the finish.

• Clean the four shelves with warm, soapy water; rinse and dry thoroughly before reinserting.

• Touchscreen Care:

• Gently wipe the digital touch control panel with a soft, damp cloth to remove fingerprints and smudges.

• Avoid using excessive moisture or harsh chemicals that could damage the interface.

• Ventilation:

• Ensure the oven is placed on a stable, heat-resistant surface with at least 3–4 inches of clearance around the oven and ventless system for proper external airflow.

• Humidity System Maintenance

• If utilizing the humidity function, ensure the water connection is secure and free from leaks.

• Using filtered water is highly recommended to prevent scale buildup within the system.
