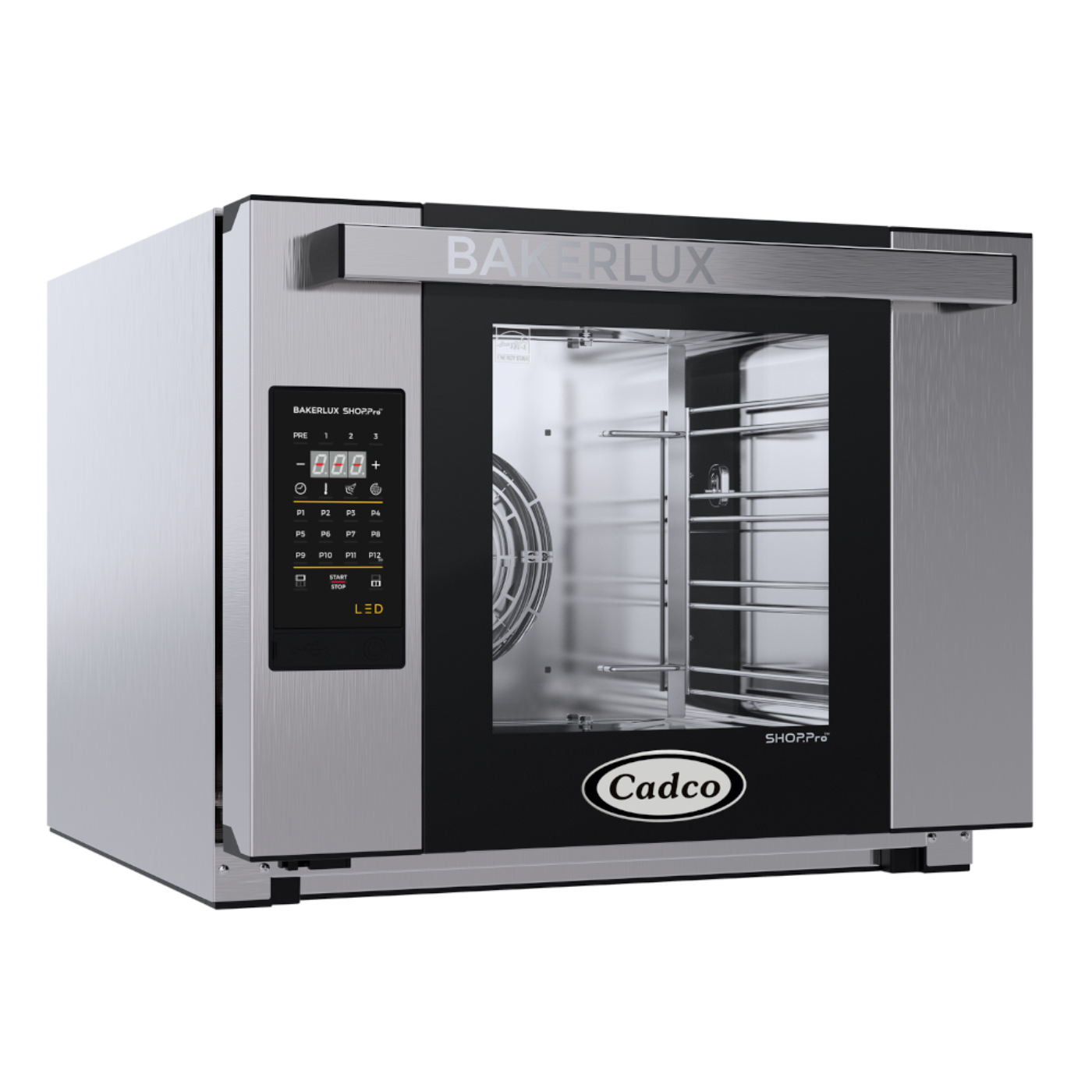

Cadco XAFT-04HS-LD Half-Size Bakerlux LED Heavy-Duty Convection Oven - CDXAFT04HSLD

Cadco XAFT-04HS-LD Half-Size Bakerlux LED Heavy-Duty Convection Oven - CDXAFT04HSLD

The Cadco XAFT-04HS-LD is a heavy-duty convection oven. It has advanced airflow technology that allows it to automatically reverse its fan for a more guaranteed even bake. Its cooking functions are programmable, including its time and temperature, and it offers USB programming for greater cooking flexibility. It has a temperature range of 175°-500° F, allowing operators to cook a variety of items. It comes with three wire shelves so more than one batch of the product can be baked at once.

The XAFT-04HS-LD has a heavy-duty construction. Its exterior is made of heavy-duty stainless steel and its door has a hinged design. It has an extra large motor as well to ensure the Convection Oven lasts for a long time.

It comes with several warranties (Please see "Specifications" below or call the factory for details) and is certified "Made in USA."

Video

Features

• Advanced airflow design & automatically reversible fan for even baking
• USB programming capability
• 3 baking steps
• Digital programmable controls: Time, Temperature
• Heat settings from 175°-500° F
• Saves up to 99 programs including 12 “Quick Access” programs
• 4 wire shelves included
• Cooking chamber: 10-1/4” H x 19-1/4” W x 14” D (1.6 cu. ft.)
• 10 hour timer or continuous on
• Light flashes and unit beeps at end of cycle
• Heavy duty stainless steel construction
• Heavy duty door & hinge construction
• Extra large motor for long lasting use
• 1 fan; 2 fan speeds
• 2-5/8” between shelves
• Interior LED light
• Auto shut off when door is opened
• “Cool-touch” double wall glass door

Specifications

What our Experts Think

• Advanced Digital Controls: Features programmable settings for time, temperature, and humidity, with storage for up to 99 programs, including 12 quick-access options, streamlining baking operations.

• Precise Temperature Range: Adjustable from 175°F to 500°F, accommodating a wide variety of baking requirements

• Efficient Airflow System: Equipped with an automatically reversible fan and two-speed settings, ensuring even heat distribution for consistent baking results.

• User-Friendly Design: Comes with four wire shelves with 2.625" spacing, accommodating up to four half-size sheet pans (sold separately), and includes an electro valve for direct water connection.

Q&A

Q: What are the dimensions and weight of the XAFT-04HS-LD?

• Unit Dimensions: 23 5/8" (W) x 19 5/8" (H) x 29" (D).

• Cavity Size: 19 1/4" (W) x 13 1/4" (H) x 14" (D), providing a capacity of 2.1 cubic feet.

• Shipping Weight: Approximately 139 lbs, including the shipping skid.

Q: What are the electrical specifications for this oven?
The XAFT-04HS-LD operates on 208-240V/60Hz/1-phase power, consuming 3,800 watts at 16 amps. It comes equipped with a NEMA 6-20P plug for standard outlets

Q: What safety certifications does the XAFT-04HS-LD hold?
The oven is NSF certified, cMETus listed, and ENERGY STAR® rated, ensuring compliance with recognized safety and energy efficiency standards.

Q: Is the XAFT-04HS-LD suitable for commercial use?
Yes, its durable construction and advanced features make it ideal for commercial kitchens, bakeries, and other foodservice establishments.

Q: What accessories are included with the XAFT-04HS-LD?
The oven includes four wire shelves with 2 5/8" spacing. Half-size sheet pans are not included and must be purchased separately

Q: How should the XAFT-04HS-LD be maintained?
Regularly clean the oven interior and exterior with mild detergents and avoid abrasive cleaners. Ensure the fan is free from obstructions to maintain optimal airflow. Always unplug the oven before performing maintenance or cleaning.

Maintenance Tips

• Regular Cleaning

• After each use, unplug the oven and allow it to cool completely.

• Wipe the stainless steel interior and exterior surfaces with a soft cloth and mild detergent; avoid abrasive cleaners to preserve the finish.

• Clean the four wire shelves with warm, soapy water; rinse and dry thoroughly before reinserting.

• Fan and Airflow Maintenance

• Ensure the fan and air intake areas are free from obstructions to maintain optimal airflow.

• The oven features an automatically reversible fan with two speeds; regular inspection ensures even baking performance.
