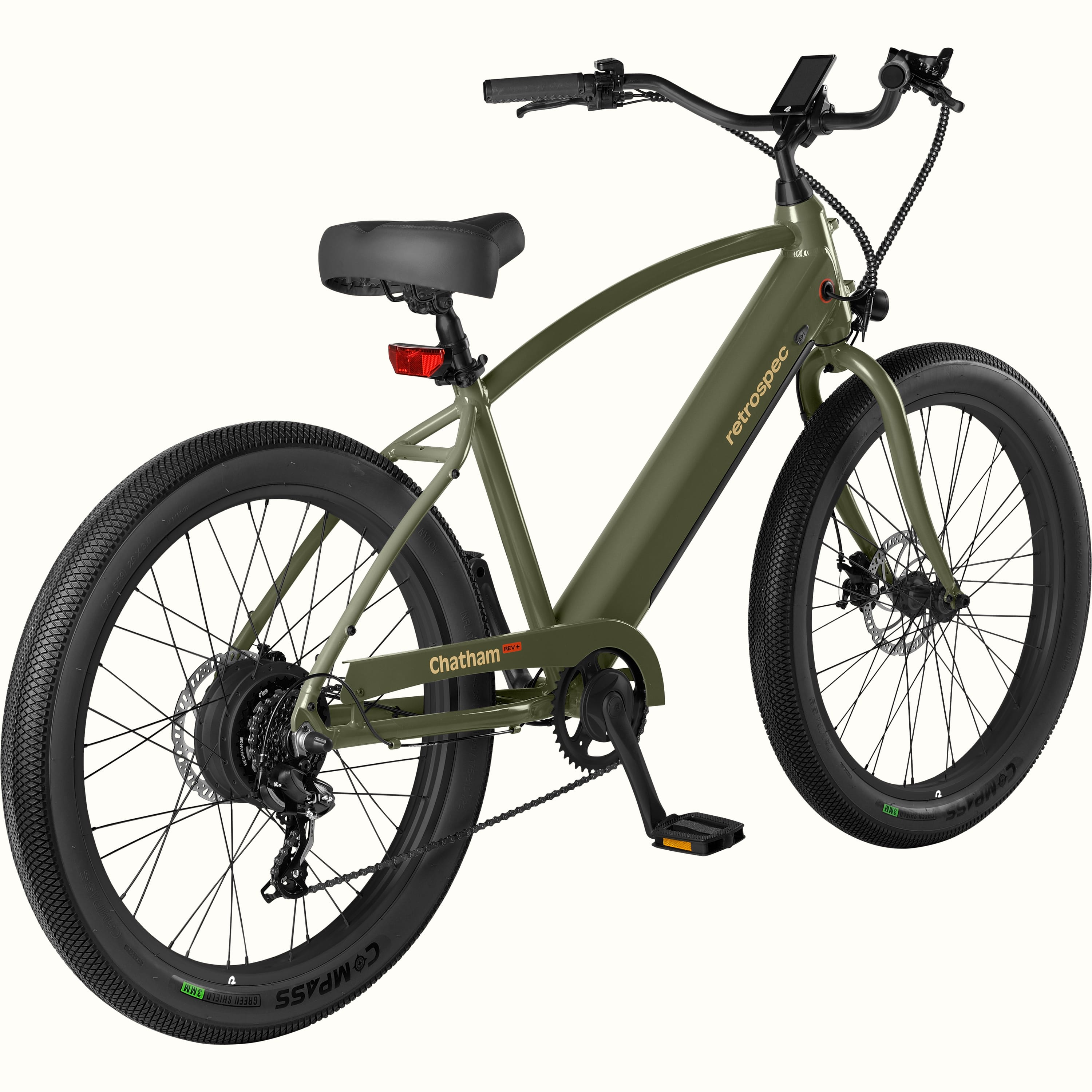

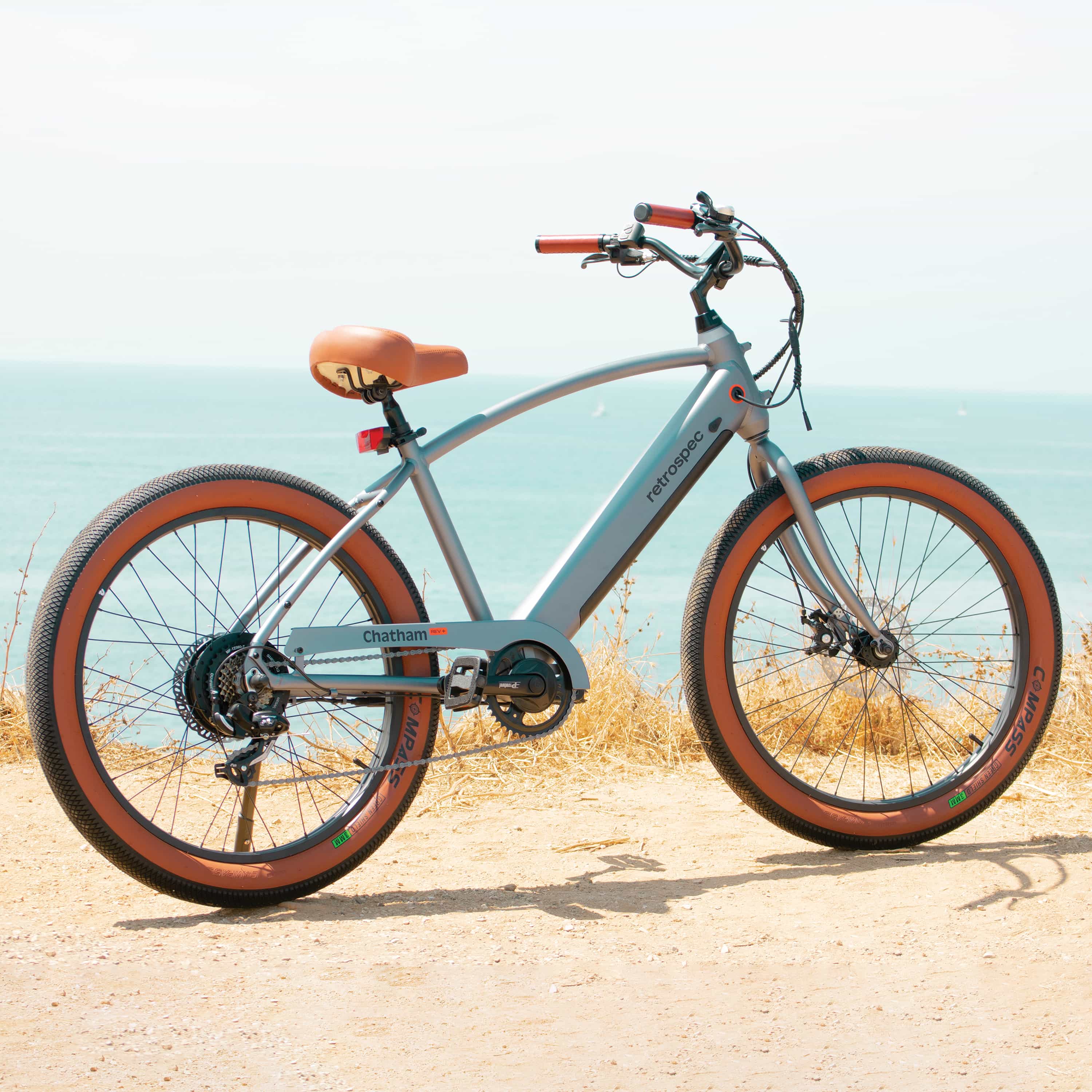

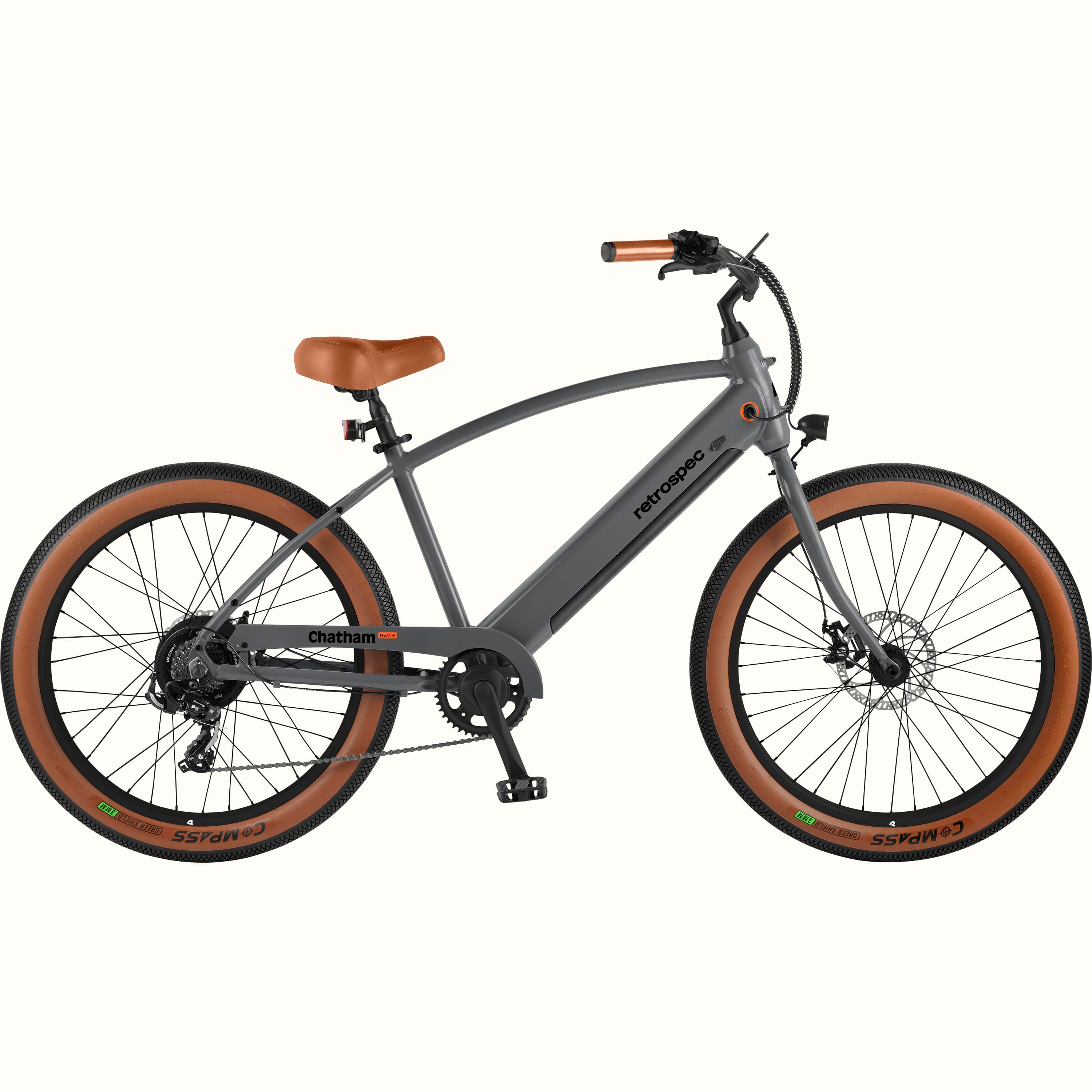

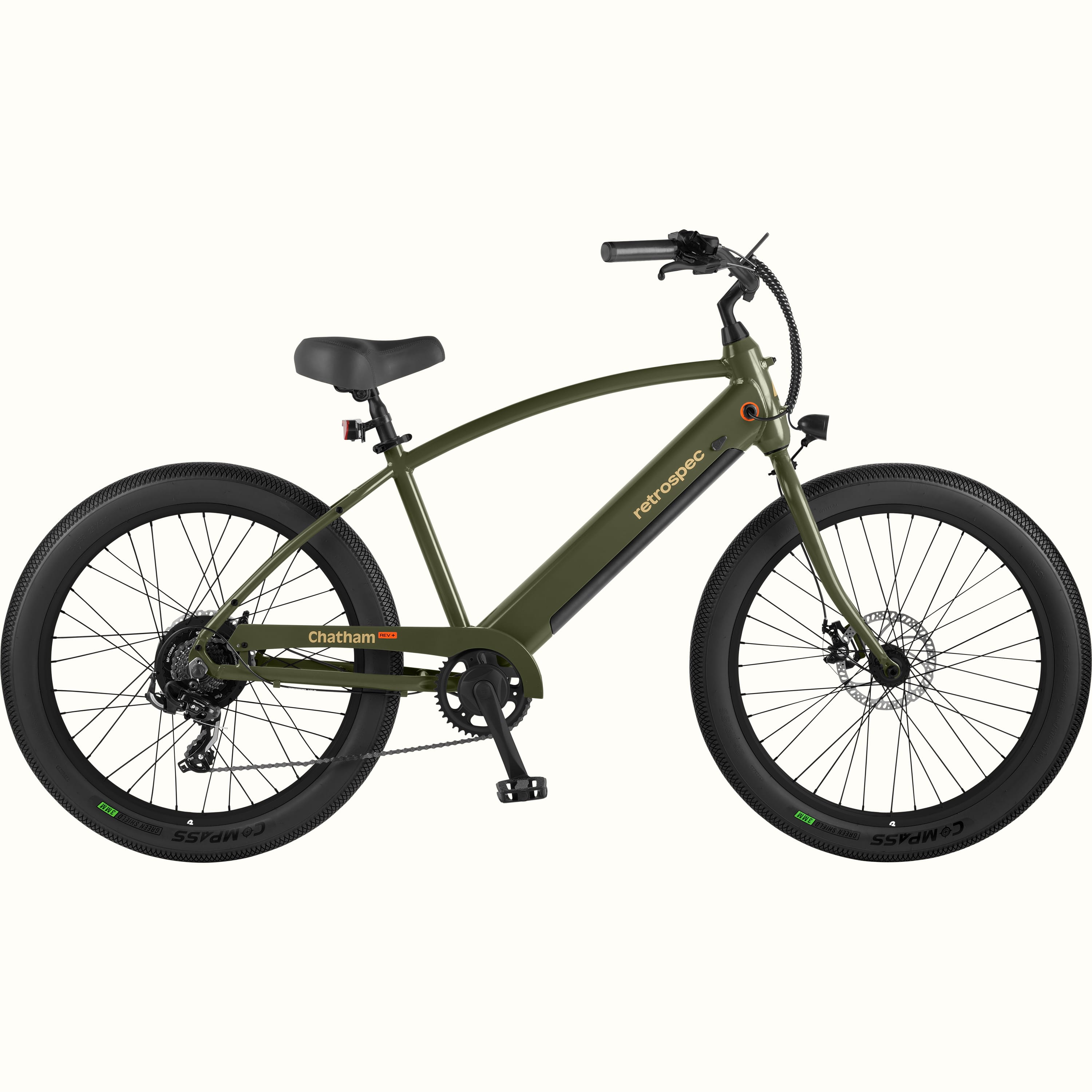

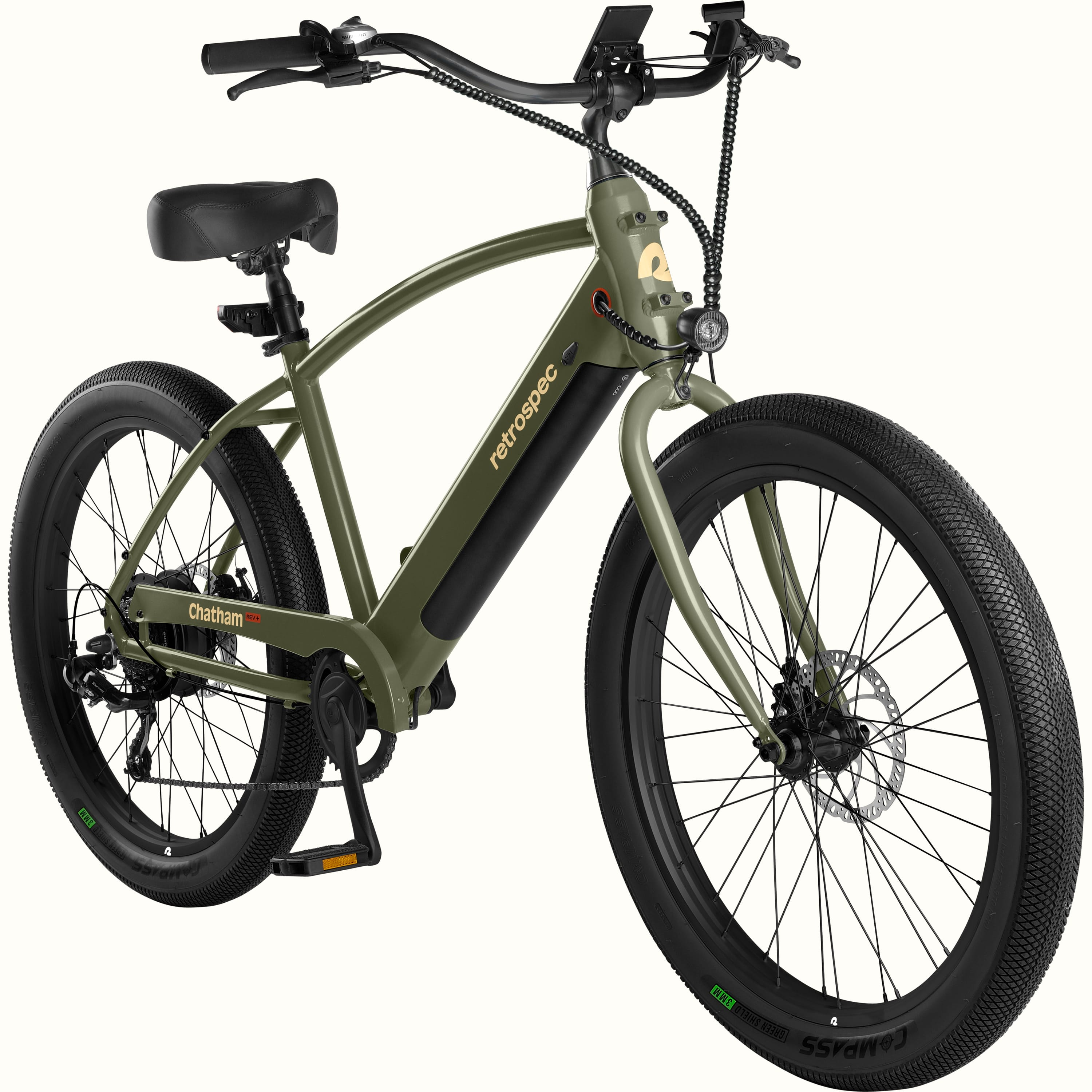

Chatham Rev+ Beach Cruiser Electric Bike

• Sizes: 18" Step Over;

• Material: Alloy, 6061

• Dropouts: 1x rear fender eyelets, rear rack mounts,

• Replaceable Der Hanger: Yes

• Fork: Steel

DriveTrain

• Derailleur - Rear: Shimano Tourney 7 speed

• Shifter: Shimano Tourney 7 speed
• Crankset: 42T alloy
• Chain: KMC Z7

• BB: JIS square taper cartridge

• Freewheel/Cog: Shimano 14-34T



Wheelset

• Rims: Alloy 36H for disc brake

• Hubs: Alloy bolt on 17mm nut

• Spokes: 13G/2.3mm w/brass nipples

• Tires: 26 x 3.0, with puncture protection



Components

• Headset: Threadless, 1 1/8"

• Brakes: Tektro mechanical with 180mm rotors and semi-metalic pads
• Handlebars: Alloy cruiser

• Grips: Comfort with alloy lock rings

• Stem: Allpy quil

• Saddle: Comfort Cruiser

• Seatpost: Alloy; 25.4mm x 350mm

• Seatpost Clamp: Alloy QR

• Pedals: PP platform 9/16"



Extras

• Kickstand: Rear mount, adjustable, aluminum alloy

• Lights:Integrated/system operated front light w/ battery operated rear light

• Fenders: Full coverage

• Tools: 2/3/4/5/6mm hex wrench; 8/10/15/17mm open wrench; 13g spoke wrench


• Weight -Max Rider: 350lbs / 158kgs not including bike weight

• Class: Class 2: pedal-assist and/or throttle-assisted, 20 mph max.

• E-Power System


• Motor: 500W geared

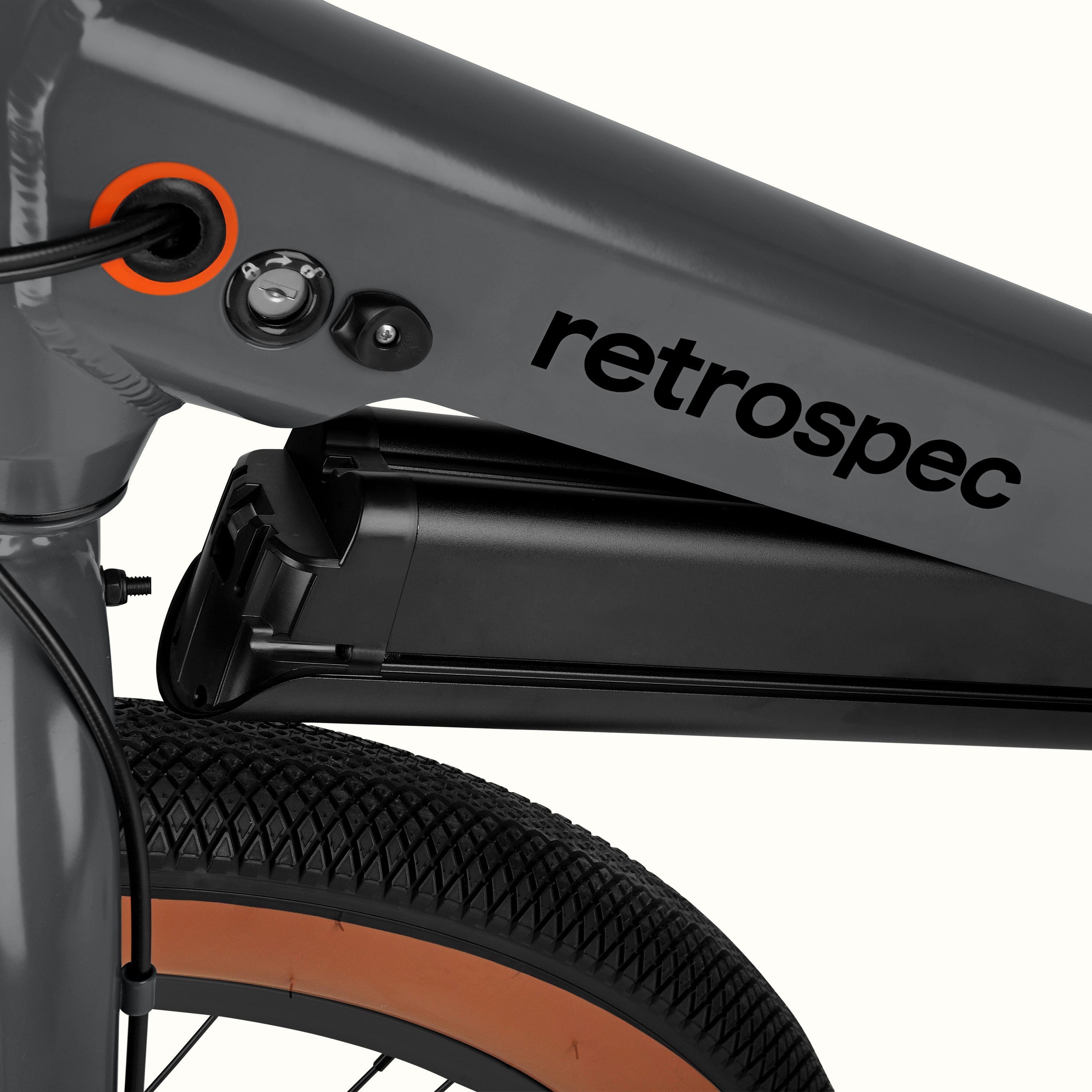

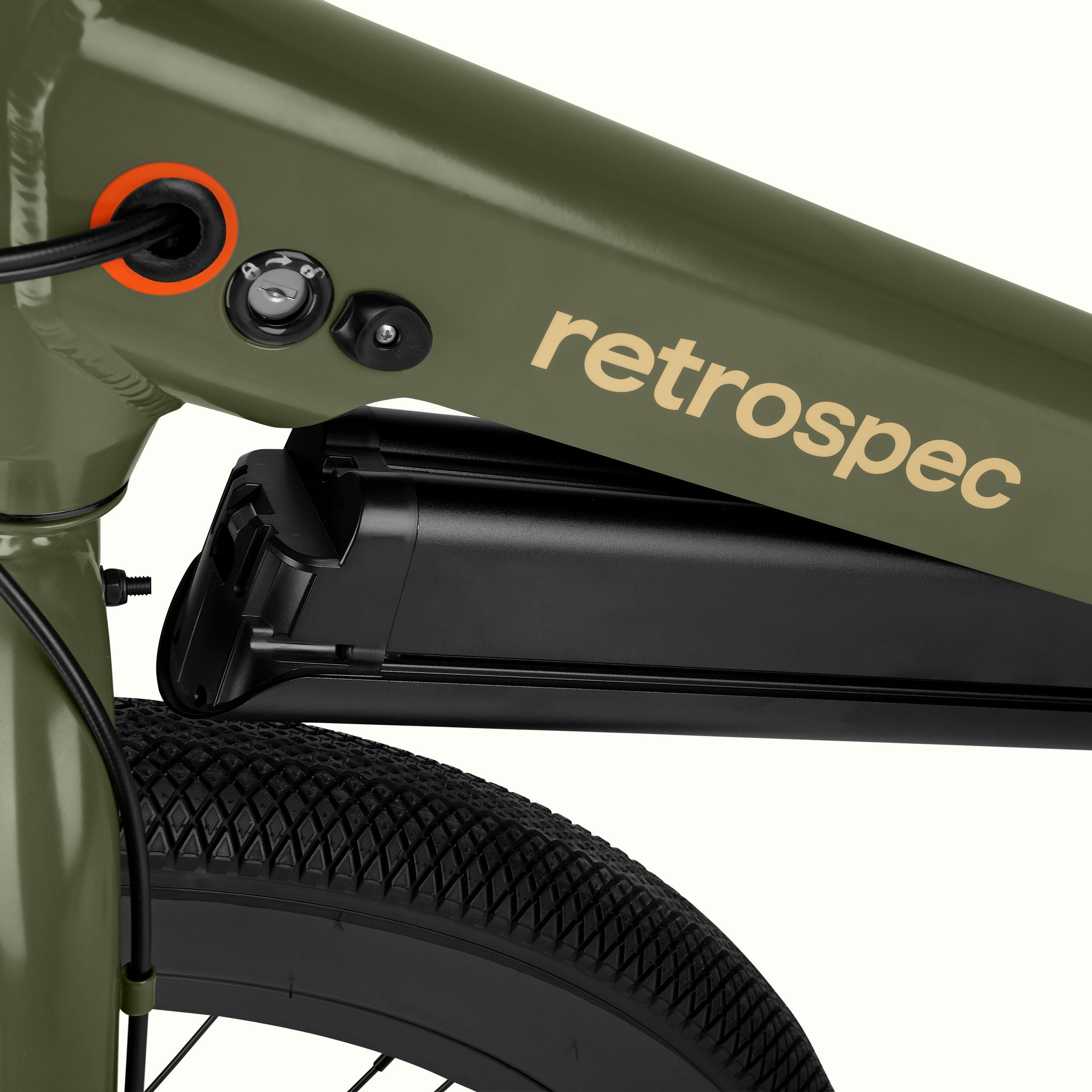

• Battery: 48V 500Wh

• Modes: PAS/Thumb throttle Left side , cadence sensor

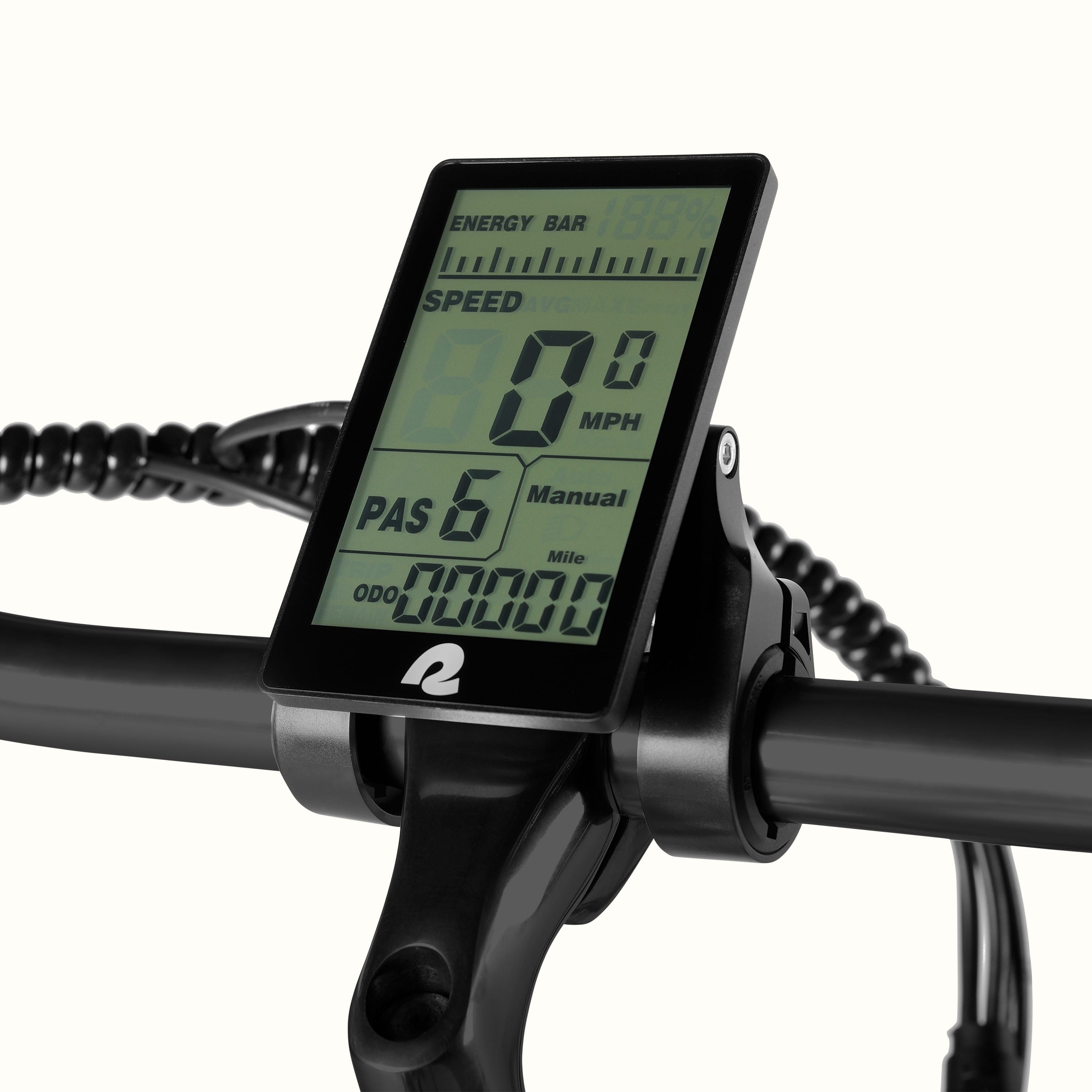

• Display: B&W LCD center mount display with 6 levels of asist, anytime throttle and walk mode.

• Controller: Retrospec 22Amp
• Charge Time: Approximately 5-6hrs
• Watt Hours: 500Wh
• Range: 360Wh: 52+ Miles
