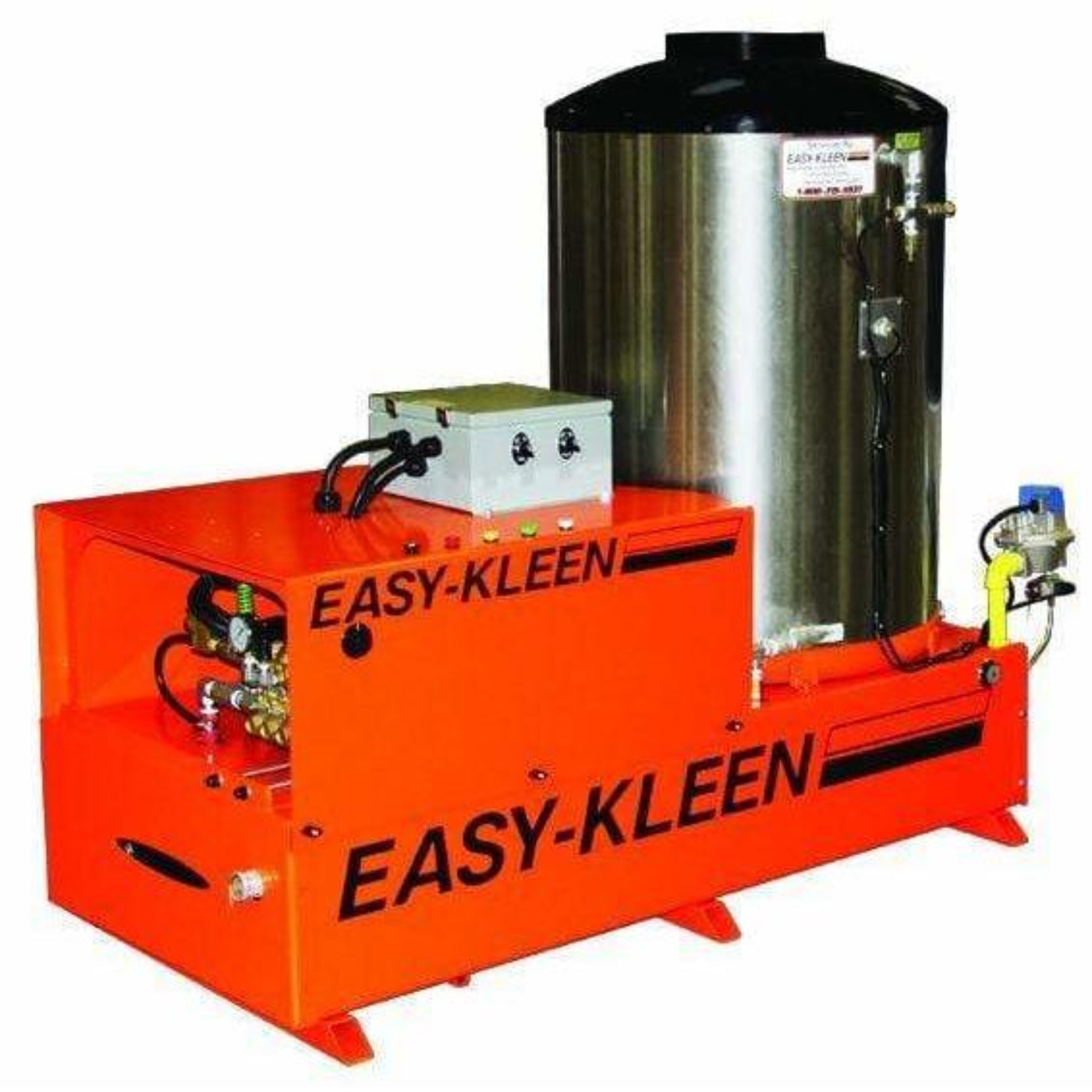

Easy-Kleen Industrial (Natural Gas - Hot Water) Pressure Washer, Stationary, 3000 PSI, (208V 3-Phase) - EZN3010-3-208-A

Easy-Kleen Industrial (Natural Gas - Hot Water) Pressure Washer, Stationary, 3000 PSI, (208V 3-Phase) - EZN3010-3-208-A

20-HP Techtop Electric-Powered Pressure Washer With Natural Gas-Fueled Water Heater

• Requires 208 volt, 3-phase power

Quick Kleen 940,000 BTU Burner System (Must Be Vented Properly If Used Indoors)

• Belt-driven pump provides smooth power transfer & performance
• Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO
• Adjustable thermostat for efficiency, dependability & serviceability

NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents

• Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow

Tip-Ahead Shroud With Integrated Belt Guard

• Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access

20-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor

• High efficiency motor equipped with 1.25 service factor to meet demand

General Pump Triplex Plunger Pump With Auto-Stop

• Produces up to 10 GPM at 3000 PSI; high volume gets big jobs done faster

Belt Drive With Torsion Bar Spring-Loaded Belt Tensioner

• Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud

Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame

• Powder-coated finish helps protect against rust & corrosion

Also Included:

• Gun & wand assembly, 50 feet of high pressure hose, high pressure chemical injection, 5 nozzles & poly float tank

Specifications

Manuals

Spec Sheet

What our Experts Think

• High-Performance Cleaning: Delivers 3000 PSI at 10 GPM, providing robust cleaning power for demanding industrial applications.

• Efficient Heating System: Equipped with a Quick Kleen 940,000 BTU burner system, utilizing natural gas to heat water effectively, ensuring optimal cleaning temperatures.

• Durable Construction: Built with a rugged 11-gauge and 1/4” bent one-piece plate steel frame, fully welded with a powder coat finish, ensuring longevity and resistance to harsh environments.

• Reliable Power Source: Powered by a 20 HP continuous duty Techtop electric motor, operating on 208V 3-phase power, offering consistent performance.

• User-Friendly Features: Includes a slide-out tray for easy maintenance, adjustable thermostat for temperature control, and six oxygen orifice inlets to maximize combustion efficiency and minimize CO emissions.

• Comprehensive Package: Comes with a gun and wand assembly, 50 feet of high-pressure hose, high-pressure chemical injection, five nozzles, and poly float tanks, providing all necessary components for effective cleaning.

Q&A

Q: What is the Easy-Kleen EZN3010-3-208-A?
A: The EZN3010-3-208-A is a stationary, industrial-grade hot water pressure washer delivering 3000 PSI at 10 GPM. It operates on a 208V 3-phase electric motor and uses natural gas for heating.

Q: What motor powers the EZN3010-3-208-A?
A: It features a 20 HP Techtop continuous-duty electric motor, providing reliable and efficient power for demanding cleaning tasks.

Q: How does it heat the water?
A: The washer includes a Quick Kleen 940,000 BTU natural gas burner system, capable of achieving a significant temperature rise over ambient, enhancing cleaning effectiveness.

Q: What type of pump is used?
A: It is equipped with a belt-driven pump that ensures smooth power transfer and consistent performance during operation.

Q: What are the key features of the EZN3010-3-208-A?
A: The unit includes an adjustable thermostat for temperature control, a slide-out tray for easy maintenance, and quick-adjust air flow vents to optimize burner efficiency.

Q: What accessories are included?
A: The washer comes with a gun and wand assembly, 50 feet of high-pressure hose, high-pressure chemical injection, and five nozzles for versatile cleaning applications.

Q: What is the frame construction?
A: The EZN3010-3-208-A features a rugged 11-gauge steel frame with a powder coat finish, equipped with a tip-ahead shroud and integrated belt guard for durability and serviceability.

Q: What are the dimensions and weight?
A: The unit measures approximately 56 inches in length, 31 inches in width, and 48 inches in height, with a weight of around 1,000 pounds.

Q: What warranty does it come with?
A: The EZN3010-3-208-A includes a 90-day commercial warranty, covering both the motor and pump components.

Q: Where can I purchase the EZN3010-3-208-A?
A: The Easy-Kleen EZN3010-3-208-A is available for purchase through authorized dealers and distributors. It's advisable to contact local suppliers for pricing and availability.

Maintenance Tips

Daily Maintenance:

• Inspect hoses and connections for wear, cracks, or leaks to prevent downtime and ensure safety.

• Clean the filters and water inlet screen after every use to maintain water flow and prevent blockages.

• Check oil levels in the pump and engine regularly, topping up or replacing oil as needed.

• Examine the nozzle for blockages, cleaning it with a needle or wire brush if necessary.

• Store the unit in a dry, sheltered area to prevent rusting and damage to electrical components.

Weekly Maintenance:

• Service the burner and heat exchangers to maintain hot water efficiency.

• Inspect the engine and pressure washer periodically for loose bolts or signs of wear, tightening or replacing parts as necessary.
