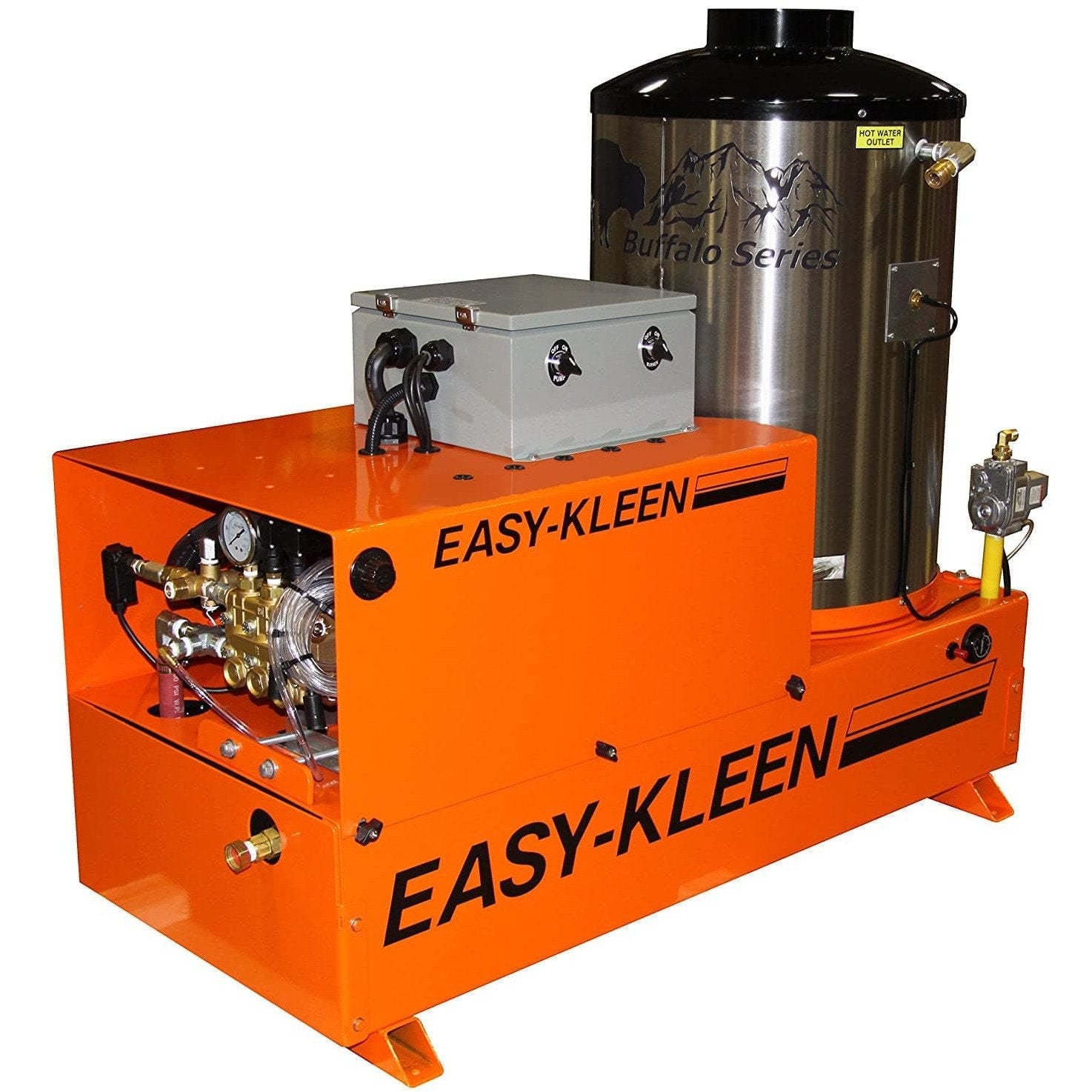

Easy-Kleen Industrial (Propane - Hot Water) Pressure Washer, Stationary, 3000 PSI, (208V 3-Phase) - EZP3010-3-208-A

20-HP Techtop Electric-Powered Pressure Washer With Propane-Fueled Water Heater

• Requires 208 volt, 3-phase power

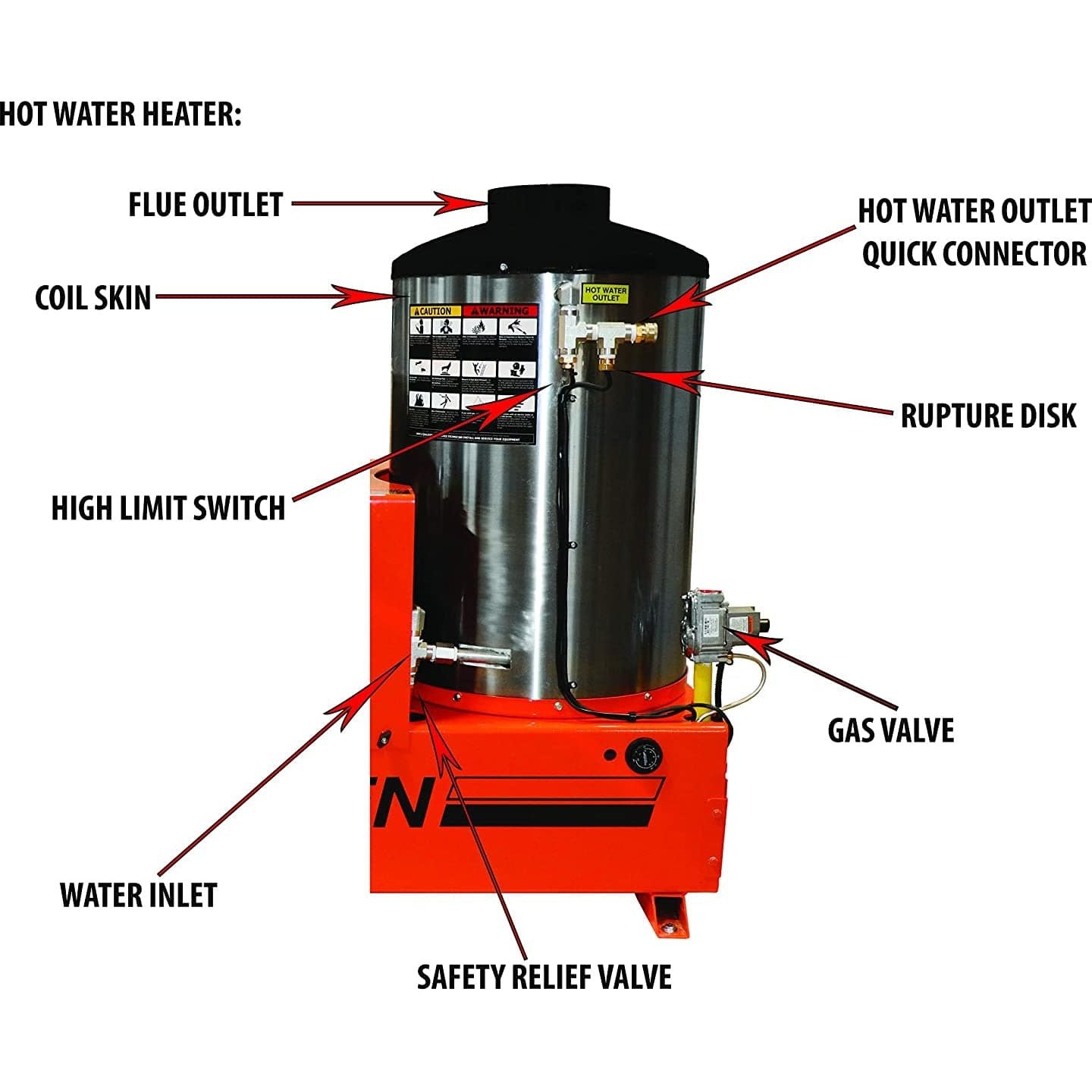

Quick Kleen 940,000 BTU Burner System (Must Be Vented Properly If Used Indoors)

• Belt-driven pump provides smooth power transfer & performance
• Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO
• Adjustable thermostat for efficiency, dependability & serviceability

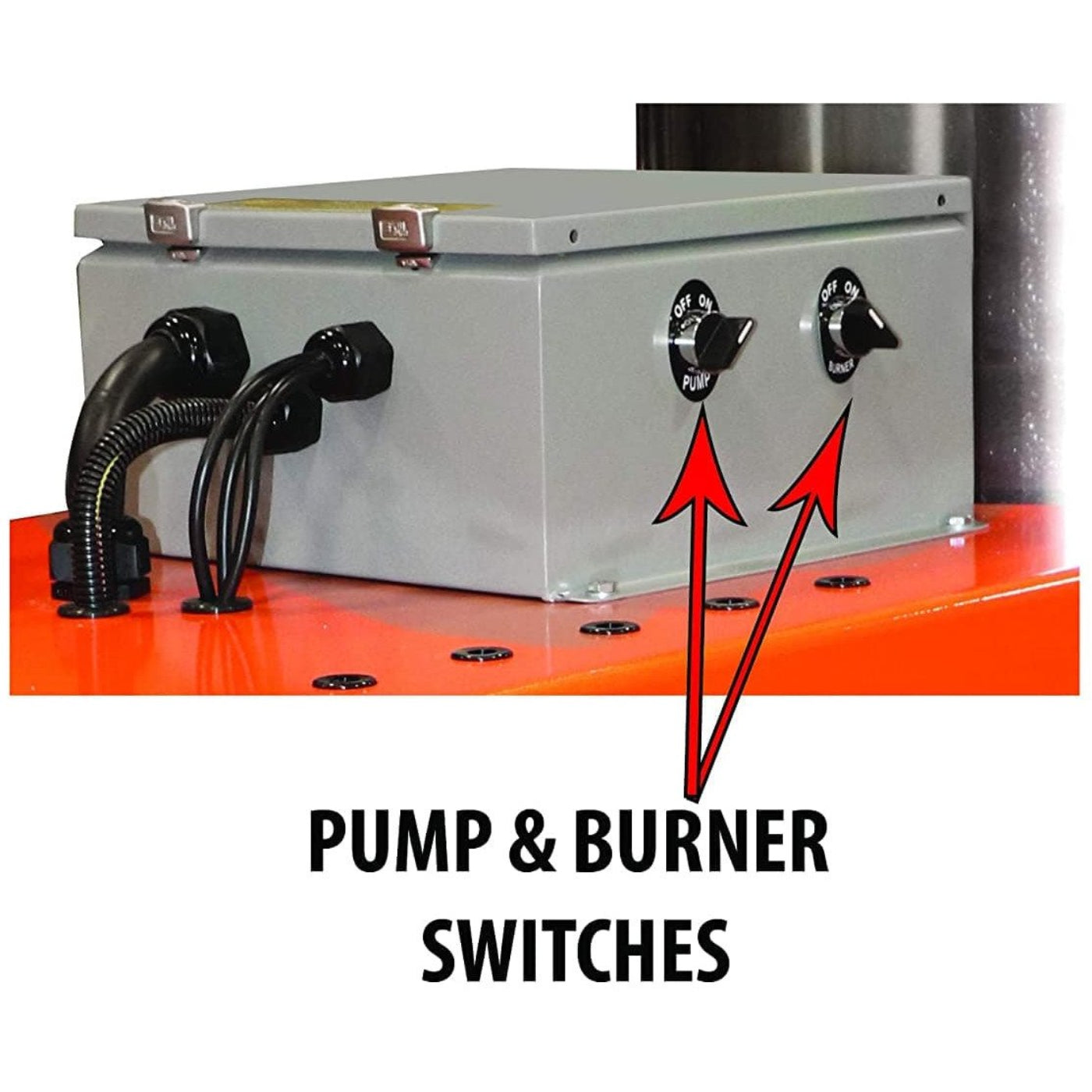

NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents

• Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow

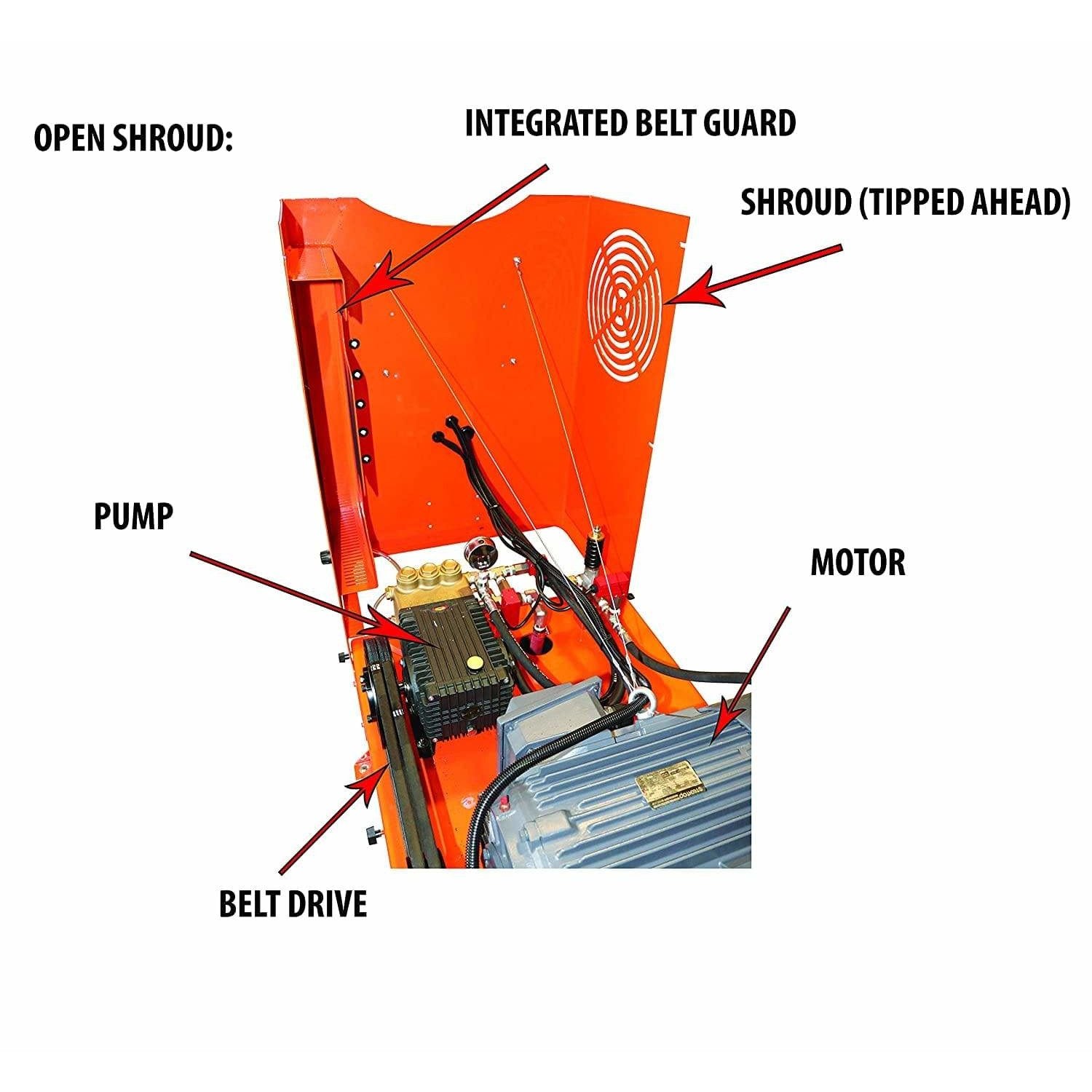

Tip-Ahead Shroud With Integrated Belt Guard

• Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access

20-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor

• High efficiency motor equipped with 1.25 service factor to meet demand

General Pump Triplex Plunger Pump With Auto-Stop

• Produces up to 10 GPM at 3000 PSI; high volume gets big jobs done faster

Belt Drive With Torsion Bar Spring-Loaded Belt Tensioner

• Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud

Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame

• Powder-coated finish helps protect against rust & corrosion

Also Included:

• Gun & wand assembly, 50 feet of high pressure hose, high pressure chemical injection, 5 nozzles & poly float tank

Specifications

Manuals

Spec Sheet

What our Experts Think

• High-Performance Cleaning Power
  Delivers 3000 PSI at 10.0 GPM, ideal for heavy-duty cleaning tasks in industries such as municipal maintenance, mining, oil fields, and construction.

• Reliable Electric Motor
  Powered by a 20 HP Techtop electric motor with a 1.25 service factor, ensuring consistent performance and durability in demanding environments.

• Efficient Propane-Fired Heating System
  Equipped with a Quick Kleen 940,000 BTU propane burner, providing efficient hot water cleaning by heating water up to 200°F. Note: Proper ventilation is required if used indoors.

• Durable Construction
  Built with a rugged 11-gauge and 1/4" steel frame, fully welded with a powder coat finish, designed to withstand harsh conditions and ensure long-term durability.

• User-Friendly Design
  Features a slide-out tray for easy maintenance, adjustable thermostat for temperature control, and NEMA 4 water-tight control panel for protection against the elements.

• Comprehensive Accessories
  Includes a gun and wand assembly, 50 feet of high-pressure hose, high-pressure chemical injection, and 5 nozzles, providing all the essential tools for efficient, thorough cleaning.

Q&A

Q: What are the pressure and flow specifications?
A: It delivers 3000 PSI at 10 GPM, providing 30,000 cleaning units for heavy-duty industrial cleaning.

Q: What motor does it use?
A: The unit is powered by a 20 HP Techtop electric motor, running on 208V 3-phase power.

Q: How is the water heated?
A: It features a propane-fired burner system, delivering 940,000 BTUs for effective hot water cleaning.

Q: What is the frame construction?
A: The unit has a robust 11-gauge and 1/4" steel frame, fully welded with a powder coat finish for durability.

Q: What accessories are included?
A: It comes with a gun and wand assembly, 50 feet of high-pressure hose, chemical injection system, five nozzles, and poly float tanks.

Q: What fuel system is used?
A: The pressure washer operates on propane and requires proper ventilation if used indoors for safety.

Maintenance Tips

• Motor Maintenance (208V 3-Phase Electric Motor):

• Inspect the electric motor regularly for dust or debris buildup; clean it to ensure proper ventilation.

• Check electrical connections for signs of wear, corrosion, or looseness. Tighten any loose connections.

• Lubricate the motor bearings periodically, following the manufacturer's recommendations.

• Listen for unusual noises or signs of overheating in the motor, and address any issues immediately.

• Pump Care:

• Always use clean water to prevent debris from damaging the pump.

• Never operate the washer without water flowing through the system, as this can cause pump failure.

• Change the pump oil every 500 hours or as specified in the manual.

• Inspect the pump regularly for leaks, worn seals, or other damage, and replace any faulty components promptly.
