EDWARDS Oversize Punch Assembly For 100 Ton Deluxe & 120 Ton Ironworkers - AC1026

EDWARDS Oversize Punch Assembly For 100 Ton Deluxe & 120 Ton Ironworkers -  AC1026

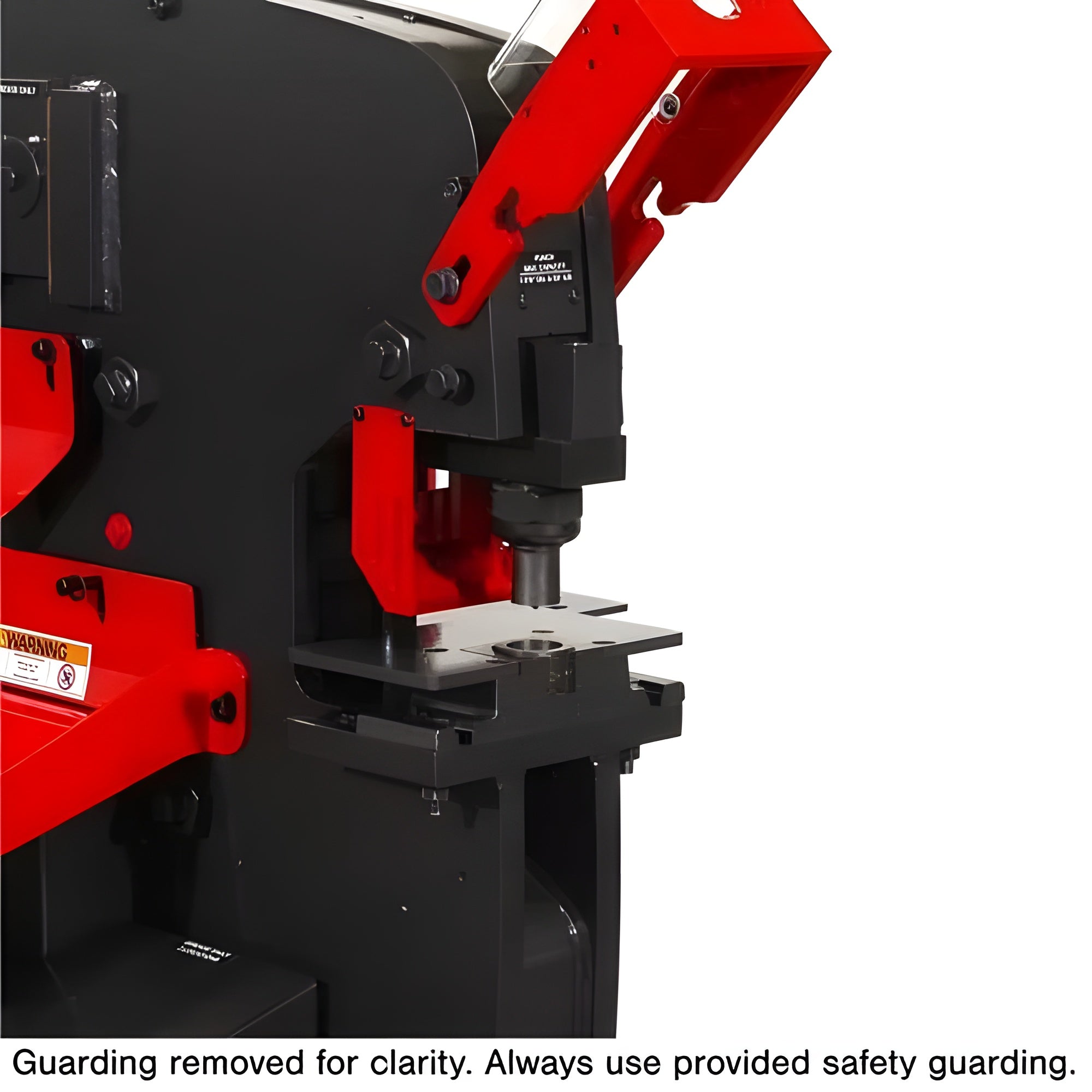

The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16". Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.

Features

• Fits Edwards 100 Ton Deluxe and 120 Ton Ironworkers.
• Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.
• Requires Oversize Punch & Die sets (contact Edwards for pricing and availability).
• The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16".

What Our Experts Think

• Heavy-Duty Performance – Specifically designed for 100 Ton Deluxe & 120 Ton Edwards Ironworkers, delivering superior punching power for oversized applications.
• Expanded Punching Capacity – Accommodates larger punch sizes, increasing versatility for demanding fabrication jobs.
• Built to Last – Constructed from high-strength materials for durability and long-term reliability in industrial settings.
• Seamless Integration – Designed for easy installation on compatible Edwards Ironworkers, minimizing downtime.
• Maximize Efficiency – An essential upgrade for shops needing greater punching capability without investing in a new machine.

Q&A

Q: What is the EDWARDS Oversize Punch Assembly used for?
A: It expands the punching capacity of 100 Ton Deluxe and 120 Ton EDWARDS Ironworkers for larger hole sizes.

Q: Which ironworker models is it compatible with?
A: Designed for EDWARDS 100 Ton Deluxe and 120 Ton Ironworkers.

Q: What hole sizes does it support?
A: It accommodates oversized hole punching beyond standard capacities.

Q: Is installation easy?
A: Yes, it’s a direct-fit upgrade for seamless integration.

Q: Does it include punches and dies?
A: No, punches and dies must be purchased separately.

Q: Why choose this assembly?
A: It enhances versatility, precision, and efficiency for heavy-duty metal fabrication.

Maintenance Tips

• Clean After Each Use – Remove metal debris to maintain precision.
• Inspect Punch & Die – Check for dull edges, cracks, or alignment issues.
• Lubricate Moving Parts – Apply oil to reduce friction and wear.
• Tighten Bolts & Fasteners – Ensure all components are securely in place.
• Store in a Dry Area – Use rust inhibitors to prevent corrosion.
