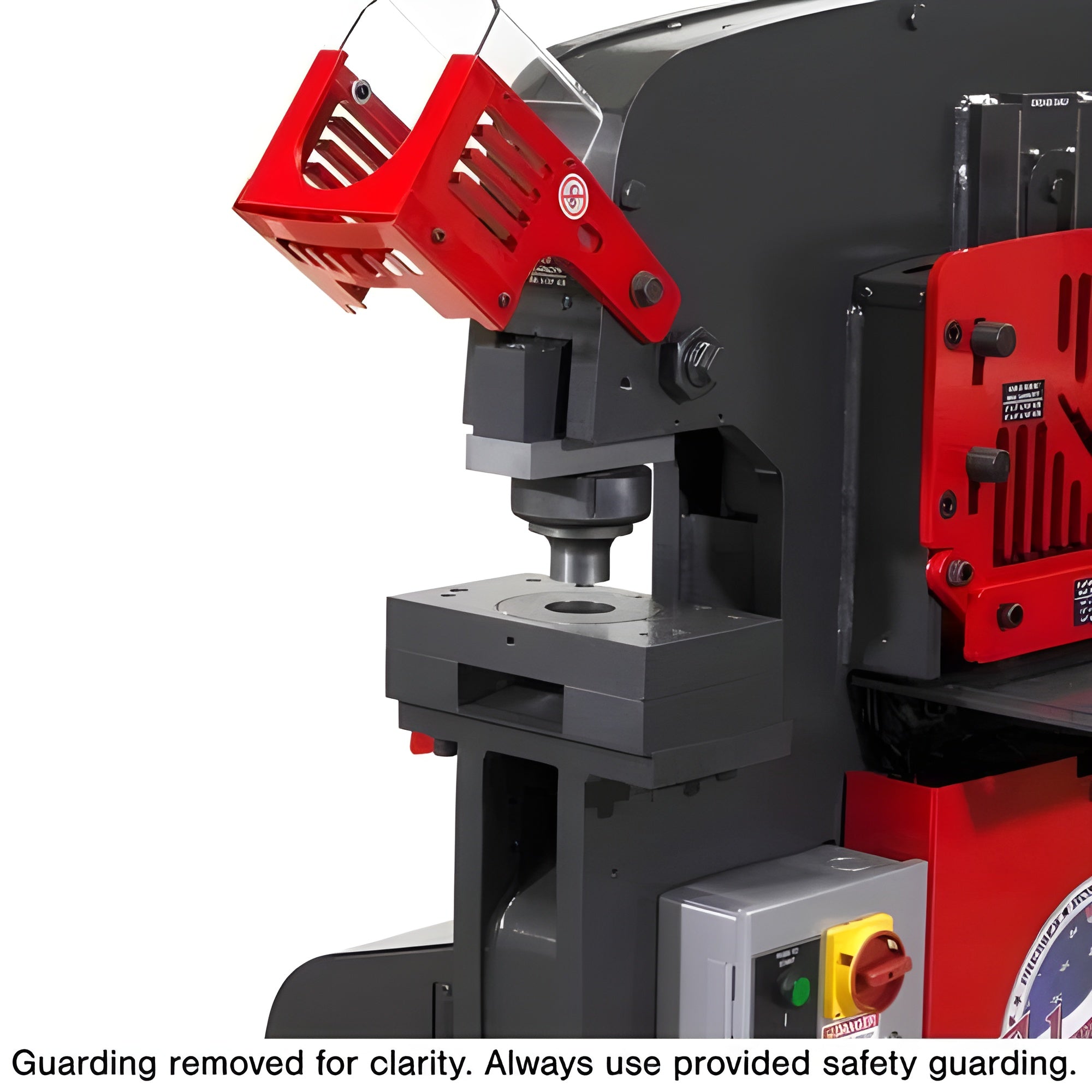

EDWARDS Standard Punch Assembly For 100 Ton Deluxe & 120 Ton Ironworkers (2013 & Older) - AC1023-S

EDWARDS Standard Punch Assembly For 100 Ton Deluxe & 120 Ton Ironworkers (2013 & Older) - AC1023-S

Accommodates punch & dies sets from 1/8" to 1-1/16" diameter. The design allows for punching larger angle iron leg down. Can be used as a secondary Punch Workstation on any Edwards Ironworker with an Open Workstation.

Features

• Accommodates punch and dies sets from 1/8" to 1-1/16" diameter.
• Can be used as a secondary Punch Workstation on any Edwards Ironworker with an Open Workstation.
• Design allows for punching larger angle iron leg down.
• Fits all Edwards Ironworkers.
• Fits all Edwards Ironworkers from 40-100 Tons.

What Our Experts Think

• Designed for Heavy-Duty Use – Engineered for 100 Ton Deluxe & 120 Ton Edwards Ironworkers (2013 & older) to handle demanding punching tasks with precision.
• Standard Yet Powerful – Delivers reliable, consistent punching performance for a variety of fabrication needs.
• High-Quality Construction – Built with durable materials to ensure longevity and withstand industrial workloads.
• Seamless Compatibility – Easily integrates with Edwards Ironworkers, providing a hassle-free installation and minimal downtime.
• Essential for Productivity – A must-have replacement or upgrade to keep your ironworker operating at peak performance.

Q&A

Q: What is the EDWARDS Standard Punch Assembly used for?
A: It enables precise hole punching on 100 Ton Deluxe and 120 Ton EDWARDS Ironworkers (2013 & older).

Q: Which ironworker models are compatible?
A: Designed for EDWARDS 100 Ton Deluxe and 120 Ton Ironworkers manufactured in 2013 or earlier.

Q: What hole sizes does it support?
A: It handles standard punch sizes for heavy-duty metal fabrication.

Q: Is installation straightforward?
A: Yes, it’s a direct-fit assembly for seamless integration.

Q: Does it come with dies and punches?
A: No, punches and dies are sold separately.

Q: Why choose this assembly?
A: It ensures precision, durability, and efficiency in high-capacity punching applications.

Maintenance Tips

• Clean After Use – Remove metal shavings and debris to prevent wear.
• Inspect Punch & Die – Check for dull edges, cracks, or misalignment.
• Lubricate Moving Parts – Apply oil to reduce friction and extend lifespan.
• Tighten Fasteners – Ensure all bolts and screws are properly secured.
• Store in Dry Conditions – Use rust inhibitors to prevent corrosion.
