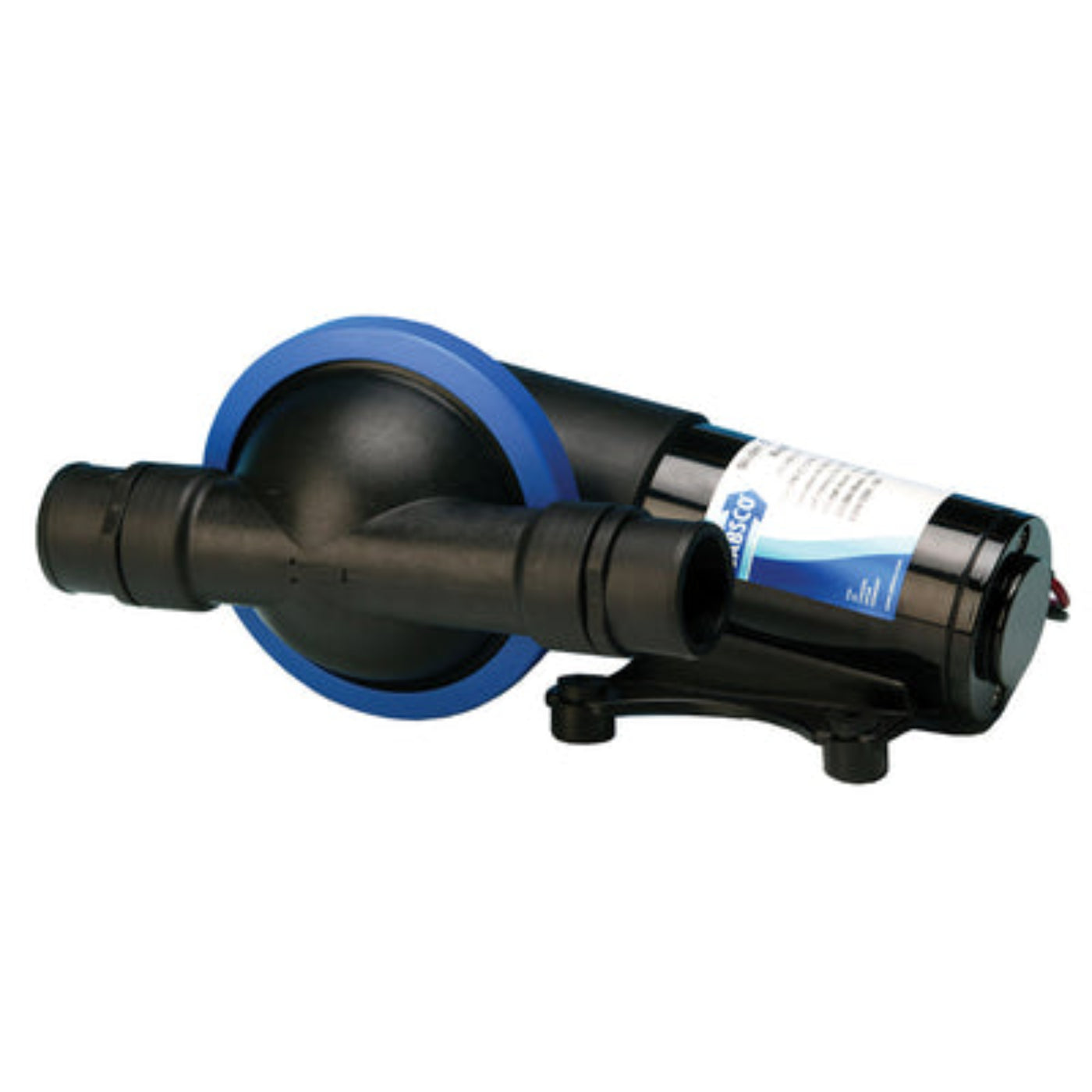

Jabsco Filterless Waste Pump w/Single Diaphragm - 24V - ‎50890-1100

Jabsco Filterless Waste Pump w/Single Diaphragm - 24V  -  ‎50890-1100

Filterless Waste Pump with Single Diaphragm - 24V

Features

• Connections: - for 38mm (1½”) bore hose
• Dimensions: - 278mm long, 161mm wide, 132mm high
• Fuse Size: - 5 (amp)
• Maximum Current: - 2.5(amps)
• Output: - up to 19 liters/minute (4.2 gallons/minute). Max 4m discharge head
• Handles sink, shower and black waste
• 1½” ports for good solids handling ability
• Self-priming up to 3m (9.5ft) vertical lift
• Multi-positional ports for easy mounting
• Rated for up to 30 minutes continuous running
• Mechanical parts shrouded for safety
• Actual Weight: 3.02 kg  (Approx. 3.52 kg packed)

Specifications

What our Experts Think

• Efficient Waste Management – The Jabsco Filterless Waste Pump offers a powerful and reliable solution for marine and RV waste systems.

• 24V DC Power – Designed for higher voltage applications, providing efficient operation with minimal power draw.

• Single Diaphragm Design – Ensures smooth, clog-resistant pumping without the need for additional filters, reducing maintenance.

• Self-Priming & Dry-Run Protection – Can run dry without damage, making it ideal for demanding waste transfer applications.

• Durable & Corrosion-Resistant – Built with marine-grade materials for long-lasting performance in harsh environments.

Q&A

Q: What is the Jabsco Filterless Waste Pump?
A: A 24V DC waste pump with a single diaphragm design, specifically engineered for marine use to efficiently transfer waste without the need for a filter.

Q: What makes this pump unique?
A: The filterless design allows for easier maintenance and fewer clogs, providing reliable performance for waste evacuation systems on boats.

Q: What is the flow rate of this pump?
A: The Jabsco Filterless Waste Pump is capable of moving waste efficiently, ensuring effective transfer for marine waste management systems.

Q: Is this pump suitable for all marine vessels?
A: Yes, it’s designed for use on all types of marine vessels that require waste evacuation, including yachts, boats, and other recreational marine crafts.

Q: Does this pump require regular maintenance?
A: Minimal maintenance is required due to the filterless design, but regular inspection and cleaning are recommended to ensure the diaphragm operates smoothly.

Q: How durable is this pump?
A: It’s built to withstand harsh marine environments with corrosion-resistant materials, ensuring long-term reliability.

Maintenance Tips

• Regular Cleaning – Clean the pump and surrounding areas to avoid buildup of waste, debris, or contaminants.

• Inspect Hoses – Check for clogs, kinks, or leaks in the intake and discharge hoses to ensure proper water flow.

• Check Electrical Connections – Inspect the 24V electrical connections for corrosion, wear, or loose wiring for safe operation.

• Lubricate Moving Parts – Regularly lubricate seals and diaphragms as per manufacturer recommendations to prevent wear and ensure smooth operation.

• Monitor Pump Performance – Ensure the pump is functioning correctly by checking for consistent operation and checking for any unusual noises or reduced flow.
