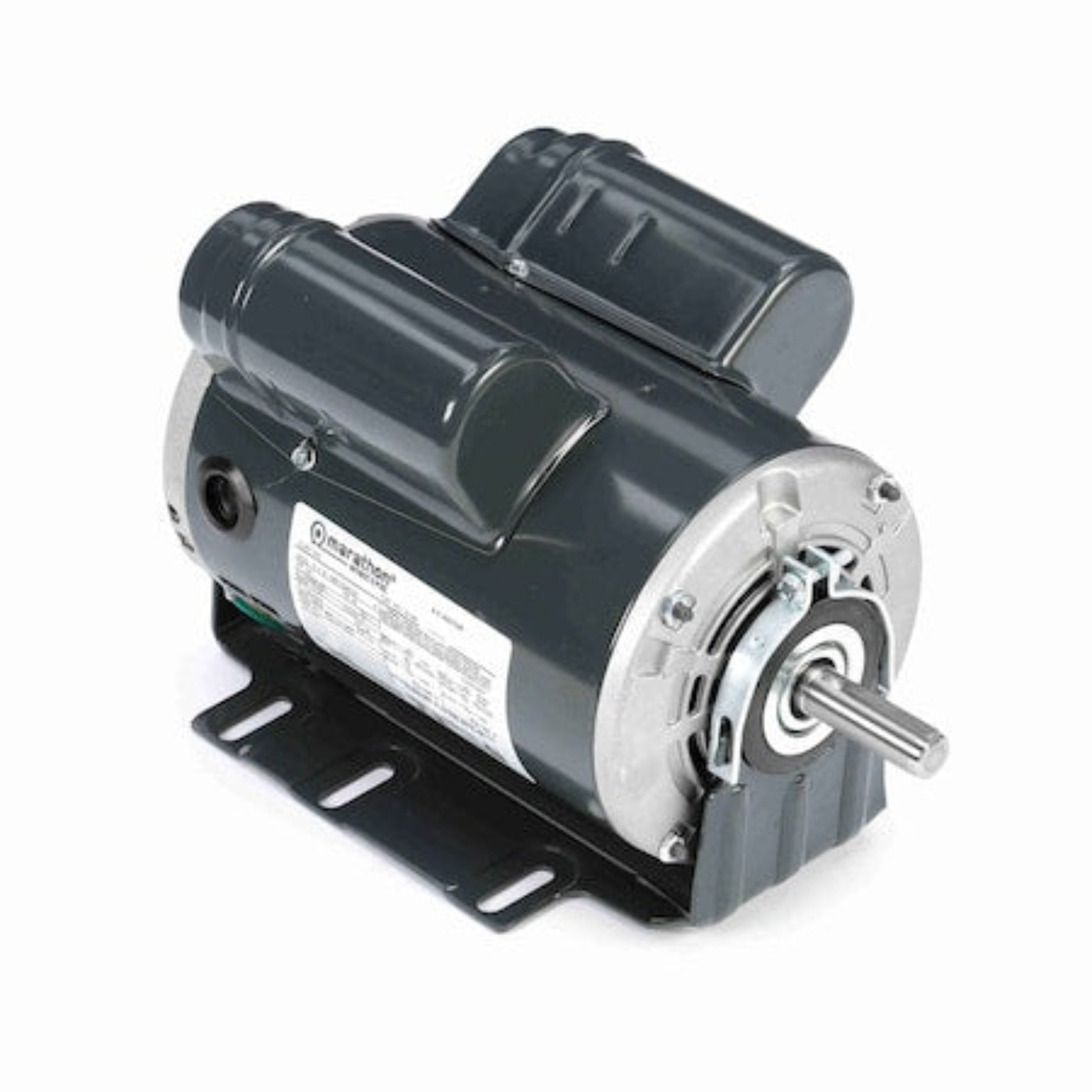

MARATHON MOTORS G156 General Purpose Motor 0.75 HP 1 Phase 1800 RPM 115/208-230 V 56 Frame ODP - G156

MARATHON MOTORS G156 General Purpose Motor 0.75 HP 1 Phase 1800 RPM 115/208-230 V 56 Frame ODP - G156

The Marathon Motors General Purpose Motor, model G156, is a reliable and efficient solution for a variety of industrial applications. Designed with a 0.75 horsepower, single-phase motor that operates at 1800 RPM, it is suitable for continuous duty. This motor is characterized by its operational durability and versatility.

Product Highlights

Equipped with a 56 frame and open drip-proof (ODP) enclosure, the G156 provides a robust platform for general purpose use in non-severe environments. Its dual voltage capability (115/208-230 V) makes it versatile for different electrical setups.

Features

• Ideal for a wide range of industrial applications.
• Designed for continuous duty under demanding conditions.
• Easy to install with robust construction for long-term reliability.

Specifications

What our Experts Think

• Efficient Power: Provides 0.75 HP at 1,800 RPM, ideal for light to medium-duty applications.

• Voltage Flexibility: Works with 115/208-230 V single-phase systems for versatile installation options.

• Durable Construction: Features a 56 frame and Open Drip-Proof (ODP) enclosure, ensuring reliability in standard environments.

• Compact Design: The motor's 56 frame size allows for easy installation in tight spaces.

• Versatile Mounting: Designed for horizontal mounting to accommodate different setup requirements.

• Trusted Brand: Marathon Motors is recognized for its consistent performance and reliability in the electric motor industry.

Q&A

Q: What is the Marathon Motors G156 motor used for?
A: The G156 motor is ideal for powering equipment like fans, pumps, compressors, and conveyors in industrial and commercial applications.

Q: What are the key of the G156 motor?
A: It features 0.75 HP, 1800 RPM, dual voltage (115/208-230 V), a 56 frame size, and an open drip-proof (ODP) enclosure.

Q: Is the G156 motor suitable for continuous-duty applications?
A: Yes, it’s designed for continuous-duty operation, providing reliable performance in demanding environments.

Q: Can the G156 motor replace other general-purpose motors?
A: Yes, it can replace many motors with similar ratings and mounting types.

Maintenance Tips

• Regular Inspections: Examine the motor approximately every 500 hours of operation or every three months, whichever occurs first. Ensure ventilation openings and the exterior of the motor are free of dirt, oil, grease, water, etc., which can accumulate and block motor ventilation.

• Lubrication & Bearings: If the motor is not labeled "Permanently Lubricated," apply appropriate grease to the bearings, ensuring compatibility with existing grease and avoiding over-greasing.

• Electrical Connections: Check all electrical connectors to be sure that they are tight and free from corrosion.

• Insulation Resistance: Use a "Megger" periodically to ensure that the integrity of the winding insulation has been maintained. Record the Megger readings. If winding resistance to ground is less than 1.5 Meg-ohms, consult the local authorized service shop before reenergizing the motor.

• Cleaning: Keep the motor and surrounding area free of dust and debris to prevent clogging the air vents.
