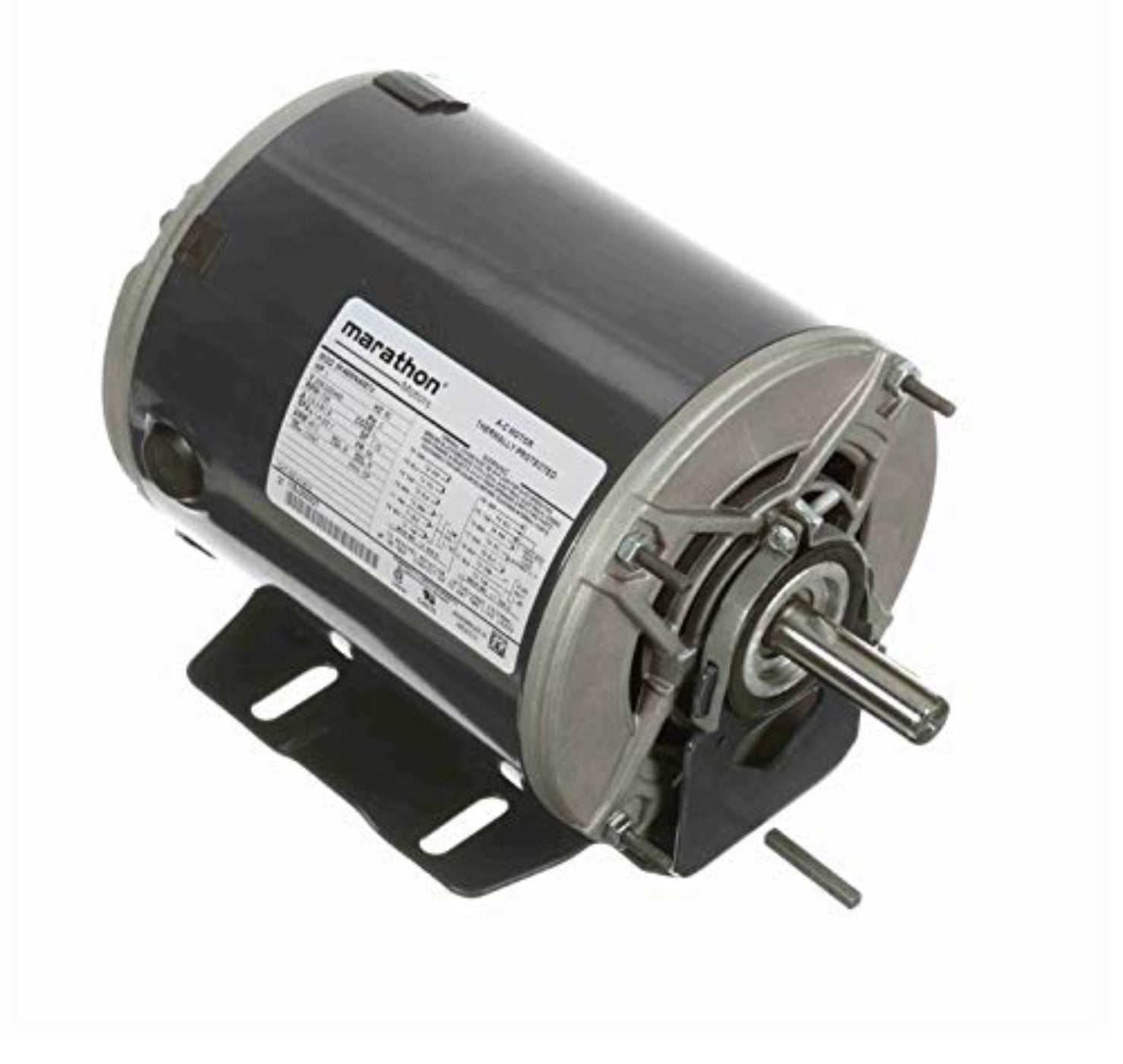

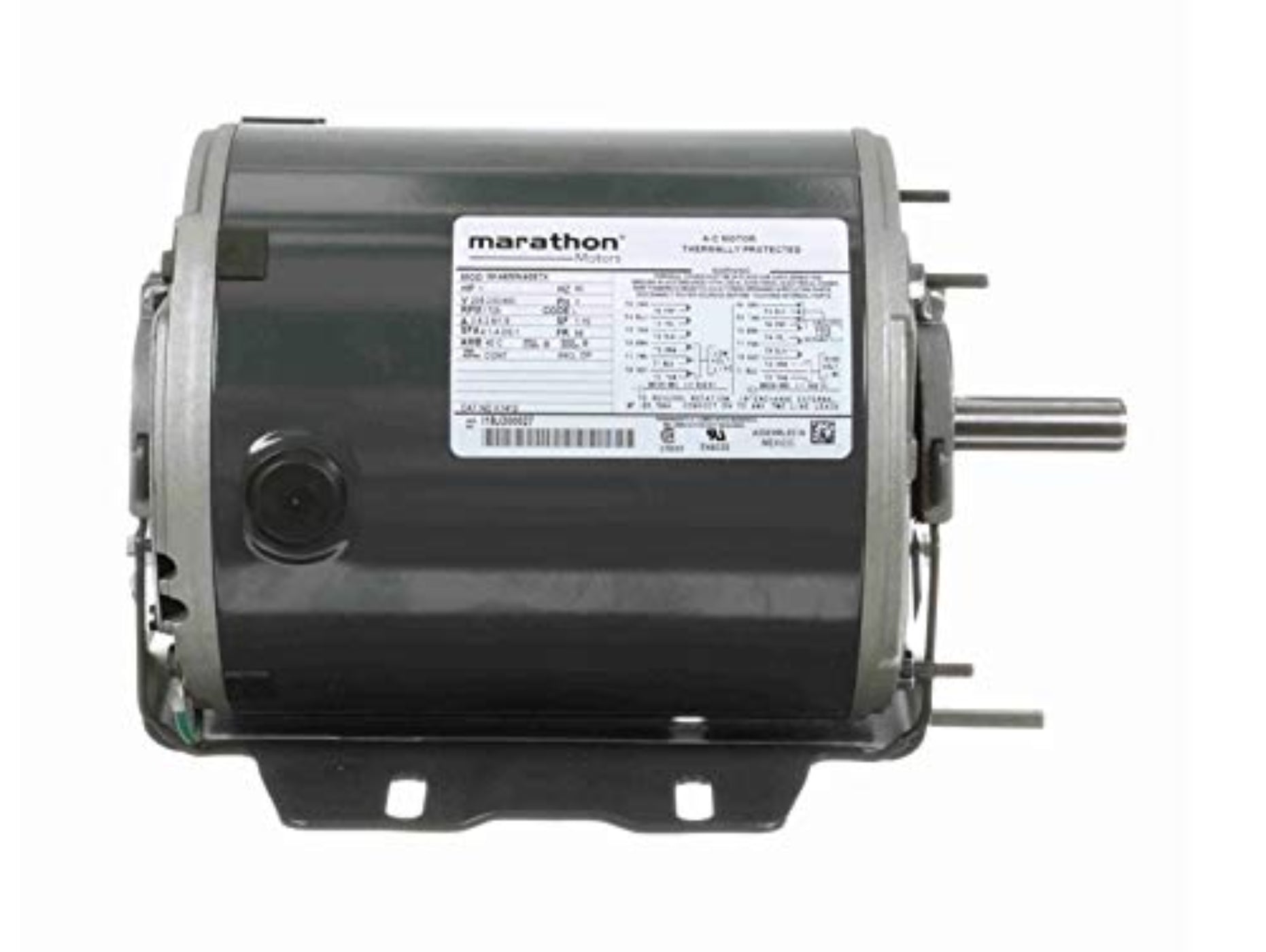

Marathon Motors K1412 1 Hp 208-230/460 3 Phase 56 Frame 1800 Rpm Electric Motor - K1412

Marathon Motors K1412 1 Hp 208-230/460 3 Phase 56 Frame 1800 Rpm Electric Motor - K1412

Introducing the Marathon Motors K1412 Electric Motor, a high-performance, resilient base fan blower motor that delivers 1 horsepower with a dual voltage of 208-230/460. This motor operates at 1800 RPM and is designed for continuous duty applications. Ideal for both horizontal and vertical mounting, it supports a variety of industrial uses.

Product Highlights

This motor is characterized by its resilient base and a dripproof enclosure, making it a reliable option for fan and blower applications.

Features

• Efficient power consumption with a frequency of 60 Hertz.
• Equipped with automatic thermal protection to prevent overheating.
• Durable rolled steel frame construction enhances longevity and performance.

Specifications

What our Experts Think

• Powerful Performance: Delivers 1 HP at 1725 RPM, ideal for continuous-duty applications.

• Energy Efficient: Operates at 78.5% efficiency, reducing energy consumption.

• Durable Construction: Features a rolled steel frame and open drip-proof (ODP) enclosure for protection against dust and moisture.

• Flexible Voltage Compatibility: Supports 208-230/460V, accommodating various power systems

Q&A

Q: What is the Marathon K1412 motor used for?
The K1412 is a 1 HP, three-phase motor designed for fan and blower applications, commonly used in HVAC systems, exhaust fans, and air handling units.

Q: What are the motor’s electrical specifications?
It operates at 208-230/460 V, three-phase, and runs at 1725 RPM.

Q: What type of enclosure does the motor have?
The motor features a Dripproof (DP) enclosure, suitable for environments where it is protected from direct exposure to moisture and contaminant

Q: What is the frame size of the motor?
This motor uses a 56 frame, which is a common frame size for fan and blower motors.

Q: What is the mounting type of the motor?
The motor has a resilient base mounting, allowing for both horizontal and vertical installation

Q: Does the motor have any overload protection?
Yes, the motor includes automatic overload protection to prevent damage from overheating.

Q: What industries is this motor suitable for?
The K1412 motor is ideal for use in various industries requiring reliable fan and blower motors, including HVAC systems, manufacturing equipment, and agricultural machinery.

Maintenance Tips

• Regular Cleaning: Keep the motor's exterior free from dust and debris to ensure proper heat dissipation. Use a soft brush or compressed air for cleaning.

• Inspect Bearings: Listen for unusual noises during operation, which could indicate bearing wear. Replace bearings as necessary.

• Check Electrical Connections: Ensure all electrical connections are tight and free of corrosion to prevent potential faults.

• Monitor Amperage: Verify that the motor is operating within the recommended amperage range. Overcurrent can lead to overheating.

• Inspect the Fan: Ensure the motor's cooling fan is unobstructed and functioning properly to maintain efficient cooling.

• Check Capacitor Health: Ensure the motor's capacitor is functioning correctly to prevent starting issues.
