Marathon MG649 Marathon G649 Explosion Proof Motor 1/2 hp 1800 RPM 208-230/460 VAC 56T17G5312 - MG649

Marathon MG649 Marathon G649 Explosion Proof Motor 1/2 hp 1800 RPM 208-230/460 VAC 56T17G5312 - MG649

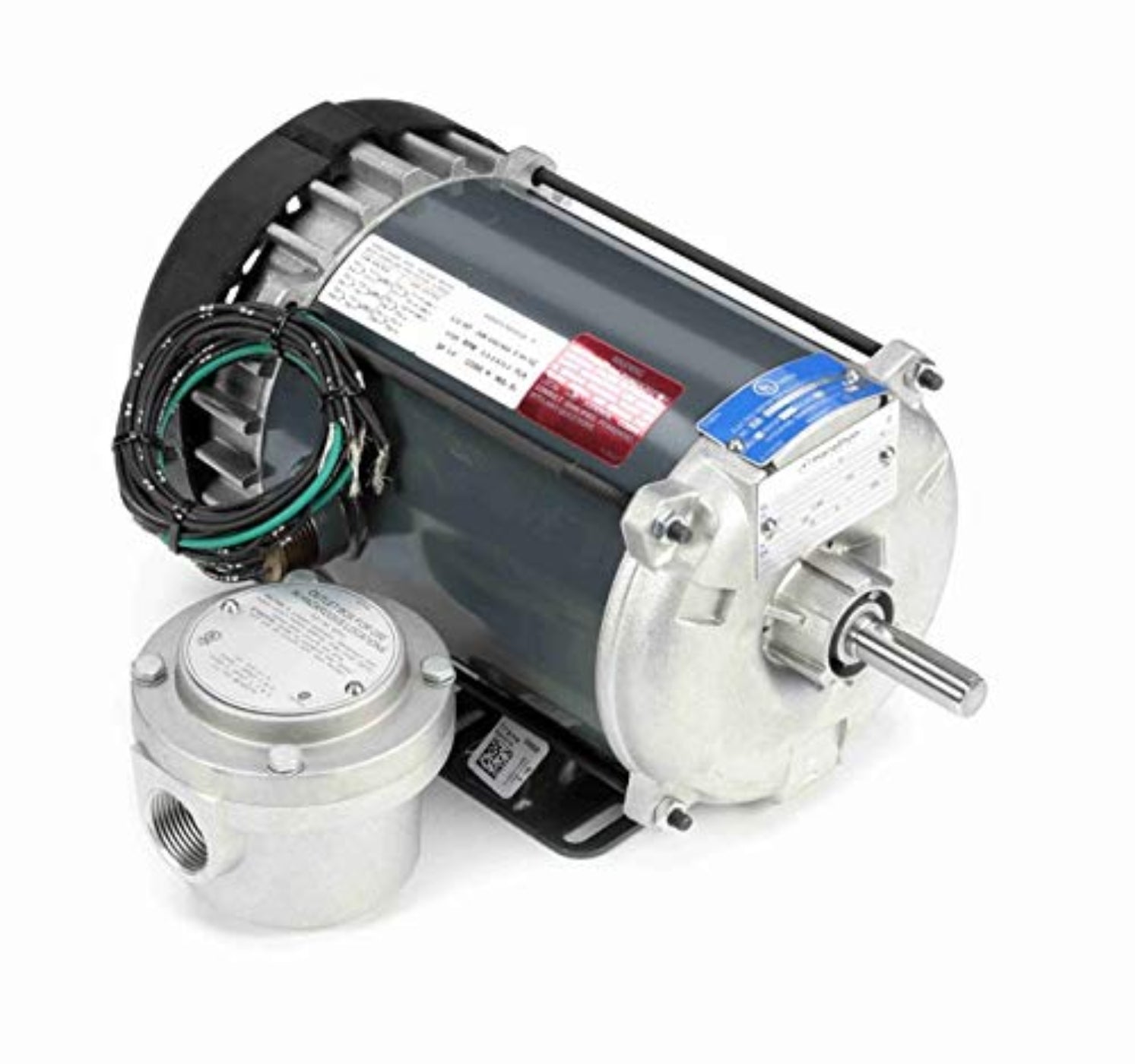

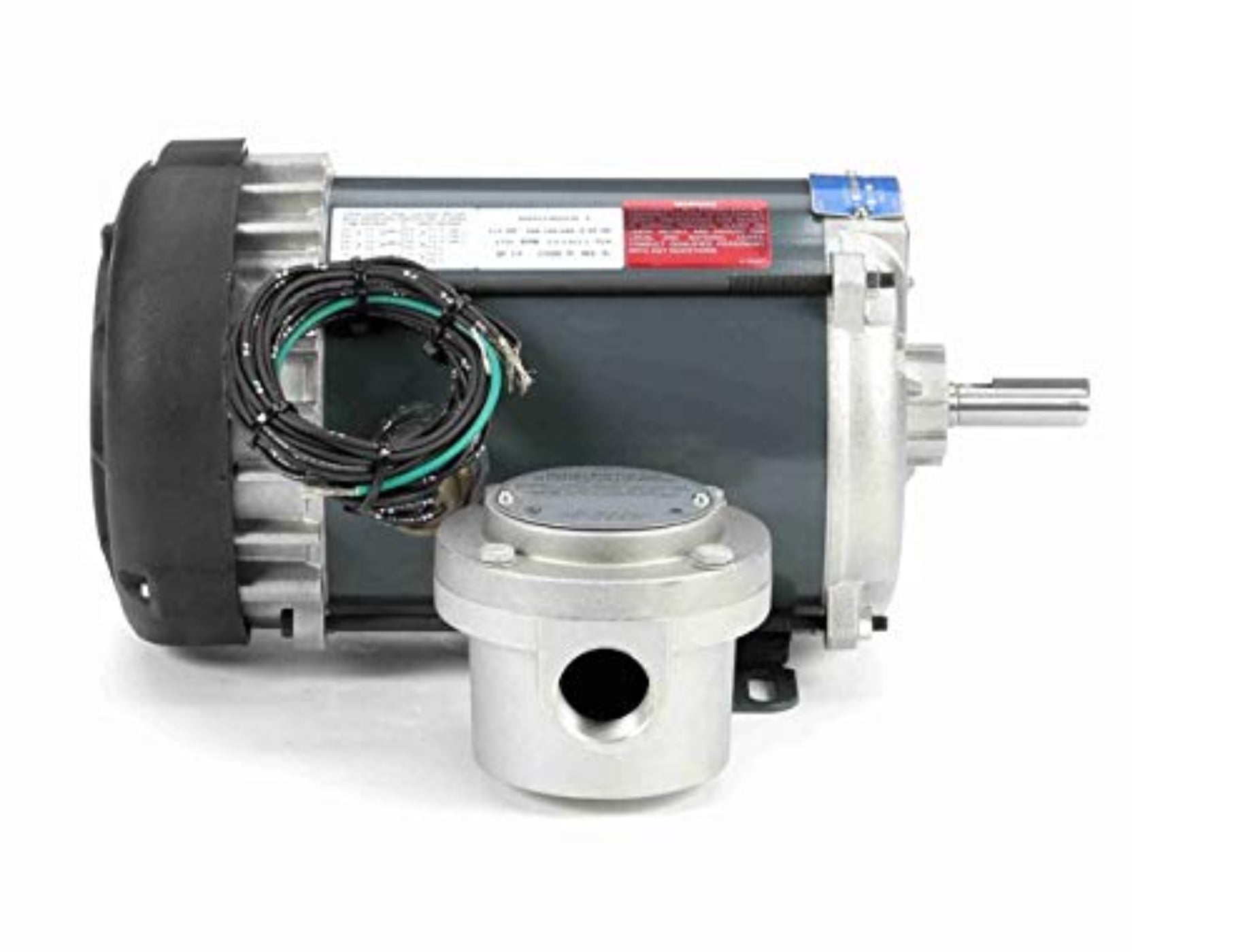

The Marathon Electric MG649 is an explosion-proof motor designed for hazardous environments. This motor operates at half a horsepower with a speed of 1800 RPM and is suitable for three-phase applications. It is built to withstand conditions in Class I and II, Group C, D, F, and G environments.

Product Highlights

The MG649 motor is ideal for industrial and commercial applications requiring robust performance in safety-sensitive areas.

Features

• Explosion-proof design for safety in hazardous locations
• Voltage options of 208-230/460 VAC for versatile applications
• Durable construction with a rigid base and ball bearing support

Specifications

What our Experts Think

• Powerful Performance: Provides 1/2 HP at 1800 RPM, ideal for applications requiring reliable power in hazardous environments.

• Durable Construction: Features a 56 frame with a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring protection against dust and moisture for long-term durability.

• Versatile Voltage Compatibility: Operates on 208-230/460V, offering flexibility to work with different electrical systems and simplifying installation.

• Efficient Operation: Equipped with a service factor of 1.0, allowing for short-term overloads without causing damage to the motor.

• Easy Installation: Designed with a rigid base for secure mounting and straightforward setup.

• Explosion-Proof Safety: Certified for Division 1, Class I & II, Groups C, D, F & G hazardous locations, ensuring safe operation in explosive atmospheres

Q&A

Q: What is the Marathon MG649 motor used for?
A: This 1/2 HP explosion-proof motor is designed for hazardous environments where flammable gases or vapors may be present, such as in chemical plants or refineries.

Q: What are the key specifications?
A: 1/2 HP, 1800 RPM, 56T Frame, explosion-proof, 208-230/460V, three-phase, 60 Hz, Class I, Division 1 & 2, Group D.

Q: Is this motor safe for use in hazardous environments?
A: Yes, it is rated for use in explosive environments, providing enhanced safety for industrial applications involving flammable substances.

Q: Can the motor be used outdoors?
A: Yes, the explosion-proof design and durable construction make it suitable for outdoor use in demanding environments, with proper housing and protection.

Q: What mounting type does it support?
A: Foot-mounted for secure and stable installation in hazardous areas.

Q: Why choose the MG649?
A: The MG649 offers reliable, high-performance operation in explosive atmospheres, backed by Marathon's reputation for safety, durability, and efficiency.

Maintenance Tips

• Regular Inspection: Check for any wear or damage to the motor’s housing and electrical connections.

• Cleanliness: Ensure the motor is free from dust and debris that could hinder ventilation and cooling.

• Lubrication: Lubricate the bearings as recommended by the manufacturer.

• Check Vibration: Monitor for any unusual vibrations or noises that may indicate mechanical issues.
