Marathon MU758 General Purpose Motor 1 hp 1800 RPM 3 Phase Inverter Duty - MU758

Marathon MU758 General Purpose Motor 1 hp 1800 RPM 3 Phase Inverter Duty - MU758

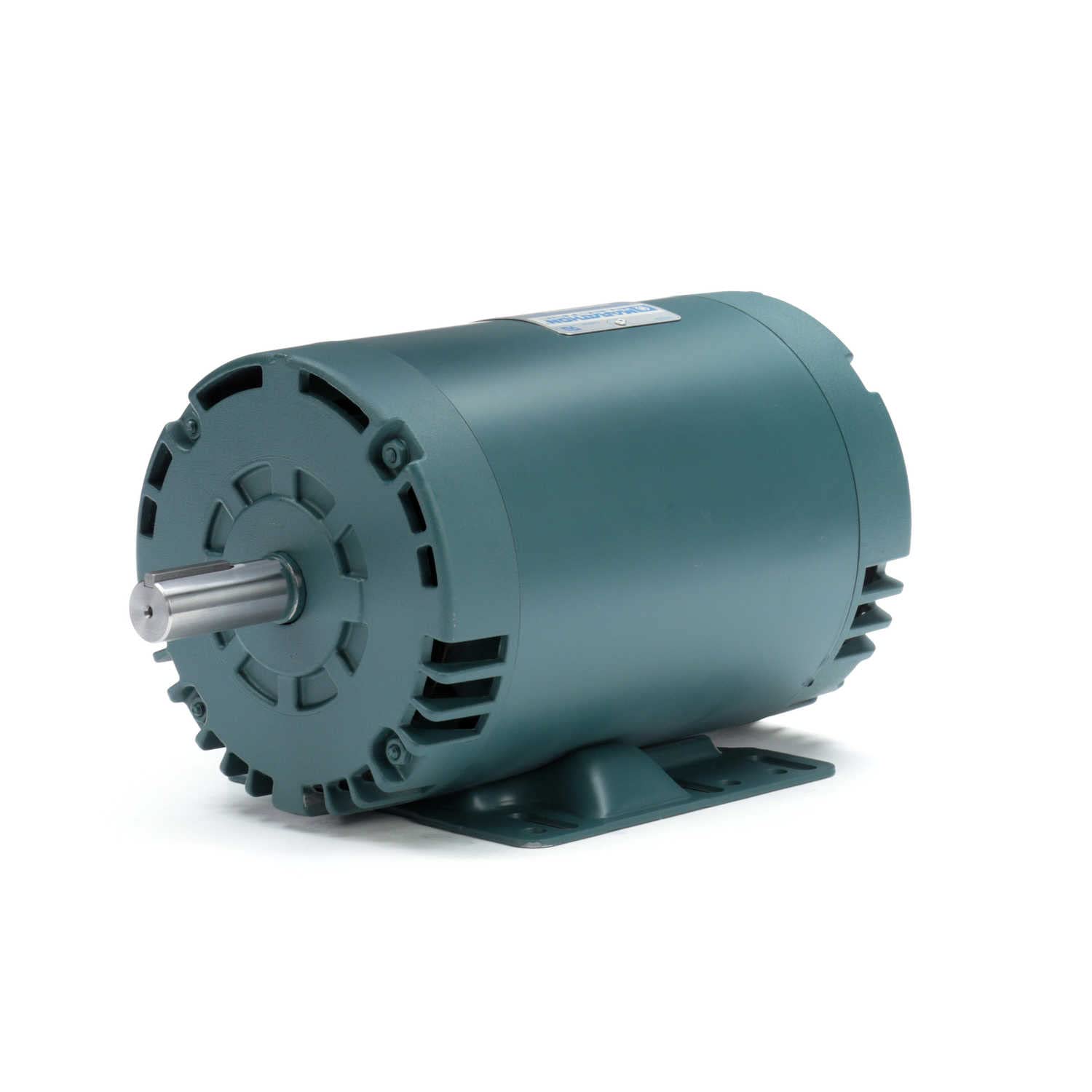

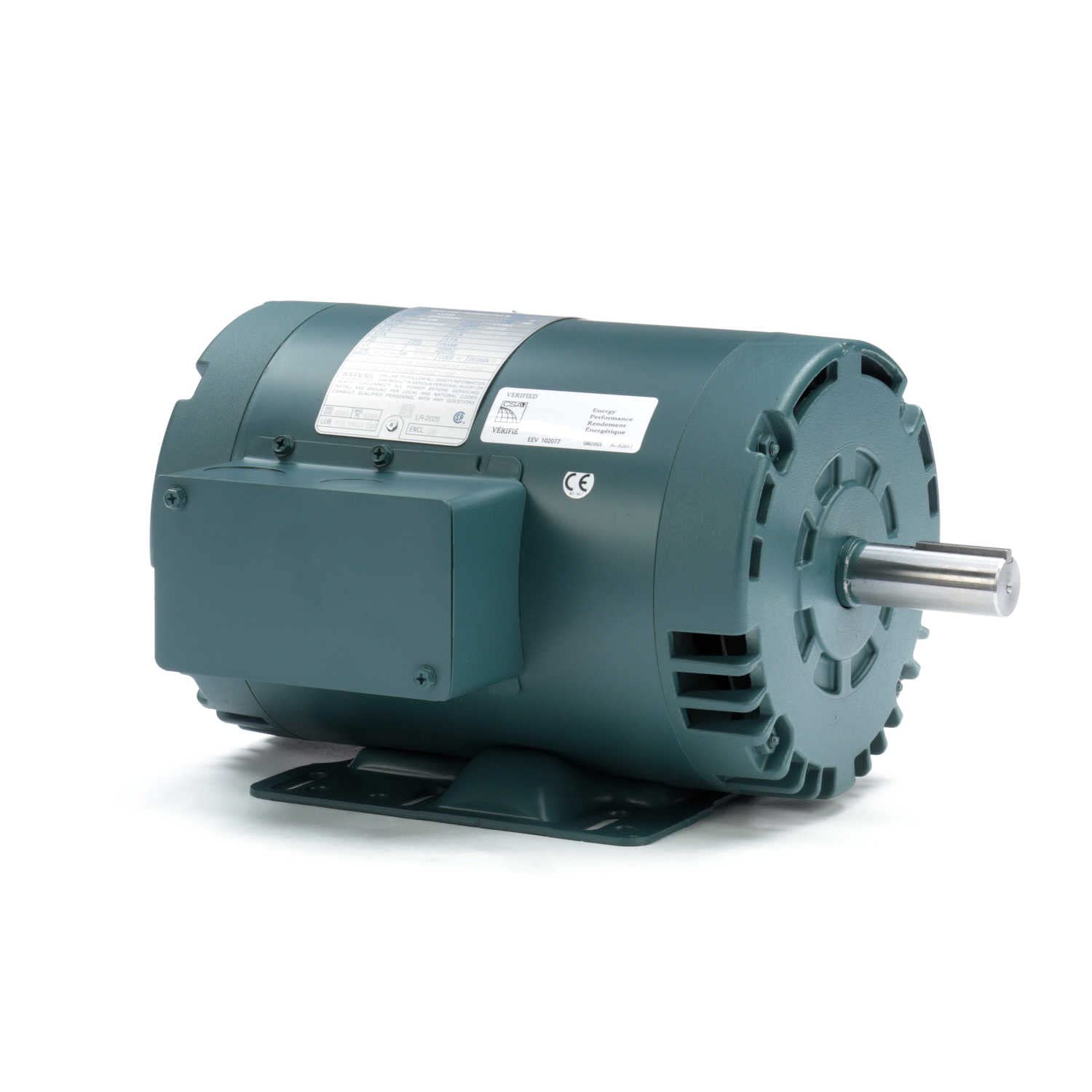

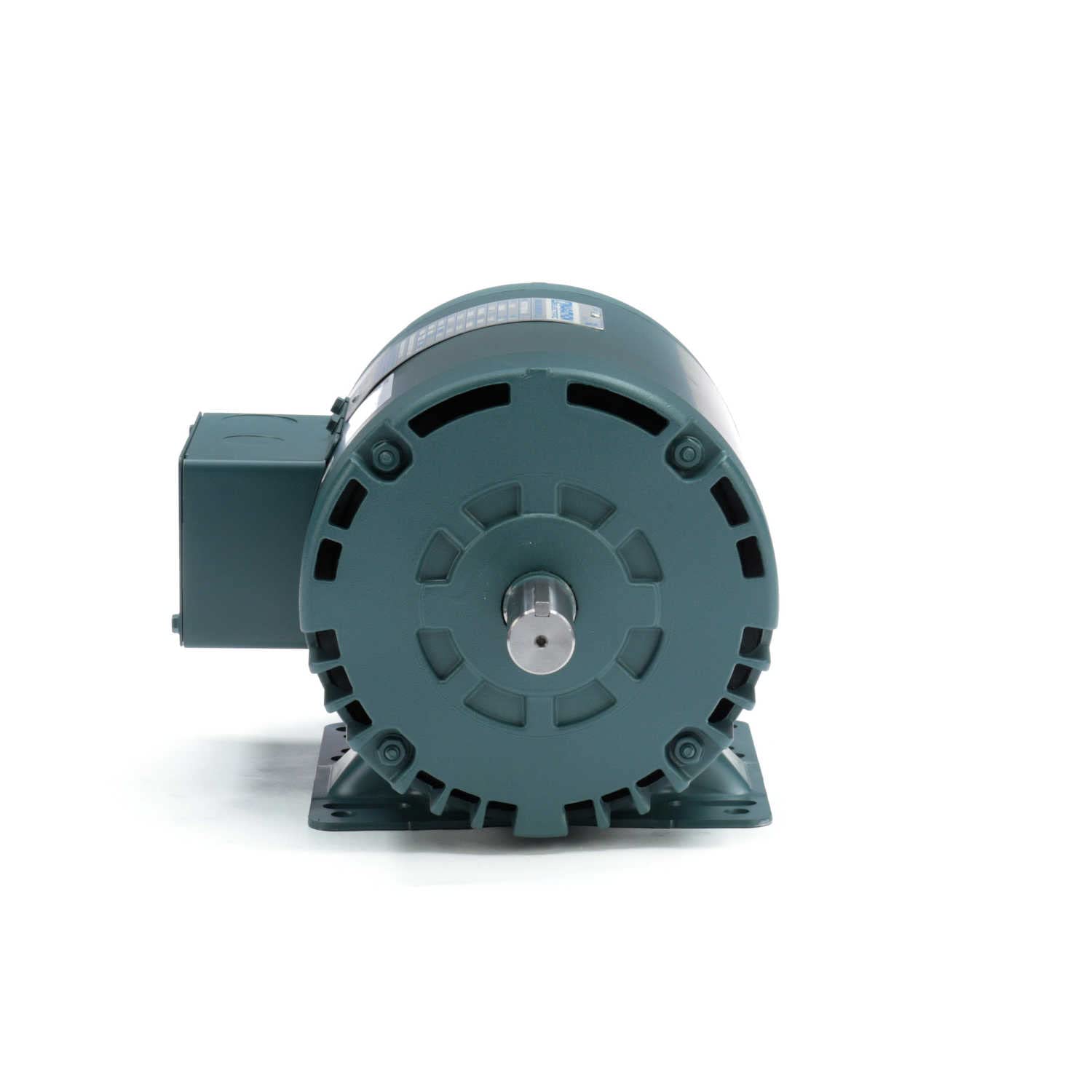

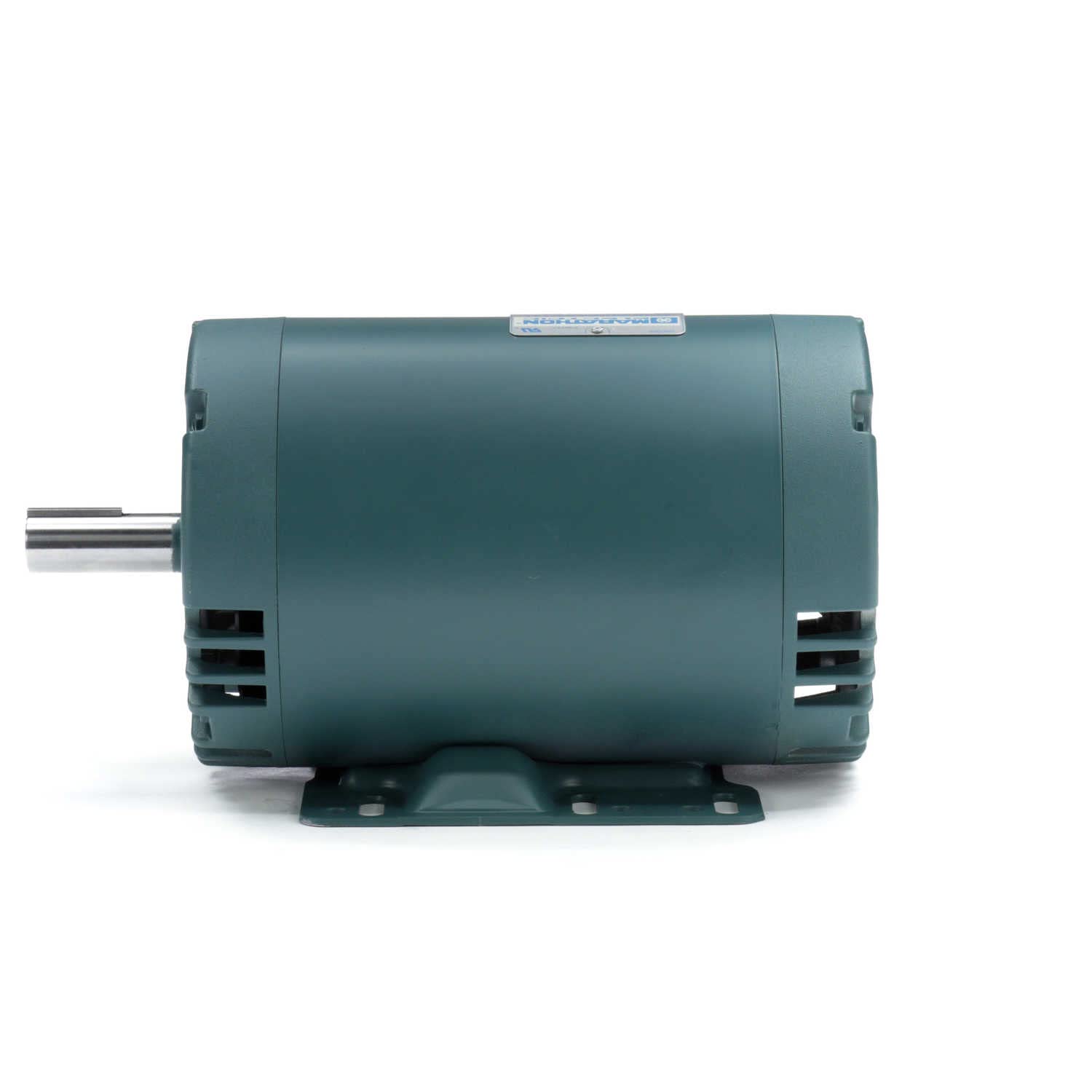

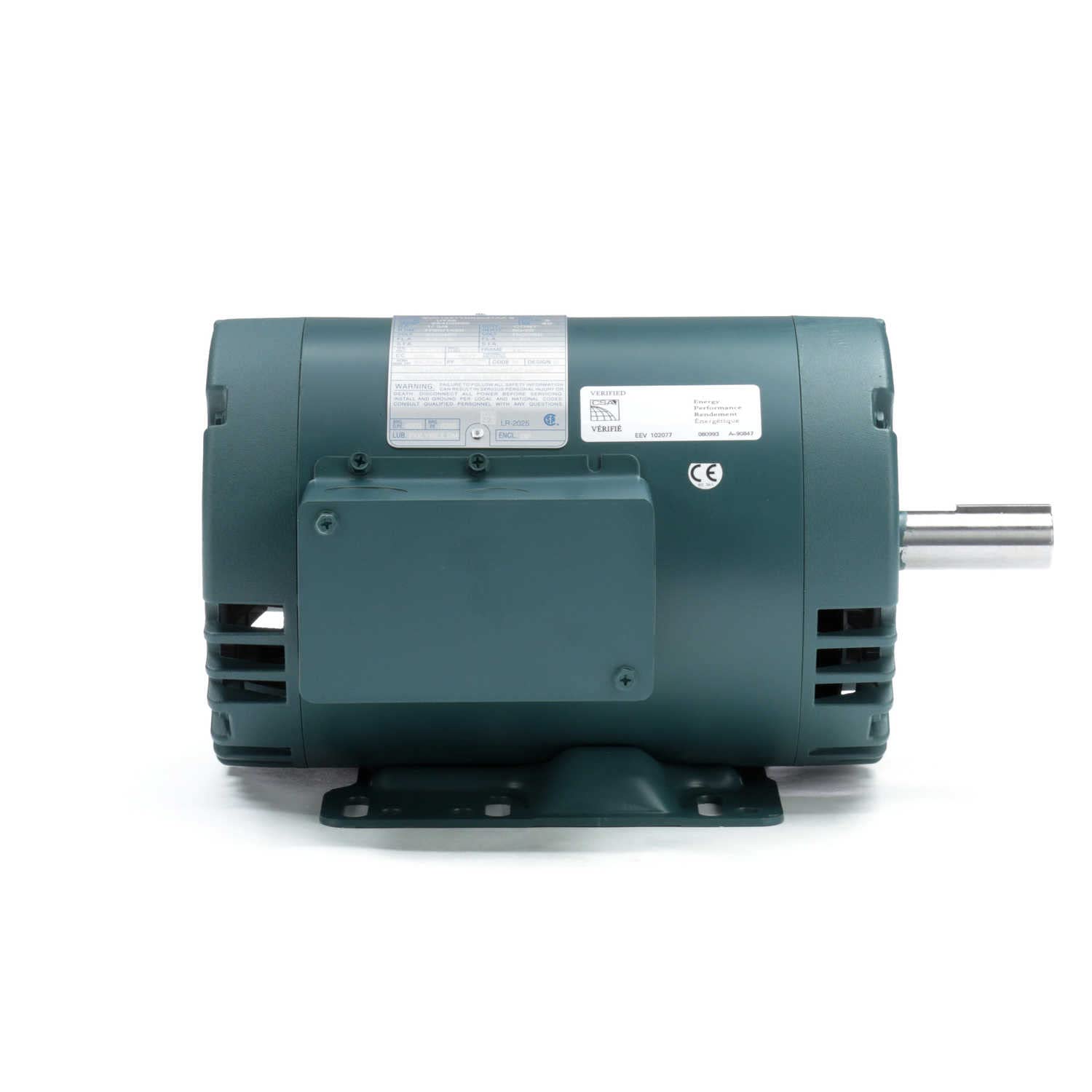

The Marathon MU758 General Purpose Motor is designed for three-phase operation with a single speed. This motor offers a power output of 1 hp and a maximum speed of 1800 RPM. It operates at voltage ratings of 208-230/460 VAC and current ratings of 3.2/1.6 amp. This motor is built with a 143T frame, an open drip-proof (ODP) enclosure, and a rigid base mounting, ensuring reliable performance in various applications.

Product Highlights

This general purpose motor features a ball bearing system for smooth operation. The rolled steel frame enhances durability, making it suitable for industrial environments

Features

• Three-phase operation with one-speed
• Maximum speed of 1800 RPM
• Rigid base mounting

Specifications

.Product Information

Standard Information

What our Experts Think

• Inverter Duty: The Marathon MU758 motor is specifically designed for inverter duty applications, making it ideal for variable frequency drive (VFD) systems that require flexible speed control.

• Energy Efficient: With NEMA Premium efficiency, the MU758 motor ensures reduced energy consumption, making it a cost-effective choice for industrial applications.

• Durability: Built with a rolled steel frame and an open drip-proof (ODP) enclosure, this motor provides solid protection against dust and moisture, ensuring reliability in demanding environments.

• Versatile for General Purpose Use: The 1 HP power rating and 1800 RPM speed make this motor perfect for a variety of applications, including compressors, pumps, conveyors, and blowers.

Q&A

Q: What is the Marathon MU758 motor?
The Marathon MU758 is a 1 HP, 1800 RPM, 3-phase general-purpose motor designed for inverter-duty applications. It operates at 208-230/460V and features a 143T frame with an Open Drip Proof (ODP) enclosure, making it suitable for a variety of industrial applications where efficiency and durability are needed.

Q: What is the MU758 motor used for?
The MU758 motor is used for general-purpose applications where a reliable, energy-efficient motor is needed. It is commonly found in equipment such as air compressors, blowers, fans, and pumps, particularly in industrial settings where variable speed control is important.

Q: How does the inverter-duty capability of the MU758 motor affect its performance?
The inverter-duty rating allows the MU758 motor to handle the power fluctuations and varying frequency characteristics that come from inverter or VFD (variable frequency drive) control systems. This makes the motor ideal for applications that require smooth, variable-speed control without sacrificing efficiency or reliability.

Q: What are the installation requirements for the MU758 motor?
Installation should be carried out by a qualified professional to ensure proper alignment, mounting, and electrical connections. The motor should be securely mounted on a solid, level surface to reduce vibration and ensure smooth operation. Proper wiring should be done according to local electrical codes to ensure safe and efficient operation.

Q: Is the MU758 motor designed for outdoor use?
The Open Drip Proof (ODP) enclosure of the MU758 motor is designed for indoor use or in environments where the motor will not be exposed to direct moisture or dust. If outdoor use is required, additional protection or an alternative enclosure type may be needed to ensure the motor's longevity and reliability.

Q: What kind of maintenance is required for the MU758 motor?
Routine maintenance should include regular inspection of the motor for dust accumulation, checking for proper ventilation, and ensuring there are no obstructions around the motor. Additionally, the motor bearings should be lubricated as needed, and any signs of wear or damage should be addressed promptly to avoid downtime

Maintenance Tips

• Regular Cleaning: Periodically remove dust and debris from the motor's exterior to prevent overheating.

• Lubricate Bearings: Ensure bearings are smooth and free from wear.

• Check Electrical Connections: Verify that all connections are secure and free from corrosion.

• Monitor Amperage: Test the motor's amperage to ensure it operates within specified limits.

• Inspect the Blower Wheel: Ensure the blower wheel is balanced and free from obstructions.

• Replace Air Filters Regularly: Clogged filters can restrict airflow and cause overheating.

• Verify Capacitor Health: Check the capacitor for proper operation and replace if necessary.
