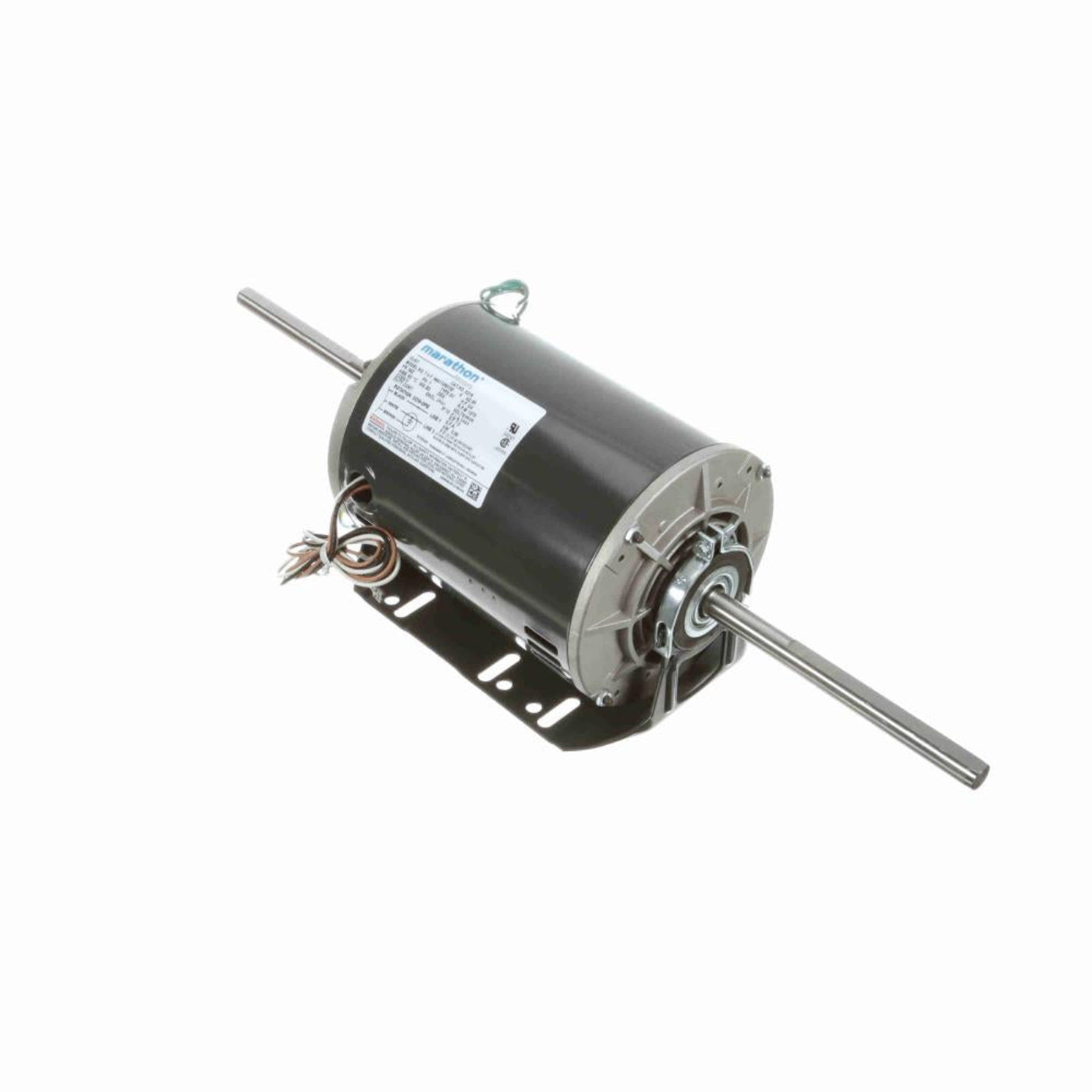

The Marathon MX218 is a robust 0.75 HP definite purpose AC motor designed for durability and efficiency. Ideal for a wide range of industrial applications, this motor delivers consistent performance in equipment such as HVAC systems, fans, and blowers.

Built with an Open Air Over (OAO) enclosure, this motor provides effective ventilation for cooling. The 56Z frame ensures compatibility with various mounting configurations, while the single-phase power supply offers versatility in different settings.

Specifications

What our Experts Think

• Purpose-Built for HVAC Applications: The Marathon MX218 (also known as X218) is a 3/4 HP air-over motor designed specifically for HVAC and refrigeration applications, including fan and blower systems. Its robust construction and reliable performance make it ideal for continuous-duty operations in demanding environments

• Efficient and Durable Design: Operating at 1075 RPM, this motor provides consistent power while maintaining energy efficiency. The Open Air-Over (OAO) enclosure ensures adequate ventilation and cooling, enhancing its longevity in various applications.

• Flexible Installation Options: The motor's 56Z frame size and rolled steel construction offer versatility in mounting and integration, accommodating various system configurations. Its counterclockwise (CCW) fixed rotation ensures compatibility with specific airflow requirements.

Q&A

Q: What is the Marathon MX218 (X218) Definite Purpose AC Motor?
The Marathon MX218, also known as X218, is a 0.75 HP, 1075 RPM, single-phase Permanent Split Capacitor (PSC) motor designed for definite purpose applications, such as HVAC and refrigeration. This motor is built for efficiency and reliability in fan and blower systems, offering consistent performance in demanding industrial environments.

Q: What applications is the MX218 motor designed for?
The MX218 motor is designed for HVAC/R (Heating, Ventilation, Air Conditioning, and Refrigeration) systems, specifically for driving fans, blowers, and similar equipment. It’s ideal for use in industrial and commercial applications that require continuous operation with a reliable, energy-efficient motor.

Q: How does the PSC design of the MX218 motor benefit its performance?
The Permanent Split Capacitor (PSC) design provides efficient operation with a smooth, quiet start and minimal electrical wear. This motor type is particularly suited for fan and blower applications, offering reliability and reduced energy consumption over time.

Q: What is the significance of the 56Z frame size for the MX218 motor?
The 56Z frame size is a standard motor frame used for a wide range of HVAC and industrial applications. It provides a secure and adaptable mounting base, making the motor easy to install in various systems. The "Z" designation indicates a specific mounting configuration.

Q: Does the MX218 motor include overload protection?
Yes, the MX218 motor comes with automatic overload protection, which helps prevent damage to the motor by automatically disengaging power if the motor becomes overloaded or overheated, ensuring long-lasting reliability and performance.

Q: What is the motor’s efficiency and power factor?
The MX218 motor operates with an efficiency of 75.5% and a power factor of 94.5%. This means it uses less power to produce the same amount of mechanical work, making it a more energy-efficient choice for continuous-duty applications.

Q: Is the MX218 motor suitable for harsh environments?
Yes, the motor's Open Air Over (OAO) enclosure design makes it suitable for use in environments where air circulation is sufficient for cooling, but where it may be exposed to some dirt or debris. However, it is not as protected as Totally Enclosed designs and should be used in environments where exposure to moisture and debris is minimal.

Q: How is the motor’s rotation configured?
The MX218 motor is designed for counter-clockwise (CCW) fixed rotation. This fixed rotation is ideal for specific applications like fan and blower systems where consistent airflow direction is needed.

Q: What is the duty rating of the MX218 motor?
The MX218 motor is rated for continuous duty, meaning it is designed to run for long periods without overheating or causing undue wear. This makes it ideal for systems that require long-term, uninterrupted operation.

Q: Where can I buy the Marathon MX218 motor?
The Marathon MX218 motor is available from authorized distributors, industrial supply companies, and online marketplaces. You can find it through various suppliers that specialize in HVAC and motor products.

Maintenance Tips

• Regular Cleaning:

• Regularly clean the motor to remove dirt, dust, and other debris. Use a soft cloth or a low-pressure air source to gently clean the motor’s housing and any air intakes. Keeping the motor free of dust ensures proper airflow and helps prevent overheating.

• Lubricate Bearings:

• Bearings in the motor should be lubricated based on the manufacturer’s guidelines. If the motor is running in a dusty or harsh environment, consider more frequent lubrication. Always use the recommended type of lubricant to ensure smooth motor operation and avoid excessive friction that could cause wear.

• Check Electrical Connections:

• Inspect electrical connections regularly to ensure they are tight and free from signs of corrosion. Over time, electrical contacts can degrade due to moisture, dirt, or heat. Clean connections with an appropriate contact cleaner if needed and tighten any loose connections to prevent voltage drops and electrical shorts.

• Monitor Amperage and Voltage:

• Periodically check the motor's amperage to ensure it is operating within the specified range. If the amperage is higher than normal, it could indicate that the motor is under load, which could shorten its lifespan. Ensure the motor is operating at the correct voltage to avoid any potential damage.

• Inspect the Fan:

• The fan attached to the motor should be checked for balance and any obstructions that might hinder its operation. An unbalanced fan can cause vibrations that damage bearings and other motor components. Make sure the fan is clean and operates smoothly to help cool the motor effectively.

• Replace Air Filters Regularly:

• If the motor is used in environments that involve air handling (such as HVAC systems), ensure that any air filters are regularly replaced or cleaned. Clogged filters can restrict airflow, leading to overheating. Make sure the air intake is clear to maintain efficient cooling.

• Verify Capacitor Health:

• The capacitor in your motor is crucial for starting and running the motor efficiently. Check the capacitor for proper operation. If you notice issues like difficulty starting or unusual noise, the capacitor may need to be replaced. Always follow manufacturer guidelines for capacitor maintenance.

• Inspect for Vibration or Noise:

• Pay attention to any unusual vibrations or noises coming from the motor. Vibrations can be a sign of misalignment, wear, or imbalance in the fan or bearings. Inspect the motor carefully to locate the source of the noise or vibration and address it promptly to avoid further damage.

• Check for Overheating:

• Keep an eye on the motor's temperature during operation. If the motor becomes excessively hot, it may be operating under a heavy load or facing insufficient cooling. Make sure there is adequate ventilation around the motor to prevent overheating. Regularly check the cooling system if applicable.

• Routine Inspections:

• Establish a regular inspection schedule to monitor the motor’s performance. Look for signs of wear, such as excessive noise, unusual vibrations, or performance degradation. Early detection of potential problems can save you from more expensive repairs and downtime.

• Ensure Proper Motor Alignment:

• Misalignment between the motor shaft and the driven load can cause wear and tear on both the motor and connected machinery. Regularly check the alignment and realign if necessary.
