Marathon Motors MZ636 Z636 Washdown Duty DC Motor - MZ636

Marathon Motors MZ636 Z636 Washdown Duty DC Motor - MZ636

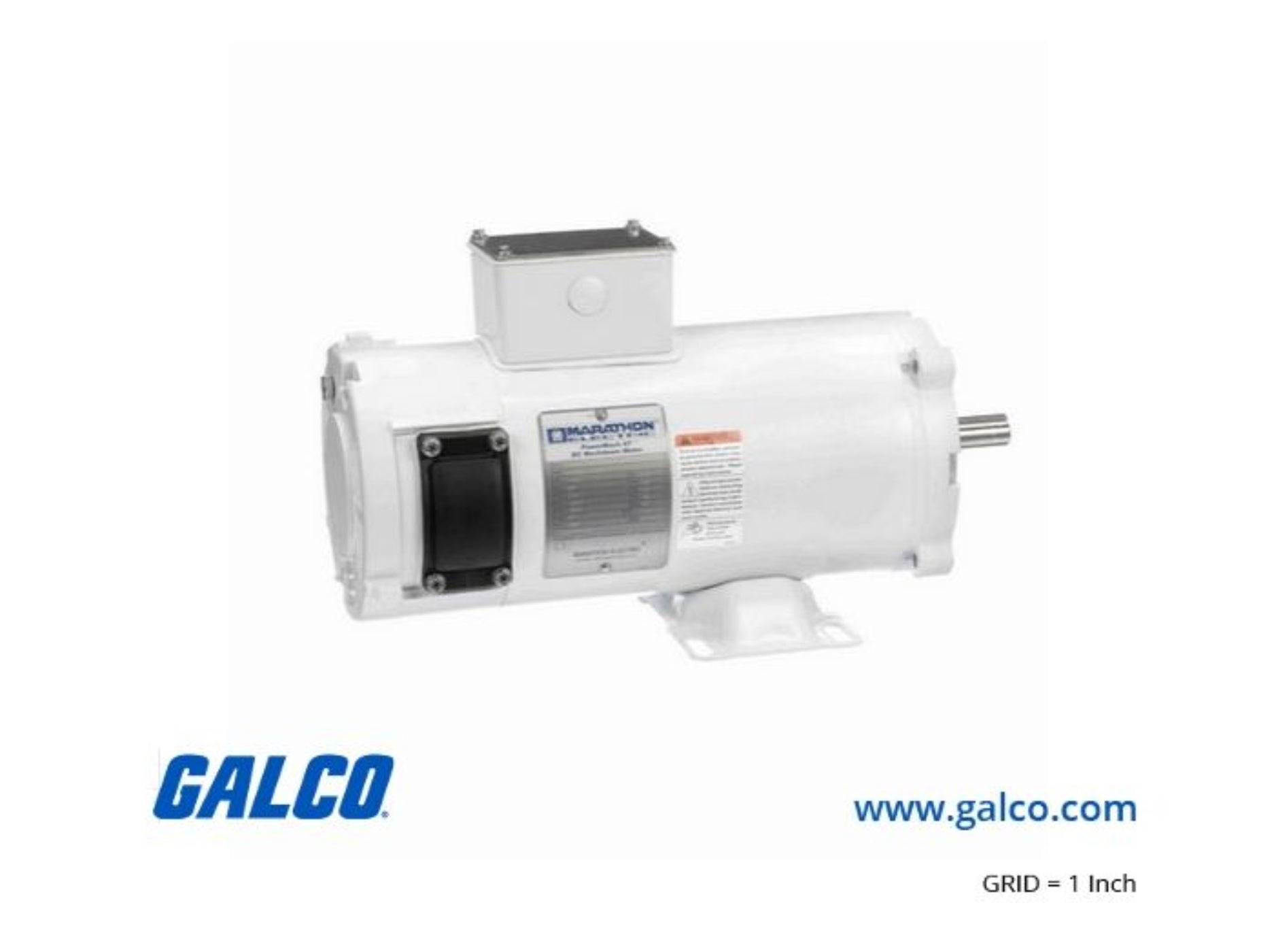

The Marathon Motors MZ636 (also known as Z636) is a high-performance, permanent magnet DC motor designed for washdown duty applications. It is ideal for use in environments where regular cleaning is required, such as in food processing plants, car washes, and other industrial settings.

Specifications

What our Experts Think

• Power Output: 3/4 HP (0.56 kW)

• Speed: 1750 RPM

• Voltage: 90 VDC

• Frame Size: 56C

• Enclosure: Totally Enclosed Non-Ventilated (TENV)

• Mounting: Rigid base

• Shaft Dimensions: 5/8" diameter x 1-7/8" length

• Service Factor: 1.0

• Thermal Protection: Automatic reset

• Cooling: Internal fan

• Amperage: 7.0 A

Q&A

Q: What is the Marathon MZ636 motor used for?
The MZ636 is a 3/4 HP DC motor designed for washdown duty applications in environments like food processing and pharmaceutical manufacturing.

Q: What are the motor’s electrical specifications?
It operates at 90 VDC and runs at 1750 RPM.

Q: What type of enclosure does the motor have?
The motor features a Totally Enclosed Non-Ventilated (TENV) enclosure, ideal for wet or humid conditions requiring frequent washdowns.

Q: What is the frame size of the motor?
This motor uses a 56C frame with a rigid base and C-face mounting.

Q: What industries is this motor suitable for?
It's well-suited for industries with high hygiene standards, including food, beverage, and chemical processing.

Maintenance Tips

• Routine Cleaning: Wipe down the motor exterior regularly with a damp cloth to remove moisture, residue, or debris. Avoid using high-pressure water directly on seals.

• Inspect Seals and Gaskets: Regularly check for wear or damage to ensure the motor remains moisture-resistant. Replace seals if any signs of deterioration appear.

• Lubricate Bearings: Apply appropriate lubricant at recommended intervals using moisture-resistant grease. Avoid over-lubrication.

• Check Electrical Connections: Ensure terminals are tight and free of corrosion. Moisture can cause electrical faults, so inspect connectors frequently.

• Monitor Motor Load: Use a controller or meter to confirm the motor operates within its rated voltage and current range. Overloading can reduce lifespan.

• Inspect Brushes: For permanent magnet DC motors, examine brushes for wear and ensure they move freely in their holders. Replace brushes as needed.

• Dry Environment After Washdown: After cleaning or exposure to wet conditions, ensure the motor dries thoroughly before operation to prevent internal damage.
