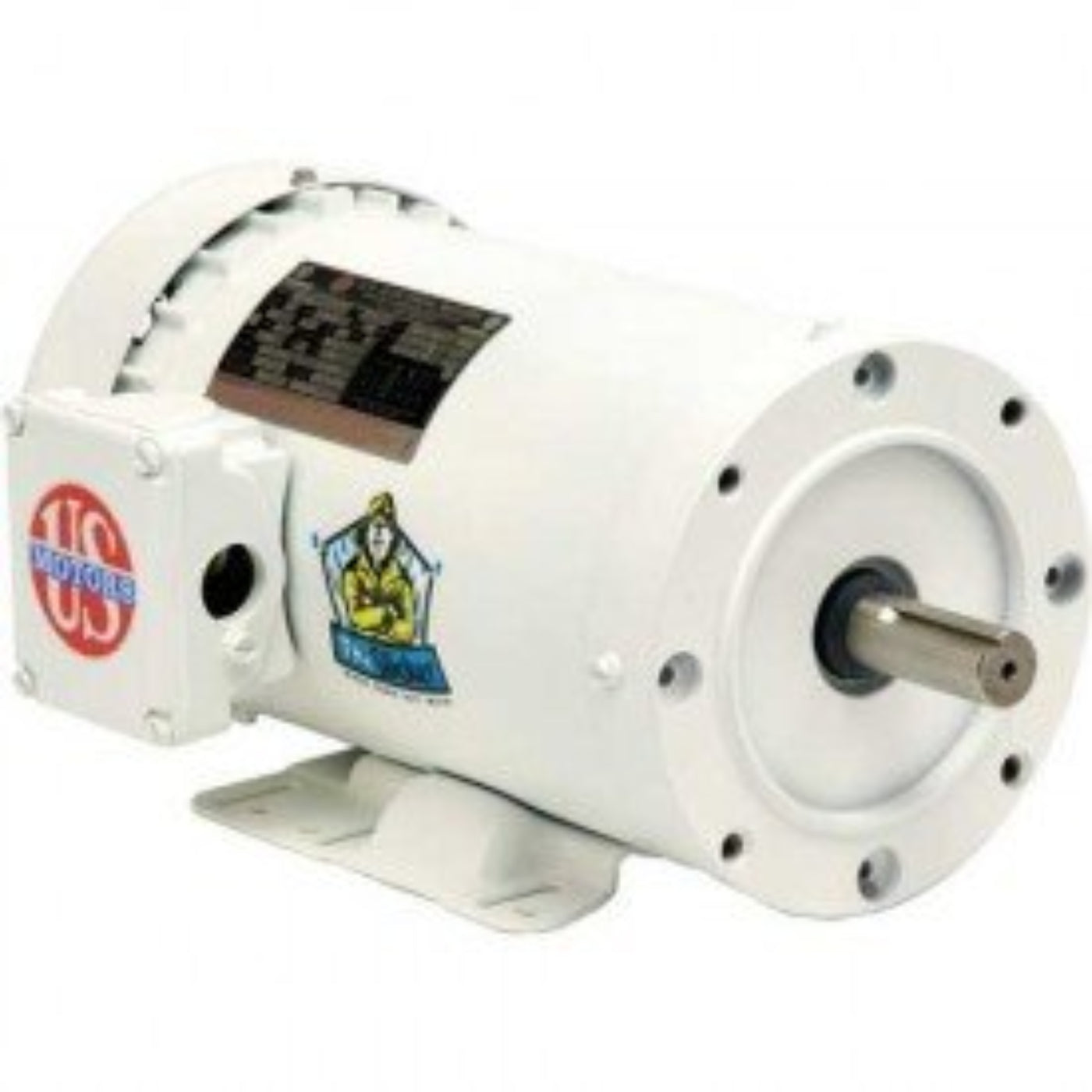

US Motors WD34C2JC Washdown Motor 3/4 HP 1725 RPM 56C 115V - WD34C2JC

US Motors WD34C2JC Washdown Motor 3/4 HP 1725 RPM 56C 115V - WD34C2JC

The US Motors WD34C2JC Washdown Motor is designed for single-phase applications requiring strong performance under wet or washdown conditions. This 3/4 HP motor operates at 1725 RPM and fits a 56C frame with a C-Face mounting.

Product Highlights

This motor is ideal for applications in bakeries, canneries, dairies, and meat packing plants where washdowns are frequent. It features a white epoxy paint finish that resists corrosion, and ball bearings for durability.

Features

• 3/4 HP, 1725 RPM
• Totally Enclosed Fan-Cooled (TEFC) design
• 115V AC, single-phase power

Specifications

What our Experts Think

• Built for Harsh Environments

• Totally Enclosed Fan Cooled (TEFC) design with USDA-approved, non-toxic white epoxy coating

• Ideal for washdown areas, food processing, and other environments requiring frequent cleaning

• Reliable and Efficient Performance

• Operates at 1725 RPM, delivering 3/4 horsepower for a wide range of industrial applications

• Class F insulation ensures dependable performance, even in challenging conditions

• Durable Construction

• Features a 56C frame with C-Face mounting for easy installation into existing systems

• Ball bearings and a rigid base ensure long-lasting durability and smooth operation

• Continuous Duty

• Designed for continuous operation, providing stable and efficient performance over time

Q&A

Q: What applications is the U.S. Motors WD34C2JC motor suitable for?
A: This motor is designed for washdown-duty applications, commonly used in environments requiring frequent cleaning, such as food processing, pharmaceutical manufacturing, and chemical handling.

Q: What are the key specifications of the WD34C2JC motor?
A: The motor delivers 3/4 horsepower at 1725 RPM, operates on 115V single-phase power, and features a 56C frame size with a C-Face rigid base mount. It has a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring protection against dust and moisture.

Q: What is the motor's service factor?
A: The WD34C2JC motor has a service factor of 1.15, allowing it to handle occasional overloads up to 15% above its rated capacity.

Q: What are the motor's construction features?
A: The motor includes a rigid base mount, a keyed shaft, and ball bearings for smooth operation. It features Class F insulation, suitable for continuous duty in ambient temperatures up to 40°C.

Q: Is this motor suitable for variable frequency drive (VFD) applications?
A: Yes, the WD34C2JC motor is compatible with VFD applications, offering a 10:1 variable torque and 4:1 constant torque range for versatile speed control.

Maintenance Tips

• Ensure Proper Ventilation: Install the motor in a well-ventilated area to prevent overheating.

• Inspect Electrical Connections: Regularly check wiring for signs of wear, corrosion, or loose connections to prevent electrical issues.

• Monitor Operating Voltage: Confirm the motor operates within its rated voltage range (115/208-230V) to avoid damage.

• Lubricate Bearings: Apply lubricant to bearings as specified by the manufacturer to reduce friction and prevent wear.

• Keep the Motor Clean: Remove dust and debris from the motor and surrounding area to maintain efficiency.

• Test Thermal Overload Protection: Ensure the motor’s thermal overload protection is functioning properly to prevent overheating.

• Monitor Ambient Temperature: Ensure the motor operates within the recommended temperature range to prevent overheating and ensure efficient performance.
