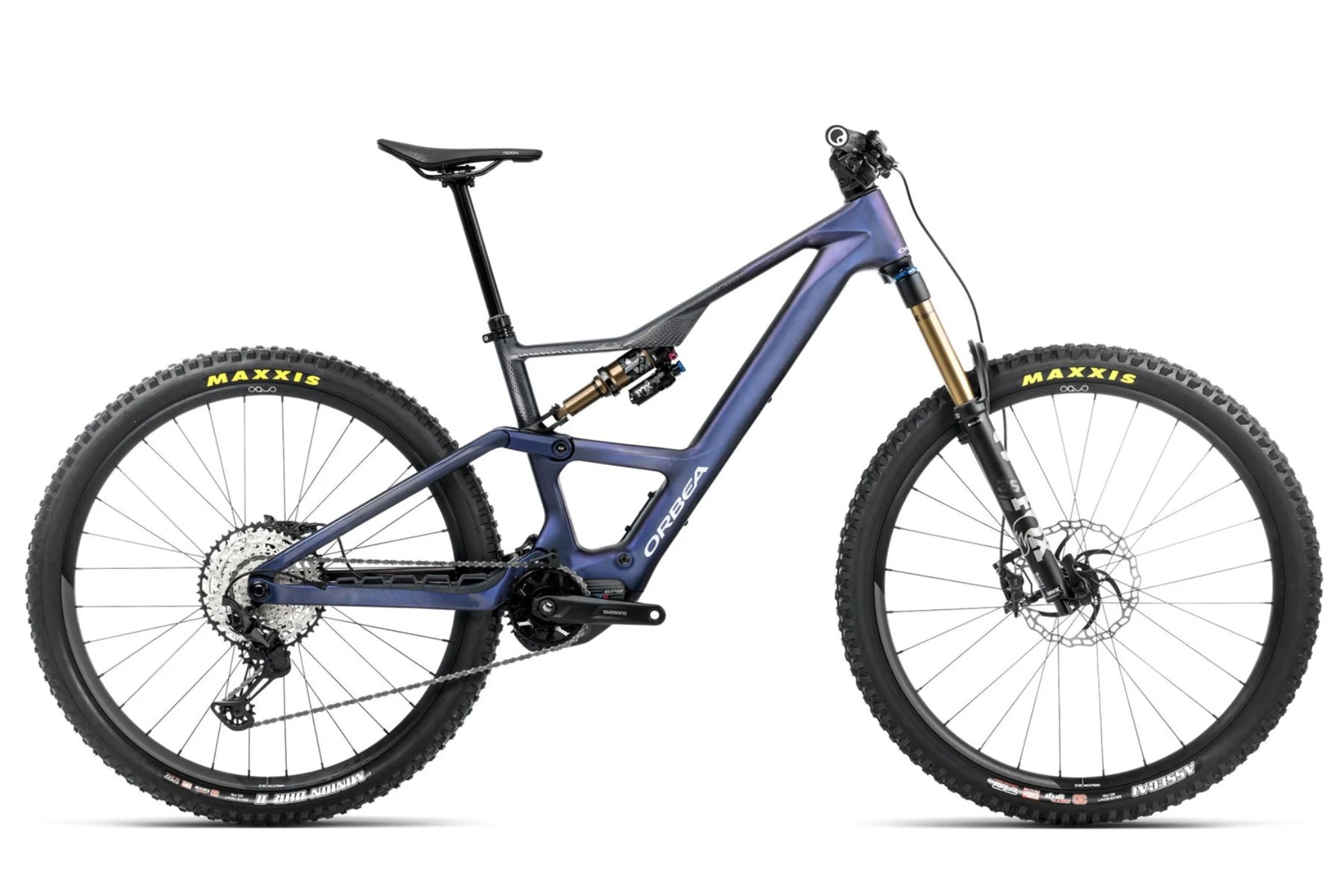

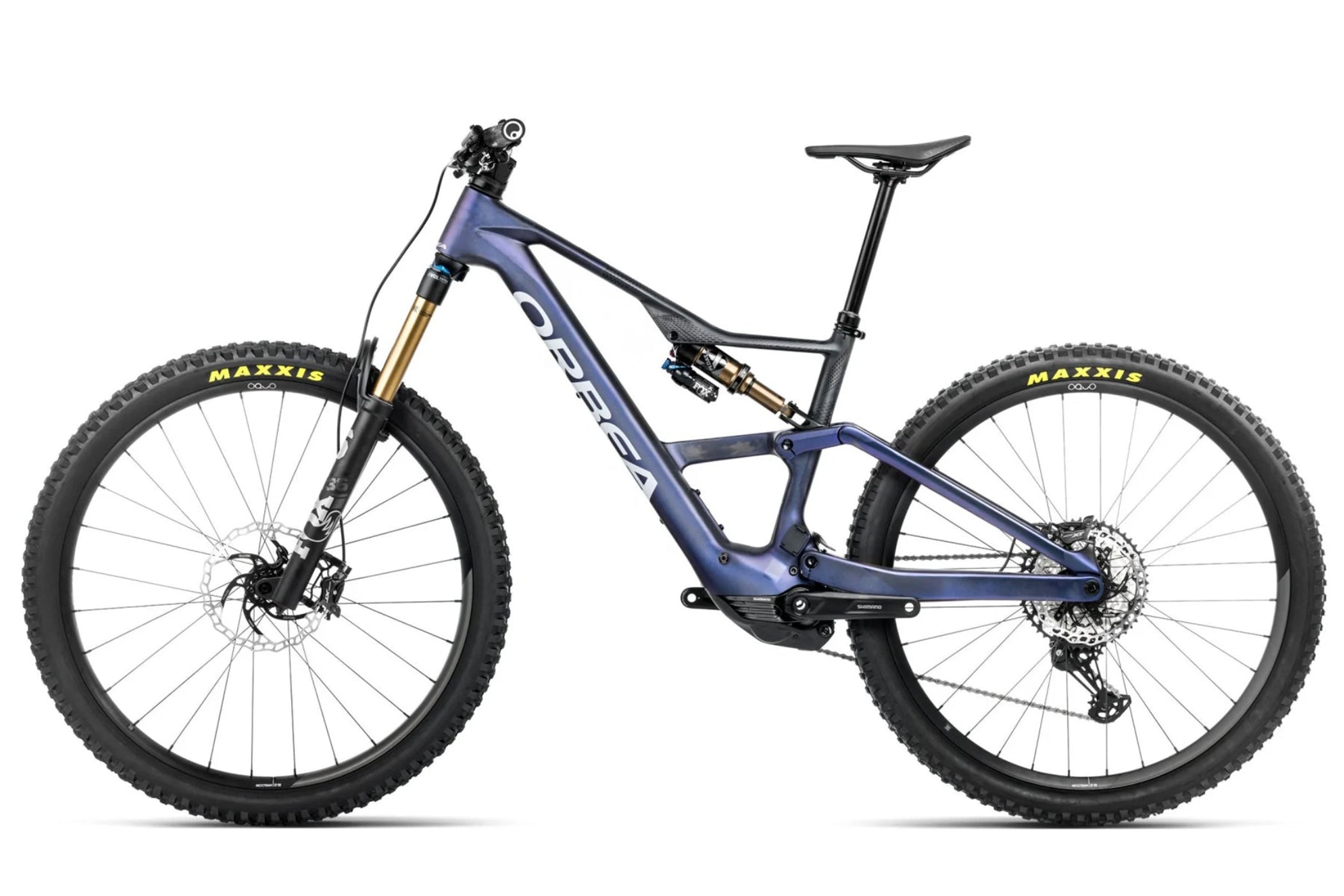

Orbea Rise LT M10 630W 20mph - Tanzanite Carbon View-Carbon Raw - 2025 - GM083024-27

Orbea Rise LT M10 630W 20mph - Tanzanite Carbon View-Carbon Raw - 2025 - GM083024-27

Further, Faster, and More Fun: The Orbea Rise LT M10 E-Bike

Experience the thrill of trail riding like never before with the Orbea Rise LT M10 E-Bike. Designed to give you an extra boost, this e-bike lets you conquer tough obstacles, climb faster, and ride further, all while having more fun. The Orbea Rise LT M10 has been completely redesigned with a stiffer frame and updated geometry to deliver superior handling and control on every ride.

Intended Use: Trail, All-Mountain

The Orbea Rise LT M10 is perfect for riders looking to push their limits on the trail with the confidence that comes from high-end components and cutting-edge design. Whether you're climbing steep hills or charging down fast descents, this e-bike is built to deliver an unmatched riding experience.

Features

• OMR Carbon Frame: The Orbea Rise LT M10’s OMR carbon frame is not only stiffer but also features an updated geometry for enhanced stability and responsiveness. Whether you're navigating technical descents or powering through climbs, this frame is built to perform.
• Adjustable Geometry: The LT version of the Rise offers a head angle of either 64.5° or 64°, depending on the Attitude Adjust position, making it up to 1.5° slacker than previous models for improved downhill stability.
• Advanced Suspension System: With 150mm of rear suspension travel and 160mm upfront, the Fox Float Factory Kashima components ensure you tackle rough trails with confidence.
• Shimano EP801-RS Motor: This motor provides up to 20mph of pedal assistance, and with the 630Wh battery, you’re equipped for hours of exhilarating rides on the trails.
• High-Performance Drivetrain: The Shimano SLX/XT 12-speed drivetrain offers a wide 10-51T gear range, perfect for tackling varied terrain, while the Shimano XT M8120 hydraulic disc brakes deliver reliable stopping power in all conditions.
• Tubeless-Ready Wheels: The OQUO MC32 TEAM wheels come paired with Maxxis Assegai and Minion DHR II tires, ready for tubeless setup to give you better traction, a smoother ride, and fewer flats.
• OC Mountain Control Dropper Post: Quickly adjust your saddle height with the press of a lever, thanks to the OC Mountain Control MC21 dropper post, ensuring you’re always in the optimal position for any trail section.

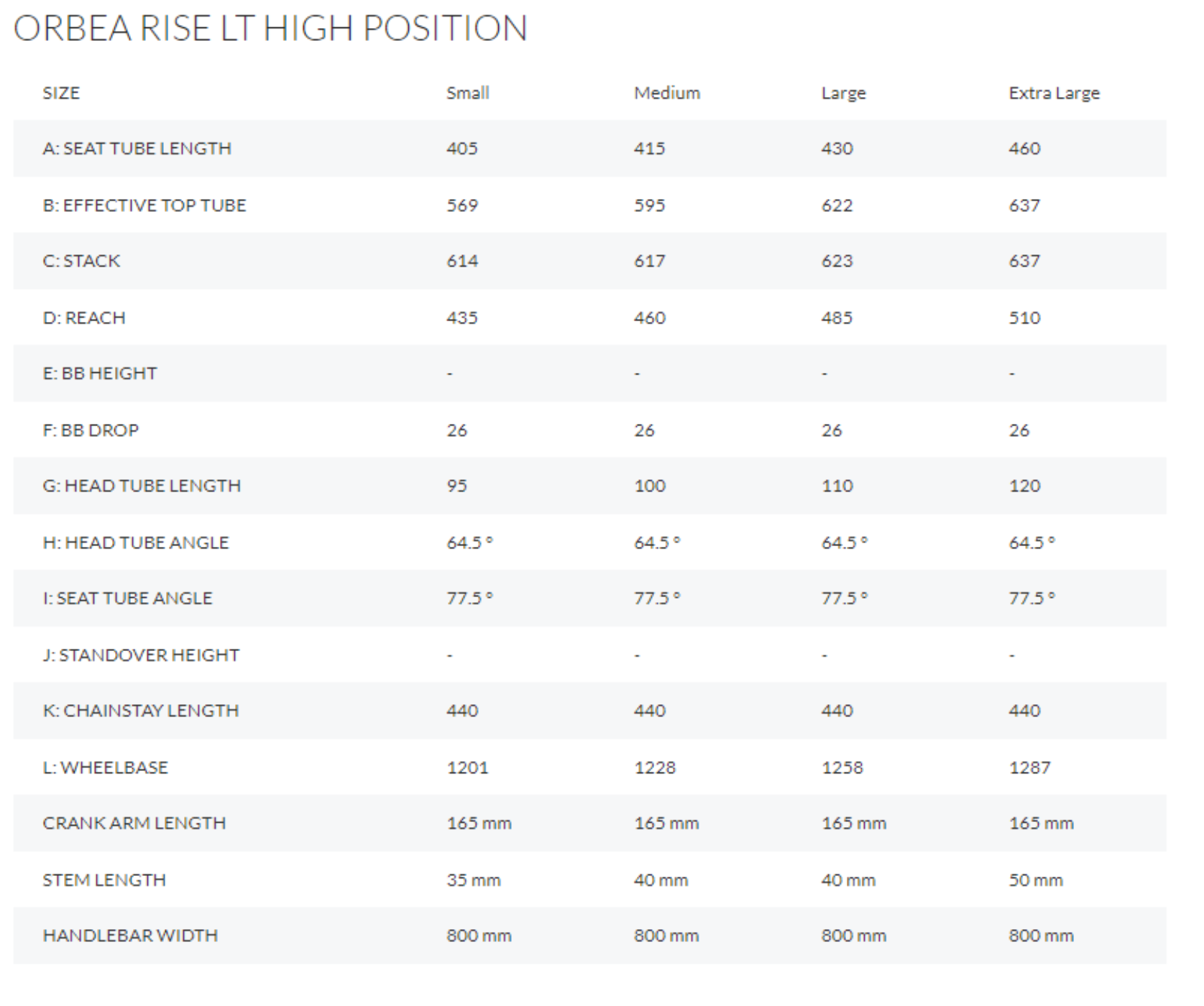

Specifications

What Our Experts Think

• Lightweight & Agile: The Orbea Rise LT M10 features a carbon frame that’s both durable and lightweight, providing excellent handling and a responsive ride on challenging terrains.

• Powerful Motor & Battery: Equipped with the Shimano EP801 RS motor and a 630Wh integrated battery, it offers powerful assistance and long-range potential for extended rides without compromising on performance.

• Premium Suspension: With a Fox 36 Float Factory fork and Fox Float X Factory rear shock, both featuring Kashima coating, it delivers smooth travel (160mm front, 150mm rear) and superior comfort on rough trails

• Precise Drivetrain: The Shimano XT M8100 drivetrain ensures precise shifting and reliable performance, even in the most demanding conditions.

• Responsive Braking: Shimano XT M8120 hydraulic disc brakes provide excellent stopping power with 203mm front and 180mm rear rotors, enhancing safety during high-speed descents.

• Sleek Aesthetics: The Tanzanite Carbon View-Carbon Raw finish combines elegance with durability, offering a sleek, modern look and clean cable routing for a refined appearance.

• Optimized Geometry: Designed with a balanced geometry for optimal stability and agility on various terrains.

• Extended Range: An optional 210Wh range extender boosts battery life, allowing for longer rides with fewer stops, especially on more demanding trails.

Q&A

Q: What is the weight of the Orbea Rise LT M10?
A: The bike weighs approximately 19.1 kg (42.1 lbs).

Q: What is the price of the Orbea Rise LT M10?
A: The bike is priced at $9,199 USD.

Q: What drivetrain components are included in the Orbea Rise LT M10?
A: The bike is equipped with a Shimano XT M8100 SGS rear derailleur, Shimano CS-M7100 10-51t 12-speed cassette, and Shimano SLX M7100 shifters.

Q: What wheel and tire specifications does the Orbea Rise LT M10 have?
A: It comes with OQUO Mountain Control MC32TEAM wheels and Maxxis Assegai 2.50" front tires, and Maxxis Minion DHR II 2.40" rear tires.

Q: What color options are available for the Orbea Rise LT M10?
A: The 2025 model is available in Tanzanite Carbon View-Carbon Raw.

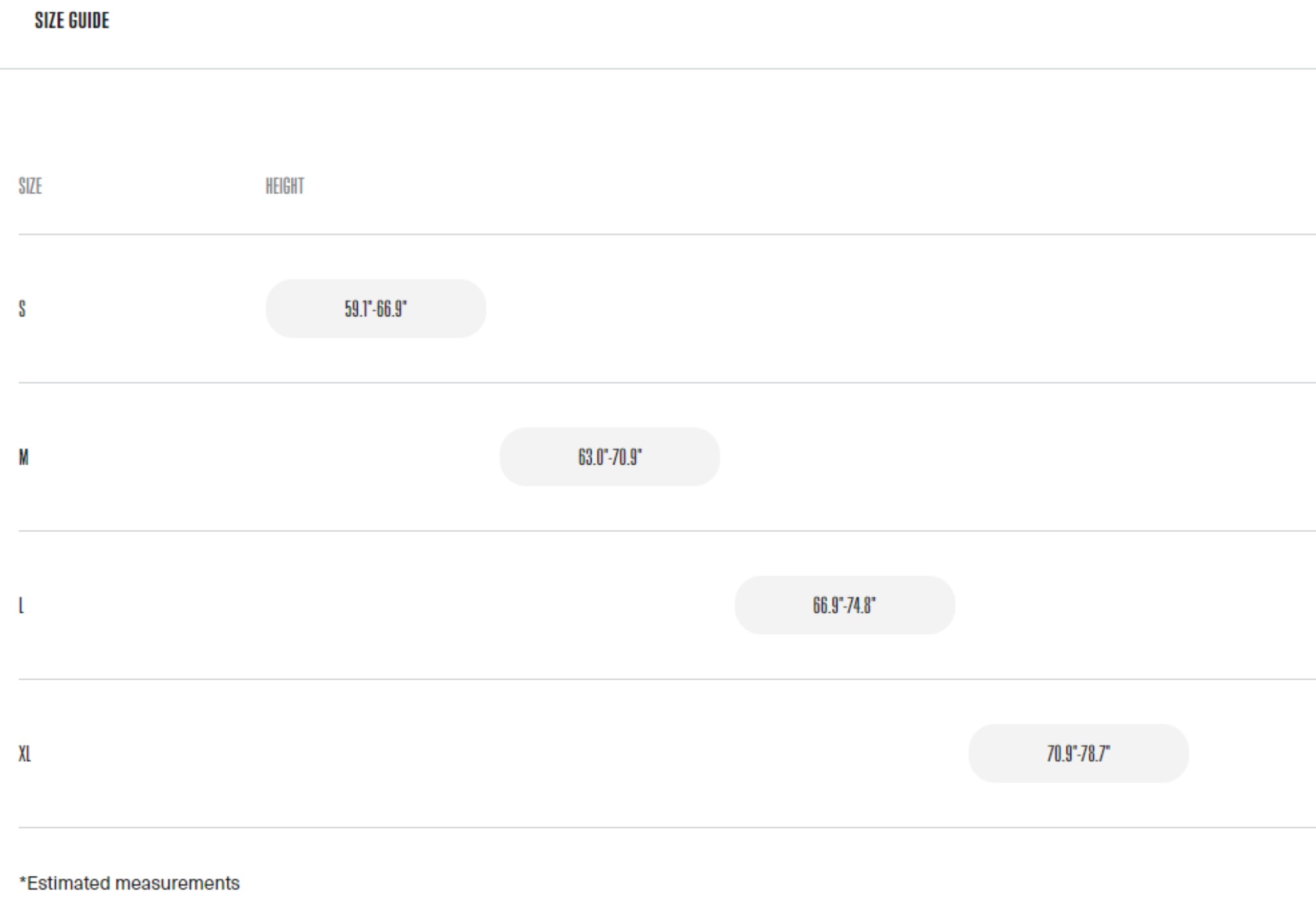

Q: What sizes are available for the Orbea Rise LT M10?
A: The bike is available in sizes Small, Medium, Large, and X-Large.

Q: What is the maximum assisted speed of the Orbea Rise LT M10?
A: The bike provides pedal assistance up to 20 mph (32 km/h), complying with US regulations for Class 1 e-bikes.

Q: What is the estimated range of the Orbea Rise LT M10?
A: With the 630Wh battery, the bike offers an estimated range of 30–50 miles (48–80 km) per charge, depending on terrain and rider input.

Q: Where can I purchase the Orbea Rise LT M10?
A: The bike is available through authorized Orbea dealers and various online retailers.

Maintenance Tips

• Motor & Battery: Regularly check the battery charge and inspect the motor for smooth operation.

• Suspension: Keep the Fox suspension components clean and lubricated for optimal performance.

• Drivetrain: Clean and lubricate the Shimano drivetrain regularly to ensure smooth and efficient shifting.

• Brakes: Check for brake pad wear and bleed the system as necessary.

• Wheels & Tires: Monitor tire pressure and tread wear, and make sure the tubeless setup is intact to avoid flats.
