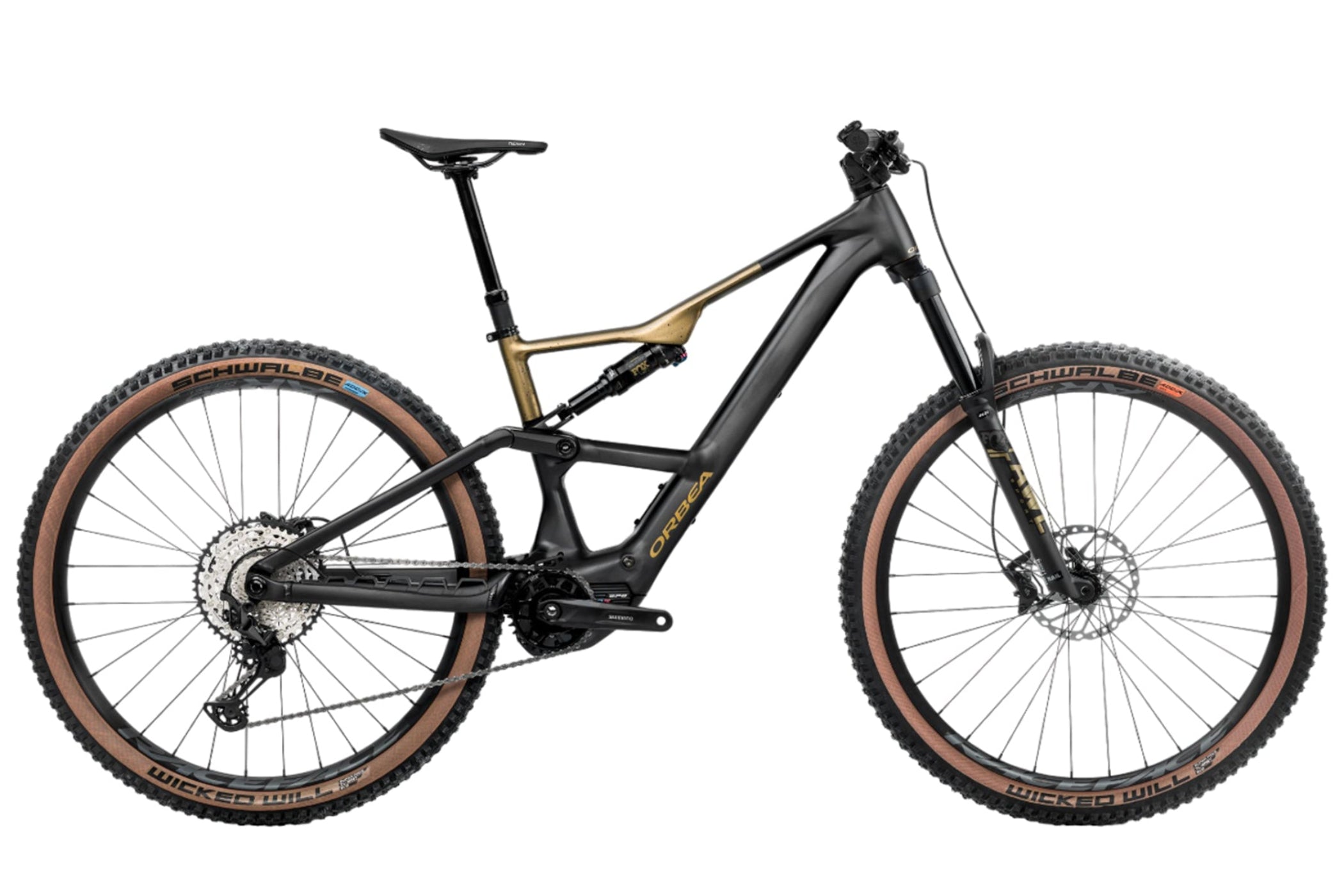

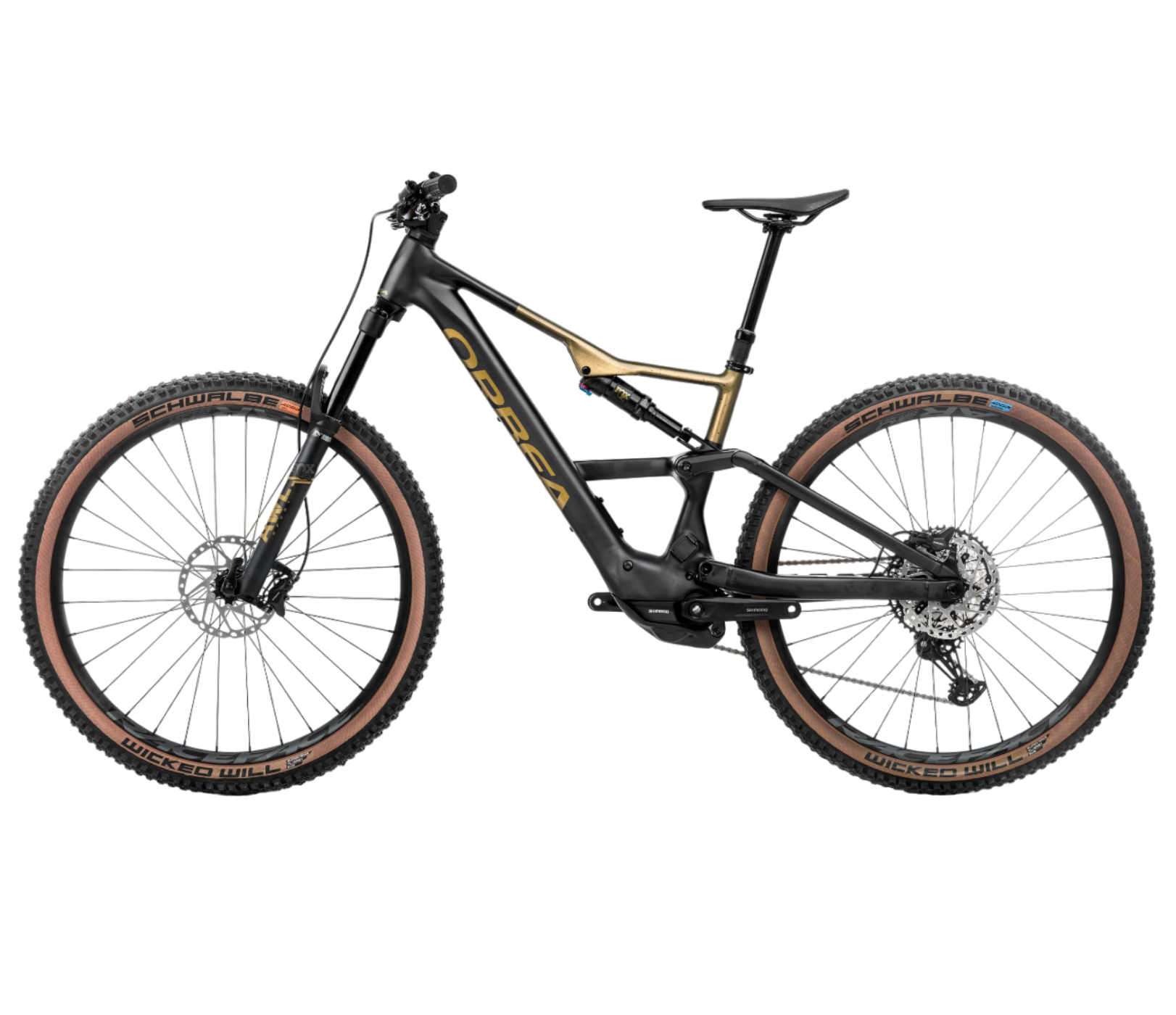

Orbea Rise SL H20 630W 20mph - Diamond Black-Splash Olive Green - 2025 - GM083024-23

Orbea Rise SL H20 630W 20mph - Diamond Black-Splash Olive Green - 2025 - GM083024-23

Rise is ready to reshape the lightweight e-bike market once again—leaner, keener, and packed with more energy per gram. Experience better handling, more power, and increased stamina. Our updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.

Find your flow in every adventure with the Rise SL. Offering 140mm of efficient suspension and fast trail geometry, it delivers a nimble, fun ride. Our 630Wh battery comes as standard, with an option for a 420Wh battery. The Shimano EP600 RS Gen2 MC motor features our latest RS GEN2 MC firmware, providing the most natural ride experience.

Features

• The New Rider Synergy: Rider Synergy (RS) is the heart of Rise, offering the most natural, elastic assistance and the best-in-class battery range for epic adventures. Now, Rise takes it even further with an option to increase torque to 85Nm.
• Steep 'n' Deep: Drop the saddle out of the way to give more space to move your body and gain better control. The Rise accommodates up to a 230mm dropper post, ensuring you can tackle any terrain with confidence.
• Further and Faster: The RS Gen2 assistance system is designed to work with you, offering assistance where needed and conserving battery life elsewhere, letting you ride longer and farther.
• Tuned Rigidity / High-Performance Handling: For the best handling, the bike's rigidity is optimized in the right places. The new asymmetric frame design is key to tuning the frame's rigidity, resulting in predictable performance when you're pushing the limits.

Specifications

What Our Experts Think

• Lightweight & Agile: The Orbea Rise SL H20 features a hydroformed aluminum frame with 140mm front and rear travel, providing excellent handling and maneuverability on rugged trails.

• Powerful Motor & Battery: Powered by the Shimano EP600 RS motor, delivering 85Nm of torque, paired with a 630Wh battery for ample power and extended range on long rides.

• Premium Suspension: Equipped with a Fox 34 Float AWL Sport fork and Fox Float Performance rear shock, both offering 140mm travel, ensuring smooth and controlled performance on rough and technical terrains.

• Advanced Drivetrain: The Shimano XT M8100 rear derailleur and Shimano SLX M7100 shifters ensure precise, reliable shifting, with a 10-51T 12-speed cassette for a versatile gear range.

• Responsive Braking: Shimano M6100 hydraulic disc brakes with 180mm rotors provide excellent stopping power, enhancing control and safety during descents.

• Sleek Aesthetics: The Diamond Black-Splash Olive Green finish gives the bike a modern, durable look, with internal cable routing for a clean, uncluttered cockpit.

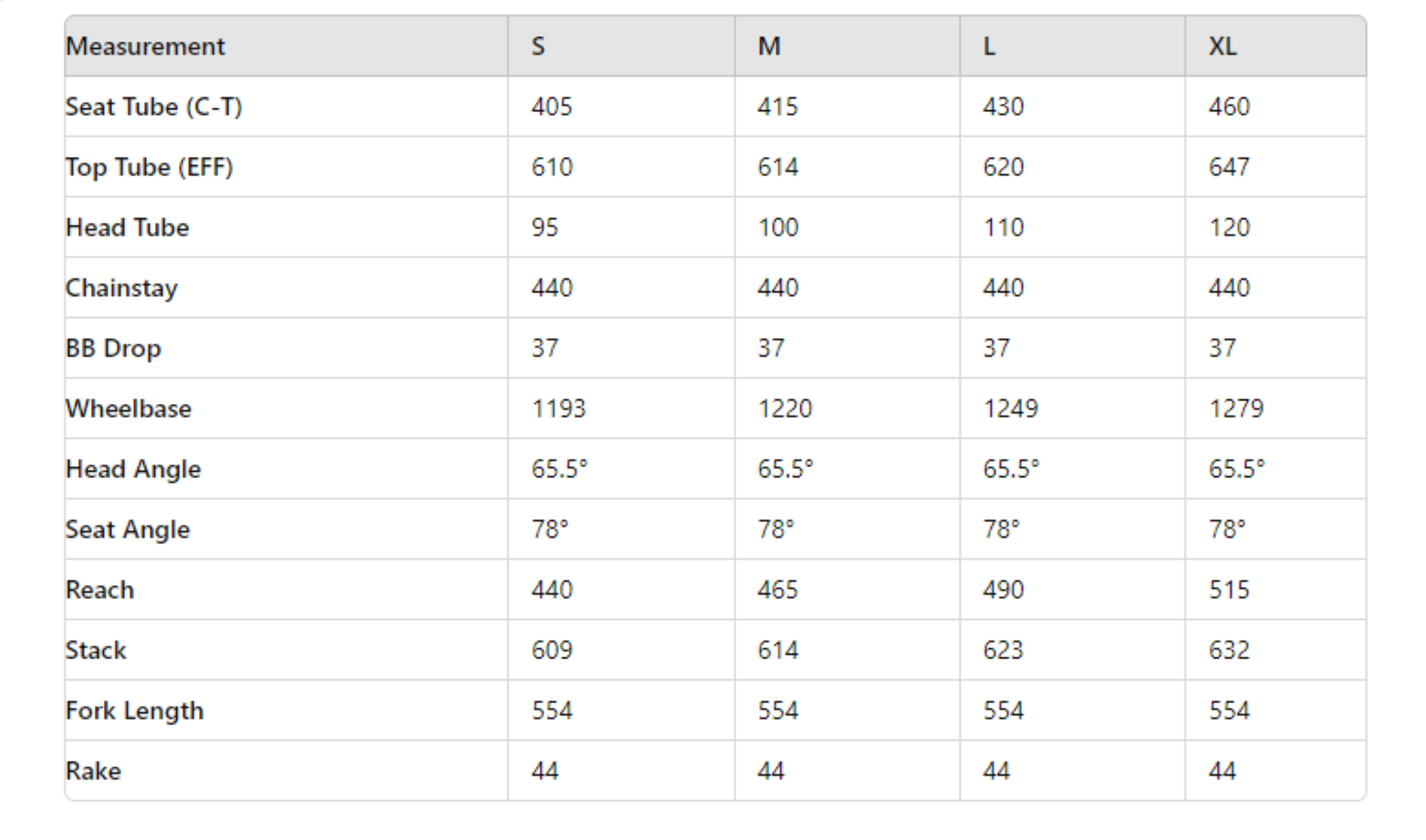

• Optimized Geometry: Designed with a 65.5° head tube angle and a 78° seat tube angle, the geometry offers a stable yet agile ride, suitable for various terrains.

• Extended Range: An optional 210Wh range extender allows for up to 6 hours of ride time in Eco mode, giving you the freedom to explore longer distances.

Q&A

Q: What is the weight of the Orbea Rise SL H20?
A: The bike weighs approximately 21.5 kg (47.4 lbs).

Q: What is the price of the Orbea Rise SL H20?
A: The bike is priced at $5,899 USD.

Q: What drivetrain components are included in the Orbea Rise SL H20?
A: The bike is equipped with a Shimano SLX M7100 12-speed drivetrain and Shimano XT M8100 rear derailleur.

Q: What wheel and tire specifications does the Orbea Rise SL H20 have?
A: It comes with Race Face AR 30c Tubeless Ready wheels and Schwalbe Wicked Will Evo TLE 29x2.40" tires.

Q: What color options are available for the Orbea Rise SL H20?
A: The 2025 model is available in Diamond Black / Splash Olive Green, Bumblebee Yellow-Black, and Escape Green / Splash Ice Green.

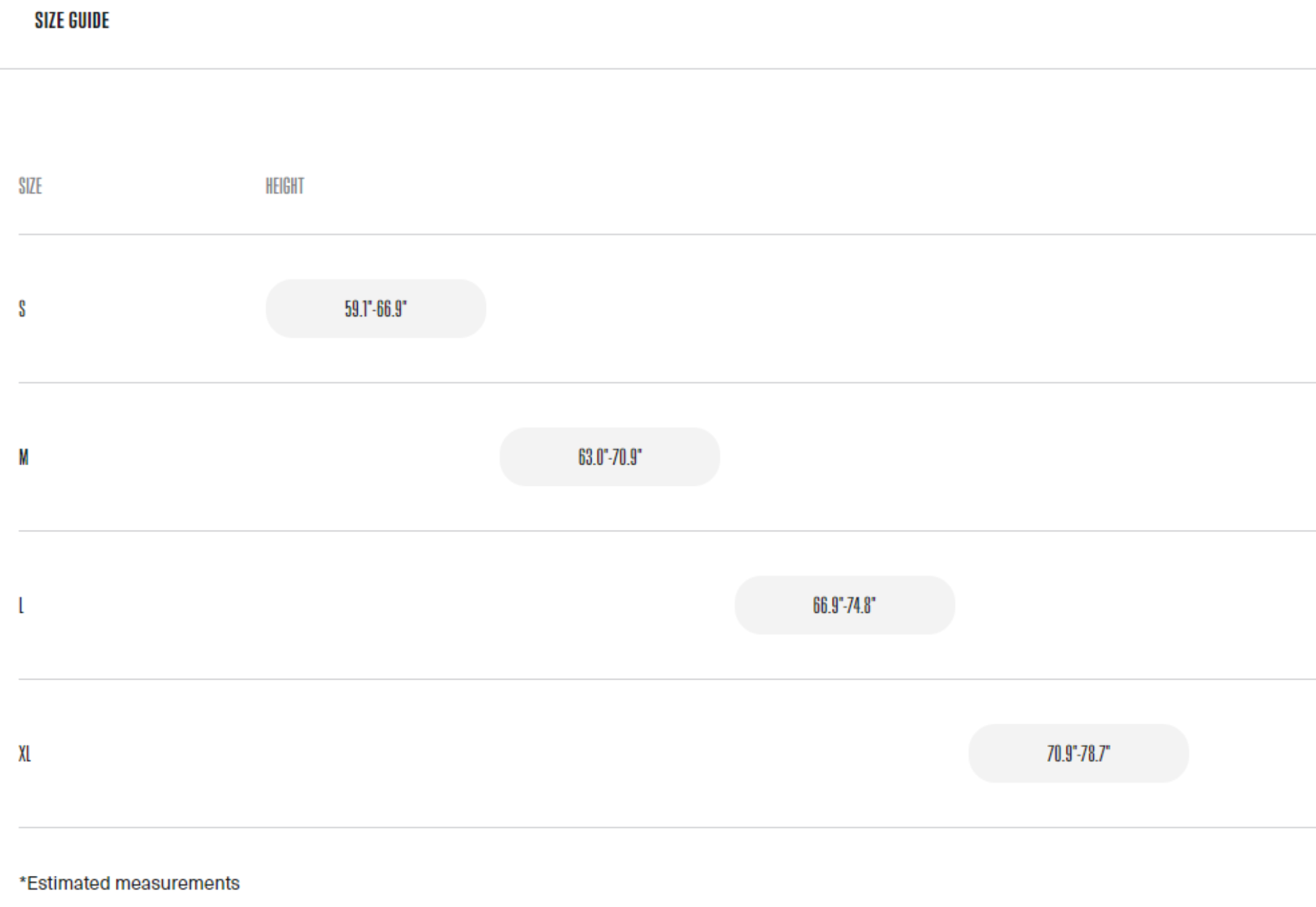

Q: What sizes are available for the Orbea Rise SL H20?
A: The bike is available in sizes Small, Medium, Large, and X-Large.

Q: What is the maximum assisted speed of the Orbea Rise SL H20?
A: The bike provides pedal assistance up to 20 mph (32 km/h), complying with US regulations for Class 1 e-bikes.

Q: What is the estimated range of the Orbea Rise SL H20?
A: With the 630Wh battery, the bike offers an estimated range of 30–50 miles (48–80 km) per charge, depending on terrain and rider input.

Q: Where can I purchase the Orbea Rise SL H20?
A: The bike is available through authorized Orbea dealers and various online retailers.

Maintenance Tips

• Motor & Battery: Regularly check the motor for any unusual noise or issues. Keep the battery clean and properly charged to extend its lifespan.

• Suspension: Clean and lubricate the Fox suspension components regularly to maintain smooth performance.

• Drivetrain: Clean and lubricate the Shimano drivetrain components to ensure smooth and efficient shifting.

• Brakes: Periodically check the brake pads for wear and replace them as needed. Ensure the hydraulic brake system is in good condition.

• Wheels & Tires: Monitor tire pressure regularly and ensure that the tubeless setup is intact to prevent flats.
