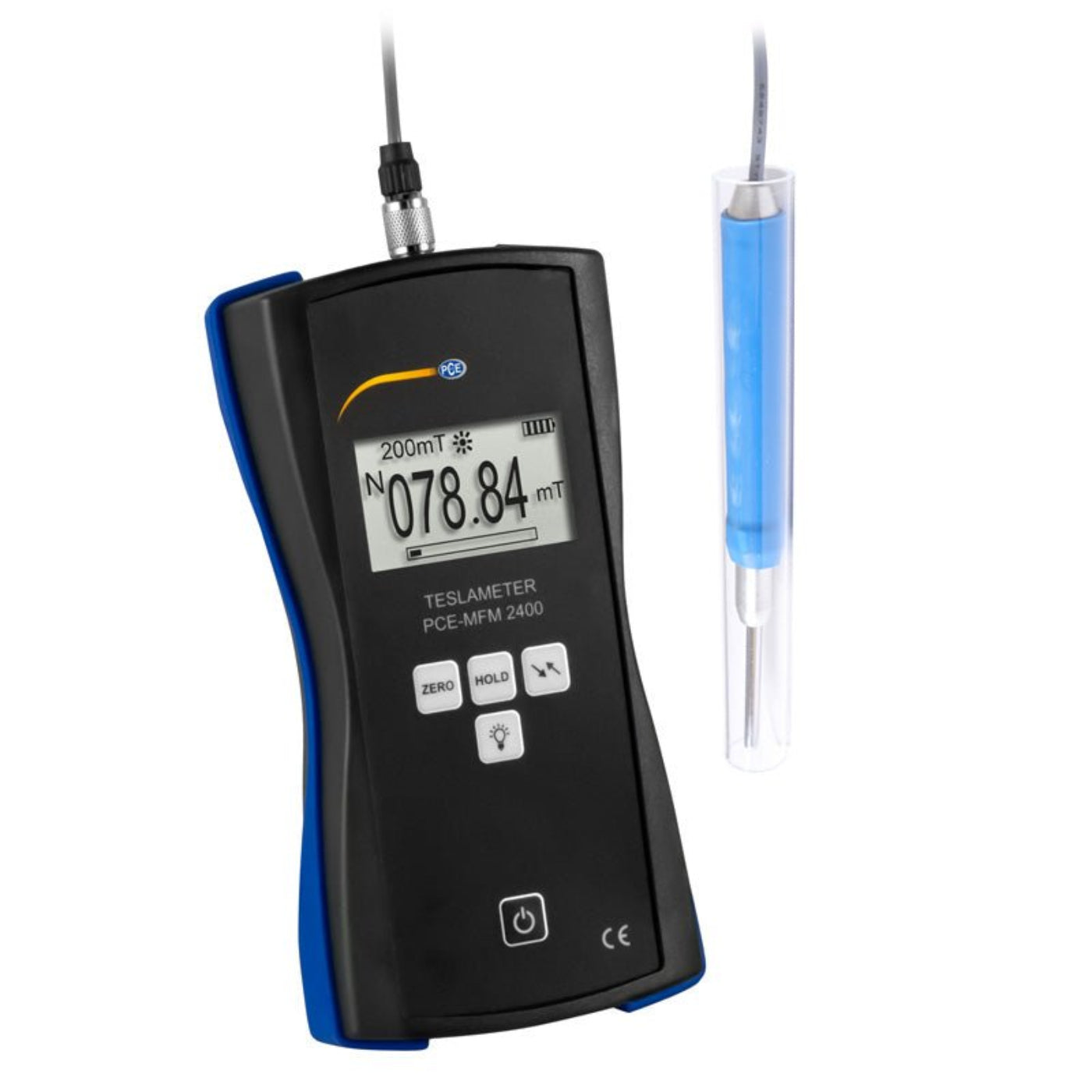

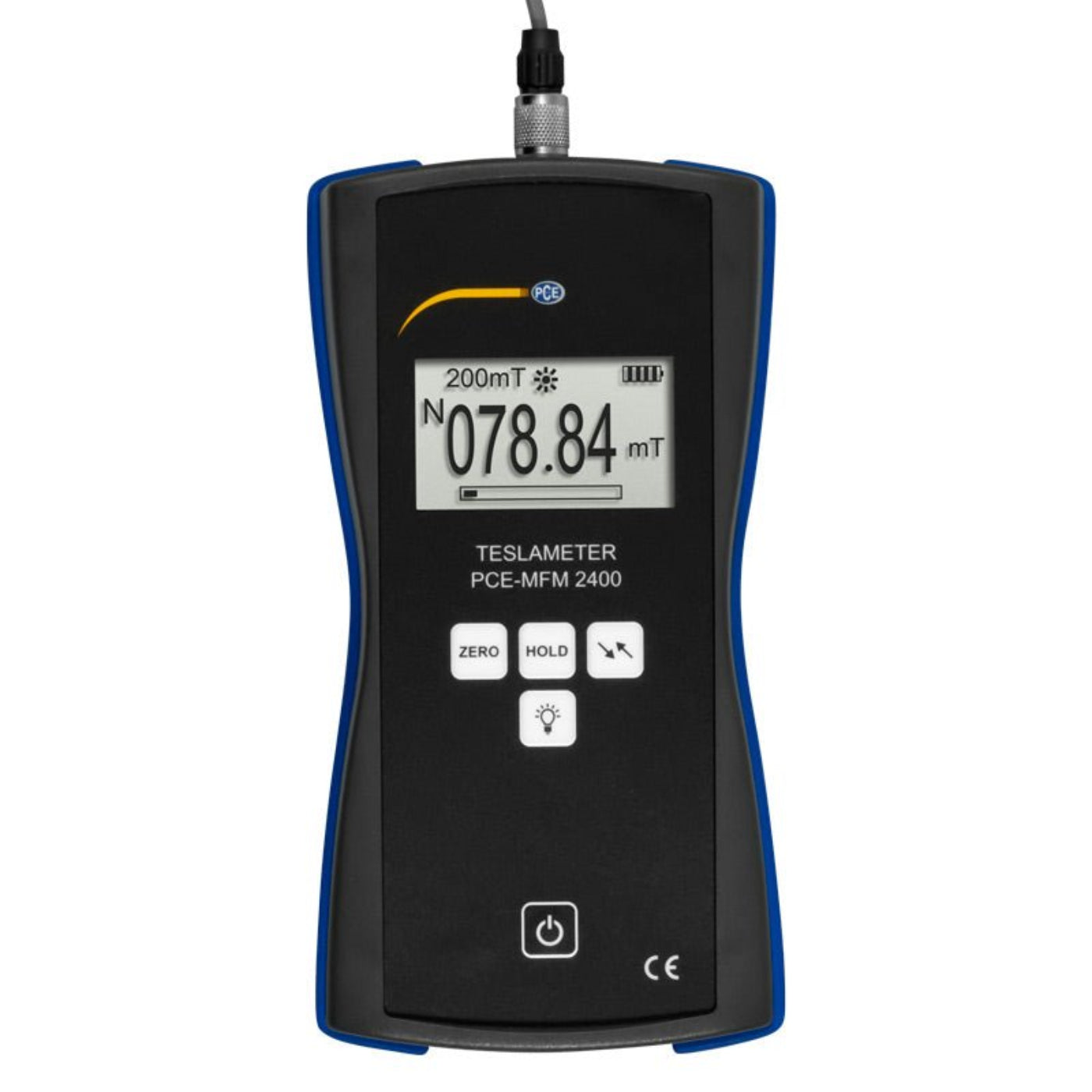

PCE 0 - 24,000G Portable Axial Magnetometer Gauss Magnetic Field Meter - PCE-MFM 2400+

PCE 0 - 24,000G Portable Axial Magnetometer Gauss Magnetic Field Meter - PCE-MFM 2400+

The PCE 0 - 24,000G Portable Axial Magnetometer Gauss Magnetic Field Meter is suitable for a wide range of measurement tasks, offering high precision with an accuracy of ±1%. This magnetometer allows for the testing of relays and permanent magnets to assess their magnetic fields. It is ideal for use in production processes and quality control applications.

With the backlight of the magnetometer, the measured values are always easy to read, even in poor lighting. Thanks to the automatic switch-off function, the magnetometer switches itself off automatically after 5 minutes. This ensures that the magnetometer's battery does not discharge completely.

Highlights

• Accuracy of +/- 1%
• Automatic shutdown
• Axial measurement
• Background lighting
• Tesla and Gaussian measurements
• For static magnetic fields

Features

• Very precise measurement technology
• Measuring range up to 24,000 G and 2,400 mT
• Axial sensor
• For measuring static magnetic fields
• Automatic shutdown

Specifications

• Measuring range
• 0 - 200 mT
• 200 - 2,400 mT
• 0 - 2,000 G
• 2,000 - 24,000 G
• Accuracy: ± 1% of reading
• Resolution:
• 0.01 mT
• 0.1 g

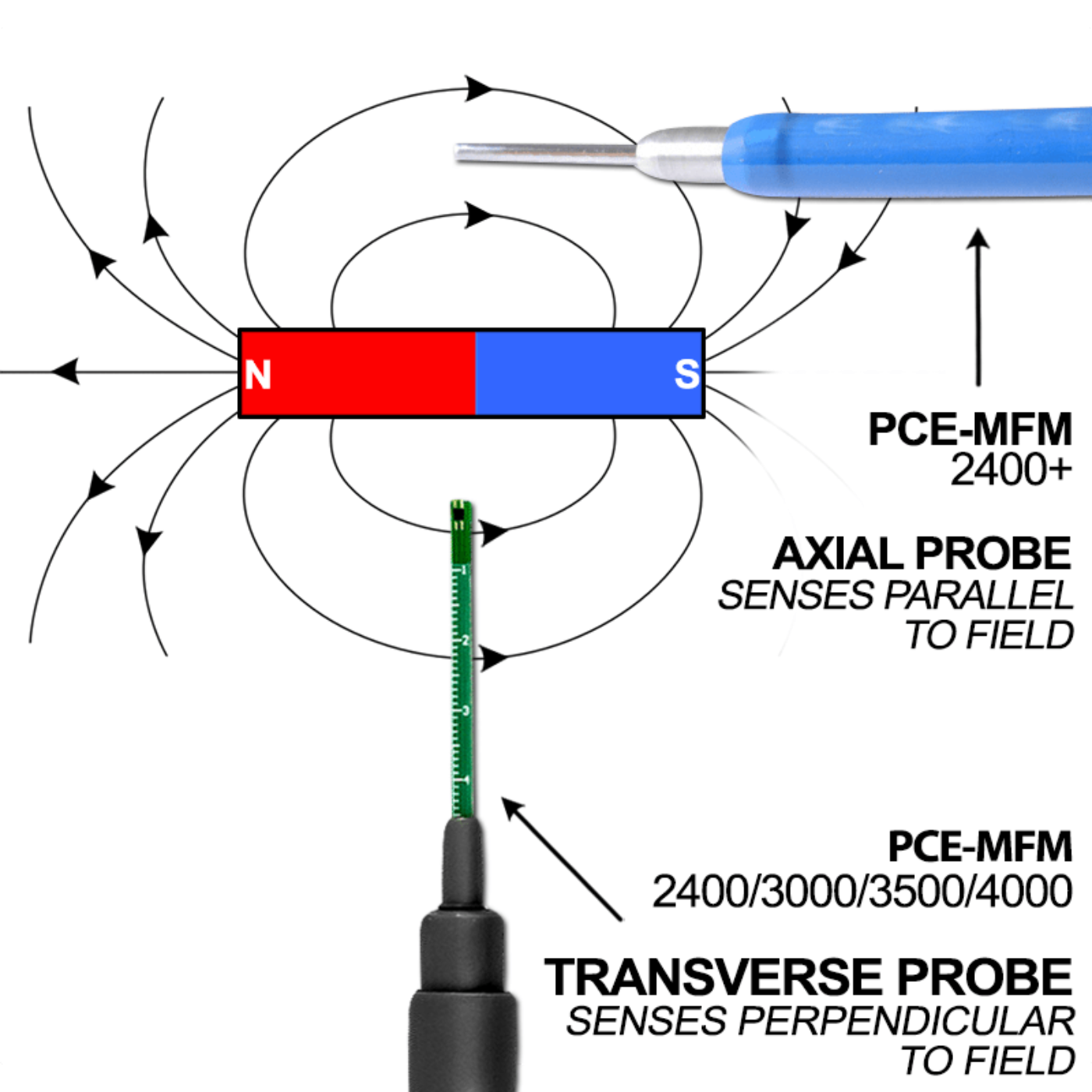

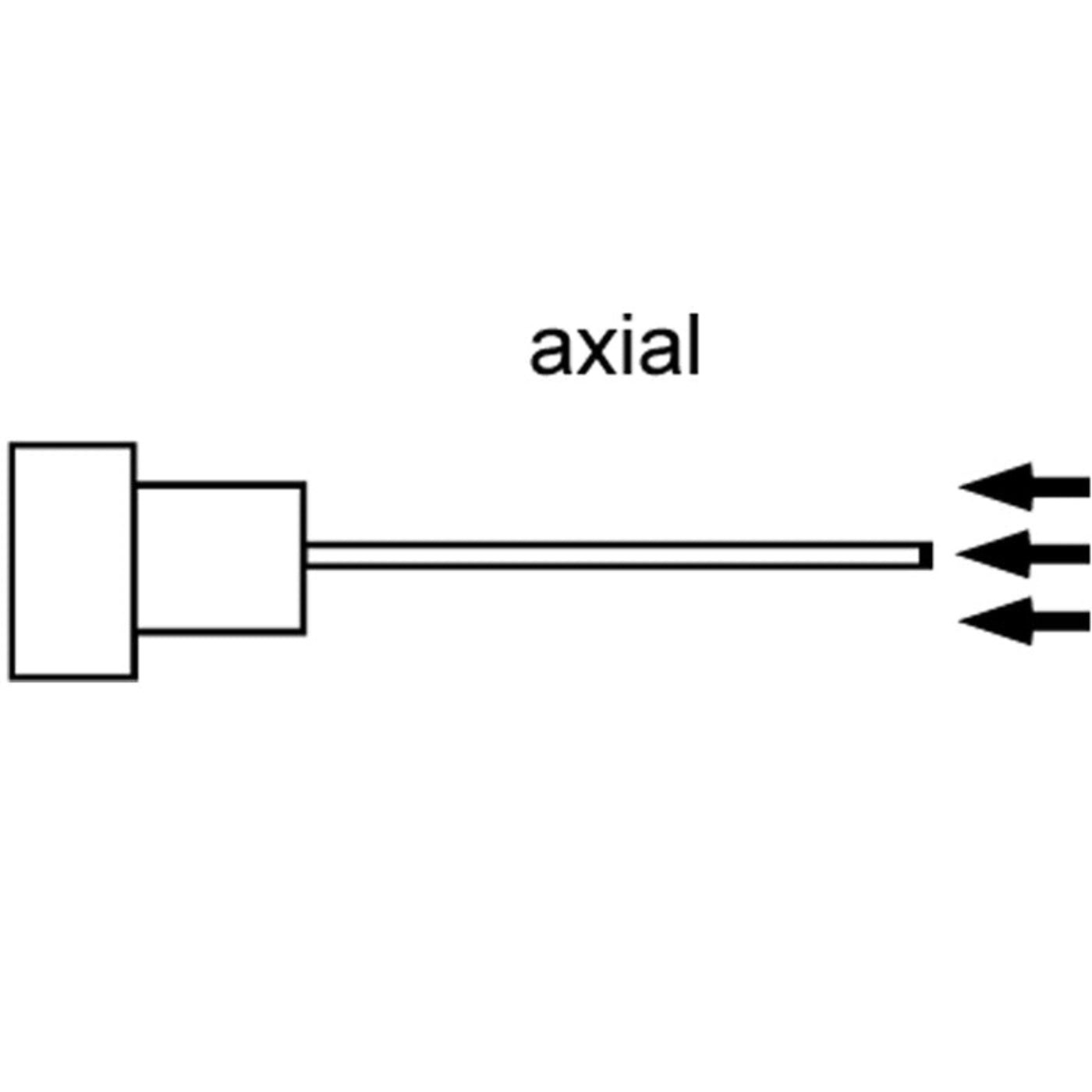

• Measuring direction: Axial
• Magnetic field: Static (DC)
• Unit: mT, G
• Power supply: 1 x 9V block battery
• Automatic shutdown: After 5 minutes in idle status
• Modes: Hold mode, measurement mode

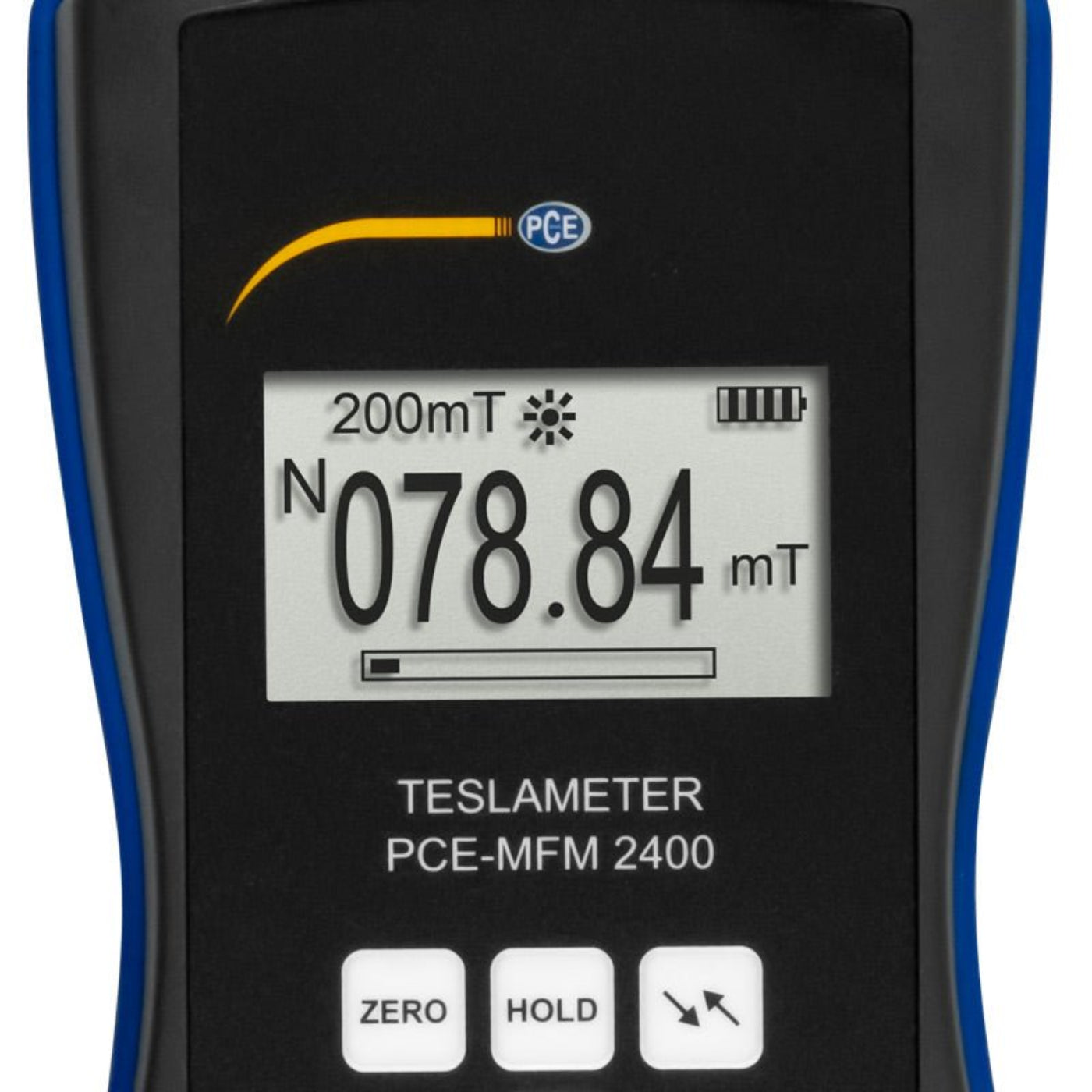

• Display: Backlight digital 4-digit value display
• Operating temperature: 0 - 50°C / 32 - 122°F
• Storage temperature: -20 - 50°C / -4 - 122°F
• Dimensions: 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 inch
• Weight: 310 g / < 1 lb

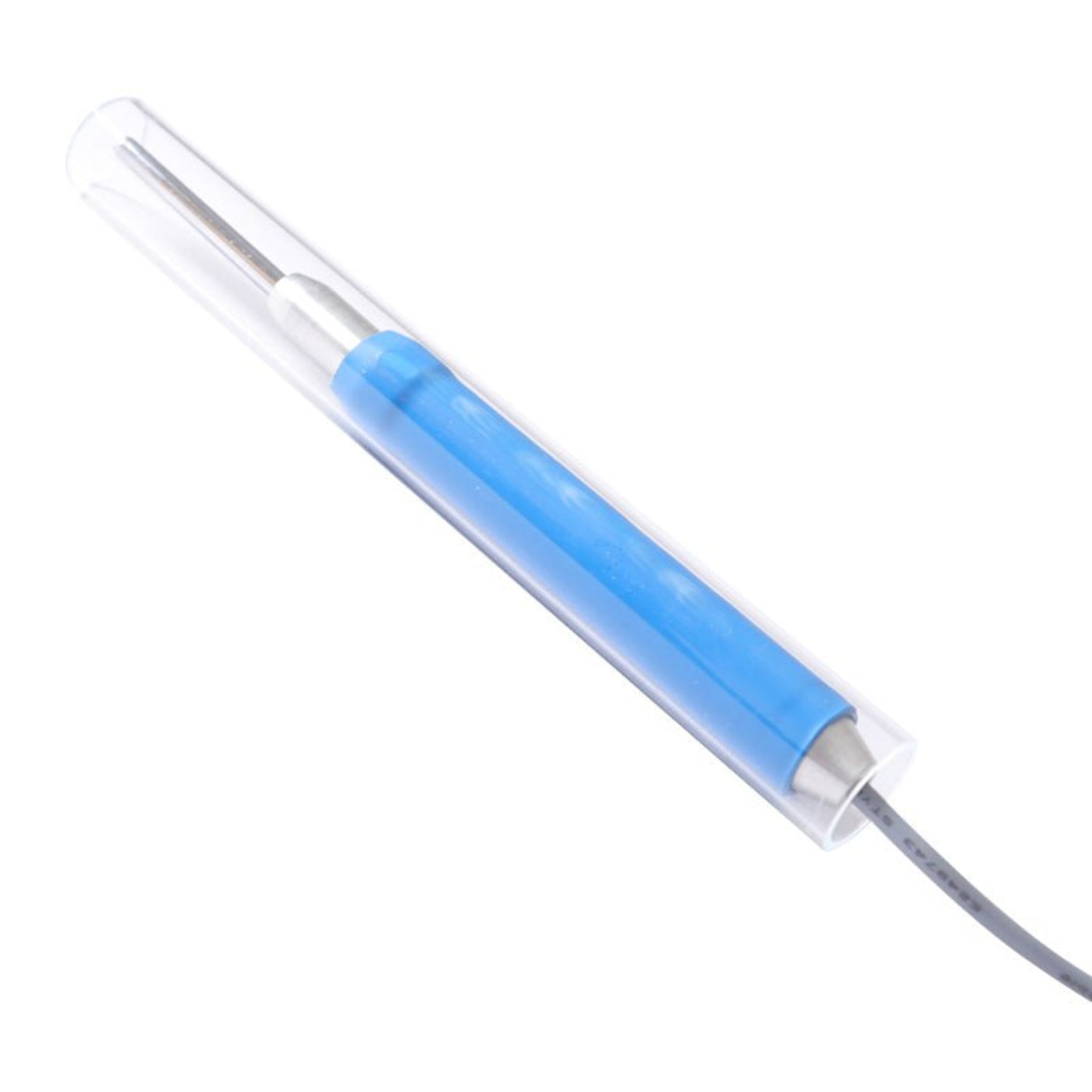

• Sensor: Hall sensor axial, cable length approx. 2 m / 6.6 ft

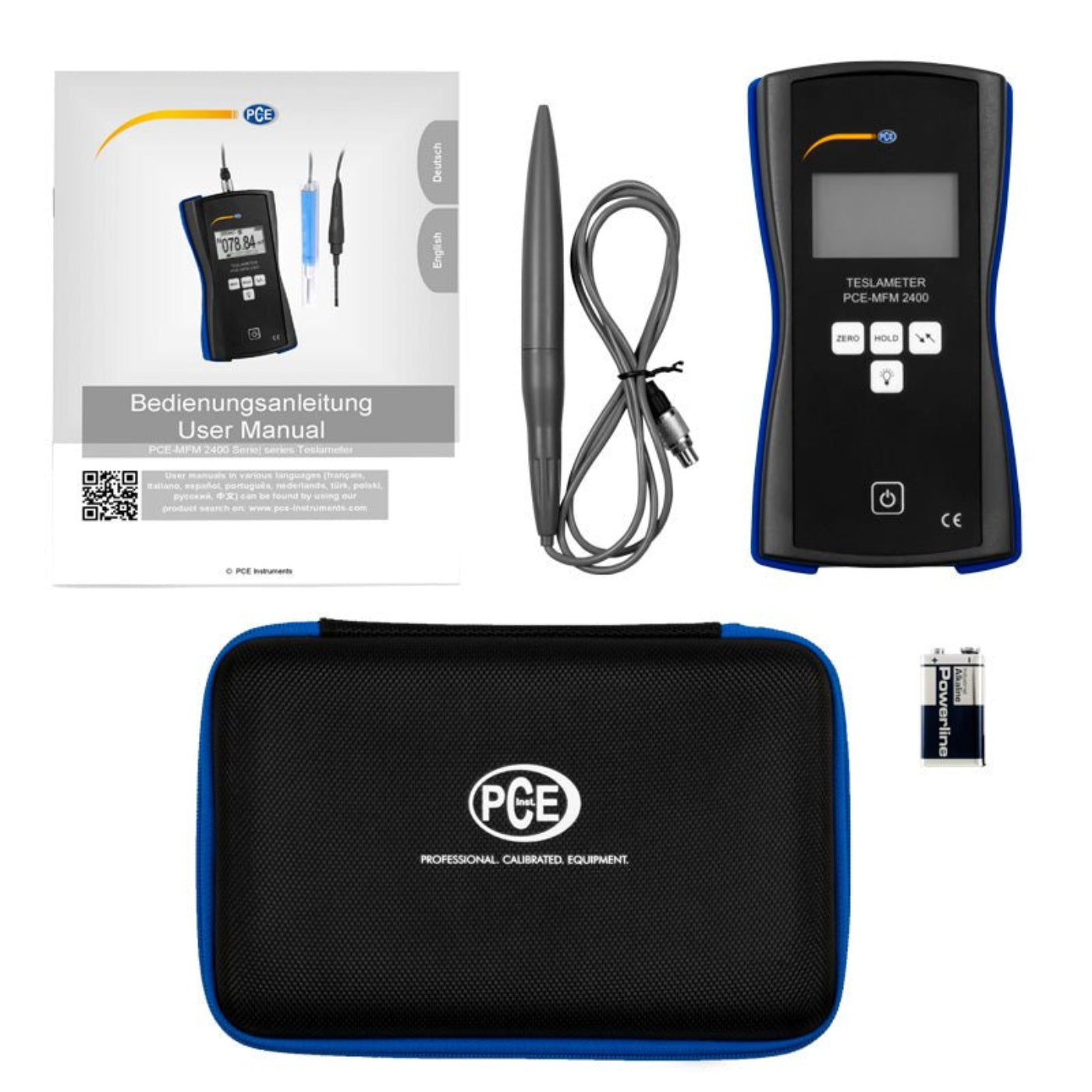

What’s Included

• 1 x PCE-MFM 2400+ Magnetometer

• 1 x Hall sensor (axial)
• 1 x Service bag
• 1 x 9V block battery
• 1 x Instruction manual

Manual

PCE-MFM 2400+ User Manual

PCE-MFM 2400+ Data Sheet

What Our Experts Think

• High Precision: With an accuracy of ±1%, this magnetometer provides reliable and accurate measurements, essential for quality control and research in environments where magnetic fields need to be assessed with high precision.

• Wide Measurement Range: The 0 - 24,000G range makes it suitable for testing both weak and strong magnetic fields, offering versatility for various industrial and scientific applications.

• Ideal for Quality Control: Perfect for checking the performance of relays and permanent magnets in manufacturing, ensuring that they meet the required magnetic field standards for functionality.

• Portable and Easy to Use: Its portable design allows for convenient field testing without compromising on accuracy, making it a practical tool for both in-lab and on-site measurements.

• Durable Design: Built to withstand industrial environments, it is robust enough for frequent use in production and quality assurance settings, ensuring long-term reliability.

Q&A

Q: What is the measuring range of the PCE 0 - 24,000G Axial Magnetometer?
A: The device can measure magnetic fields with a range of 0 to 24,000 Gauss (G), offering a broad scope for various testing tasks.

Q: What is the accuracy of the PCE-MFM 2400+?
A: The magnetometer provides high precision with an accuracy of ±1%, ensuring reliable and consistent measurements.

Q: What applications is this magnetometer suitable for?
A: It is ideal for testing relays and permanent magnets, making it well-suited for use in production processes and quality control applications where precise magnetic field measurements are necessary.

Q: Is this device portable?
A: Yes, the PCE-MFM 2400+ is a portable device, making it convenient for on-site measurements and field testing.

Q: How is this device useful in quality control?
A: This magnetometer helps assess the magnetic fields of products like relays and permanent magnets, which is crucial for ensuring the quality and consistency of these components during manufacturing.

Maintenance Tips

• Regular Cleaning: Use a soft, lint-free cloth to wipe the device, keeping the sensor and display clean from dust or debris.

• Calibration: Calibrate the magnetometer periodically to maintain its accuracy (±1%). Follow the manufacturer's calibration guidelines.

• Storage: Store in a dry, cool, and dust-free environment to prevent damage and ensure longevity.

• Check Probes: Regularly inspect the probe for any physical damage. Replace it if there are signs of wear to ensure precise readings.

• Battery Care: Charge fully before long-term storage. Avoid deep discharge to prolong battery life.

• Software Updates: Stay up to date with any firmware updates provided by the manufacturer to optimize performance.
