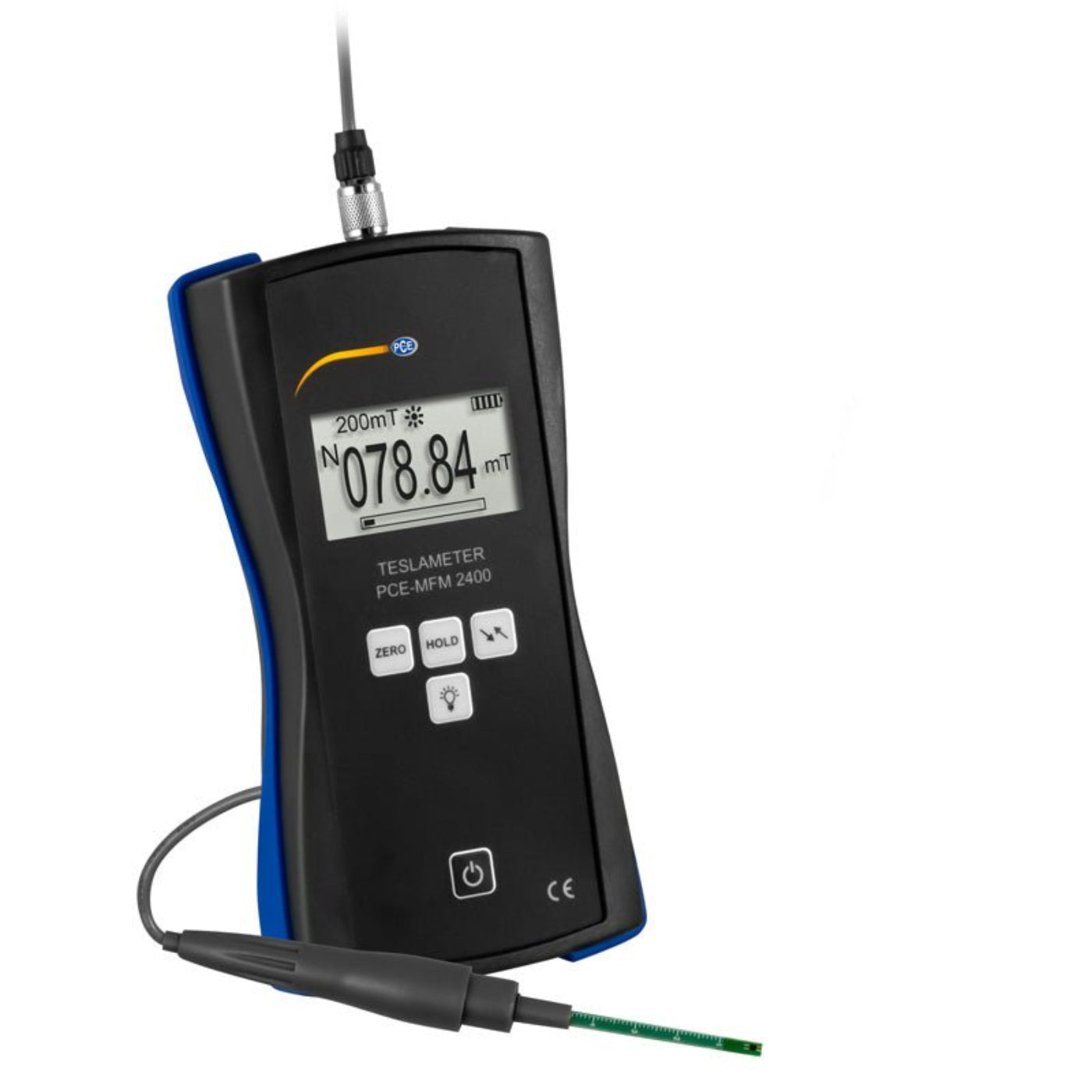

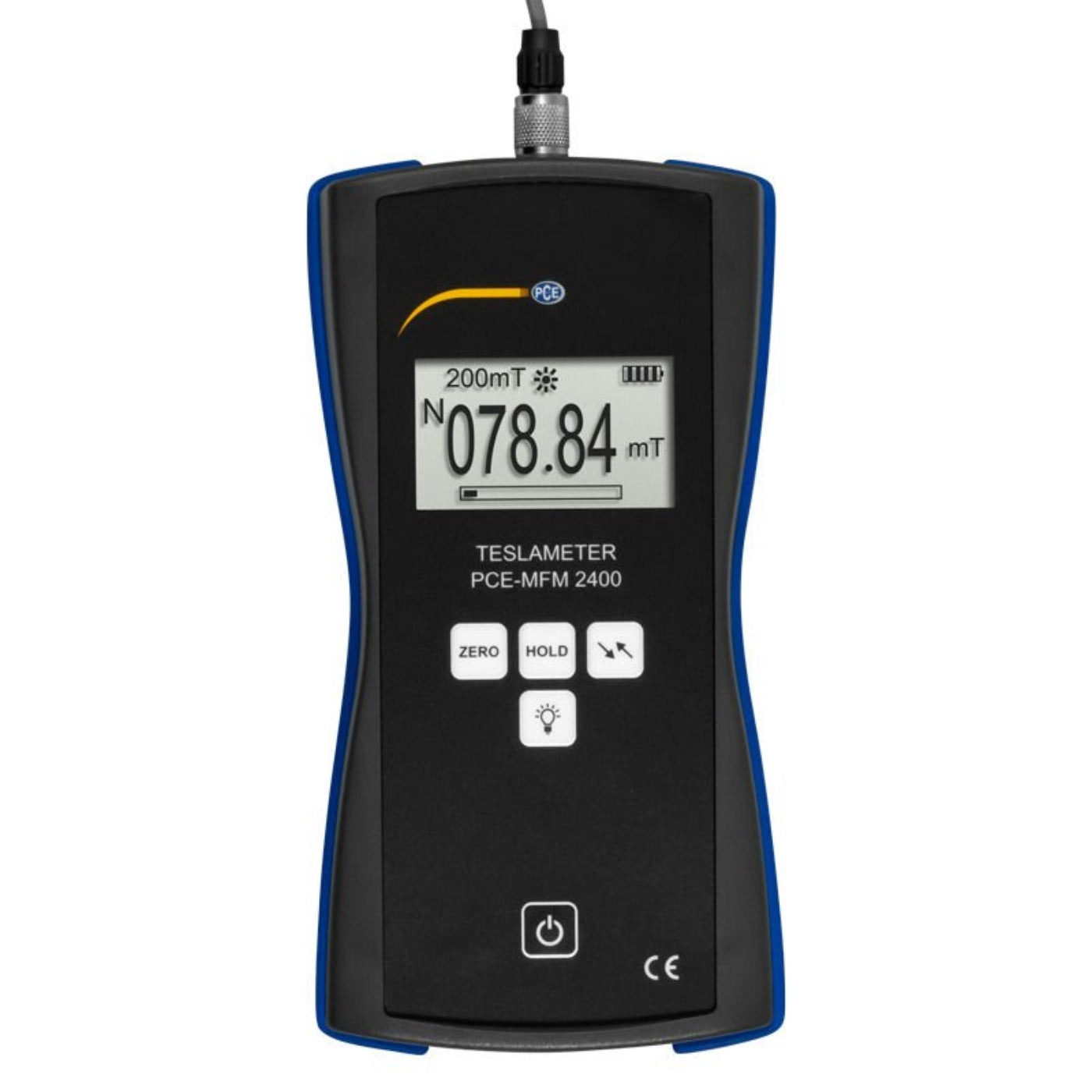

PCE 0 - 24,000G Portable Transversal Magnetometer Gauss Magnetic Field Meter - PCE-MFM 2400

PCE 0 - 24,000G Portable Transversal Magnetometer Gauss Magnetic Field Meter - PCE-MFM 2400

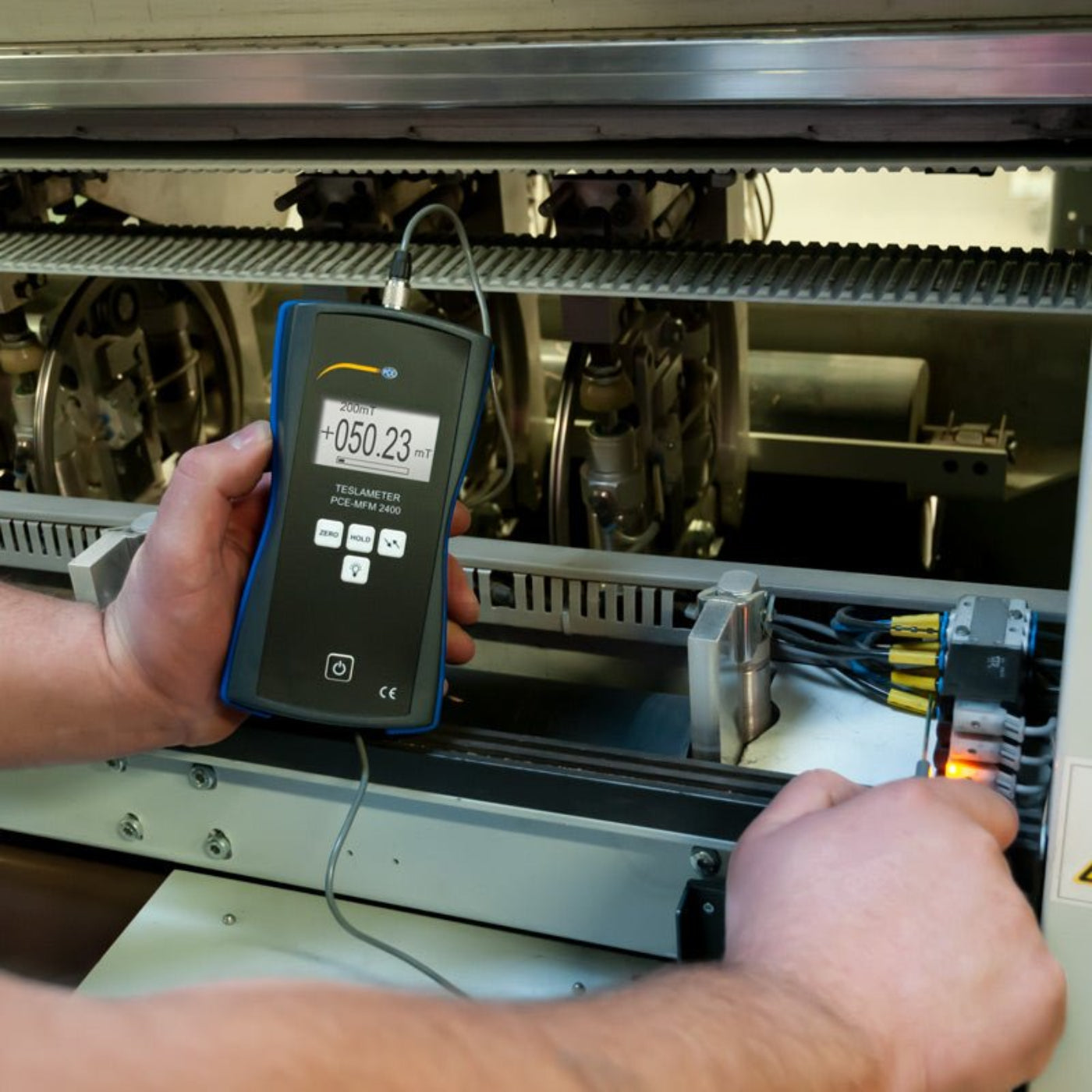

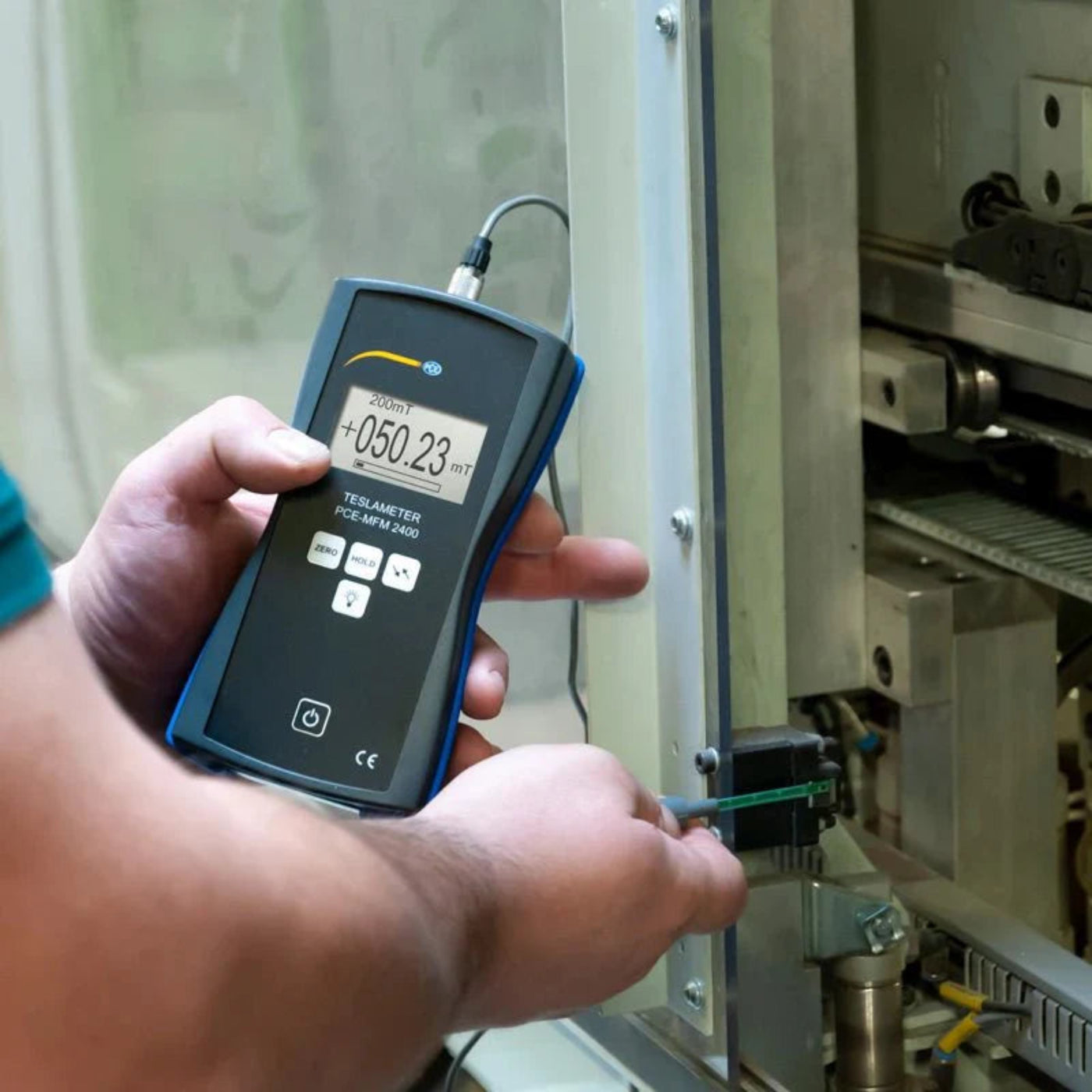

The PCE 0 - 24,000G Portable Magnetometer Gauss Magnetic Field Meter is designed to handle a broad range of measurement tasks with 1% accuracy, ensuring high precision. It is ideal for testing relays and permanent magnets to assess their magnetic fields. This magnetometer is commonly used in production processes and quality control applications.

With the backlight on the magnetometer, the measured values ??are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the device automatically switches itself off after 5 minutes. This ensures that the battery of the magnetometer does not discharge completely.

Highlights

• Accuracy of +/- 1%
• Automatic switch-off
• Transverse measurement
• Backlight
• Tesla and Gauss measurement
• For static magnetic fields

Features

• precise measurement technology
• Measuring range up to 24,000 G and 2,400 mT
• transverse sensor
• for measuring static magnetic fields
• automatic shutdown

Specifications

• Measuring range
• 0 - 200 mT
• 200 - 2,400 mT
• 0 - 2,000 G
• 2,000 - 24,000 G
• Accuracy: ± 1% of reading
• Resolution
• 0.01 mT
• 0.1 g

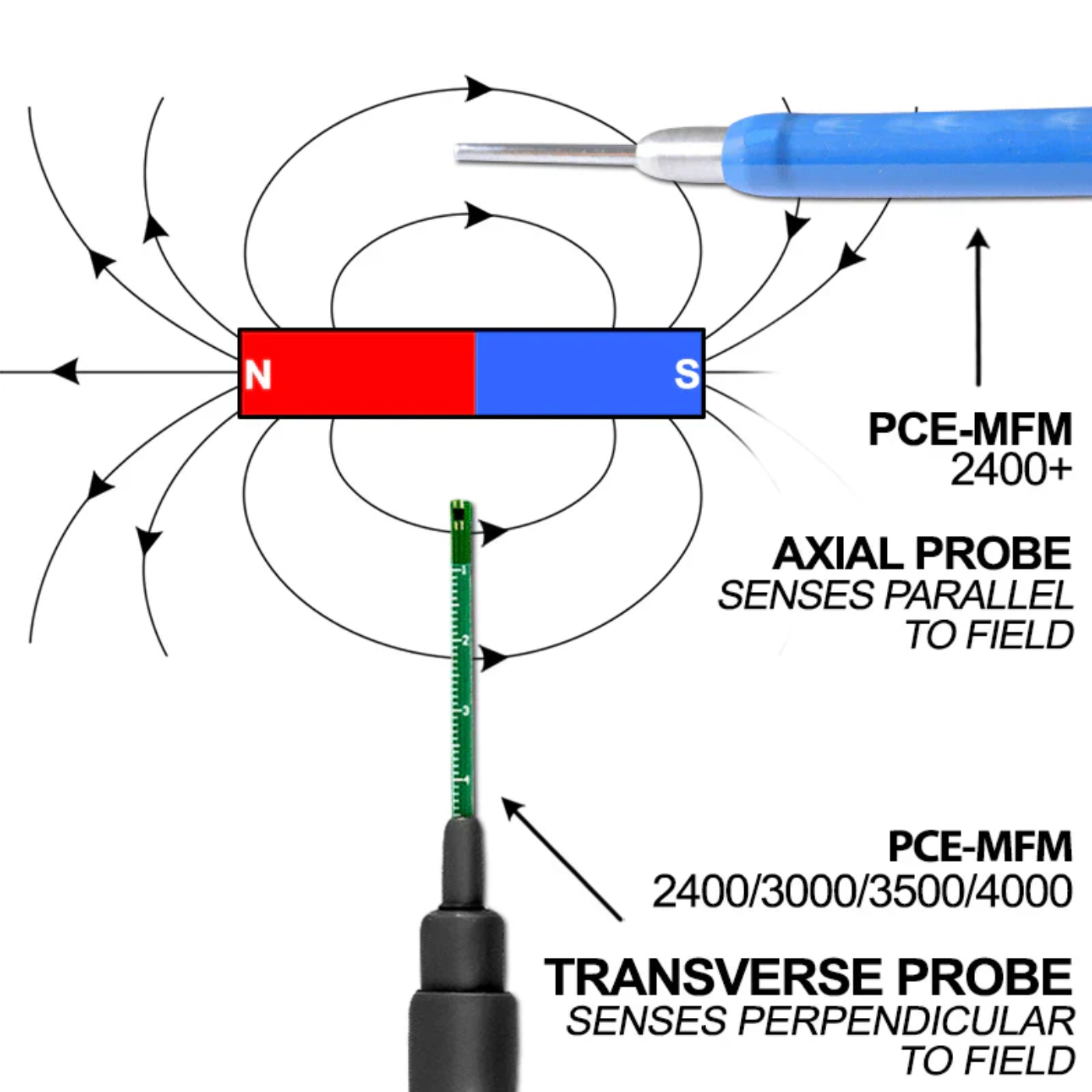

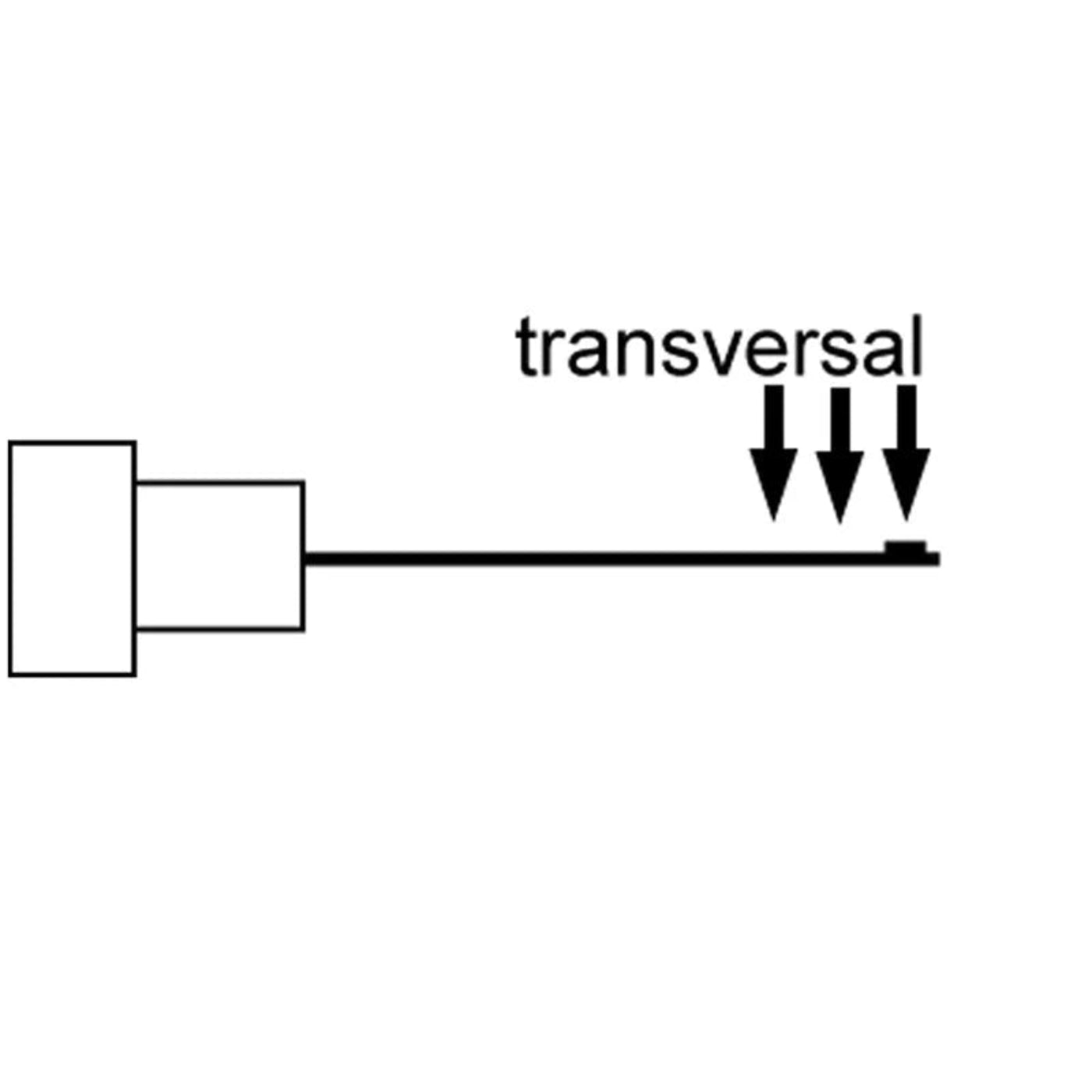

• Measuring direction: transversal
• Magnetic field: static (DC)
• Unit: mT, G
• Power supply: 1 x 9 V block battery
• Automatic shutdown: Automatic shutdown after 5 minutes in idle status
• Modes: Hold mode, measurement mode

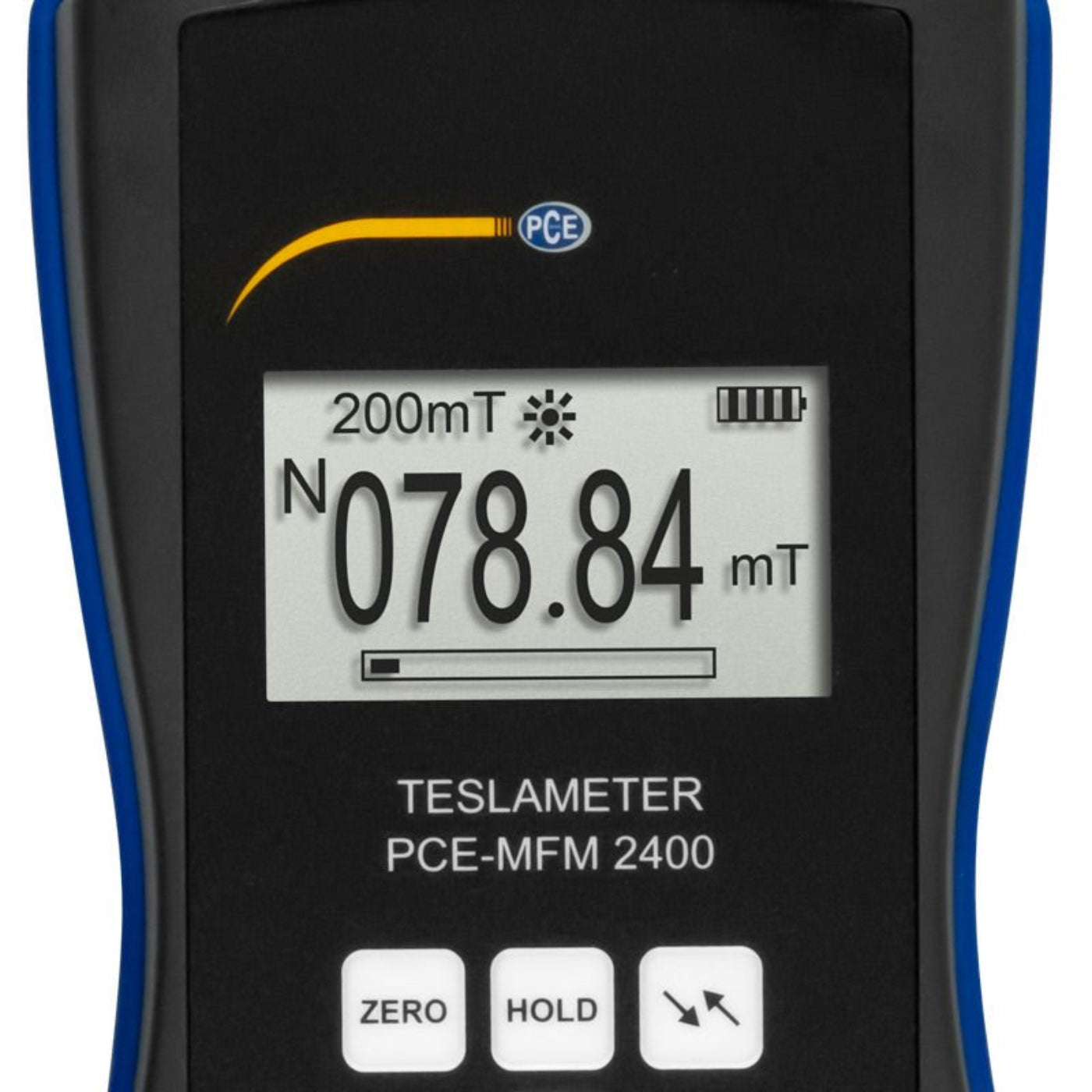

• Display: Backlight digital 4-digit value display
• Operating temperature: 32 - 122 ° F, 0 - +50 ° C
• storage temperature: -4 - 122 ° F, -20 - +50 ° C
• Dimensions: 7.28 x 3.82 x 1.57 inch; 185 x 97 x 40 mm
• Weight: 0.68 lb, 310 g

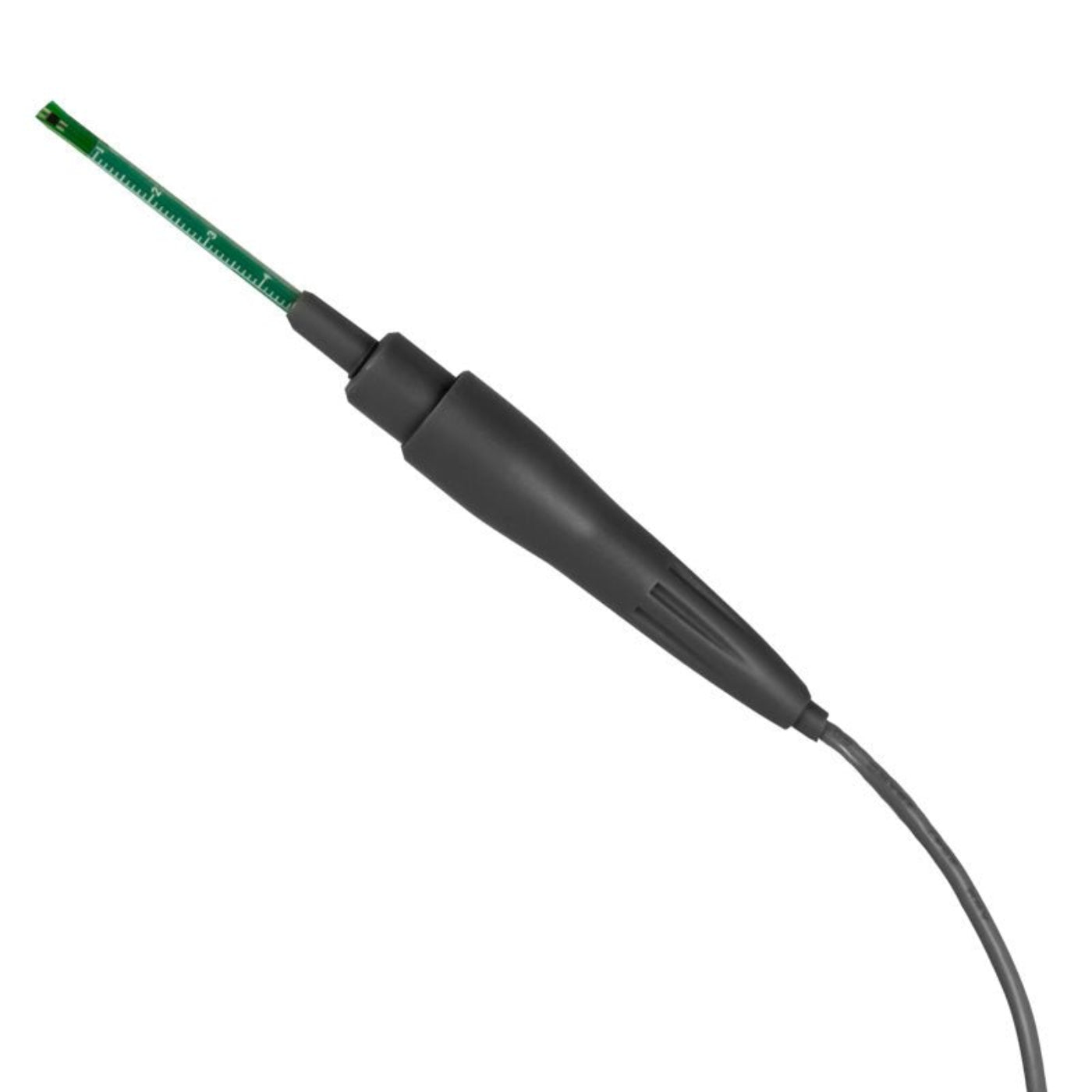

• Sensor: Hall sensor transversal, cable length approx. 3.28 ft., 1 m

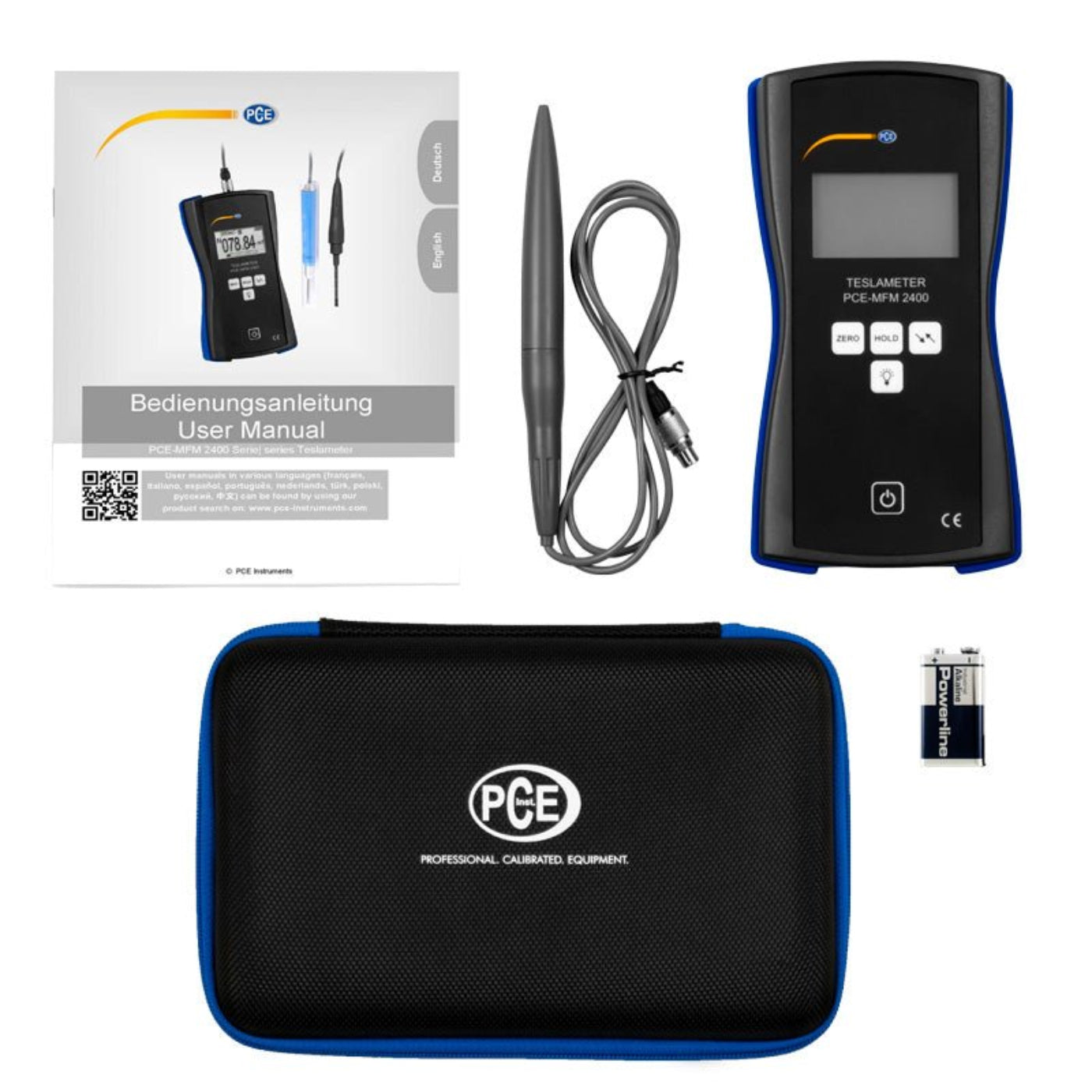

What’s Included

• 1 x PCE-MFM 2400 Magnetometer
• 1 x Hall sensor (transverse)
• 1 x service bag
• 1 x 9 V block battery
• 1 x instruction manual

Manual

PCE-MFM 2400 User Manual

PCE-MFM 2400 Data Sheet

What Our Experts Think

• High Precision and Versatility: The PCE-MFM 2400 offers exceptional accuracy (±1%) across a wide magnetic field range, making it suitable for various tasks like testing relays and permanent magnets in industrial settings.

• Ideal for Quality Control: This portable device is a great tool for production processes, ensuring that magnetic field measurements are consistent and meet quality control standards.

• Broad Application Range: Whether you're assessing magnet performance or testing magnetic field strength in devices, this magnetometer covers it all with its expansive measuring range up to 24,000G.

• Portable and User-Friendly: Designed for ease of use, the PCE-MFM 2400 is compact and easy to transport, making it a reliable option for both on-site and laboratory measurements.

• Robust and Reliable: This instrument is built to withstand regular use in industrial environments, delivering consistent results without sacrificing durability.

Q&A

Q: What is the measuring range of the PCE-MFM 2400 Magnetometer?
A: The PCE-MFM 2400 has a measuring range of 0 to 24,000 Gauss, making it versatile for various applications involving magnetic field measurement.

Q: What is the accuracy of the PCE-MFM 2400 Magnetometer?
A: The device offers an accuracy of ±1%, ensuring reliable and precise measurements.

Q: What applications is the PCE-MFM 2400 Magnetometer ideal for?
A: It is ideal for testing relays, permanent magnets, and assessing magnetic fields in production processes and quality control applications.

Q: How does the PCE-MFM 2400 Magnetometer measure magnetic fields?
A: The magnetometer uses a transverse measuring method to assess the magnetic field strength in Gauss, making it suitable for a wide range of field testing tasks.

Q: Is the PCE-MFM 2400 portable?
A: Yes, the PCE-MFM 2400 is a portable device, designed for ease of use in both laboratory and field environments.

Q: Can the PCE-MFM 2400 be used for quality control?
A: Absolutely. Its high accuracy and broad measurement range make it ideal for quality control tasks where assessing the strength of magnetic fields is essential.

Maintenance Tips

• Regular Cleaning: Gently wipe the device with a soft, lint-free cloth to remove dust and debris from the probe and display.

• Calibration: Calibrate the magnetometer periodically to maintain its 1% accuracy and ensure reliable measurements.

• Proper Storage: Store in a cool, dry environment to protect the device from moisture and extreme temperatures.

• Inspect Probes: Regularly inspect the probe for damage or wear and replace it if necessary to ensure precise magnetic field measurements.

• Battery Care: Charge the device fully before long-term storage and avoid deep discharges to maintain battery health.

• Firmware Updates: Keep the device up-to-date with the latest software or firmware updates to optimize functionality.
