PCE 0 - 30,000G Portable EMF Detector & Magnetometer Gauss Magnetic Field Meter - PCE-MFM 3500

PCE 0 - 30,000G Portable EMF Detector & Magnetometer Gauss Magnetic Field Meter - PCE-MFM 3500

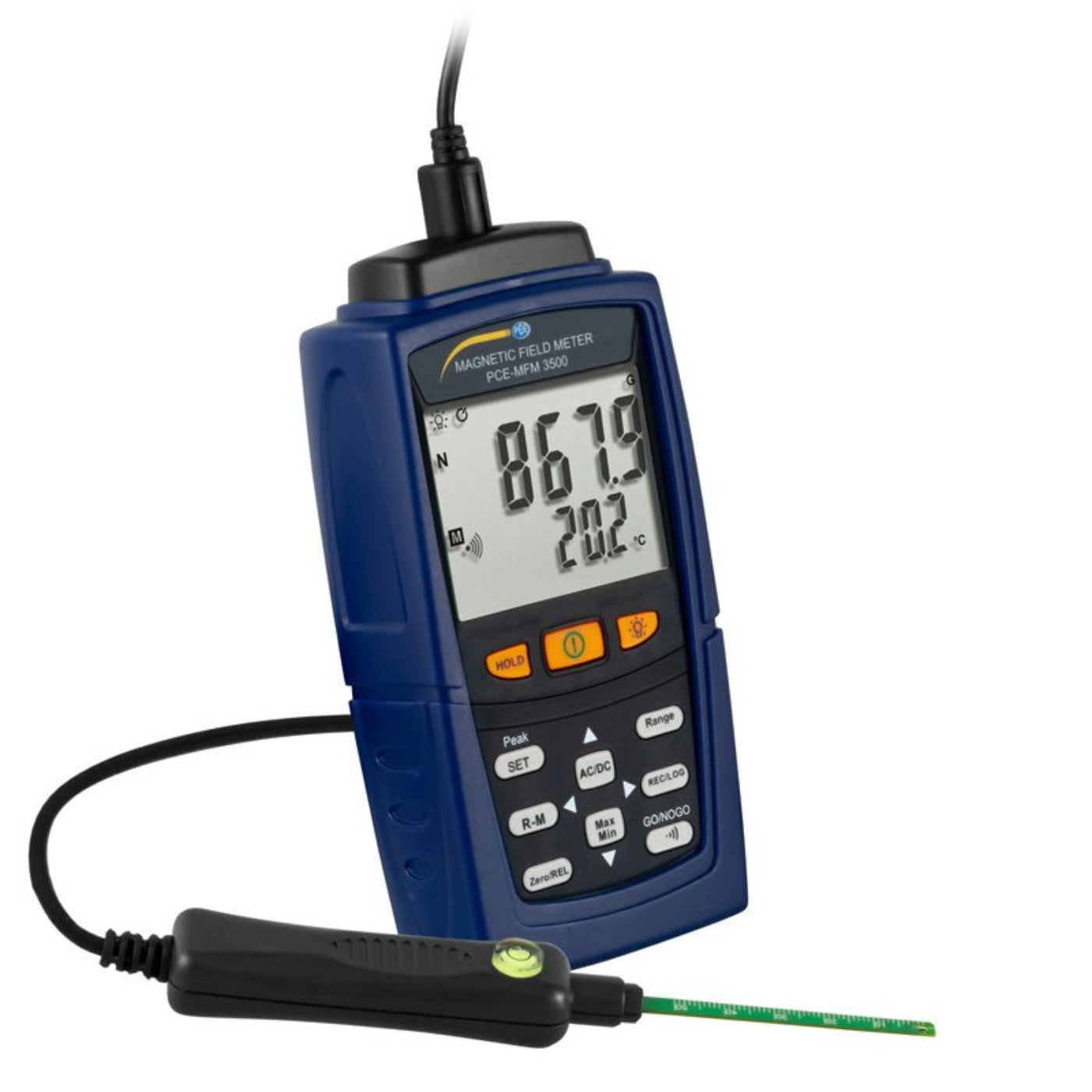

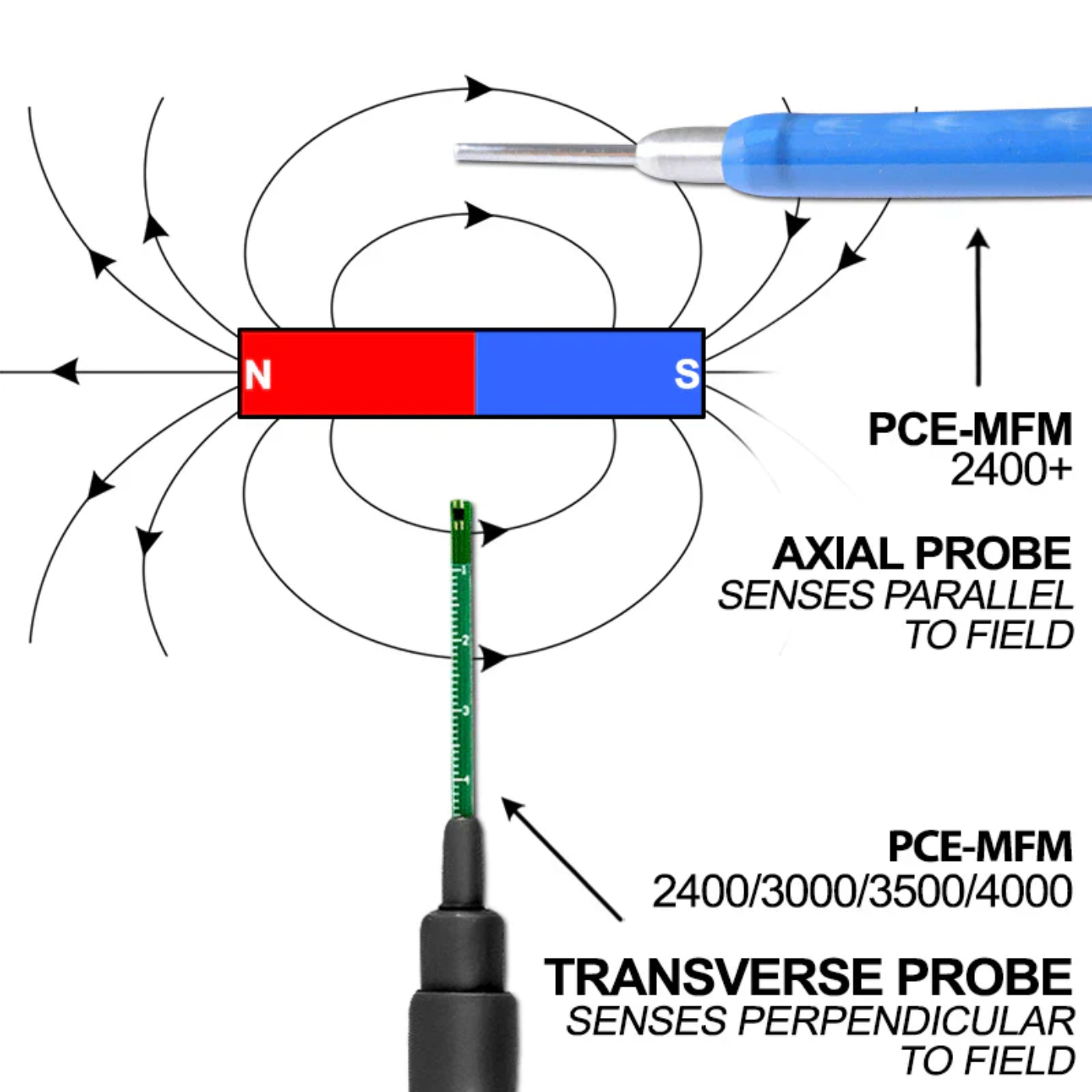

The PCE 0 - 30,000G Portable AC/DC EMF Detector & Magnetometer Gauss Magnetic Field Meter is a dependable tool for measuring magnetic fields. It is designed for both static (permanent magnets) and alternating magnetic fields. The flat external probe allows for measurements in tight spaces and small openings. With a measuring range of up to 30,000 G, it is versatile for various measuring tasks. In addition to detecting magnetic fields, the magnetometer also measures temperature simultaneously. The device features an adjustable alarm function that alerts the operator when a preset measurement value is exceeded.

The magnetometer also has a memory function. Values ??can be stored automatically as well as manually. To analyze the measured data, the magnetometer can be connected to a PC via the mini-USB interface. With the software, the data stored on the magnetometer can be read out and analyzed. In addition, the software can be used for live viewing and operation of the magnetometer.

Highlights

• External sensor
• Measuring range up to 30,000 G
• Leveling bubble
• Built-up memory for up to 7,000 values ??
• Software for live view and reading
• Sensor cable approx. 1 m (3.3 ft)
• Battery life approx. 100 hours

Features

•  Adjustable alarm function
• Data memory with PC connection
• Temperature measurement
• Switchable AC / DC measurement
• Sensor alignment with bubble possible
• Rubber protective cover for the handset

Specifications

• Storage:
• Manual: up to 200 values
• Automatic: up to 7,000 values

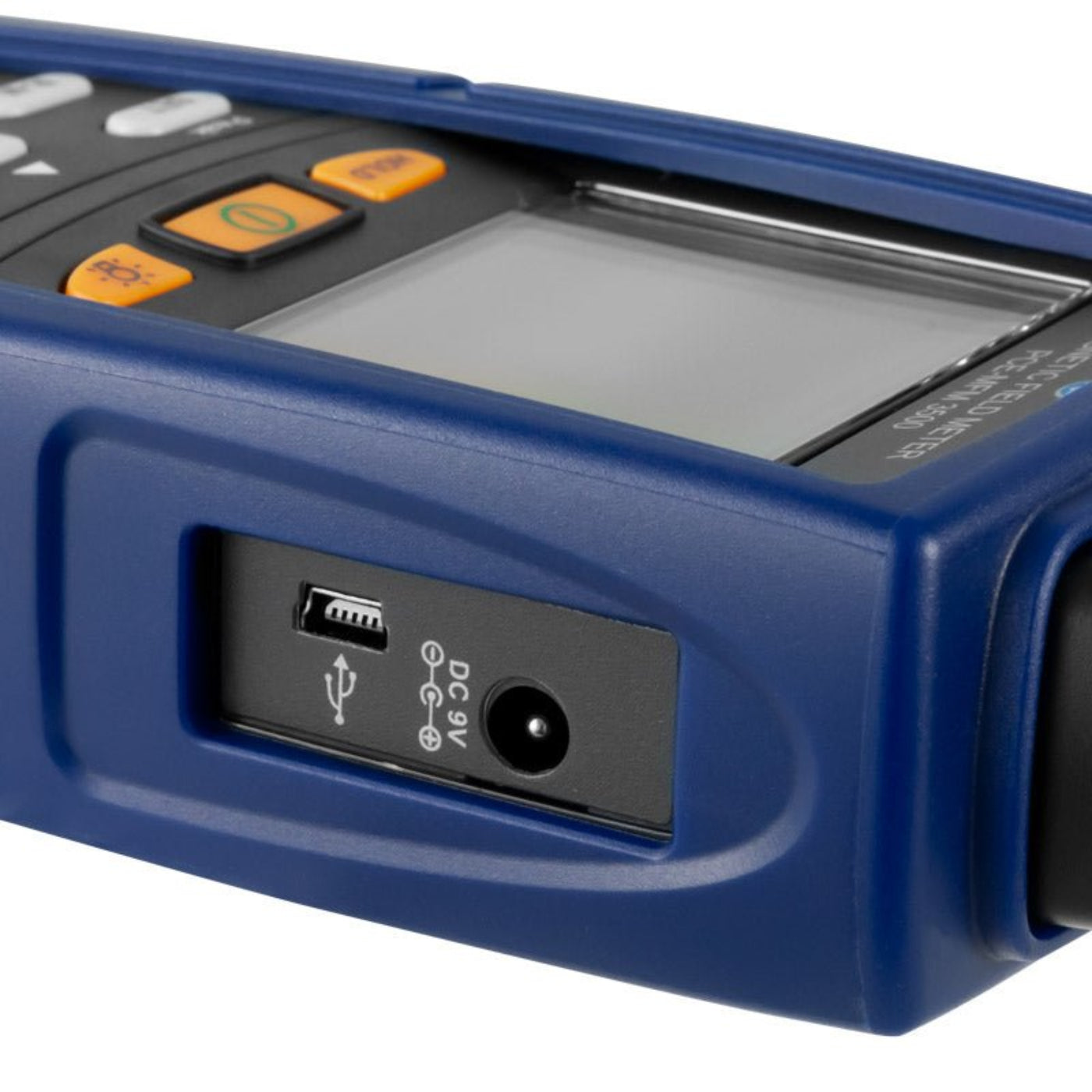

• Interface: Mini USB

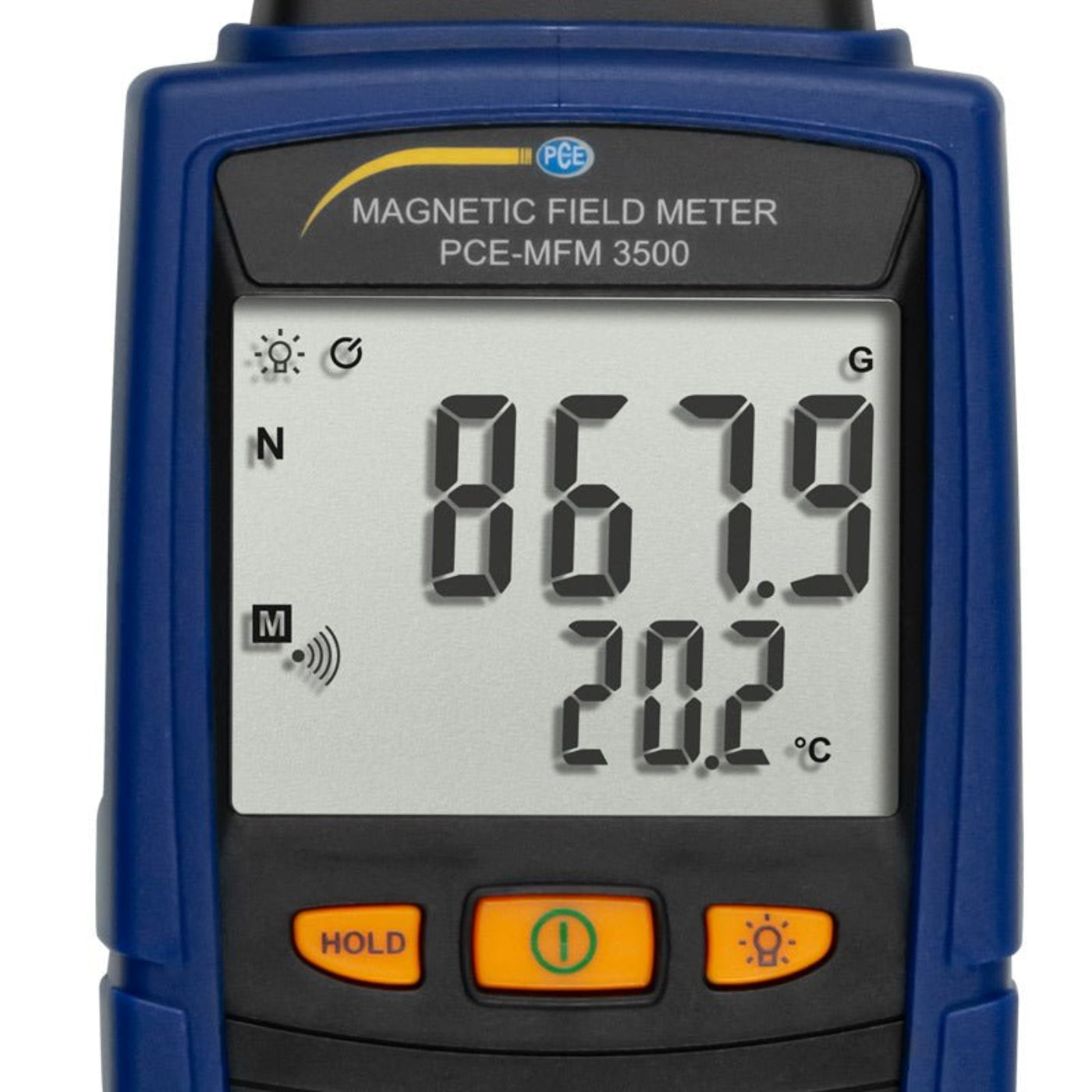

• Display: LC display, 5 digits, display up to 30,000

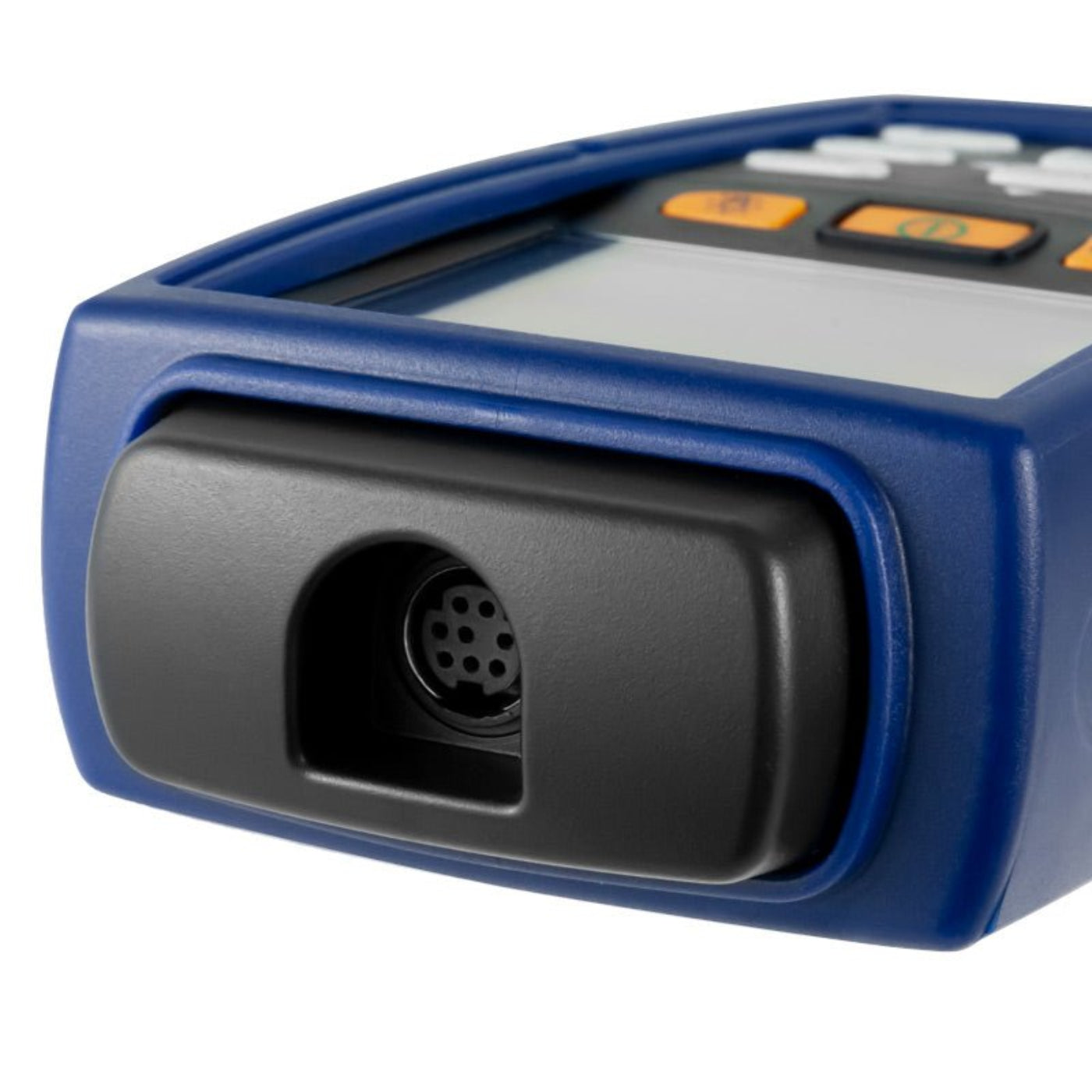

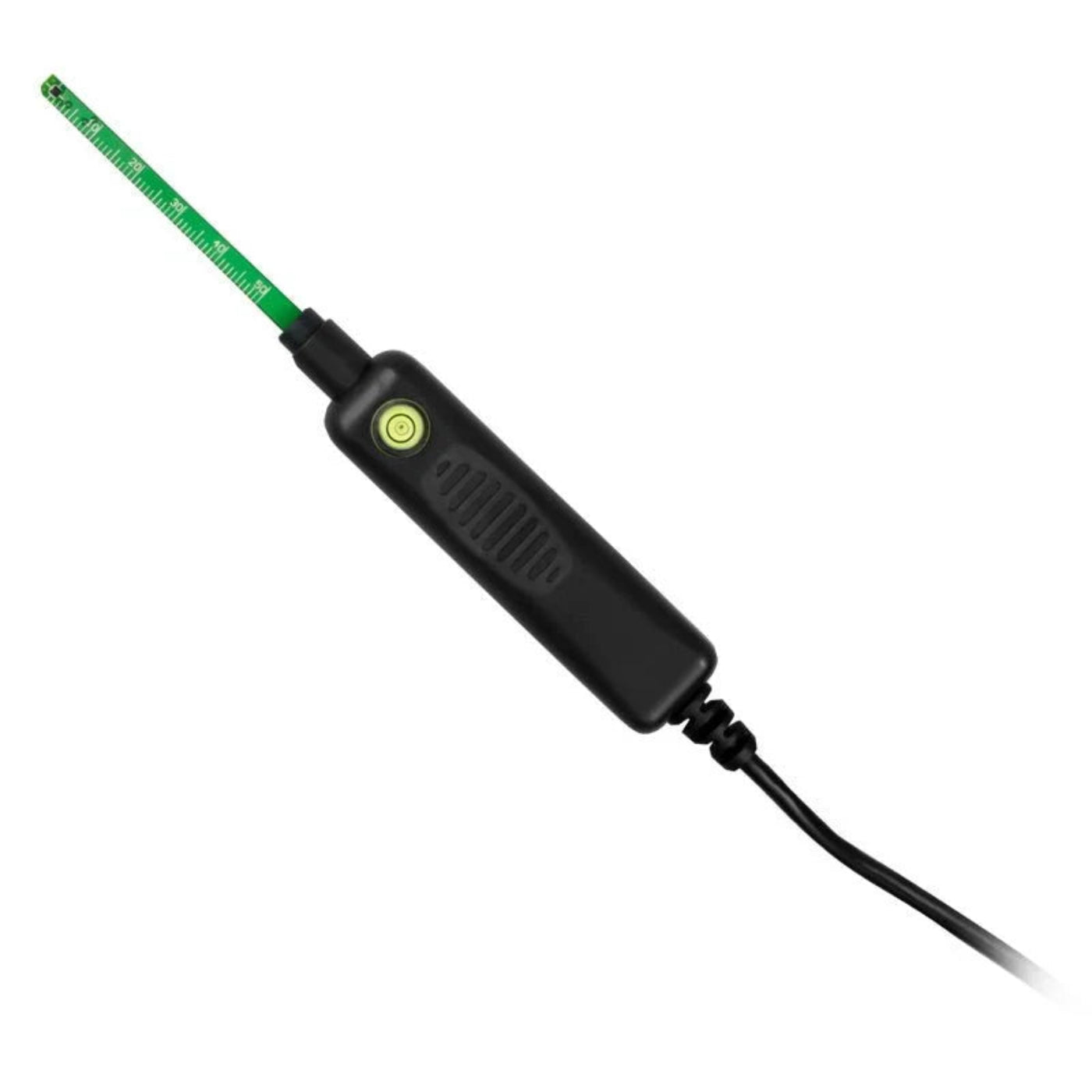

• Sensor: Removable, cable length approx. 1 m / 3.3 ft
• Automatic switch-off function: Off or after 15 minutes
• Power supply batteries: 6 x 1.5V AAA
• Battery Life: About 100 hours
• Power supply:
• Primary: 100 ... 240V
• Secondary: 9V, 0.5A
• Operating conditions: 5 ... 40°C / 41 ... 104°F, < 80% rh
• Storage conditions: 0 ... 50°C / 32 ... 122°F, < 70% rh
• Working height: 2,000 m / 6,561.7 ft
• Pollution degree: 2
• Dimensions: 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in
• Weight: About 320 g / < 1 lb (with batteries)

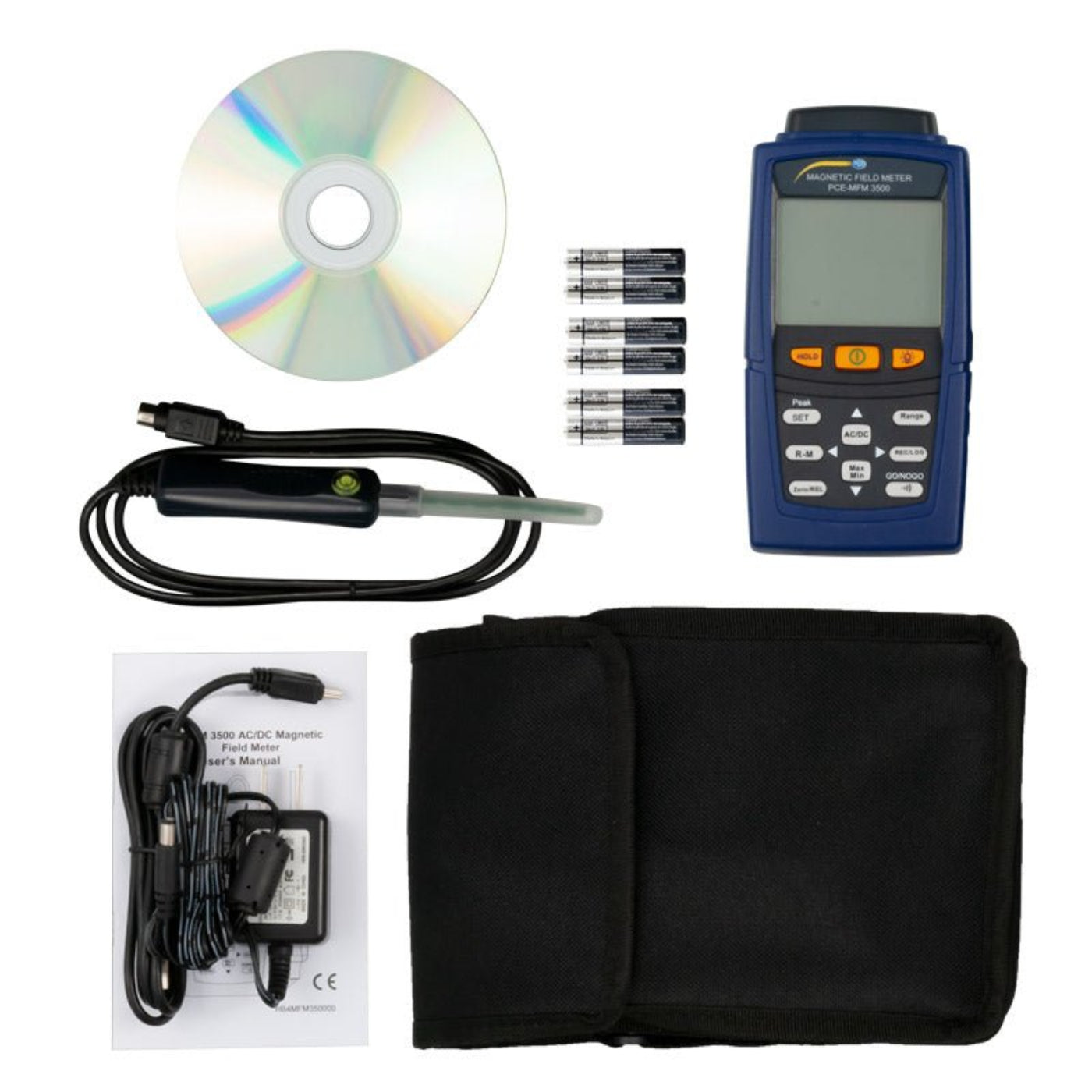

What’s Included

• 1 x Magnetometer PCE-MFM 3500
• 1 x Probe
• 1 x Mini USB cable
• 1 x Software CD
• 6 x AAA 1.5V batteries
• 1 x Power supply
• 1 x Device bag
• 1 x User manual

Manual

PCE-MFM 3500 User Manual

PCE-MFM 3500 Data Sheet

What Our Experts Think

• Massive Measuring Range: Measures up to 30,000 Gauss, covering both weak and extremely strong magnetic fields—great for everything from electronics testing to heavy industrial applications.

• AC + DC Magnetic Fields: Handles both static fields (like from permanent magnets) and dynamic/alternating fields—ideal for a broad range of diagnostics.

• Flat External Probe: Smart design allows measurements in tight spaces and around small components, making it perfect for fieldwork or component-level inspection.

• Dual Measurement Function: Simultaneously measures magnetic field strength and temperature, which is useful when magnetic properties vary with heat.

• Alarm Function: Customizable alert function helps catch thresholds instantly—useful for safety or quality control environments.

Q&A

Q: What types of magnetic fields can the PCE-MFM 3500 measure?
A: It measures both static magnetic fields (like those from permanent magnets) and alternating magnetic fields.

Q: What is the measuring range of this device?
A: It can detect magnetic field strengths from 0 up to 30,000 Gauss (G), making it suitable for a wide range of applications.

Q: Can this meter be used in tight or confined areas?
A: Yes, its flat external probe is specially designed to fit into tight spaces and small openings for precise measurements.

Q: Does the PCE-MFM 3500 measure anything besides magnetic fields?
A: Yes, it also simultaneously measures temperature, providing more comprehensive data for environmental assessment.

Q: Is there an alert system for high readings?
A: The device features an adjustable alarm function that notifies the user when a preset value is exceeded.

Maintenance Tips

• Measurement Range: 0 to 30,000 Gauss, ideal for everything from industrial applications to research and safety inspections.

• Flat External Probe: Perfect for reaching narrow or confined spaces, such as inside machinery or near power lines.

• Dual Functionality: Measures magnetic field strength and temperature simultaneously—great for monitoring equipment performance.

• Alarm Function: Set a custom threshold to trigger audible or visual alerts when magnetic field levels exceed safe or expected values.

• Application Areas: Use it in manufacturing plants, electrical inspections, motor testing, or wherever magnetic fields play a critical role.
