PCE 0 - 30,000G Tabletop AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter - PCE-MFM 4000

PCE 0 - 30,000G Tabletop AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter - PCE-MFM 4000

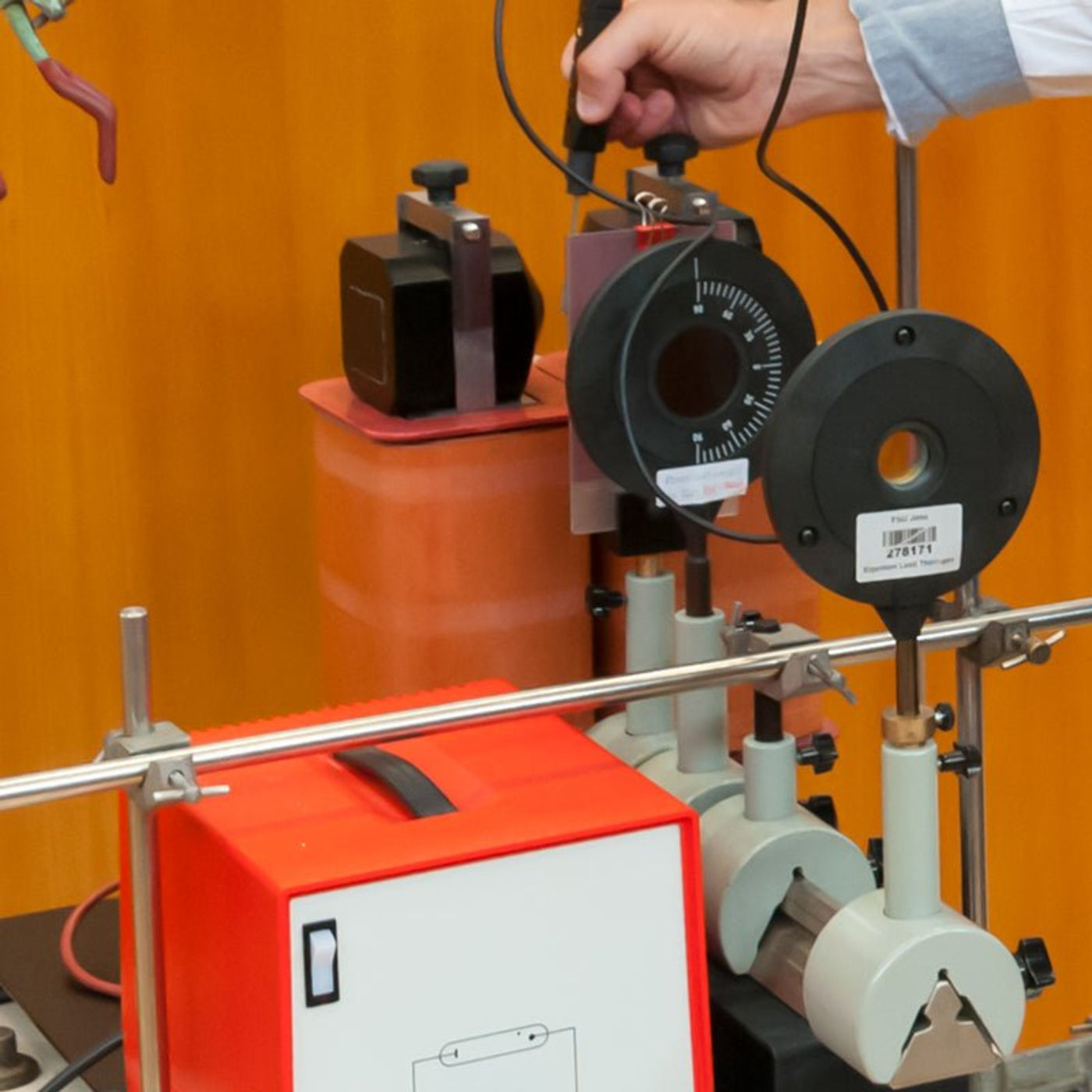

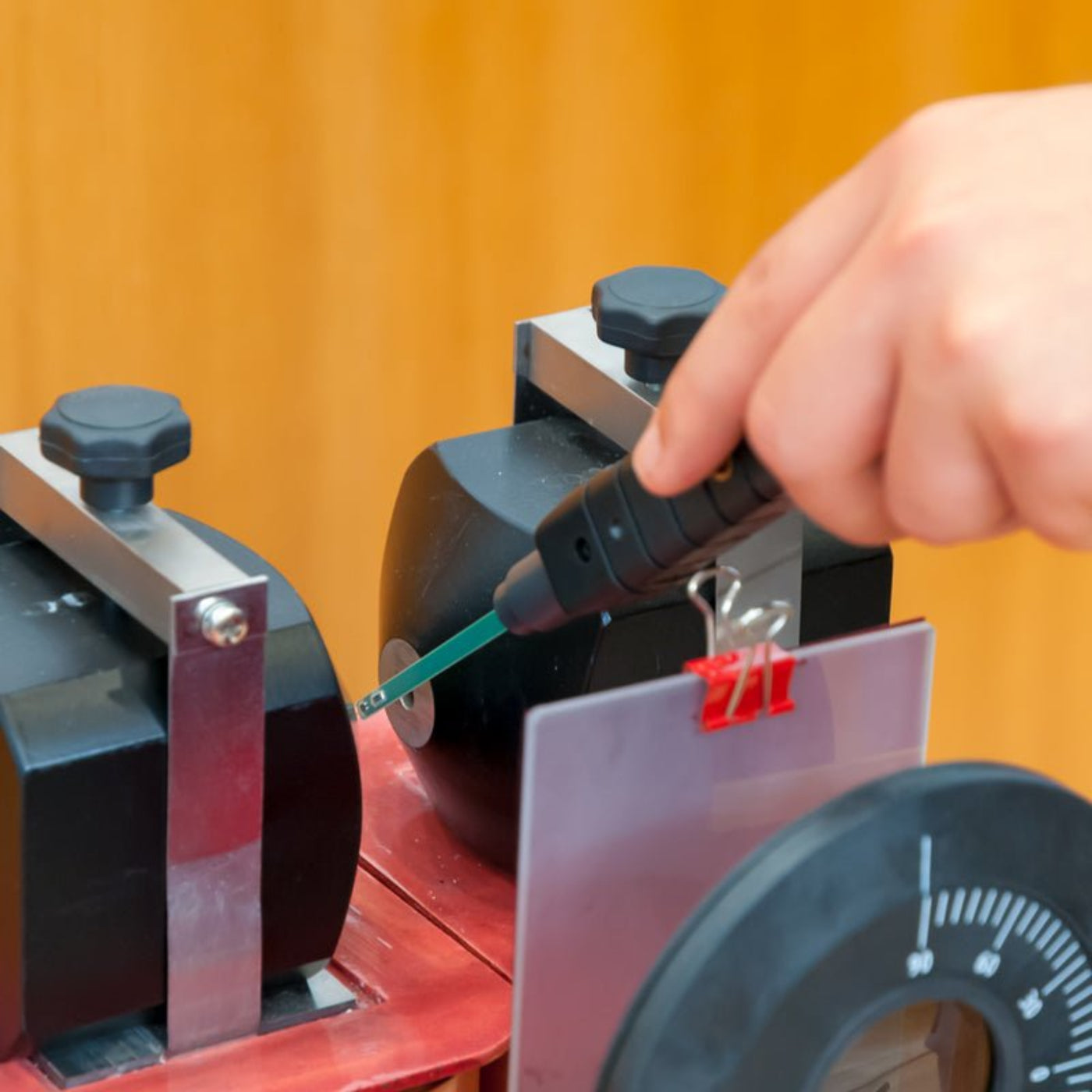

The PCE 0 - 30,000G Tabletop AC DC EMF Detector & Magnetometer Gauss Magnetic Field Meter is often used in the laboratory and in quality assurance to measure the strength of magnetic fields. It includes two different sensors; one for general measurements in the Gauss and milli-Tesla range, as well as a precision sensor for measurements in the milli Gauss and micro-Tesla range. The magnetometer sensors have automatic temperature compensation. The device can be used for measurements of DC and AC magnetic fields. The magnetometer shows the polarity of the DC magnetic field on the display next to the measured value. This precise magnetometer can be connected to a PC via serial interface for measurement value analysis.

The magnetometer features a data logging function that allows it to save measured values to an SD memory card at preset intervals during measurements. In addition to interval storage, up to 99 individual measurements can be saved with the push of a button. The measurement data is stored in Excel format on the SD card, eliminating the need for additional software to use with the magnetometer.

The magnetometer is supplied as a table device and is particularly suitable for stationary measurements in QA, the test laboratory or also in research and. The bright display of the magnetometer is easy to read at all times and shows all the necessary information about the magnetic field strength. The magnetometer also has an automatic switch-off. The magnetometer is supplied with 6 x 1.5V AA batteries or with a 9V plug-in power supply.

Highlights

• For AC and DC magnetic fields
• Precision and standard sensor
• LCD display
• SD data logger
• Serial interface

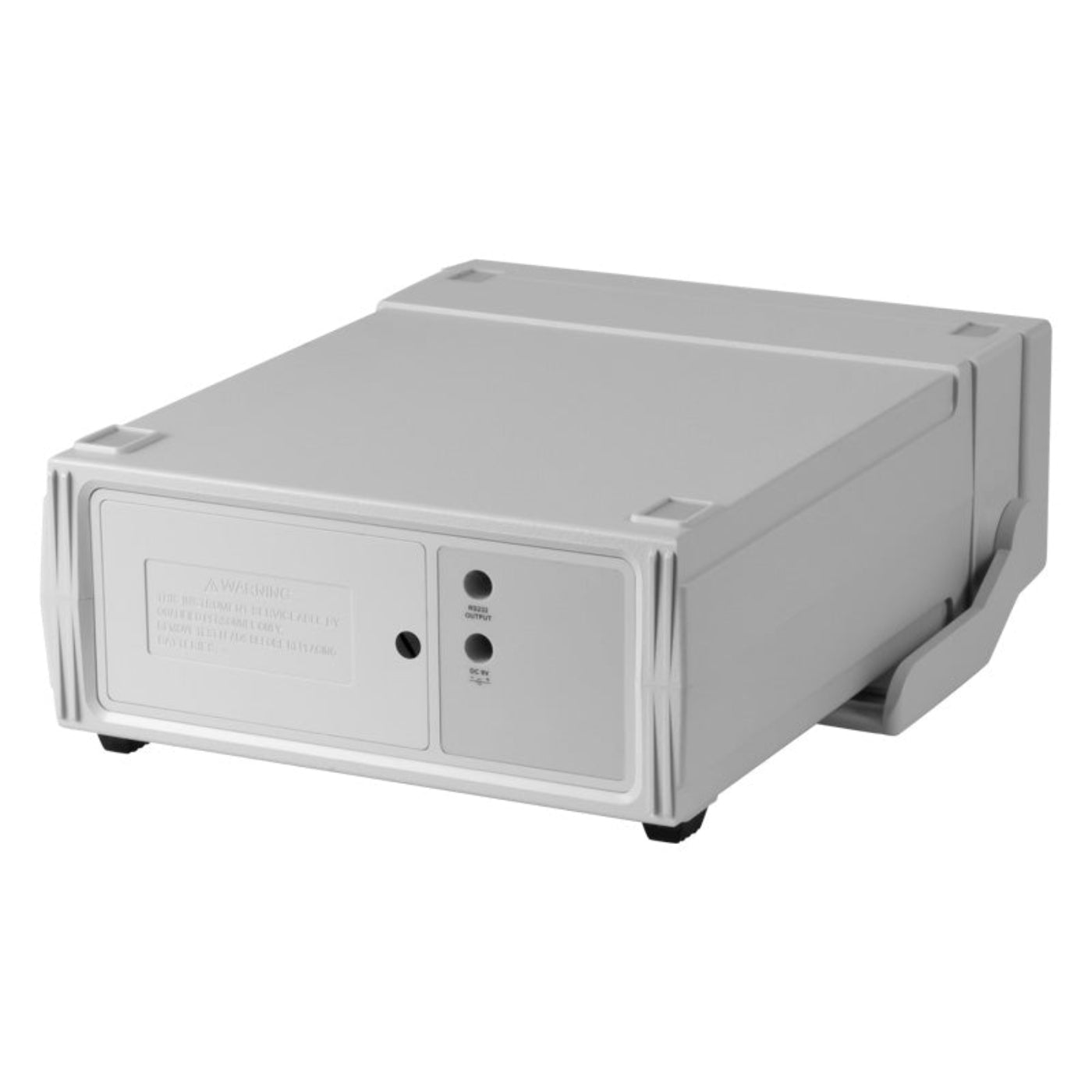

• Tabletop device

Features

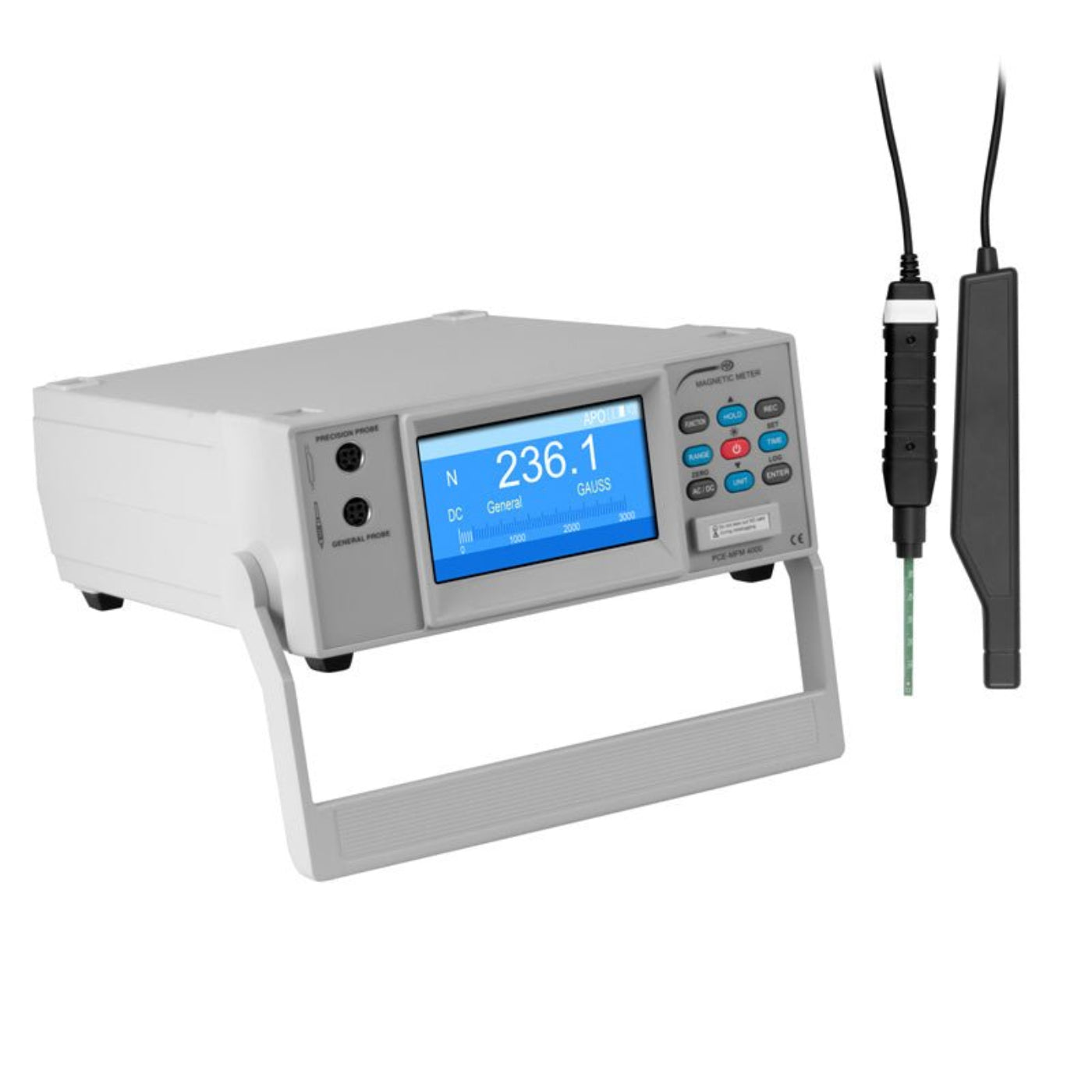

• Tabletop device with 2 sensors:
• General Probe Range: 0-3000 milli-Tesla (0-30,000 Gauss)
• Precision Probe Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
• For static and changing magnetic fields

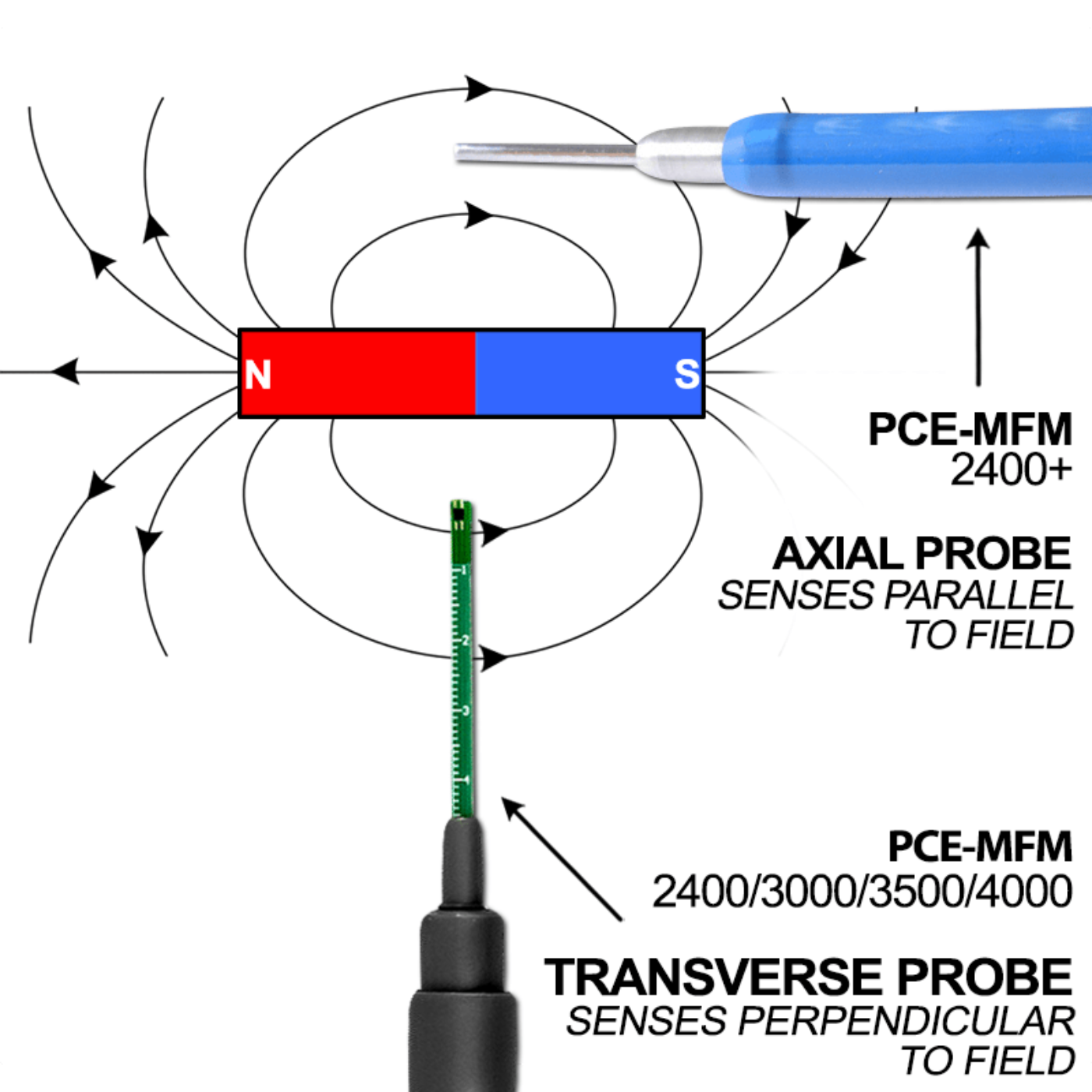

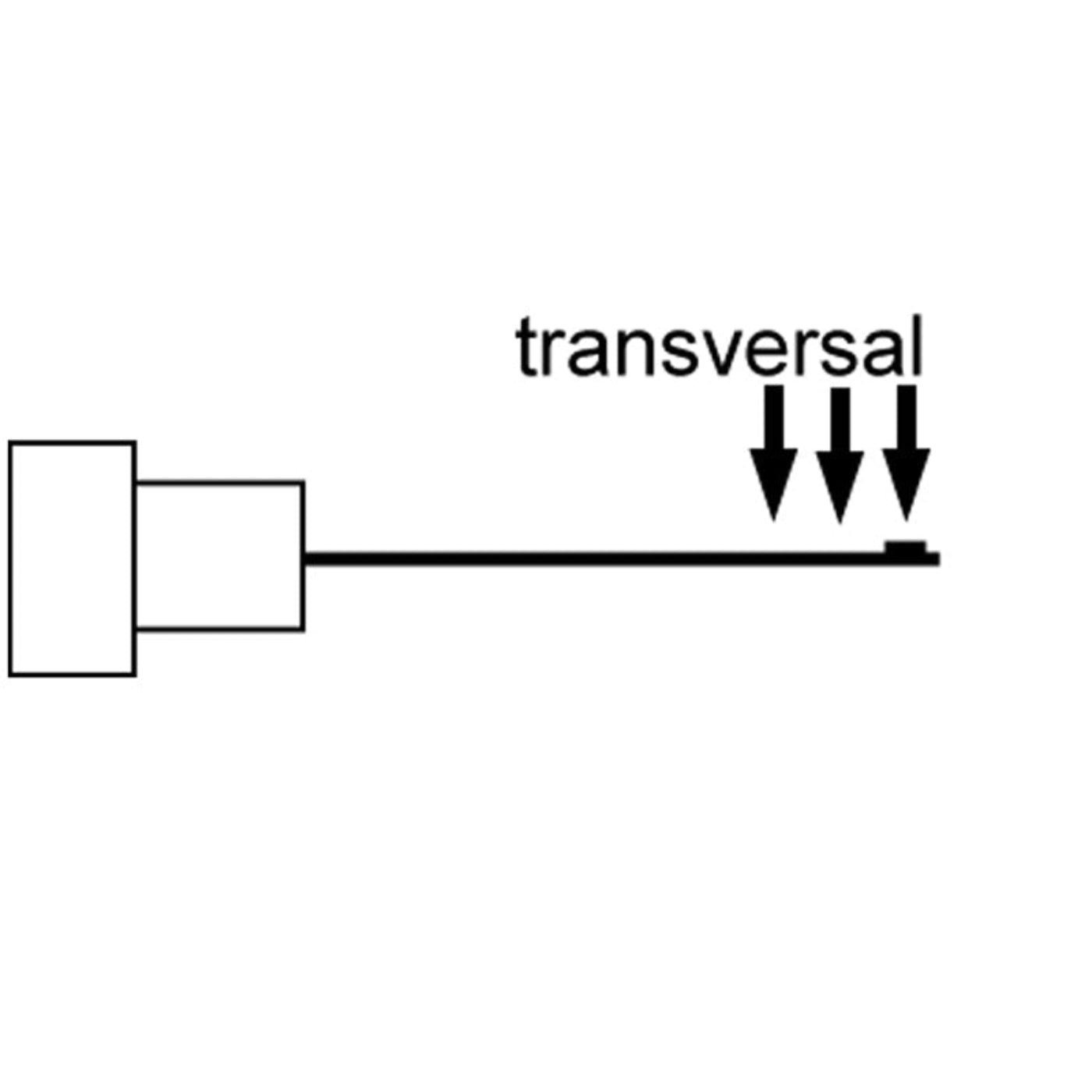

• Highly accurate Transverse Hall sensor
• Different units selectable (mG / µT)
• Data storage on SD memory card
• Automatic shutdown
• Serial interface
• Max.- min.- hold function

Specifications

• Measuring rate: 1 second
• Measuring direction: Uniaxially

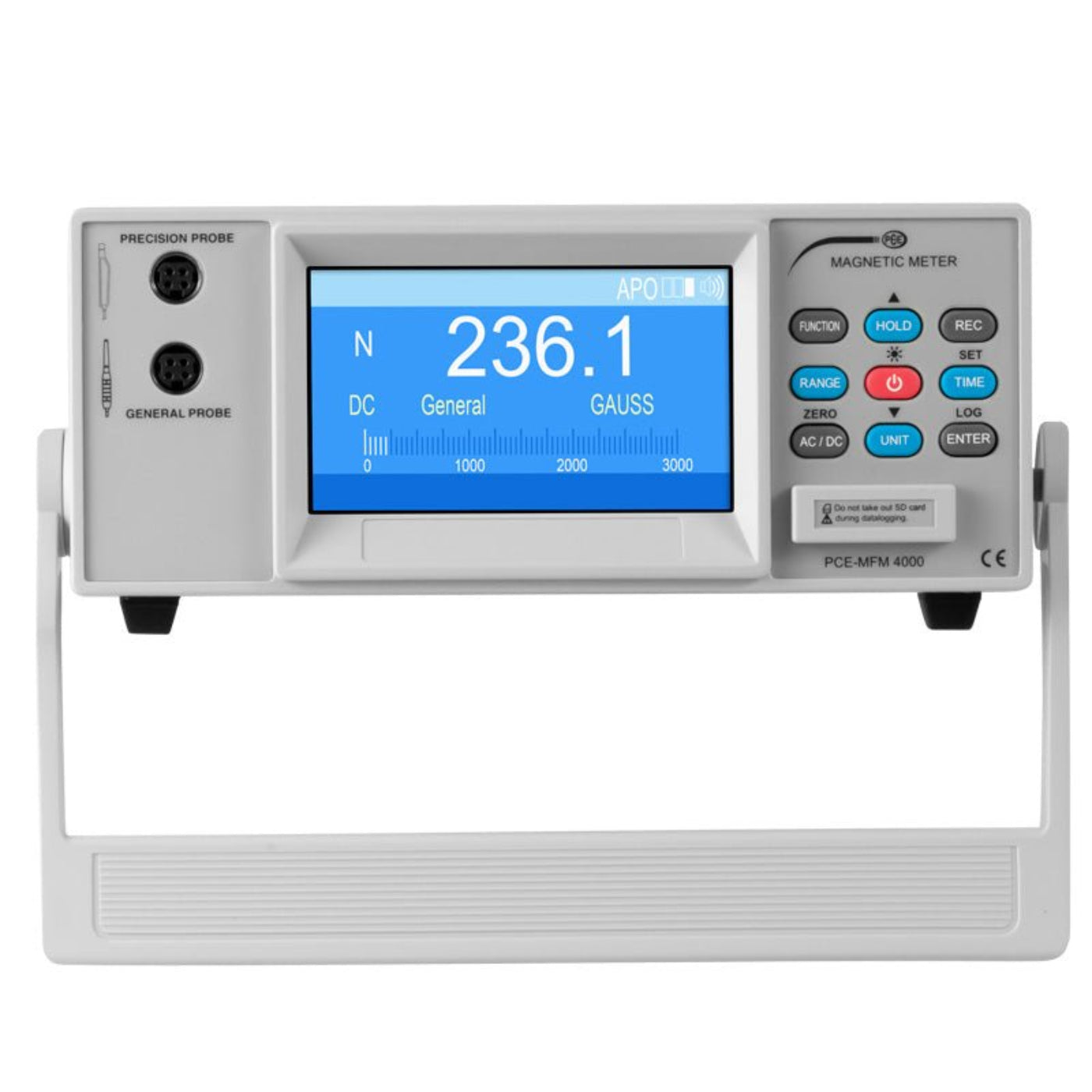

• Display: LCD display
• Features: Data hold / max. Min. Memory
• Storage: Data logger single value memory
• Data logger storage rate: 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 s
• Interface: Serial
• Environmental conditions: 0 - 50°C / 32 - 122°F, max. 85% RH
• Power supply:
• 6 x 1.5V AA batteries
• Optional 9V power supply
• Current consumption: Approx. 138-mA
• Dimension:
• Device 292 x 236 x 98 mm / 11.5 x 9.3 x 3.9 in
• Precision sensor 195 x 25 x 19 mm / 7.7 x 1 x 0.7 in
• Standard sensor 177 x 29 x 17 mm / 7 x 1.1 x 0.7 in
• Weight 275 g / < 1 lb

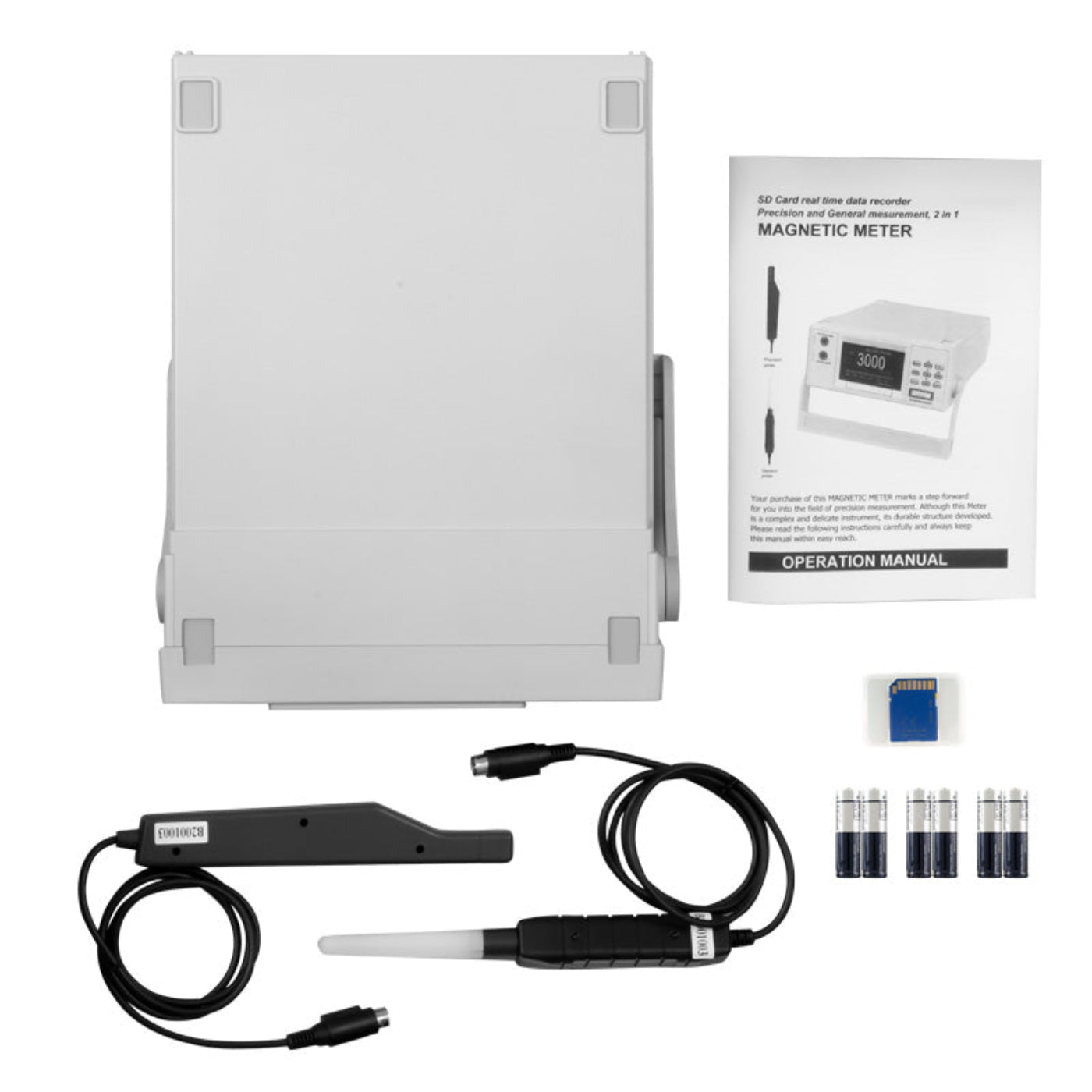

What's Inside

• 1 x Magnetometer PCE-MFM 4000
• 1 x Standard Sensor Range: 0-3000 milli-Tesla (0-30,000 Gauss)
• 1 x Precision Sensor Range: 0-300 micro-Tesla (0-3000 milli-Gauss)
• 1 x SD memory card
• 6 x 1.5V AA batteries
• 1 x Instruction manual

Manual

 PCE-MFM 4000 User Manual

 PCE-MFM 4000 Data Sheet

What Our Experts Think

• Precision & Accuracy: The PCE-MFM 4000 provides high-precision measurements across a wide range of static (DC) and dynamic (AC) magnetic fields. It’s ideal for lab and quality assurance settings, where detailed and accurate magnetic field data is crucial.

• Ideal for Laboratory Use: Unlike portable models, the tabletop design makes it suitable for controlled environments such as labs or testing stations. It’s built for stationary use, offering reliable, continuous measurements for in-depth analysis.

• User-Friendly Interface: The large, easy-to-read display and straightforward operation make it a great tool for both experienced professionals and those new to magnetic field measurements. It provides clarity on both real-time and historical data, making it convenient for both single tests and long-term studies.

• Data Management: With its built-in capabilities for data logging and connection to PCs, the PCE-MFM 4000 enables easy data storage, analysis, and reporting. This functionality is a big plus for industries that require precise record-keeping, such as quality control or research labs.

• Versatility in Applications: Whether you're testing components like magnets, electromagnetic equipment, or conducting experiments, the PCE-MFM 4000 is well-suited for various applications, including industrial quality assurance, research, and development projects.

Q&A

Q: What is the primary use of the PCE-MFM 4000?
A: The PCE-MFM 4000 is primarily used in laboratories and quality assurance settings to measure the strength of both static (DC) and dynamic (AC) magnetic fields.

Q: What types of magnetic fields can the PCE-MFM 4000 measure?
A: The PCE-MFM 4000 can measure static (DC) magnetic fields from permanent magnets and dynamic (AC) electromagnetic fields (EMFs).

Q: What is the measurement range of the PCE-MFM 4000?
A: The device measures magnetic fields with a range of 0 to 30,000 gauss (G), which is ideal for various industrial and scientific applications.

Q: How is the PCE-MFM 4000 typically used?
A: The PCE-MFM 4000 is used on a tabletop, making it well-suited for stationary and precise measurements in controlled environments, such as labs and testing facilities.

Q: What units does the PCE-MFM 4000 use to display measurements?
A: The device displays the magnetic field measurements in gauss (G) or milliTesla (mT).

Q: Is the PCE-MFM 4000 suitable for fieldwork or only for stationary use?
A: The PCE-MFM 4000 is designed for stationary use on a tabletop, making it more suitable for laboratory and quality assurance work rather than fieldwork.

Maintenance Tips

• Clean Regularly: Wipe the device with a soft, lint-free cloth to remove dust and debris, particularly around the sensor and display.

• Calibration: Periodically calibrate the magnetometer to ensure accurate measurement of both AC and DC magnetic fields.

• Inspect Sensor: Check the external sensor for any damage or wear. Replace if necessary to maintain measurement accuracy.

• Proper Storage: Store the device in a dry, dust-free environment, away from extreme temperatures or moisture, to prevent damage.

• Power Care: Keep the device plugged into a stable power source or fully charged if using a battery, and avoid deep discharges to prolong battery life.

• Data Management: Regularly back up measurement data to prevent loss, especially when using RS-232 or other data download options.
