PCE 430 Class 1 Decibel Sound Meter (22 - 136dB) - PCE-430

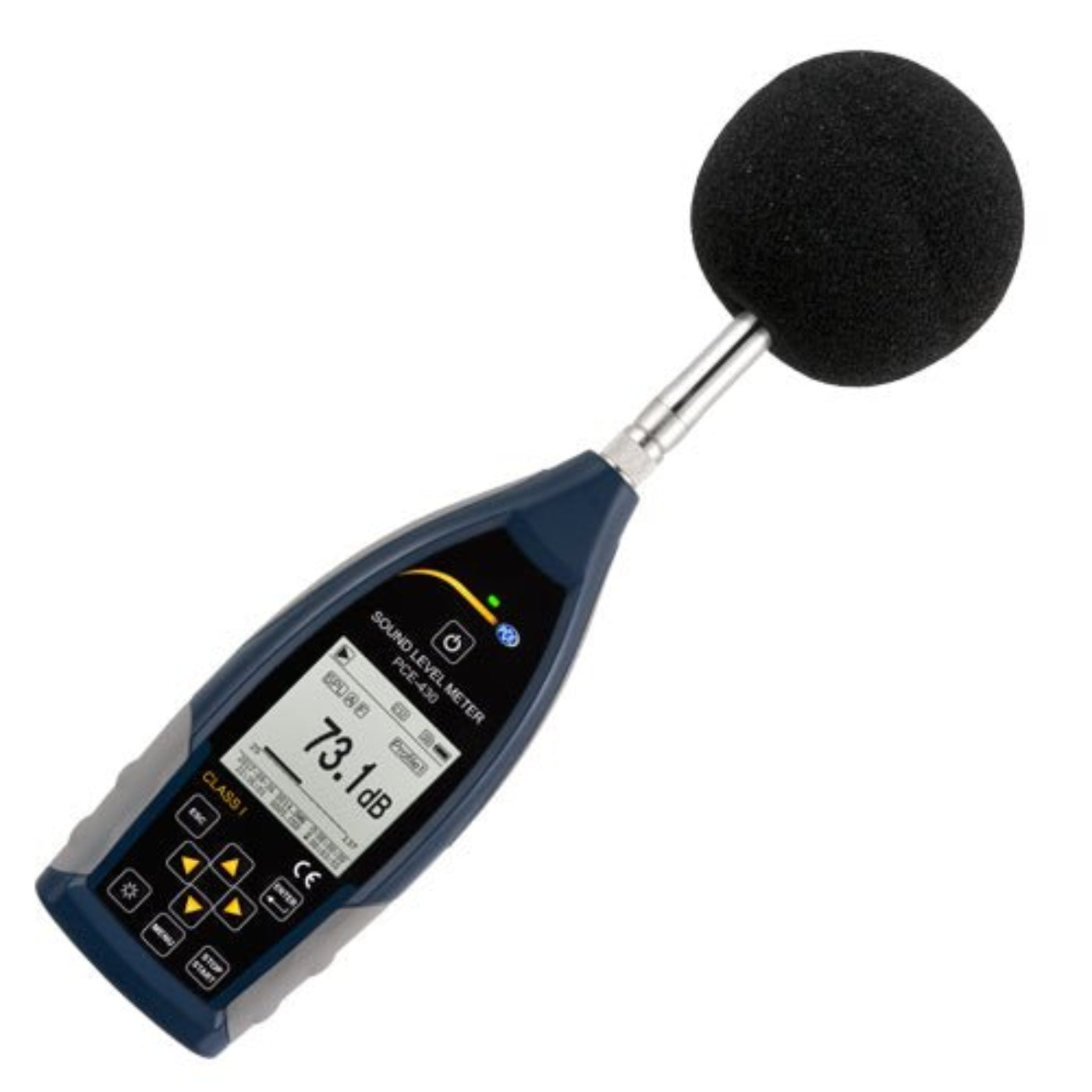

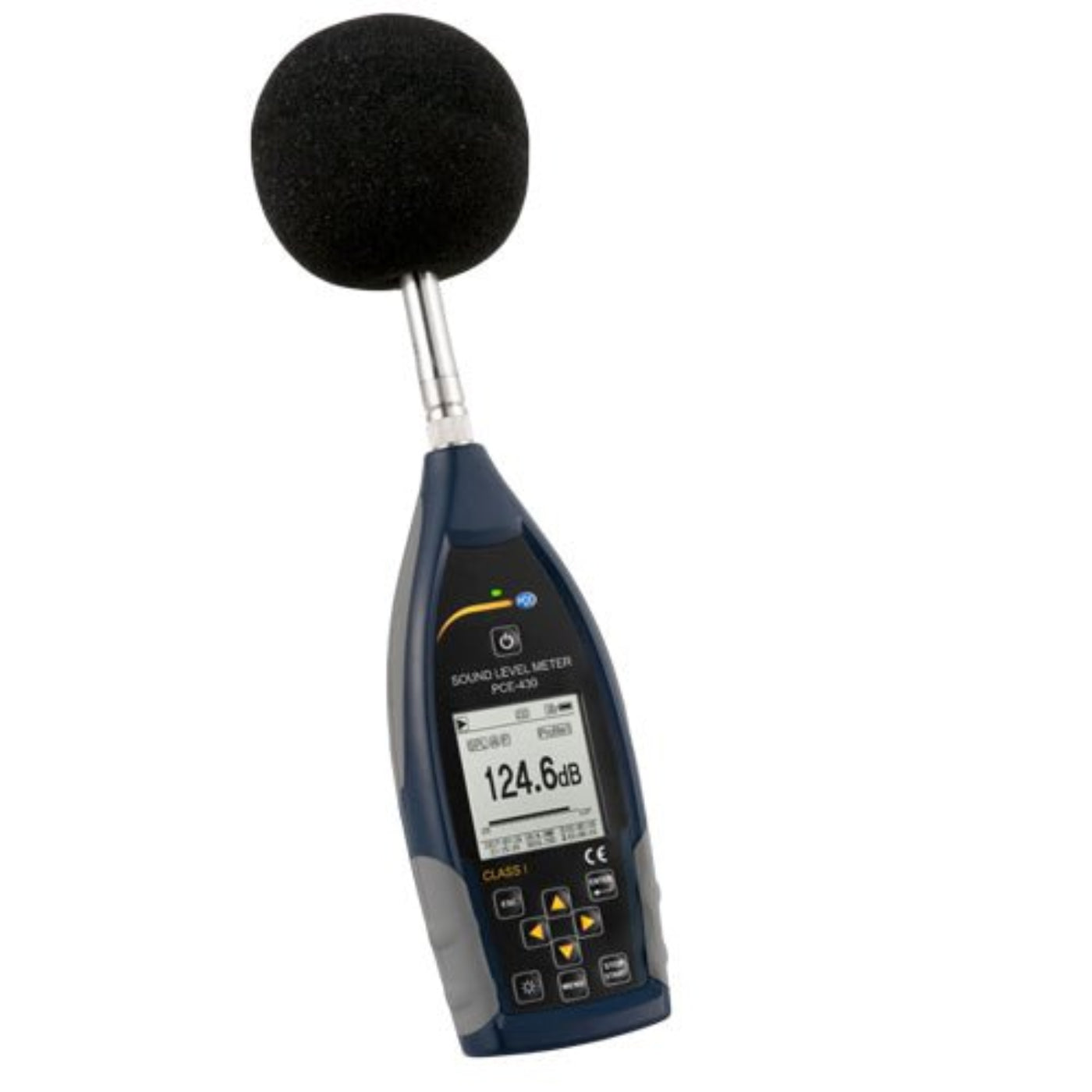

The PCE 430 Class 1 Decibel Sound Meter (22 - 136dB) complies with IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983, and ANSI S1.43-1997 standards. This portable, high-precision sound level meter features a large, easy-to-read LCD screen that displays the sound pressure level (SPL) both numerically and graphically in real time. With octave band filtering, it is capable of detecting even the smallest frequency variations.

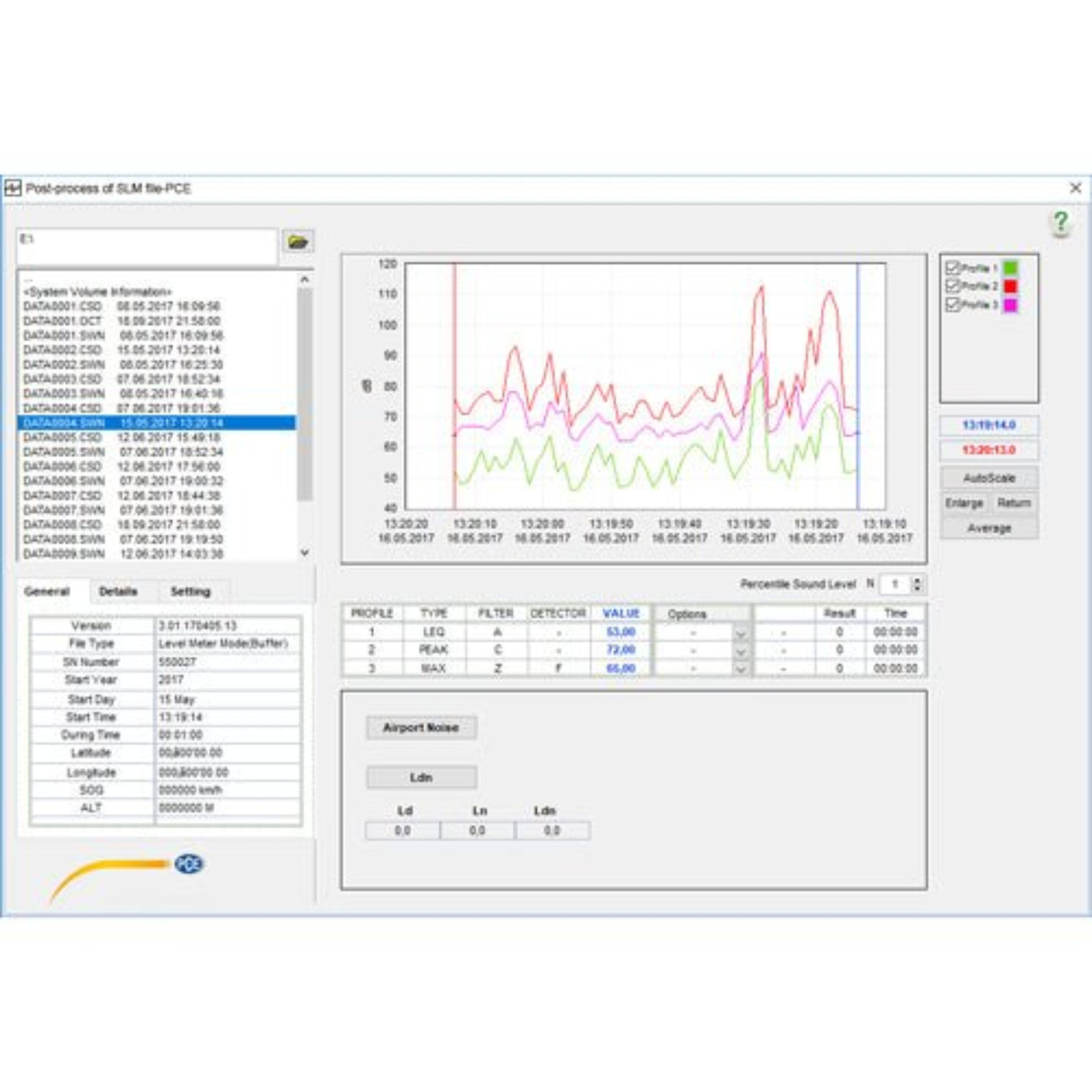

This handheld sound meter also functions as a data logger, recording measurements at an adjustable interval from 1 s ... 24 h and storing the recorded measurement data to a micro SD card. The card can be removed from the meter and inserted into a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.
This device measures from 22 ... 136 db(A) at a frequency of 3 Hz - 20 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-430 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.
Features
- Accuracy class 1
- A, B, C and Z frequency weightings
- Fast, Slow, Pulse and Peak time weighting
- Statistics function
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
- Display of the sound curve as a graph
- 3 measurement profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV /PA
- Alarm level adjustable
- Adjustable data-recording interval from 1 s ... 24 h

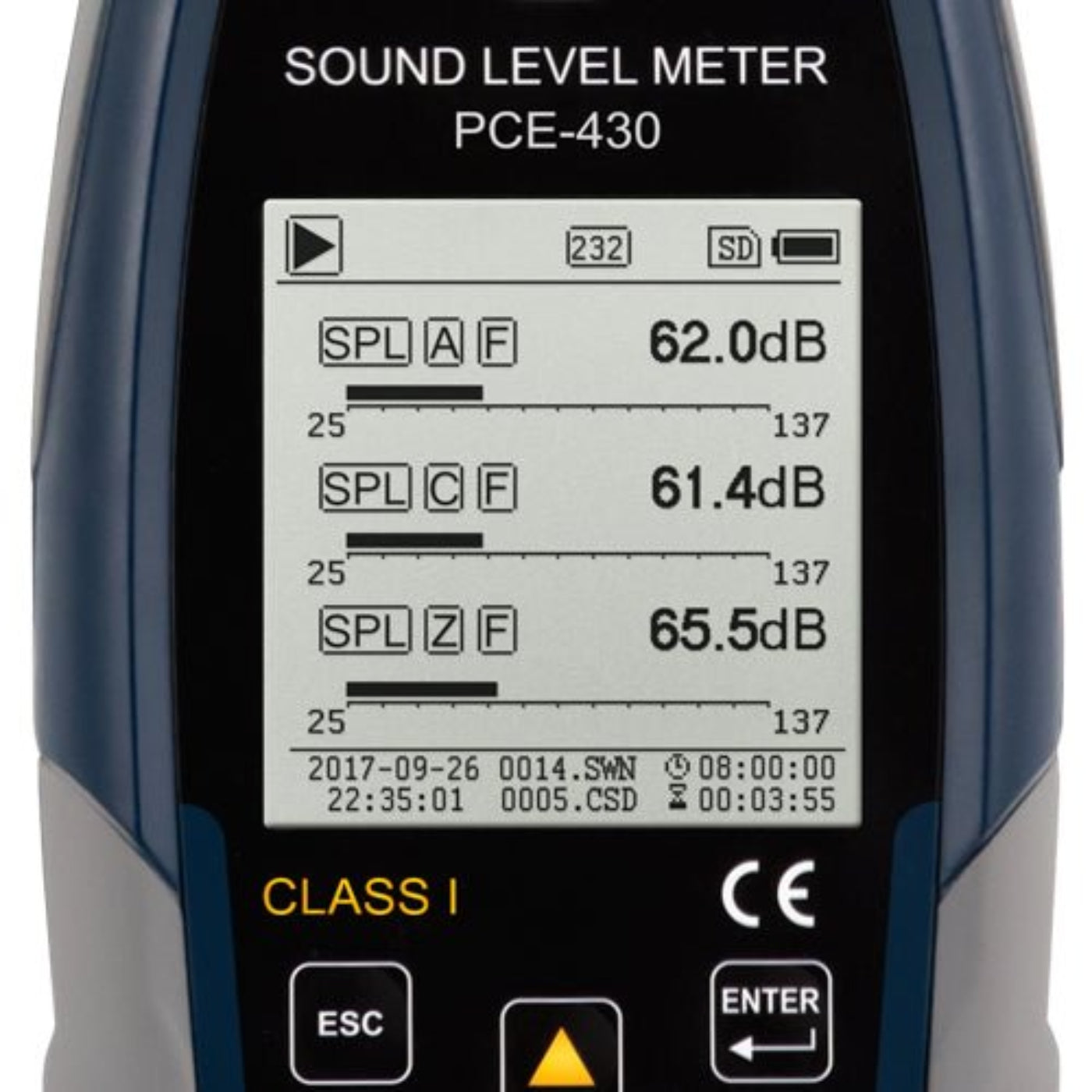

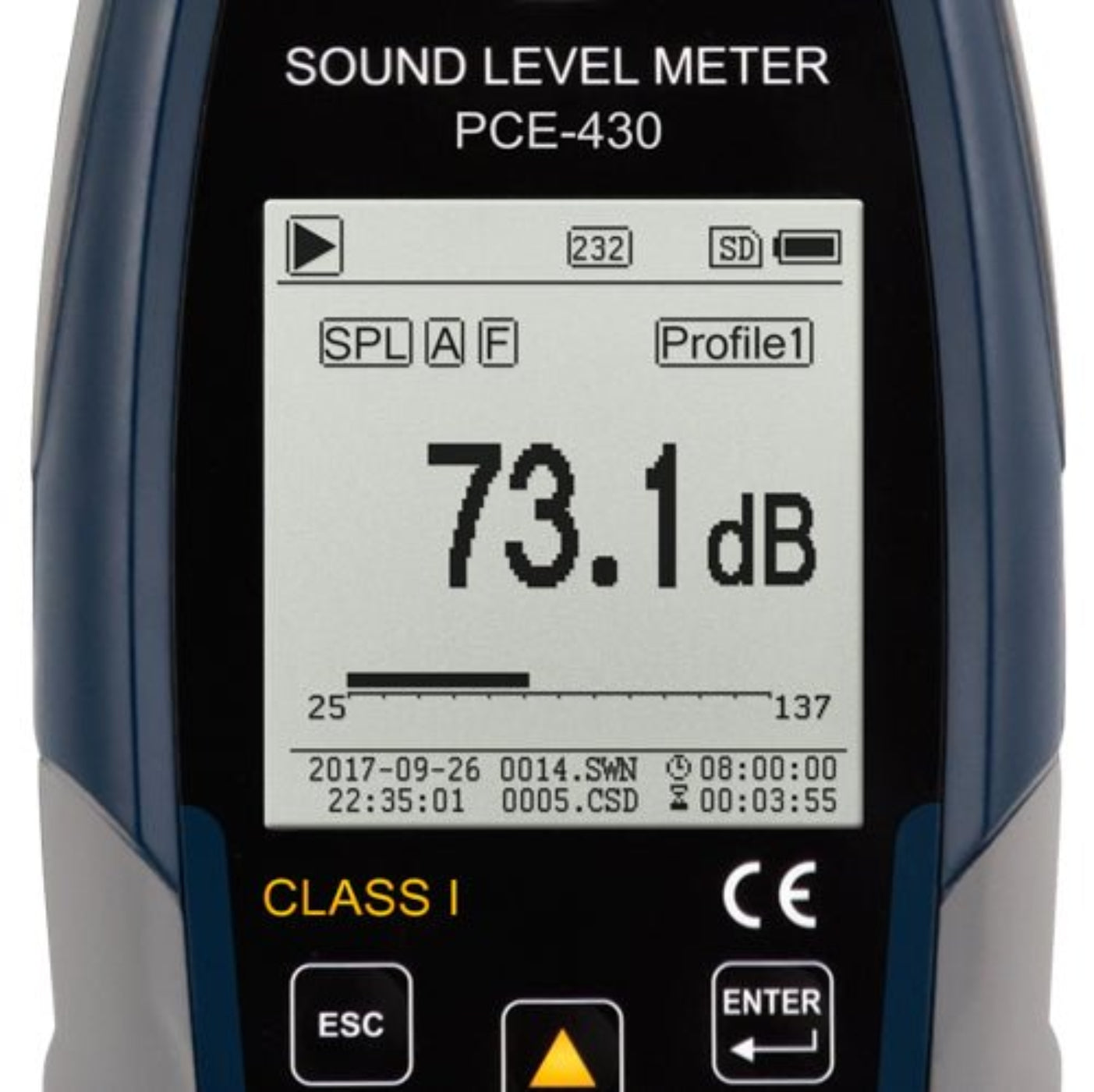

- Real-time numerical and graphical LCD display
Specifications
- Measuring range: 22 ... 136 db(A)
- Accuracy: Class 1
- Frequency range: 3Hz - 20 kHz
- Standards:
- GB/T 3785.1-2010
- GB/T 3785.2-2010
- IEC 60651:1979
- IEC 60804:2000
- IEC 61672-1:2013
- ANSI S1.4-1983
- ANSI S1.43-1997.
- Frequency analysis:
- 1/1 Octave band filter: 8 Hz - 16 kHz
- 1/3 Octave band filter: 6.3 Hz - 20 kHz

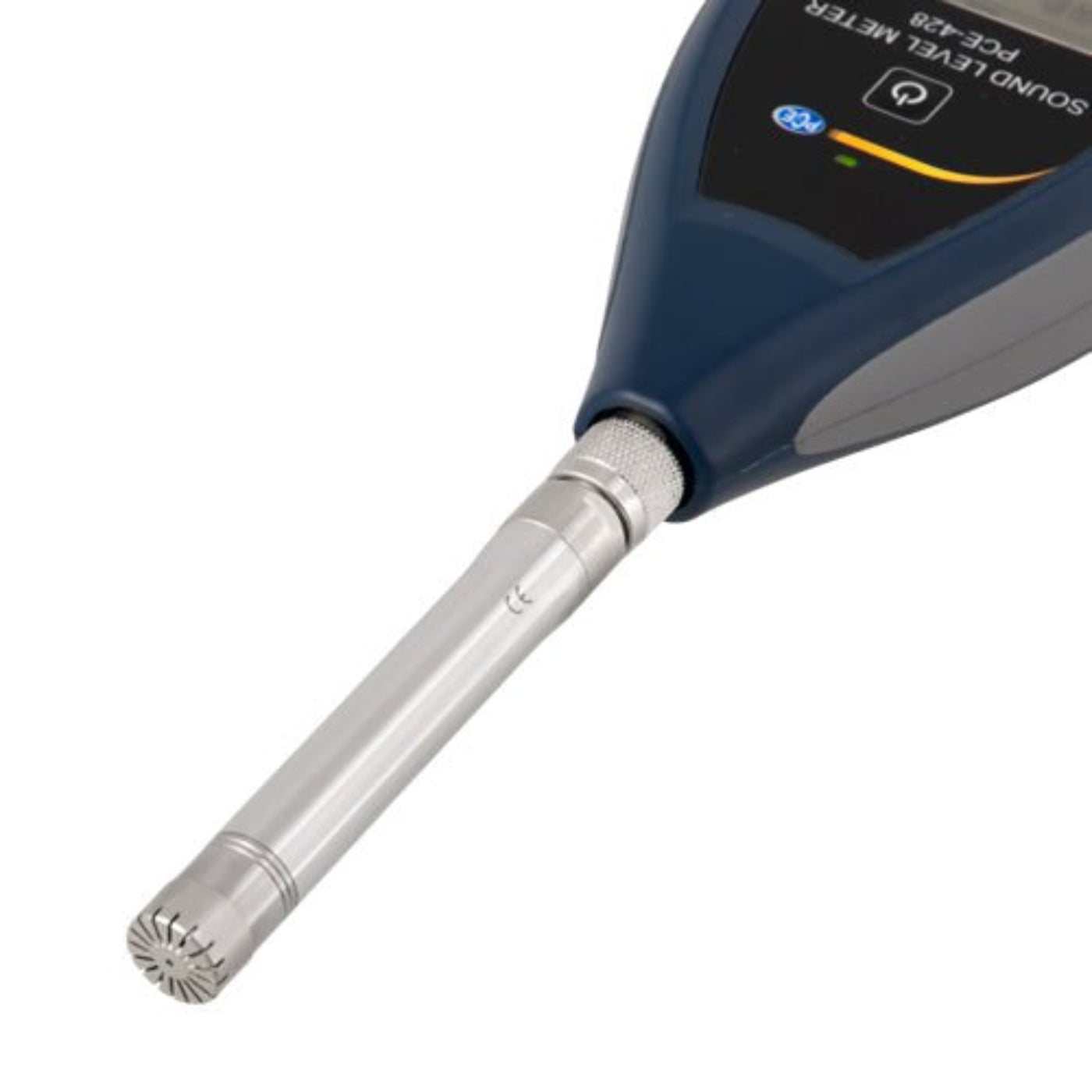

- Microphone:
- 1/2"
- Microphone Class: 1
- Sensitivity: 40 mV/PA
- Frequency range: 3 Hz - 20 kHz
- Connection: TNC
- Power supply: ICCP Standard
- Data-logging interval: 1 s - 24 h (adjustable)

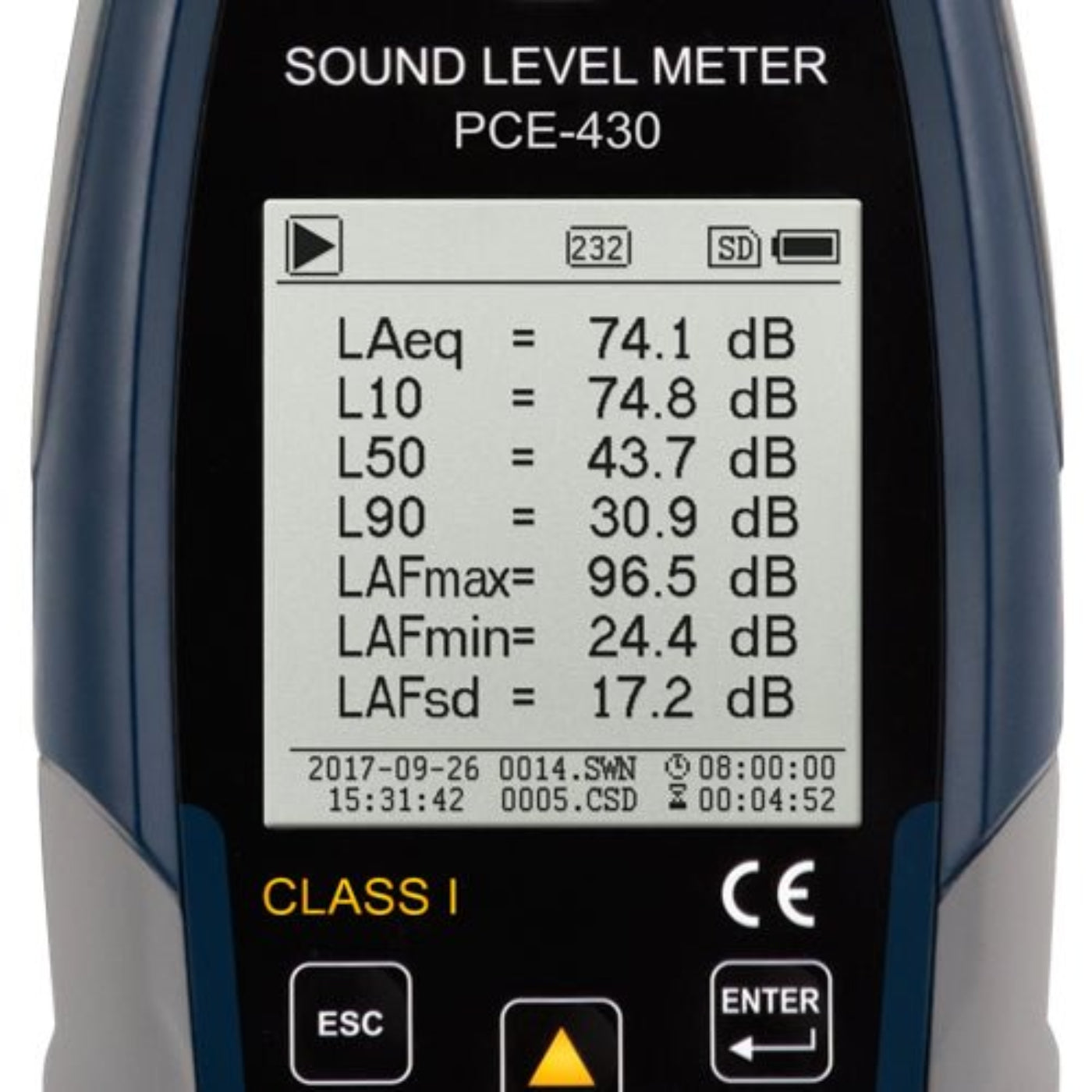

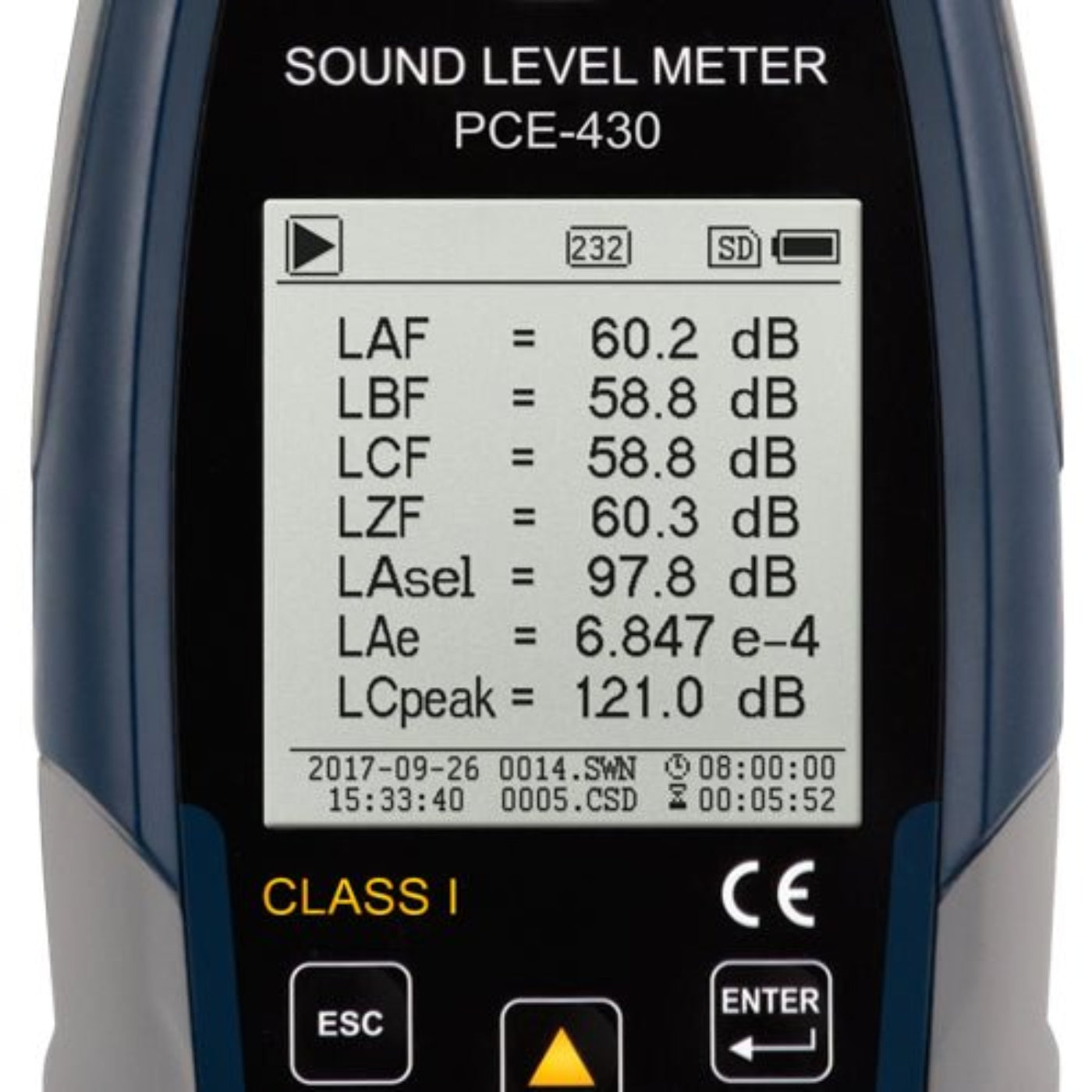

- Measuring functions: LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
- X = Frequency weighting: A, B, C, Z
- Y = Time weighting: F, S, I

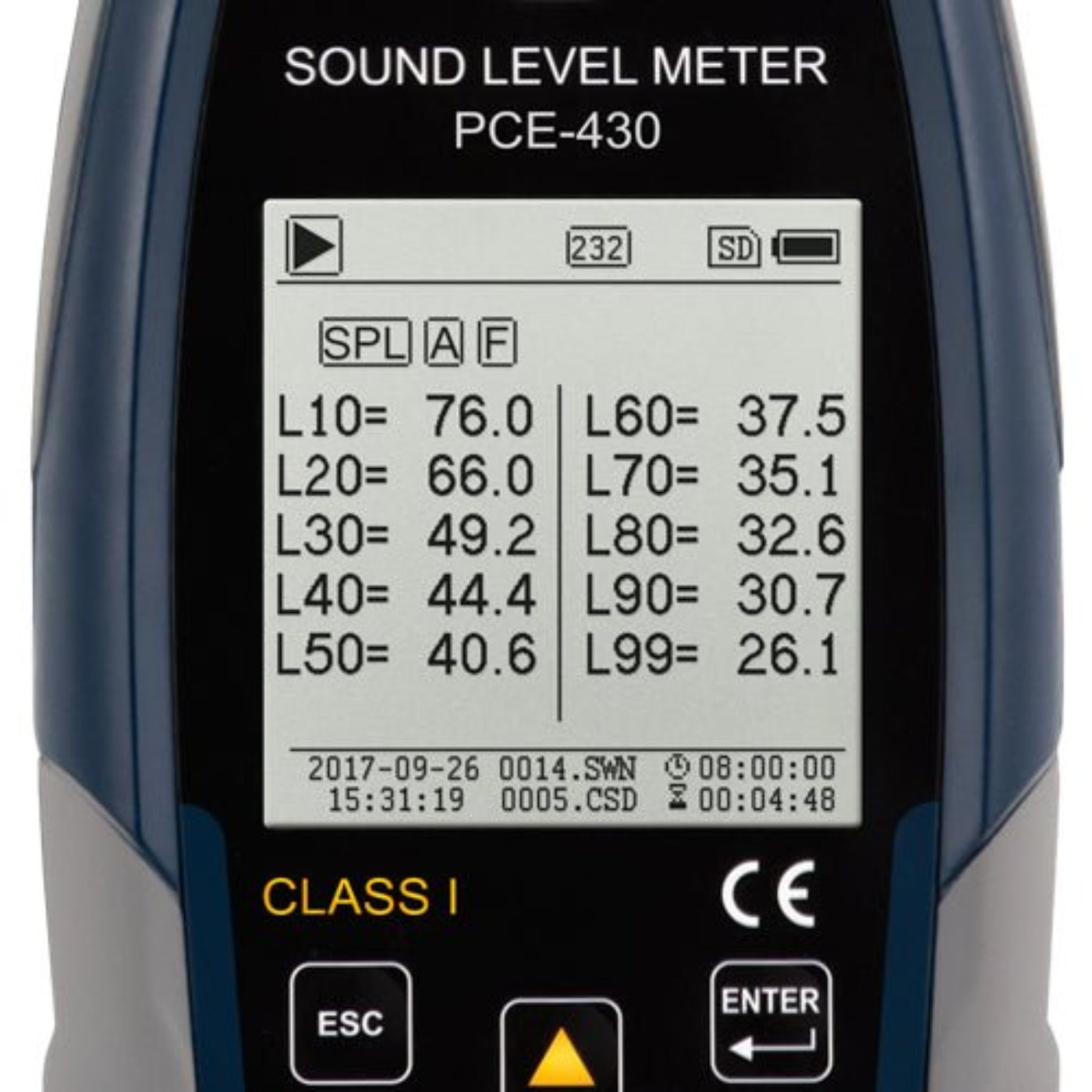

- N = Statistics in %: 1 ... 99%
- Frequency weightings: A, B, C, Z
- Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
- Inherent noise:
- Microphone: 19 db(A), 25 db(C), 31 db(Z)
- Electronics: 13 db(A), 17 db(C), 24 db(Z)
- AD converter: 24 Bit
- AD Sample rate:
- Standard: 48 kHz
- LN Mode: 20 ms
- Measuring display:
- Numerical
- Bar graph
- Graphical
- Display: 160 x 160 pixel LCD with backlight
- Memory: 4 GB Micro SD card
- Interface:

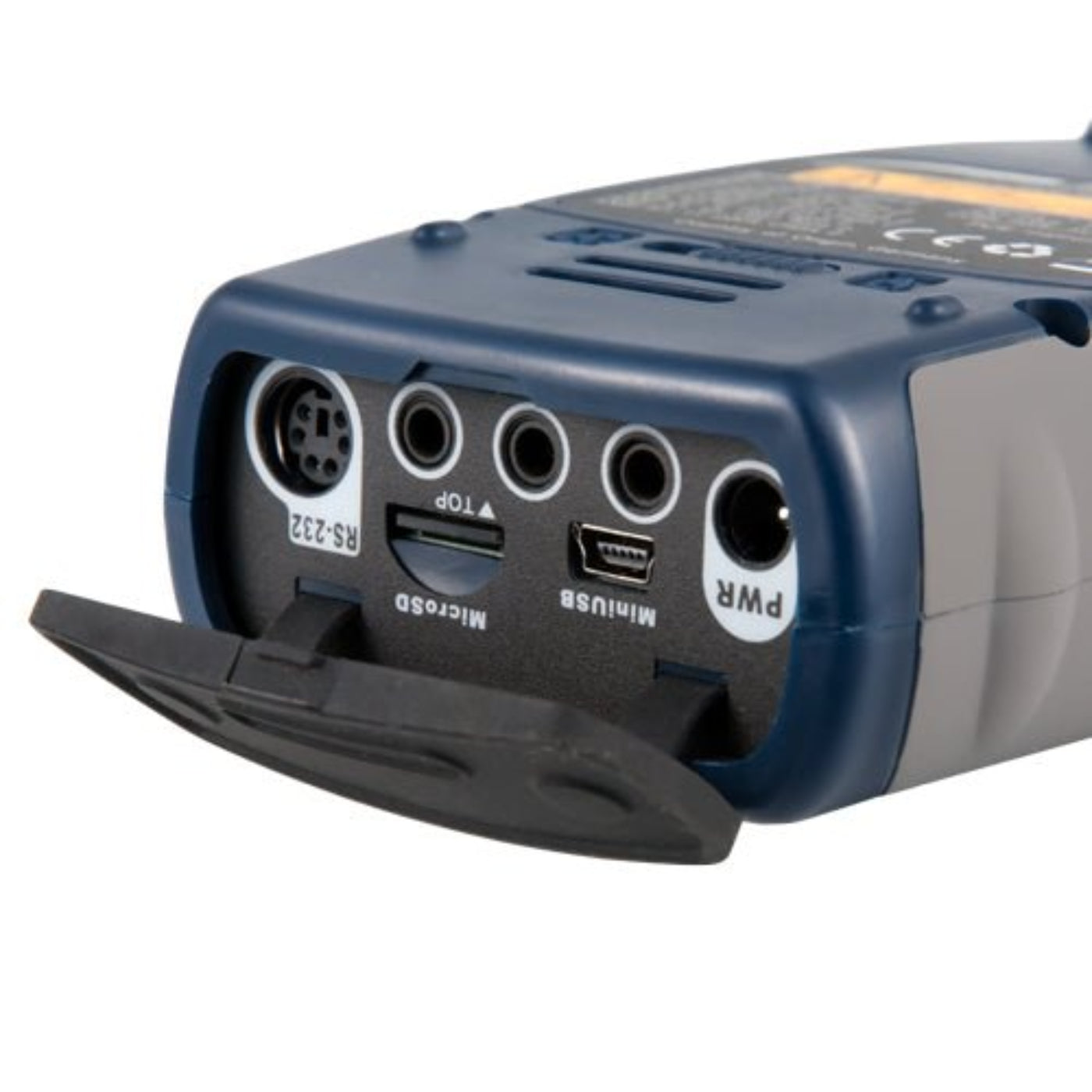

- USB (Memory readable via software or directly as mass storage)
- RS-232
- Voltage output:
- Alarm: Adjustable
- Power supply:
- 4 x 1.5V AA Batteries
- 12V / 1 A Power plug
- 5V / 1 A USB
- Battery life: Min. 10 h continuous use
- Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D)
- Weight: Approx. 620 g / 1.4 lbs incl. batteries

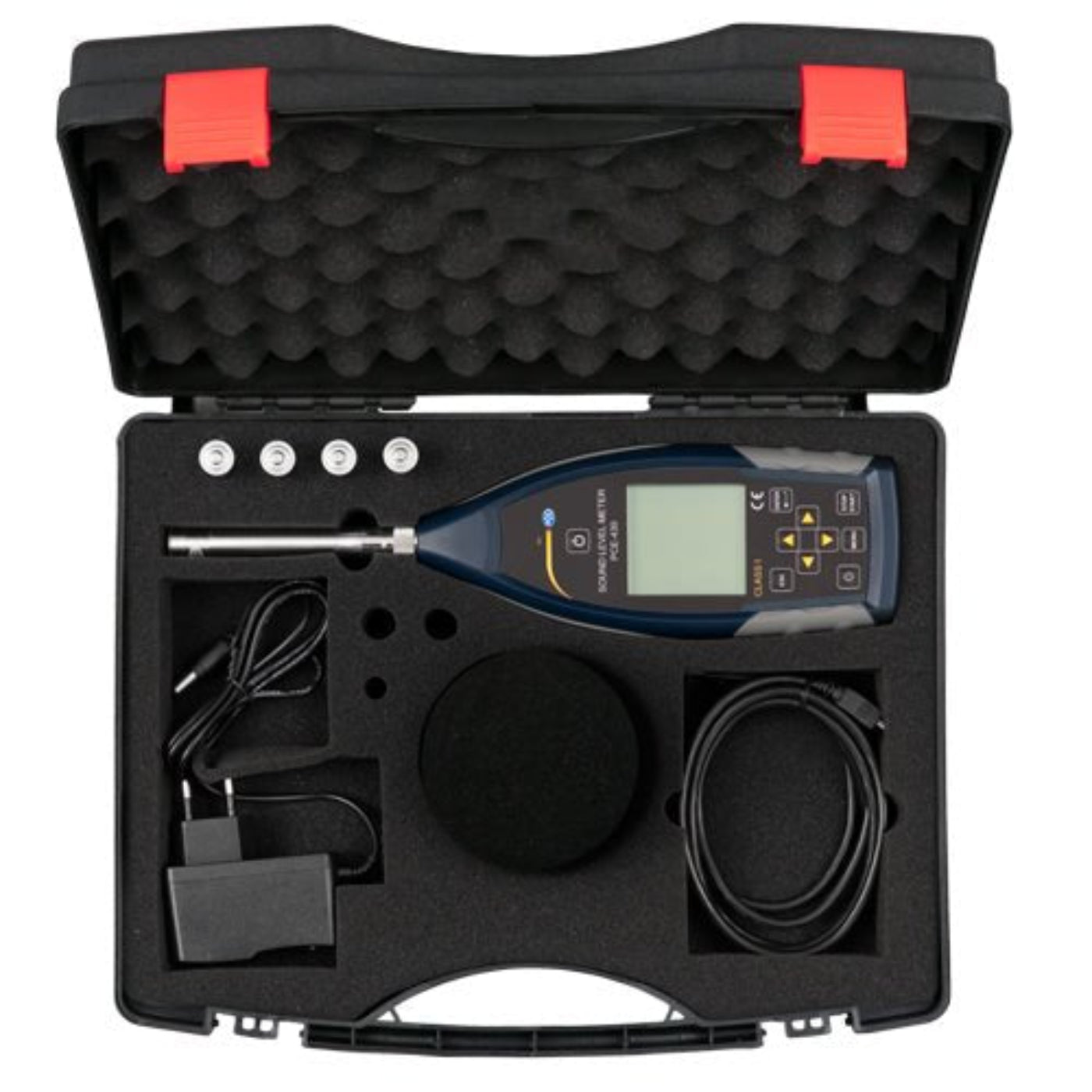

What's included
- 1 x Environmental Meter PCE-430
- 1 x Microphone
- 1 x Wind noise suppressor (foam ball)
- 1 x USB cable
- 1 x PC software is a free download
- 1 x Power supply
- 1 x User manual
- 1 x Carrying case
What Our Experts Think
-
Class 1 Precision: Designed for professional-grade sound analysis where top-tier accuracy is non-negotiable—perfect for legal, environmental, and industrial applications.
-
Wide Measurement Range: Covers 22 to 136 dB, capturing everything from whisper-quiet environments to loud industrial settings.
-
Real-Time Feedback: Numeric and graphical SPL display makes it easy to monitor noise levels at a glance.
-
Octave Band Filtering: Pinpoints subtle frequency shifts, offering deeper insights into acoustic environments.
-
Standards-Compliant: Fully aligned with international sound measurement standards—trusted tool for compliance testing and noise assessment.
Q&A
Q: What standards does the PCE 430 comply with?
A: It meets the requirements of IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983, and ANSI S1.43-1997, qualifying it as a Class 1 sound level meter for highly accurate acoustic measurements.
Q: What is the measurement range of this device?
A: It measures sound pressure levels (SPL) from 22 to 136 dB, making it suitable for everything from quiet environments to loud industrial settings.
Q: Does the PCE 430 support frequency analysis?
A: Yes, it features octave band filtering, which enables the detection of fine differences in frequency—a key function for detailed sound analysis.
Q: Is the display easy to read?
A: Absolutely. It has a large, backlit LCD screen that shows real-time SPL values both numerically and graphically.
Q: What type of applications is this meter best suited for?
A: Ideal for professional sound analysis, it's commonly used in environmental noise assessments, industrial noise monitoring, building acoustics, and compliance testing.
Maintenance Tips
-
Clean Regularly: Use a soft, dry cloth to clean the microphone and display, ensuring accurate SPL readings.
-
Calibrate Frequently: Perform regular calibration using a sound calibrator to maintain Class 1 measurement accuracy.
-
Protect Microphone: Keep the microphone covered when not in use to shield it from dust, moisture, and physical damage.
-
Store Safely: Store the device in a dry, cool place, away from extreme temperatures and humidity.
-
Battery Management: Charge fully before storage and avoid complete discharges to extend battery life.
-
Update Firmware: Install the latest firmware to ensure optimal performance and measurement precision.
