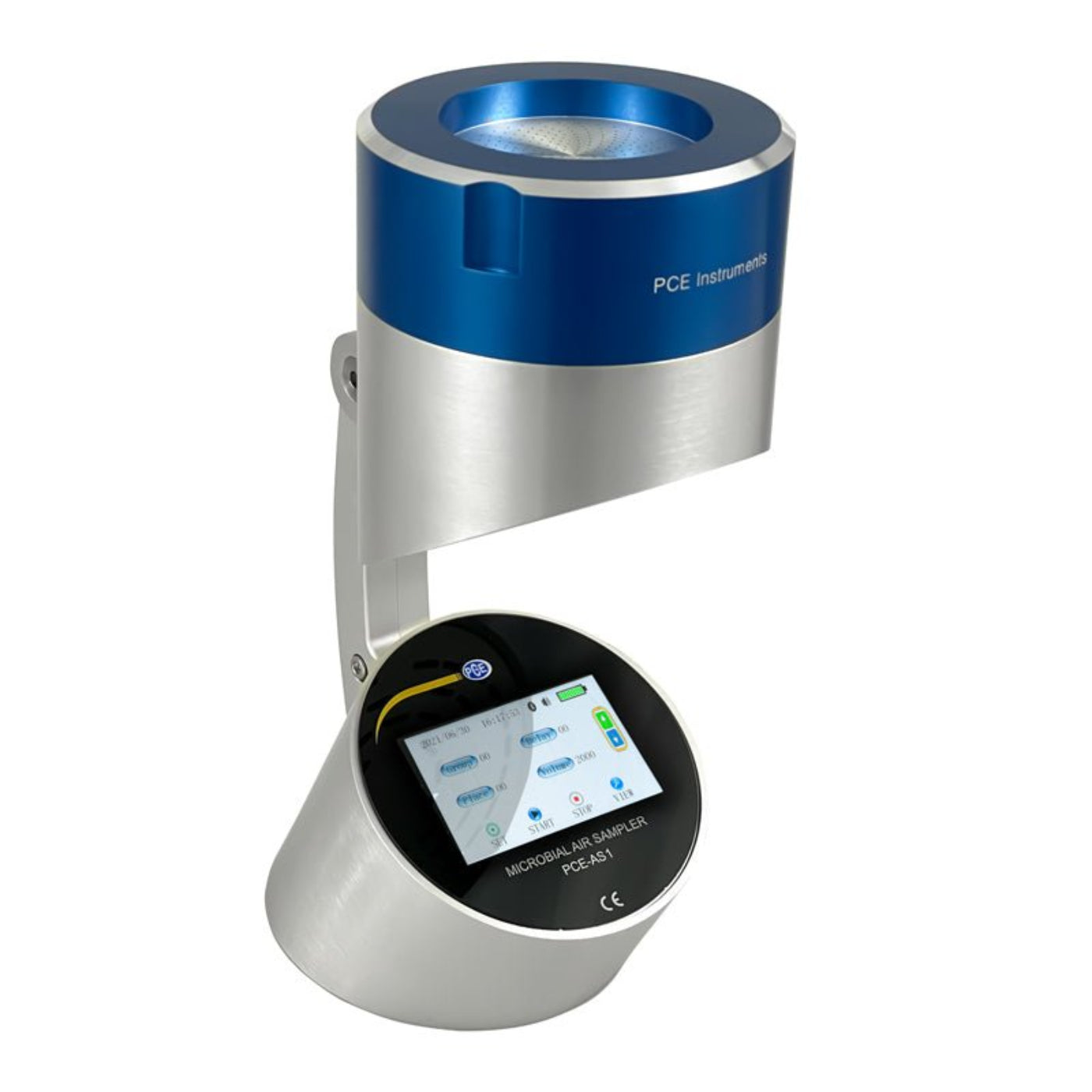

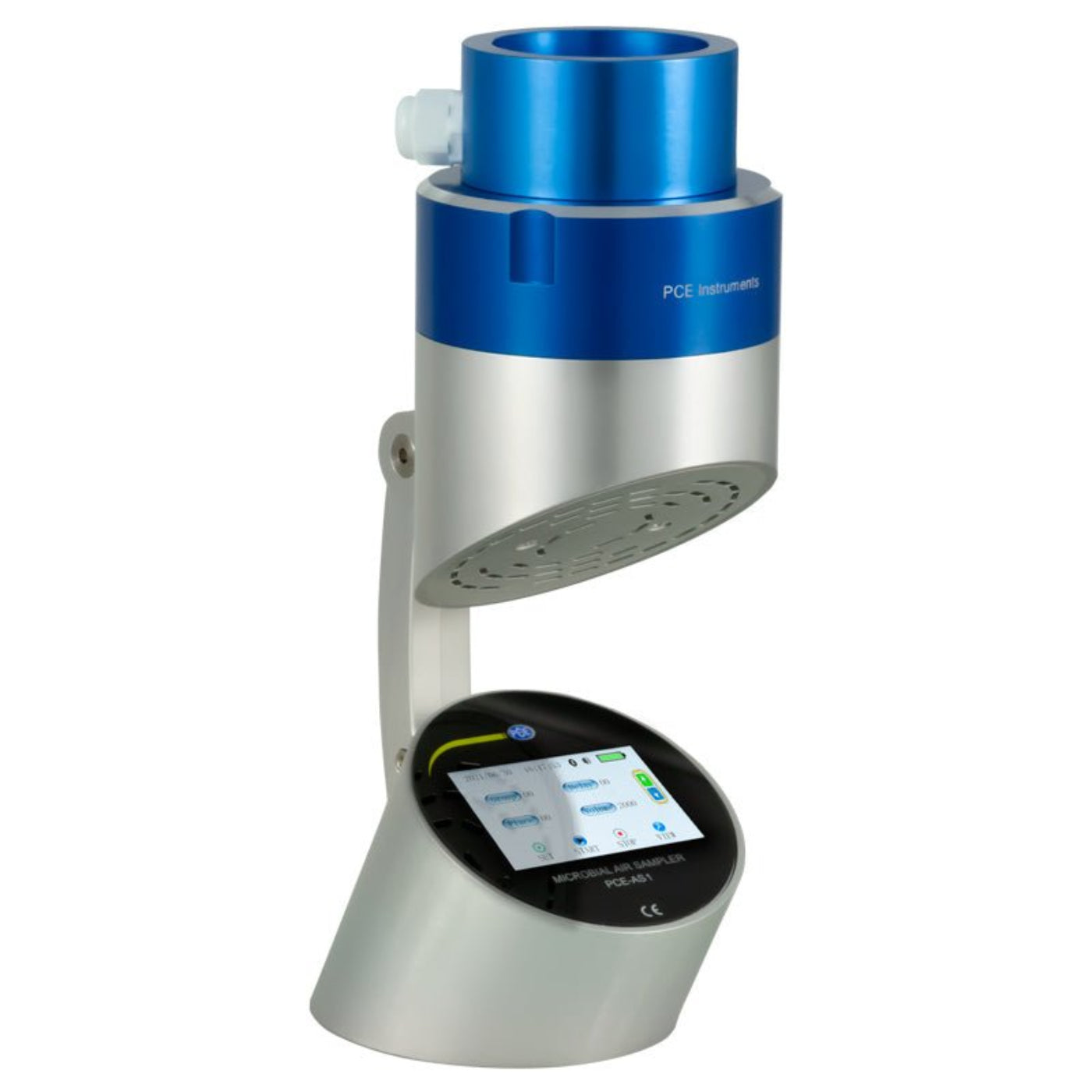

PCE AS1 Particle Counter Air Sampler - PCE-AS1

PCE AS1 Particle Counter Air Sampler - PCE-AS1

The PCE AS1 Particle Counter Air Sampler is designed to evaluate microbiological contamination and monitor hygiene. Ideal for use in hospitals, clean rooms, food and beverage facilities, as well as cosmetics and pharmaceutical production environments, the PCE-AS1 meets the latest standards for airborne microbial analysis devices. An optional ISO calibration lab certificate is also available

The PCE-AS1 air sampler uses the aerosol impaction principle or Andersen collision principle to assess air quality. The air taken in at the top of the instrument is pulled through 300 micropores and the resulting laminar air flow is directed onto the surface of an agar petri dish. When the sampling cycle is complete, the petri dish is removed and incubated. The bacterial and fungal counts can then be assessed in accordance with USP 797 and CAG-009 guidance.

The collecting head should be sterilized in an autoclave at 121° C for 30 minutes (sterilization with a cloth with 75% alcohol is also possible.) The petri dish should also be sterilized with 75% alcohol.

Highlights

• Portable
• 100 lpm aerosol hygiene monitoring device
• Great for airborne microbial, microbiological, bacterial, mold, fungi and virus analysis

Features

• Backlit LCD
• Memory for up to 99 parameters
• Sterilizable collecting head
• Adjustable volumes of up to 6000 l
• Powerful battery
• Use of standard petri dishes

Specifications

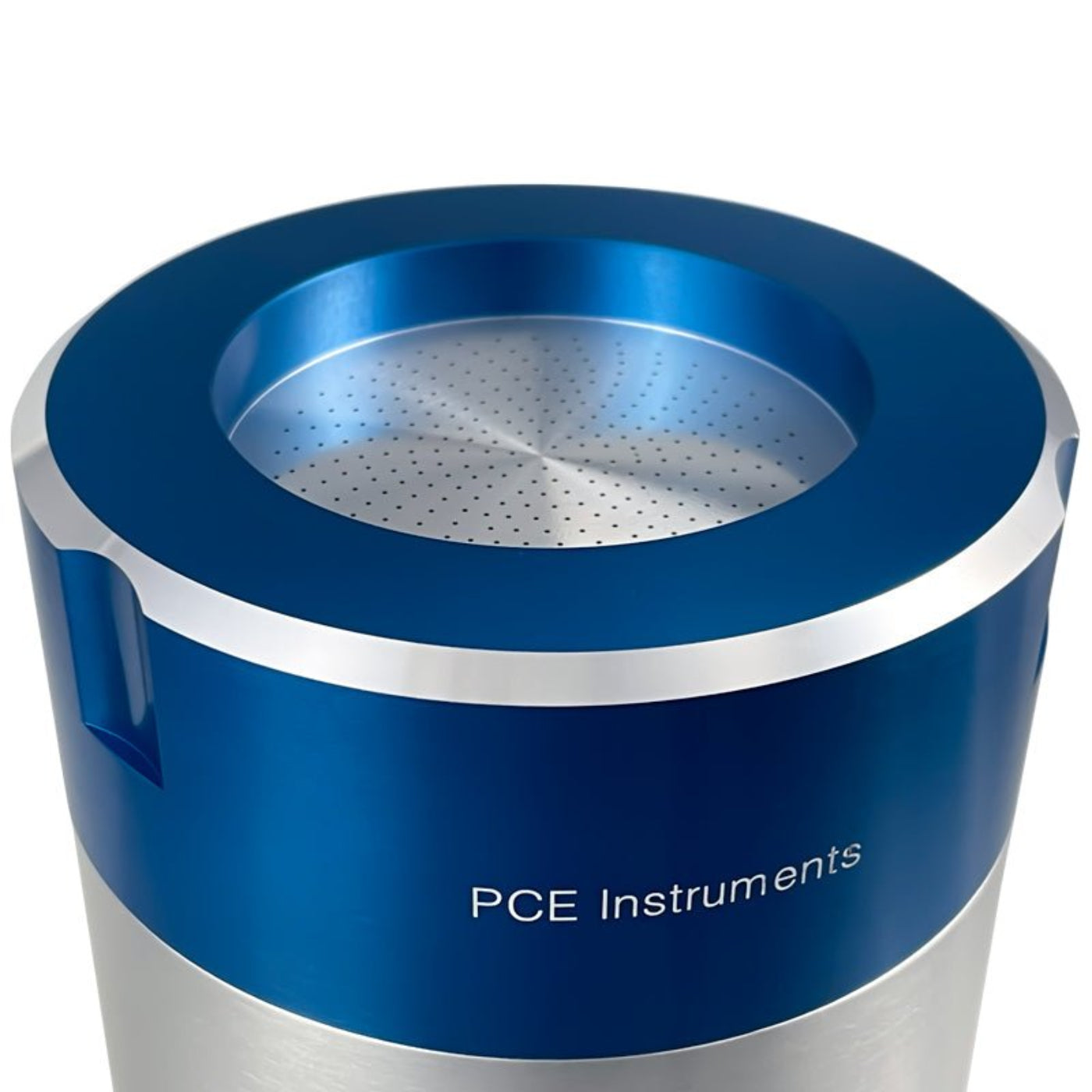

• Number of micropores in the collecting head: 589
• Hole diameter of the micropores: 0.8 mm / 0.03"
• Battery: 6400 mA
• Sample throughput: 100 liters per minute (l/min) or 3.53 cubic feet per minute
• Flow rate at measuring head: 0.38 l/min
• Automatic control of the measuring volume: 10 - 6000 liters
• Dimension of plate: ø 70 - 90 x 15 mm / ø 2.76 x 3.54 x 0.59 inches
• Data storage: max. 99 parameters and 2000 measurement values
• Dimensions: ø 120 x 300 mm / ø 4.72 x 11.81 inches
• Standards: ISO 14698-1
• Weight: 2.6 kg / 5.73 lb

What's included

• 1 x Air Sampler PCE-AS1

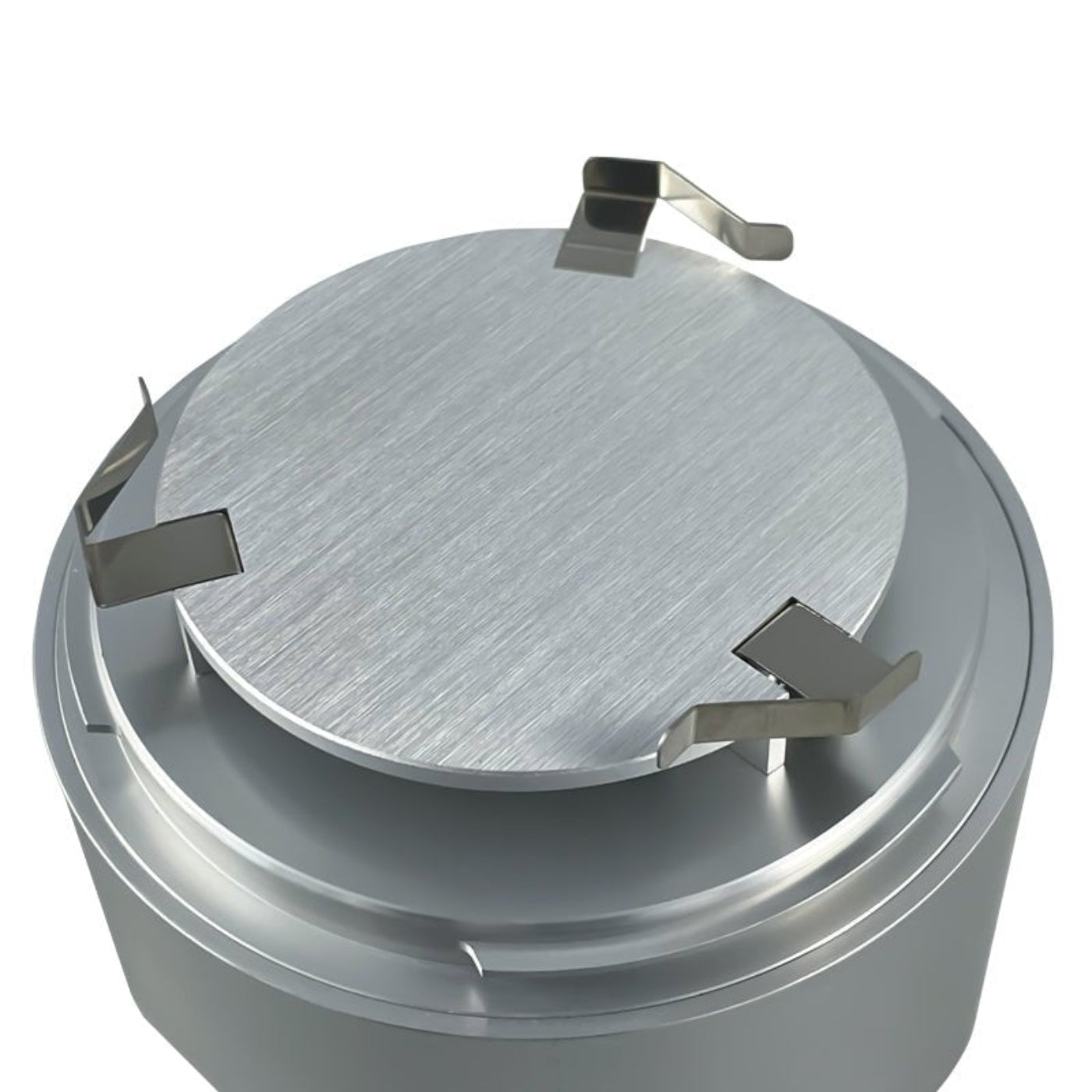

• 1 x Adapter for glass petri dishes with calibration attachment
• 1 x Mains power adapter

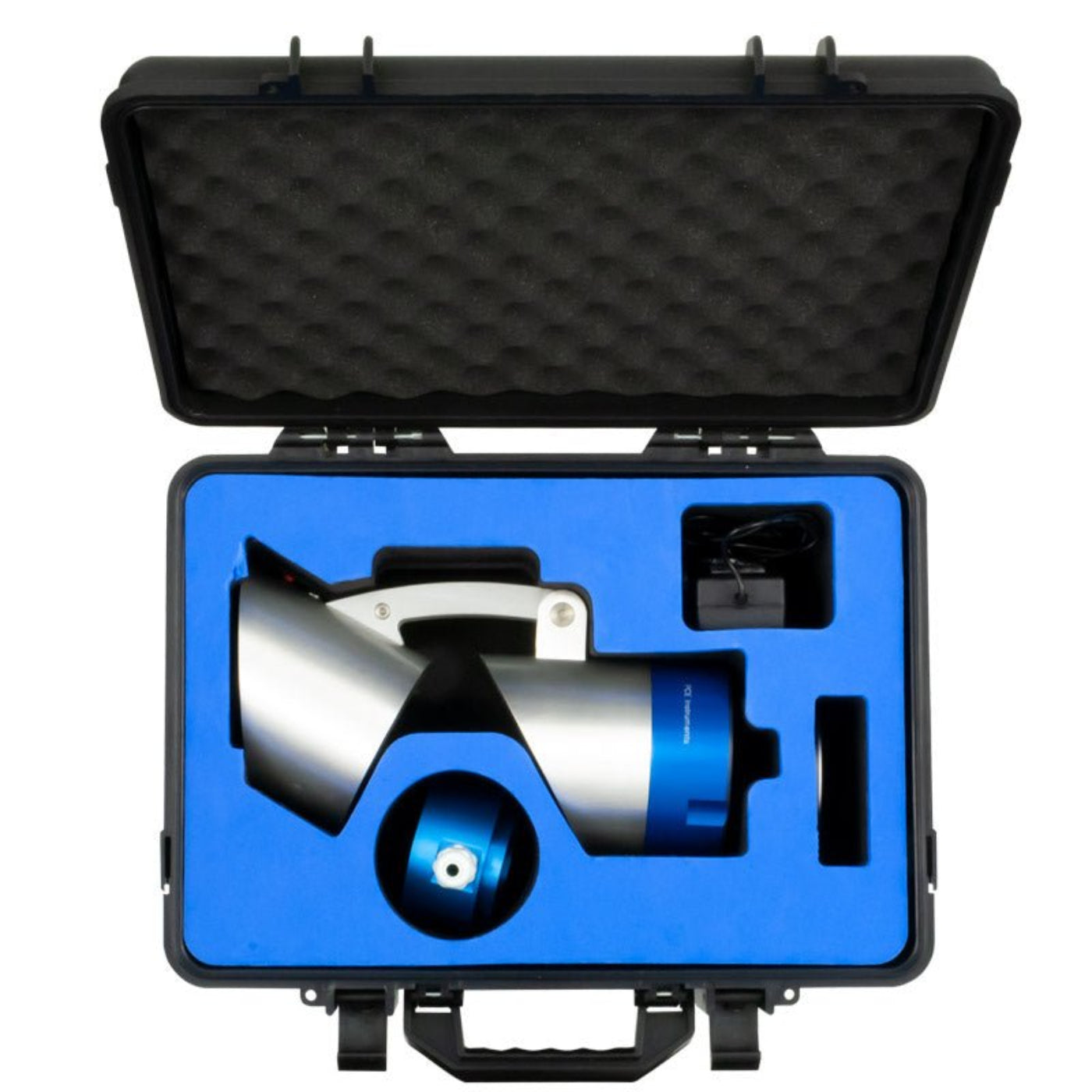

• 1 x Carrying case
• 1 x Instruction manual

Manual

 PCE-AS1 User Manual

 PCE-AS1 Data Sheet

What Our Experts Think

• Microbial Contamination Monitoring: Specifically designed to detect airborne microbial contamination, making it essential for environments where hygiene is critical.

• Versatile Applications: Perfect for use in hospitals, cleanrooms, food and beverage facilities, and pharmaceutical or cosmetic production.

• Meets Industry Standards: Complies with the latest standards for airborne microbial analysis, ensuring reliability and accuracy in regulated environments.

• ISO Calibration Option: Offers an optional ISO calibration lab certificate, ensuring confidence in the device's performance and accuracy.

• User-Friendly: Simple to operate, even in high-stakes settings, with quick, precise results for real-time contamination control.

• Quality Assurance Tool: Ideal for maintaining stringent cleanliness and hygiene protocols, reducing the risk of contamination in sensitive environments.

Q&A

Q: What is the PCE AS1 used for?
A: It is used to evaluate microbiological contamination and monitor hygiene in sensitive environments.

Q: Where can the PCE AS1 be used?
A: It is ideal for hospitals, clean rooms, food and beverage facilities, and pharmaceutical or cosmetics production environments.

Q: Does the PCE AS1 meet industry standards?
A: Yes, it meets the latest standards for airborne microbial analysis devices, ensuring reliable and accurate measurements.

Q: Is an ISO calibration certificate available for the PCE AS1?
A: Yes, an optional ISO calibration lab certificate is available for added confidence in measurement accuracy.

Q: Why is the PCE AS1 important for clean environments?
A: It ensures microbial contamination is detected, helping maintain hygiene and comply with industry regulations.

Maintenance Tips

• Clean the sampling head and surfaces with alcohol or a disinfectant before and after each use.

• Avoid exposure to moisture in electronic components.

• Replace or sterilize collection media as per usage guidelines.

• Calibrate regularly—especially before critical measurements or audits.

• Store in a sterile, dry case to prevent contamination.

• Check battery status and recharge or replace as needed.
