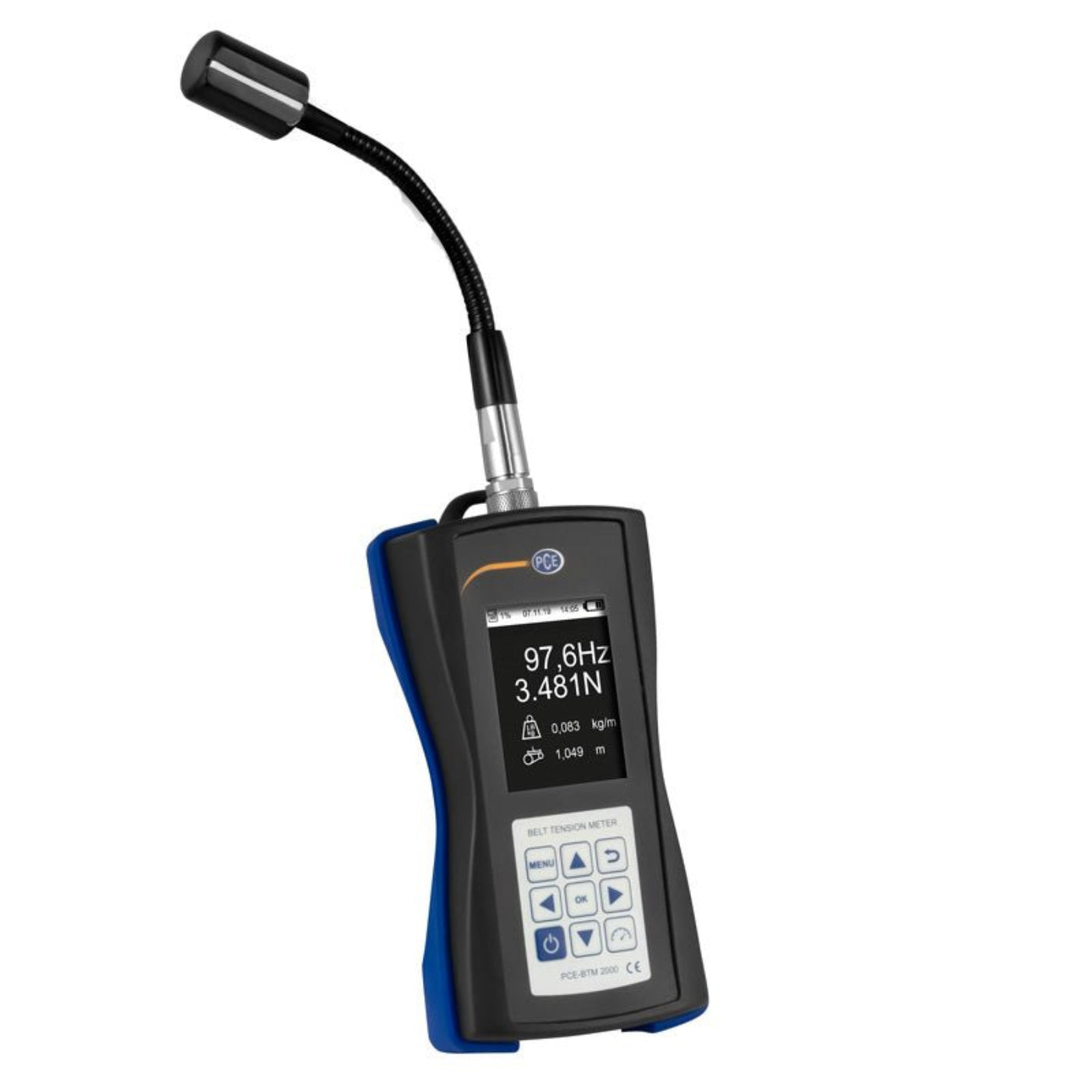

The PCE BTM 2000 Belt Tension Force Meter is an optically measuring maintenance tool for determining the belt tension force. It consists of a display device and a sensor head attached on a semi-flexible gooseneck. The advantage of the gooseneck is that the sensor head can be flexibly positioned. Due to the mobility of the gooseneck, the sensor can measure the strand force even in hard to reach places. The belt tension measuring device measures the belt tension (in Newton) and the belt frequency (in Hz) of the belt in the stationary state.

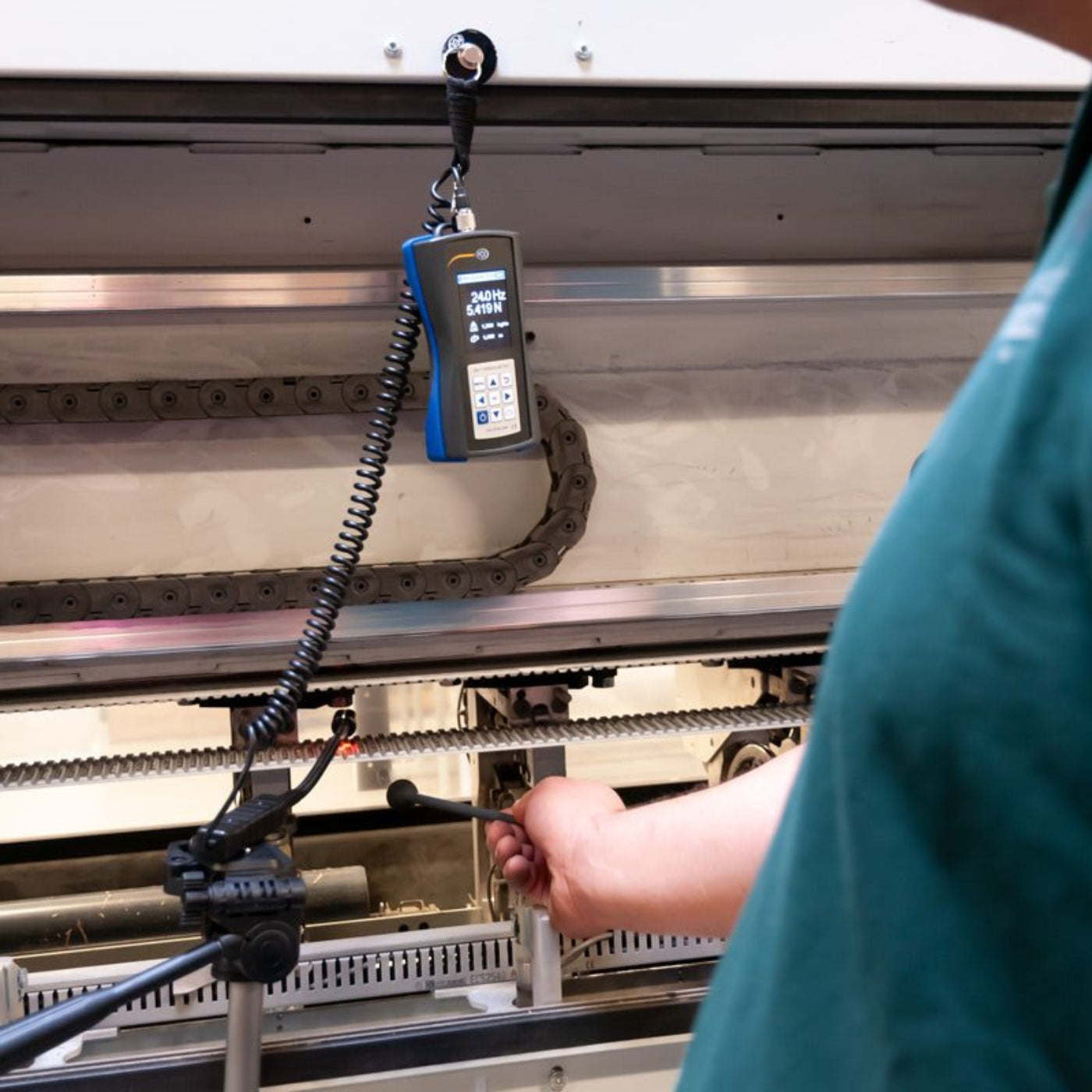

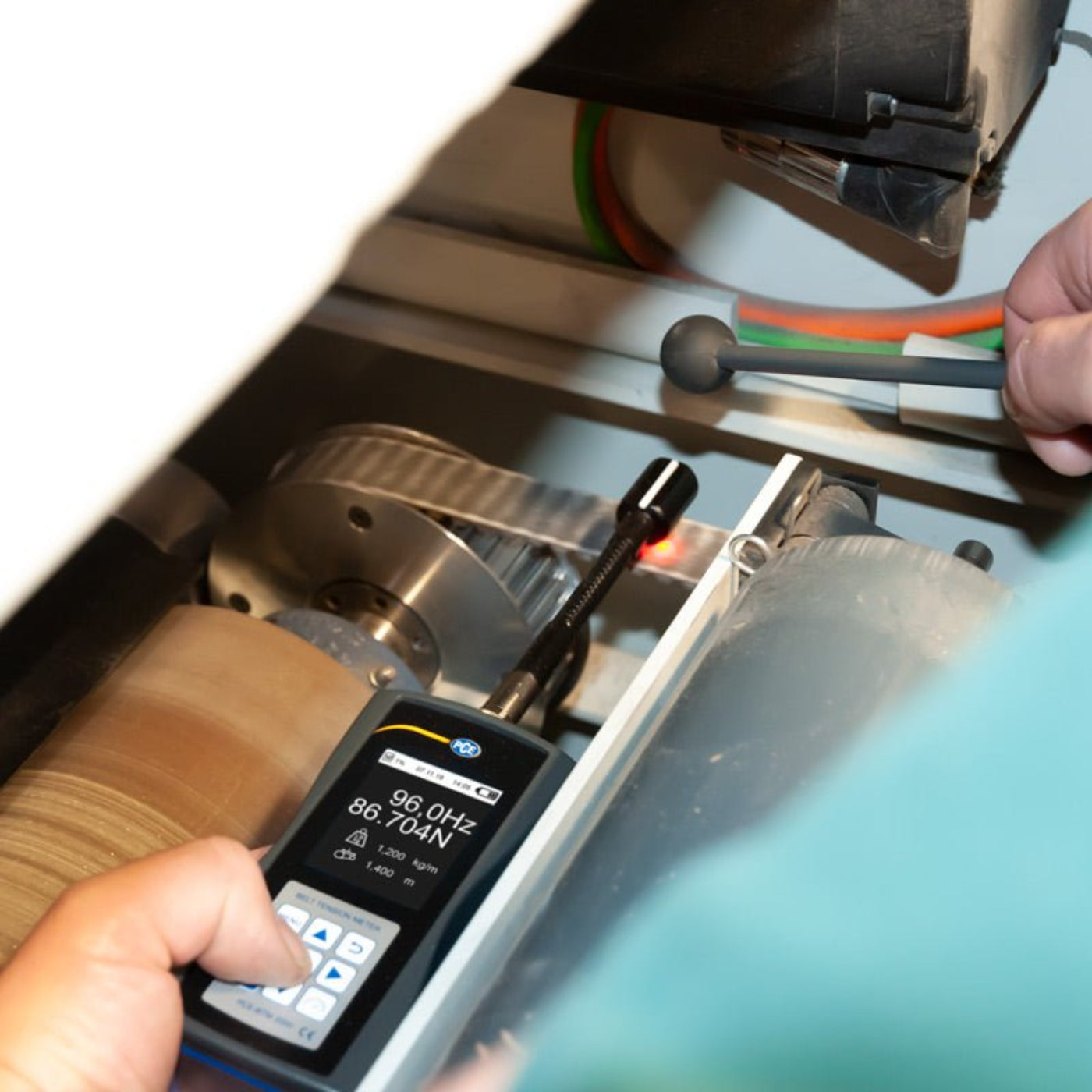

A small impulse on the belt is sufficient to set the belt vibrating. The devise measures with the sensor the natural frequency of the belt generated in this way and visualizes it on the display. The meter can directly determine the actual tension (in Newton / Pound Force) of the belt from the belt frequency combined with the optionally entered belt length and belt mass. However, entering this data is not necessarily required in order to carry out the measurements directly with the belt tension measuring device. The measurement units in the device can be switched between N (SI unit) and pound force (US unit).

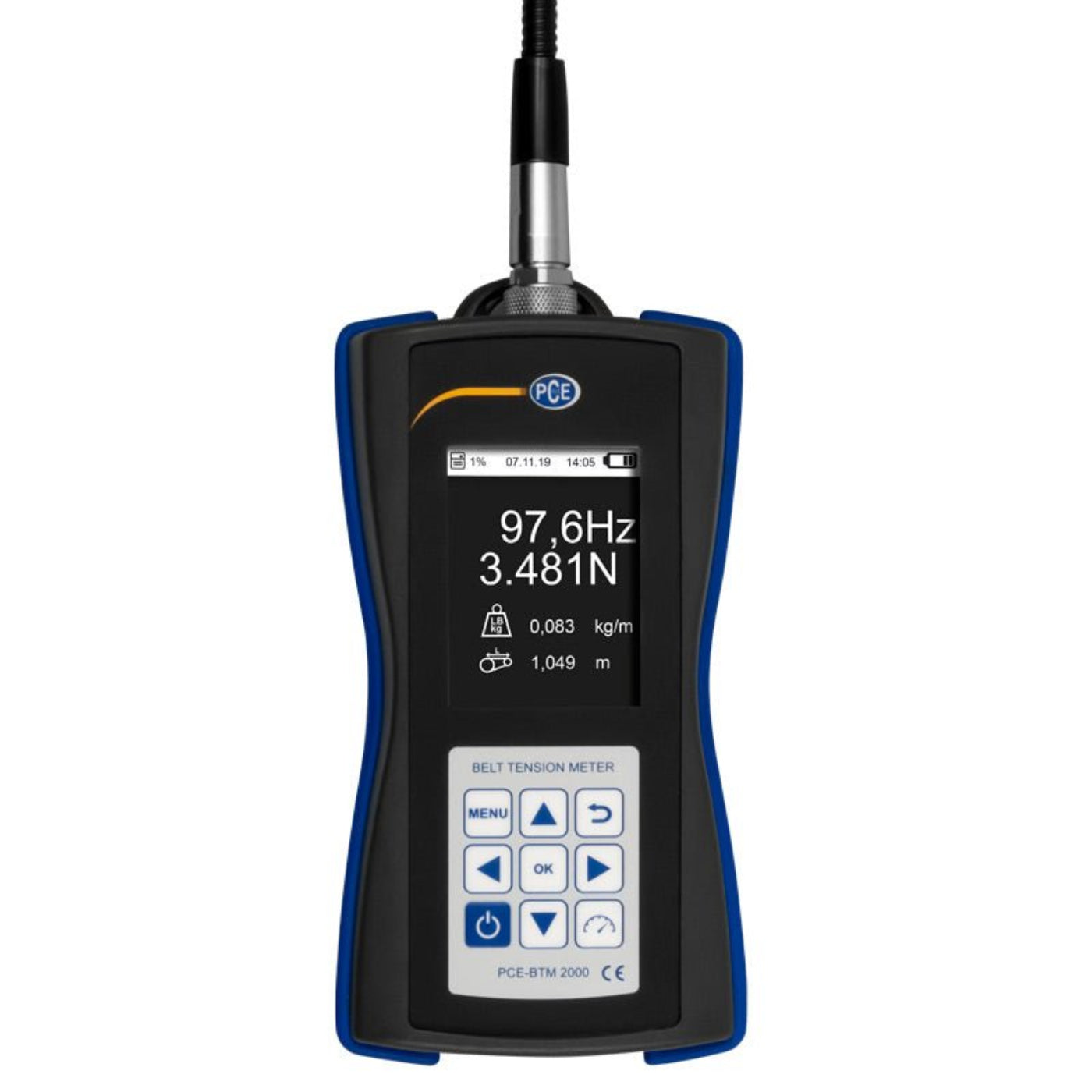

The belt tension measuring device always displays the belt frequency in Hz. Its intuitive graphic menu is shown on a high-contrast display, available in six different languages. The device’s memory can store up to 750 data records. It comes fully assembled and ready to use, with the package including the handheld device, standard sensor with gooseneck, magnetic holder, batteries, and an operating manual. To enhance measurement flexibility, additional accessories are available, including an external sensor head with a spiral cable, a device hard case, a frequency mallet, and a tripod.

Highlights

• Memory for 750 measured values
• Graphic display
• Easy operation
• Multilingual menu
• Measurement in Hz and N

Features

• Measurement of the oscillation frequency of the drive belt
• Intuitive controls
• Calculation of the tension force
• Display of the belt tension in N
• 6 menu languages
• Memory for 750 measured values

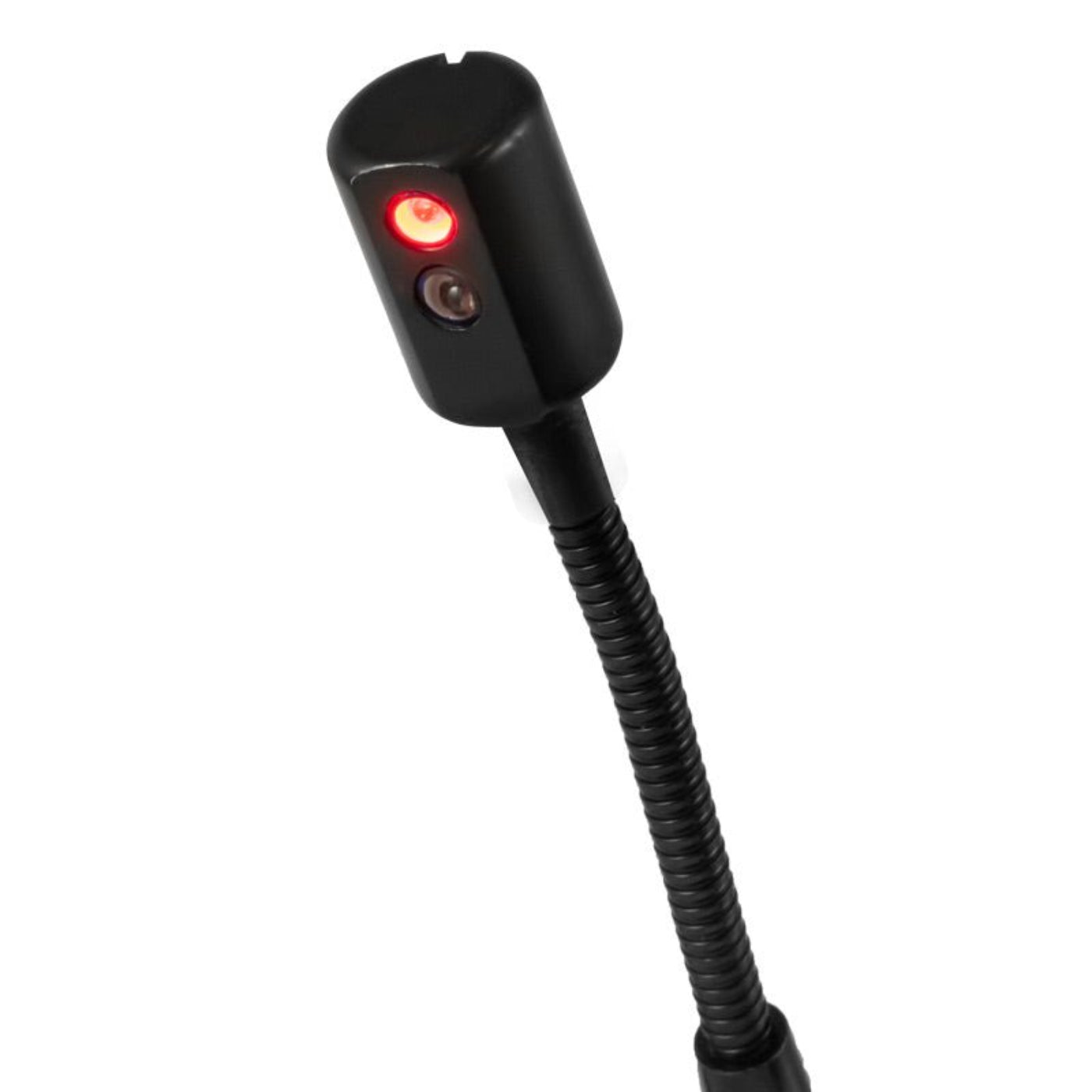

• Sensor on gooseneck
• Input of belt length and belt mass

Specifications

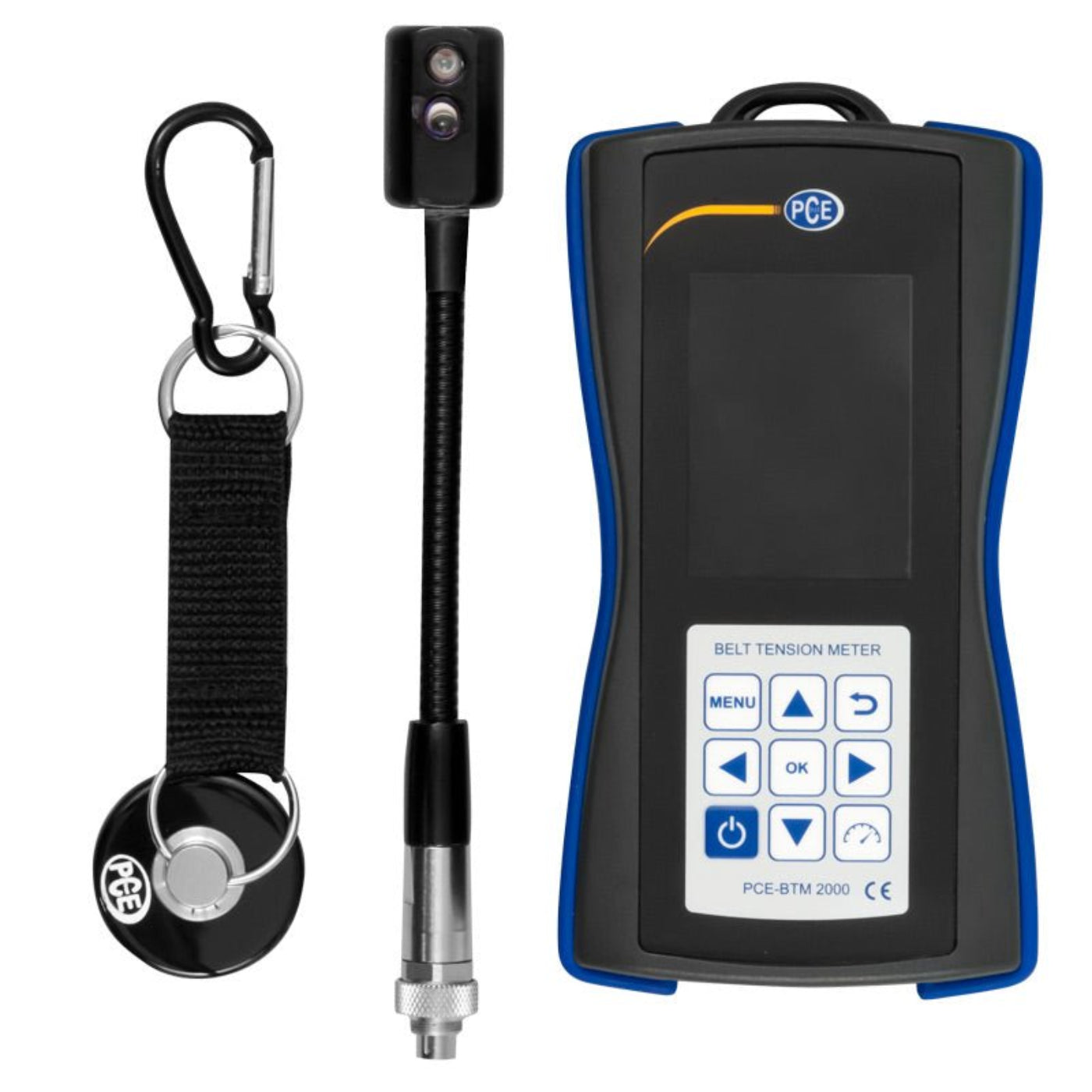

What's Included

• ?1 x Belt Tension Meter PCE-BTM 2000
• 1 x Standard sensor head
• 1 x Magnetic holder
• 3 x 1.5 V AAA battery
• 1 x Operating instructions
• 1 x Carrying bag

What Our Experts Think

• Optical Precision: Uses optical measurement to provide accurate belt tension and frequency readings, ensuring proper belt performance and lifespan.

• Flexible Gooseneck Sensor: The semi-flexible gooseneck allows for easy positioning of the sensor head in tight or awkward spots—perfect for maintenance in confined areas.

• Dual Measurement Capability: Measures both tension in Newtons and belt frequency in Hz, giving comprehensive insight into belt condition.

• Stationary Measurements: Designed for use while the belt is at rest, reducing risk and ensuring user safety during diagnostics.

• Compact & Handy: Lightweight and portable, ideal for quick checks during routine maintenance or system setup.

Q&A

Q: What does the PCE BTM 2000 measure?
A: It measures belt tension in Newtons and belt frequency in Hertz when the belt is stationary.

Q: How is the sensor positioned for measurement?
A: The sensor is mounted on a semi-flexible gooseneck, allowing it to be flexibly positioned—even in hard-to-reach areas.

Q: What makes the PCE BTM 2000 suitable for maintenance tasks?
A: Its optical measurement method and gooseneck design make it ideal for quick and precise belt tension checks during maintenance.

Q: Is the PCE BTM 2000 still available?
A: No, this model has been discontinued. Consider current alternatives in the PCE-BTM series for replacement.

Maintenance Tips

• Keep the sensor lens clean with a soft, dry cloth to maintain optical precision.

• Avoid bending the gooseneck excessively to preserve flexibility and sensor alignment.

• Store the unit in a protective case when not in use to avoid dust and mechanical damage.

• Replace batteries as needed to ensure reliable operation.

• Calibrate periodically using a known standard or according to manufacturer guidelines.
