PCE CSM 1 Color Meter - PCE-CSM 1

PCE CSM 1 Color Meter - PCE-CSM 1

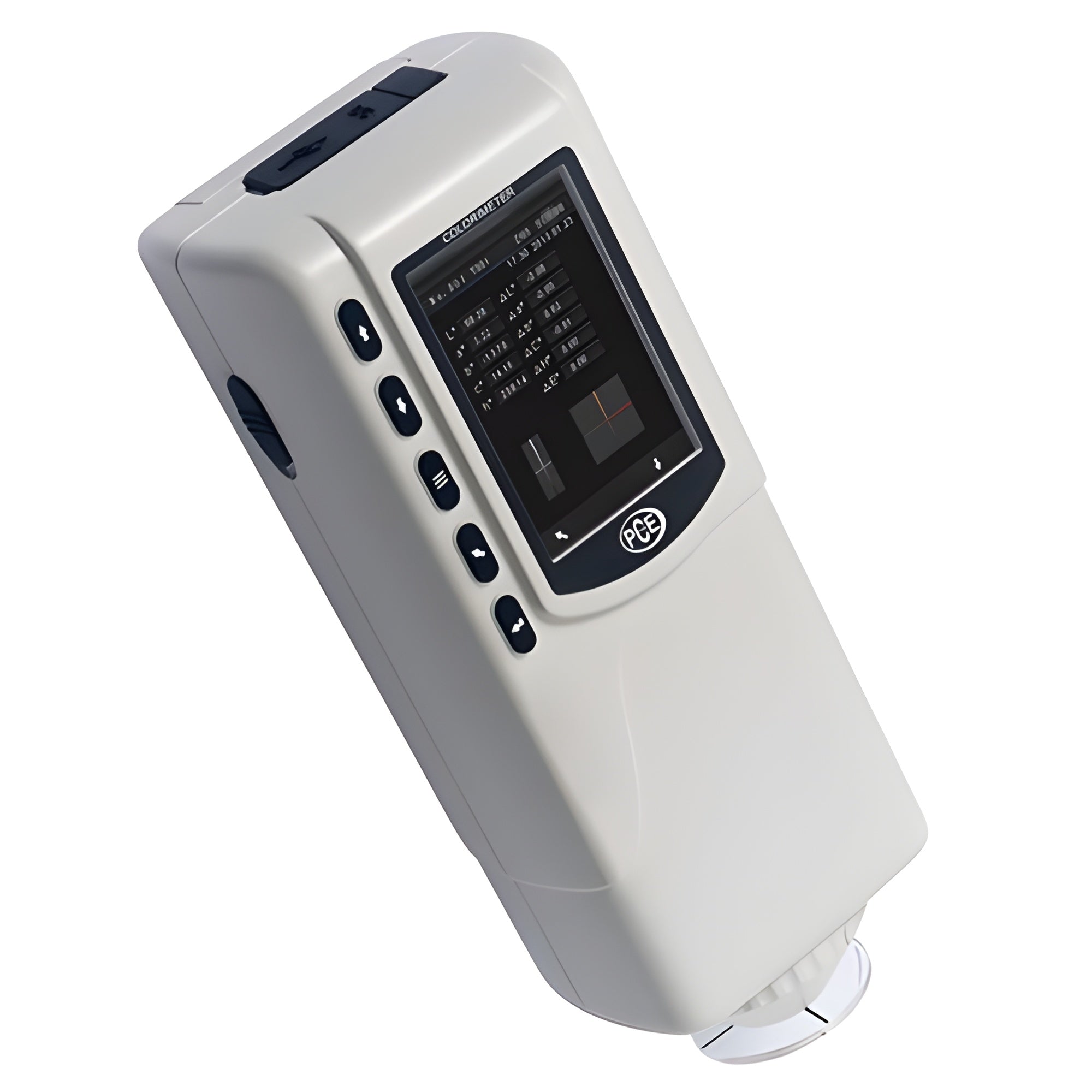

The PCE CSM 1 Color Meter is a portable device designed for quality control. It provides high accuracy and user-friendly operation. With this color meter, you can select from various color spaces (CIE LabCh, CIE Lab*, and CIE XYZ). After taking a measurement, the result can serve as a reference value, while additional readings can be recorded as samples and easily compared to the reference value later.

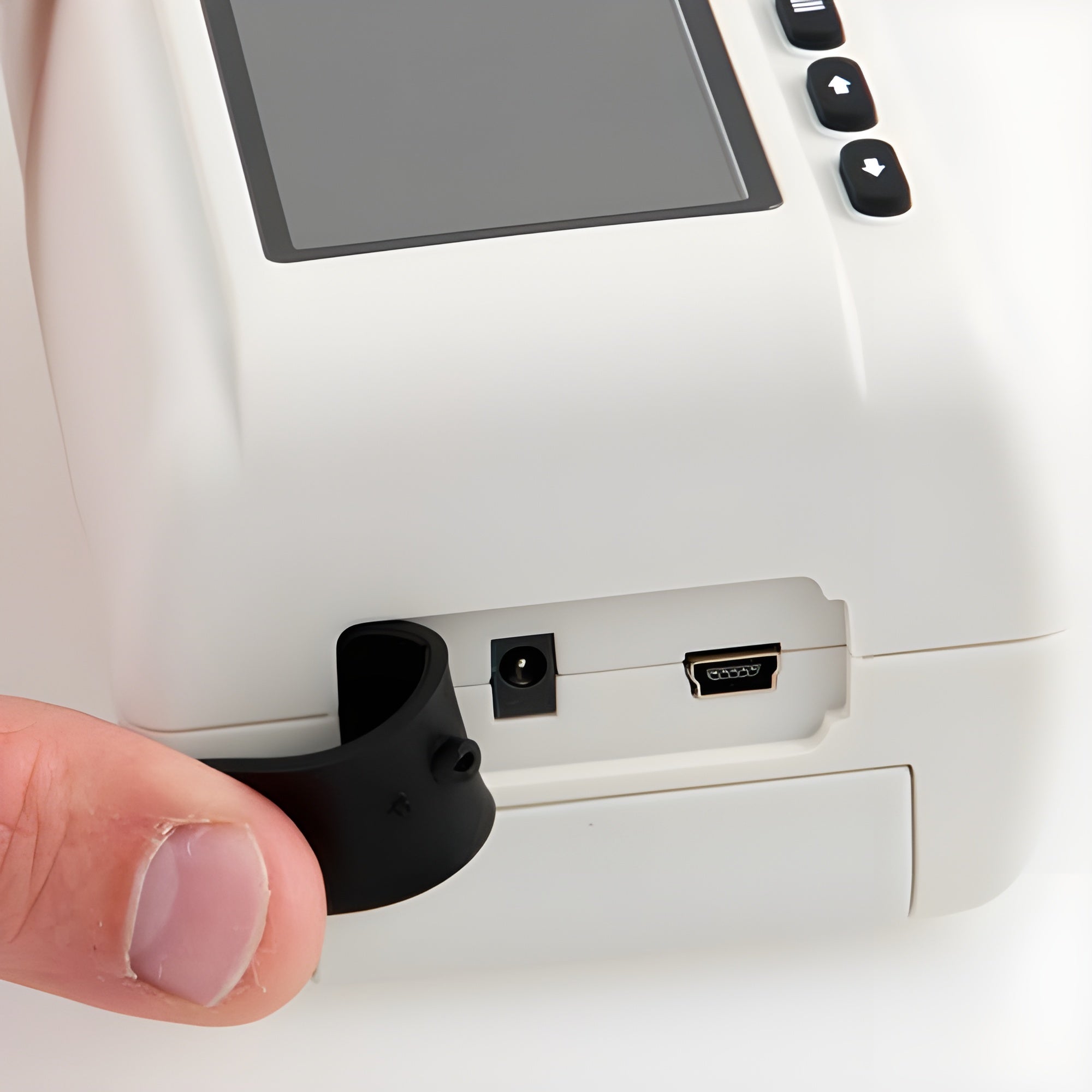

In addition to the individual color space coordinates, the deviation between the reading is also displayed. It's possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

• PC software included
• Li-ion battery
• 3 different color spaces
• Determines reference values to compare to samples
• White and black calibration

Features

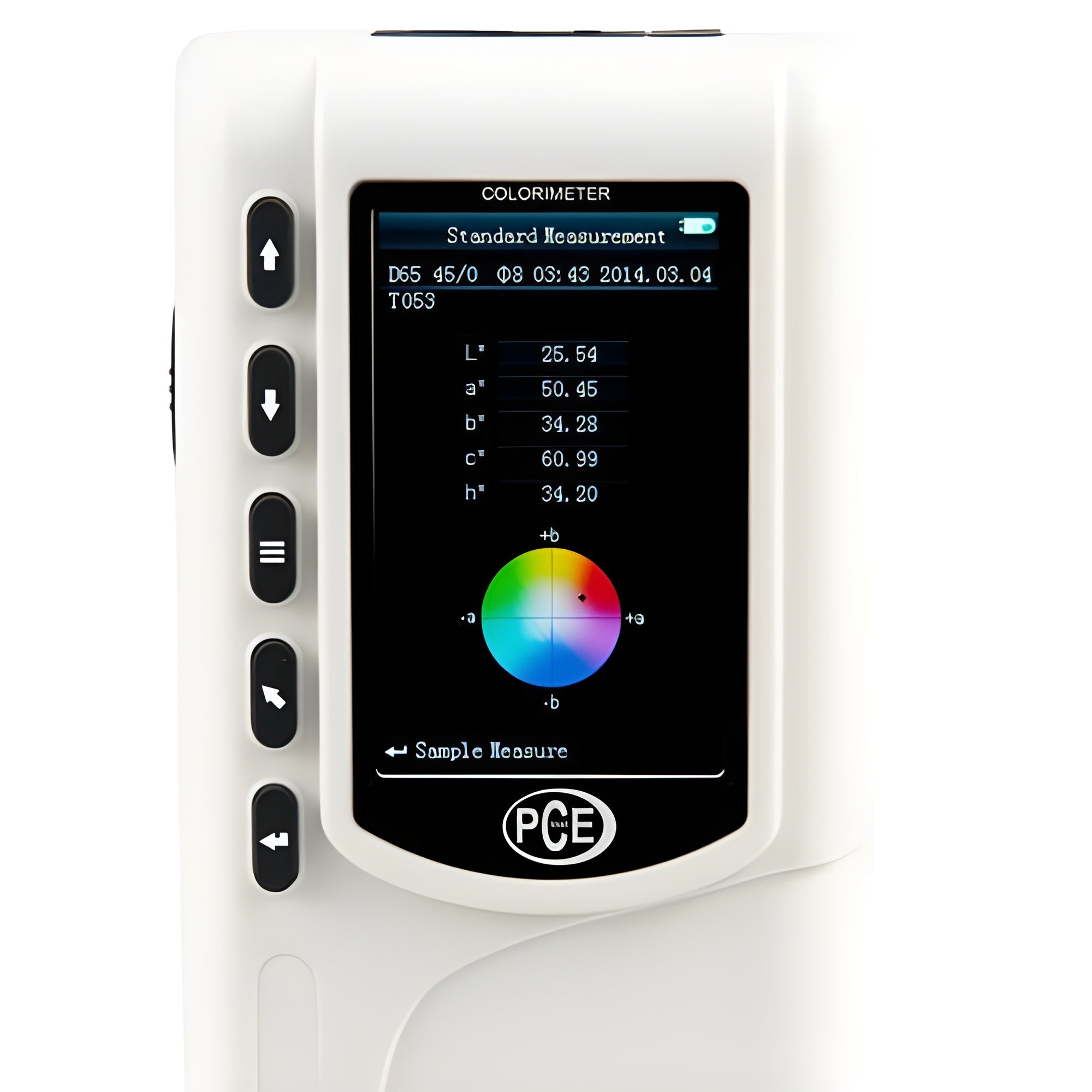

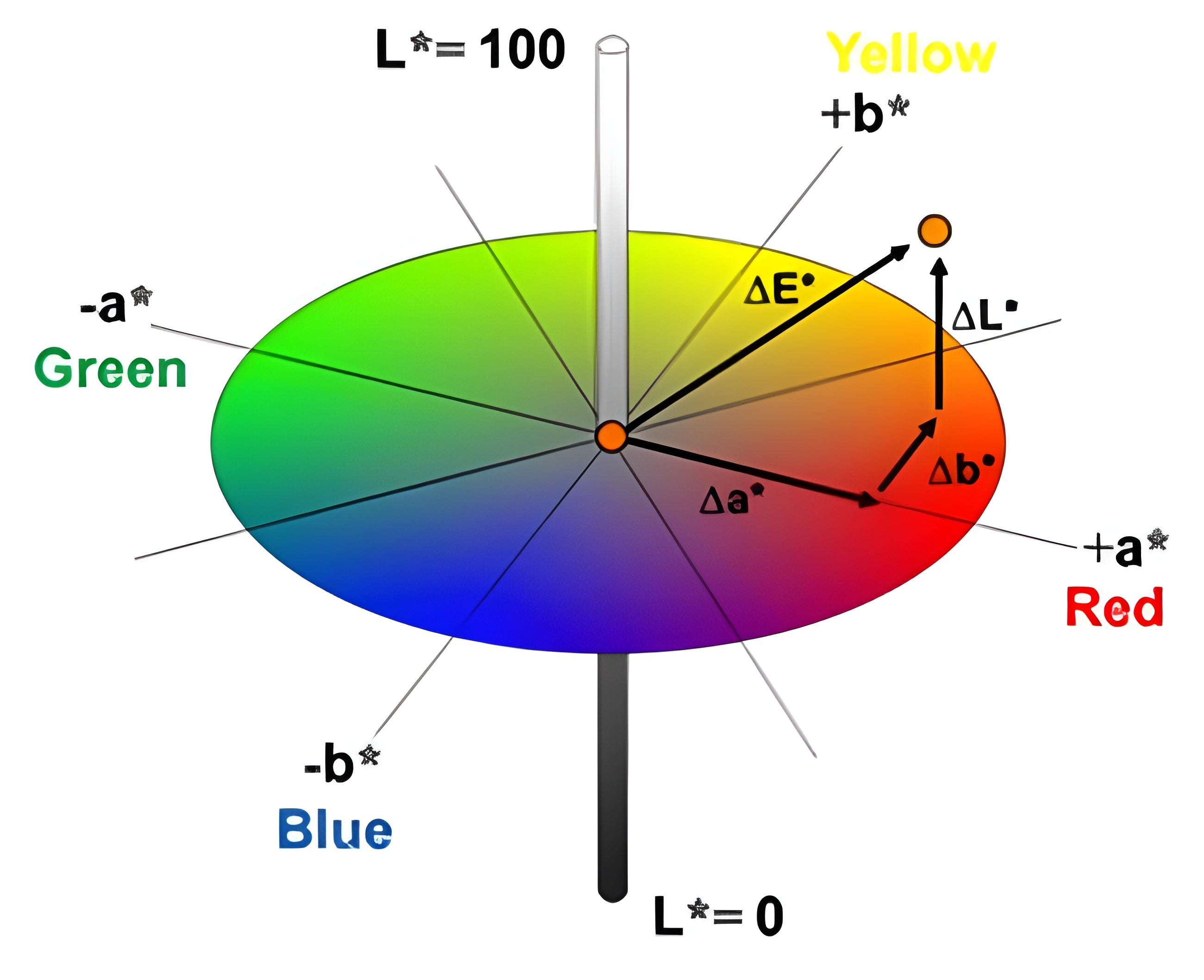

• CIE L*a*b*C*h, L*a*b* and XYZ
• Automatic white and black calibration
• Determines reference values to compare to samples
• Rechargeable Li-ion battery
• measuring of different colors
• Suitable for many different surfaces
• 8°/d geometry diffused illumination integrating sphere system illuminates sample from 8-degree angle
• Easy to use
• Incl. PC software
• 6 mm sample aperture

Specifications

What's Included

• 1 x Colorimeter PCE-CSM 1
• 1 x USB cable
• 1 x Li-ion battery
• 1 x AC power adapter / charger
• 1 x Wrist band
• 1 x Calibration plate (white)
• 1 x Lens cap (serves as black calibration plate)
• 1 x Soft carrying case
• 1 x PC software
• 1 x User manual

Manual

PCE-CSM 1 User Manual

PCE-CSM 1 Data Sheet

What Our Experts Think

• High-Accuracy Color Measurement: Offers precise color readings for quality control, ensuring consistency in all measurements.

• Multiple Color Spaces: Choose between CIE LabCh, CIE Lab*, and CIE XYZ color spaces for versatile applications and compliance with industry standards.

• Reference & Sample Comparison: Store a reference value and quickly compare subsequent readings to maintain color consistency.

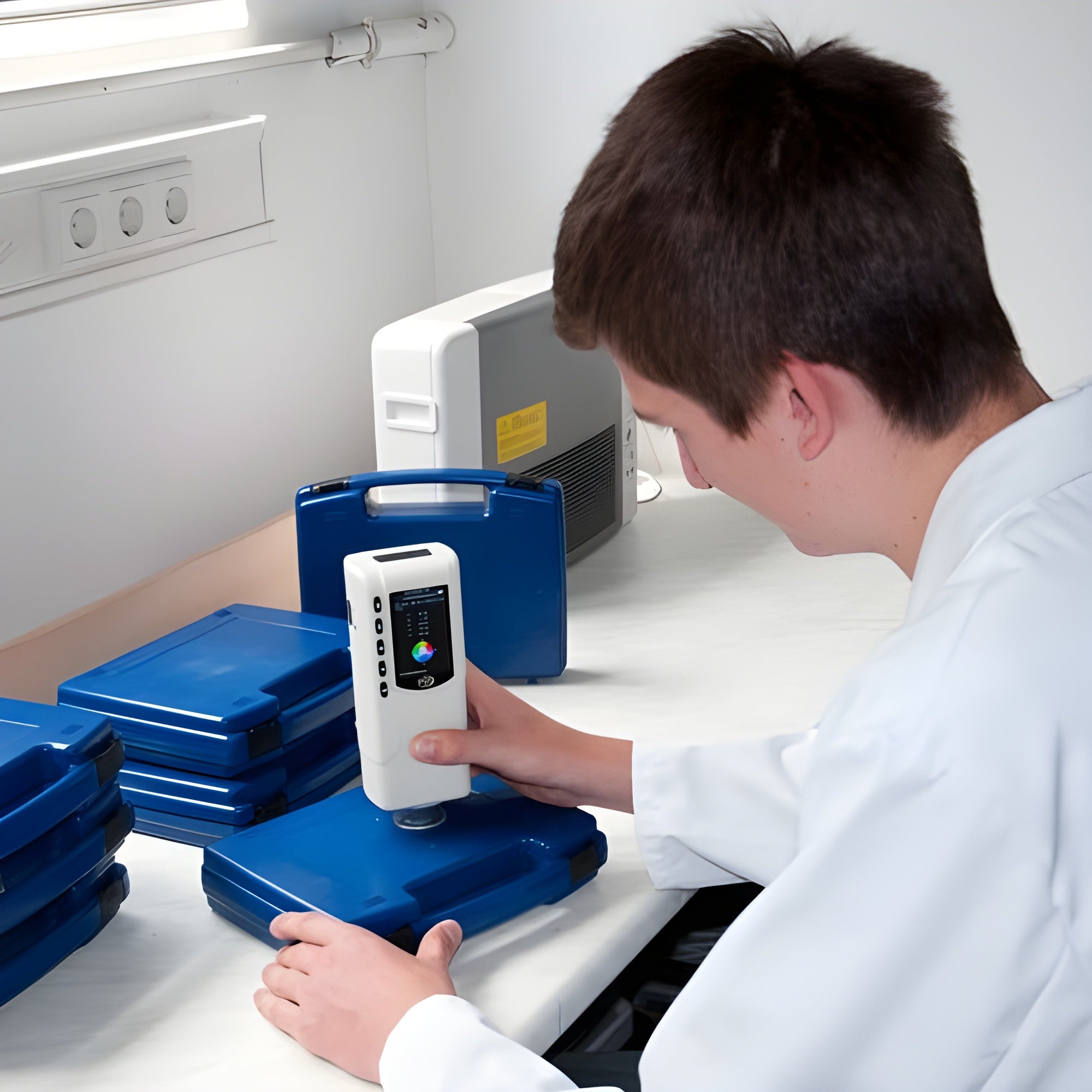

• Portable & User-Friendly: Compact and easy to use, making it perfect for on-the-go quality control in various production environments.

• Efficient for Quality Control: Streamlines the process of measuring and verifying color, enhancing productivity in fast-paced settings.

• Versatile Applications: Ideal for use in textiles, coatings, plastics, and more—ensuring accurate color measurement across a wide range of industries.

Q&A

Q: What is the PCE CSM 1 Color Meter used for?
A: The PCE CSM 1 is a portable color meter designed for high-accuracy color measurement in quality control settings.

Q: What color spaces can the PCE CSM 1 measure?
A: It supports CIE LabCh, CIE Lab*, and CIE XYZ color spaces, providing flexibility for various color measurement standards.

Q: Can I compare measurements to a reference value?
A: Yes, after a measurement, it can be saved as a reference, and additional readings can be easily compared to ensure consistency.

Q: Is the PCE CSM 1 easy to use?
A: Yes, it offers user-friendly operation, making it ideal for quick and efficient color measurement in any environment.

Q: Who is this color meter ideal for?
A: Perfect for professionals in quality control across industries like textiles, printing, and manufacturing who need accurate color consistency.

Maintenance Tips

• Clean the sensor lens with a soft, lint-free cloth after each use.

• Avoid touching the optical surface to maintain measurement accuracy.

• Calibrate the meter regularly using the provided reference standard.

• Store in a dry, dust-free case when not in use to protect the device.

• Check and replace batteries as needed to prevent power issues.
