PCE CSM 10 Spectrophotometer - PCE-CSM 10

PCE CSM 10 Spectrophotometer - PCE-CSM 10

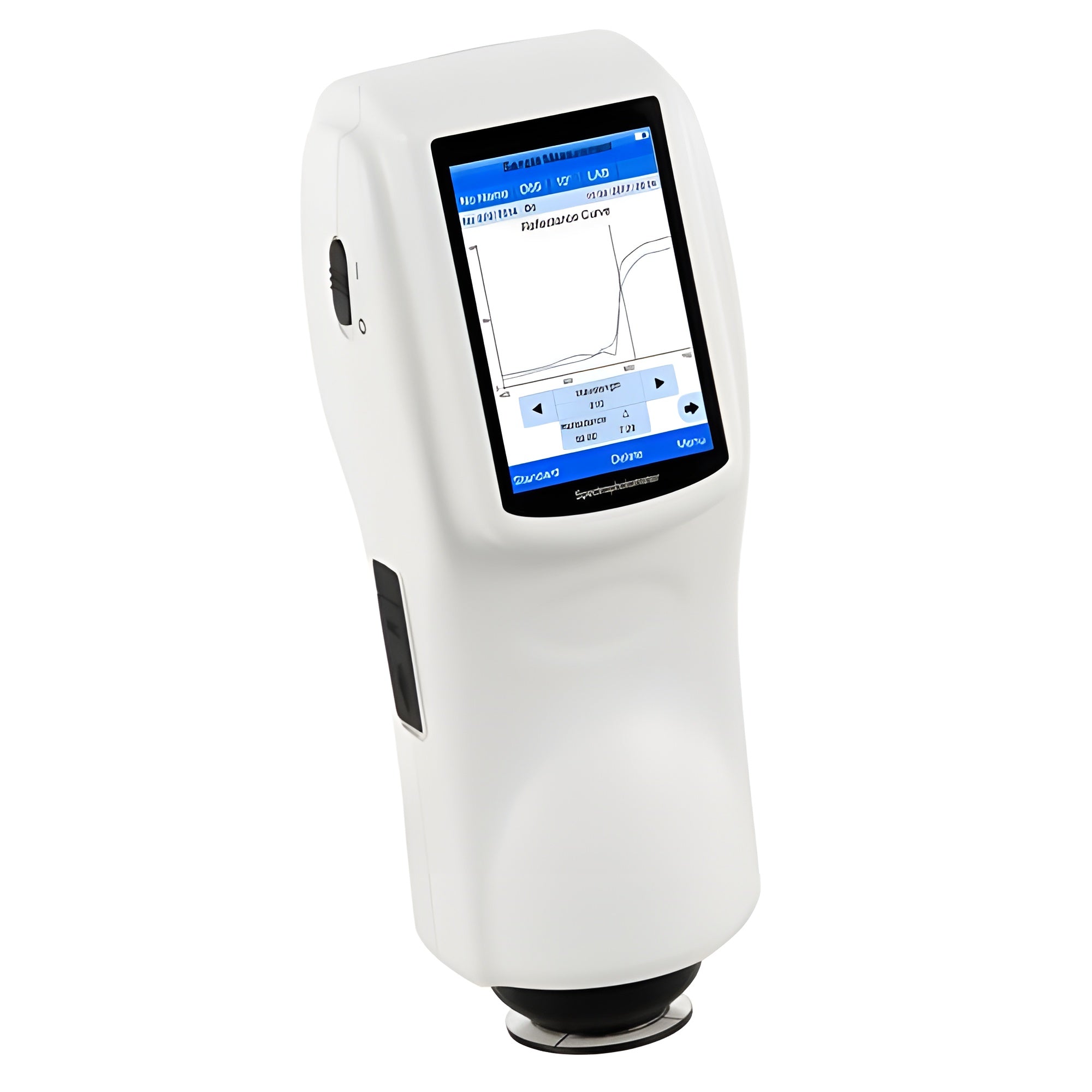

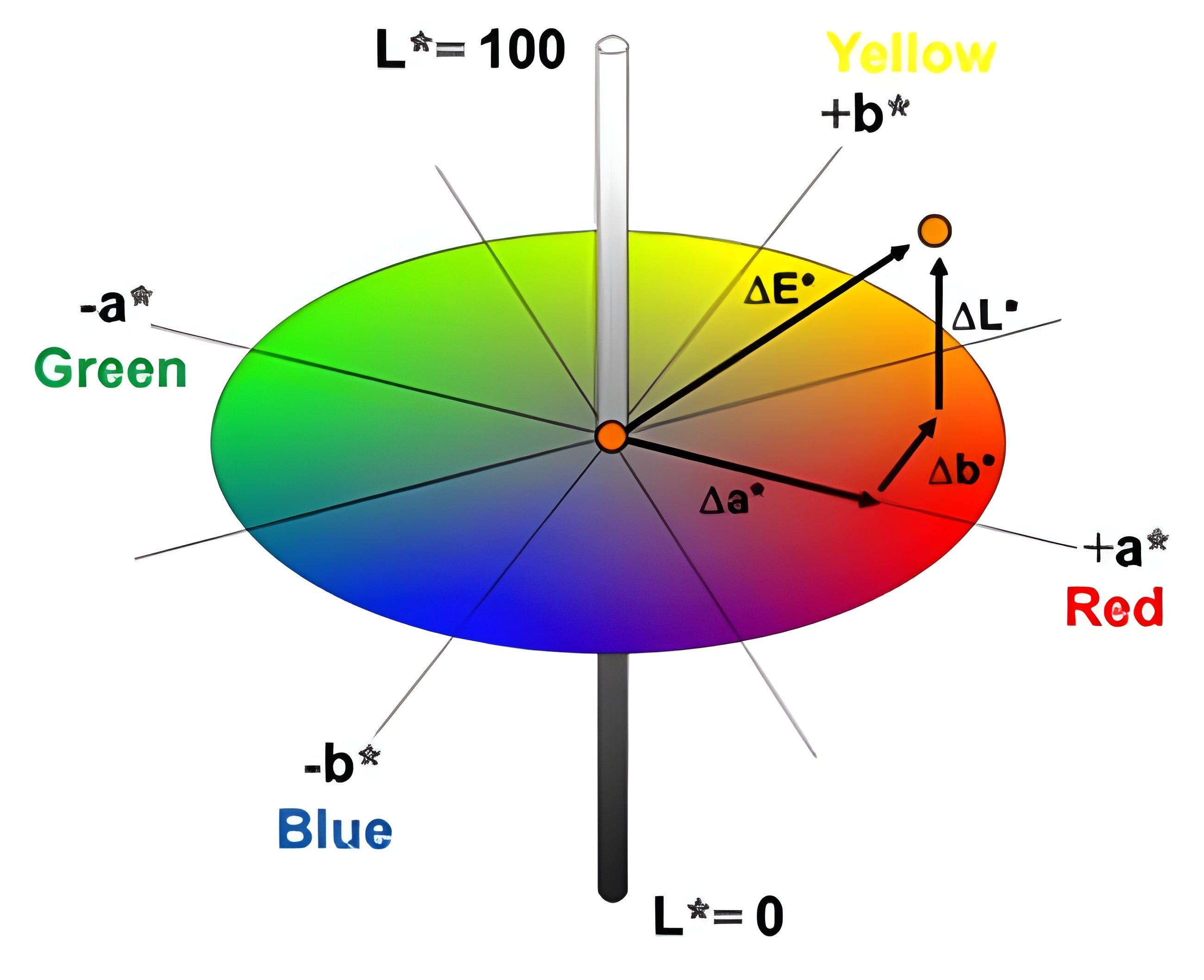

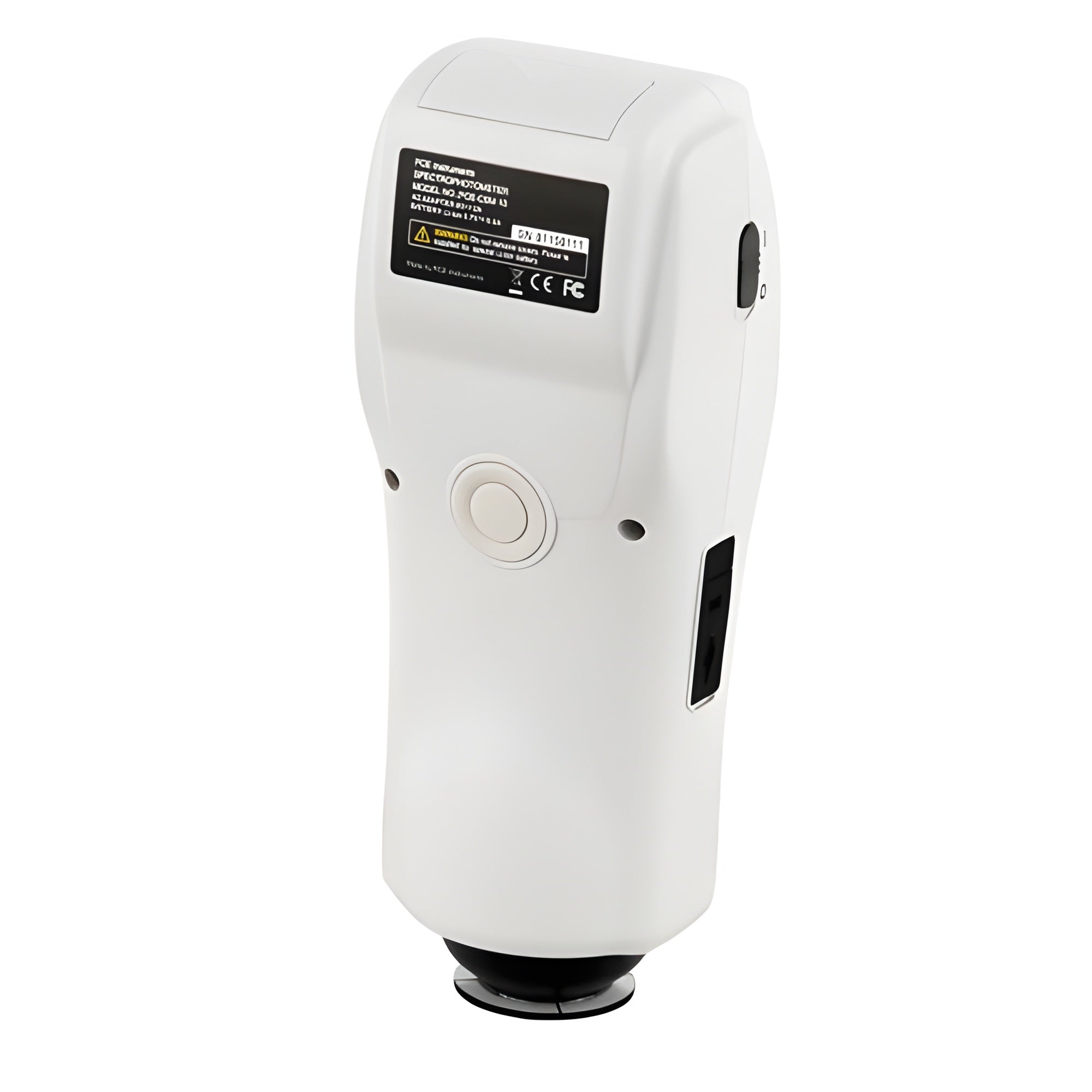

The PCE CSM 10 Spectrophotometer was developed for quality control, offers high accuracy, and comes with a 3.5" touch screen display. When using the device you can choose between different color spaces (CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB). After measuring, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

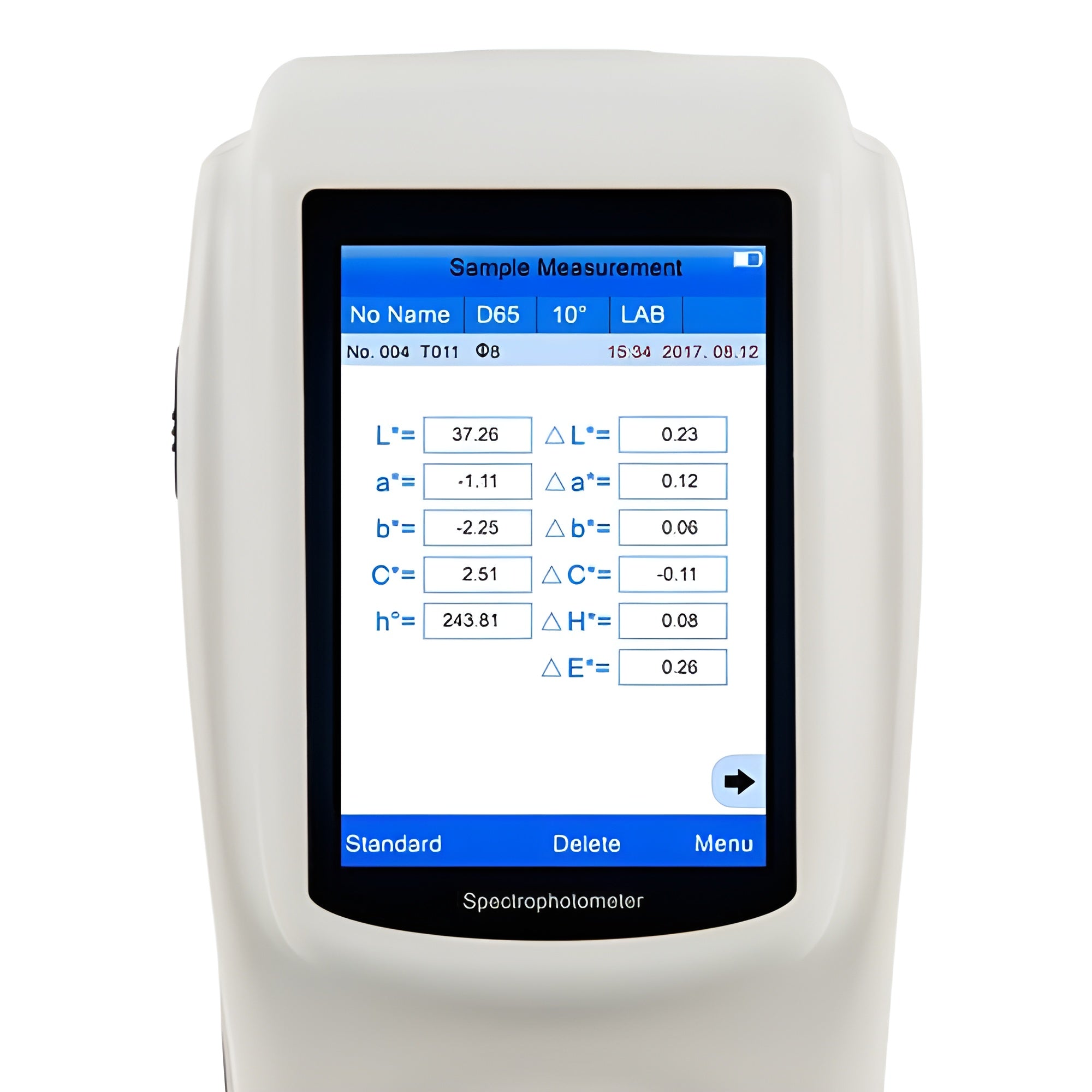

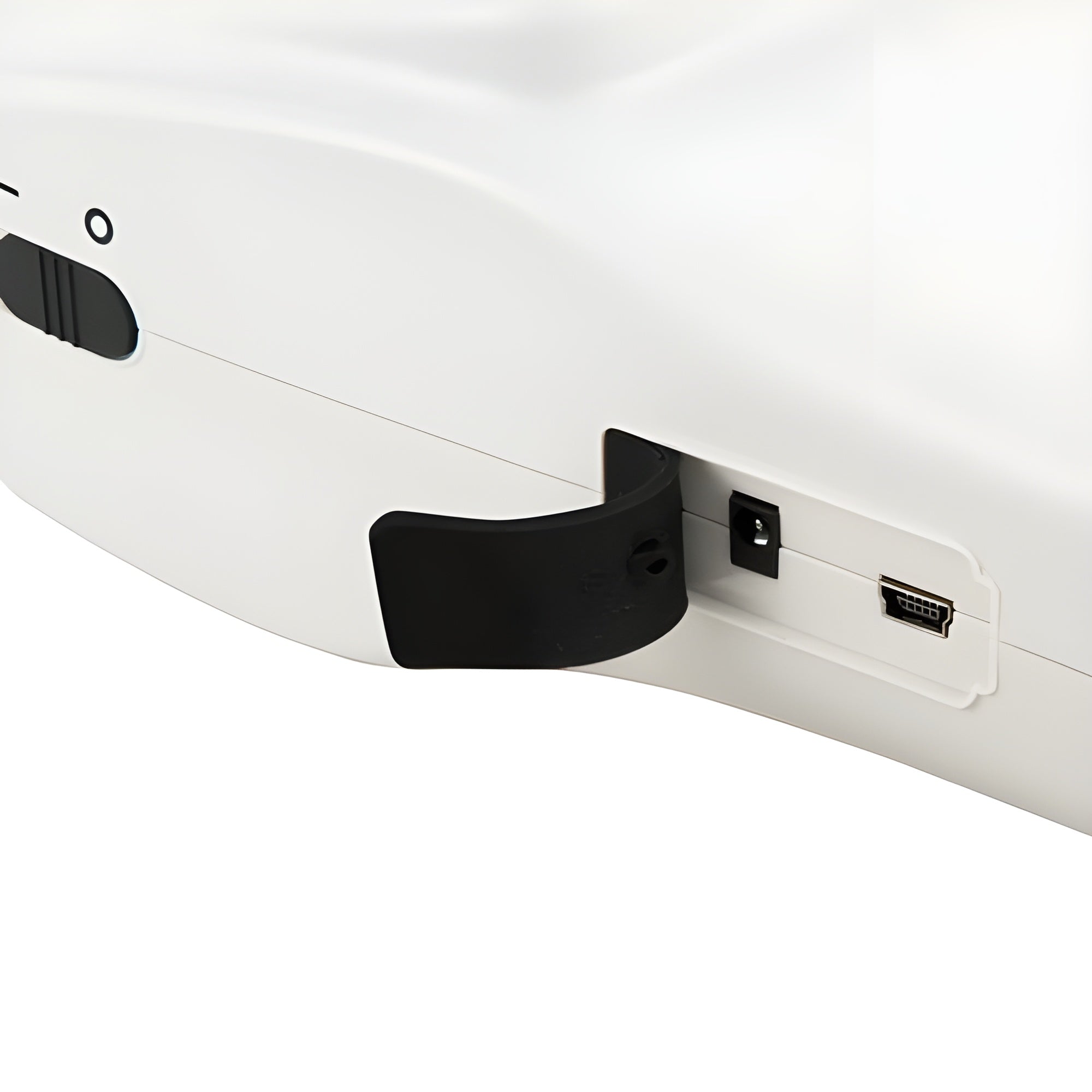

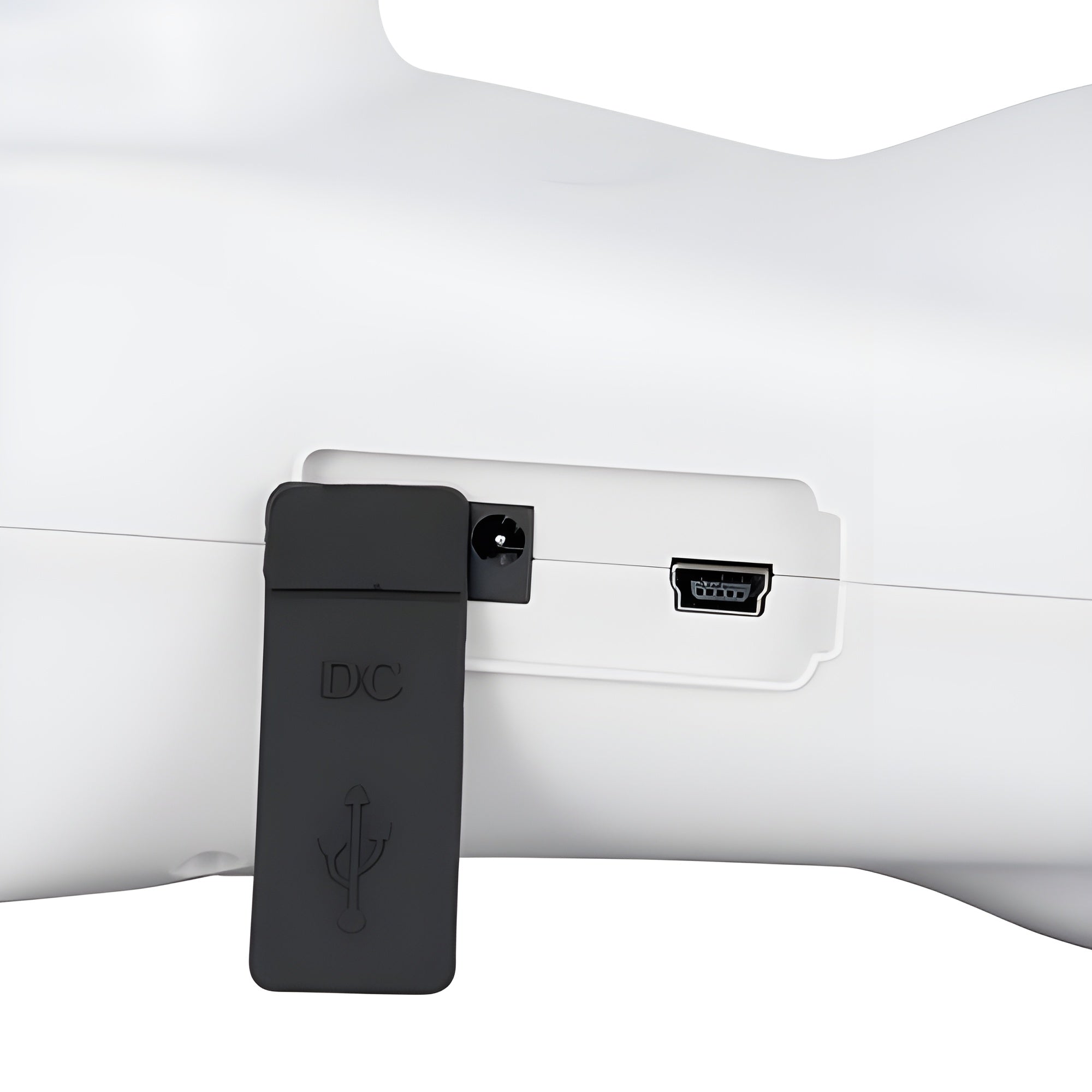

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the spectrophotometer, it is possible to store up to 1000 reference values and up to 15,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

• Spectrophotometer
• Best for quality control
• PC software included
• Li-ion battery
• Different color spaces
• Black and white calibration
• Determination of reference values and samples
• 3.5" touch screen

Features

• CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB
• black and white calibration
• determination of reference values and samples
• 3.5" touch screen display
• rechargeable lithium-ion battery
• high accuracy
• easy to use
• incl. PC software

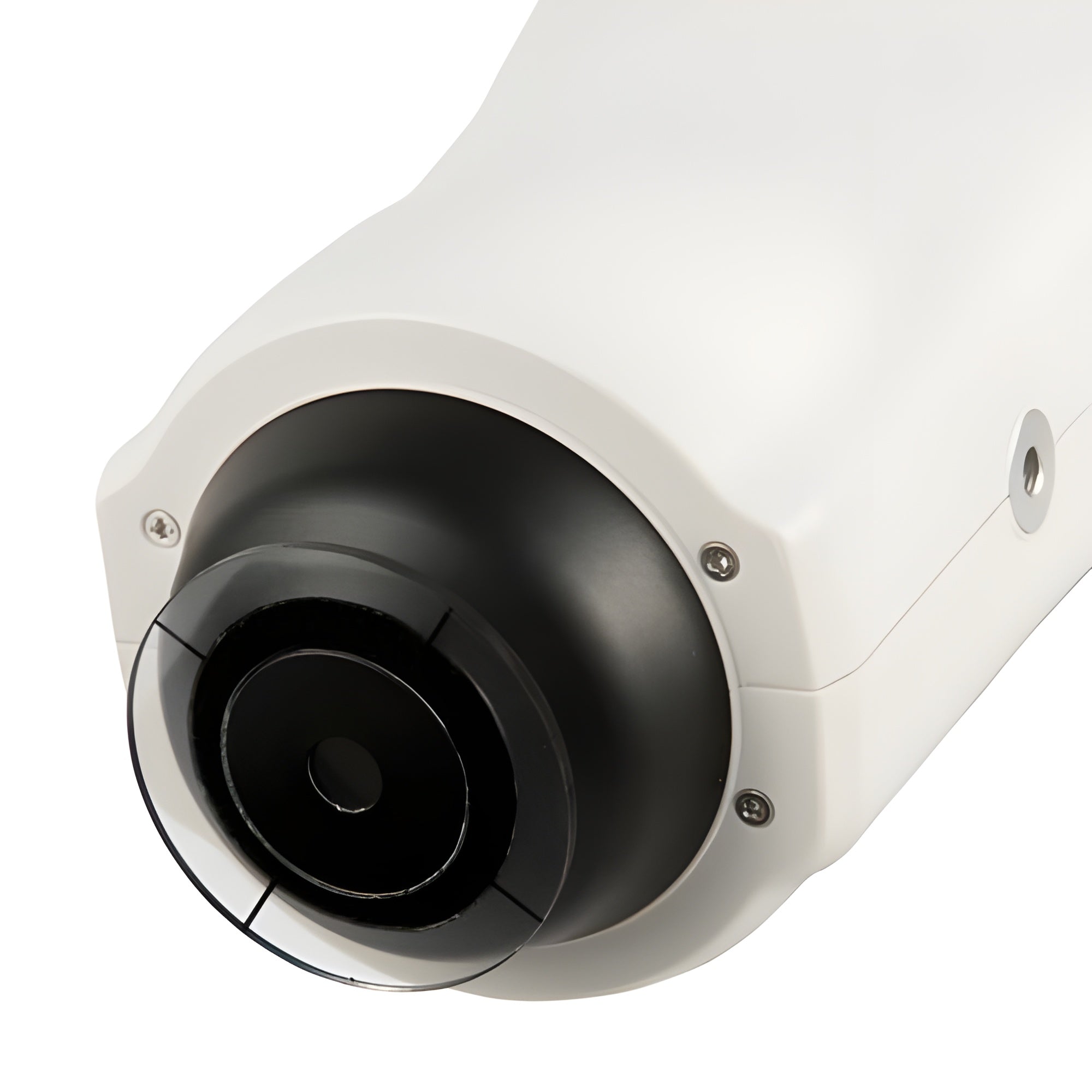

• 8 mm aperture

Specifications

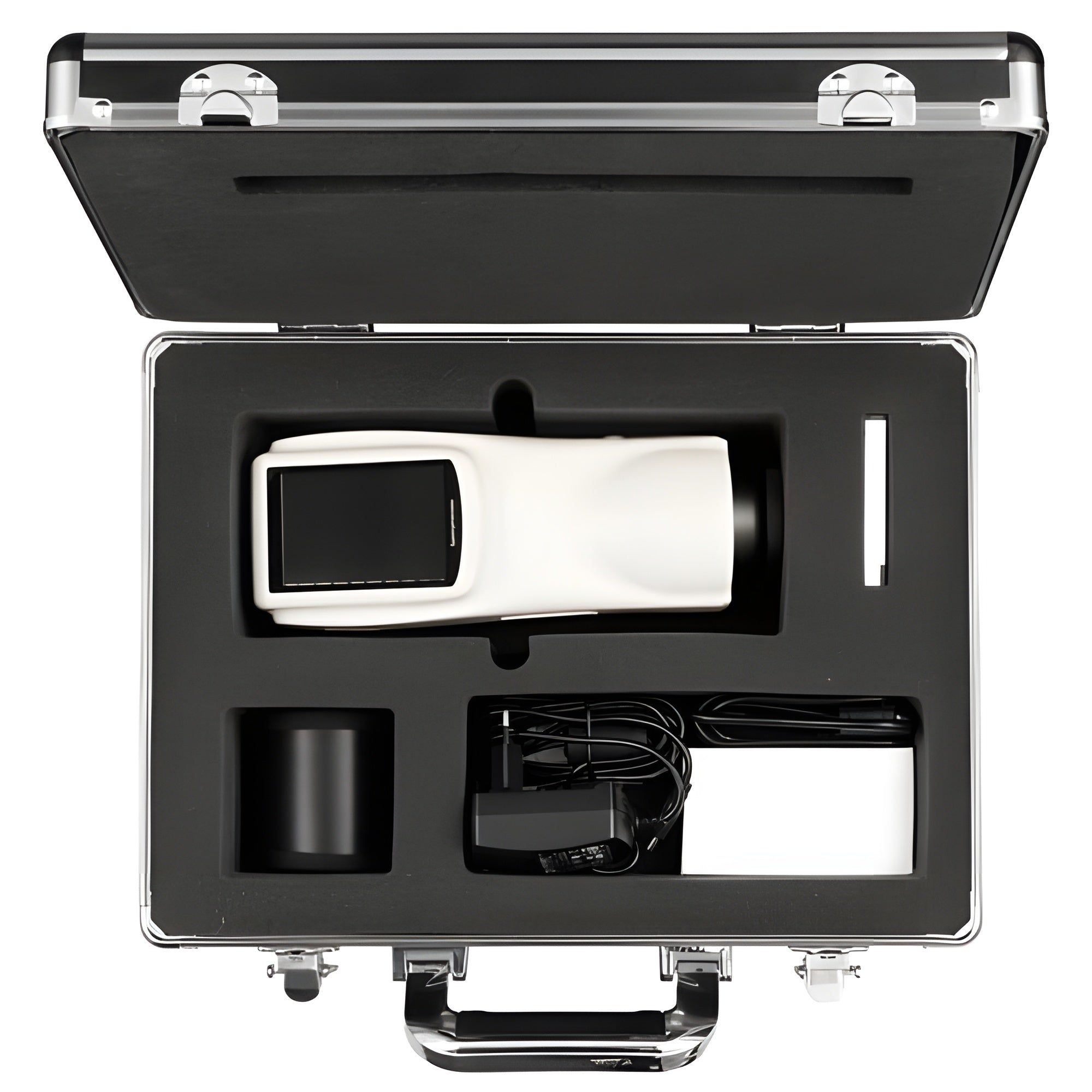

What's Included

• 1 x Colorimeter PCE-CSM 10
• 1 x Aluminium carrying case
• 1 x Mains adapter
• 1 x Lithium-ion battery
• 1 x Calibration plate (white)
• 1 x Calibration plate (black)
• 1 x Protective cover
• 1 x USB cable
• 1 x Wrist band
• 1 x PC software
• 1 x Instruction manual

Manual

 PCE-CSM 10 User Manual

 PCE-CSM 10 Data Sheet

What Our Experts Think

• Precision for Quality Control: Designed for high-accuracy color measurement—ideal for labs, manufacturing, and product consistency.

• Multiple Color Spaces: Supports CIE LAB, XYZ, Yxy, LCh, CIE LUV, and HunterLAB—covers a broad range of industry standards.

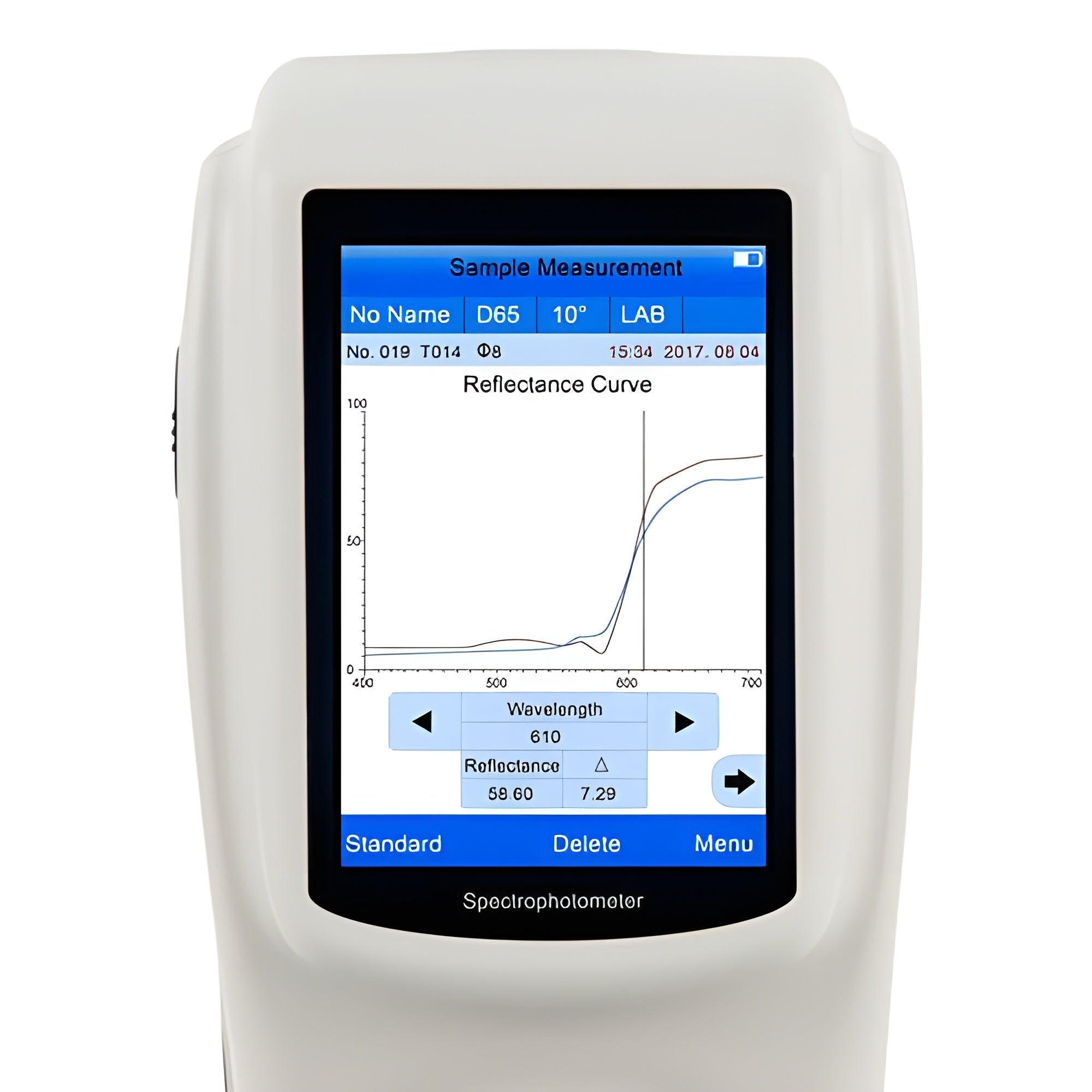

• 3.5" Touchscreen Display: Intuitive interface makes navigation, setup, and result comparison fast and user-friendly.

• Reference & Sample Comparison: Store a reference value and quickly compare subsequent measurements to ensure uniformity.

• Versatile Applications: Perfect for textiles, coatings, plastics, and any material where color accuracy matters.

• Compact and Portable: Easy to use on-site or in the lab—streamlines quality checks throughout the production process.

Q&A

Q: What is the PCE CSM 10 used for?
A: It’s a high-precision spectrophotometer designed for quality control, allowing accurate color measurement and analysis across multiple color spaces.

Q: What color spaces does it support?
A: It supports CIE LAB, XYZ, Yxy, LCh, CIE LUV, and HunterLAB, providing flexibility for various industry standards.

Q: Can you compare measurements with a reference value?
A: Yes, a reading can be saved as a reference, and subsequent samples can be compared to that reference for easy deviation analysis.

Q: Is the device easy to use?
A: Absolutely. It features a 3.5” touch screen for intuitive navigation and fast operation in lab or field settings.

Q: Who is this spectrophotometer ideal for?
A: It's perfect for professionals in paint, plastics, printing, textiles, or any industry requiring precise color consistency.

Maintenance Tips

• Clean the sensor and lens gently with a soft, lint-free cloth.

• Avoid touching the optical area to prevent smudges and distortion.

• Calibrate regularly using the provided calibration tile.

• Keep the touch screen clean with a microfiber cloth.

• Store in a dry, dust-free case to protect optical components.

• Charge or replace battery as needed for uninterrupted use.
