PCE CSM 2 Color Meter - PCE-CSM 2

PCE CSM 2 Color Meter - PCE-CSM 2

The PCE CSM 2 Color Meter is a versatile device designed to measure the color spectrum of various objects. Light consists of a wide range of colors, which aren't always purely white, black, or blue. A light source illuminates an object, which absorbs some of the light and reflects the rest. This reflected light is then detected by a sensor to determine the wavelengths and calculate the color. Colorimeters are commonly used in quality control across various industrial sectors, particularly in industries where color characteristics are crucial. The PCE-CSM series colorimeters are especially valuable in these applications.

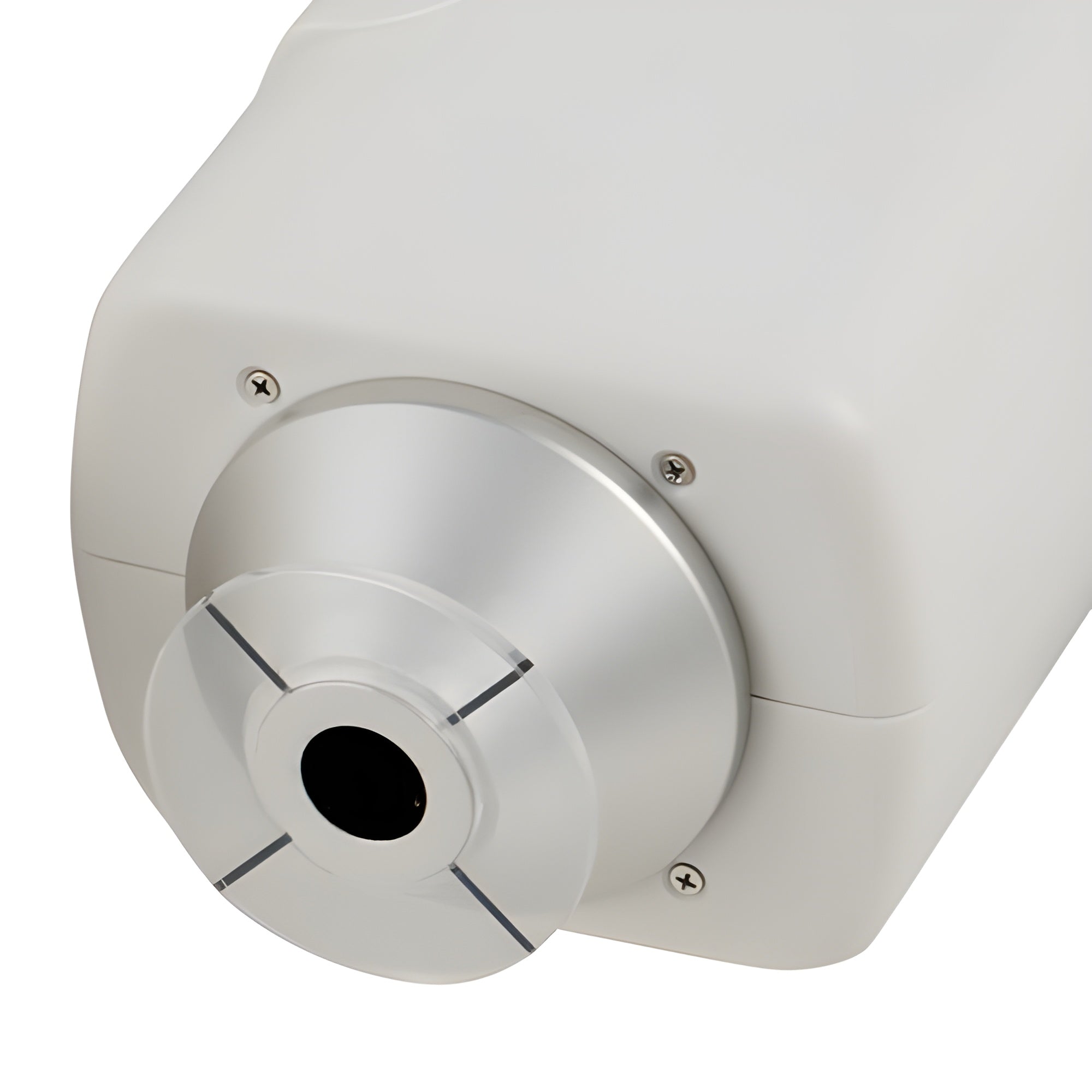

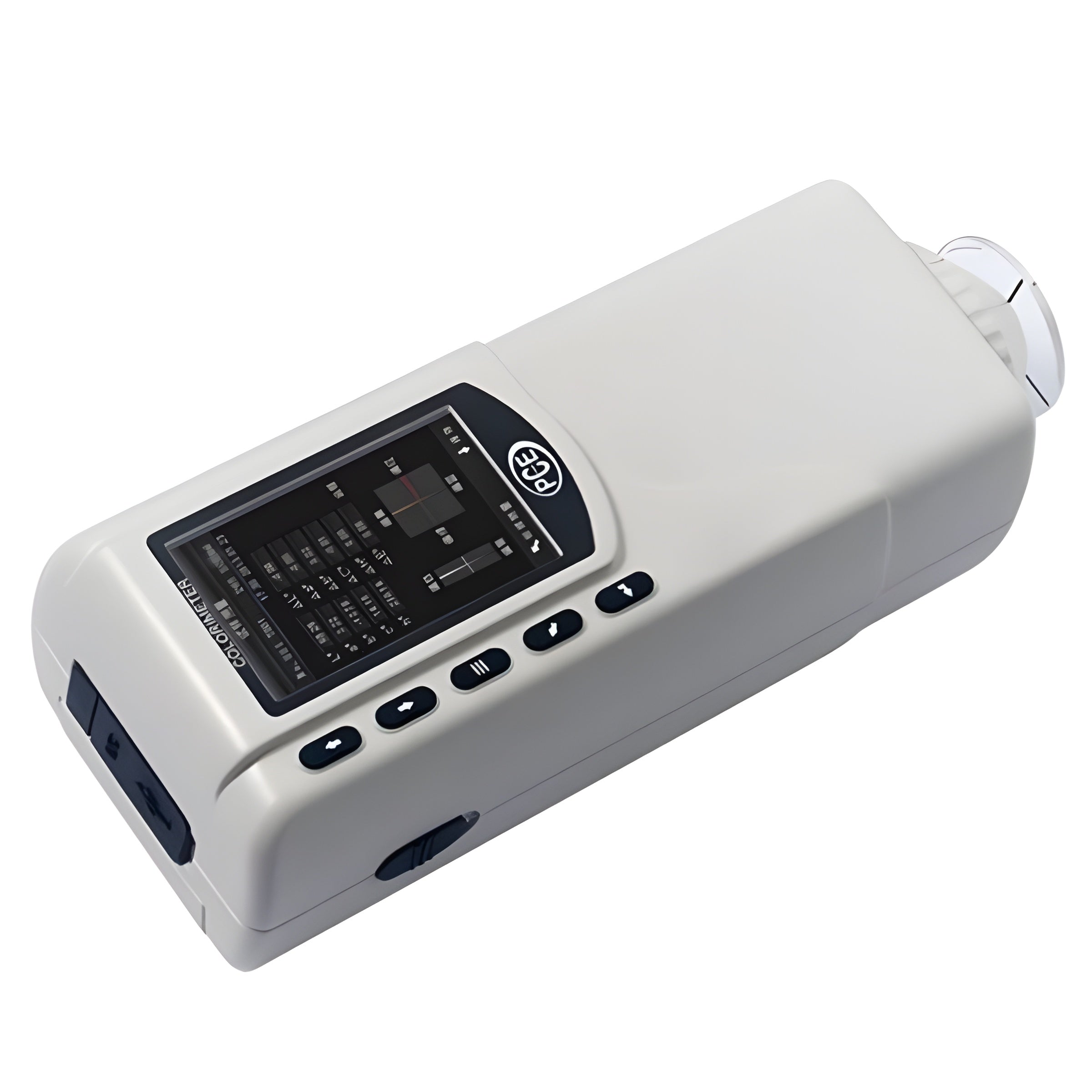

Whether it is dental technology, painting industries or for the production of plastic bags, the color meter PCE-CSM 2 is an ideal product for quality management and thus assures highest reliability, whenever it is important to assure a certain standard in optic quality. The colorimeter supports an ergonomic design and features a user-friendly menu navigation. It has a measuring aperture of 8 mm. The supported color spaces are CIEL*a*b*C*h, CIEL a*b*, and CIEXYZ.

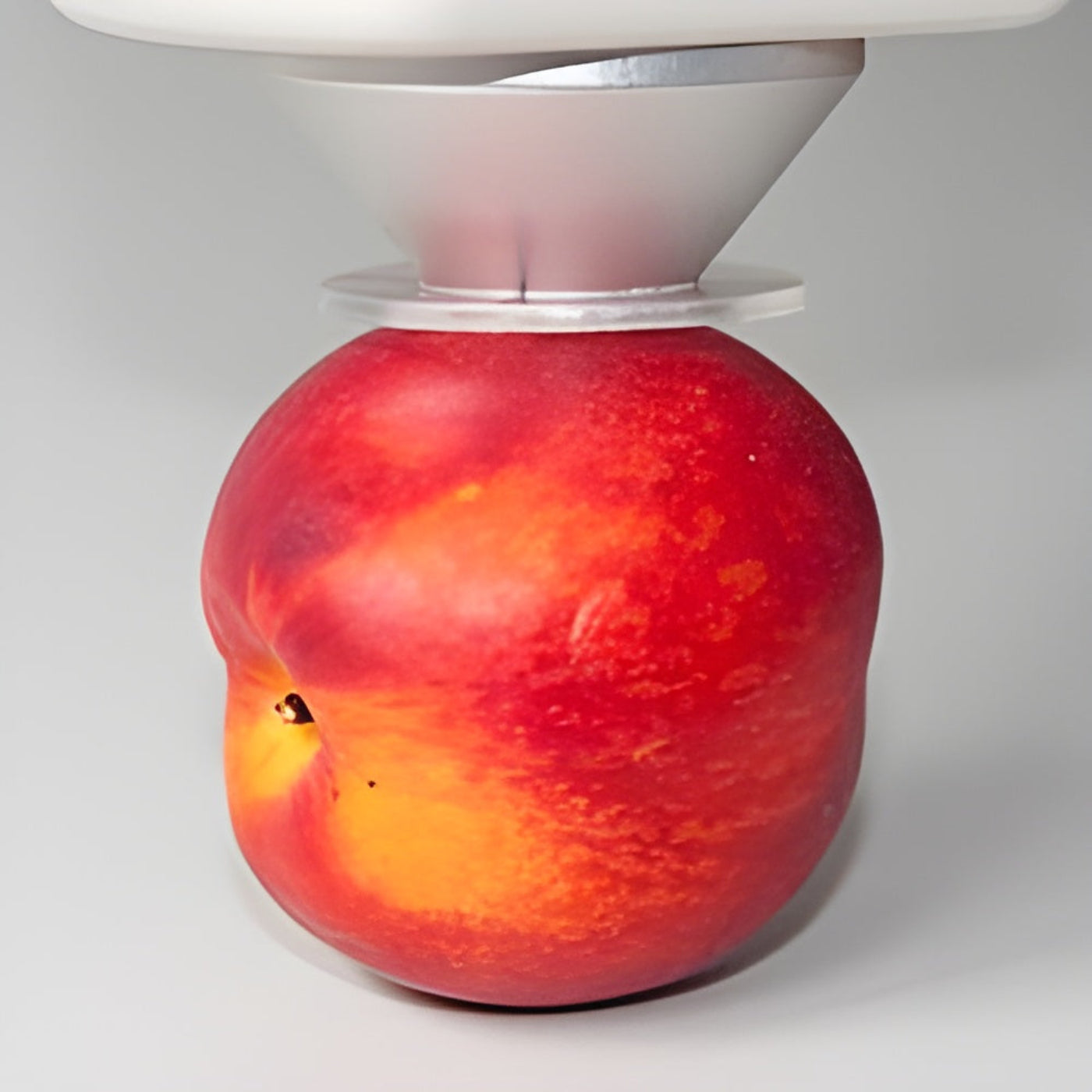

This colorimeter is great for professional industries. Another advantage is that it supports a vertical justification. This means that the whole device does not need to be placed on the object to analyze it, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles and even food. The device is ideally suited for measurements of meat, bananas or tomatoes. Due to the software "CQCS3" that is included in the delivery, the measured data can be read out on a computer or laptop for a digital overview.

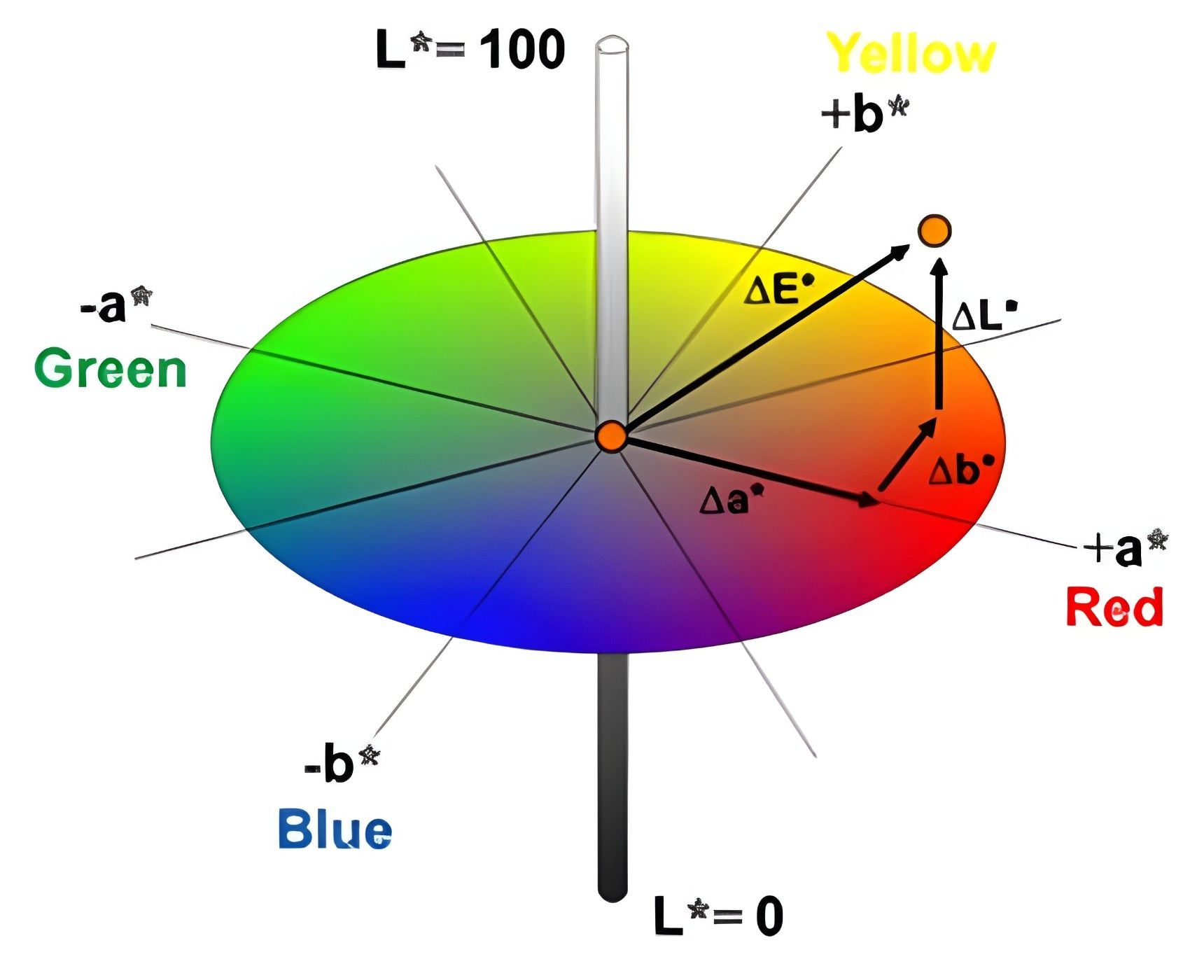

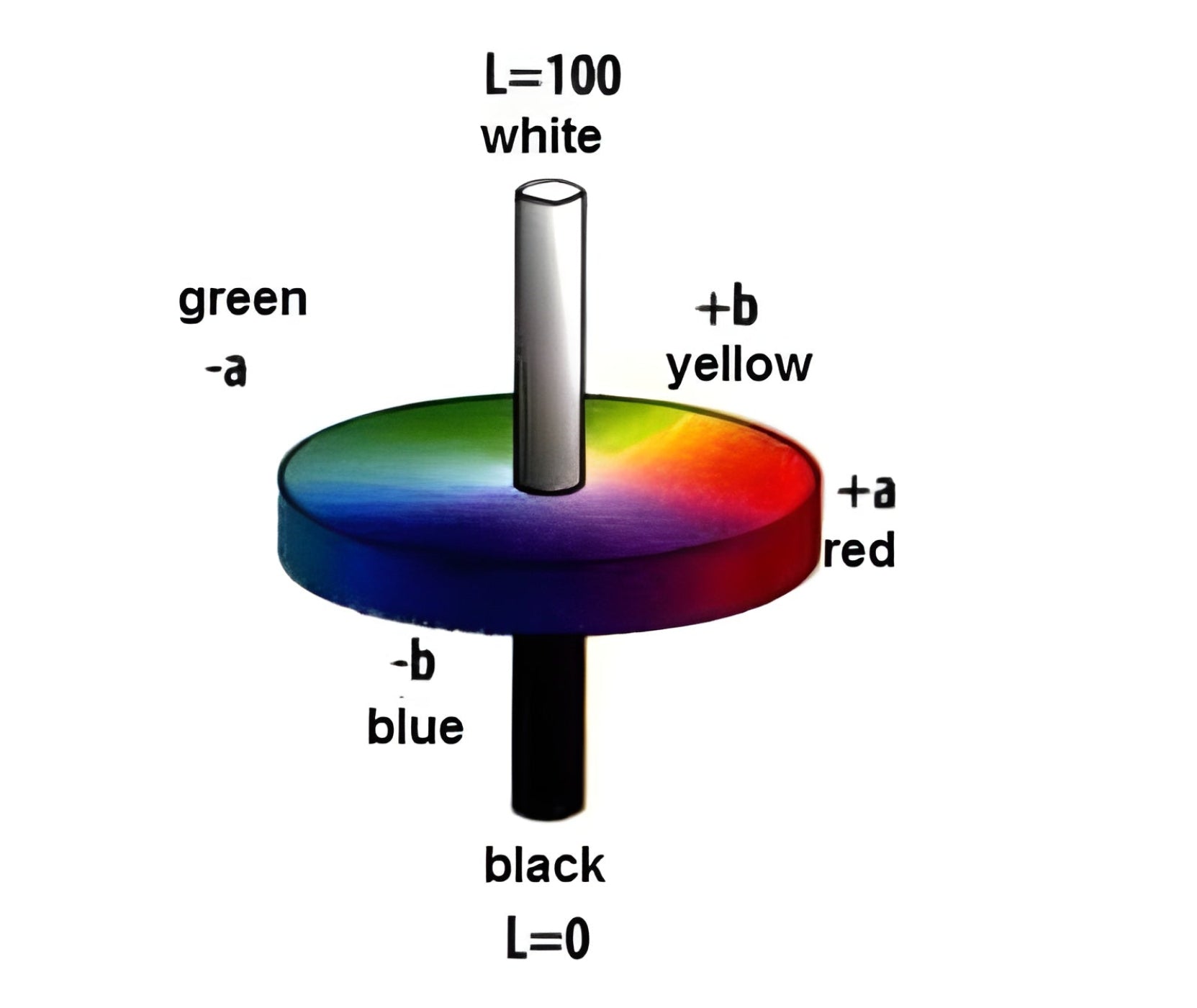

The L*a*b color space: You can see the color space L*a*b. This color space covers all colors that are visible with the naked eye. L=100 stands for white and L=0 for black. "a+" and "a-" or "b+" and "b-" stands for the color contrasts red, green, yellow and blue.

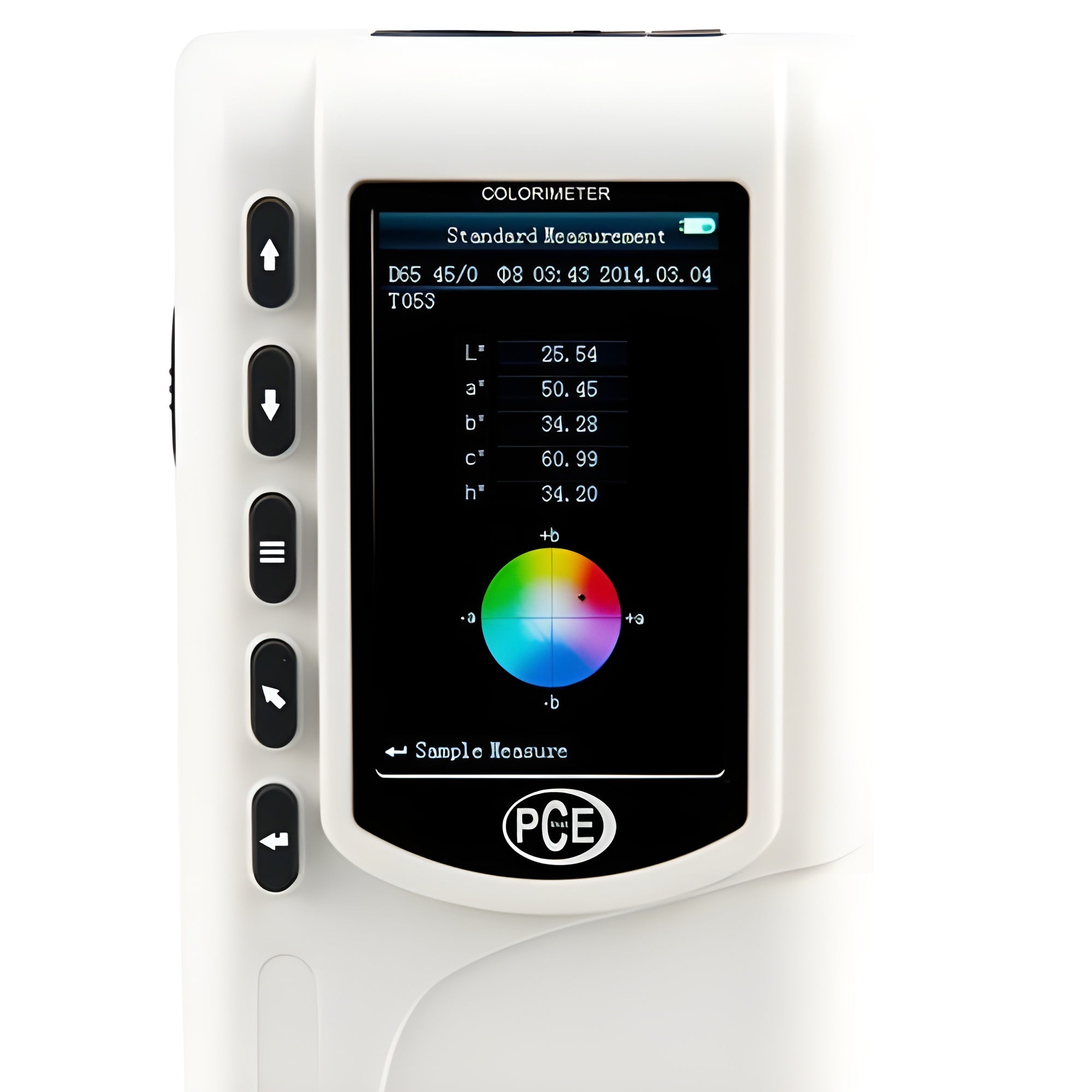

The menu of the Colorimeter contains all characteristics and settings that can be performed. There are basic settings like time, language, date, but also settings about the recording and the color spaces that shall be displayed by the device.

Highlights

• Color meter for quality control
• Digital software included
• Li-ion battery
• Black-and-white contrast calibratable
• Measuring modes for various parameters
• Color analysis of black, white, red, green, yellow and blue.

Features

• Rechargeable Lithium-Ion battery
• Autom. calibration of black-and-white contrast
• Continuous performance
• Designed for food industry
• Measures various colors
• Application on different surfaces
• Simplified user-interface
• Software included


Specifications

What's Included

• 1 x Colorimeter PCE-CSM 2
• 1 x USB cable
• 1 x Battery
• 1 x AC power adapter
• 1 x Wrist band
• 1 x Standard calibration plate white
• 1 x Computer software
• 1 x Instruction manual
• 1 x Soft carry case

Manual

 PCE-CSM 2 User Manual

 PCE-CSM 2 Data Sheet

What Our Experts Think

• Versatile Color Analysis: Measures the reflected light spectrum to accurately determine color—ideal for quality control in various industries.

• Reliable Measurement Principle: Uses precise light absorption and reflection detection for consistent and accurate color identification.

• Industrial-Grade Accuracy: Perfect for sectors where color consistency is critical, such as plastics, textiles, food, and coatings.

• User-Friendly Operation: Easy to use, making it accessible for technicians and quality inspectors at any skill level.

• Compact & Portable: Designed for on-site inspections or lab-based quality control—take it wherever precision color evaluation is needed.

• Trusted Series Performance: Part of the proven PCE-CSM lineup, known for delivering dependable results in demanding environments.

Q&A

Q: What is the PCE CSM 2 Color Meter used for?
A: It’s a precision color measurement tool used in quality control to ensure color consistency across various materials and products.

Q: How does the PCE CSM 2 determine color?
A: It measures the wavelengths of reflected light after illuminating an object, then calculates the color based on that data.

Q: In which industries is this device commonly used?
A: It's widely used in manufacturing, printing, textiles, and other sectors where accurate color quality is essential.

Q: Is the device suitable for diverse material types?
A: Yes, the PCE CSM 2 is designed to measure the color spectrum of a wide range of surfaces and materials.

Q: Why is color measurement important in quality control?
A: Consistent color helps maintain product standards, brand integrity, and customer satisfaction across production batches.

Maintenance Tips

• Clean the sensor and lens with a soft, lint-free cloth after each use.

• Avoid touching the optical surface to preserve precision.

• Calibrate regularly using the included reference standard.

• Store in a clean, dry case to protect against dust and damage.

• Monitor battery level and recharge or replace as needed.
