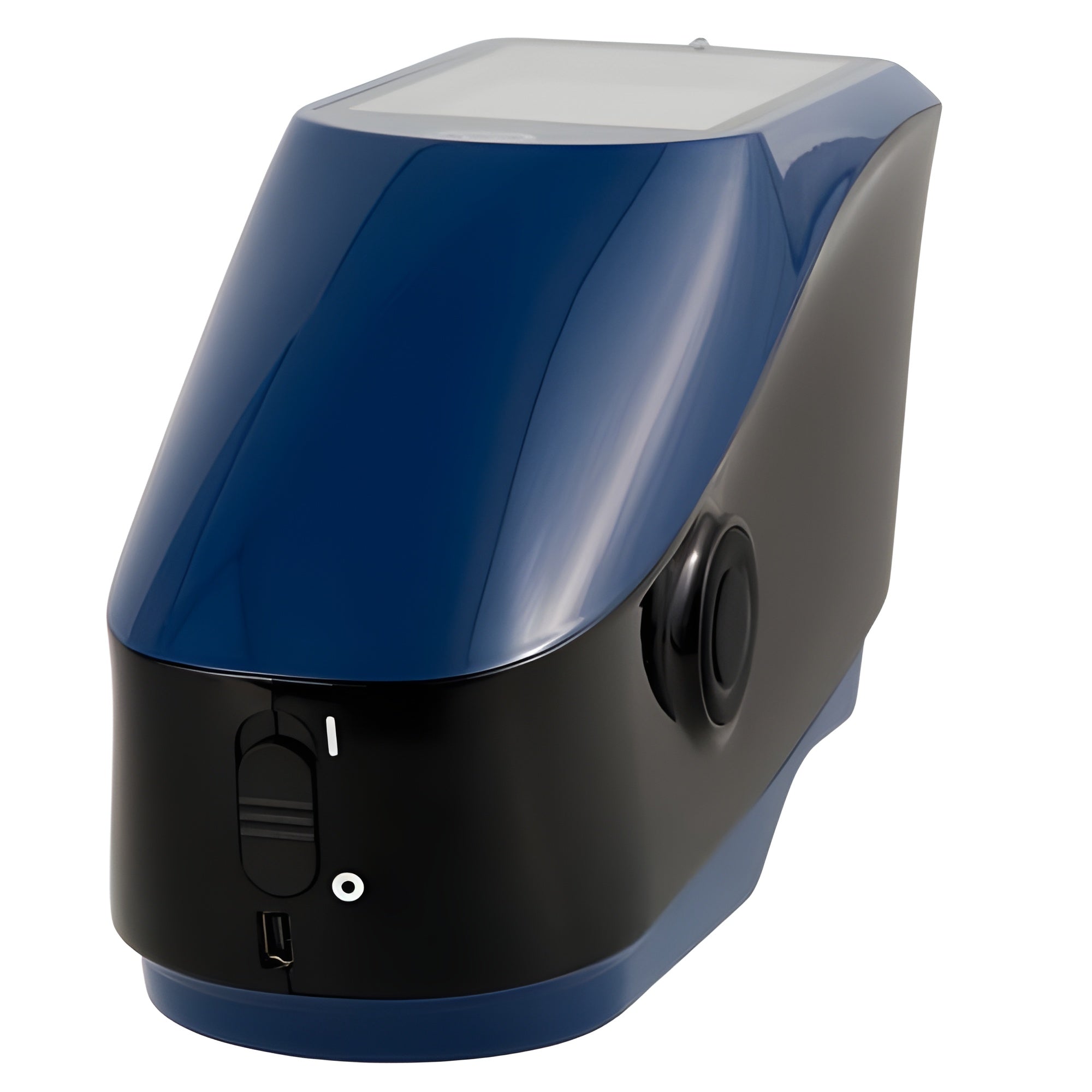

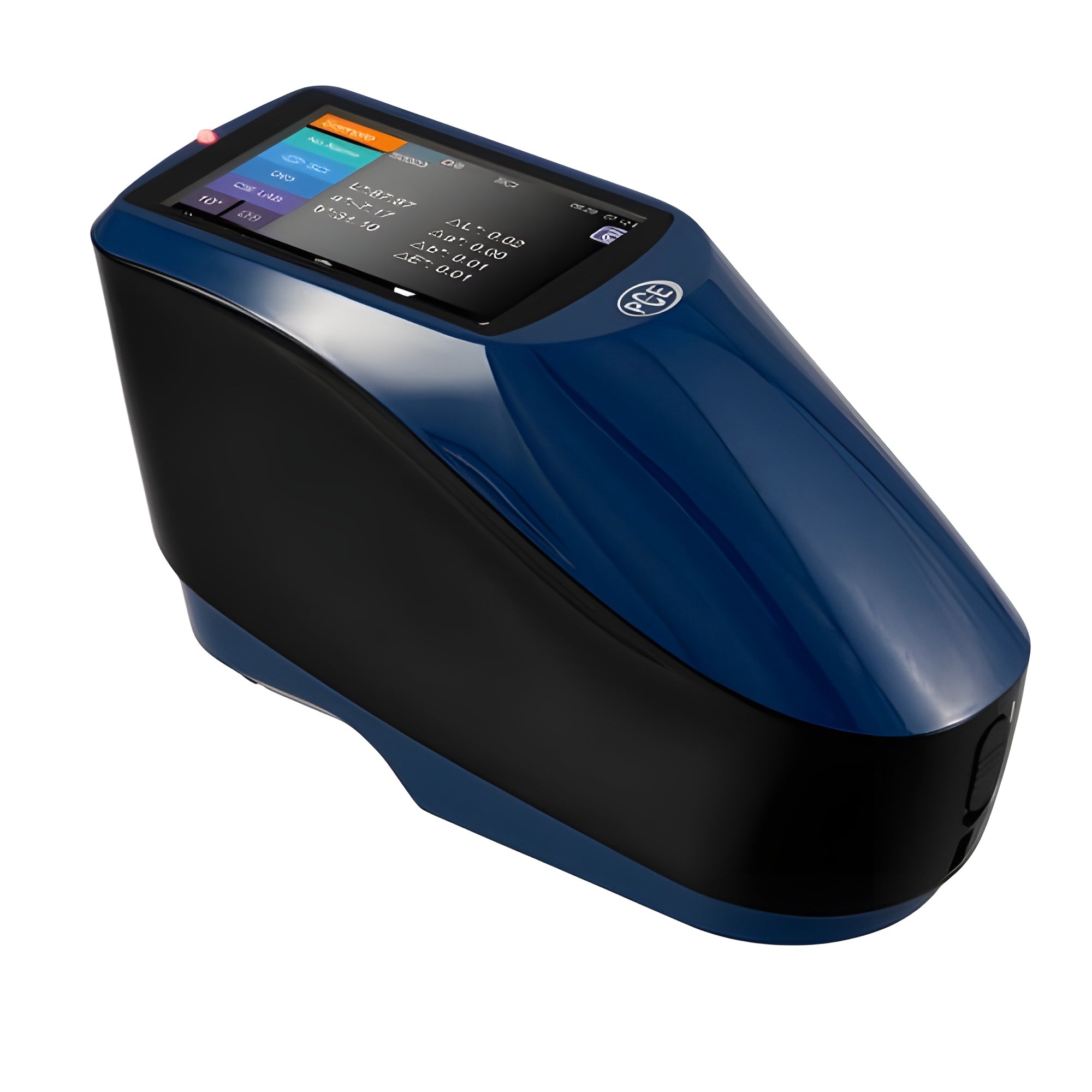

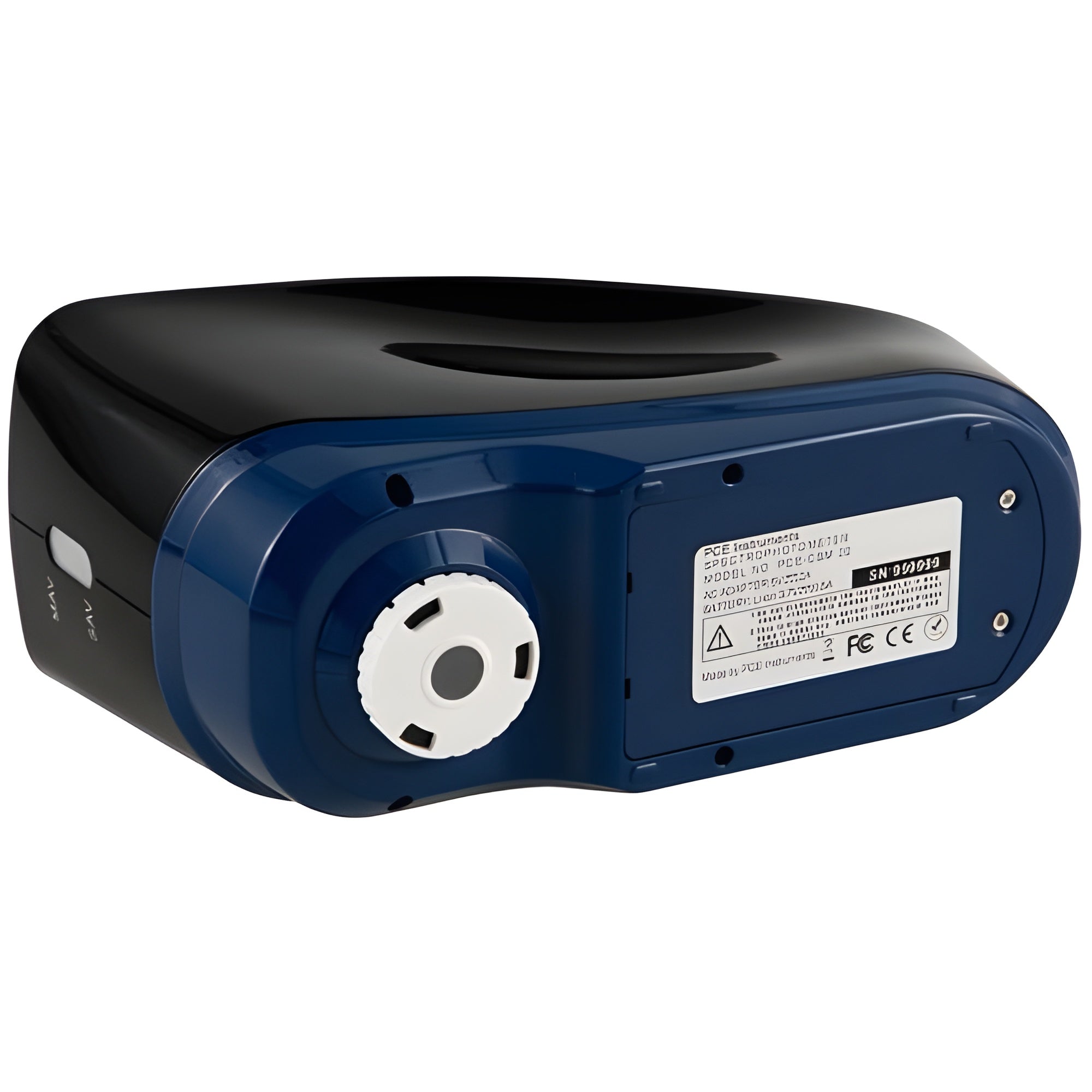

The PCE CSM 20 Wireless Spectrophotometer is a portable handheld device designed for precise color measurement. Equipped with a single 8 mm aperture and offering both SCI and SCE specular modes, it is ideal for industrial color measurement applications. The PCE-CSM 20 features an extended battery life, a long-lasting 4-color lamp, and a user-friendly design. It also includes camera/illumination positioning for small sample measurements.

The high-quality processing of this spectrophotometer is very fast. Whilst working with the device measuring accuracy is essential. In production grade and quality assurance, a spectrophotometer is often used. Here it is important that a constant quality is always produced and that individual parts not only look similar, but look identical. For this, a high measurement quality is of great importance. Depending on the model, the measured data can be transmitted to a computer via included USB. Appropriate software is also included in the delivery contents.

Highlights

• High-end spectrophotometer
• Wireless
• Powerful lithium-ion battery
• Single or average value measurement
• Evaluation via software
• 4 color LED as light source

Features

• Long battery life
• USB cable for data transfer to included software
• Portable for ease of use
• Reference memory of 2000 colors, storage for 20,000 samples

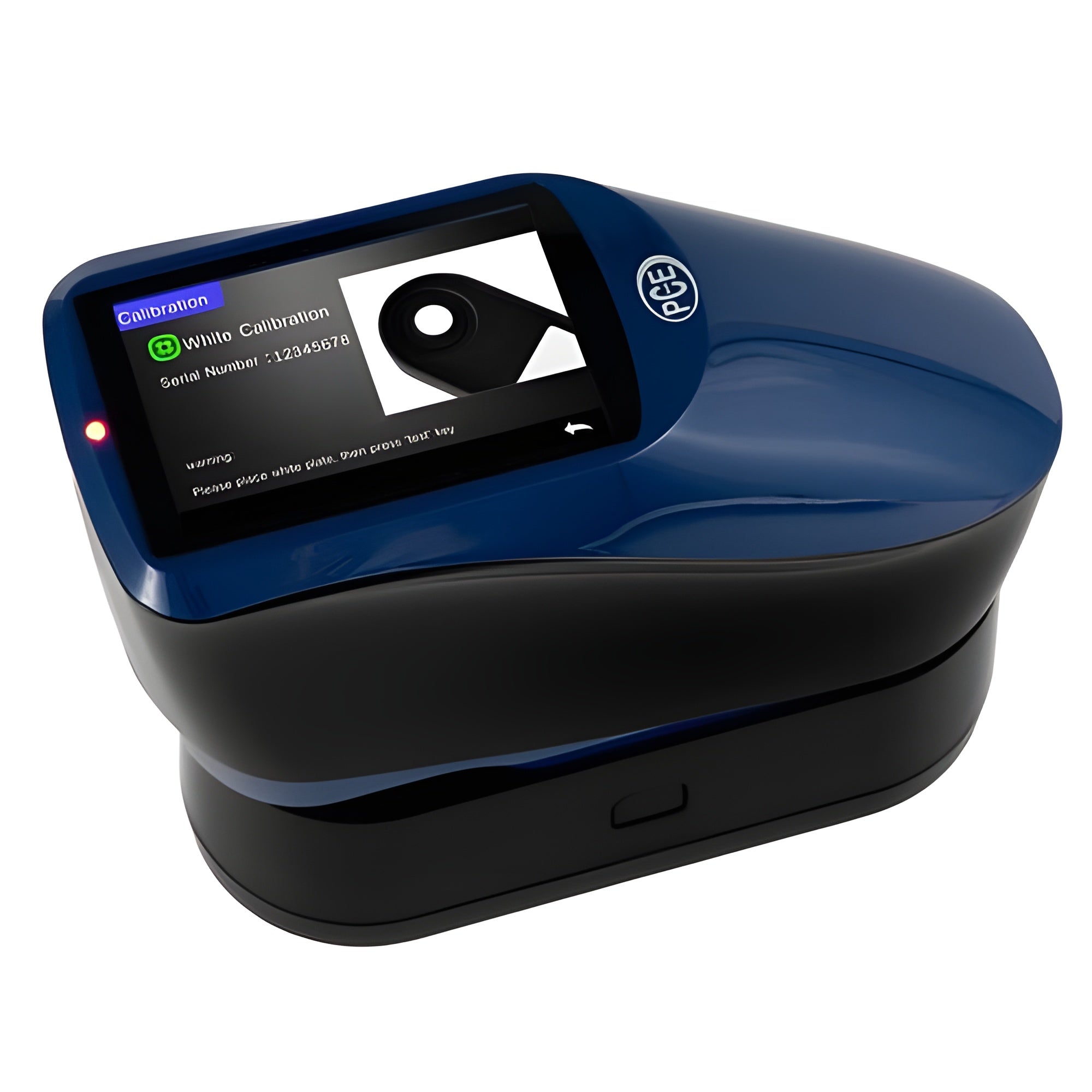

• Includes white and black calibration standards
• High measuring accuracy and stability with 4 illumination choices

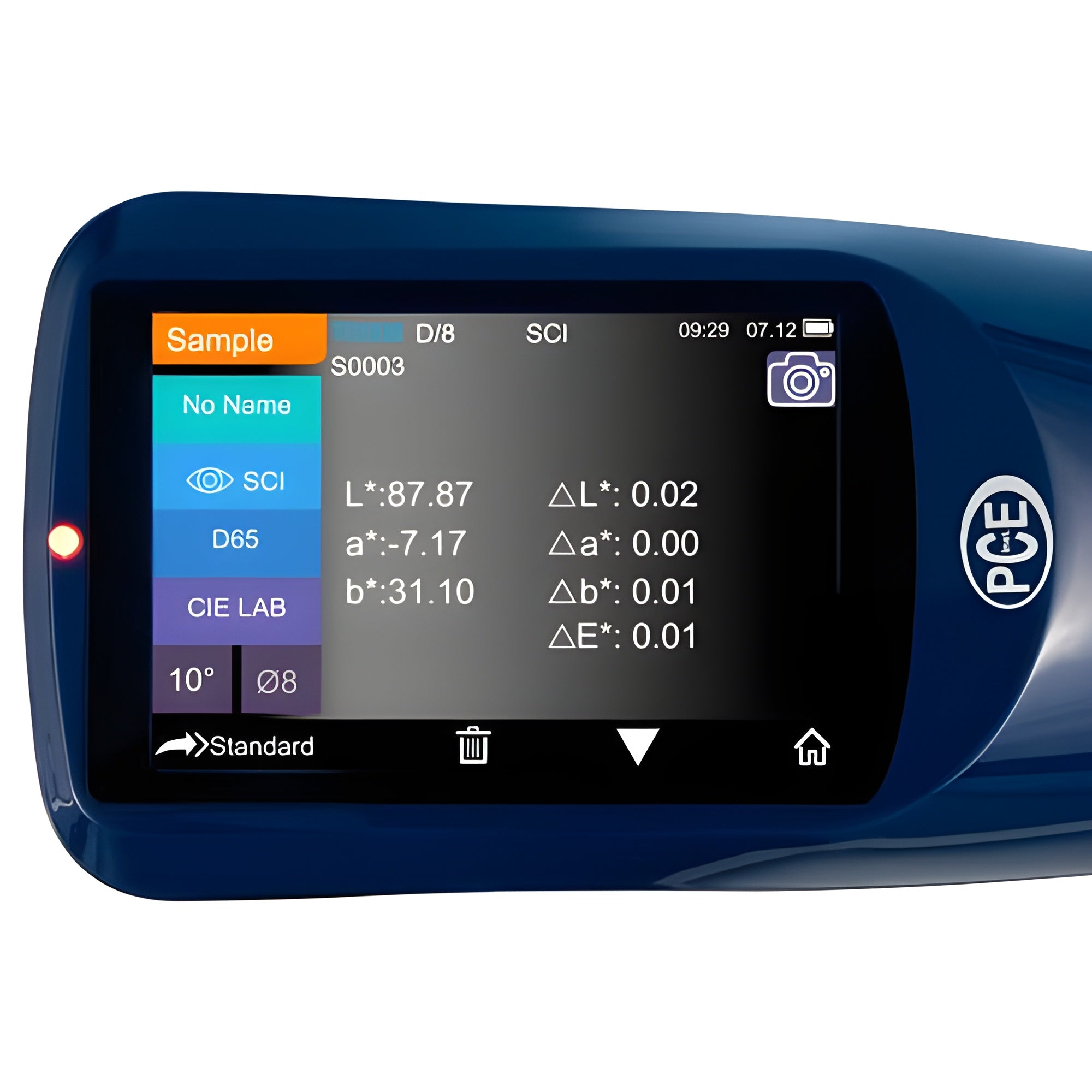

• Single and average measurements with delta pass/fail display
• Spectrophotometer measures from 400 to 700 nm in 10 nm increments
• Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil

Specifications

What's Included

• 1 x Spectrophotometer PCE-CSM 20
• 1 x Li-Ion battery (installed)

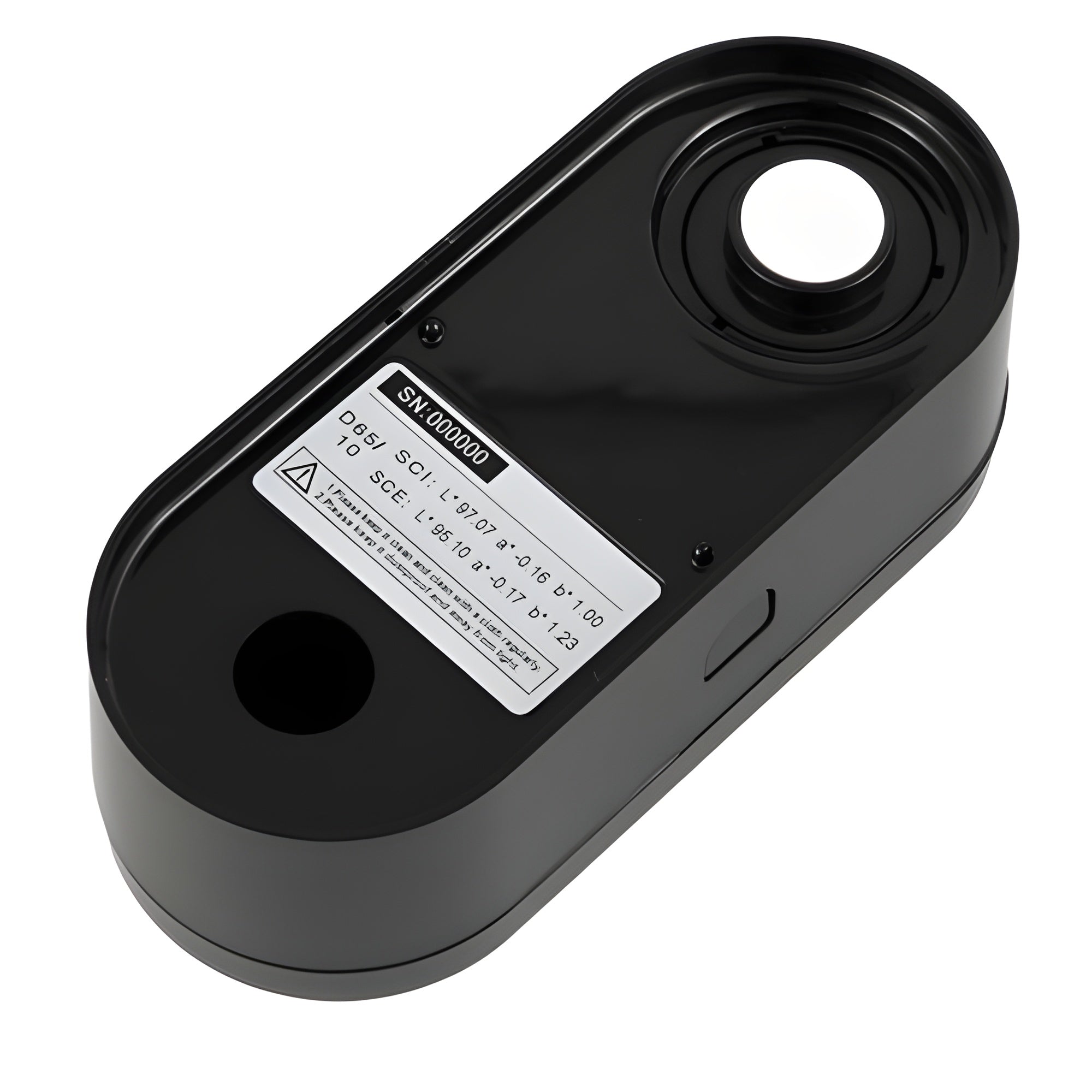

• 1 x Calibration standard (white and black)
• 1 x AC Charging adapter
• 1 x Dust cover
• 1 x USB cable
• 1 x Factory calibration certificate
• 1 x CD-Rom with software
• 1 x Cleaning cloth
• 1 x User manual

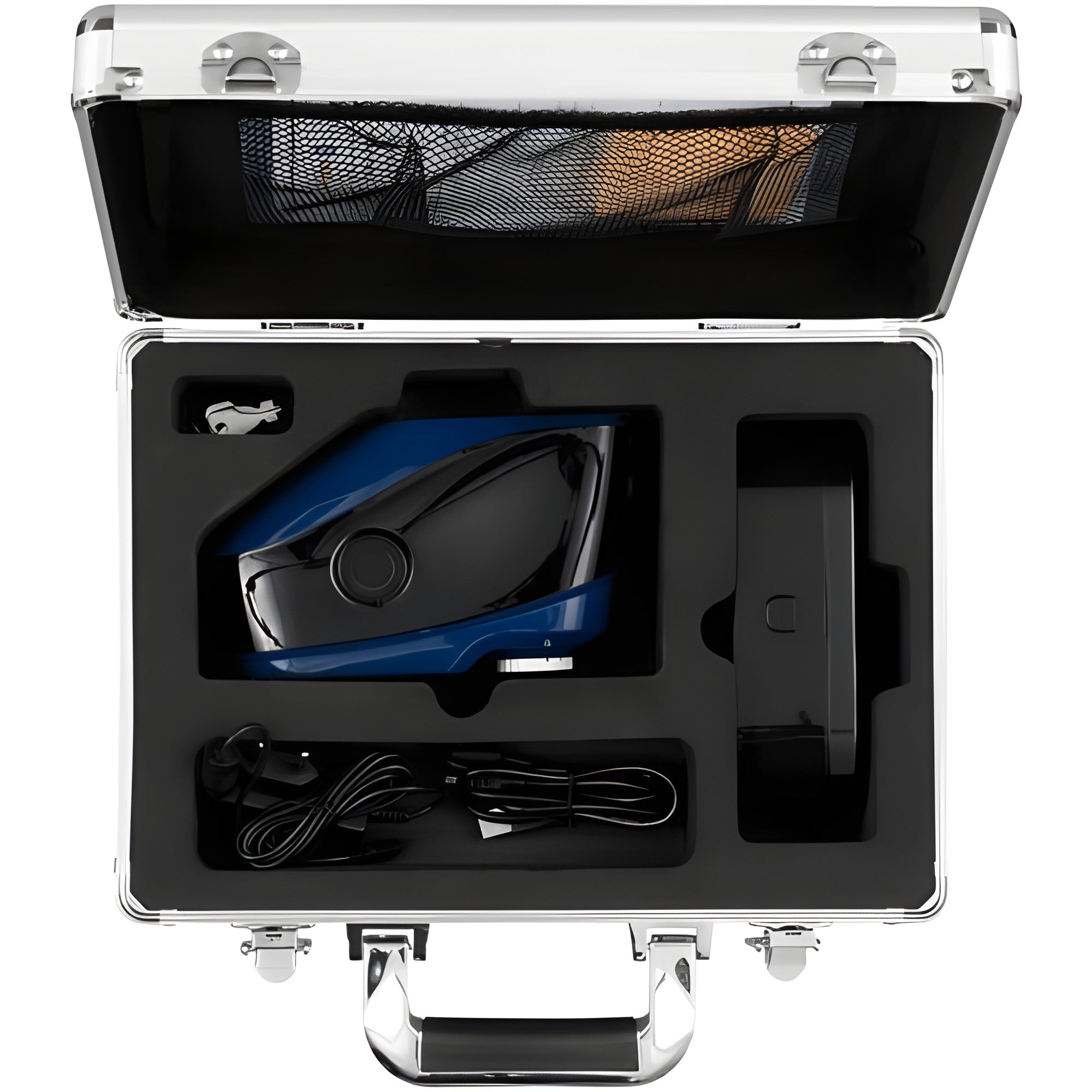

• 1 x aluminum carry case

Manual

PCE-CSM 20 User Manual

PCE-CSM 20 Data Sheet

What Our Experts Think

• Wireless & Handheld: Compact and cable-free, perfect for mobile quality checks in production, fieldwork, or lab settings.

• Dual Measurement Modes: Offers both SCI (Specular Component Included) and SCE (Specular Component Excluded) for versatile surface analysis.

• 8 mm Aperture: Optimized for industrial use—precise measurement of small to medium-sized samples.

• Camera-Assisted Targeting: Integrated camera with illumination ensures accurate alignment, especially for small or detailed surfaces.

• Reliable Battery & Lighting: Extended battery life and a durable 4-color lamp provide consistent, long-term performance.

• Industrial-Grade Accuracy: Engineered for high-precision color control in manufacturing, printing, plastics, coatings, and more.

• User-Friendly Design: Simple operation combined with advanced functionality makes it accessible for both technicians and quality managers.

Q&A

Q: What is the PCE CSM 20 used for?
A: It’s a portable spectrophotometer designed for precise, high-accuracy color measurement in industrial and quality control environments.

Q: What aperture size does the device use?
A: It features a single 8 mm aperture, making it ideal for standard-sized and smaller samples.

Q: What measurement modes are available?
A: The device supports both SCI (Specular Component Included) and SCE (Specular Component Excluded) modes for flexible color evaluation.

Q: Is the PCE CSM 20 suitable for small sample areas?
A: Yes, it includes camera/illumination positioning for accurate targeting of small or detailed samples.

Q: What makes it ideal for portable use?
A: It offers extended battery life, a durable 4-color lamp, and a user-friendly wireless design for efficient field or lab use.

Maintenance Tips

• Clean the lens and aperture gently with a soft, lint-free cloth after each use.

• Avoid contact with the optical area to maintain measurement accuracy.

• Calibrate regularly using the supplied calibration tile.

• Check lamp function periodically; replace if brightness or accuracy declines.

• Charge the battery fully before extended use to avoid downtime.

• Store in a dry, protected case to prevent dust and impact damage.
