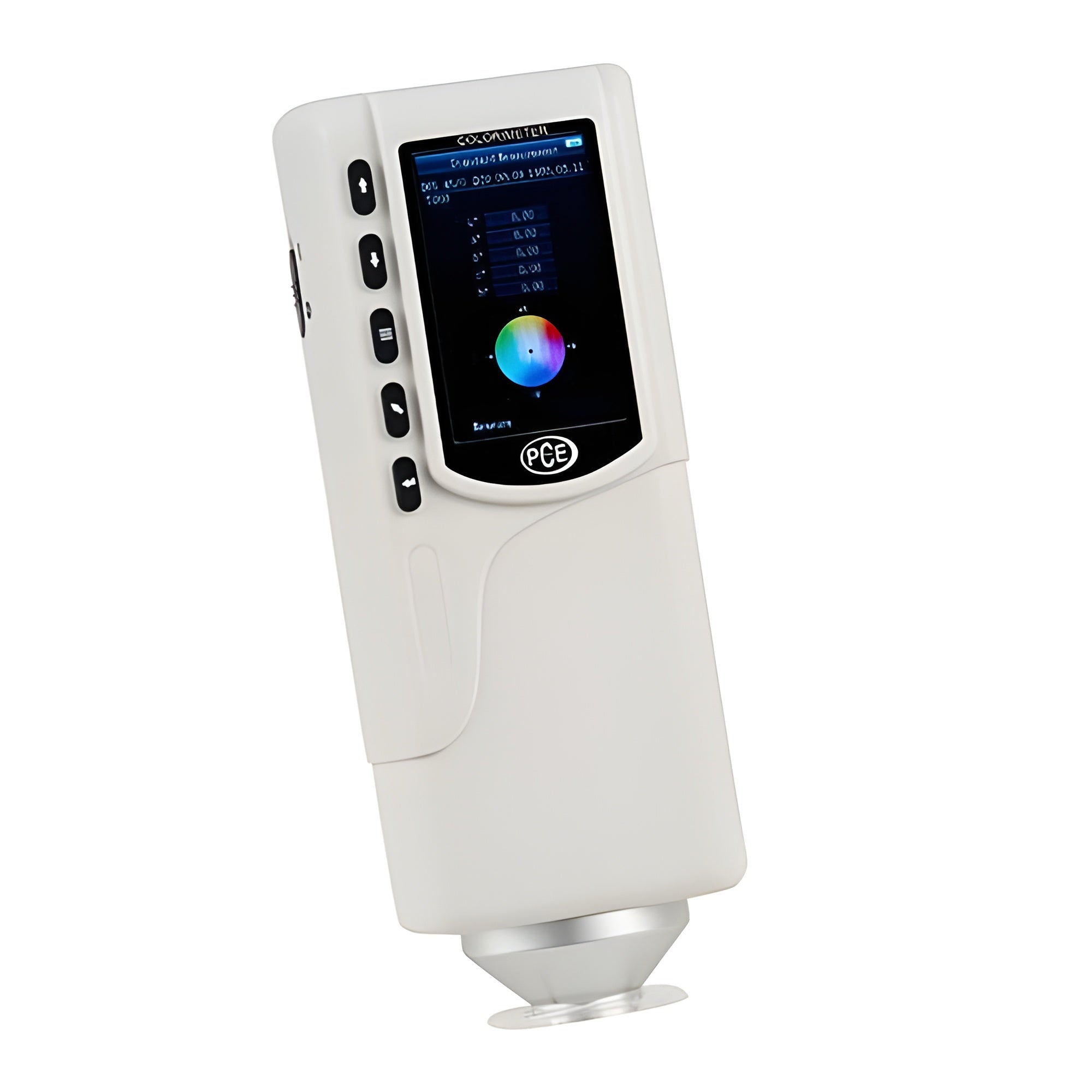

PCE CSM 4 Food Color Meter - PCE-CSM 4

PCE CSM 4 Food Color Meter - PCE-CSM 4

The PCE CSM 4 Food Color Meter is a versatile device designed to measure the color spectrum of various objects. While primarily used in the food industry, it can also be applied in other sectors. Light is composed of a wide range of colors, which are not always purely white, black, or blue. A light source illuminates an object, which absorbs some of the light and reflects the rest. This reflected light is then detected by a sensor, which calculates the reflected wavelengths to determine the object's color. Colorimeters like the PCE CSM series are frequently used in quality control across various industries, especially where color characteristics are critical.

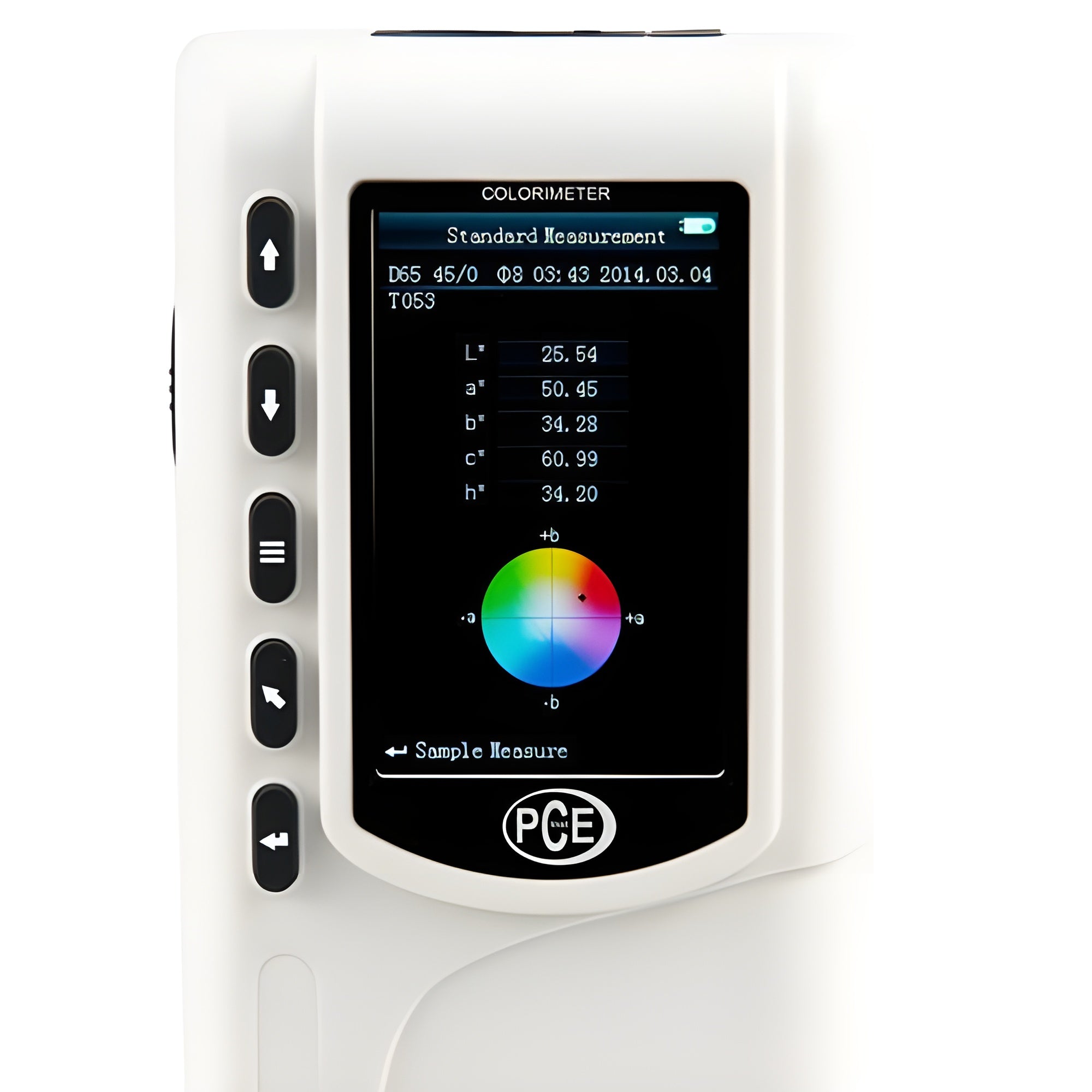

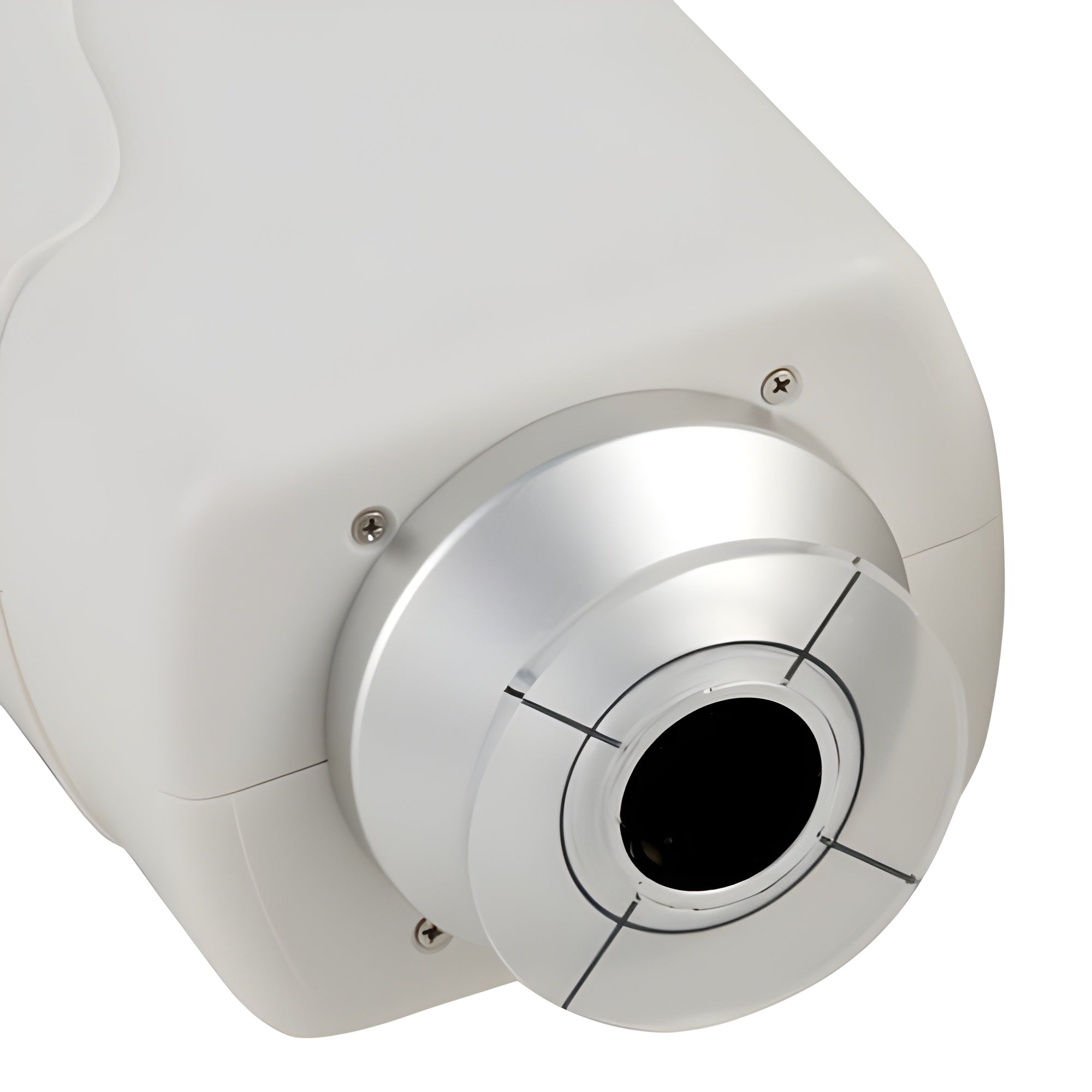

Whether it is dental technology, painting industries or for the production of plastic bags, the color PCE-CSM 4 is an ideal product for quality management and thus assures highest reliability, whenever it is important to assure a certain standard in optic quality. The Color Meter supports an ergonomic design and features a user-friendly menu navigation. The device has a large measuring aperture of 20 mm. Due to this alternation the devices are ideal for individualized applications in various divisions. The supported color spaces of the are CIEL*a*b*C*h, CIEL a*b* and CIEXYZ. Thus this colorimeter is great for application in professional industries. Another advantage of the Color Meter of the PCE-CSM series is that it supports a vertical justification.

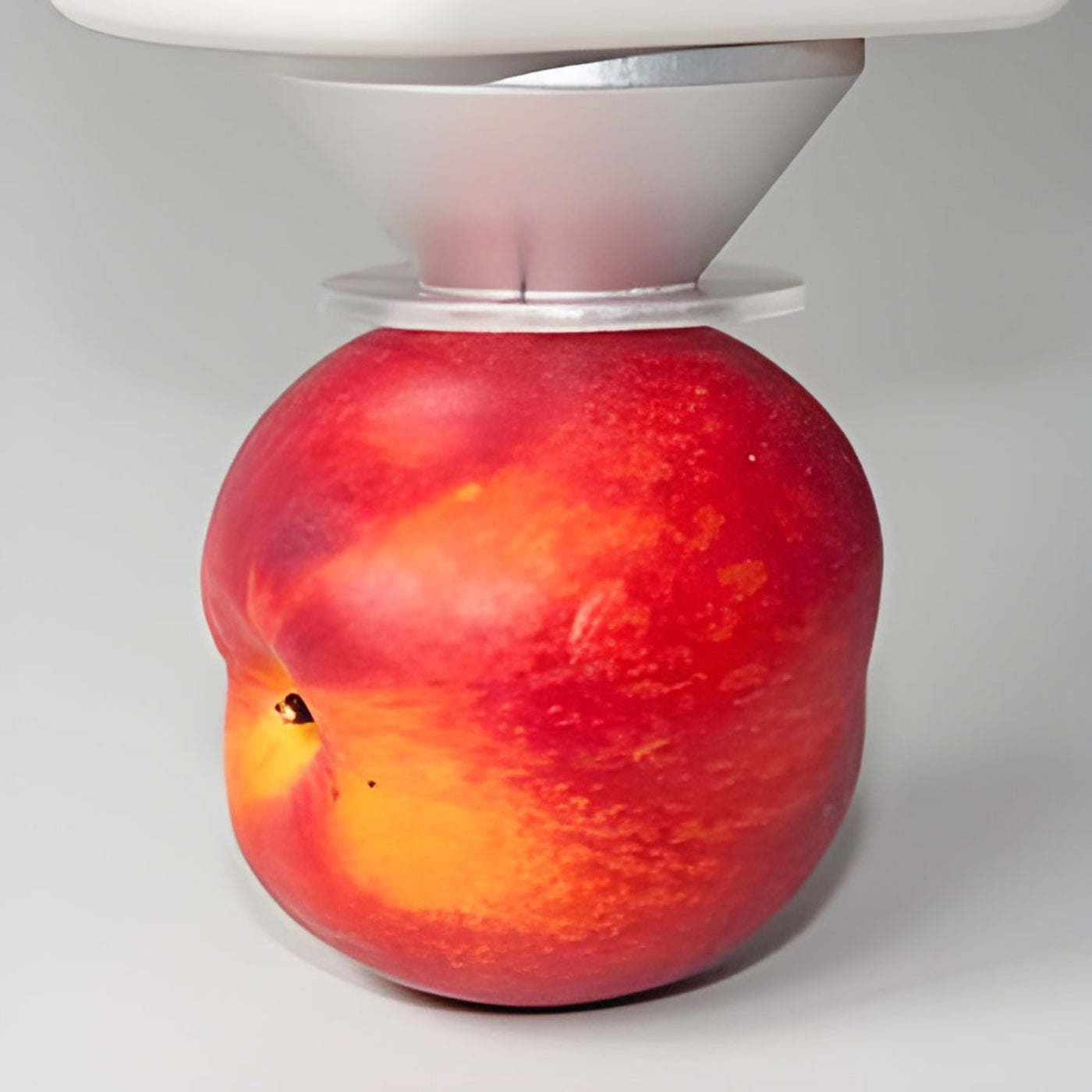

This means that the whole device does not need to be placed on the object to analyze, but only the part with the sensor in it. The industrial perspective of it is that this method allows the measuring of damp objects, textiles and even food. The the device is ideal for measurements of e.g. meat, bananas or tomatoes. Thanks to the software "CQCS3" that is included in the delivery, the measured data can be read out on a computer or laptop for a digital overview.

Highlights

• Color Meter for quality control in the food industry
• Digital software included
• Li-ion battery
• Black-and-white contrast calibratable
• Measuring modes for various parameters
• Color analysis of black, white, red, green, yellow and blue

Features

• Rechargeable Lithium-Ion battery
• Autom. calibration of black-and-white contrast
• Continuous performance
• Designed for food industry
• Measures various colors
• Application on different surfaces
• Simplified user-interface
• Software included in delivery

Specifications

What's Included

• 1 x Colorimeter PCE-CSM 4
• 1 x USB cable
• 1 x battery
• 1 x AC Mains adapter
• 1 x Wrist band
• 1 x Standard calibration plate white
• 1 x Computer software
• 1 x Instruction manual
• 1 x Soft carry case

What Our Experts Think

• Specialized for Food Industry: Primarily designed for measuring food color, ensuring that products meet quality and visual consistency standards.

• Versatile Across Industries: While tailored for food, this color meter can be applied in other sectors where color accuracy is crucial, like cosmetics and packaging.

• Accurate Color Analysis: Measures the reflection of light from an object, calculating precise color wavelengths for accurate results.

• Easy to Use: Simple operation with quick results, making it an essential tool for food manufacturers and quality control teams.

• Ideal for Quality Control: Frequently used to maintain product appearance and consistency, preventing color deviations in production.

• Reliable & Durable: Built to withstand frequent use in both lab and production environments, providing consistent results over time.

Q&A

Q: What is the PCE CSM 4 Food Color Meter used for?
A: It’s a versatile color meter designed to measure the color spectrum of various objects, primarily in the food industry, but also applicable in other sectors.

Q: How does the PCE CSM 4 measure color?
A: The device illuminates the object with light, detects the reflected wavelengths, and calculates the object's color based on the reflected light.

Q: Why is color measurement important in the food industry?
A: Consistent color ensures product quality and consumer appeal, making it critical for quality control in food production and packaging.

Q: Can this meter be used outside of the food industry?
A: Yes, while ideal for food, it can be used in other industries where precise color measurement is essential for quality control.

Q: How does the PCE CSM 4 assist with quality control?
A: It provides accurate and reliable color readings, helping to maintain consistency and meet industry standards in production processes.

Maintenance Tips

• Clean the sensor and lens with a soft, lint-free cloth after every use.

• Avoid direct contact with the optical surface to prevent contamination or damage.

• Calibrate the device regularly using a standard calibration tool to maintain accuracy.

• Store in a dry, dust-free case to protect from environmental factors.

• Check battery levels and replace as necessary to avoid performance issues.
