PCE CSM 5 Color Meter - PCE-CSM 5

PCE CSM 5 Color Meter - PCE-CSM 5

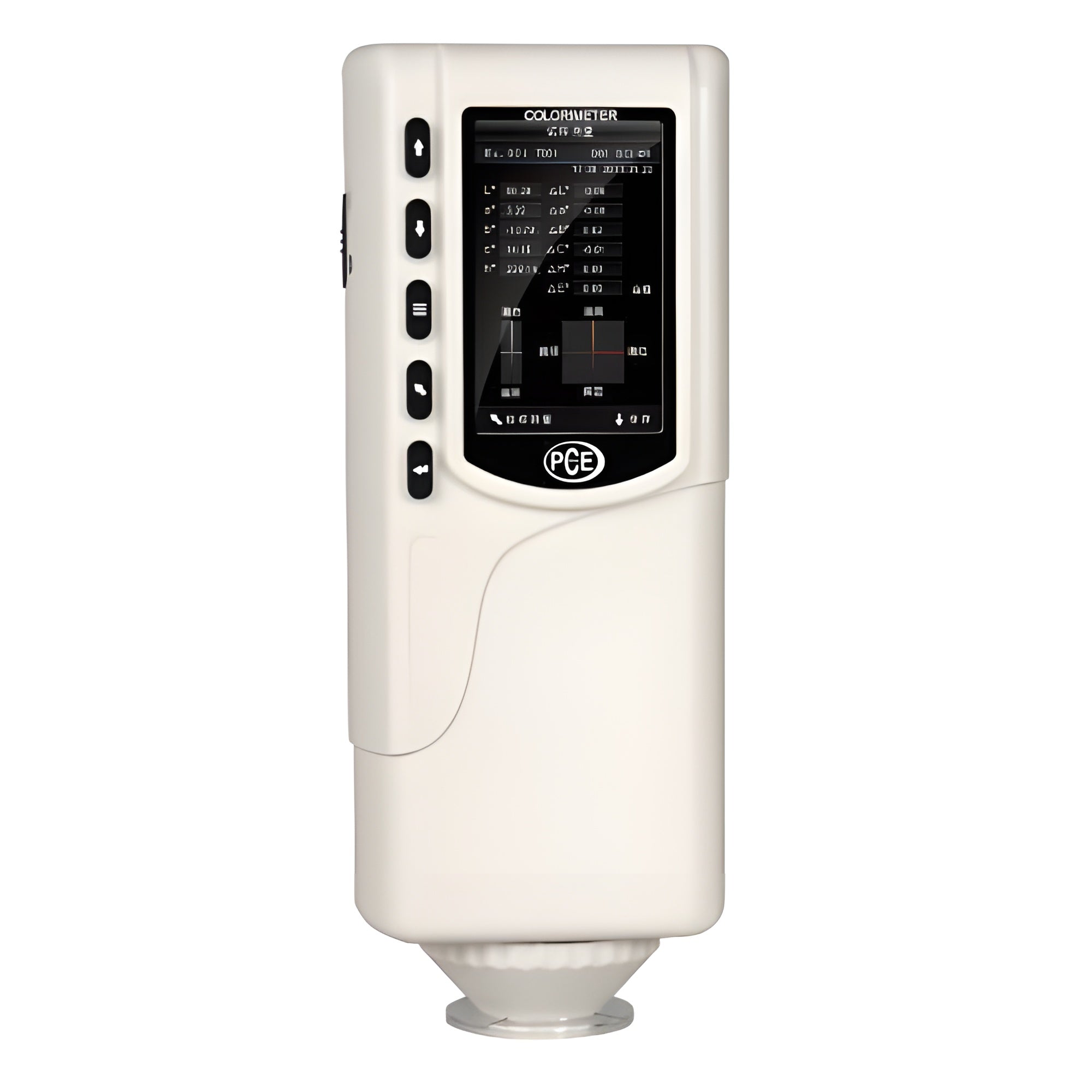

The PCE CSM 5 Color Meter was developed for quality control and offers a high accuracy. When using the color meter, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the item comes with two different measuring apertures (Ø6mm and Ø10 mm). After a measurement, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

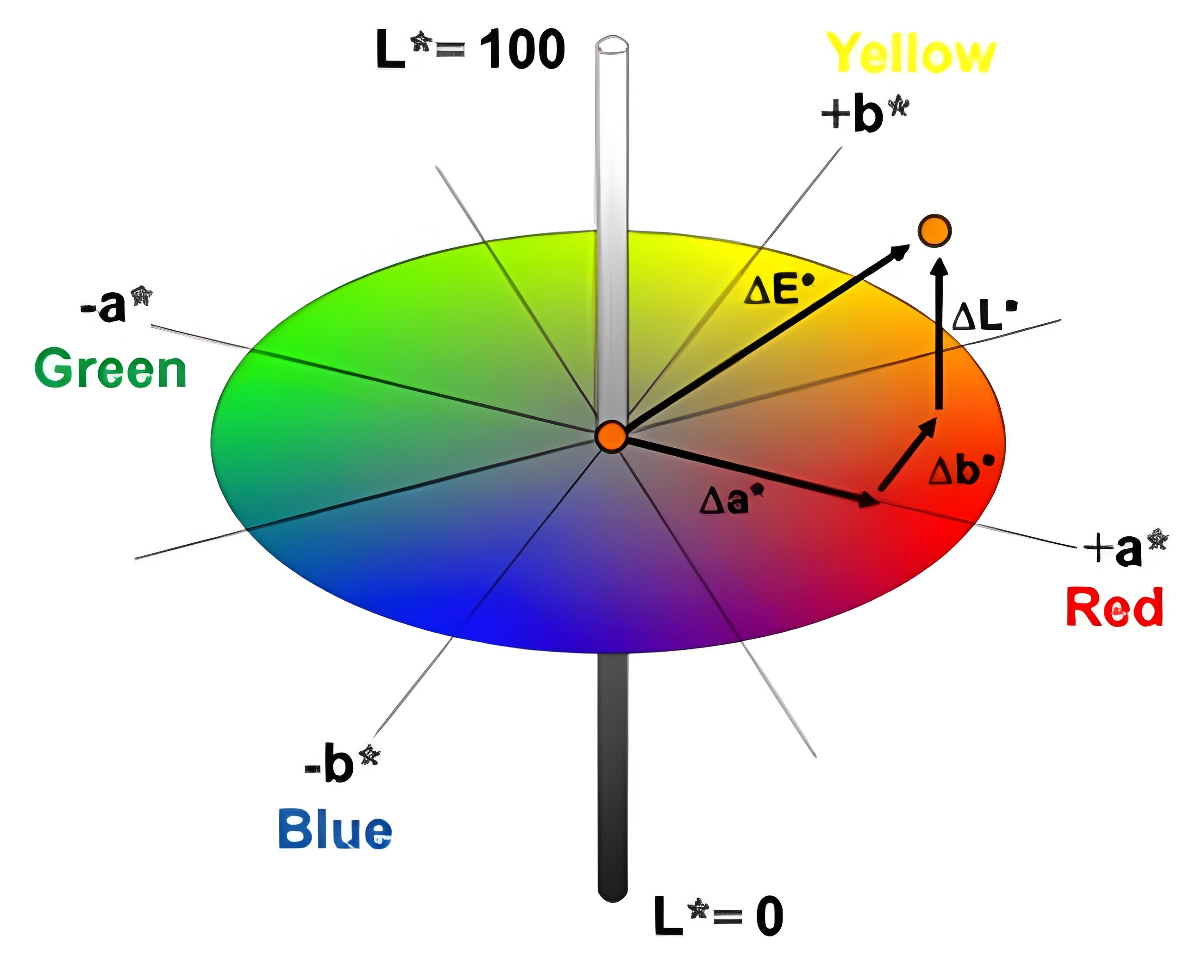

In addition to the individual color space coordinates, the deviation between the reading is also displayed. It is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

• PC software included
• Li-ion battery
• Different color spaces
• Determination of reference values and samples
• White calibration

Features

• CIE LAB, XYZ, LCh, RGB, LUV
• white calibration
• determination of reference values and samples
• exchangeable measuring apertures
• rechargeable lithium-ion battery
• suitable for many different surfaces
• easy to use
• incl. PC software

Specifications

What's Included

• 1 x Color meter PCE-CSM 5
• 1 x Lithium-ion battery
• 1 x Mains adapter
• 1 x Calibration plate (white)
• 1 x PC software
• 1 x Instruction manual
• 1 x aluminum carry case

Manual

 PCE-CSM 5 User Manual

 PCE-CSM 5 Data Sheet

What Our Experts Think

• High-Precision Color Measurement: Developed for quality control, ensuring accurate and consistent color readings for various applications.

• Multiple Color Spaces: Supports CIE LAB, XYZ, LCh, RGB, and LUV—offering flexibility across industries and standards.

• Two Measuring Apertures: Choose between Ø6mm and Ø10mm apertures for different sample sizes, ensuring adaptability in measurements.

• Reference & Sample Comparison: Store a reference value and easily compare future readings to ensure color consistency.

• Compact & Easy to Use: Lightweight and portable, perfect for on-the-go use in labs or production environments.

• Versatile Applications: Ideal for quality checks in textiles, plastics, coatings, and more—where color accuracy is critical.

Q&A

Q: What is the PCE CSM 5 Color Meter used for?
A: It’s a high-accuracy color meter designed for quality control, allowing precise color measurement across multiple color spaces.

Q: What color spaces can the PCE CSM 5 measure?
A: It supports CIE LAB, XYZ, LCh, RGB, and LUV, offering versatile options for various industry applications.

Q: What are the measuring aperture options?
A: The device includes two measuring apertures: Ø6mm and Ø10mm, allowing flexibility for different sample sizes.

Q: Can I compare measurements to a reference value?
A: Yes, you can store a reading as a reference and compare future measurements easily to ensure consistency.

Q: Who is this color meter ideal for?
A: Perfect for professionals in quality control for industries such as textiles, paint, printing, and plastics who require precise color matching.

Maintenance Tips

• Clean the lens and sensor area with a soft, lint-free cloth.

• Avoid contact with the optical surface to prevent measurement errors.

• Calibrate regularly using the included calibration standard.

• Switch apertures carefully to avoid damaging the device.

• Store in a protective, dry case when not in use.

• Charge or replace batteries as needed for consistent performance.
