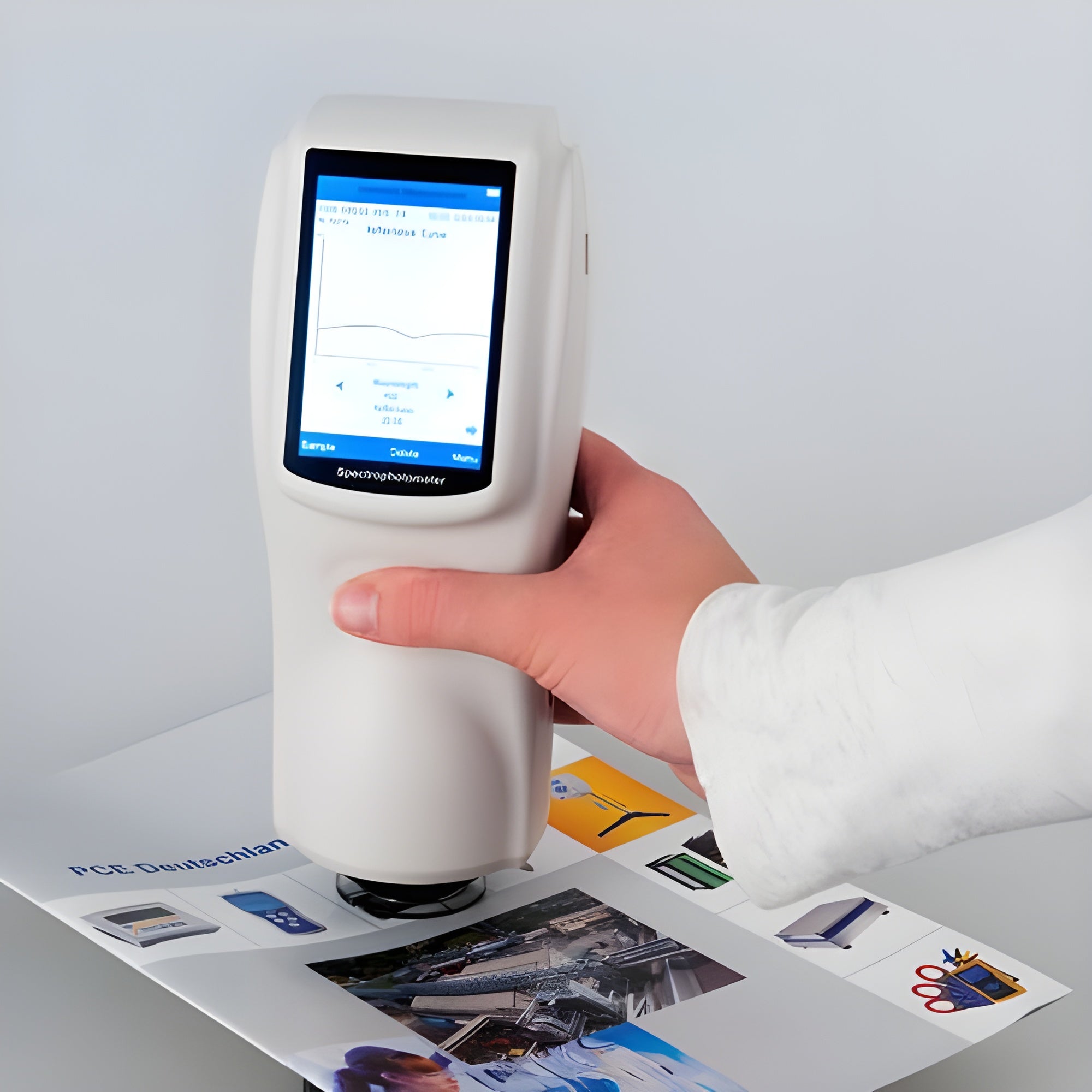

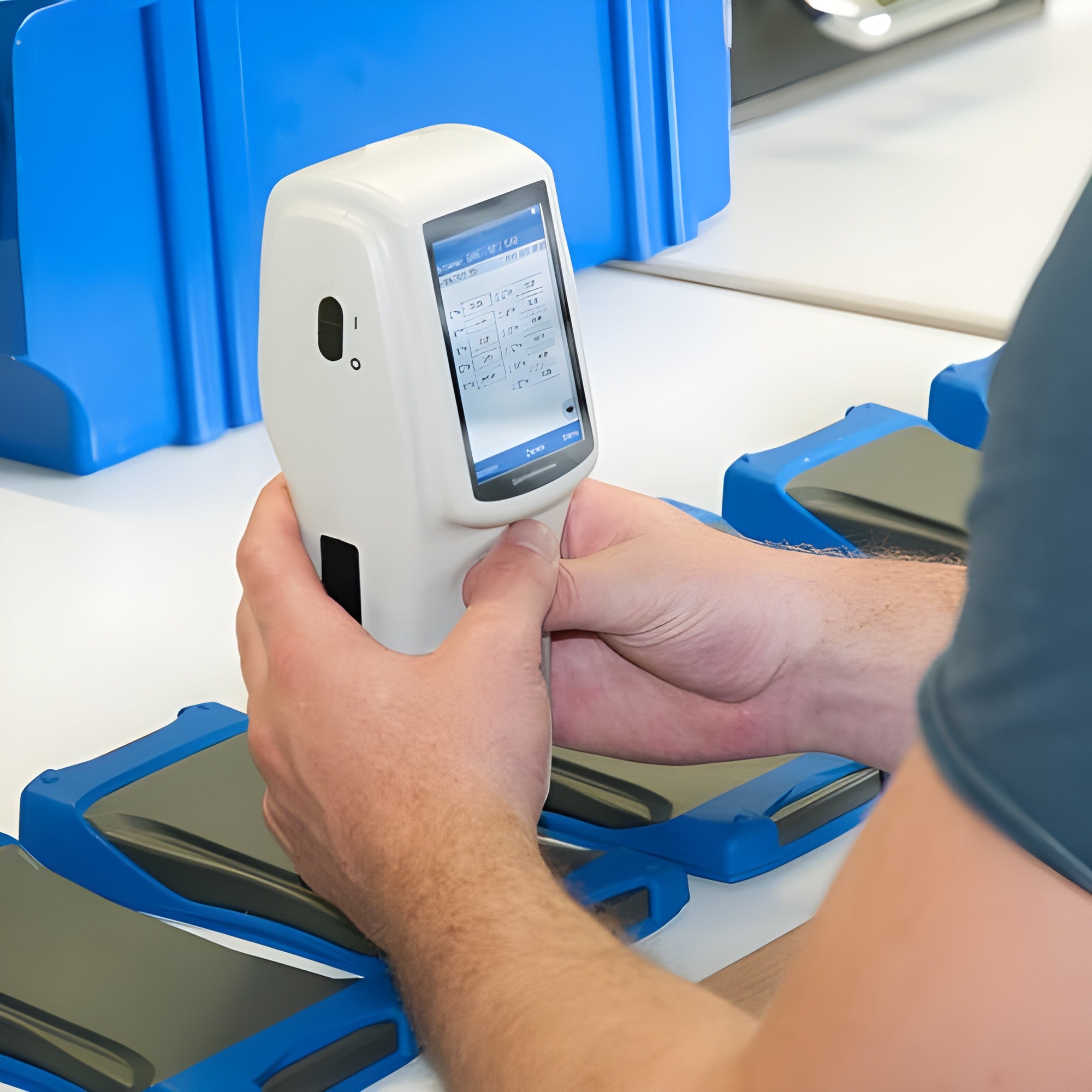

The PCE CSM 8 Spectrophotometer is designed for quality control, offering high accuracy and featuring a 3.5" touchscreen display. It allows you to select from various color spaces (CIE LAB, XYZ, Yxy, LCh, LUV) and utilizes 45/0 optical geometry. After taking a measurement, the result can serve as a reference value, while

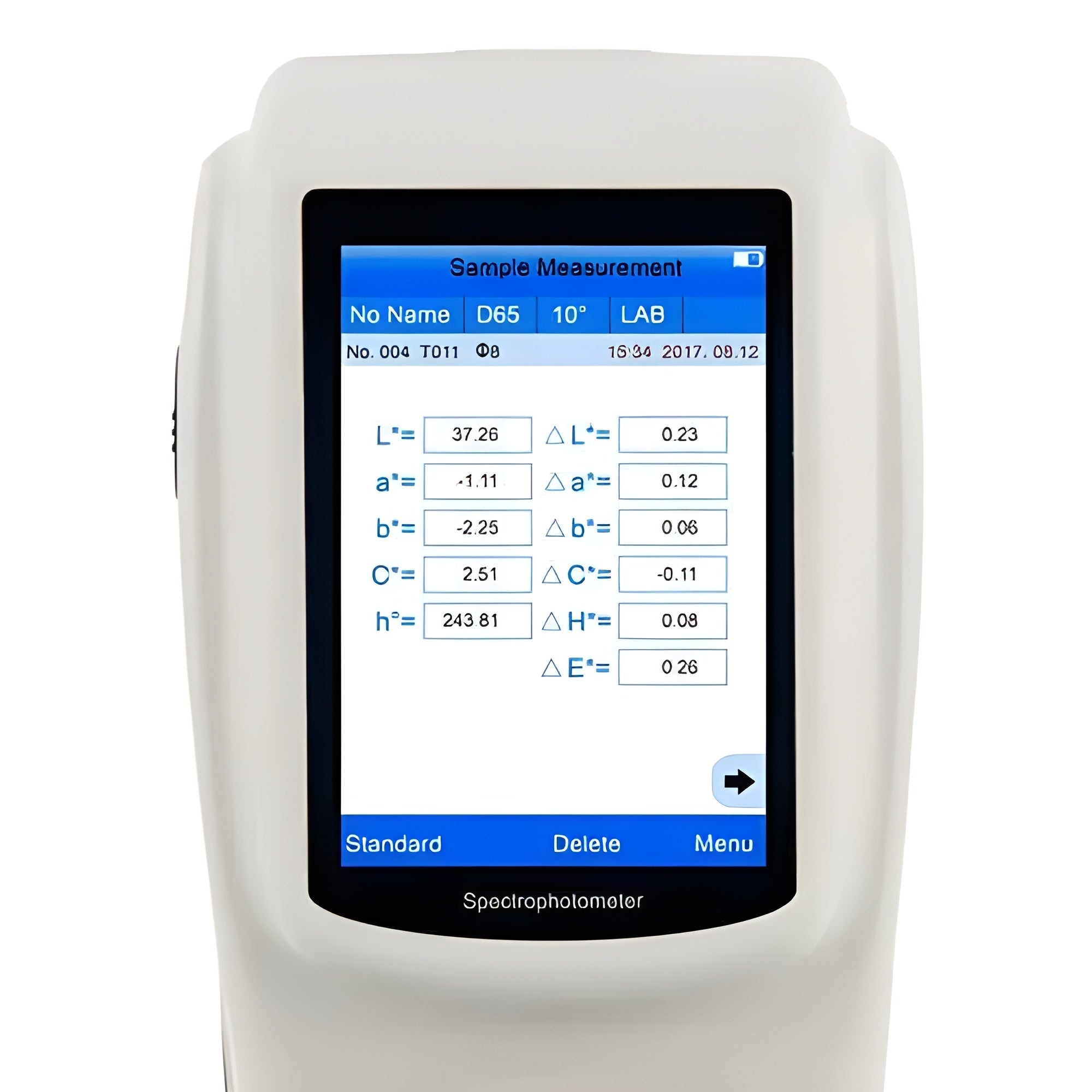

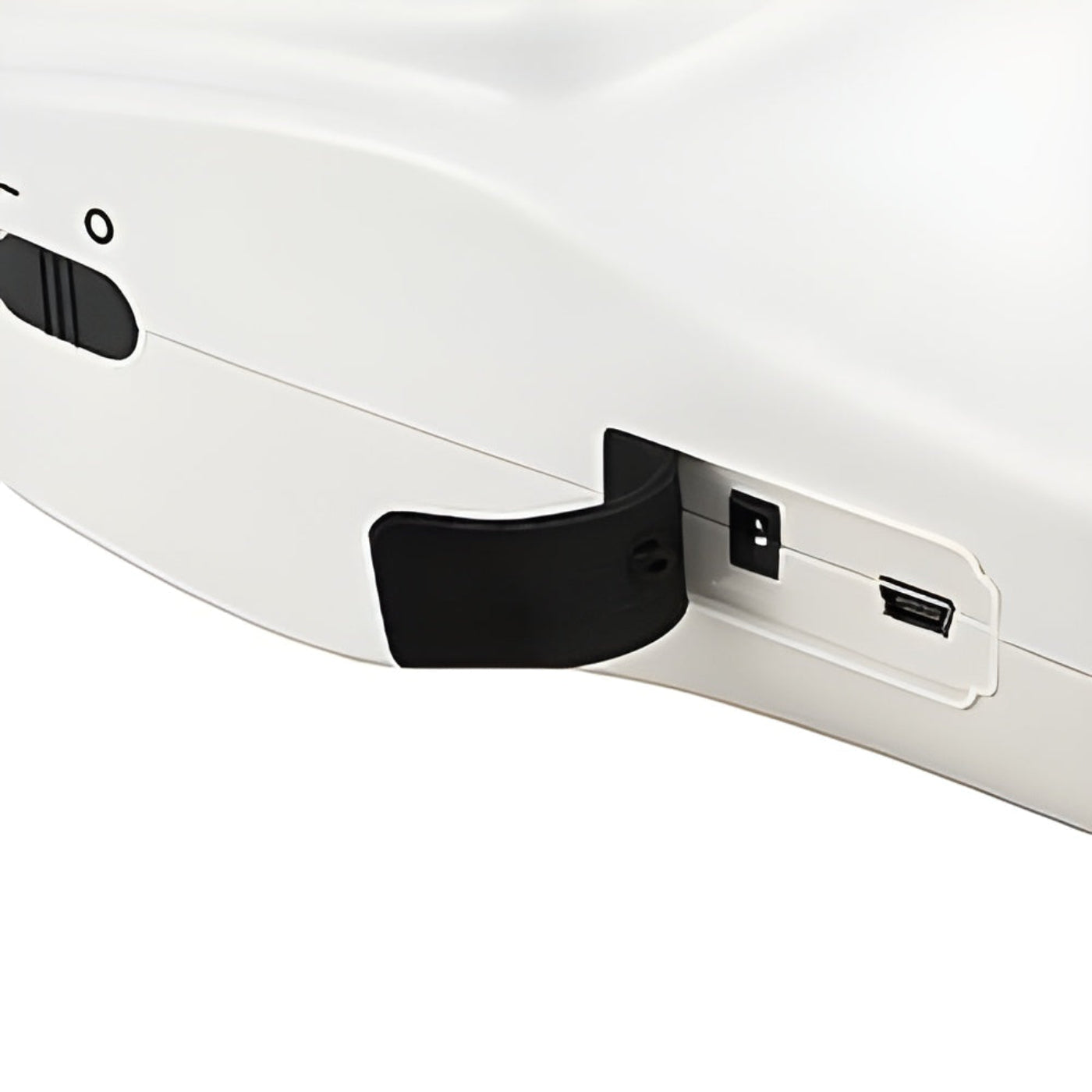

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the spectrophotometer, it is possible to store up to 1000 reference values and up to 10,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. PC software is included in the package.

Highlights

• PC software included
• Li-ion battery
• different colour spaces
• black and white calibration
• determination of reference values and samples
• white calibration
• 3.5" touch screen

Features

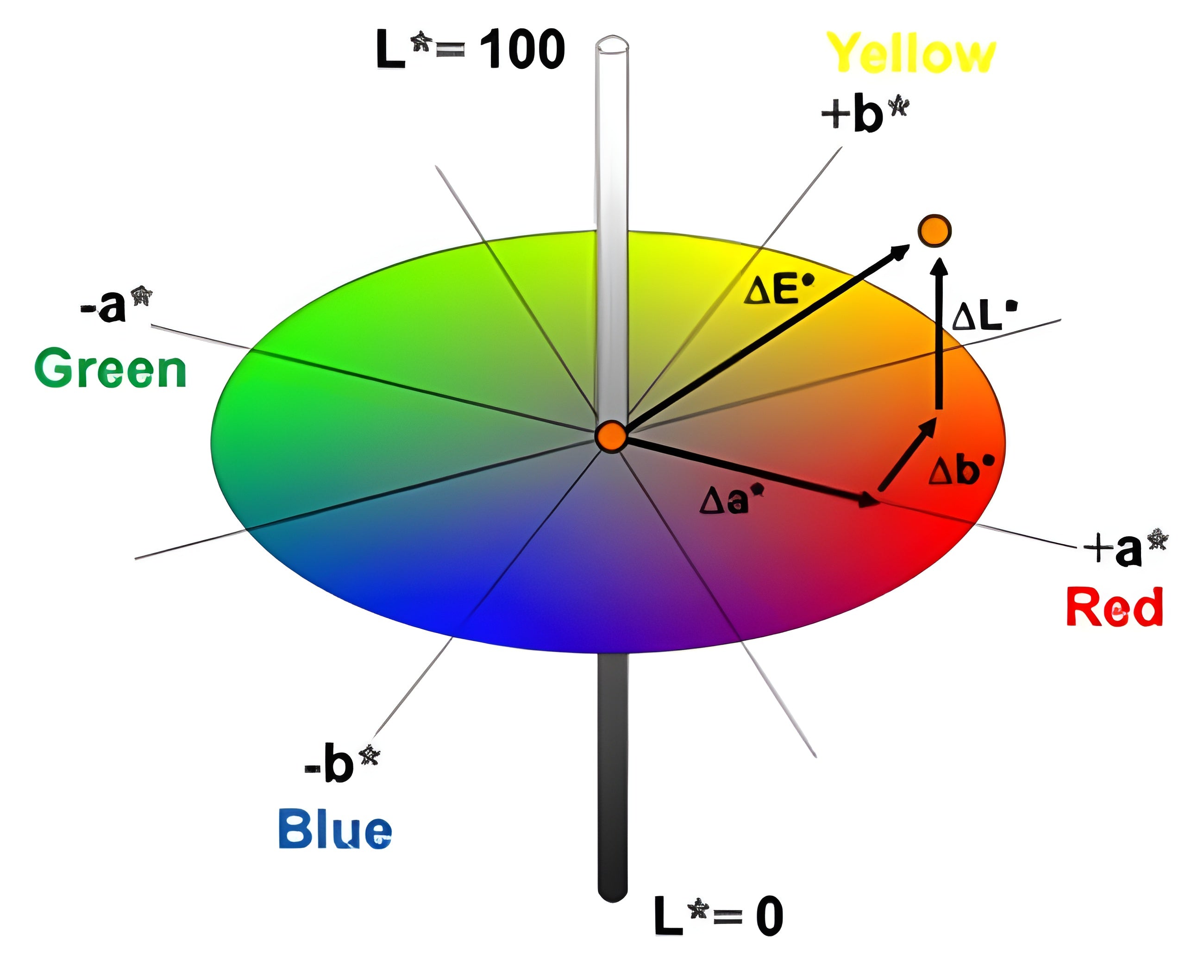

• CIE LAB, XYZ, Yxy, LCh, and LUV
• SCI and SCE (specular excluded)

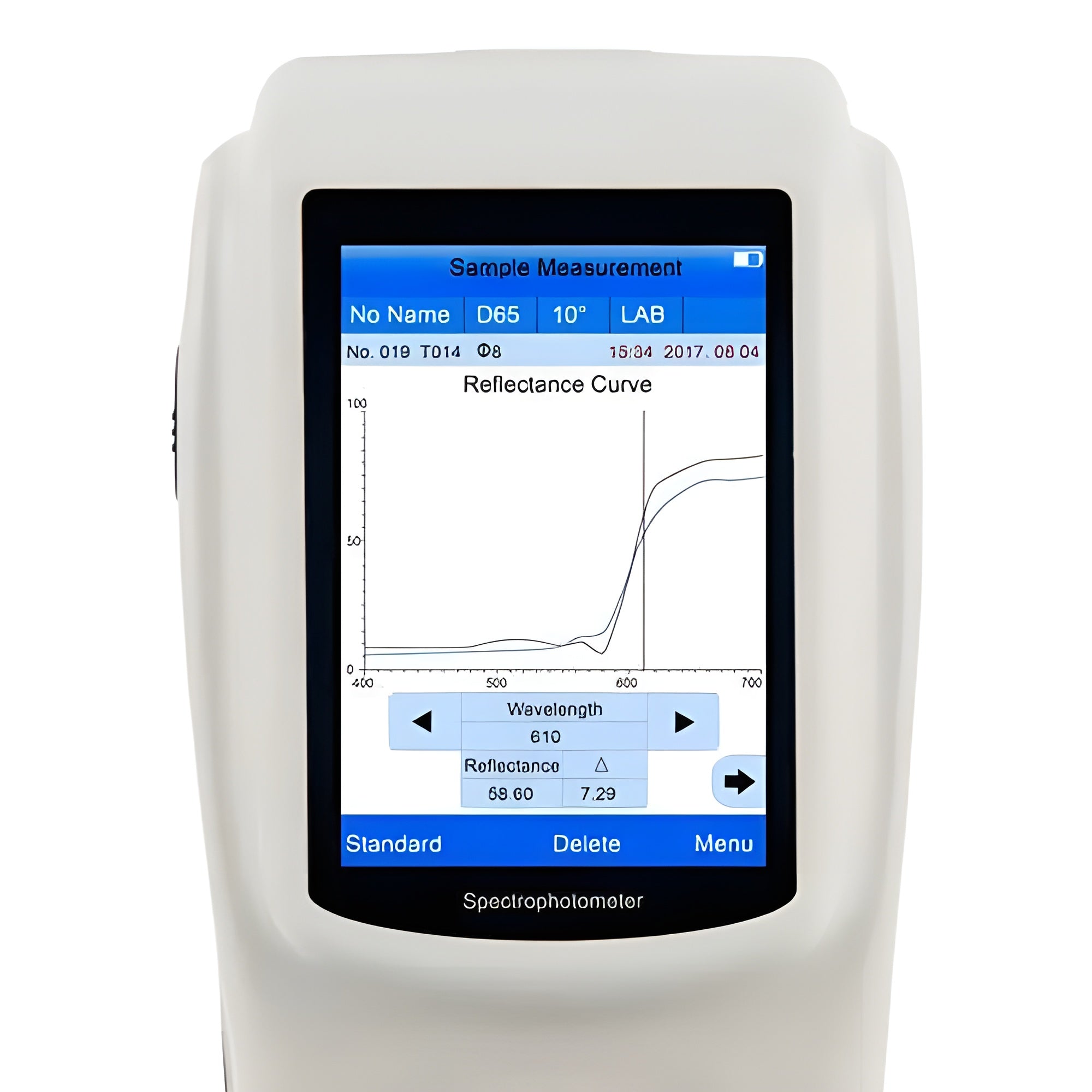

• 3.5" touch screen display
• 13 light source options
• white and black calibration
• 1000 alphanumeric reference values and up to 10,000 sample values memory
• WI, YI, TI, Mt, Color Stain, Color Fastness, SCI and SCE option (specular included and excluded)

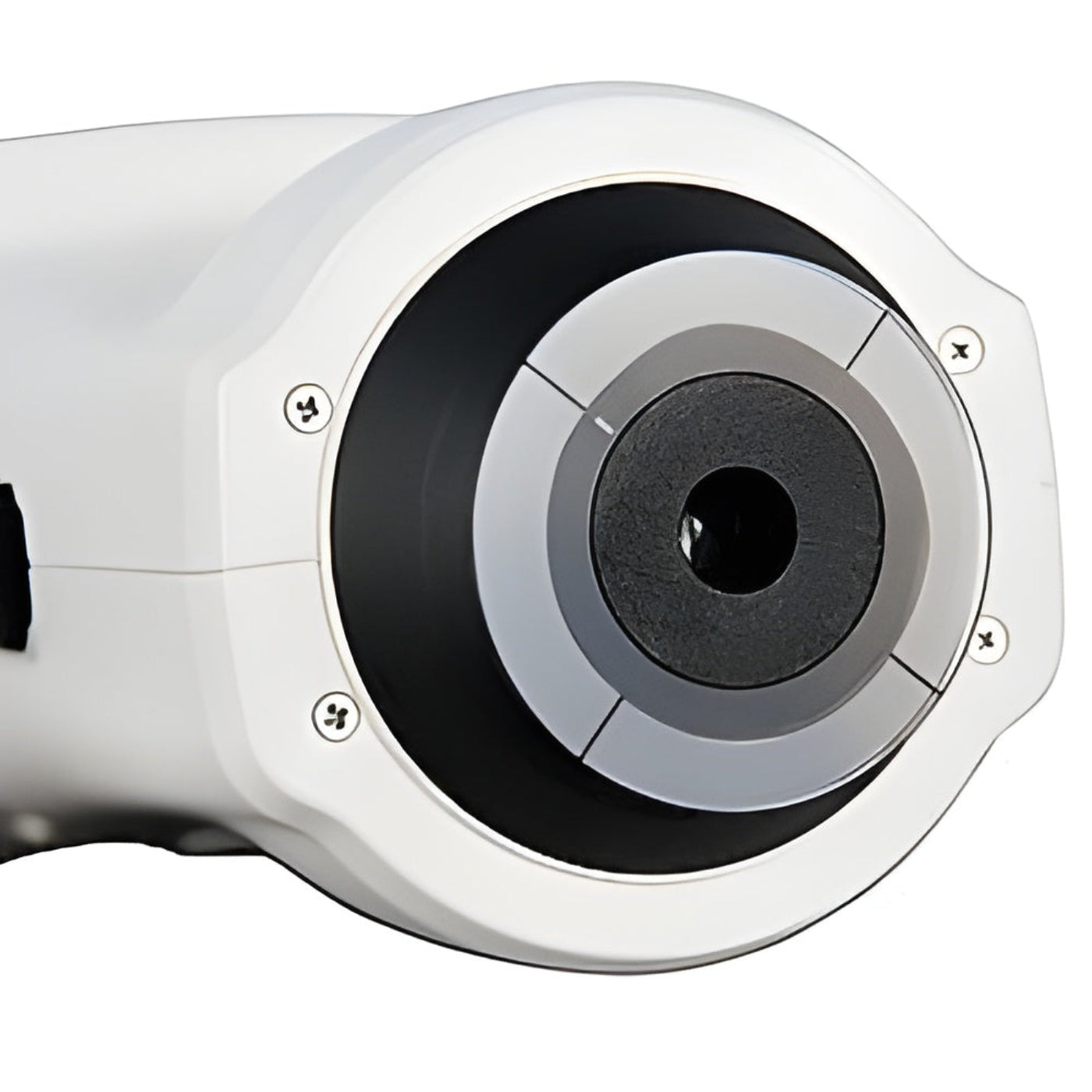

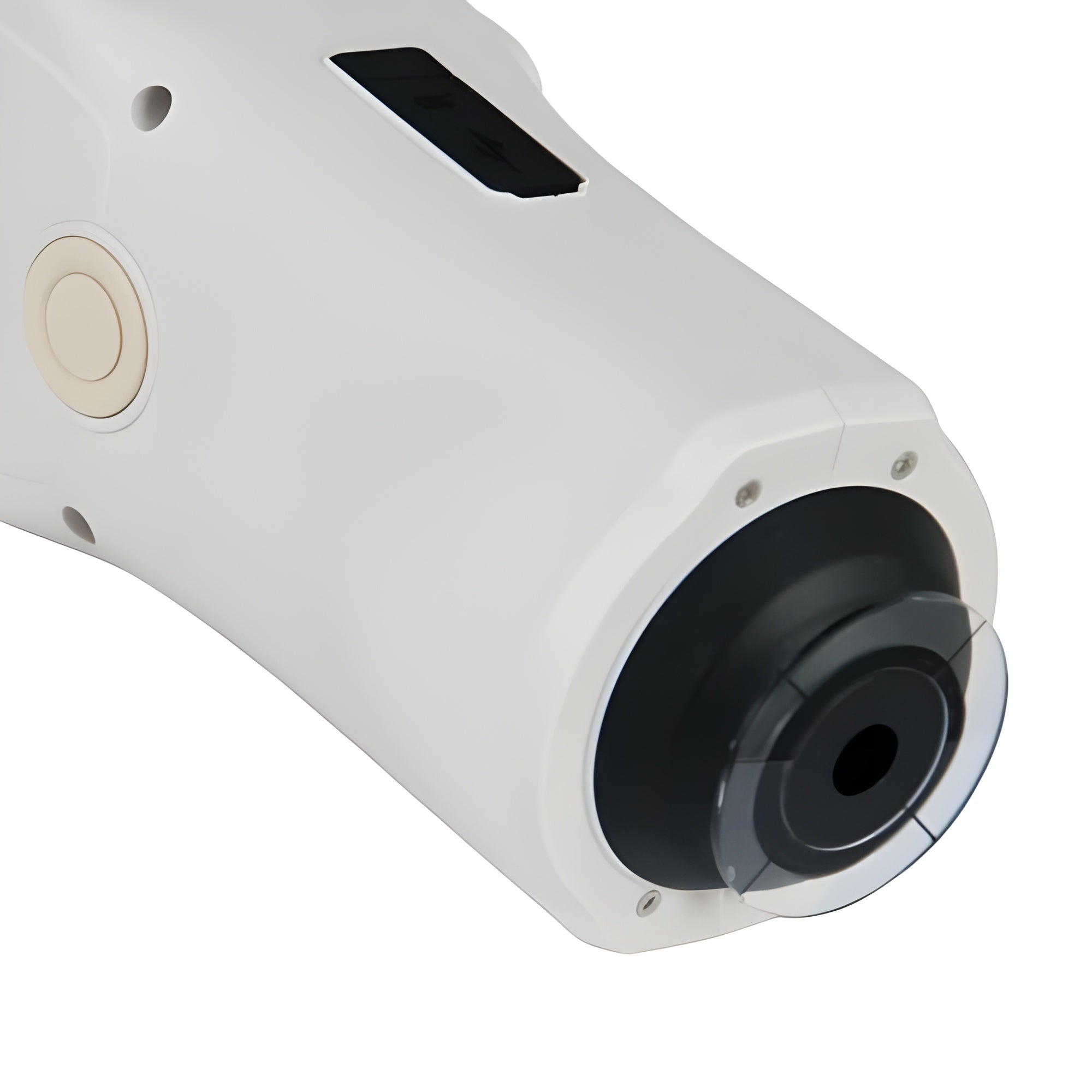

• Measuring aperture of 8 mm and 45°/0° illumination/viewing angle
• rechargeable lithium-ion battery
• high accuracy with Delta E*ab 0.04

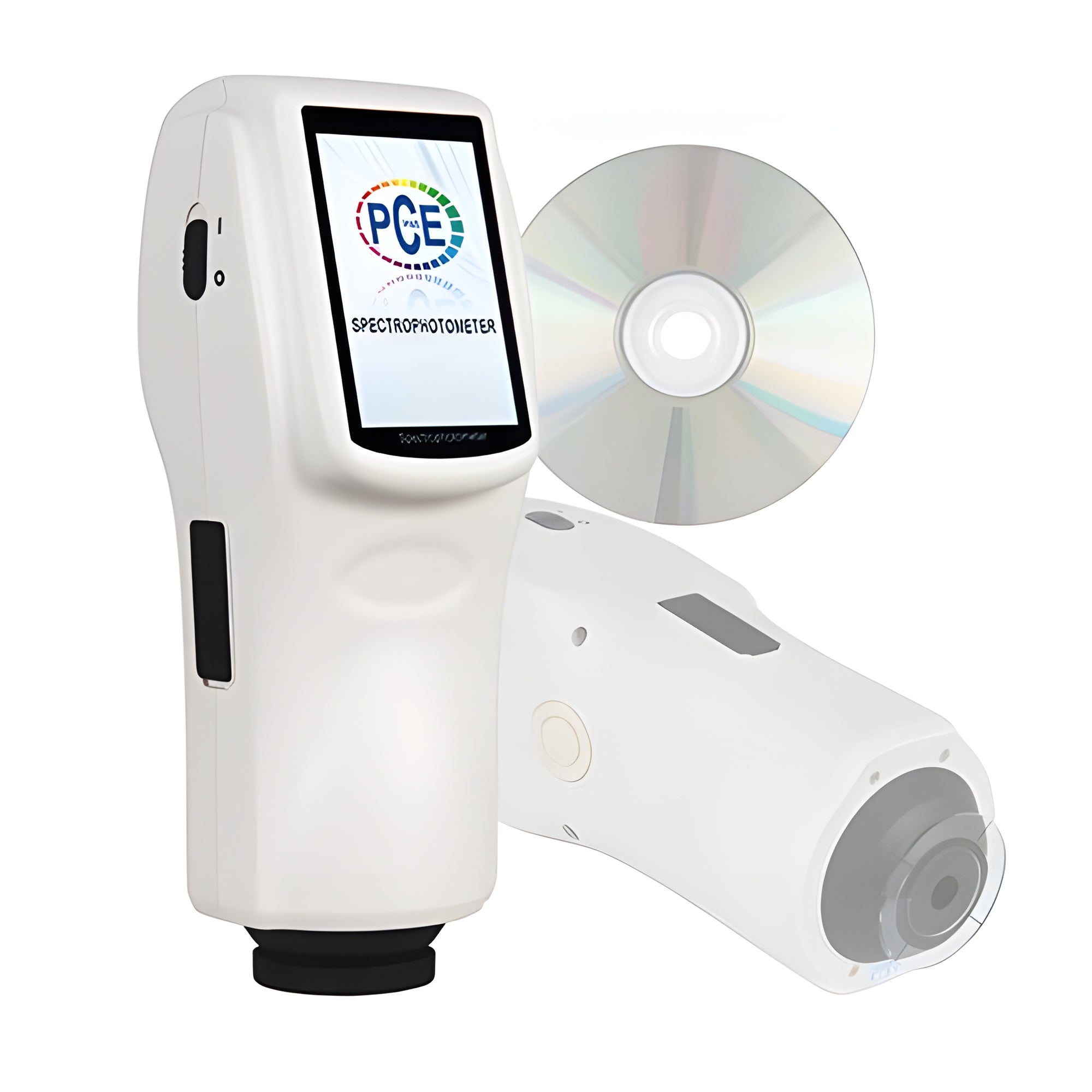

• Includes PC software

Specifications

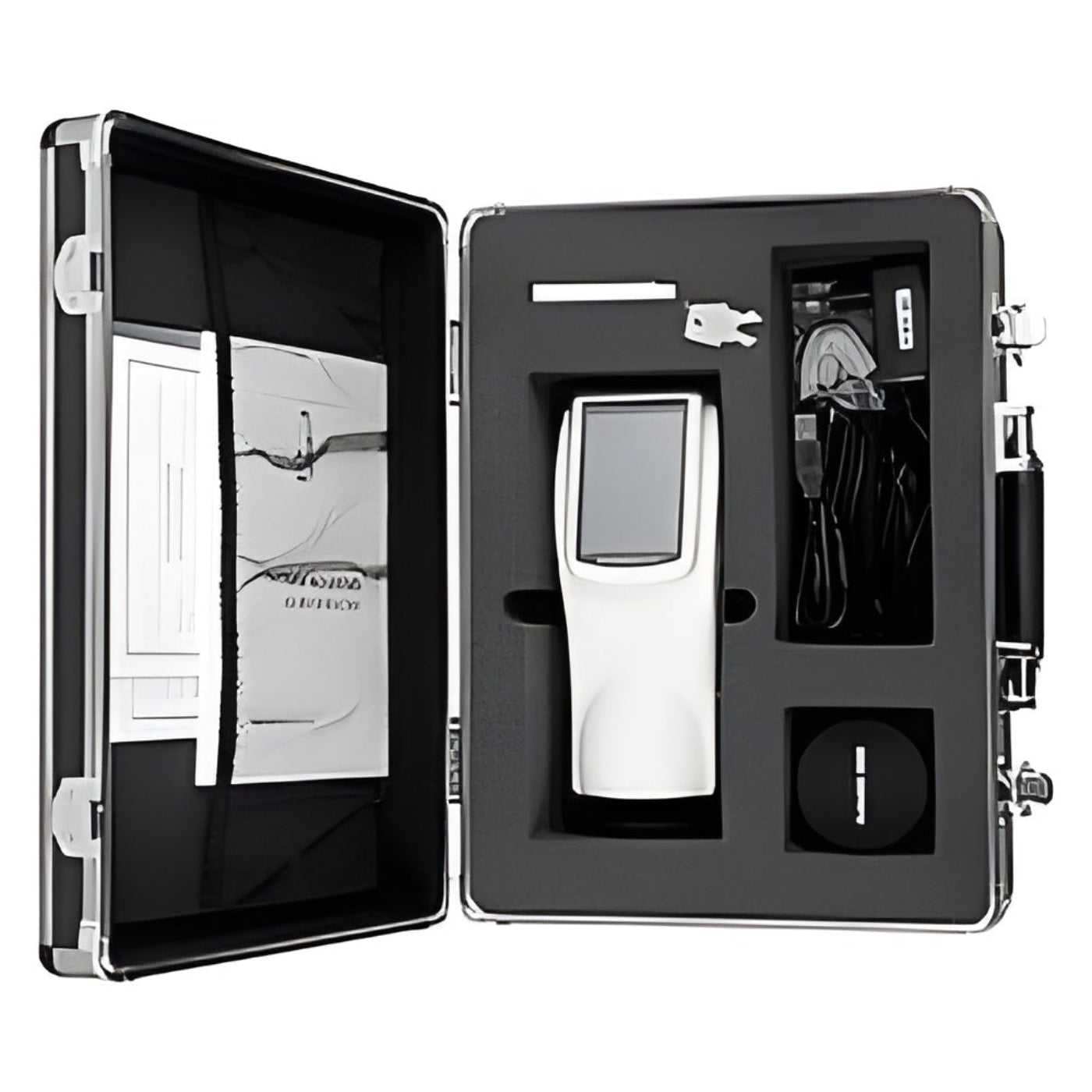

What’s Included

• 1 x Colorimeter PCE-CSM 8

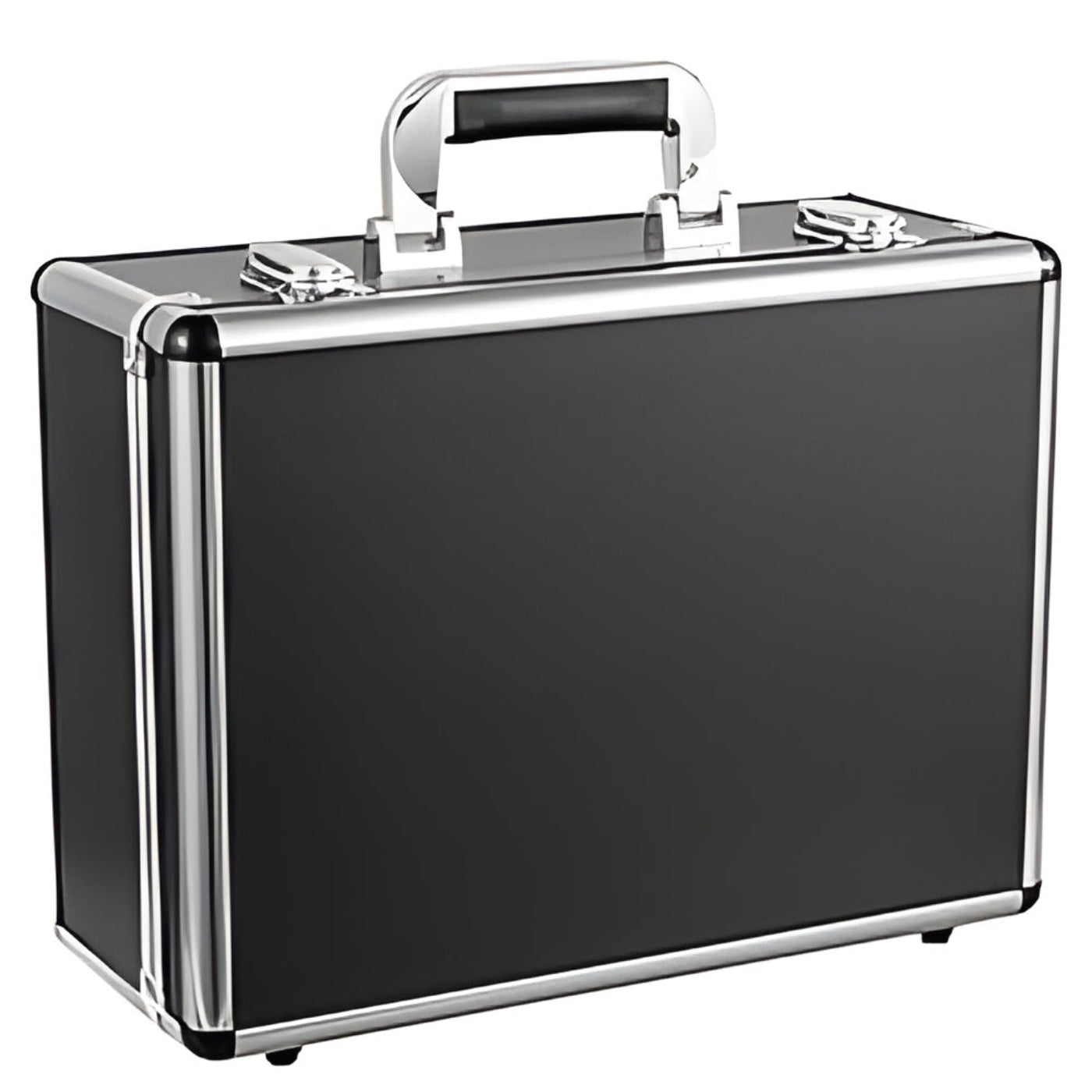

• 1 x Aluminium carrying case
• 1 x Mains adapter
• 1 x Lithium-ion battery
• 1 x Calibration plate (white)
• 1 x Calibration plate (black)
• 1 x Protective cover
• 1 x USB cable
• 1 x Wrist band
• 1 x PC software
• 1 x Instruction manual

Manual

 PCE-CSM 8 User Manual

 PCE-CSM 8 Data Sheet

What Our Experts Think

• Precision Color Measurement: Built for high-accuracy quality control, ensuring reliable results across various industries.

• Multiple Color Spaces: Choose from CIE LAB, XYZ, Yxy, LCh, and LUV for flexibility in color analysis and adherence to industry standards.

• 45/0 Optical Geometry: Provides consistent, high-quality measurements by utilizing advanced optical geometry, ideal for both flat and textured surfaces.

• 3.5" Touchscreen Display: Easy-to-use interface with clear visual feedback, streamlining the color measurement process.

• Reference & Sample Comparison: Store a reference value and seamlessly compare future measurements to ensure consistent color quality.

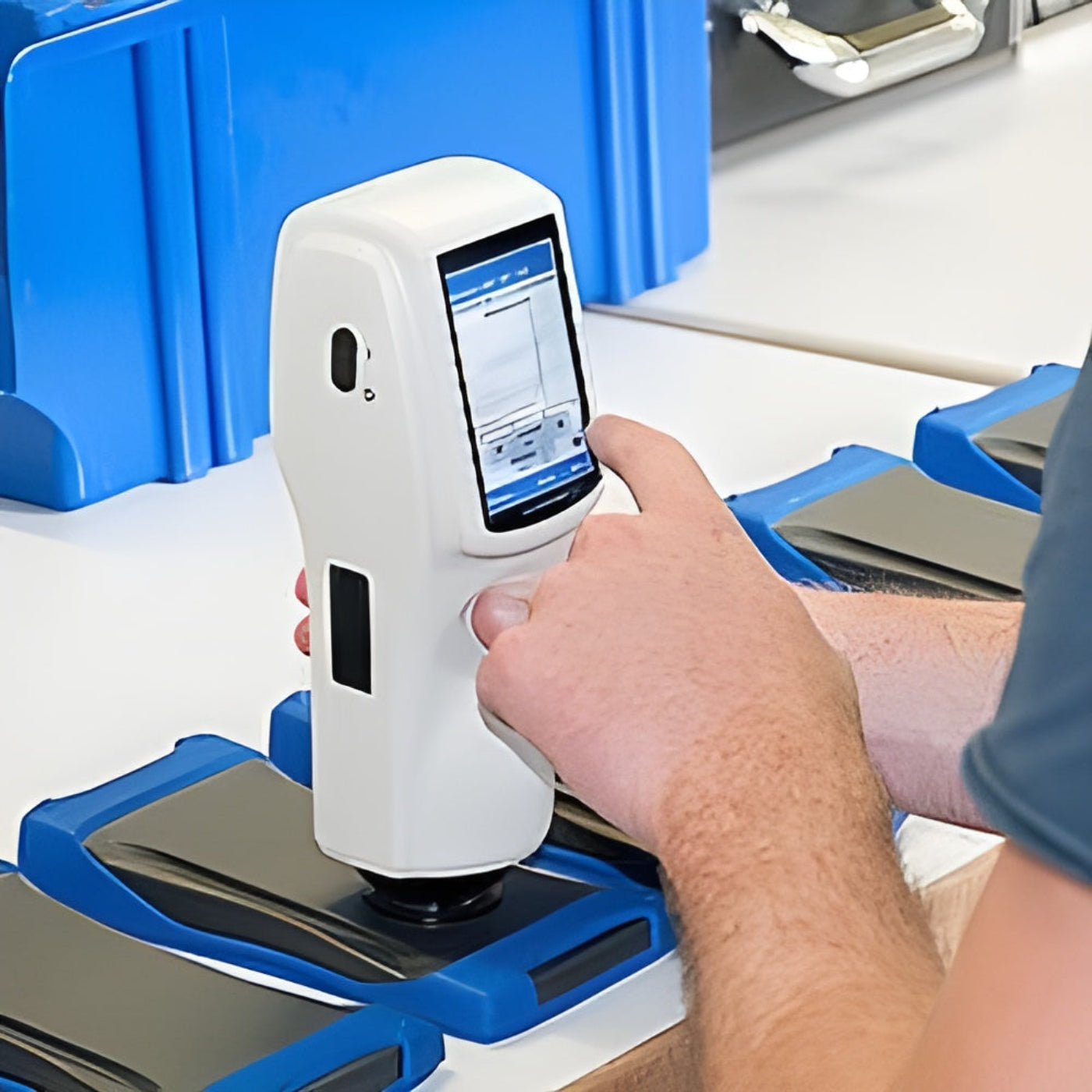

• Versatile Applications: Perfect for use in textiles, plastics, coatings, and other industries requiring precise and accurate color measurement.

Q&A

Q: What is the PCE CSM 8 Spectrophotometer used for?
A: It’s a high-accuracy spectrophotometer designed for quality control, allowing precise color measurements in various industries.

Q: What color spaces does the PCE CSM 8 support?
A: It supports CIE LAB, XYZ, Yxy, LCh, and LUV color spaces, offering versatility for different color measurement needs.

Q: What optical geometry does it use?
A: The PCE CSM 8 uses 45/0 optical geometry, ideal for measuring color on smooth, glossy surfaces with minimal gloss interference.

Q: Can I compare measurements to a reference value?
A: Yes, after taking a reading, it can be stored as a reference, and subsequent readings can be compared for consistency.

Q: Is the PCE CSM 8 easy to use?
A: Yes, it features a 3.5" touchscreen display, ensuring easy navigation and quick access to measurements and settings.

Maintenance Tips

• Clean the optical lens and sensor with a soft, lint-free cloth after each use.

• Avoid touching the measurement area to prevent smudges and interference.

• Calibrate the spectrophotometer periodically with the supplied reference standard.

• Wipe the touchscreen with a microfiber cloth to maintain display clarity.

• Store in a dust-free, dry case when not in use.

• Check and replace batteries as needed to ensure continuous performance.
