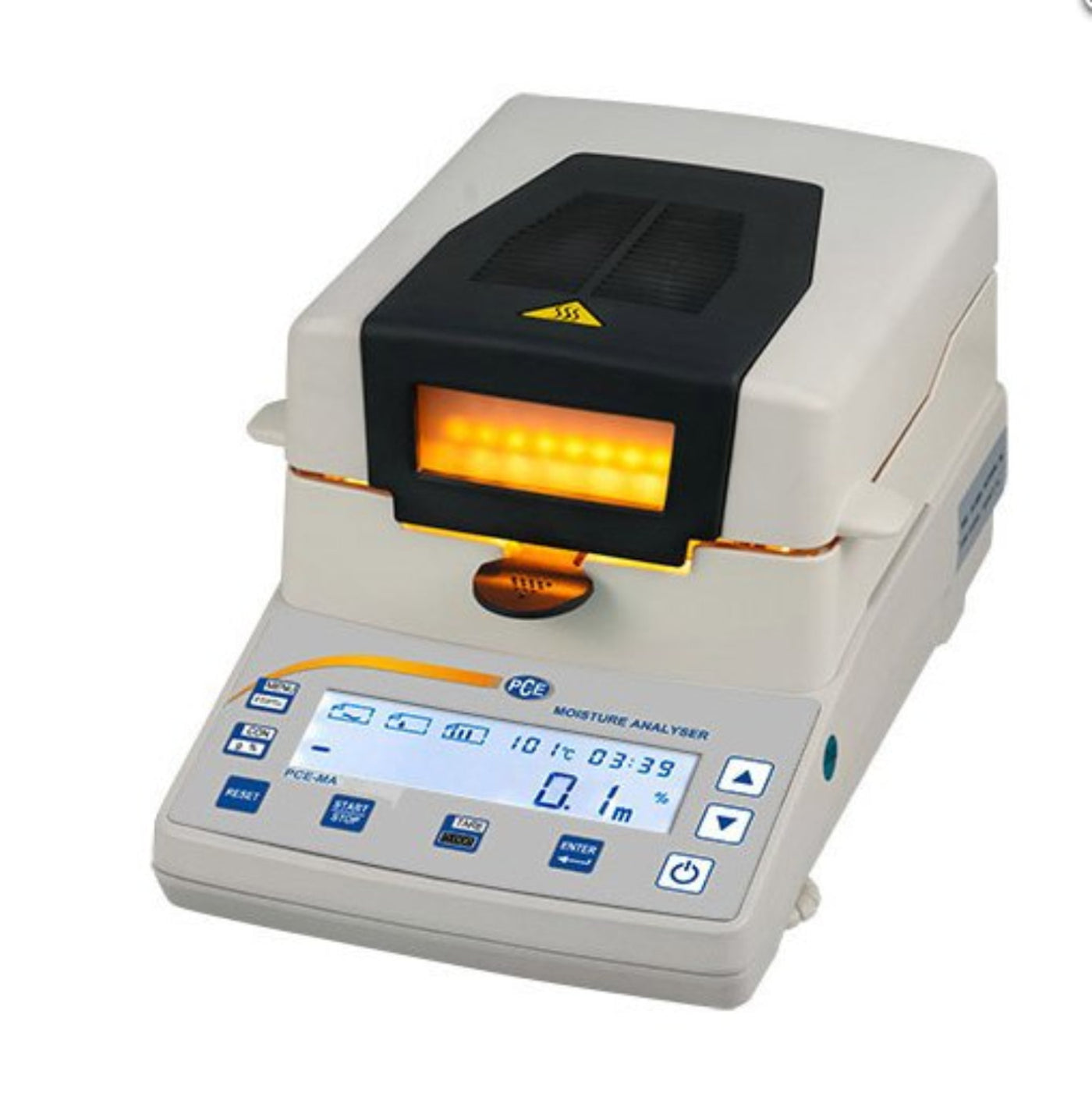

PCE MA 110 Halogen Moisture Analyzer - PCE-MA 110

PCE MA 110 Halogen Moisture Analyzer - PCE-MA 110

The PCE MA 110 Halogen Moisture Analyzer functions on the gravimetric or loss on drying (LOD) principle. It uses the halogen method to dry the material sample. Moisture content is calculated based on the weight difference before and after the drying procedure. The moisture analyzer's halogen-heated drying chamber is suitable for the testing and analysis of materials such as wood, pellets, biomass, granules, feed, food products and pastes.

Thanks to an impressive resolution or readability of 0.01 g / 10 mg, the moisture analyzer can determine the smallest weight differences. The moisture analyzer also covers the full moisture content range, from 0 - 100%, with a moisture content resolution or readability of 0.1%. Measurement values are displayed clearly on the large, easy-to-read LCD screen.

The moisture analyzer features an adjustable drying time (1 - 99 minutes) and an adjustable drying temperature (+40  - +199 °C). Up to 16 different drying profiles or programs can be stored to the memory of the moisture analyzer, ensuring a controlled, repeatable testing process for accurate results time after time. Calibration of the moisture analyzer can be performed at any time using the automatic calibration function and the included 100 g weight.

Highlights

• Gravimetric or loss on drying (LOD) moisture analyzer

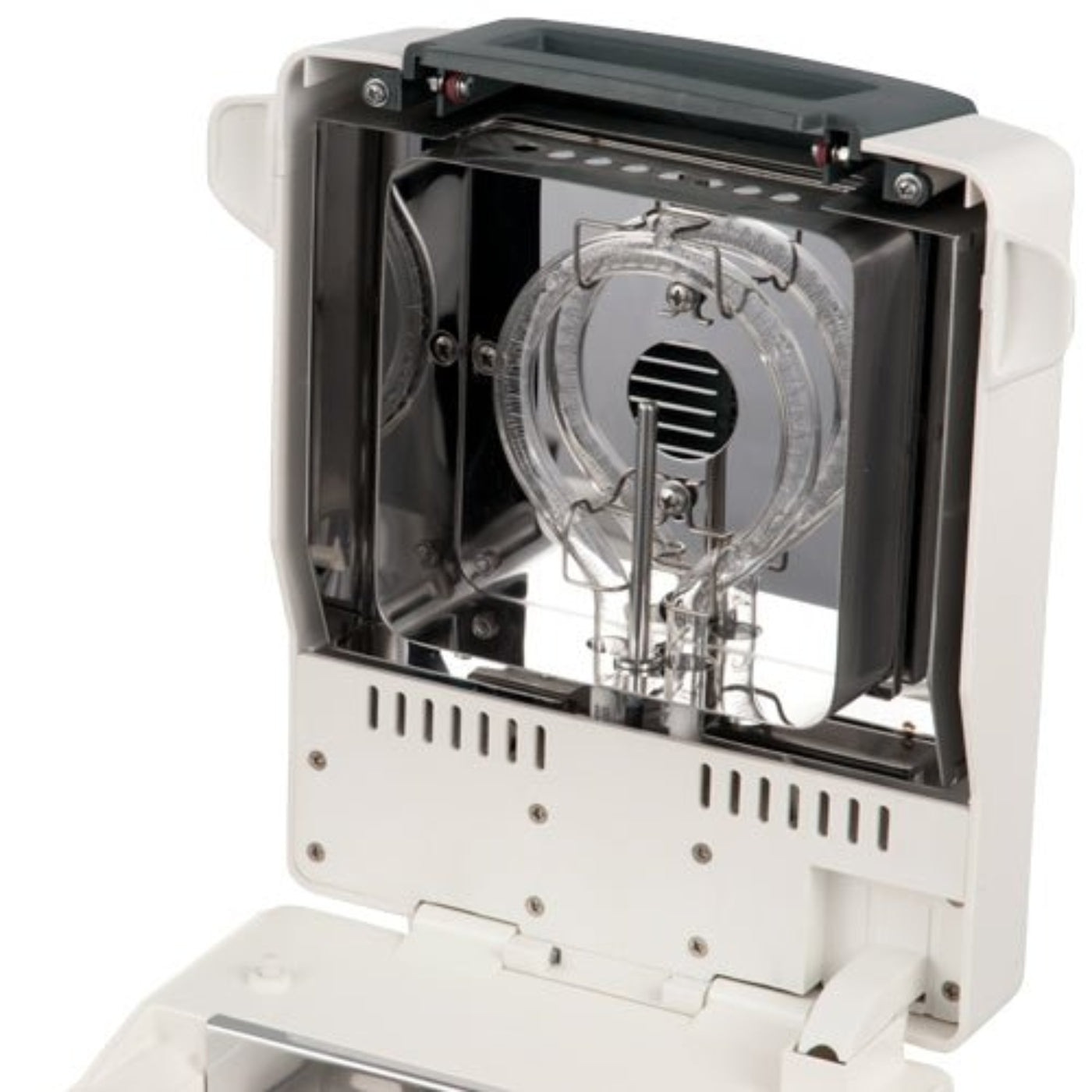

• halogen-heated drying chamber
• 110 g weighing capacity
• 0.01 g weighing resolution
• 0 -100% moisture content measuring range
• 0.1% moisture content resolution

Features

• Weighing range: 0.01 g - 110 g
• Weighing resolution or readability: 0.01 g / 10 mg
• Moisture content measuring range: 0 - 100%
• Moisture content resolution or readability: 0.1%
• Adjustable drying time and temperature
• Memory stores up to 16 drying profiles
• RS-232 interface or port
• Automatic calibration function
• 100 g calibration weight included
• Large, easy-to-read LCD screen
• 9 membrane keys for user-friendly operation
• Halogen-heated drying chamber
• For analysis of wood, pellets, biomass, granules, feed, food products and pastes

Specifications

What’s Included

• 1 x PCE-MA 110 moisture meter
• 1 x wind protection shield
• 1 x sample pans
• 1 x power supply cord
• 1 x sample cup holder / handle
• 1 x 100 g calibration weight in plastic box
• 1 x user manual

Manual

PCE-MA 110 User Manual

PCE-MA 110 Data Sheet

What Our Experts Think

• Accurate Moisture Testing: Utilizes the gravimetric method (LOD) to measure moisture content by calculating weight loss before and after drying.

• Halogen Heating Technology: The halogen-heated drying chamber ensures fast, consistent, and efficient drying of various materials.

• Versatile Material Compatibility: Ideal for testing a wide range of materials, including wood, pellets, biomass, granules, feed, food products, and pastes.

• Quick and Reliable Results: Provides precise moisture content analysis, making it perfect for quality control in industries like agriculture, food processing, and manufacturing.

Q&A

Q: How does the PCE MA 110 measure moisture content?
A: It uses the gravimetric (loss on drying) method, drying the sample with halogen heat and calculating moisture content based on weight difference before and after drying.

Q: What materials can the PCE MA 110 analyze?
A: It is ideal for testing materials like wood, pellets, biomass, granules, feed, food products, and pastes.

Q: What is the principle behind the PCE MA 110?
A: The moisture analyzer operates on the halogen drying method, where the sample is heated to remove moisture and the weight loss is used to determine moisture content.

Q: What industries benefit from using the PCE MA 110?
A: It’s used in industries such as agriculture, food production, biomass testing, and materials analysis.

Q: What makes the PCE MA 110 reliable for moisture testing?
A: Its halogen-heated drying chamber provides efficient and accurate moisture analysis, ensuring consistent and precise results.

Maintenance Tips

• Clean the drying chamber and sample platform after each use to remove residual material.

• Inspect the halogen lamp for any signs of wear or damage and replace as necessary.

• Calibrate the device regularly to ensure accurate weight measurements.

• Avoid contact with the heating element to prevent damage.

• Store in a clean, dry area to protect from dust and contamination.

• Check and replace the battery as needed to maintain reliable operation.
