PCE MPC 10 Particle Counter Air Sampler - PCE-MPC 10

PCE MPC 10 Particle Counter Air Sampler - PCE-MPC 10

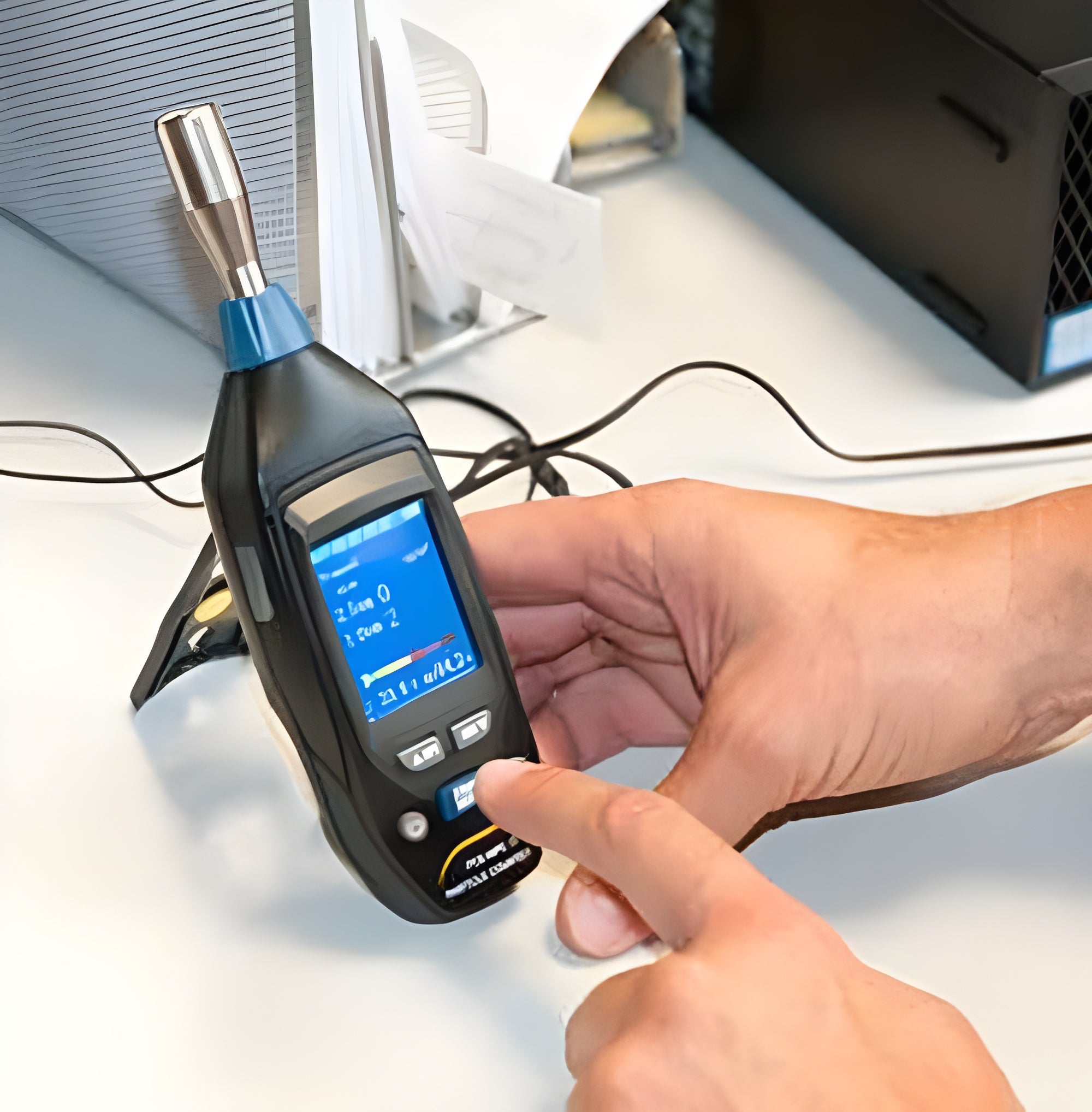

The PCE MPC 10 Particle Counter Air Sampler is a portable device designed to monitor particulate matter (PM) concentrations in the air. Ideal for indoor air quality (IAQ) assessments, it also measures air temperature and relative humidity (RH). Powered by either a rechargeable battery or USB port, the USB port is also used for charging the battery. The device continues to take measurements while charging, ensuring uninterrupted IAQ monitoring. Featuring an integrated data logger, it offers adjustable sampling times of 30 seconds, 1 minute, 2 minutes, or 5 minutes, and can store up to 5,000 date-and-time-stamped data sets in its internal memory.

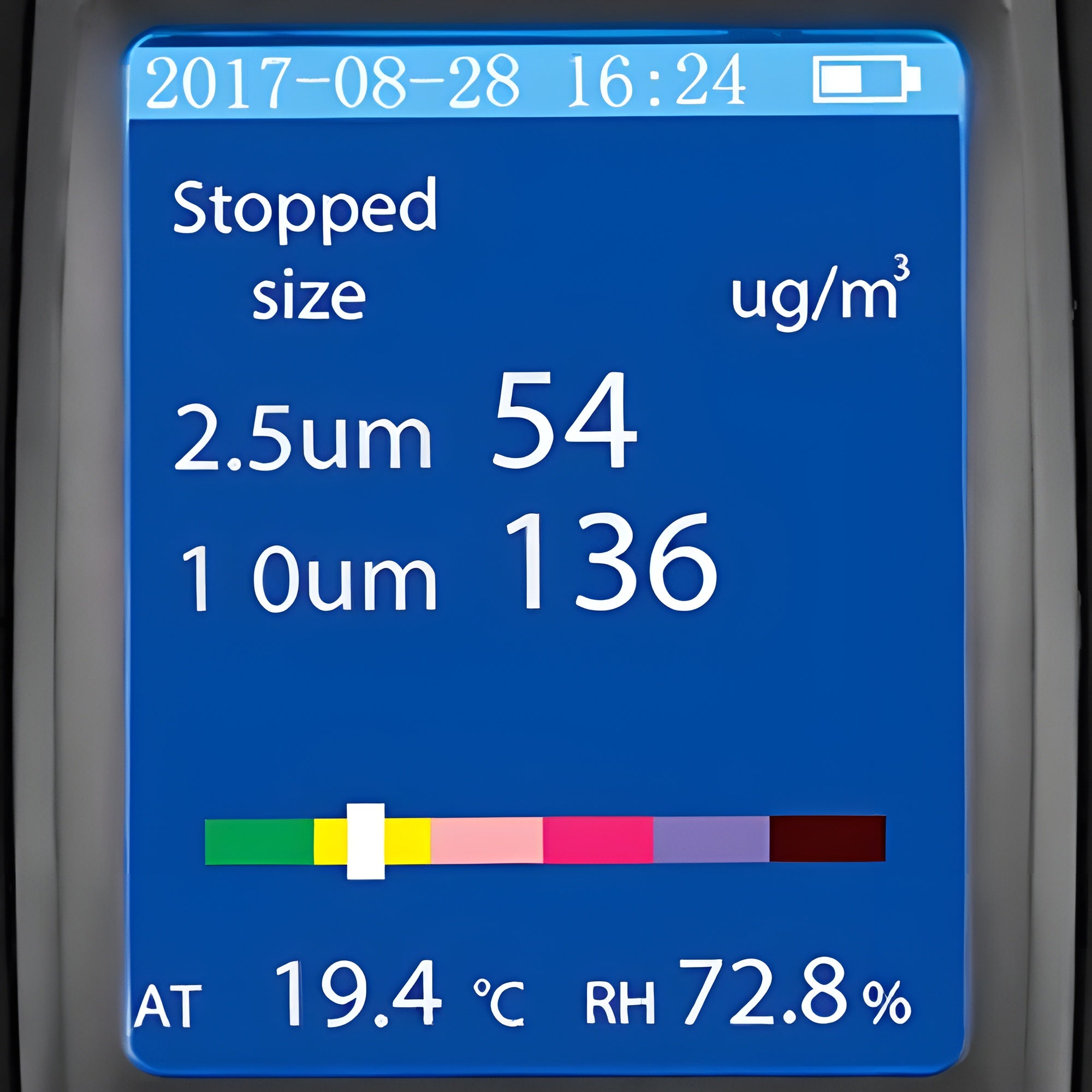

The particle counter displays all measurements simultaneously on the device's 2" full-color LCD screen. Temperature units can be shown in either degrees Celsius (°C) or Fahrenheit (°F). A scale below the measured values provides a visual warning via a band of colors increasing from green (safe) to violet (extreme danger). This visual color-coding system makes it easy to recognize when PM concentration levels become dangerous, allowing for quick action.

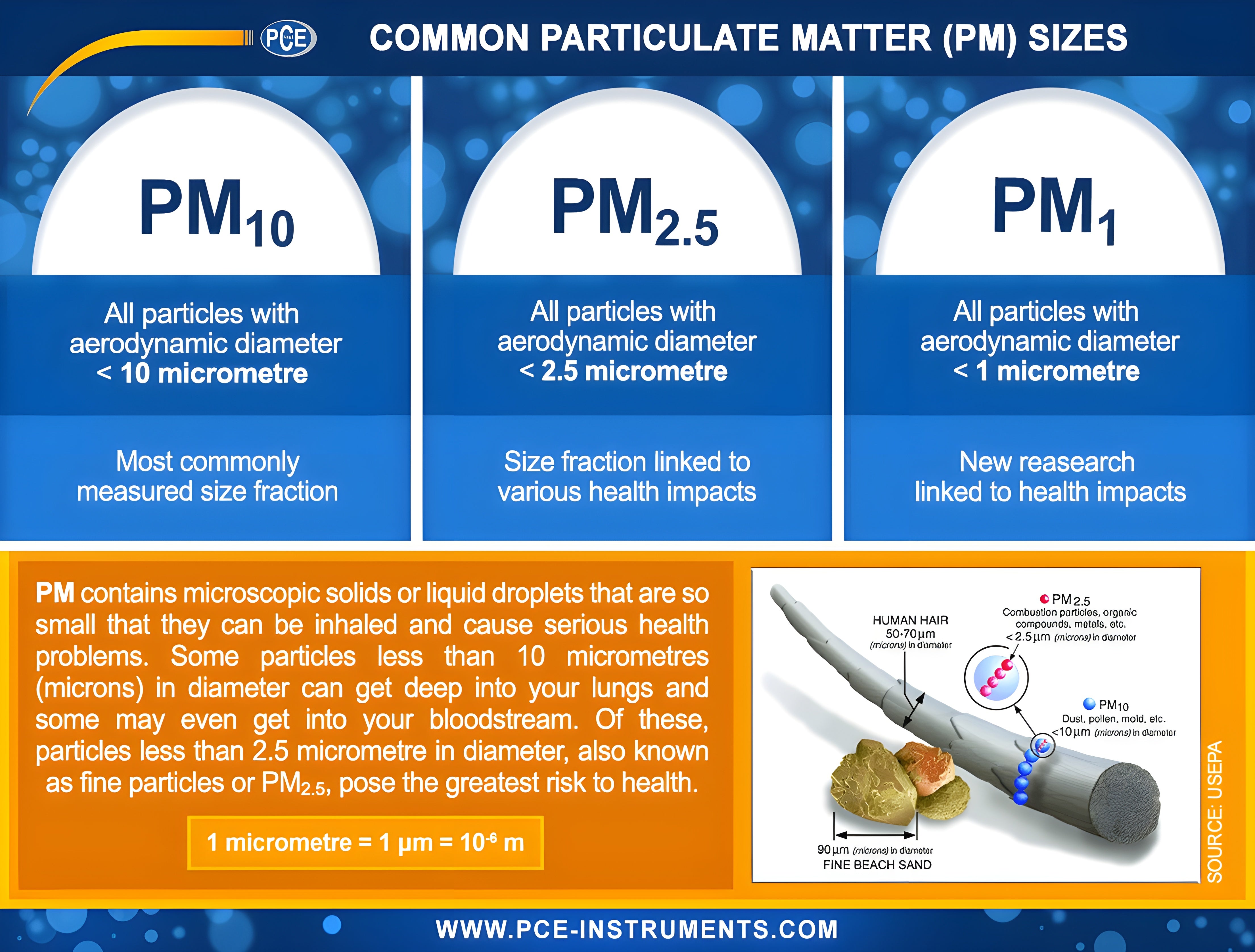

When inhaled, PM 2.5 and PM 10 particles can settle deep into the lungs and result in damaging health effects. Since the PCE-MPC 10 particle counter monitors PM 2.5 and PM 10 particles, the device has many practical health and safety applications. Heating, ventilation and air conditioning (HVAC) technicians use PM 2.5 and PM 10 particle counters for HVAC system performance and filtration audits. In addition, industrial hygienists and workplace safety professionals rely on PM 2.5 and PM 10 particle counters when evaluating occupational health and safety risks related to hazardous and combustible dust.

Highlights

• Portable
• Handheld
• Particle counter for monitoring particulate matter (PM) concentrations in the air.
• 2.5 µm and 10 µm particle sizes.
• Measures air temperature and relative humidity.
• Internal memory stores up to 5000 date-and-time-stamped data sets.
• Integrated data logger with adjustable sampling time.

Features

• Particulate matter (PM) channels: PM 2.5, PM 10
• Particle sizes (in micrometers): 2.5 µm, 10 µm
• Temperature measuring range: 0 - +50 °C / +32 - +122 °F
• Humidity measuring range: 0 - 100 % RH
• 2" full-color LCD with user-friendly graphics
• 220 x 176 pixel display resolution
• Displays temperature in degrees Celsius (°C) or Fahrenheit (°F)
• Powered by rechargeable battery or AC power (via USB port)
• Portable handheld design for indoor air quality (IAQ) monitoring in the field and on the go
• Includes a stand for attaching to the thread on the back of the device
• Features an internal memory for storing up to 5000 data sets
• Saved data is stamped with the time and date
• Takes measurements even while the battery is charging
• Integrated data logger with adjustable sampling time: 30 seconds, 1 minute, 2 minutes or 5 minutes
• Programmable alarm and automatic power-off battery-saving functionality

Specifications

• Display: 2" full-color LCD
• Display resolution: 220 x 176 pixels
• Power supply: Rechargeable battery or USB port
• Charging: Takes measurements even while the battery is charging
• Sampling time: Adjustable interval: 30 seconds, 1 minute, 2 minutes or 5 minutes
• Memory: Internal, stores up to 5000 date-and-time-stamped data sets
• Data interface: USB port
• Particulate matter channels: PM 2.5 / PM 10
• Particle sizes (in micrometers): 2.5 µm, 10 µm
• Particle concentrations: 0 - 2000 µg / m³
• Resolution: 1 µg / m³
• Temp. measuring range: 0 - +50 °C / +32 - +122 °F
• Accuracy: ± 1 °
• Resolution: 0.1 °
• Units: Degrees Celsius (°C) or Fahrenheit (°F)
• Humidity measuring range: 0 ... 100 % RH
• Accuracy:
• ± 3.5 % RH (20 - 80 % RH)
• ± 5 % RH (0 - 20 % RH / 80 - 100 % RH)
• Resolution: 0.1 % RH

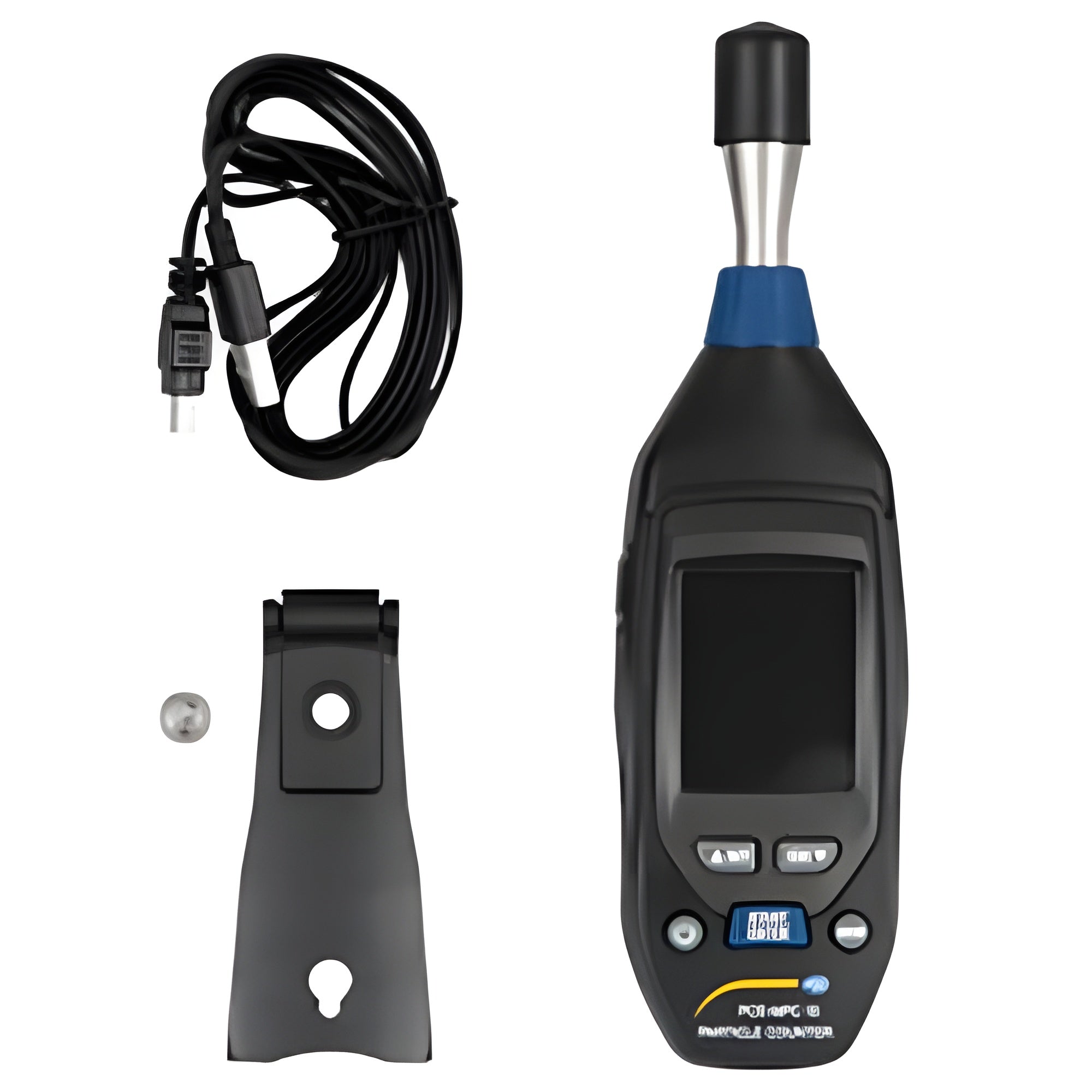

What's included

• 1 x PCE-MPC 10 air sampler
• 1 x stand
• 1 x USB cable
• 1 x user manual

What Our Experts Think

• Portable and Reliable: A compact device for real-time monitoring of particulate matter (PM) concentrations in the air, essential for indoor air quality (IAQ) assessments.

• Dual Power Options: Operates on a rechargeable battery or USB power, with the added benefit of being able to continue taking measurements while charging.

• Comprehensive Monitoring: Measures not only particulate matter but also air temperature and relative humidity (RH), providing a complete air quality profile.

• Data Logging and Storage: Features an integrated data logger, storing up to 5,000 date-and-time-stamped data sets for detailed tracking of air quality over time.

• Adjustable Sampling Times: Offers sampling intervals of 30 seconds, 1 minute, 2 minutes, or 5 minutes, allowing for flexible data collection.

Q&A

Q: What does the PCE MPC 10 measure?
A: It measures particulate matter (PM) concentrations in the air, as well as air temperature and relative humidity (RH).

Q: What is the purpose of the device?
A: The PCE MPC 10 is ideal for indoor air quality (IAQ) assessments, helping monitor airborne particles and environmental conditions.

Q: How does the device work?
A: It features an integrated data logger and offers adjustable sampling times of 30 seconds, 1 minute, 2 minutes, or 5 minutes. It stores up to 5,000 data sets, complete with date and time stamps.

Q: How is the device powered?
A: The PCE MPC 10 can be powered by a rechargeable battery or via USB port. The USB port is also used for charging while measurements continue without interruption.

Q: Can it store measurement data?
A: Yes, it can store up to 5,000 measurements in its internal memory for later analysis.

Maintenance Tips

• Particulate Matter Measurement: Monitors PM concentrations in the air, helping assess air quality in environments such as offices, clean rooms, and industrial settings.

• Additional Measurements: Tracks air temperature and relative humidity (RH) for comprehensive environmental monitoring.

• Rechargeable Battery & USB Powered: Can operate continuously even while charging via USB, ensuring uninterrupted measurements during long-term use.

• Data Logging: Equipped with a built-in data logger that records up to 5,000 date-and-time-stamped data sets, providing valuable insights for air quality tracking and analysis.

• Adjustable Sampling Intervals: Offers sampling time options of 30 seconds, 1 minute, 2 minutes, or 5 minutes for flexible monitoring.
