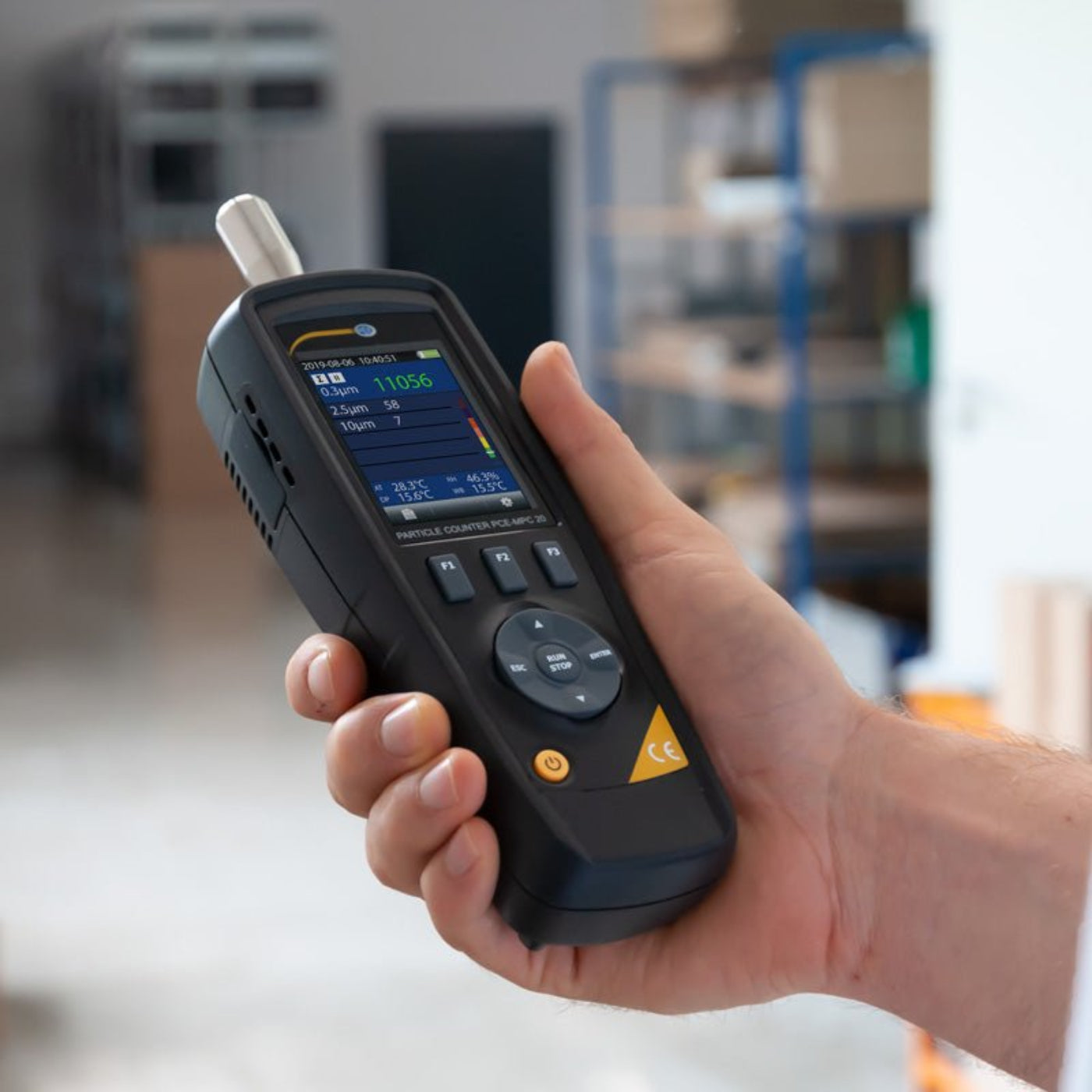

The PCE MPC 20 Particle Counter Air Sampler measures particles in the air, with detectable sizes of 0.3, 2.5, and 10 µm. In addition to counting particles, this device also measures mass concentrations of PM2.5 and PM10. Equipped with a high-performance built-in pump, it ensures an adequate flow rate for dust measurement. Furthermore, the dust meter can also monitor temperature, humidity, and dew point.

The measured values ??can be read directly on the display of the dust measuring device. Data storage is also possible with the dust measuring device in order to analyze the measured values ??after a measuring process. The battery used ensures a mobile application. This allows a mobile continuous operation of about 4 hours. A dust measuring device is used wherever a possible health hazard due to fine dust could occur. These include pollution from incineration, manufacturing, energy production, vehicle engine emissions, and the pollution that the construction industry generates.

Highlights

• Dust measuring device
• For the measurement of pollutant content of the atmosphere
• With data memory
• USB interface
• Mass concentration
• Particle counter

Features

• Mass concentration PM2.5 / PM10
• Data memory up to 5,000 data sets
• Flow rate 2.83 l / min

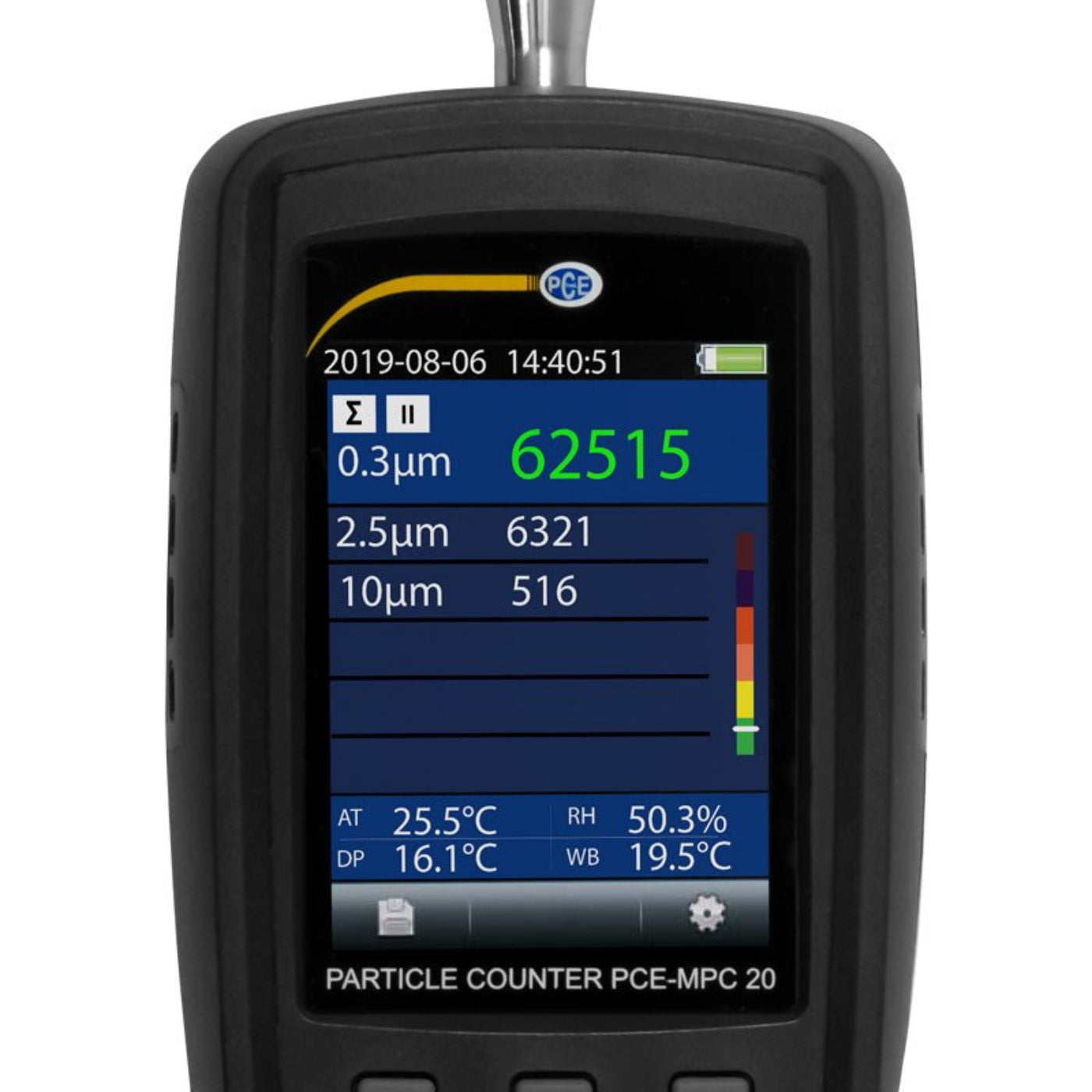

• Display with graphic real-time diagram
• Battery or AC operation possible
• Alarm function

Specifications

Specifications - Mass Concentration

• Measurable particle sizes: PM2.5 / PM10
• Measuring range mass concentration: 0 - 2000 µg / m³
• Resolution: 1 µg / m³


Specifications - Particle counter

• Measurable particle sizes: 0.3, 2.5 and 10 µm
• Flow rate: 2.83 l / min (0.1 ft³)
• Coincidence error: < 5% at 2,000,000 particles per ft³
• Counting efficiency:
• 50% at 0.3 µm;
• 100% with particle size > 0.45 µm
• Counting modes: Cumulative, differential, concentration


Specifications:

• Measuring range air temperature: 0 - 50°C / 32 - 122°F
• Measuring range dew point temperature: 0 - 50°C / 32 - 122°F
• Measuring range relative humidity: 0 - 100%
• Measuring accuracy air temperature: 10 - 40°C / 50 - 104°F: ± 1.0°C / 1.8°F. Others: ± 2.0°C / 3.6°F
• Measuring accuracy dew point temperature: 10 - 40°C / 50 - 104°F: ± 1.0°C / 1.8°F. Others: ± 2.0°C / 3.6°F
• Measuring accuracy relative humidity
• 0 - 20% rel. Humidity: ± 5%
• 20 - 80% rel. Humidity: ± 3.5%
• 80 - 100% rel. Humidity: ± 5%
• Operating conditions: 0 - 50°C / 32 - 122°F, 10 ... 90% rel. humidity, Not condensing.
• Storage conditions: -10 - 60°C / 14 - 140°F, 10 ... 90% rel. humidity, Not condensing.
• Data storage: 5,000 data sets (Micro SD card)
• Display
• 2.8", 320 x 240 pixels
• Backlit color LCD
• Power supply: Rechargeable battery 1200-mAh, 7.4V

• Charger: 100 - 240 VAC, 50 or 60 Hz
• Battery Life: About 4 hours in continuous operation
• Battery recharge time: About 2 hours with AC adapter
• Dimensions: 240 x 75 x 57 mm / 9.4 x 3 x 2.2 in
• Weight: 570 g / 1.3 lbs

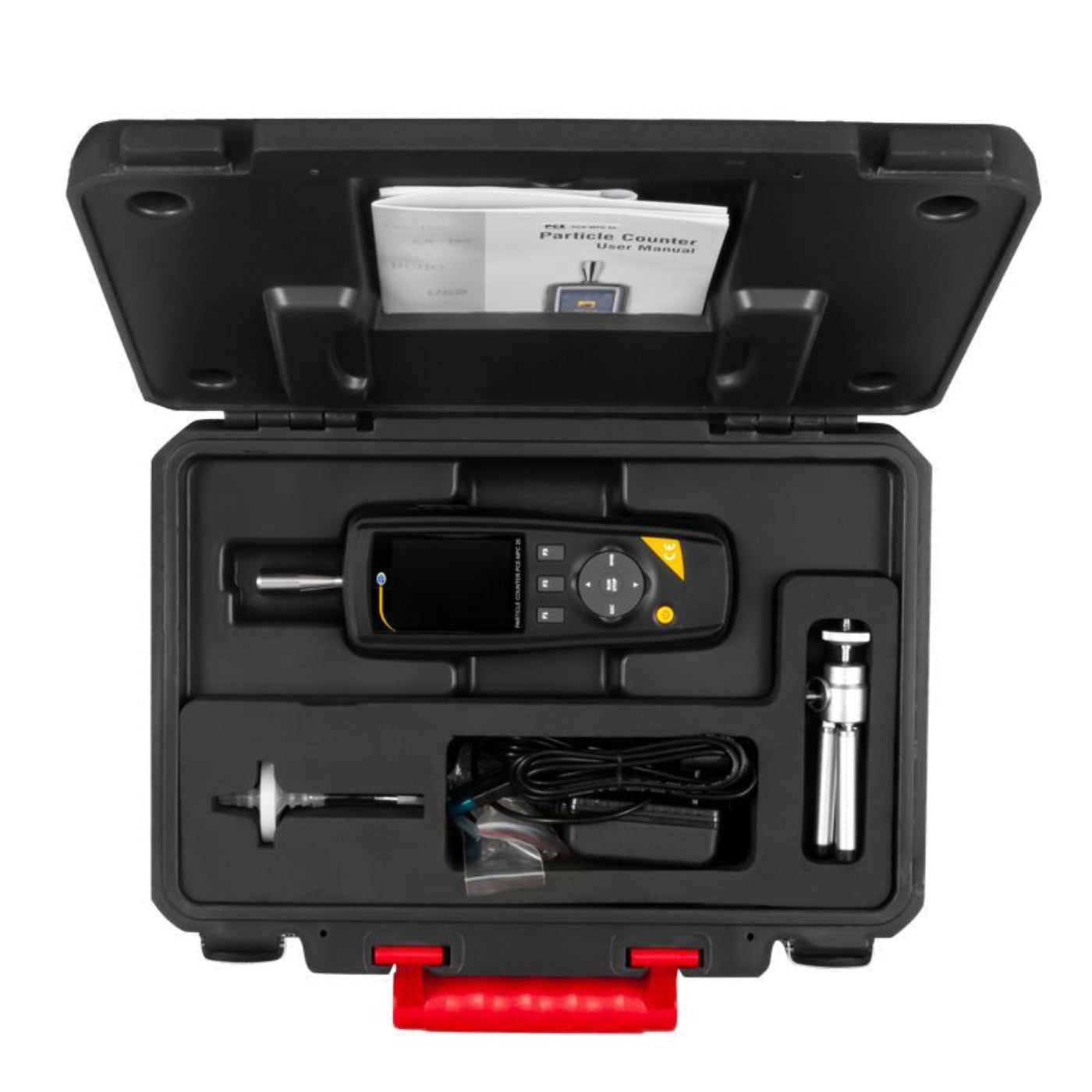

What's included

• 1 x Air sampler PCE-MPC 20
• 1 x Zero filter
• 1 x Battery
• 1 x Charger
• 1 x USB cable
• 1 x Mini tripod
• 1 x Hard case
• 1 x User manual

Manual

PCE-MPC 20 User Manual

PCE-MPC 20 Data Sheet

What Our Experts Think

• Comprehensive Air Quality Monitoring: Measures particle sizes (0.3, 2.5, and 10 µm) and mass concentrations (PM2.5 & PM10), providing a complete picture of airborne particulate matter.

• Built-In Pump: High-performance pump ensures a consistent flow rate for accurate and reliable dust measurement, even in demanding environments.

• Multi-Parameter Measurement: In addition to particles, it monitors temperature, humidity, and dew point, making it ideal for comprehensive environmental assessments.

• Real-Time Results: Provides immediate insights into air quality, making it essential for cleanrooms, industrial settings, and environmental monitoring.

• User-Friendly Design: Compact, portable, and easy to use, allowing for quick deployment in a variety of applications.

• Versatile Applications: Suitable for cleanrooms, laboratories, and workplaces where air quality and particulate control are critical.

Q&A

Q: What particle sizes can the PCE MPC 20 detect?
A: It detects particles in the air at sizes of 0.3 µm, 2.5 µm, and 10 µm.

Q: What additional measurements does the PCE MPC 20 provide?
A: Besides particle counting, it measures PM2.5 and PM10 mass concentrations, as well as monitoring temperature, humidity, and dew point.

Q: What makes the PCE MPC 20 reliable for air quality monitoring?
A: It is equipped with a high-performance built-in pump to ensure sufficient flow rate for precise dust measurement.

Q: Where can the PCE MPC 20 be used?
A: It's ideal for monitoring air quality in environments like clean rooms, factories, or laboratories.

Q: Why is the PCE MPC 20 valuable for air quality assessments?
A: It provides comprehensive data on particulate matter and environmental conditions, helping to ensure safe and compliant air quality.

Maintenance Tips

• Clean the air inlet regularly with compressed air or a soft brush to prevent particle buildup.

• Calibrate periodically to maintain accurate particle and mass concentration readings.

• Check the pump for any obstructions and ensure smooth airflow for consistent measurements.

• Inspect and replace filters when needed, as per manufacturer guidelines.

• Store in a dry, dust-free environment to protect the device from external contaminants.

• Monitor battery status and recharge or replace as necessary for uninterrupted operation.
