PCE MPC 30 Partical Counter Air Sampler - PCE-MPC 30

PCE MPC 30 Partical Counter Air Sampler - PCE-MPC 30

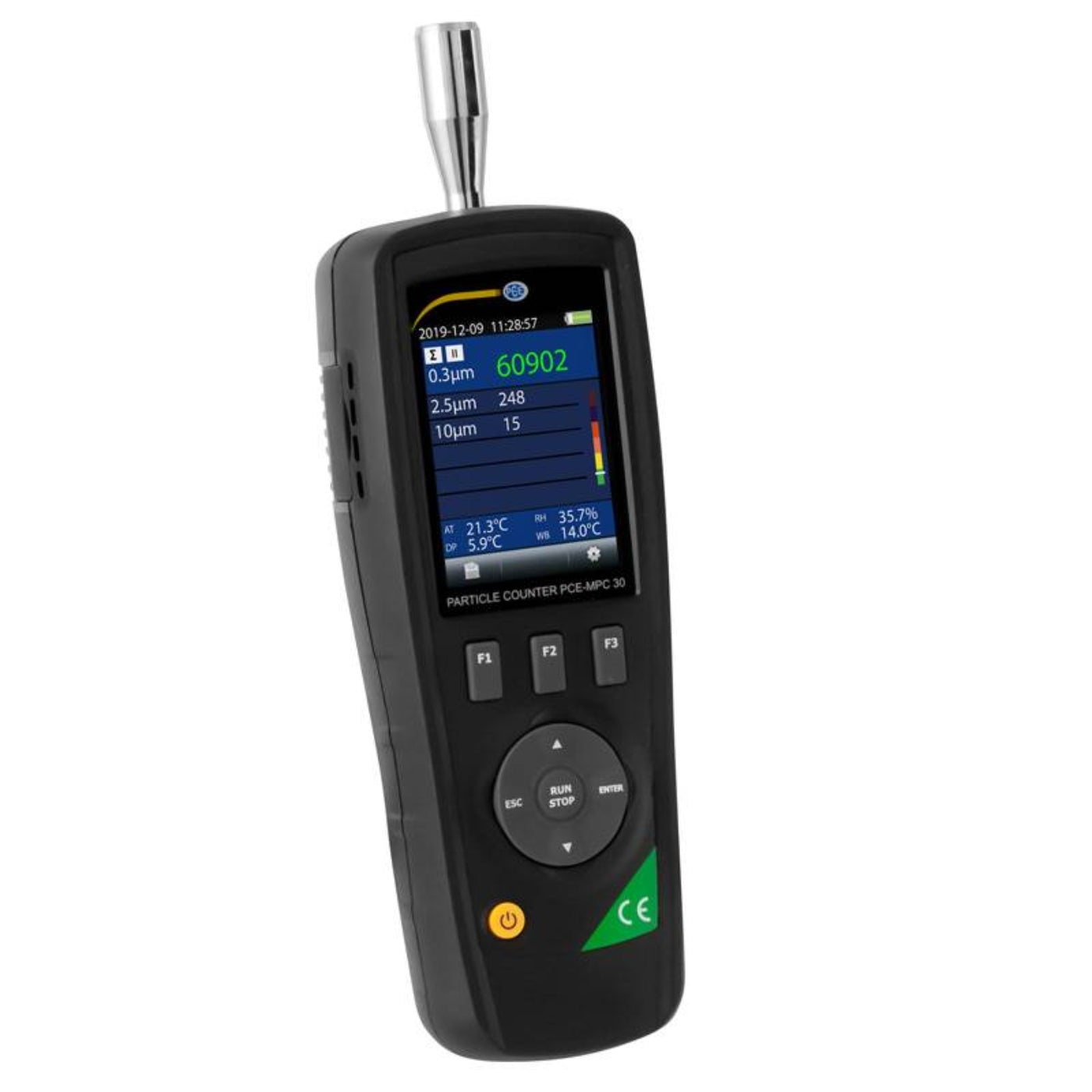

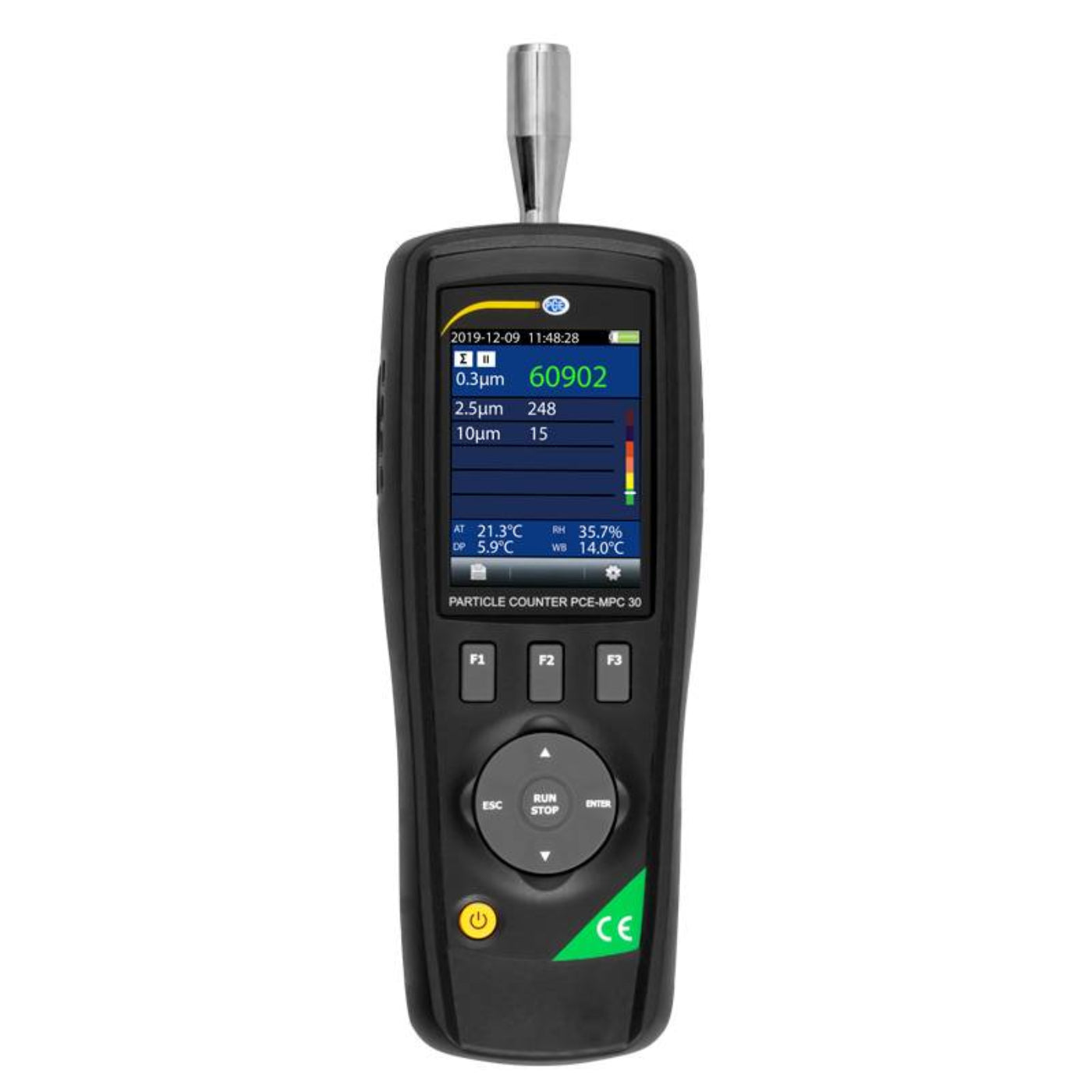

The PCE MPC 30 Particle Counter Air Sampler allows for the measurement of particle quantities in sizes of 0.3, 2.5, and 10 µm. In addition to counting particles, this air sampling device also measures the PM 2.5 and PM 10 mass concentrations. The mass concentration indicates the weight of the particles per cubic meter of air.

In addition to particle measurement, this Device can also determine the formaldehyde content in ppm. During this HCHO measurement, the temperature, the ambient humidity and the dew point are determined and displayed by the Air Sampling Device. As a further important property, the Air Sampling Device can also store data. It is therefore possible with the Air Sampling Device to evaluate all measured values after a measurement.

Features

• Particle counter, HCHO, temperature measurement
• Measured value recording for later analyzes

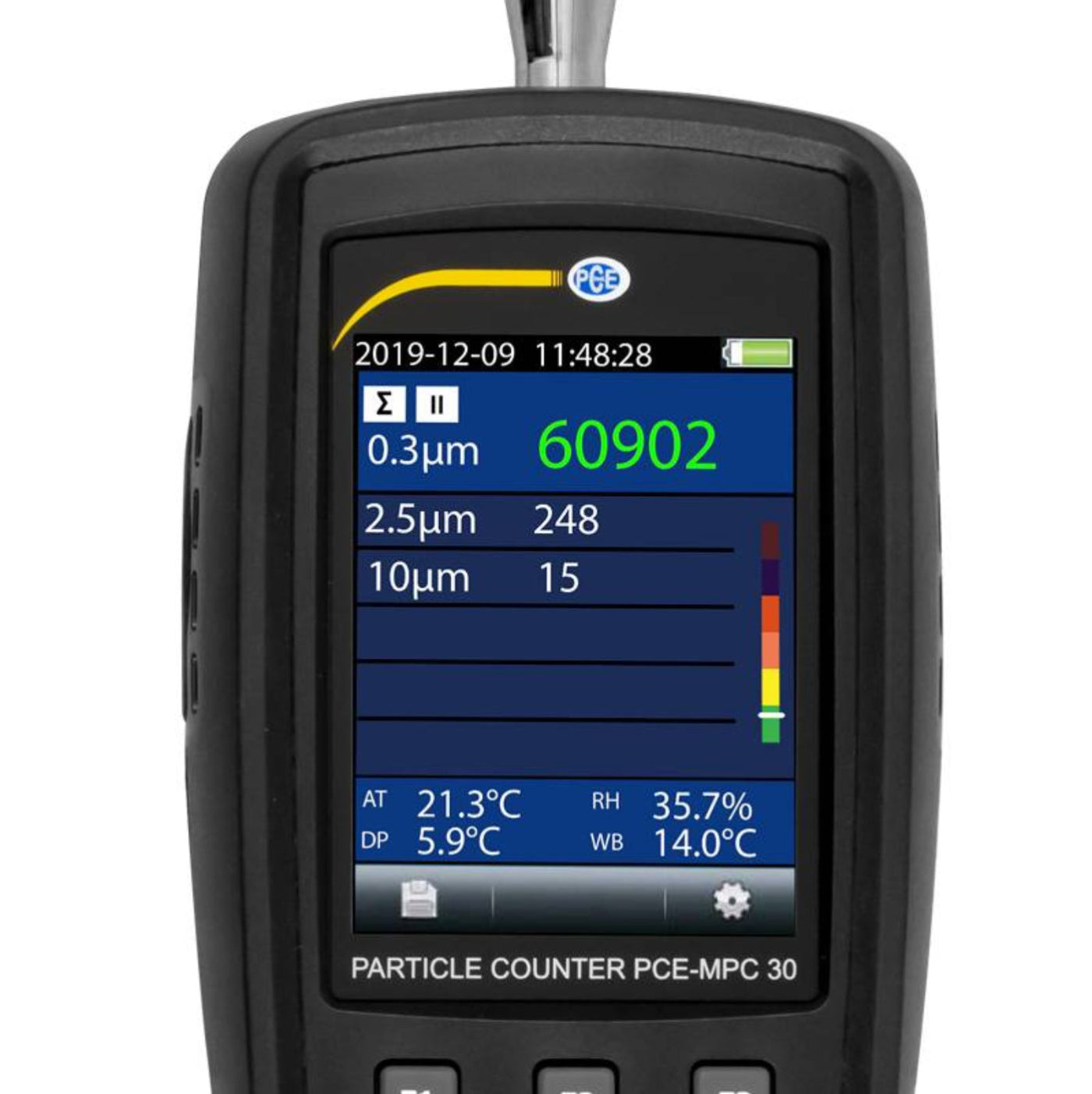

• Large 2.8 "LC display, 320 x 240 pixels
• Mass concentration PM 2.5 and PM 10
• Battery for mobile use
• Dew point and wet bulb temperature

Specifications

What's included

• 1 x Air Sampling Device PCE-MPC 30
• 1 x zero filter
• 1 x battery
• 1 x charger
• 1 x mini USB cable
• 1 x mini tripod
• 1 x hard case
• 1 x instruction manual

Manual

PCE-MPC 30 User Manual

PCE-MPC 30 Data Sheet

What Our Experts Think

• Dual Functionality: Measures both particle count (0.3, 2.5, and 10 µm) and mass concentration (PM 2.5 & PM 10) for comprehensive air quality analysis.

• Real-Time Monitoring: Delivers immediate insight into air cleanliness—essential for cleanrooms, HVAC systems, and environmental testing.

• Accurate Mass Concentration: Provides particle mass per cubic meter, helping assess exposure risks in occupational and public health settings.

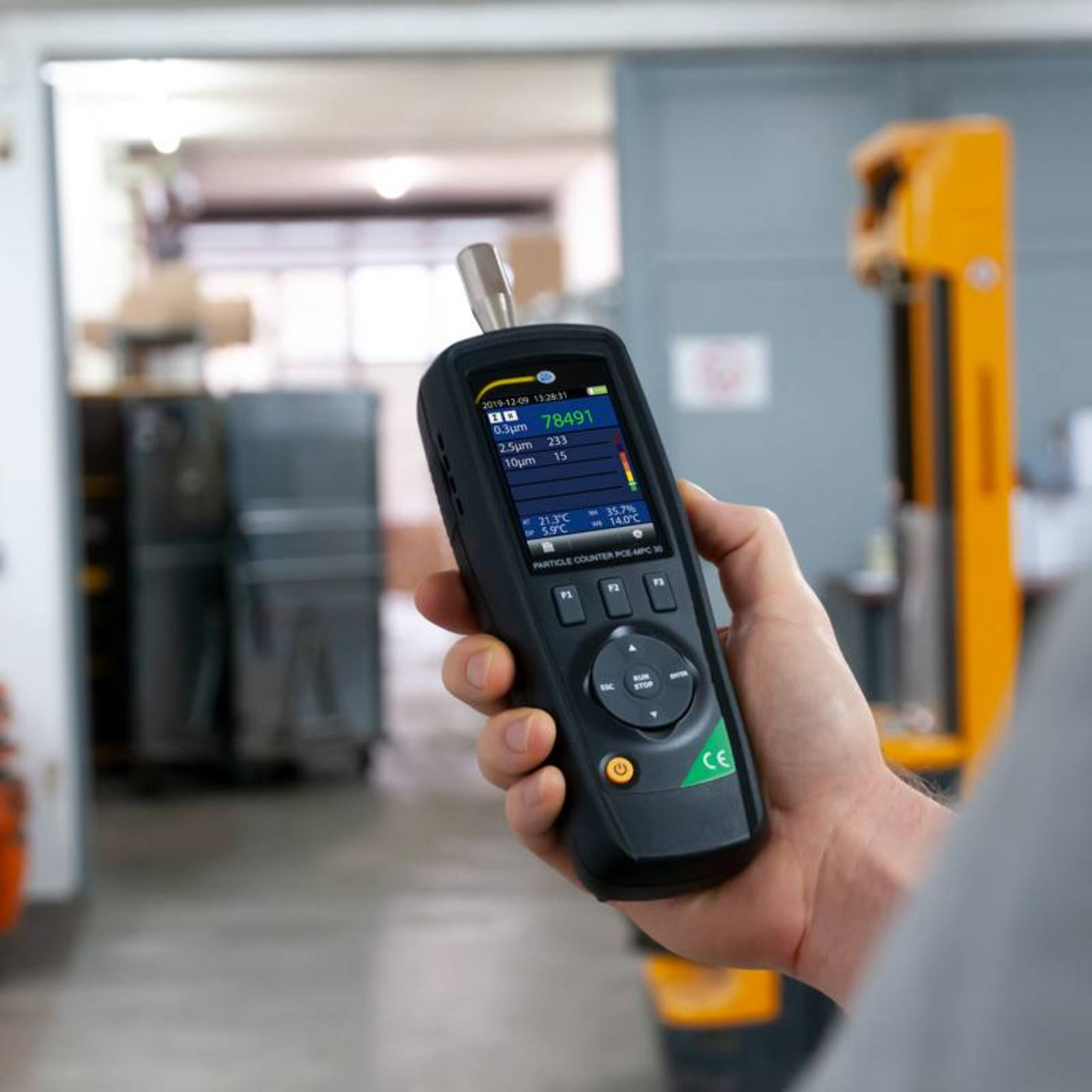

• Compact & Portable: Lightweight design makes it easy to carry for spot-checks or field measurements.

• Ideal for Air Quality Compliance: A vital tool for ensuring environments meet air quality standards in labs, production areas, or public spaces.

• Straightforward Operation: Intuitive controls and display allow for fast, user-friendly measurements with minimal training required.

Q&A

Q: What does the PCE MPC 30 measure?
A: It measures airborne particle counts in sizes of 0.3 µm, 2.5 µm, and 10 µm, as well as PM2.5 and PM10 mass concentrations.

Q: What is PM2.5 and PM10?
A: PM2.5 and PM10 refer to particulate matter with diameters less than 2.5 and 10 micrometers, respectively—key indicators of air quality.

Q: What is mass concentration in this context?
A: It’s the weight of particles per cubic meter of air, indicating how much particulate matter is present in the environment.

Q: Where is the PCE MPC 30 commonly used?
A: It’s used in indoor air quality assessments, HVAC maintenance, cleanroom monitoring, and environmental testing.

Q: Why is the PCE MPC 30 valuable for air monitoring?
A: It offers precise, real-time data on particle levels, helping ensure compliance with air quality standards.

Maintenance Tips

• Clean the air inlet regularly with a soft brush or compressed air.

• Avoid exposure to moisture or direct water contact.

• Calibrate periodically using recommended reference standards.

• Replace filters as specified by the manufacturer.

• Store in a clean, dry environment when not in use.

• Recharge or replace batteries to ensure uninterrupted operation.
