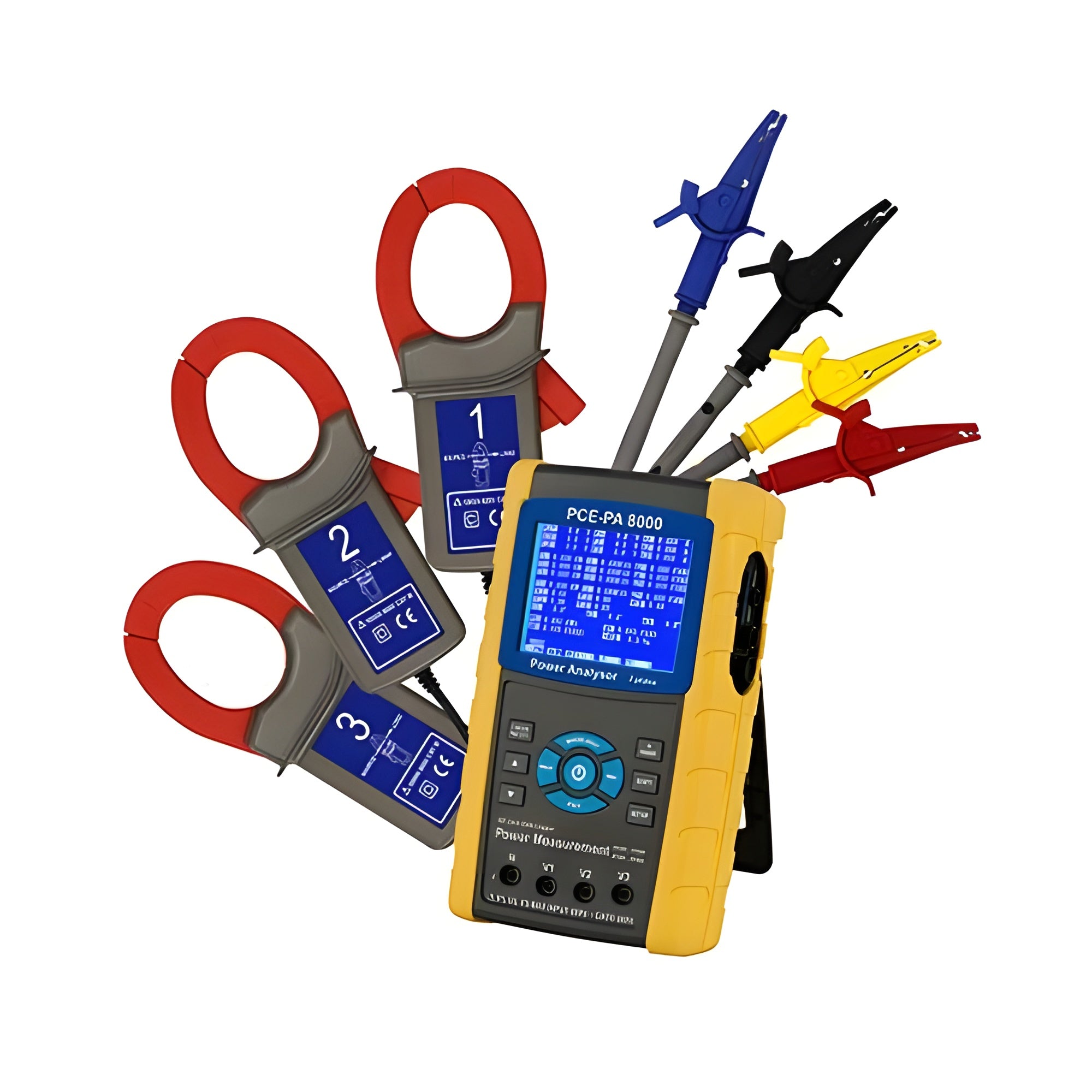

The PCE PA 8000 Clamp Meter is designed to measure and record power in both single-phase and three-phase circuits, making it ideal for extended measurements. It saves measurement data in xls format on the included SD card, allowing for easy analysis on a computer. The sample rate for measurements can be adjusted between 2 and 7200 seconds. In addition to measuring power, the PCE-PA 8000 can also determine power factor and phase angle. Its clamps accommodate cables with a diameter of up to 50 mm / 2.0 in. With its 3.7 in / 94 mm display, the PCE-PA 8000 Clamp Meter provides a clear view of current, voltage, and power, making it the perfect tool for use in power supply networks.

Highlights:

• Real time measurement
• Data logging with the SD card
• Integrated timer and calendar to record data
• Active, apparent, and reactive power

Key Features

• Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
• Measures effective real value of current and voltage
• Measures active, apparent, and reactive power
• Power Factor (PF), phase angle (F)
• Measures voltage up to 600 V
• Measures current up to 1200 A
• It meets the IEC 1010 and CAT III 600 V standards
• Integrated timer and calendar to record data
• Measured values are recorded in the included SD card
• Data is stored in Excel format for further study
• Data can be transferred to a PC through data cable

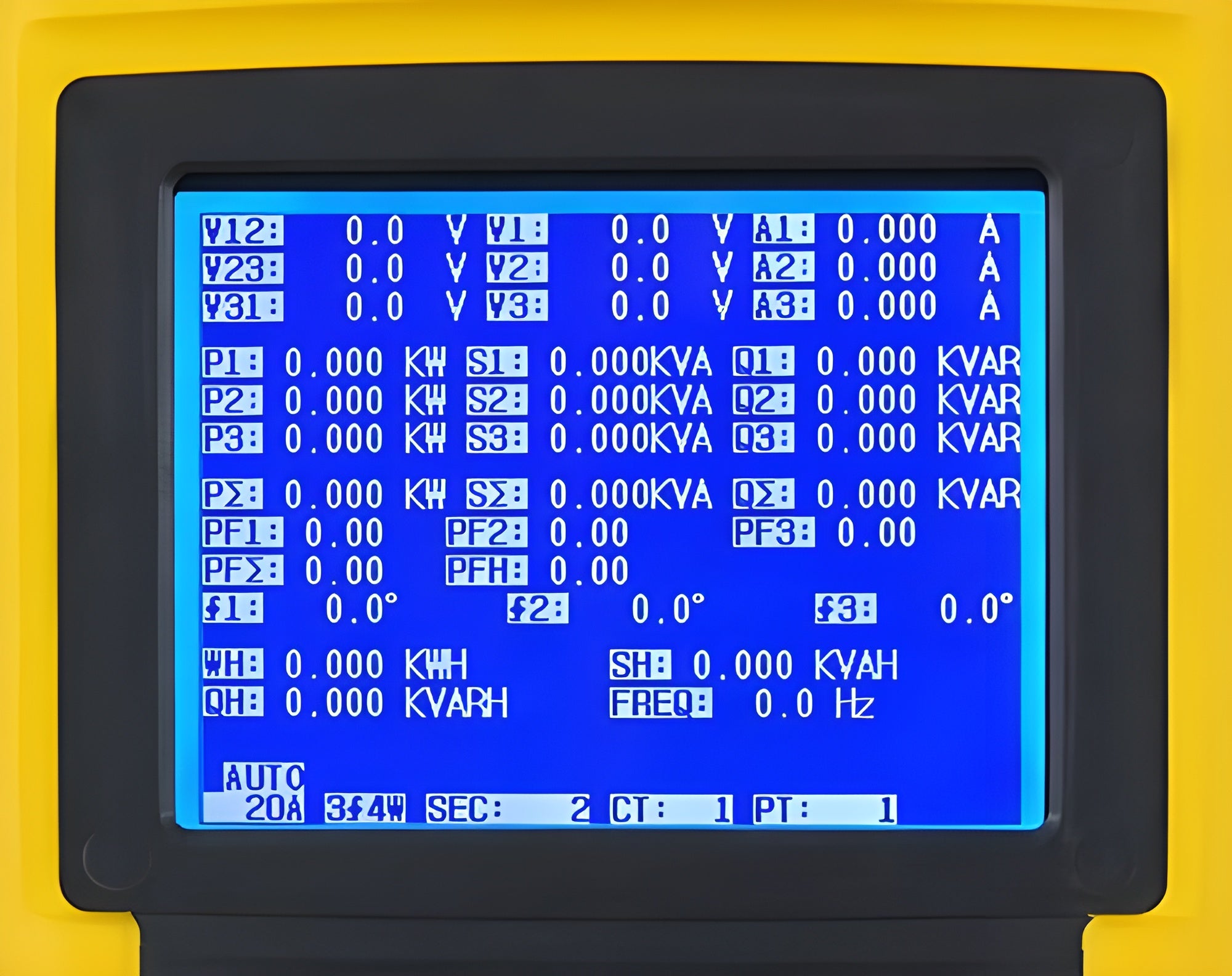

• Large 3.7 in / 94 mm LCD display

Specifications

• Display: 3.7 in / 94.0 mm LCD (320 x 240 pixels) with LED backlight
• Electrical properties: AC V, AC A, active power, apparent power, power factor, phase angle, mains frequency
• Voltage ranges: 10 V ... 600 V AC, automatic range selection
• Security / Standards: IEC1010CAT III 600V
• AC V input resistance: 10 MO
• Operation frequency of current clamps: 40 Hz ... 1 kHz
• Tested operation frequency of current clamps: 45 Hz ... 65 Hz
• Overload protection: AC V / 720 V rms
• AC A: 1300 A with current clips
• Memory: SD card up to 16 GB
• Measurement display rate: 1 second
• Data logger: SD
• Measurement sample rate: 2 seconds... 7200 seconds
• Data output: USB or RS-232, depending on the connection cable
• Operating temperature: 0º C ... 50º C / 32° F ... 122° F
• Operating humidity: < 80 % H.r.
• Power: 8 x 1.5 V AA batteries / mains component
• Input current:
• Meter: 300 mA DC
• Clamp: 34 mA DC
• Max. diameter: 50 mm / 1.9 in
• Weight
• Meter: 948 g / 33.4 oz (with batteries)
• Clamp: 467 g / 16.4 oz (with cable)
• Dimensions:
• Meter: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
• Clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
• Jaw: 86 mm / 3.3 in (exterior)

What’s Included

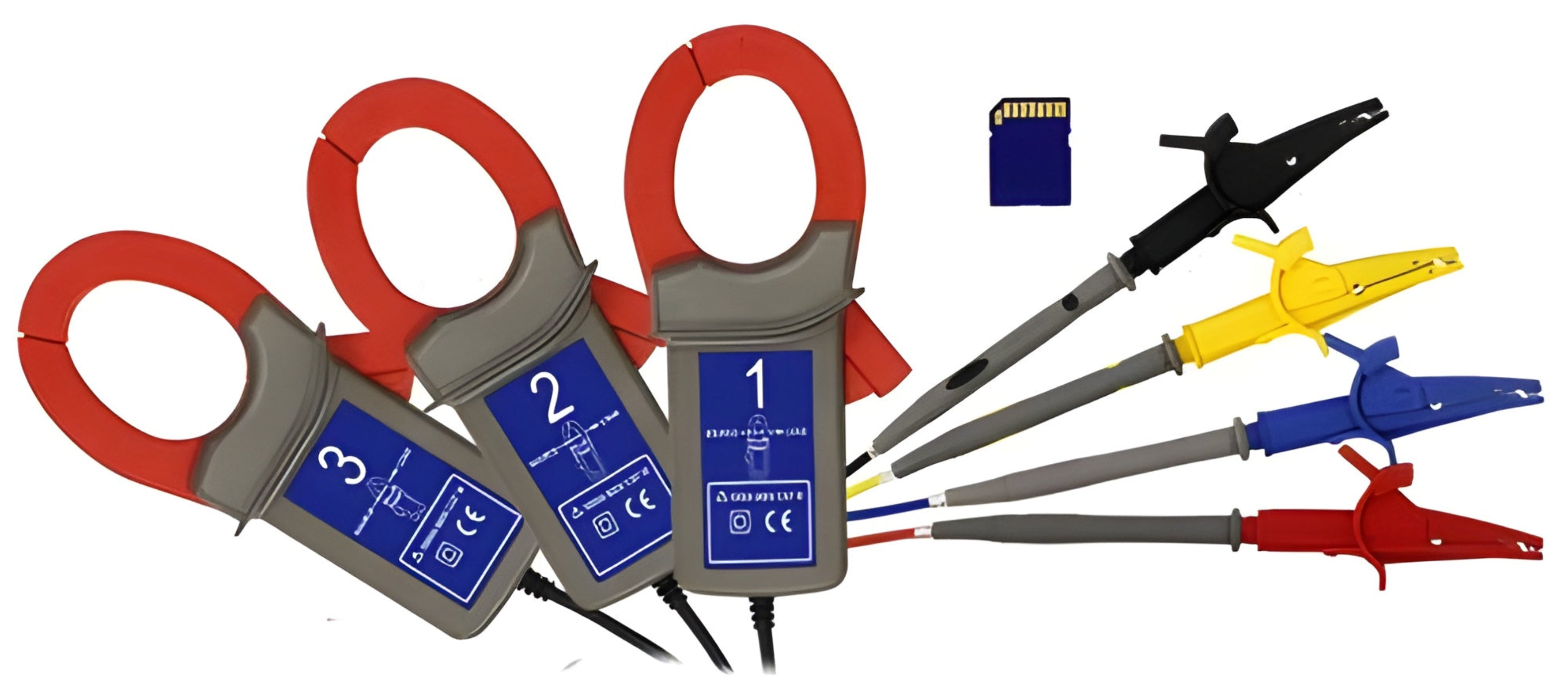

• 1 x PCE-PA 8000 Clamp Meter
• 3 x Current clamps
• 4 x Test cables
• 4 x Alligator clips
• 1 x 2 GB SD card
• 1 x 9 V DC mains component
• 8 x Batteries 1.5 V AA

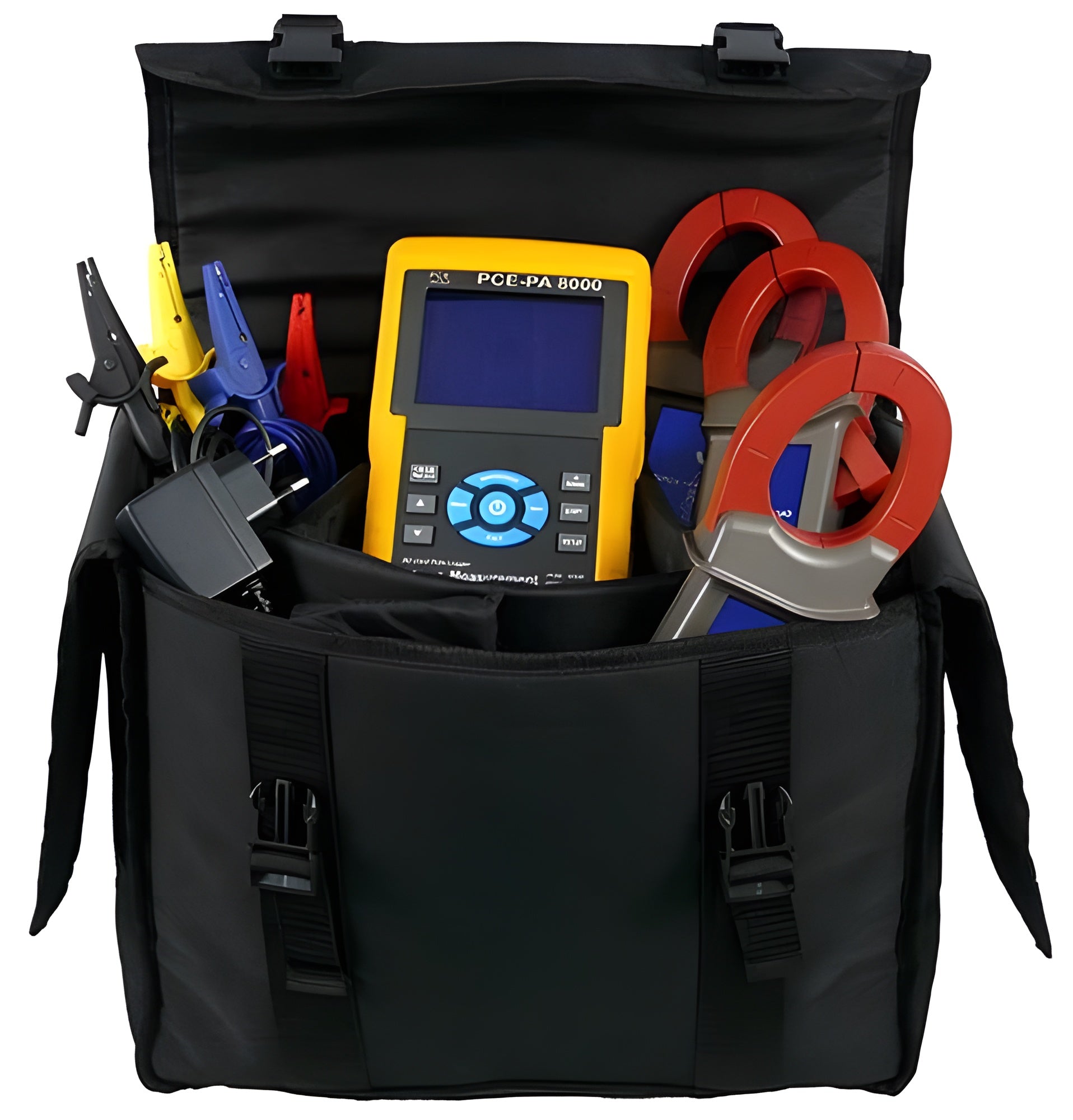

• 1 x Carrying case

Manual

PCE-PA 8000 User Manual

PCE-PA 8000 Data Sheet

What Our Experts Think

• Single & Three-Phase Monitoring: Ideal for diagnosing and tracking power in complex electrical systems, from residential to industrial.

• Data Logging to SD Card: Saves readings directly in XLS format—no special software needed, just plug and analyze.

• Adjustable Sampling Rate: Customize between 2 and 7200 seconds for short tests or long-term monitoring.

• Comprehensive Electrical Readings: Measures current, voltage, power, power factor, and phase angle for full system insight.

• Large Clamp Opening: Fits cables up to 50 mm (2.0 in) in diameter—great for thick conductors and busbars.

• Clear, Oversized Display: 3.7" screen provides easy reading of values, even in dim or crowded environments.

• Made for Field Work: Rugged design built for technicians, engineers, and facility managers working in real-world conditions.

Q&A

Q: What is the PCE PA 8000 Clamp Meter used for?
A: It’s designed to measure and record power in both single-phase and three-phase circuits—ideal for long-term monitoring in electrical systems.

Q: What data formats does the PCE-PA 8000 support?
A: Measurement data is saved in .xls format to an SD card, allowing for easy analysis on a computer without special software.

Q: Can I adjust the measurement intervals?
A: Yes, the sample rate is adjustable from 2 to 7200 seconds, offering flexibility for different monitoring needs.

Q: What additional functions does it offer?
A: Besides measuring power, it calculates power factor and phase angle—essential for evaluating energy efficiency.

Q: What cable sizes does it support?
A: The clamp can accommodate cables up to 50 mm (2.0 in) in diameter, making it suitable for industrial applications.

Maintenance Tips

• Wipe the device regularly with a dry, soft cloth; avoid moisture and harsh cleaners.

• Store in a dust-free, dry place when not in use to protect internal components.

• Check clamp jaws for debris or damage before each use.

• Inspect SD card and data ports to ensure proper logging and transfer.

• Replace batteries as needed to avoid power loss during recording.

• Update firmware if applicable for peak performance.
