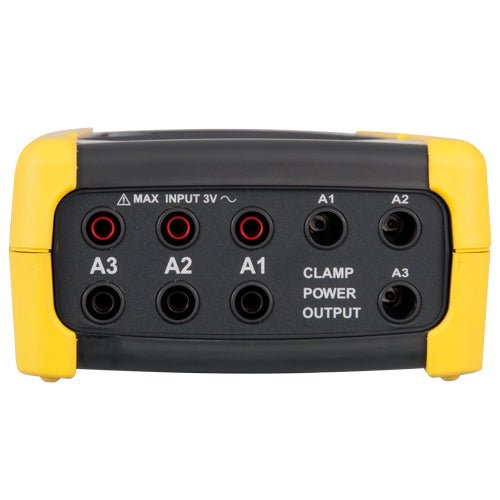

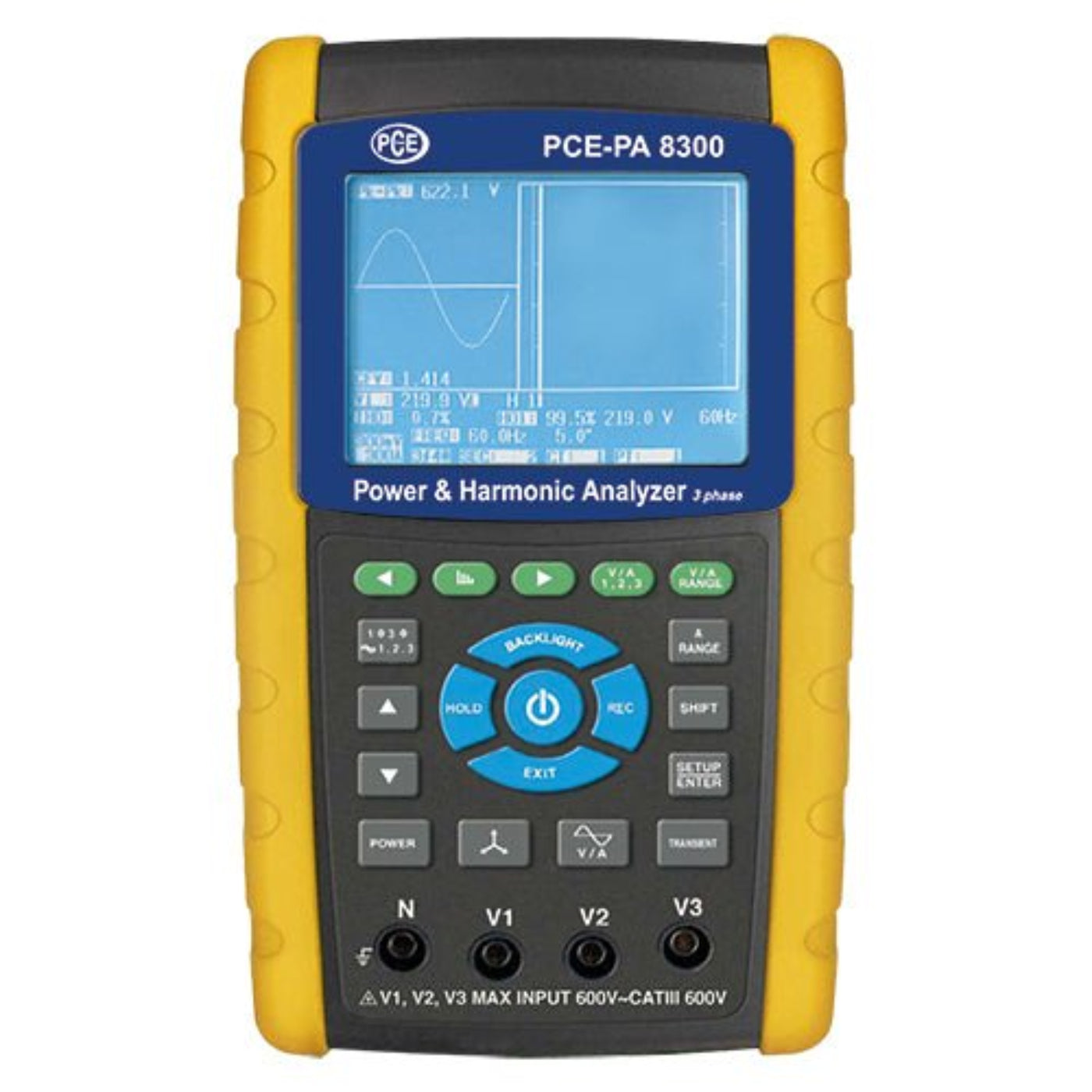

The PCE PA 8300 1 Clamp Meter (with current clamps) is designed with a sturdy enclosure, SD card memory, and an LCD graphic display. It offers measurements for apparent, effective, and reactive power. This user-friendly clamp meter is perfect for conducting power and harmonics analysis, as well as measuring network capacity.

Highlights

• 3-phase

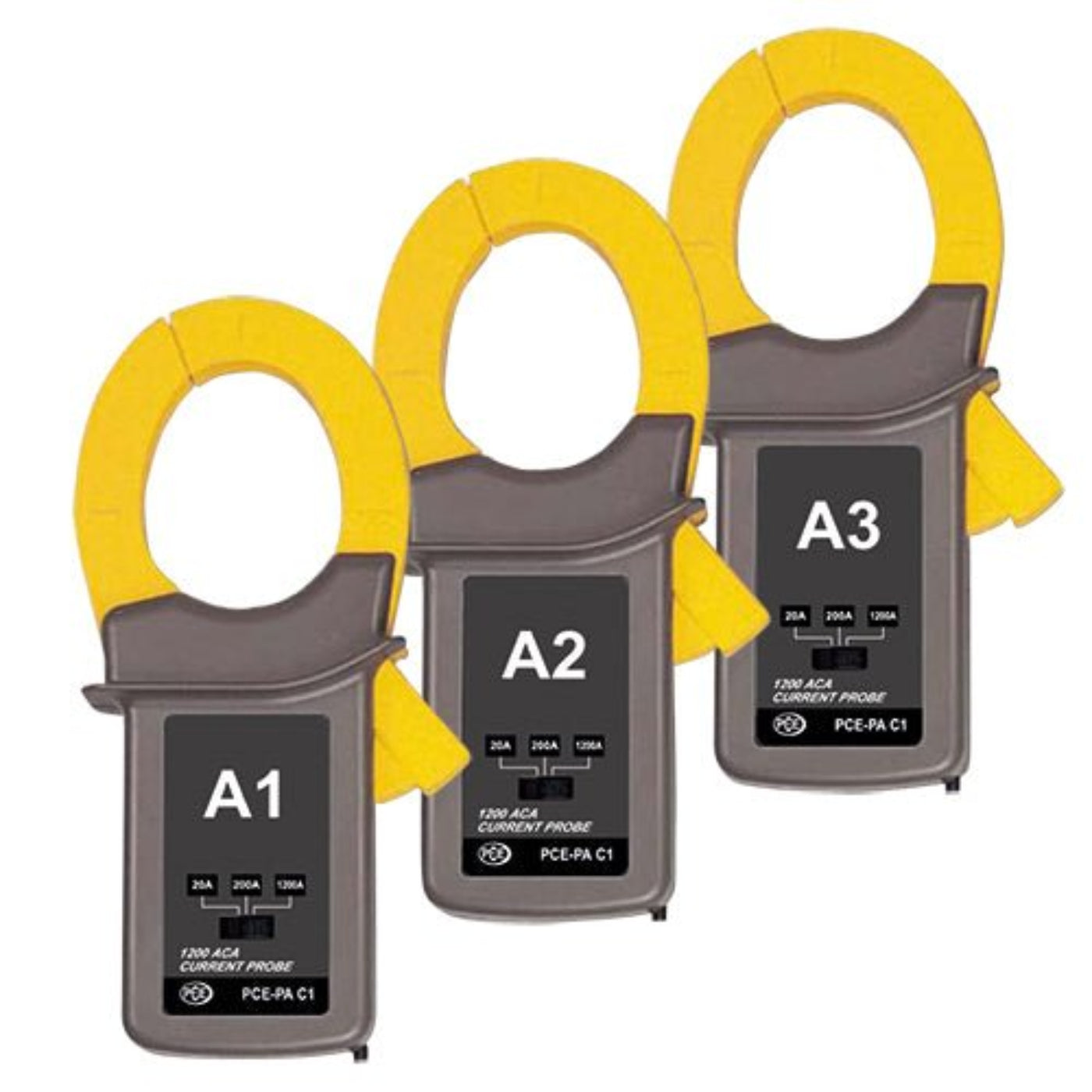

• 3 current clamps
• LCD graphic display
• SD card memory

Features

• Voltage measurement range of 10 V ... 600 V AC
• Current measurement range of 20 A ... 1200 A AC
• Performance measurement range of 0 kW ... 9.999 MW (VA/VAR)

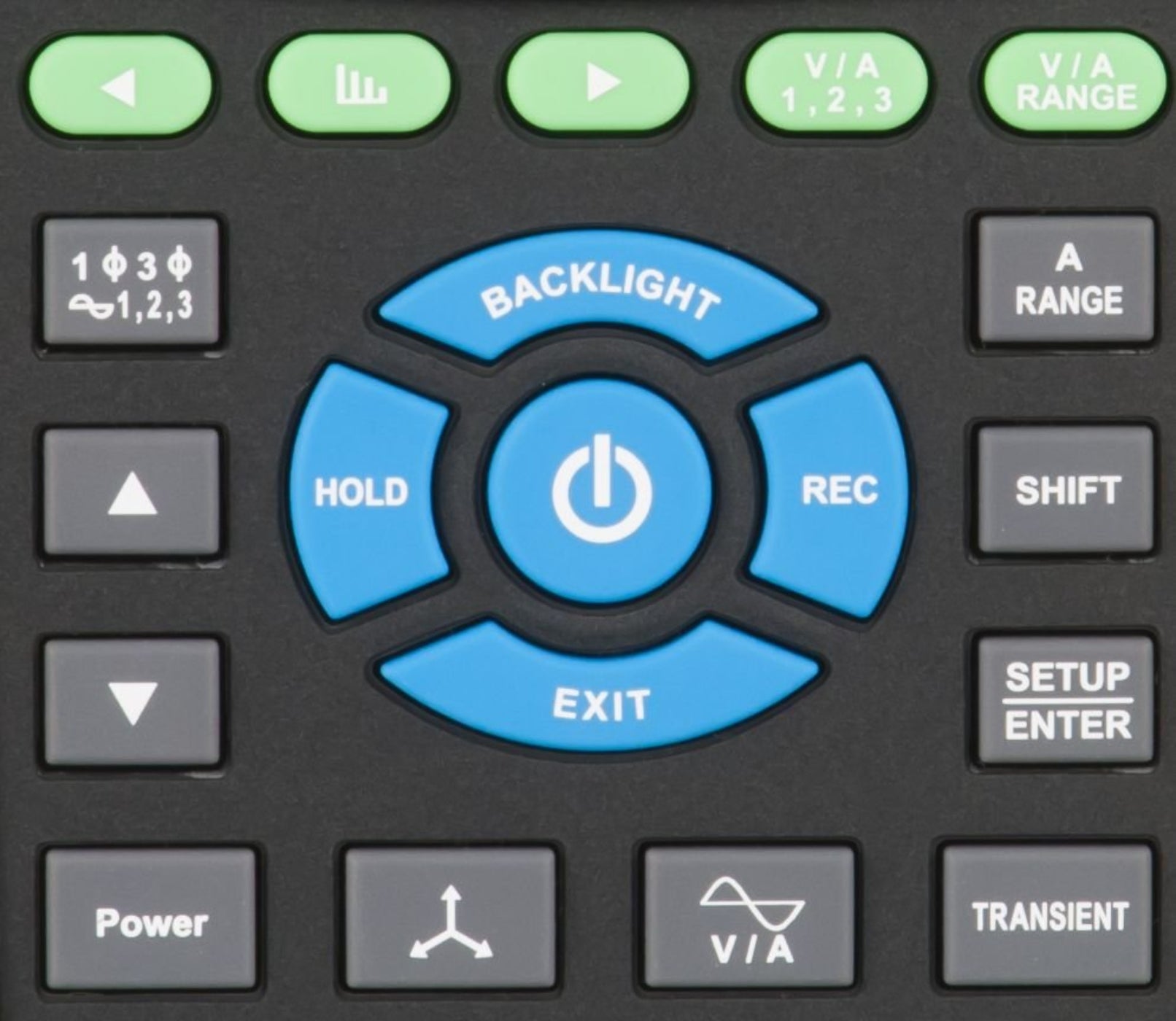

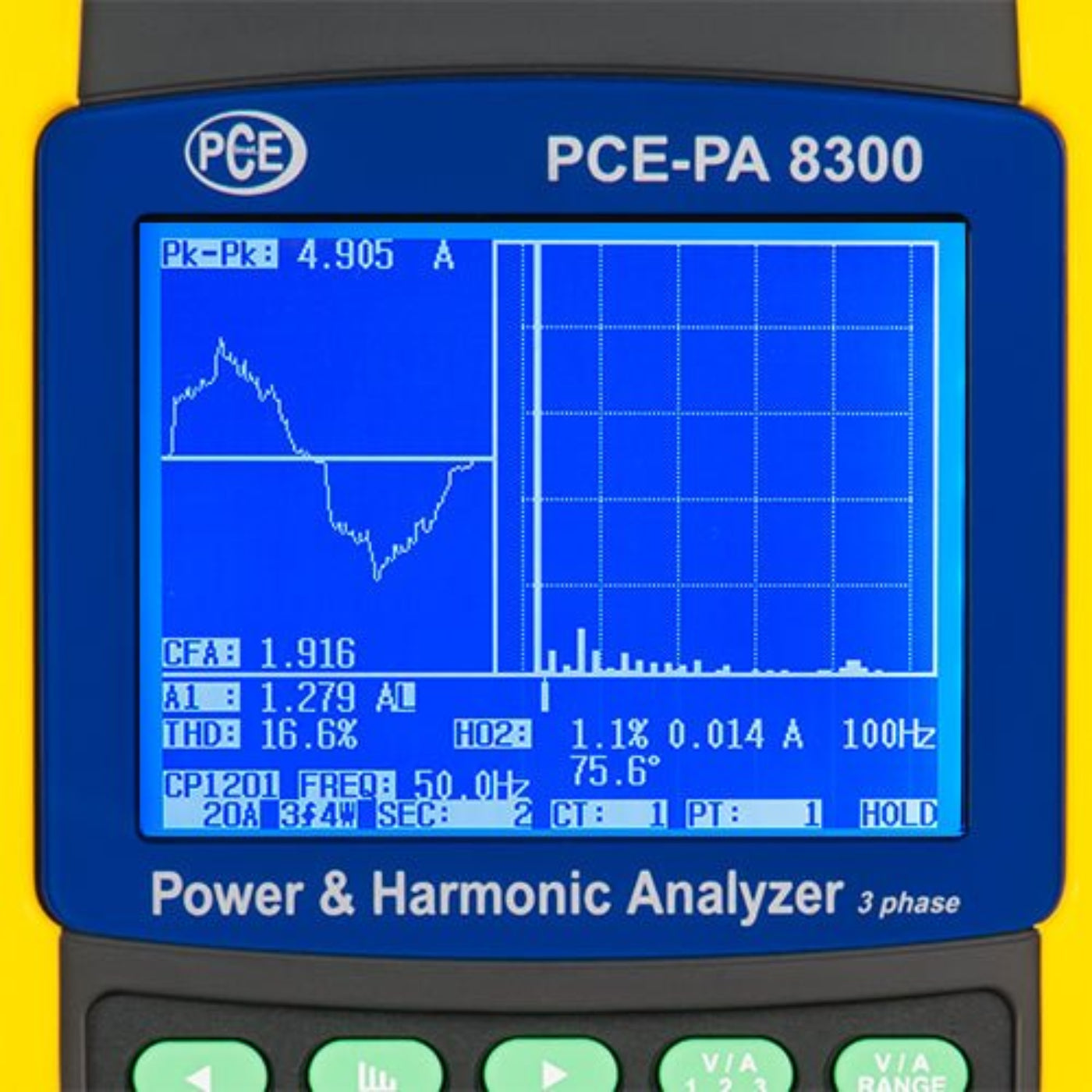

• Simultaneous display of harmonics and waveform
• Graphic Phasor diagram
• Captures transients including dip, swell, and outage
• SD card memory
• LCD graphic display
• Durable enclosure
• Compatibility with various manufacturers' power clamps
• Adjustable back-up interval, allowing for long-term data collection
• Auto-setting of measurement range (AC V)
• Power efficiency, delay angle, and frequency measurement
• Apparent, effective, and reactive power measurement
• Harmonic spectrum measurement up to the 50th order

Specifications

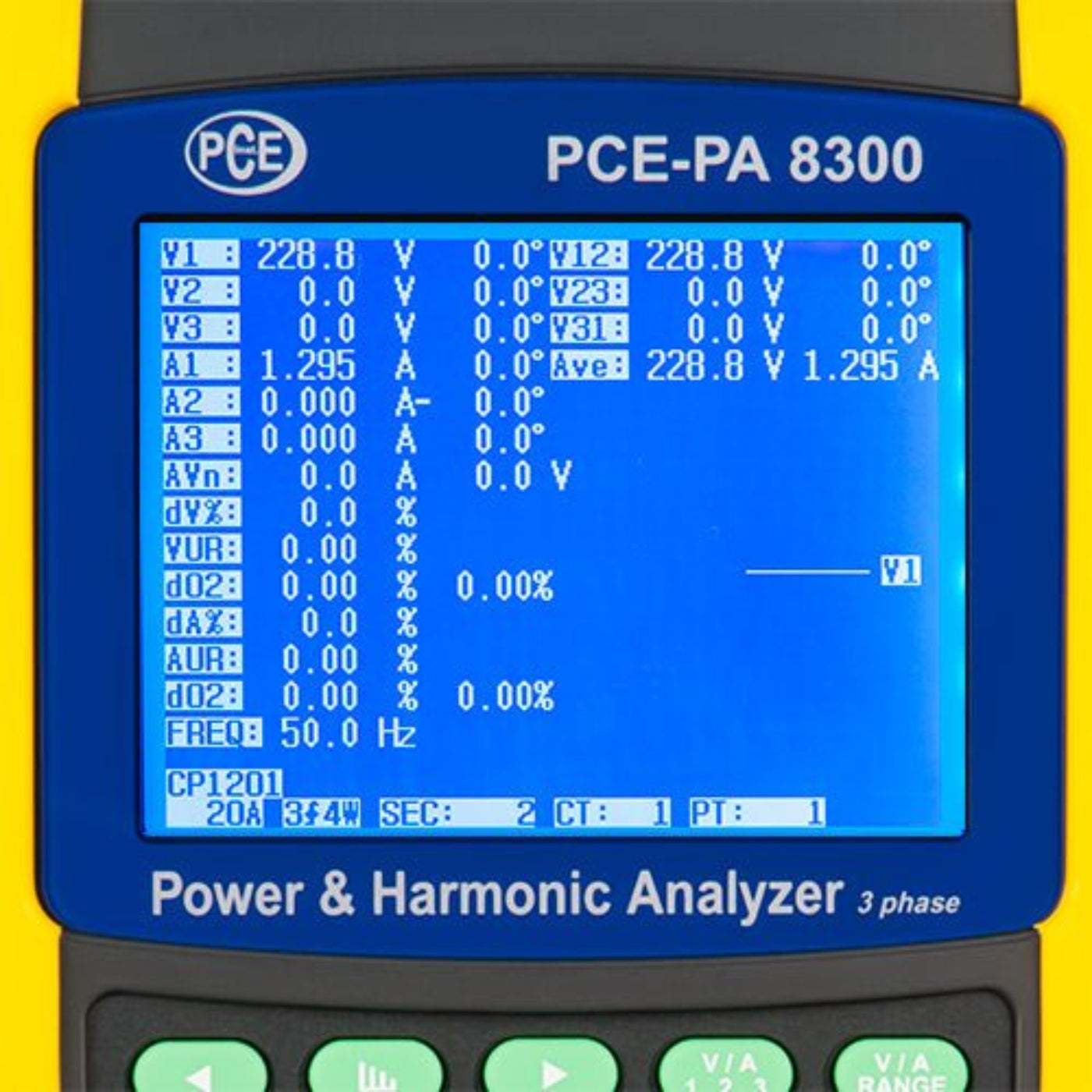

• Display: 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights
• Safety standards: IEC1010CAT III 600V
• Input resistance AC V: 10 MOhm
• Operating frequency of current clamp: 40 Hz ... 1 kHz
• Tested operating frequency of current clamp: 45 Hz ... 65 Hz
• Overload protection:
• AC V
• AC A
• 720 V RMS
• 1300 A with current clamp
• Data Storage: SD memory card
• Refresh interval: 1 second
• Data logging function: logging with real-time speed on SD memory card
• Record interval: 2 - 7200 seconds
• Data output (only for live display on computer): per USB or RS232, depending on connection cable.
• Operating temperature: 0° C ... +50° C / 32° F ... 122° F
• Surrounding humidity: < 80 % RH
• Power Supply:
• 8 x 1.5 V AA batteries
• Voltage Supply 9 V adapter
• Current Drain:
• Measurement Device: 300 mA DC
• current clamp: 34 mA DC
• Maximum Wire Diameter: 50 mm / 1.9 in
• Weight:
• Measurement Device: 948 g / 33.4 oz (incl. battery)
• Current clamp: 467 g / 16.4 oz (incl. cable)
• Dimensions:
• Device: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
• Current clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
• Clamp jaw: 86 mm / 3.3 in (exterior)

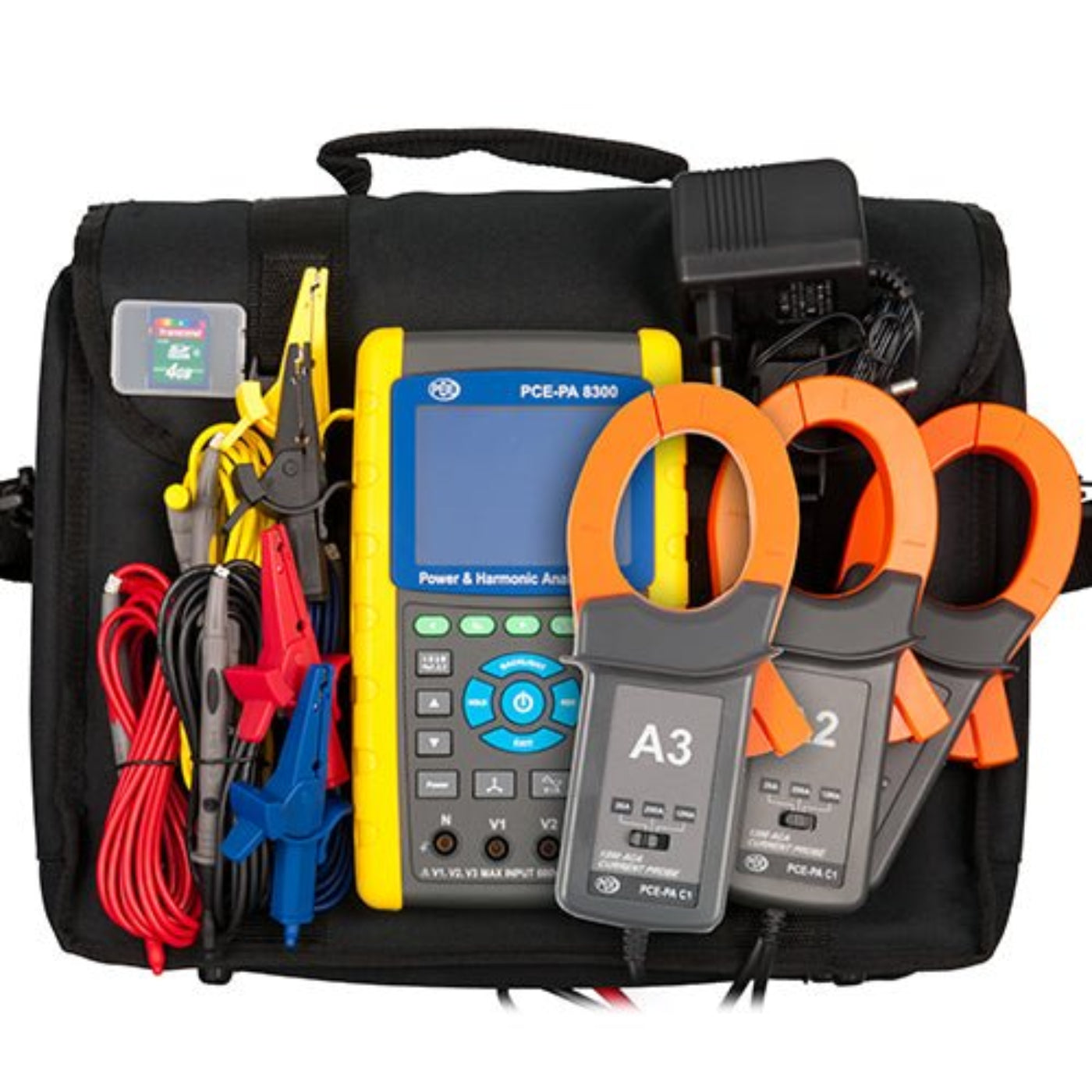

What’s Included

• 1 x PCE-PA 8300 Clamp Meter
• 3 x Current clamps (Set 1)
• 4 x Insulated alligator clips
• 4 x Safety test lines
• 6 x 1.5 V AA batteries
• 1 x 9 V mains adapter
• 1 x SD memory card
• 1 x Carrying case
• 1 x User manual

Manual

PCE-PA 8300-1 User Manual

PCE-PA 8300-1 Data Sheet

What Our Experts Think

• Comprehensive Measurement Capabilities: The PCE PA 8300 1 Clamp Meter stands out with its ability to measure apparent, effective, and reactive power, making it a versatile tool for power and harmonics analysis in various electrical systems.

• Sturdy and Reliable Design: With its durable enclosure, this clamp meter can withstand tough working conditions, making it ideal for field use in industries like electrical maintenance and energy management.

• User-Friendly Features: The inclusion of an LCD graphic display makes data interpretation easy, while the SD card memory allows for convenient data storage and transfer. This is particularly helpful for ongoing projects or long-term monitoring.

• Enhanced Efficiency: Perfect for network capacity measurements, this clamp meter ensures precise diagnostics, helping professionals quickly identify power quality issues and improve system efficiency.

• Practical for Power Analysis: Whether you’re analyzing harmonics or measuring power in industrial or commercial systems, this clamp meter is an excellent choice for maintaining optimal performance and addressing electrical system concerns.

Q&A

Q: What type of measurements can the PCE PA 8300 1 Clamp Meter perform?
A: The PCE PA 8300 1 Clamp Meter measures apparent, effective, and reactive power. It is ideal for power and harmonics analysis, as well as network capacity measurement.

Q: Does the PCE PA 8300 1 Clamp Meter have data storage capability?
A: Yes, the PCE PA 8300 1 Clamp Meter comes with SD card memory, allowing you to store measurement data for later analysis or reporting.

Q: What kind of display does the PCE PA 8300 1 Clamp Meter have?
A: It features an LCD graphic display, making it easy to read measurements and analyze results.

Q: Is the PCE PA 8300 1 Clamp Meter durable?
A: Yes, it is designed with a sturdy enclosure, making it durable and suitable for use in various industrial and electrical environments.

Q: What applications is the PCE PA 8300 1 Clamp Meter best suited for?
A: The meter is ideal for conducting power analysis, checking harmonics, and measuring network capacity, particularly in electrical systems and industrial setups.
