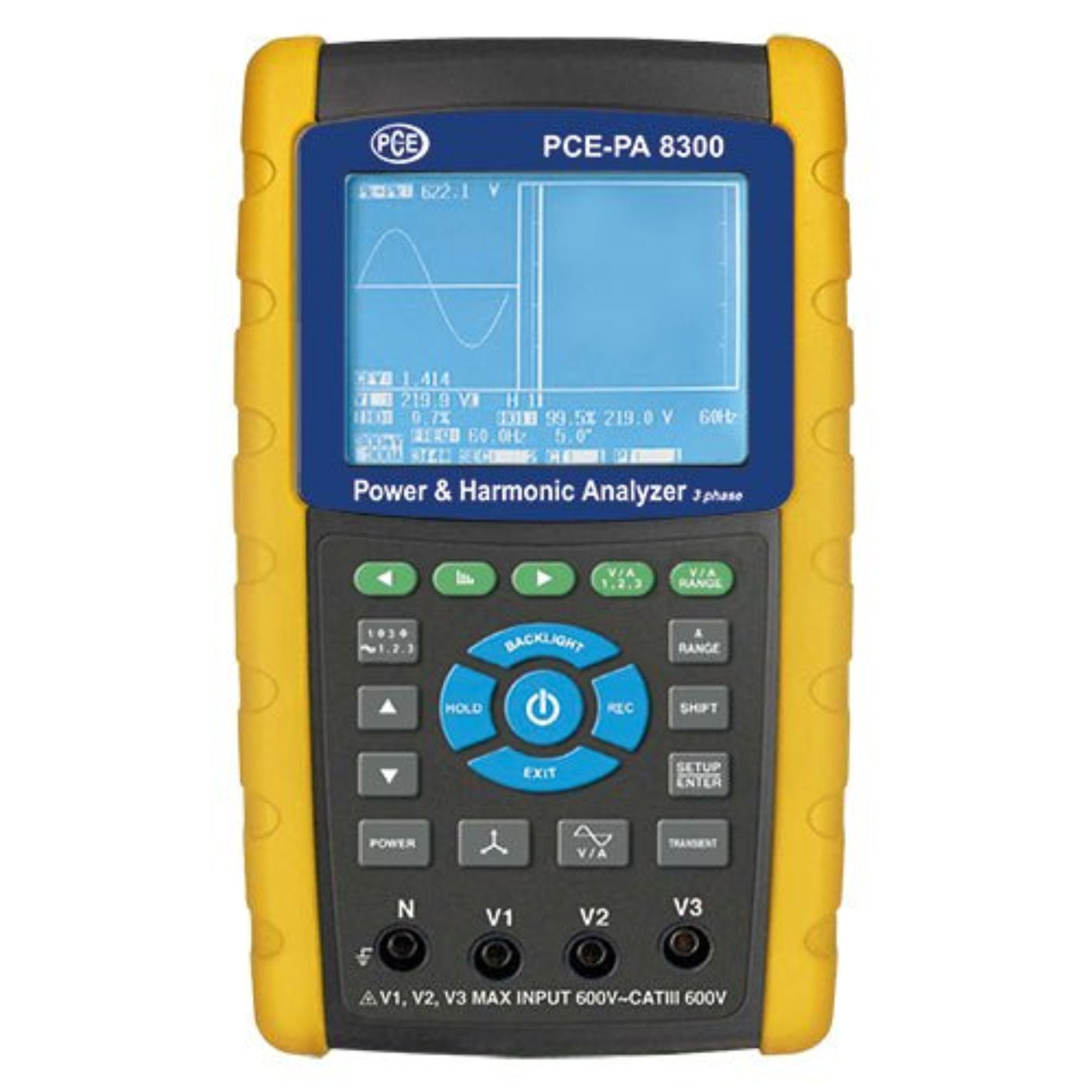

The PCE PA 8300 2 Clamp Meter (With Rogowski Coils) features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use Clamp Meter is an ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

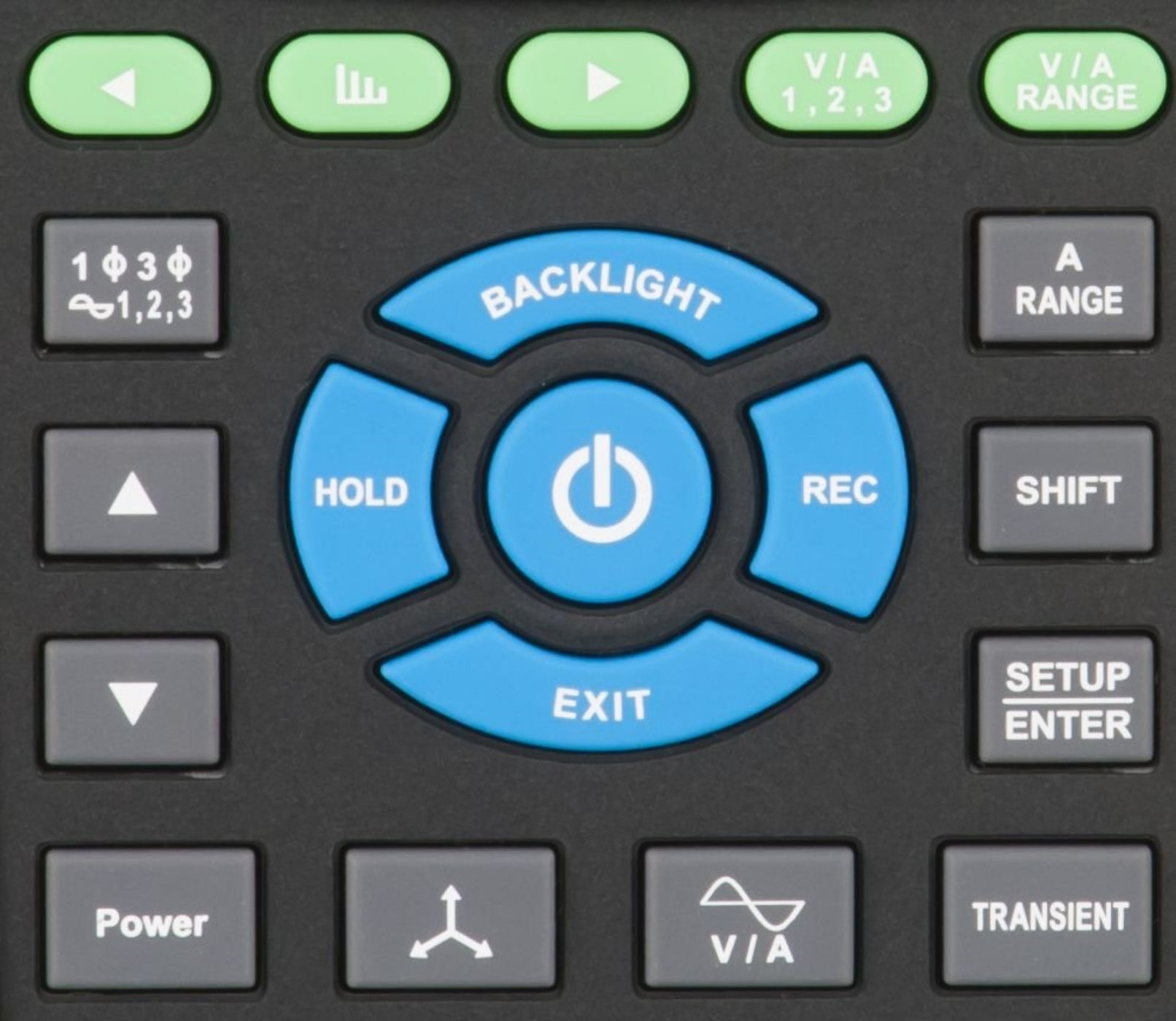

Highlights

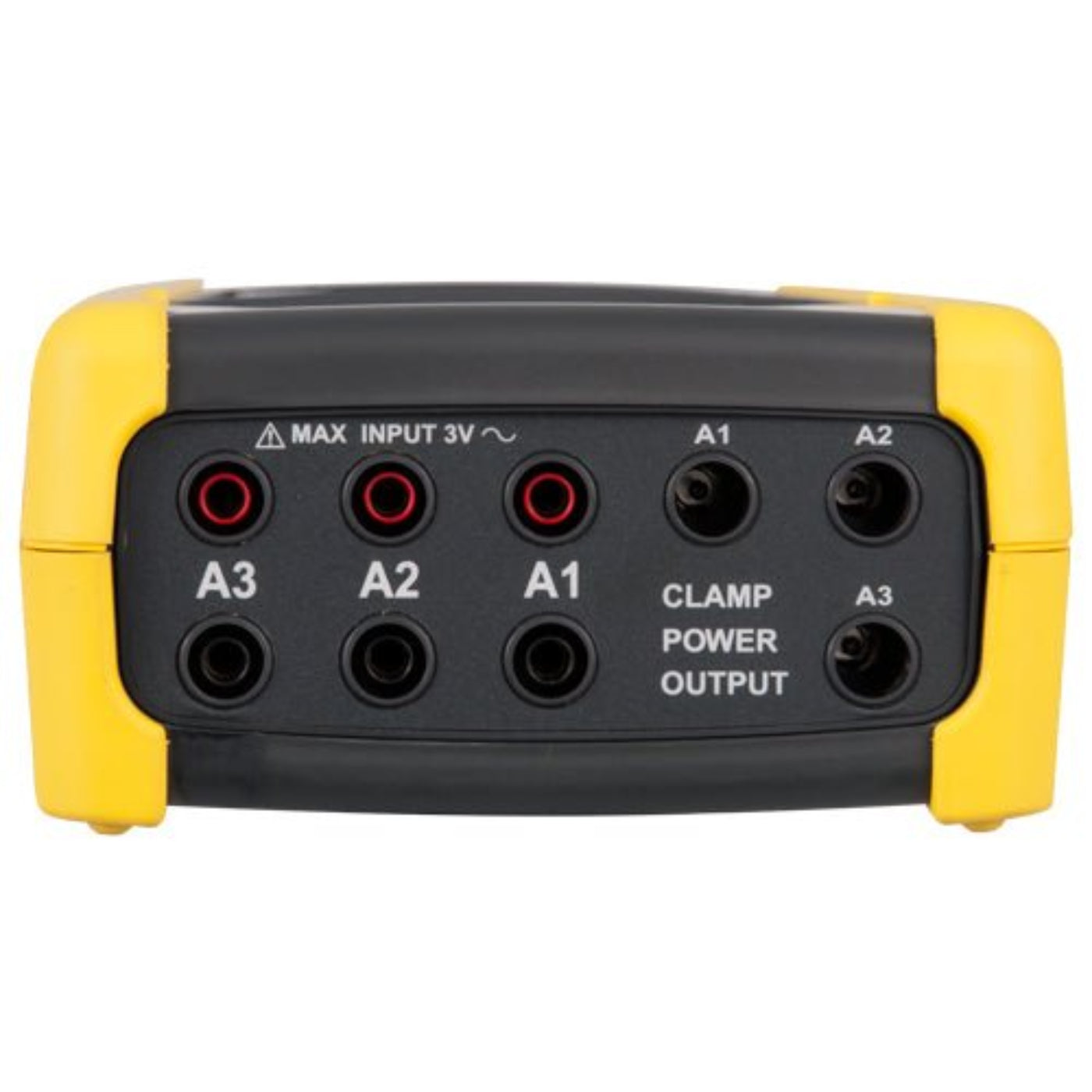

• 3-phase
• 3 Rogowski Coils

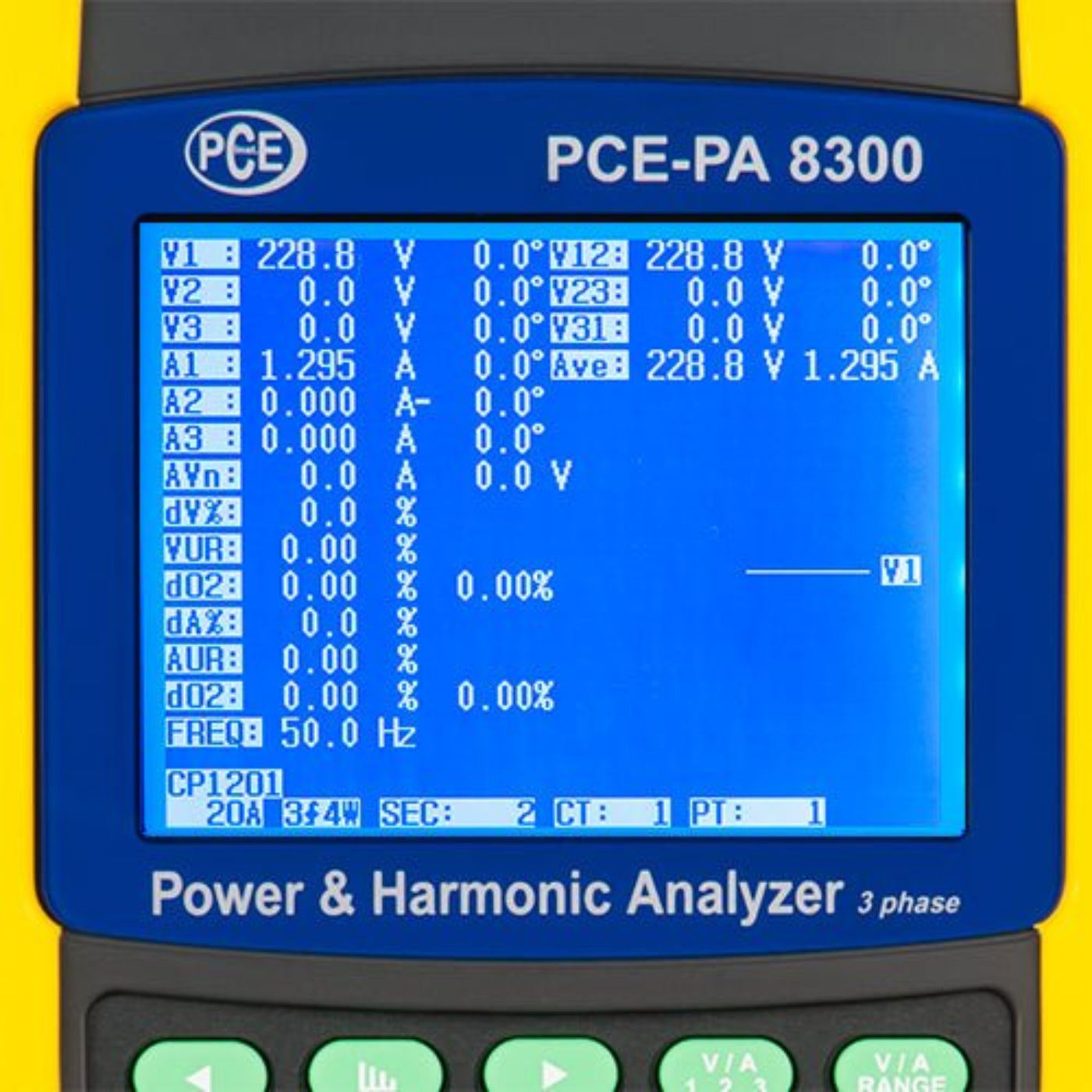

• LCD graphic display
• SD card memory

Features

• Voltage measurement range of 10 V - 600 V AC
• Current measurement range of 20 A - 1200 A AC
• Performance measurement range of 0 kW - 9.999 MW (VA/VAR)

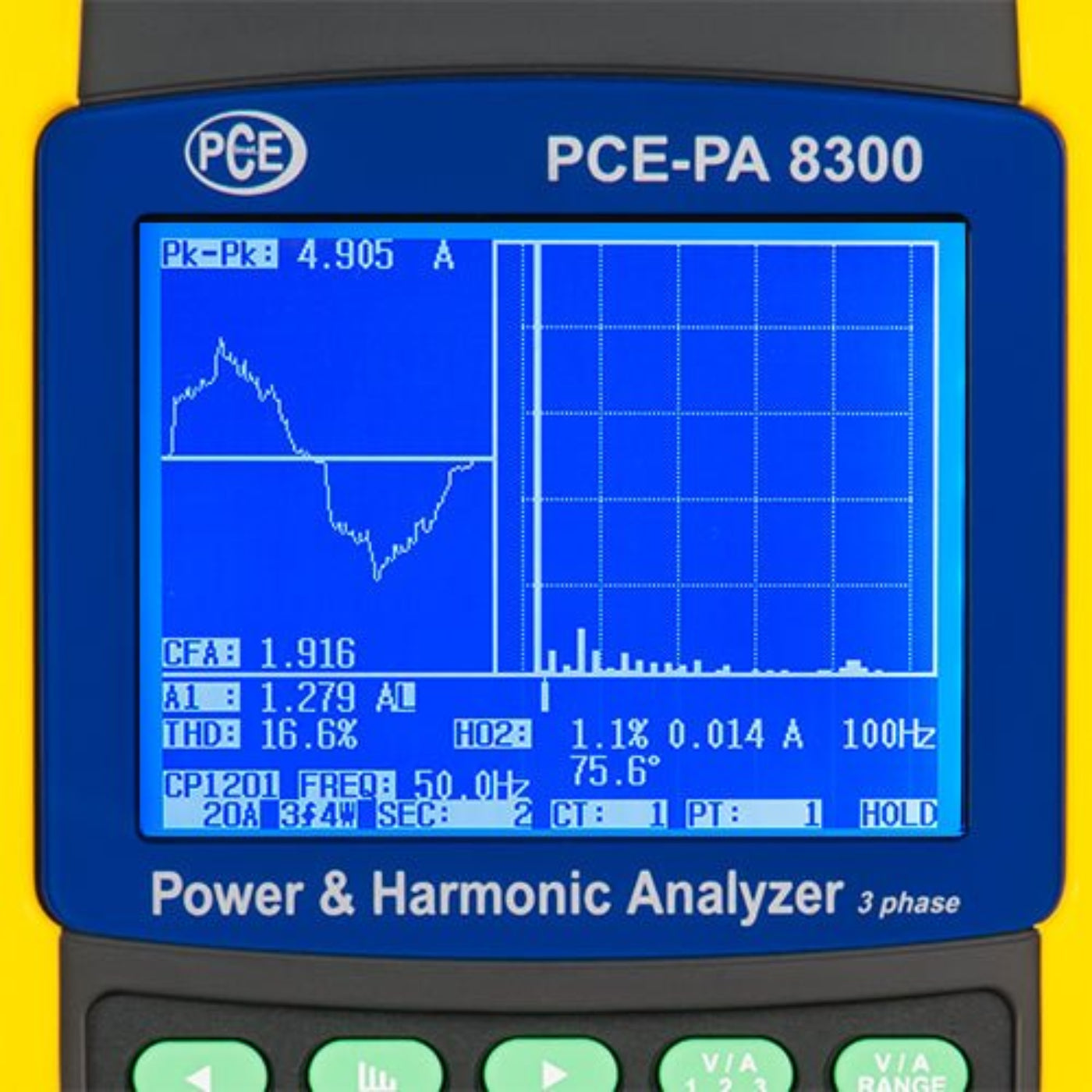

• Simultaneous display of harmonics and waveform
• Graphic Phasor diagram
• Captures transients including dip, swell, and outage
• SD card memory
• LCD graphic display
• Durable enclosure
• Compatibility with various manufacturers' power clamps
• Adjustable back-up interval, allowing for long-term data collection
• Auto-setting of measurement range (AC V)
• Power efficiency, delay angle, and frequency measurement
• Apparent, effective, and reactive power measurement
• Harmonic spectrum measurement up to the 50th order

Specifications

• Display: 3.7 in / 94.0 mm point-matrix LCD (320 * 240 pixel) with LED background lights
• Safety standards: IEC1010CAT III 600V
• Input resistance AC V: 10 MOhm
• Operating frequency of current clamp: 40 Hz ... 1 kHz
• Tested operating frequency of current clamp: 45 Hz ... 65 Hz
• Overload protection:
• AC V
• AC A
• 720 V RMS
• 1300 A with current clamp
• Data Storage: SD memory card
• Refresh interval: 1 second
• Data logging function: logging with real-time speed on SD memory card
• Record interval: 2 - 7200 seconds
• Data output (only for live display on computer): per USB or RS232, depending on connection cable.
• Operating temperature: 0° C ... +50° C / 32° F ... 122° F
• Surrounding humidity: < 80 % RH
• Power Supply:
• 8 x 1.5 V AA batteries
• Voltage Supply 9 V adapter
• Current Drain:
• Measurement Device: 300 mA DC
• current clamp: 34 mA DC
• Maximum Wire Diameter: 50 mm / 1.9 in
• Weight:
• Measurement Device: 948 g / 33.4 oz (incl. battery)
• Current clamp: 467 g / 16.4 oz (incl. cable)
• Dimensions:
• Device: 225 mm x 125 mm x 64 mm / 8.8 in x 4.9 in x 2.5 in
• Current clamp: 210 mm x 64 mm x 33 mm / 8.2 in x 2.5 in x 1.2 in
• Clamp jaw: 86 mm / 3.3 in (exterior)

What’s Included

• 1 x PCE-PA 8300 Clamp Meter

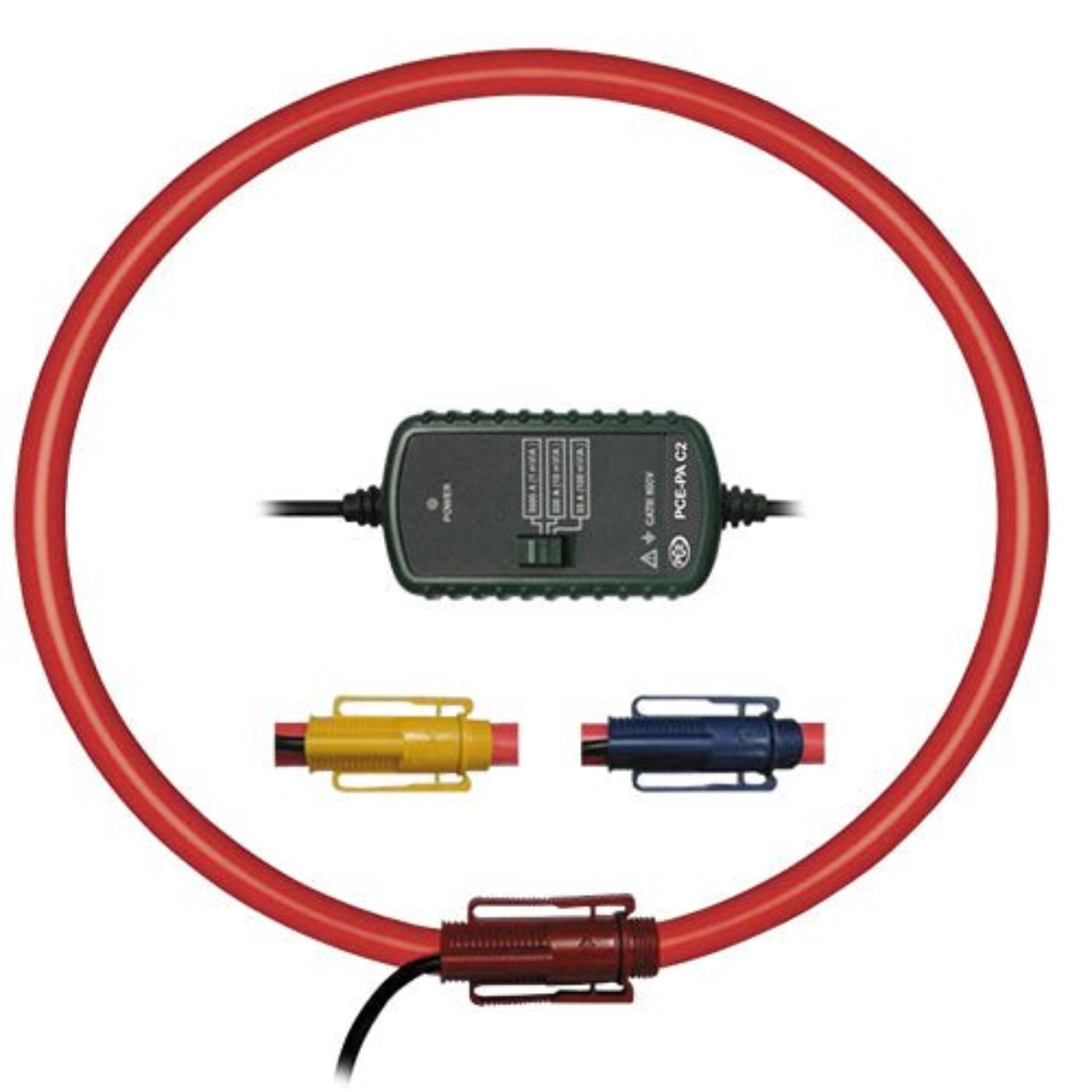

• 3 x Flexible Rogowski coils (Set 2)
• 4 x Insulated alligator clips
• 4 x Safety test lines
• 6 x 1.5 V AA batteries
• 1 x 9 V mains adapter
• 1 x SD memory card
• 1 x Carrying case
• 1 x User manual
