PCE PA6000 Desktop Power Meter Multimeter - PCE-PA6000

PCE PA6000 Desktop Power Meter Multimeter - PCE-PA6000

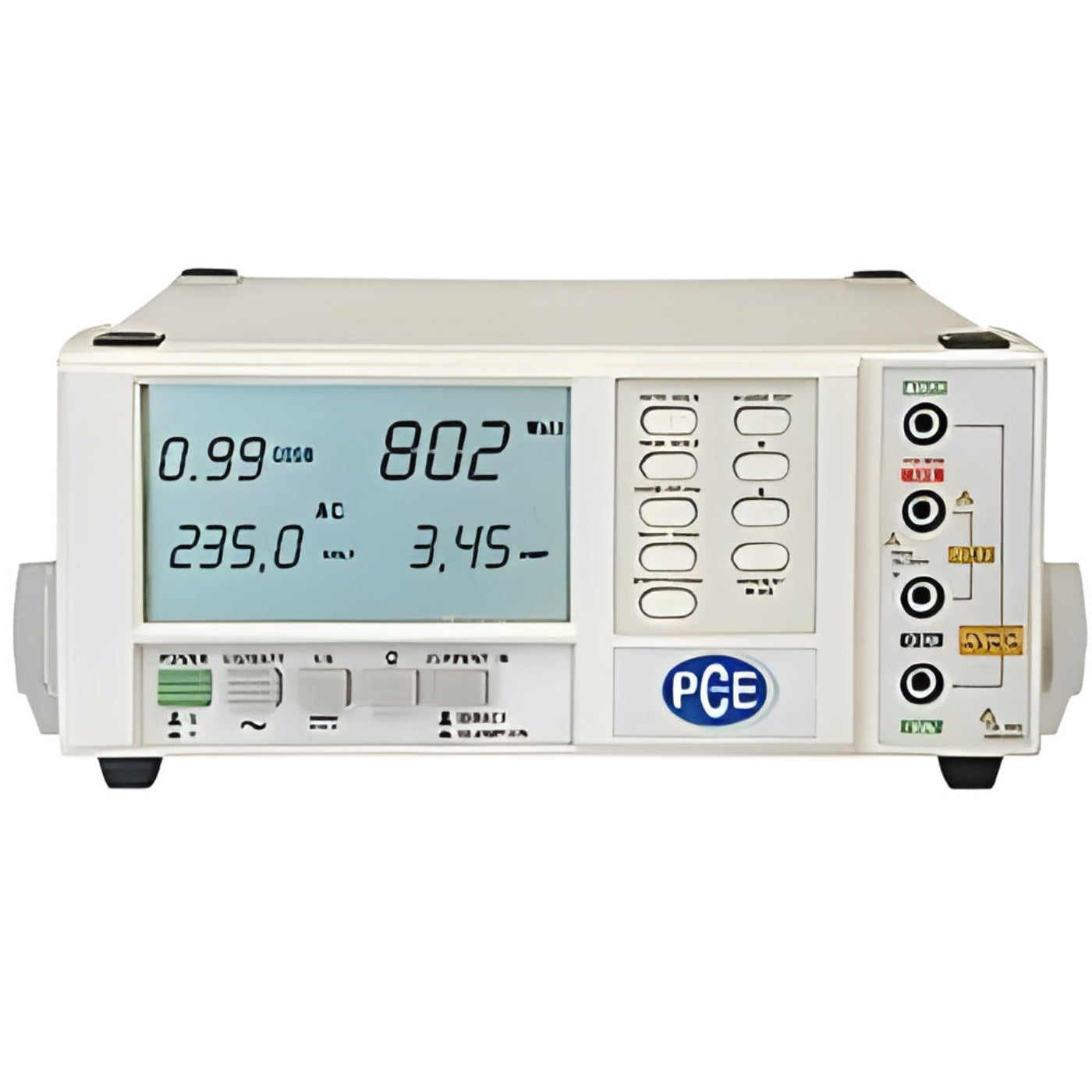

The PCE PA6000 Desktop Power Meter Multimeter is a versatile tabletop device designed to measure effective power, apparent power, power factor, energy consumption, current, continuous voltage, resistance, and frequency. It also supports the connection of industrial current converters with a transmission ratio of 100/5A or 1000/5A. Featuring a large 93 x 52mm LCD, it displays a wide range of results, including Watts, cos φ, ACV, and ACA, making it easy to read. With the optional PCE-PA ADP current adapter (with ground wire, up to 10ACA), it enables safe and efficient measurements. Current and power can be measured directly using the included test cables or indirectly with clamps. The device includes an RS-232 interface and software* for data analysis and transfer to a computer, making it an ideal tool for workshops or for diagnosing power-related faults in devices.

Highlights

• Desktop instrument
• RS-232 interface
• Software to analyze power consumption

Features

• Multimeter function
• Measurement of direct current connecting a sensor head or current clamp
• Measures effective and apparent power
• Measures power factor
• Measures energy consumption (kWh)
• Data hold / Peak hold
• Function Hold / Alarm function High / Low
• Interface RS-232
• Powered by mains adaptor or batteries
• Safety standards: IEC-1010-1; CAT II 600V

Specifications

What’s included:

• 1 x PCE-PA6000 power Analyser
• 1 x Set of test cables 1 x RS-232 cable
• 6 x Batteries
• 1 x User's manual

What Our Experts Think

• Comprehensive Measurement Capabilities: Measures effective power, apparent power, power factor, energy consumption, current, voltage, resistance, and frequency—perfect for all-in-one diagnostics.

• Large, Clear Display: Features a 93 x 52mm LCD that shows a wide range of measurements (Watts, cos φ, ACV, ACA) for easy monitoring and analysis.

• Flexible Current Measurement: Supports industrial current converters (100/5A or 1000/5A) and can measure current directly or indirectly with included test cables and optional clamps.

• RS-232 Interface & Software: Enables data transfer and analysis on a computer, ideal for detailed reporting and long-term monitoring.

• User-Friendly Design: Simple setup and operation make it accessible for both experienced professionals and newcomers to power diagnostics.

• Versatile Applications: Suitable for workshops, electrical diagnostics, power-related fault detection, and industrial environments.

Q&A

Q: What does the PCE PA6000 measure?
A: It measures effective power, apparent power, power factor, energy consumption, current, voltage, resistance, and frequency.

Q: Does the PCE PA6000 support industrial current converters?
A: Yes, it supports current converters with a transmission ratio of 100/5A or 1000/5A for versatile measurements.

Q: How easy is it to read the measurements?
A: The device features a large 93 x 52mm LCD display that shows a wide range of results, including Watts, cos φ, ACV, and ACA.

Q: Can I measure current and power directly?

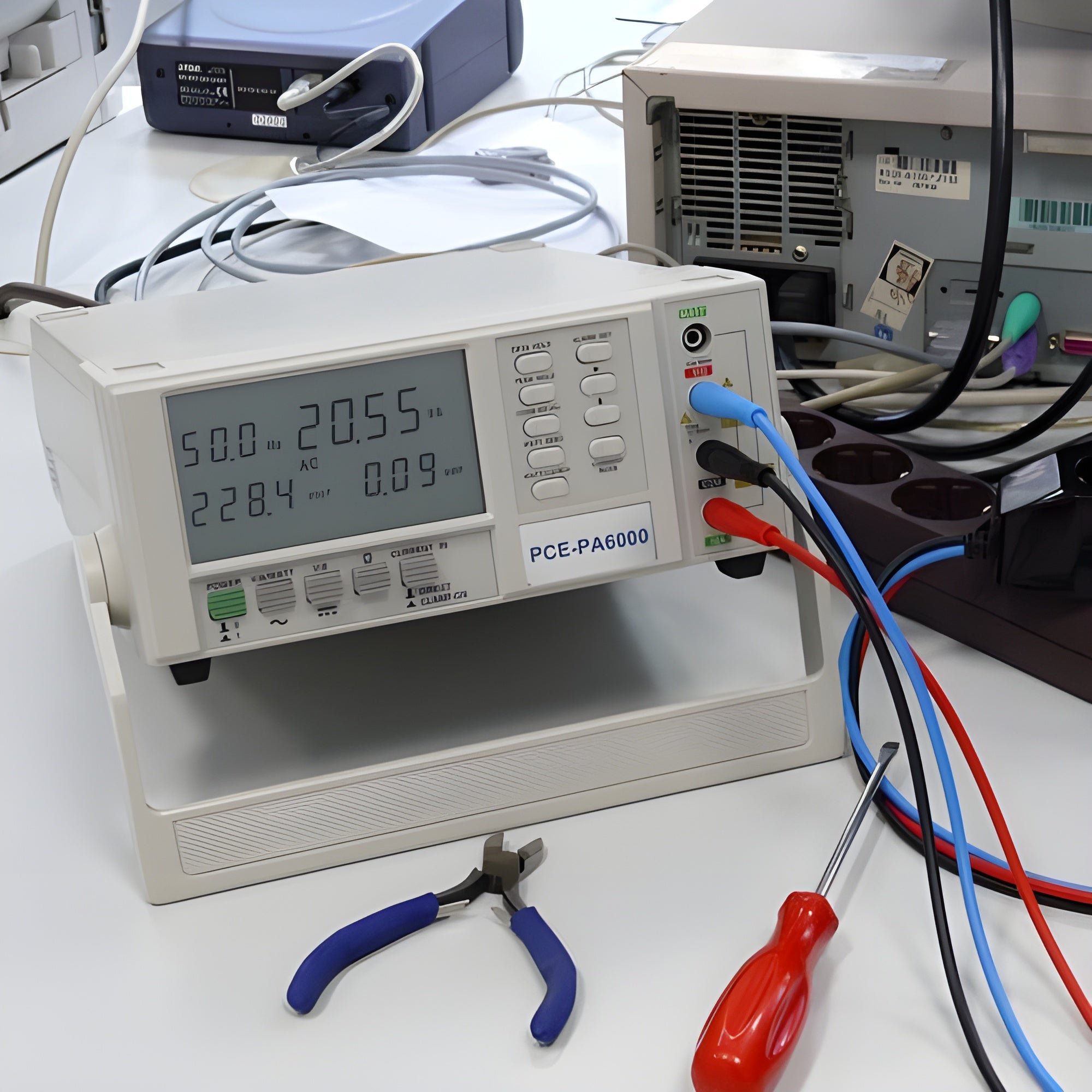

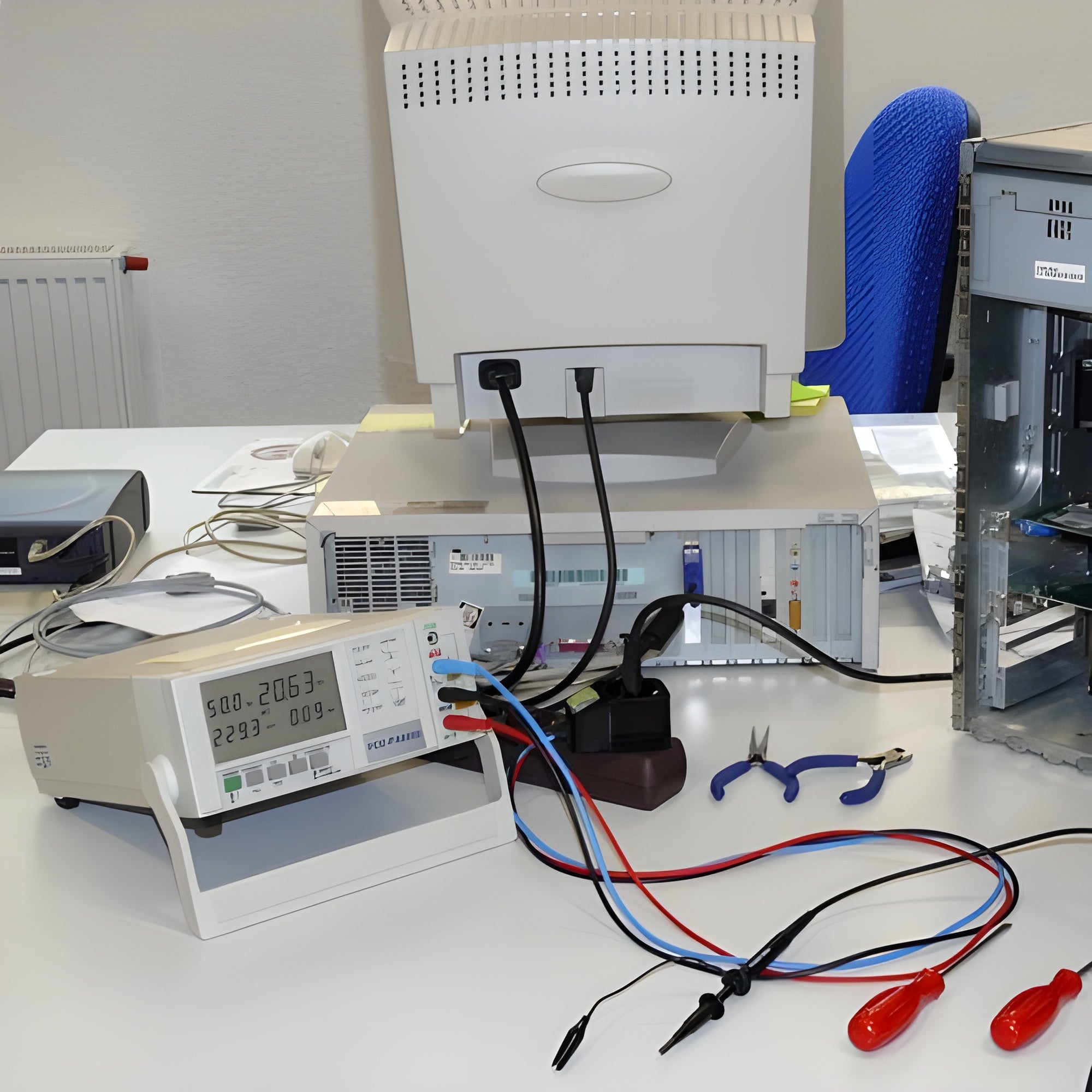

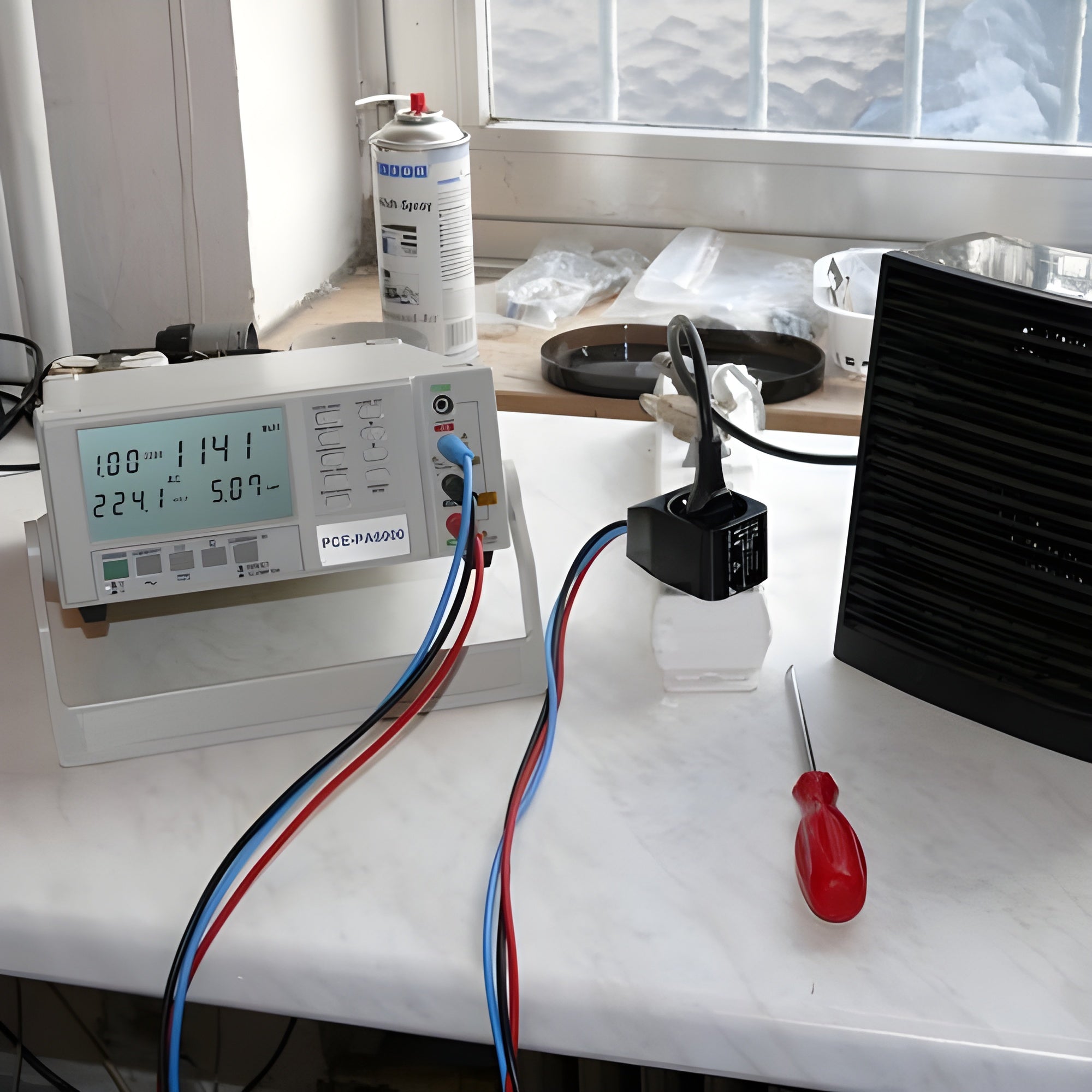

A: Yes, current and power can be measured directly using the included test cables or indirectly with clamps.

Q: Does the PCE PA6000 offer data transfer capabilities?
A: Yes, it includes an RS-232 interface and software for easy data analysis and transfer to a computer.

Q: Who is the PCE PA6000 ideal for?
A: It's perfect for workshops, maintenance professionals, and anyone diagnosing power-related faults in electrical devices.

Maintenance Tips

• Clean the LCD screen with a soft, dry cloth to maintain visibility.

• Inspect test cables for wear or damage; replace if necessary.

• Check current clamps for proper connection and cleanliness.

• Calibrate periodically to ensure accurate readings across all measurements.

• Store in a dry, dust-free area to protect internal components.

• Ensure RS-232 connections are secure for accurate data transfer.

• Replace or charge batteries as needed to prevent power loss during use.
