PCE PHD 1 Multifunction Data Logging pH Meter (0 - 14pH) - PCE-PHD 1

PCE PHD 1 Multifunction Data Logging pH Meter (0 - 14pH) - PCE-PHD 1

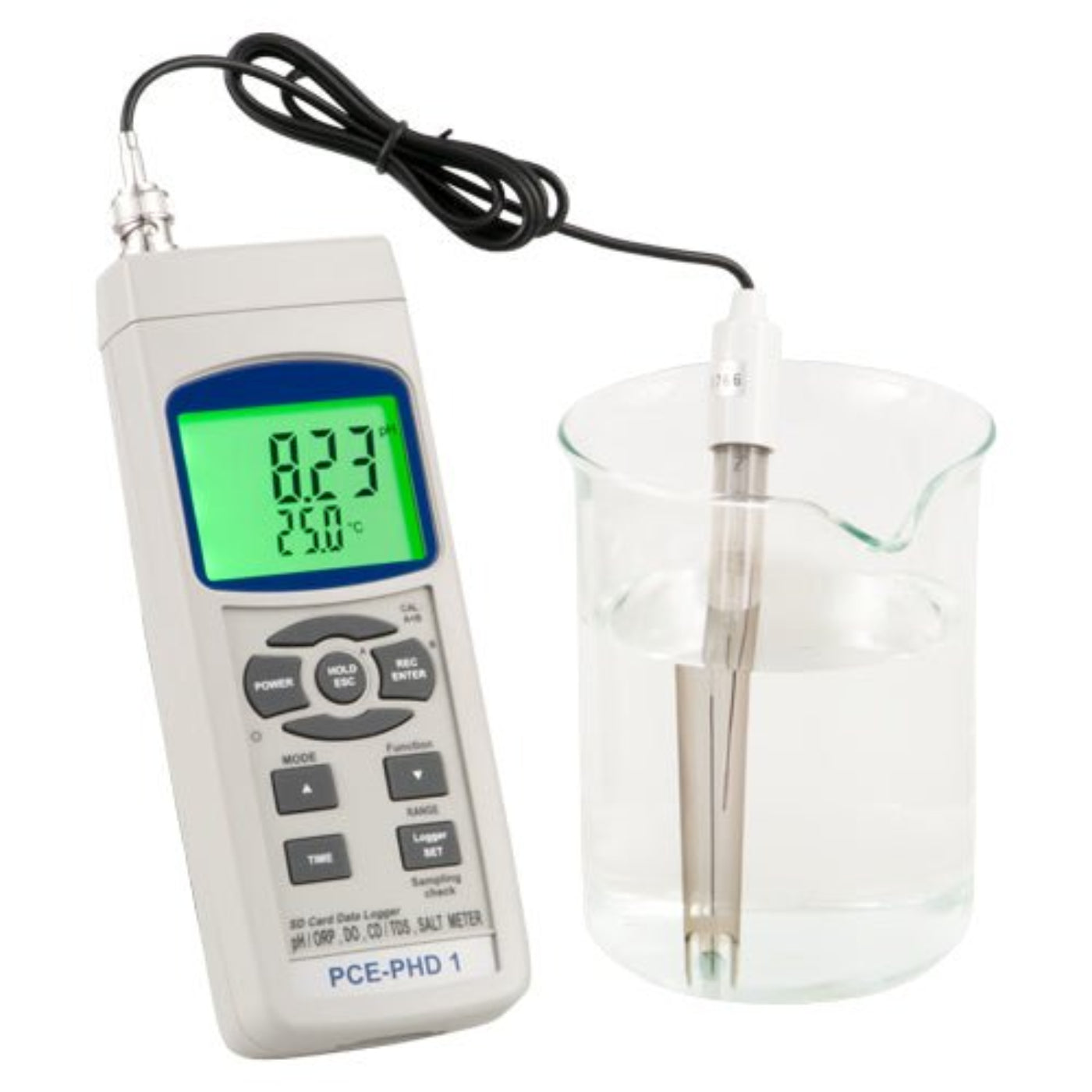

The PCE PHD 1 Multifunction Data Logging pH Meter (0 - 14pH) is a portable, user-friendly device designed for comprehensive water quality testing. It provides exceptional precision at an affordable price and is ideal for both laboratory and on-site measurement of pH, redox, conductivity, salt content, oxygen levels, and temperature. With three-point calibration and automatic temperature compensation, it ensures accurate results even with fluctuating temperatures.

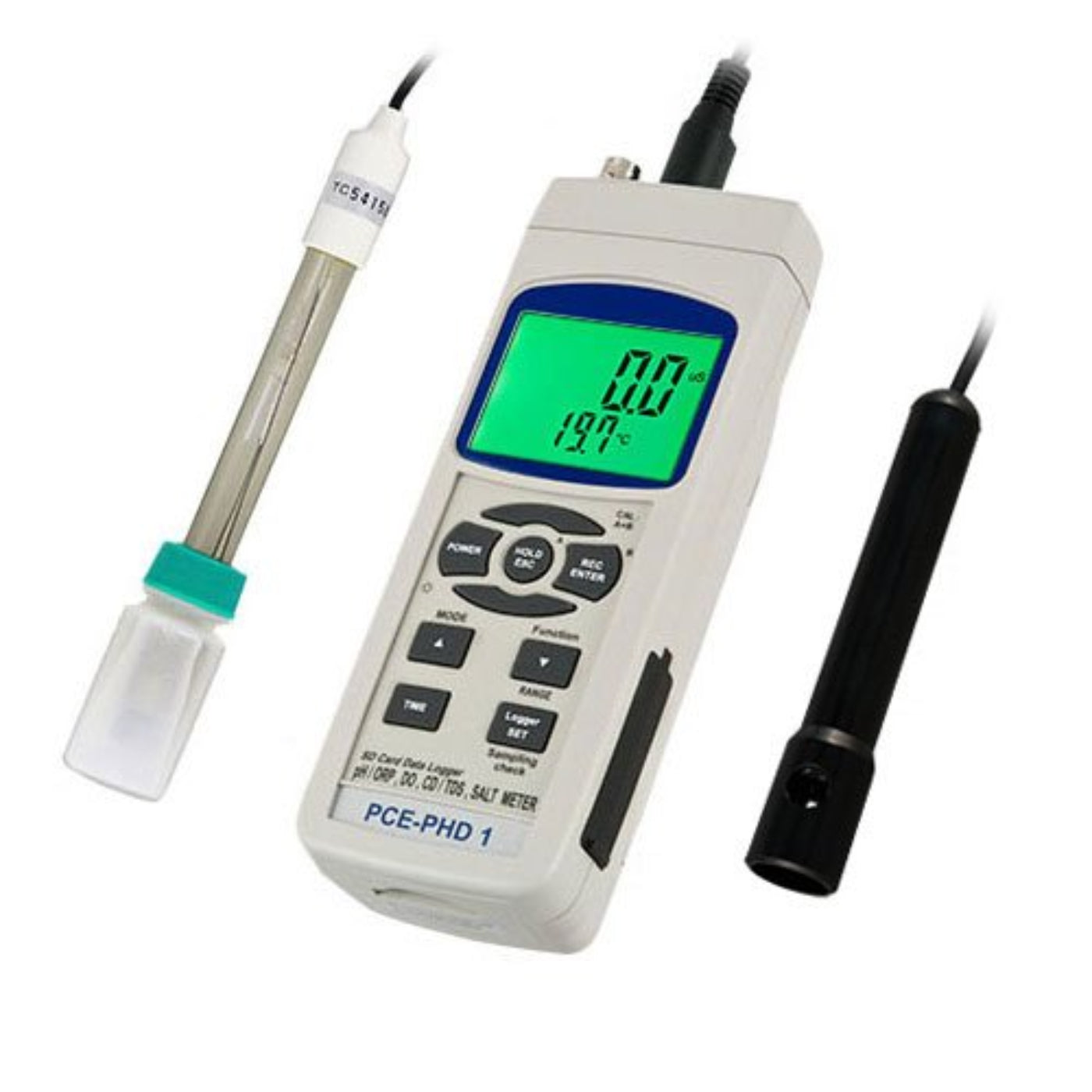

This meter includes both a pH electrode and a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. This meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

Highlights

• Measures: pH value, redox, conductivity, salt, oxygen and temperature
• SD card memory (1 ... 16 GB), data is saved as an Excel file
• large, easy-to-read display
• RS-232 interface
• optional software for direct transfer to the PC (Sold separate)

Features

• Optimal price / performance ratio
• Real-time data logger
• SD card memory (1 ... 16 GB)
• The saved data is saved directly as an Excel file on the SD card (for evaluation, no software is required)
• RS-232 interface for online data transfer
• Measures pH value, redox, conductivity, salt content, oxygen, and temperature
• High precision
• Low battery display
• Large LC display
• Adjustable measuring rate
• Easy to use
• Robust housing
• Includes pH and conductivity electrode
• Automatic calibration
• Manual or automatic temperature compensation

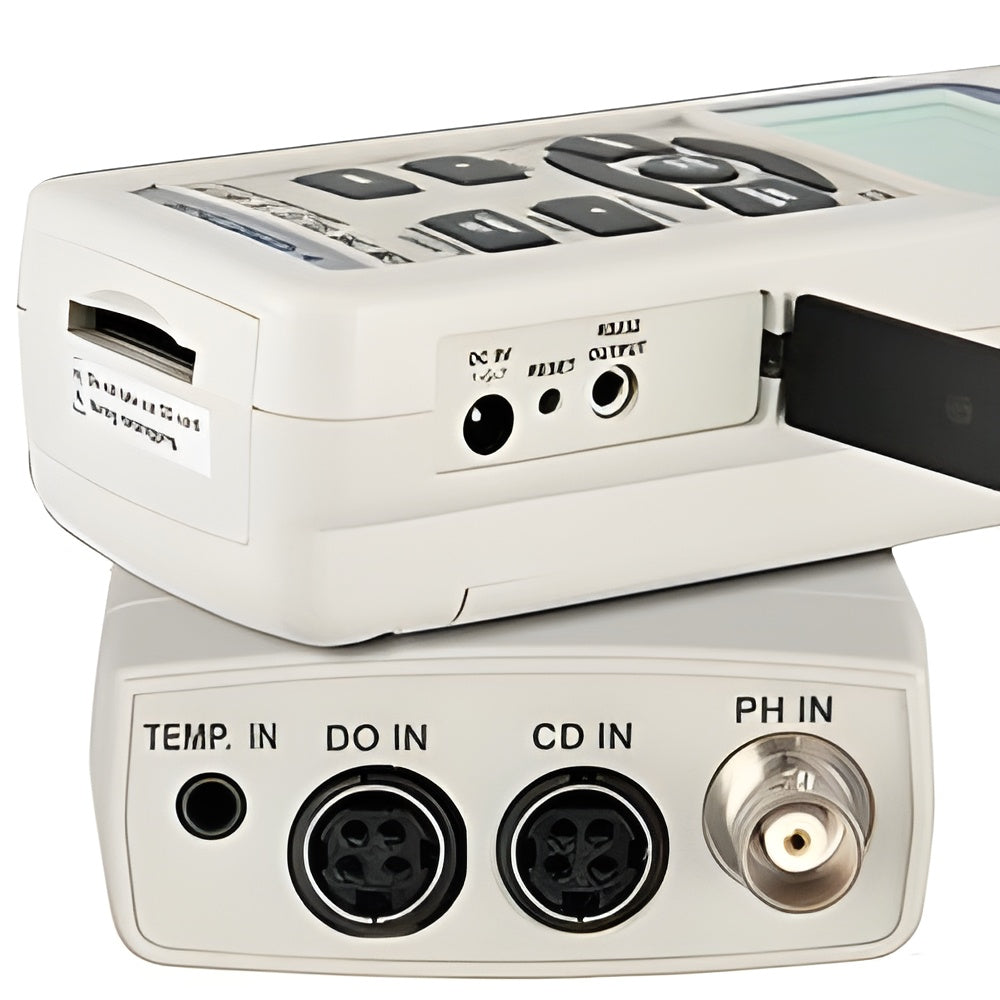

• BNC connector
• Suitable for laboratory and on-site measurements
• REDOX and oxygen electrode optionally available

Specifications

• Measurement rate: 1 second up to 8 hrs 59 mins 59 secs
• Display: LCD 52 x 38 mm / 2 x 1.5"
• Memory: SD card up to 16 GB (2 GB card included)
• Interface: RS-232
• Software: Optional
• Power supply: 6 x 1.5 V AA batteries (optional power adapter)
• Operating conditions: 0 - +50 ºC / < 85 % RH
• Dimensions: 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
• Weight: 490 g / 1.1 lbs

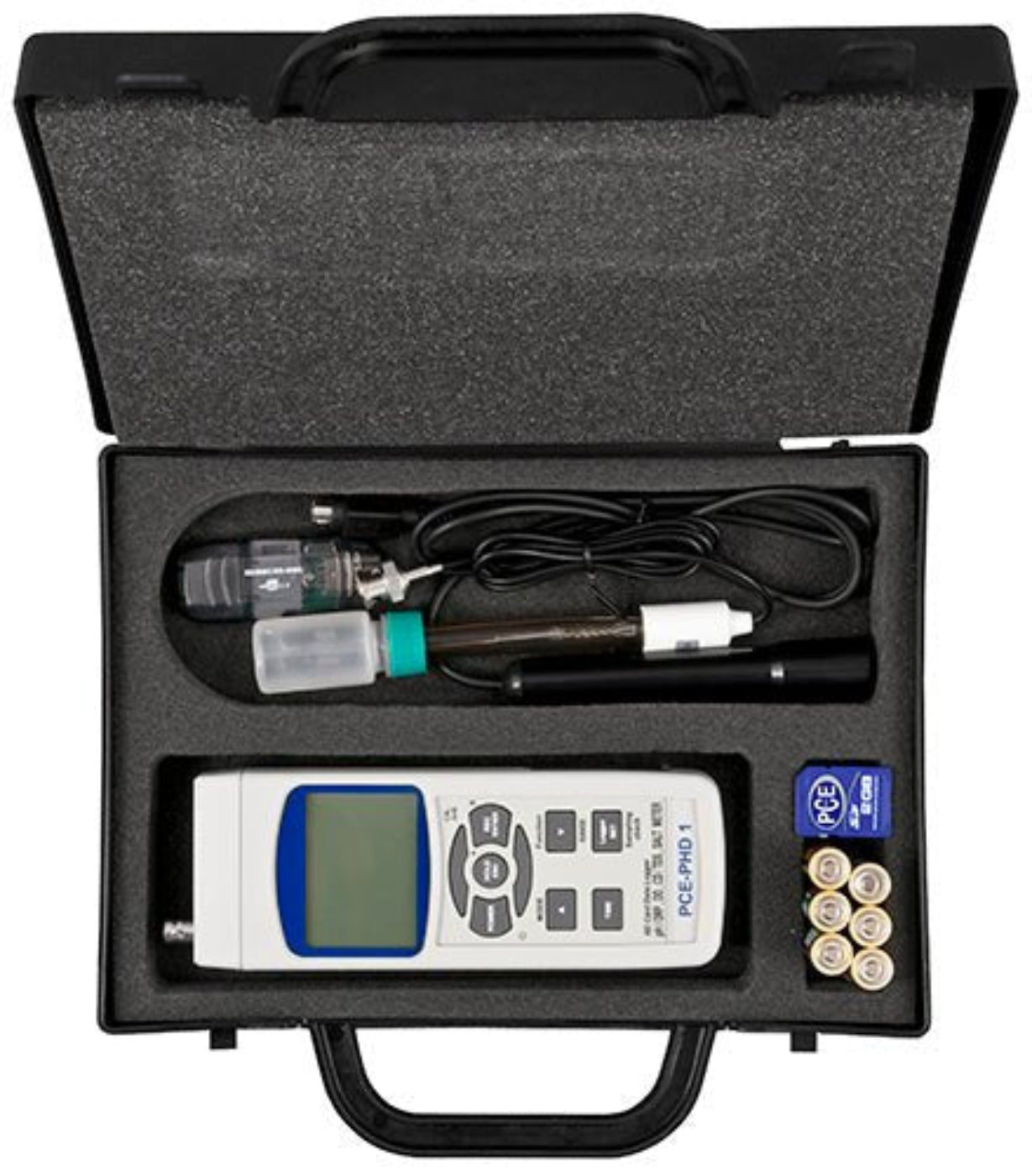

What’s included

• 1 x PCE-PHD 1 multifunction pH meter

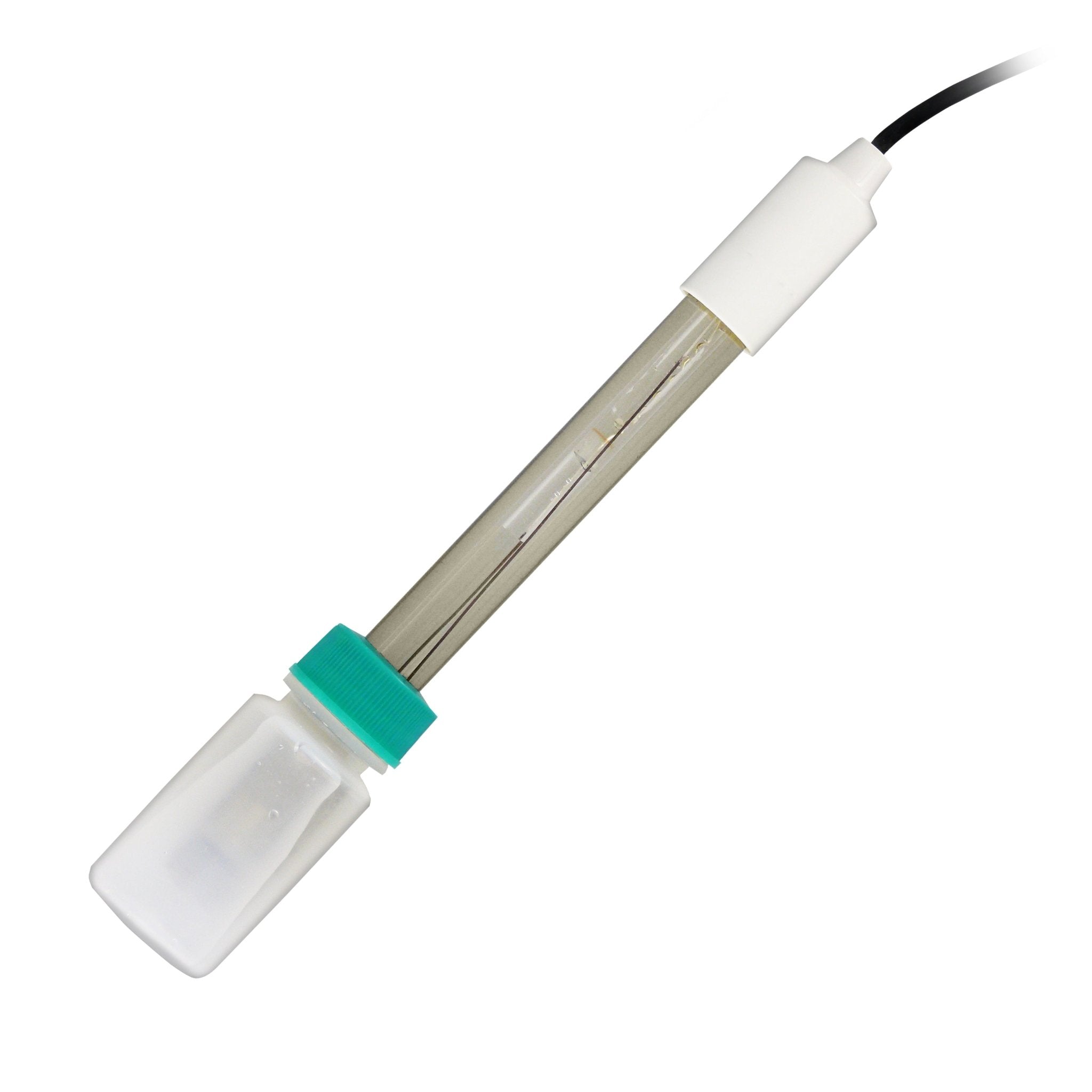

• 1 x pH electrode

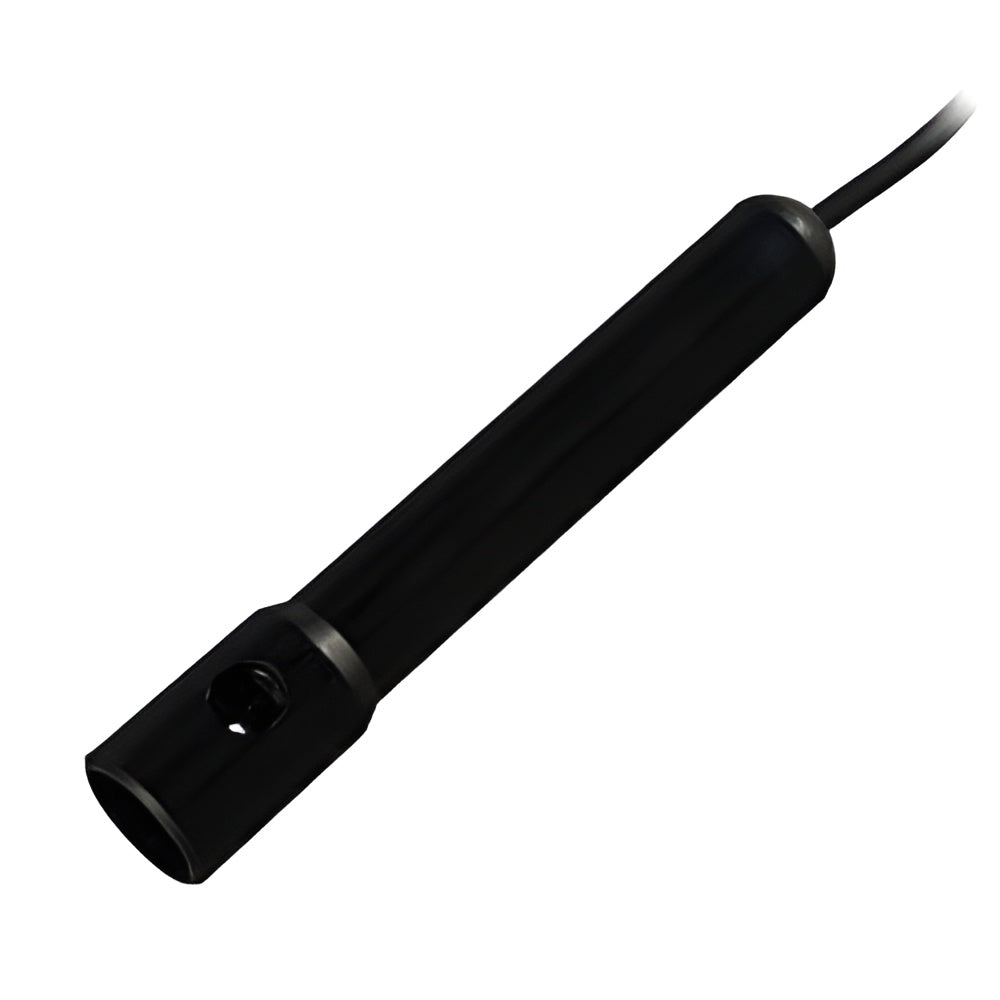

• 1 x conductivity electrode
• 1 x SD memory card
• 6 x 1.5 V AA batteries
• 1 x user manual

What Our Experts Think

• Comprehensive Water Quality Testing: A versatile tool for measuring pH, redox, conductivity, salt content, oxygen levels, and temperature—ideal for a wide range of environmental and laboratory applications.

• Precision at an Affordable Price: Offers highly accurate results without breaking the bank, making it perfect for both professionals and educators.

• User-Friendly Interface: Easy to use, with clear readings that make it accessible even for those new to water testing.

• Automatic Temperature Compensation: Ensures reliable measurements regardless of temperature fluctuations, enhancing the accuracy of readings.

• Three-Point Calibration: Provides a higher level of accuracy with its three-point calibration feature, ensuring precise pH measurements across different sample types.

Q&A

Q: What measurements can the PCE PHD 1 perform?
A: The PCE PHD 1 is capable of measuring pH, redox, conductivity, salt content, oxygen levels, and temperature, making it a comprehensive tool for water quality testing.

Q: Is the device portable?
A: Yes, the PCE PHD 1 is designed to be portable and user-friendly, ideal for both laboratory and on-site measurements.

Q: Does the pH meter offer calibration support?
A: Yes, the device supports three-point calibration to ensure high accuracy in pH measurements.

Q: How does the PCE PHD 1 ensure accurate readings in varying temperatures?
A: The meter is equipped with automatic temperature compensation, which adjusts for temperature fluctuations, providing accurate results across different environments.

Q: What is the measurement range of the pH meter?
A: It measures pH within the range of 0 to 14, suitable for a wide range of applications.

Q: What makes the PCE PHD 1 an affordable option?
A: The PCE PHD 1 offers exceptional precision at an affordable price, making it a reliable option for both professional and general water quality testing needs.

Maintenance Tips

• Clean Electrodes: Rinse electrodes with distilled water after each use to prevent contamination and buildup.

• Calibrate Regularly: Perform a three-point calibration frequently to maintain accuracy across the full 0–14 pH range.

• Store Properly: Keep electrodes moist in a proper storage solution when not in use—never store dry.

• Battery & Data Care: Recharge the battery regularly and back up logged data to prevent loss.

• Inspect Sensors: Regularly check for wear or damage on pH, conductivity, and oxygen probes. Replace if needed.

• Temperature Compensation: Ensure the temperature sensor is functioning properly for accurate readings in variable conditions.
