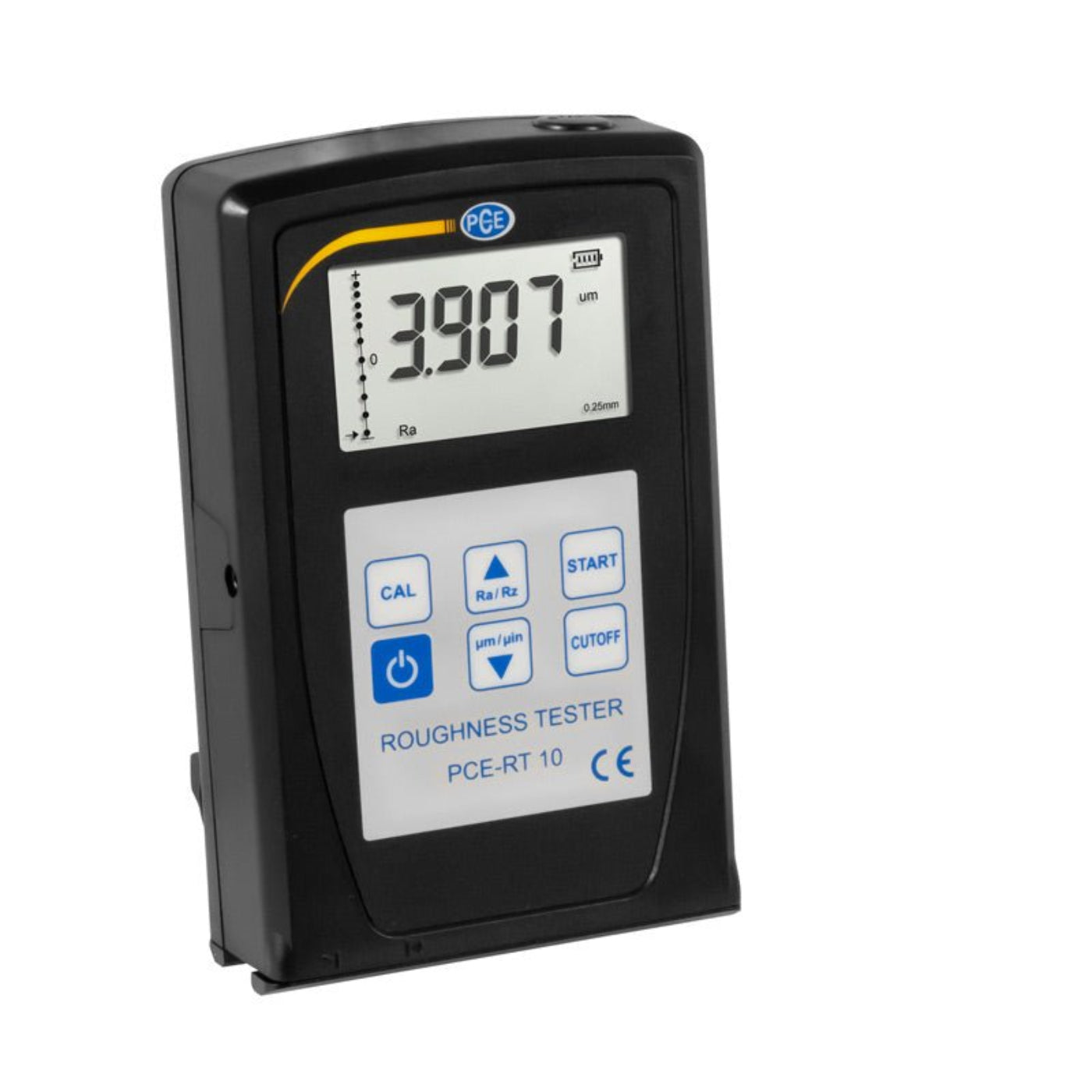

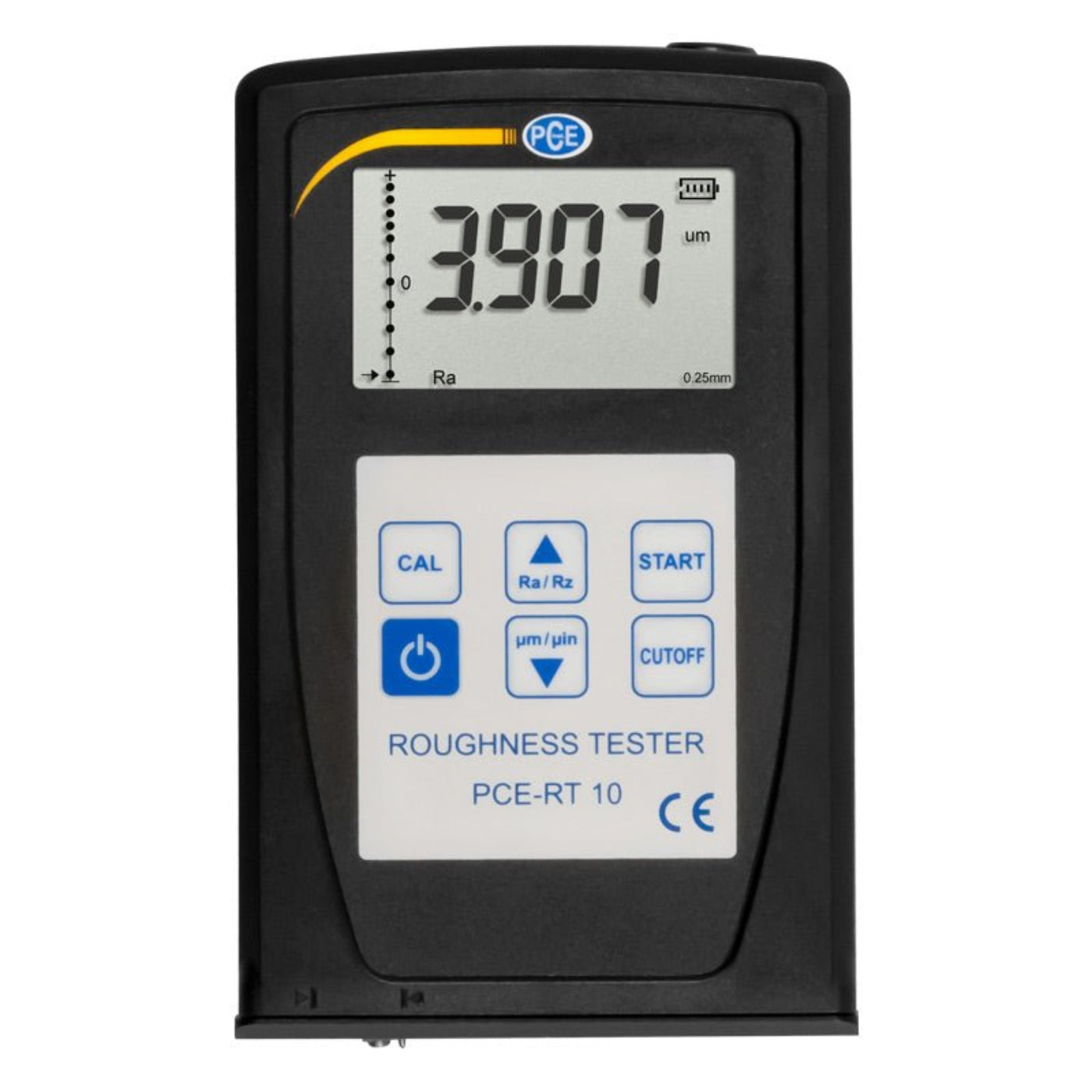

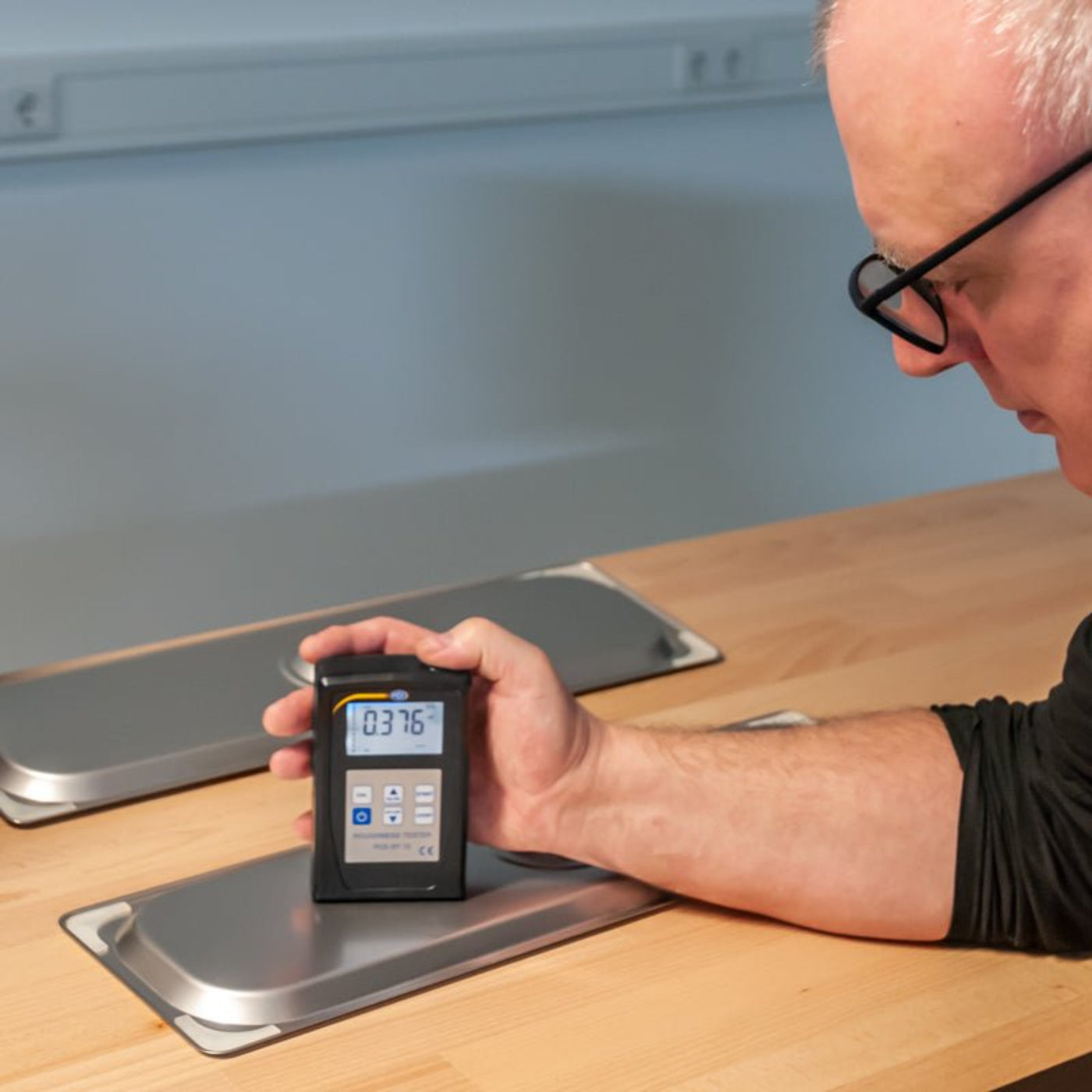

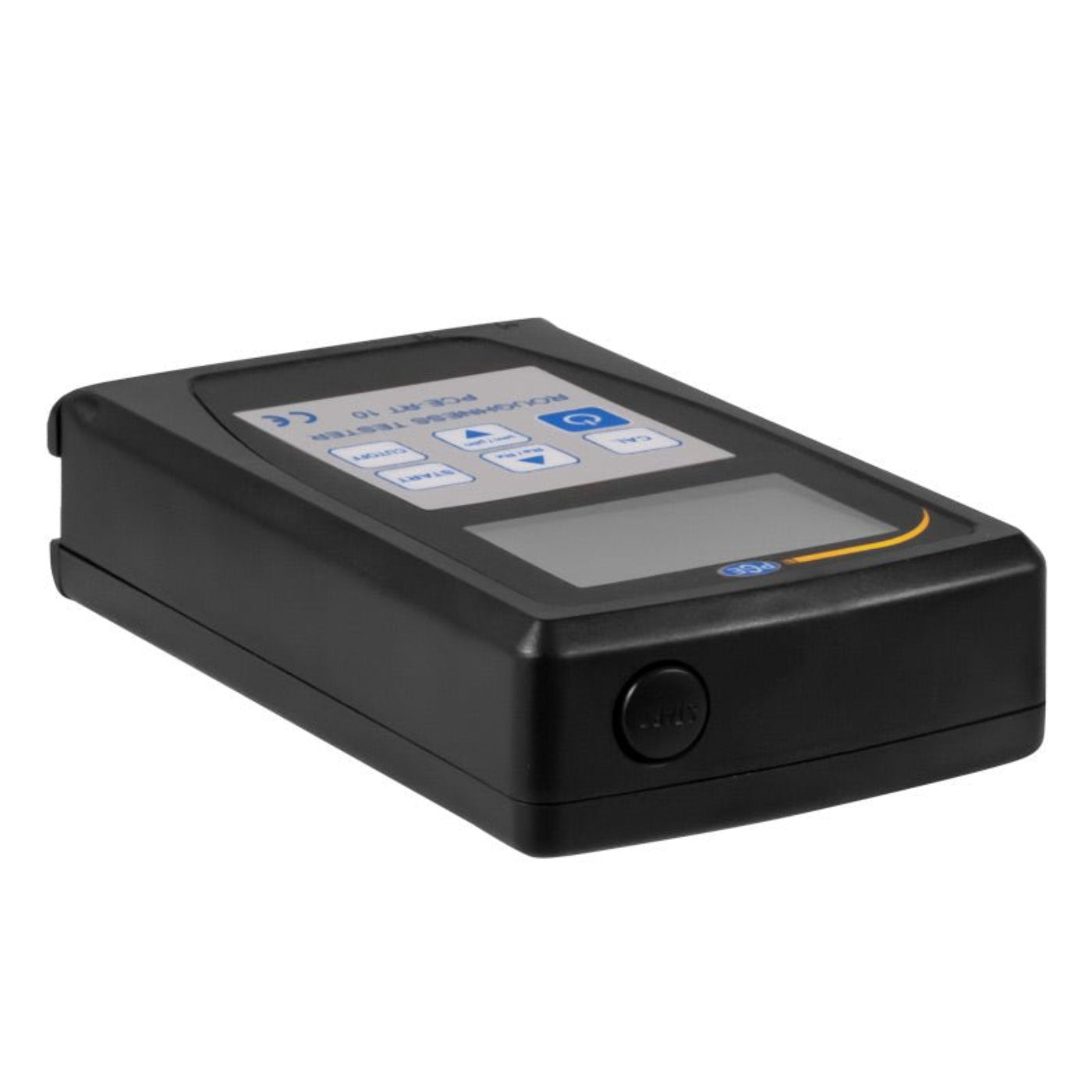

The PCE RT 10 Ra Rz Profilometer Surface Roughness Tester is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be obtained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.

Highlights

• Measurement range covers Ra and Rz
• LCD display with background light
• Sensor made of a diamond
• Uses Induction principle

Features

• Ra and Rz measurement range
• Induction principle
• LCD display with background lights
• With threshold function
• Easy to transport
• Easy handling
• Diamond sensor
• Low fluctuation on display

Specifications

• Standards: GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
• Display: LCD
• Parameters: Ra, Rz
• Range: Ra: 0.05~10.00 µm Rz: 0.1~50.0 µm
• Accuracy: ±15 %
• Fluctuation of Display Value: 10 %
• Resolution: 0,001 / 0,01 / 0,1
• Evaluation Length: 1~2L Optional
• Operating Conditions: Temp: 0 ~ 50 ºC Humidity: <80 % RH
• Power Supply: 4 x 1.5 V AA (UM-3) Battery
• Dimensions: 128 x 80 x 30 mm
• Weight: 280 g

Sensor Specs

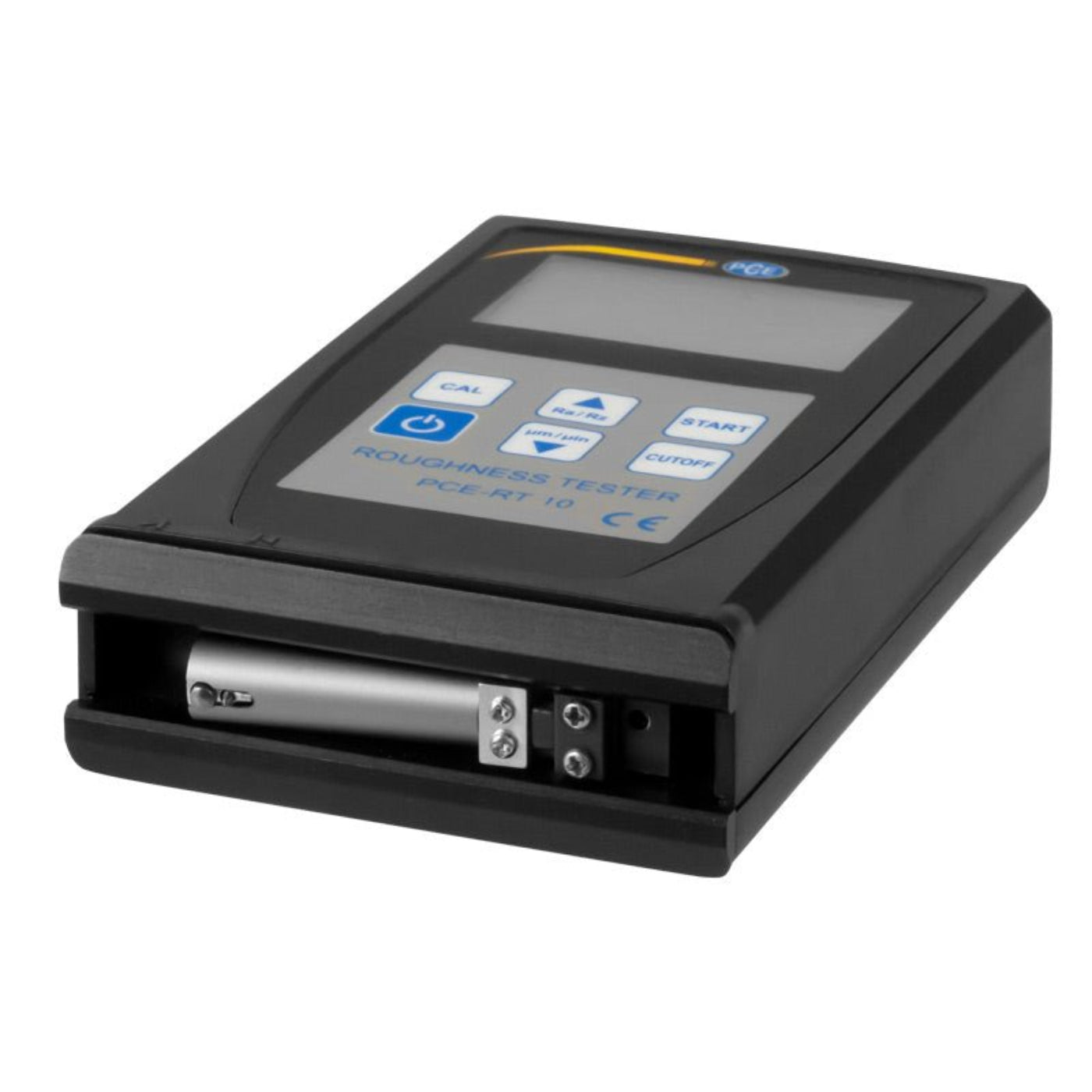

• Radius of Probe Pin: 10 µm
• Material of Probe Pin: Diamond
• Measurement Force of Probe: 16 mN(1.6gf)
• Probe Angle: 90º
• Vertical Radius of Guiding Head: 48 mm
• Maximum Driving Stroke: 12,5 mm / 0,5 inch
• Cutoff length(l): 0,25 mm, 0,8 mm, 2,5 mm

Driving Speed

• Sampling when Length = 0,25 mm,Vt = 0,135 mm/s
• Sampling when Length =0,8 mm, Vt = 0,5 mm/s
• Sampling when Length =2,5 mm,Vt = 1 mm/s
• Returning Vt = 1 mm/s

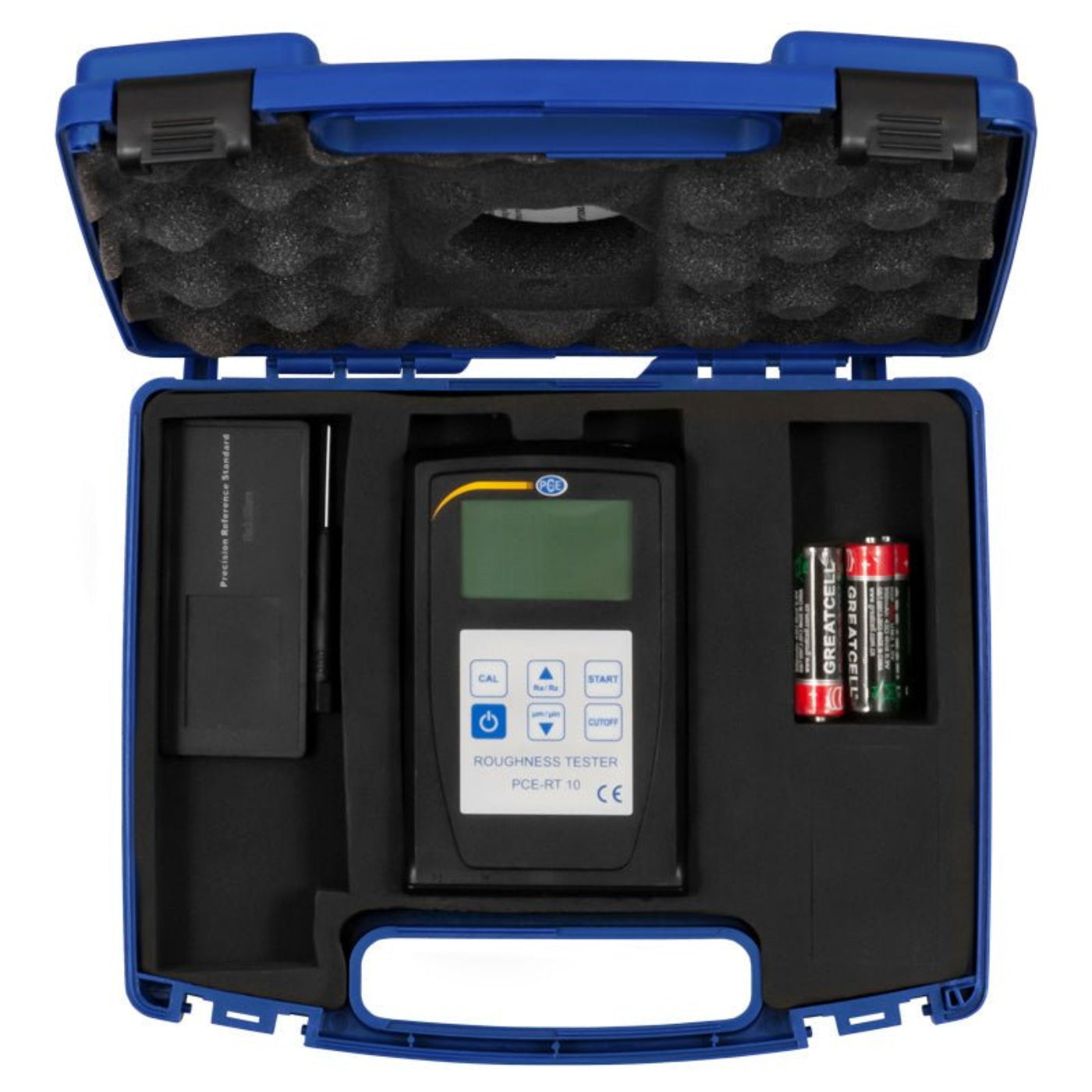

What’s included

• 1 x PCE-RT 10 Roughness tester
• 1 x Precision reference standard
• 4 x 1.5V AA batteries
• 1 x User manual
• 1 x Carrying case

Manual

PCE-RT 10 User Manual

PCE-RT 10 Data Sheet

What Our Experts Think

• Compact and Portable: The PCE RT 10 is lightweight and easy to carry, making it convenient for both on-site and in-lab measurements.

• Simple Operation with Complex Results: Despite its simplicity in navigation, the device delivers advanced surface roughness testing (Ra and Rz), which provides precise results without the need for complex operations.

• Durable Build: The rugged design ensures that the tester is built to last, making it ideal for use in harsh environments, reducing the need for frequent replacements or repairs.

• Quick Results: This tester allows for fast measurements, streamlining the workflow and making it ideal for production lines or other high-demand environments.

• Versatile Applications: It is perfect for a wide range of industries, from manufacturing to quality control, where surface texture and roughness need to be evaluated quickly and accurately.

Q&A

Q: What kind of measurements can the PCE RT 10 Surface Roughness Tester perform?
A: The device is designed to measure surface roughness parameters, specifically Ra (average roughness) and Rz (mean roughness depth), which are commonly used in quality control to assess the texture of surfaces.

Q: Is the PCE RT 10 easy to use?
A: Yes, the device features simple navigation, making it easy to use despite its complex functionality. This allows users to obtain quick and accurate measurement results with minimal effort.

Q: What makes the PCE RT 10 durable?
A: The PCE RT 10 has a rugged design, which contributes to its long lifespan. This makes it well-suited for use in various industrial environments where durability is important.

Q: Is the PCE RT 10 portable?
A: Yes, the PCE RT 10 is a small, lightweight device, making it portable and easy to carry around for on-the-go measurements.

Q: What industries or applications benefit from using the PCE RT 10?
A: The PCE RT 10 is ideal for industries that require precise surface roughness measurement for quality control, including manufacturing, machining, and materials testing.

Maintenance Tips

• Clean Regularly: Gently wipe the device with a soft, lint-free cloth to remove dust and debris from the probe and display.

• Calibration: Calibrate the profilometer as per the manufacturer’s instructions to maintain measurement accuracy.

• Proper Storage: Store in a cool, dry place, away from direct sunlight and extreme temperatures to ensure longevity.

• Inspect Probe: Check the probe for any signs of wear or damage. Replace it if necessary to maintain accurate readings.

• Battery Maintenance: Charge the battery fully before long-term storage and avoid deep discharge to preserve battery health.

• Firmware Updates: Keep the device updated with the latest software for optimal performance.
