PCE RT 1200 Ra Rz Rq Rt Profilometer Surface Roughness Tester - PCE-RT 1200

PCE RT 1200 Ra Rz Rq Rt Profilometer Surface Roughness Tester - PCE-RT 1200

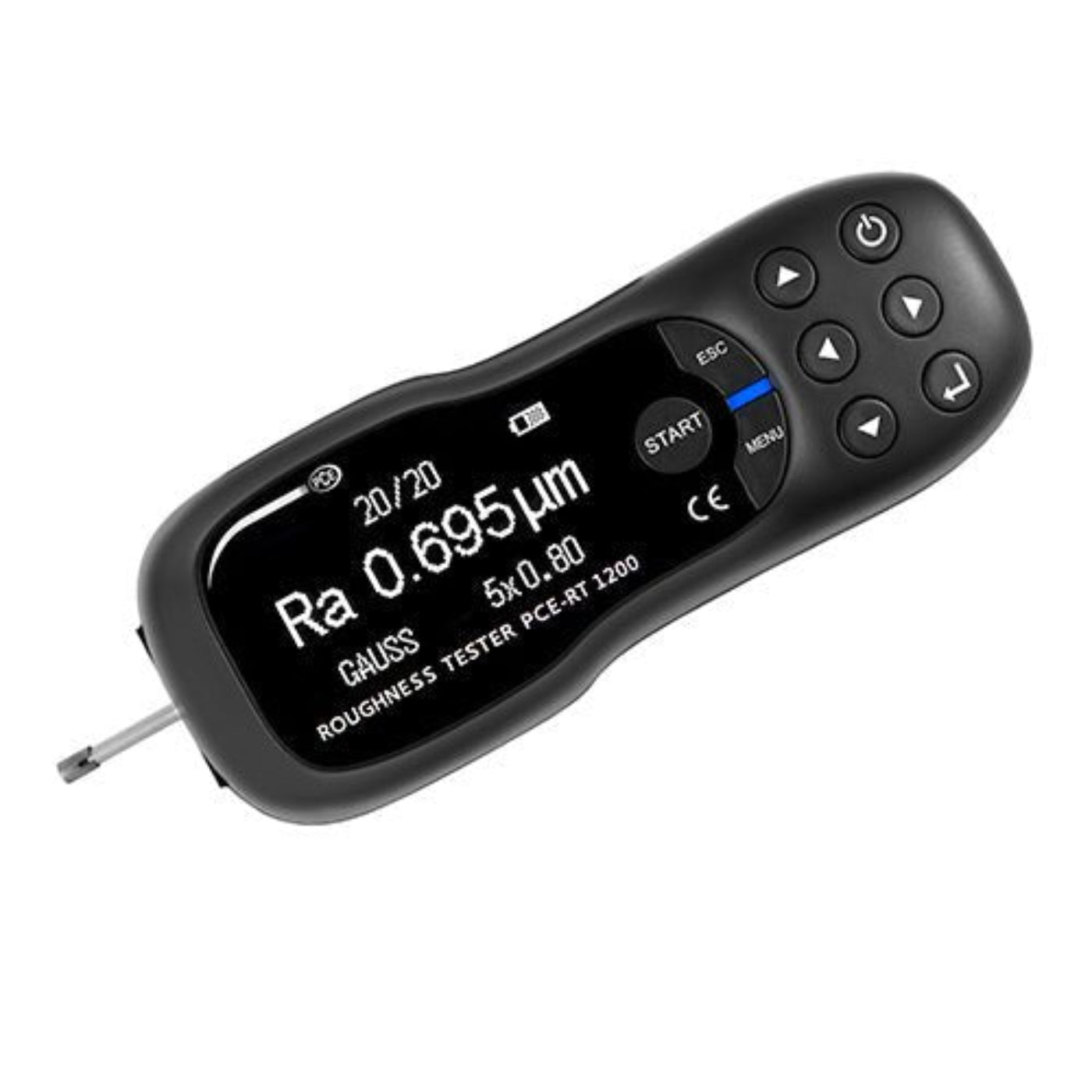

The PCE RT 1200 Profilometer Surface Roughness Tester is a handheld device designed to measure surface roughness, making it ideal for mobile use. Powered by a rechargeable battery, it is perfect for on-site measurements. Frequently used in laboratories, production environments, and any setting where surface roughness needs to be determined, the device displays measured values on a clear, user-friendly OLED screen. It also has storage for up to 20 measurements, which can later be accessed via the micro USB interface, with the included USB cable and measurement software. The software is especially useful for handling measurement series, as it allows for easy data transfer and on-screen analysis.

The profilometer has a protective cap for the sensor, which protects it from external influences and can be easily screwed to the device. A calibration plate with roughness standard is also part of the standard equipment and serves to check the correctness of the measurement results.

Highlights

• Fast detection of Ra, Rz, Rq and Rt.
• Large OLED display.
• Micro-USB interface.
• With a calibration plate and roughness standard
• Measuring software
•  Li-ion battery

Features

• Compact
• Easy to handle
• Large OLED display
• 4 measurable parameters of roughness

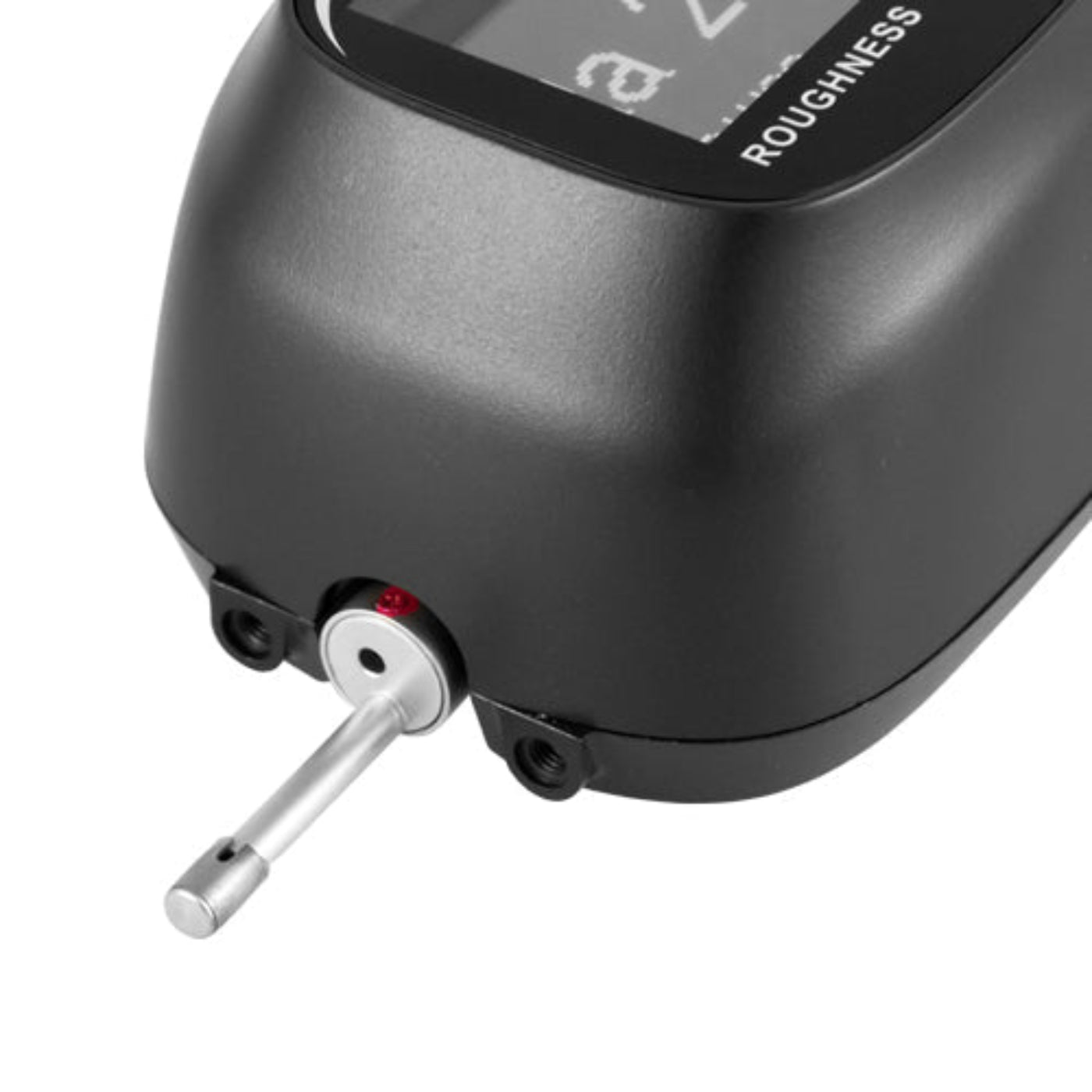

• The probe of the roughness meter consists of a high-quality diamond

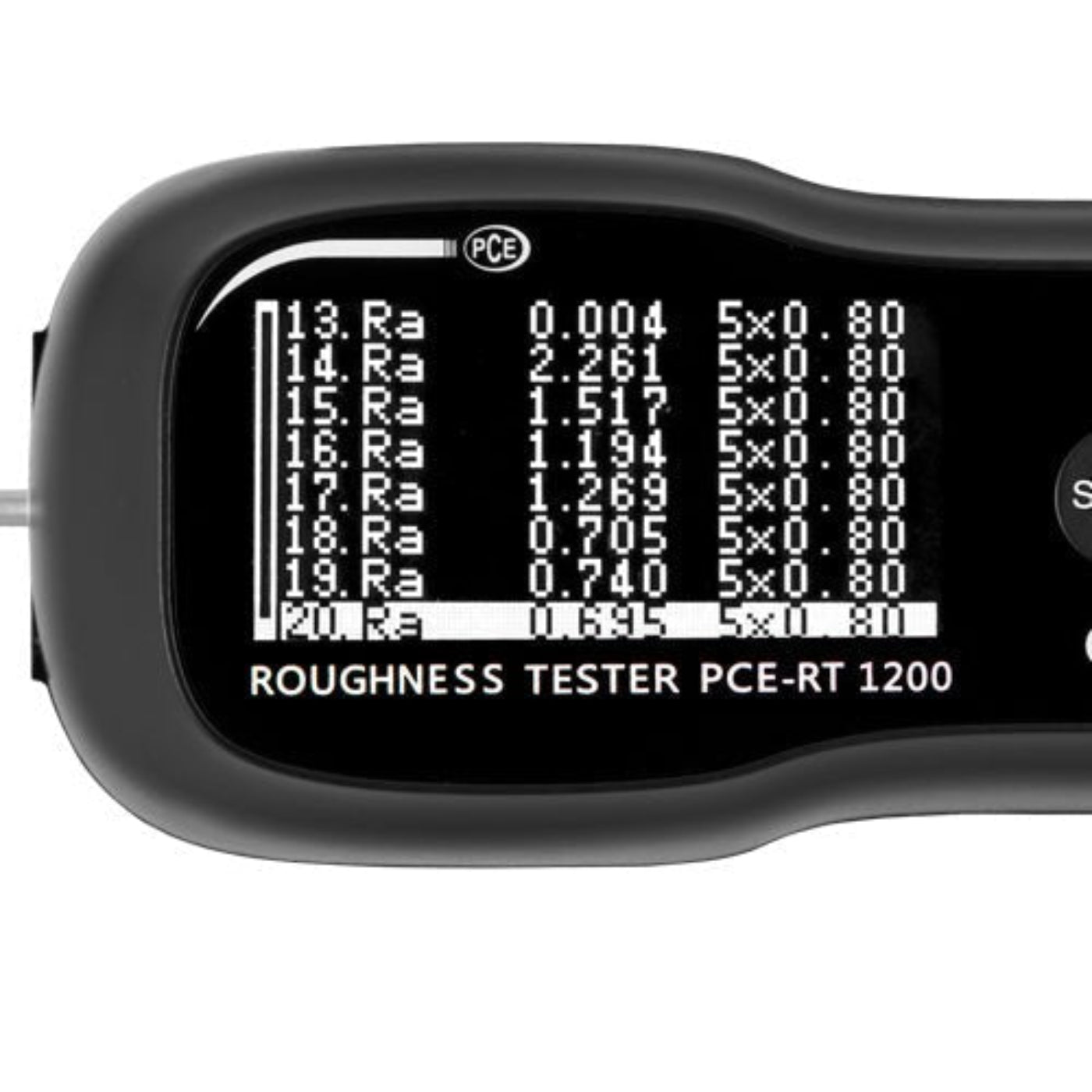

• The display of the roughness meter outputs the measured values in tabular form

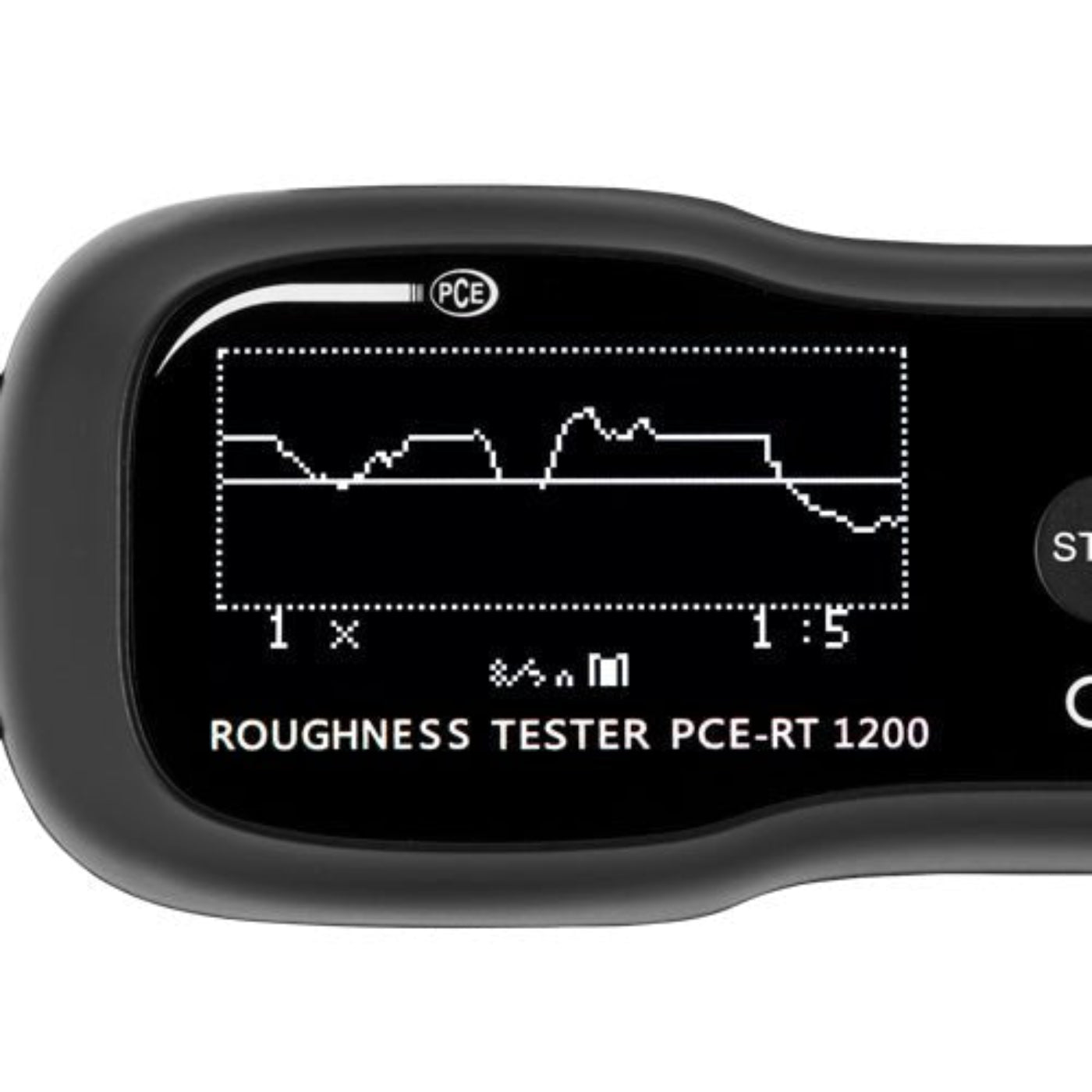

• The measured values can also be output by the roughness meter as a graph

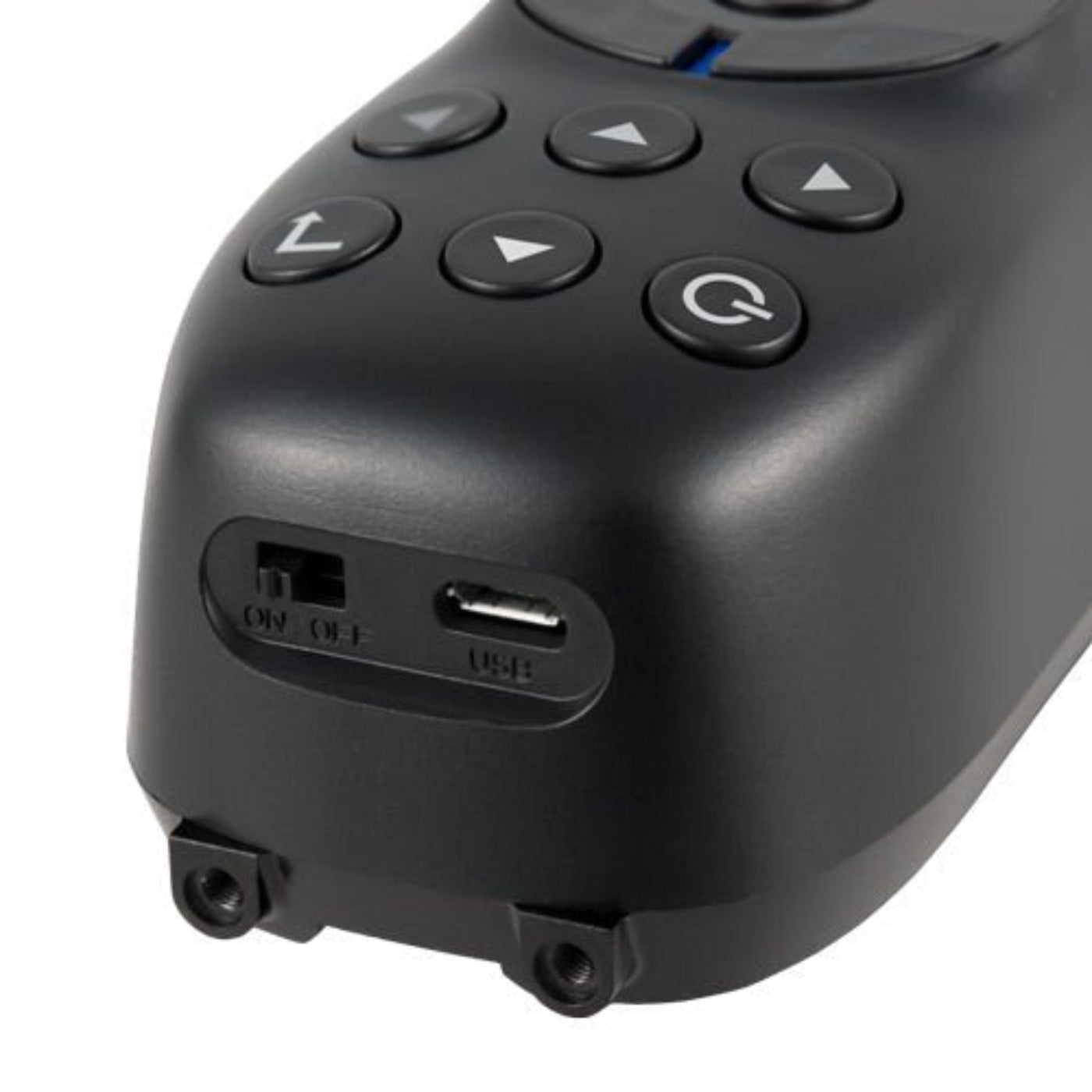

• A micro-USB interface for online data transmission to a PC (for example useful for serial measurement or laboratory measurement)
• An internal rechargeable battery (3000 measurements with one battery charge (Li-ion))


Specifications

• Measurement parameters: Ra, Rz, Rq, Rt
• Measuring ranges:
• Ra, Rq: 0.005 - 16.00 µm / 0.197 - 629.921 µin
• Rz, Rt: 0.002 - 200.0 µm / 0.079 - 7874.016 µin
• Radius probe tip: 5 µm/ 196.850 µin
• Material probe tip: Diamond, 90° angled
• Max. recommended force for static measurement: 4 mN (0.4 gf)
• Radius longitudinal guide bar: 45 mm / 1.77"
• Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
• Maximum driving: distance 15 mm / 0.59"
• Measuring principle: Inductive
• Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
• Testing speed:
• 0.135 mm/s at cut-off wavelength: 0.25 mm
• 0.5 mm/s at cut-off wavelength: 0.8 mm
• 1 mm/s at cut-off wavelength: 2.5 mm
• Reversing speed: 1 mm/s
• Measuring accuracy: < ± 10%
• Repeatability: < 6%
• Display: OLED
• Units: µm / µinch (switchable)
• Interface: Micro-USB
• Power supply: Rechargeable Li-ion battery
• Dimensions: L x W x H 150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
• Weight: 370 g / < 1 lb

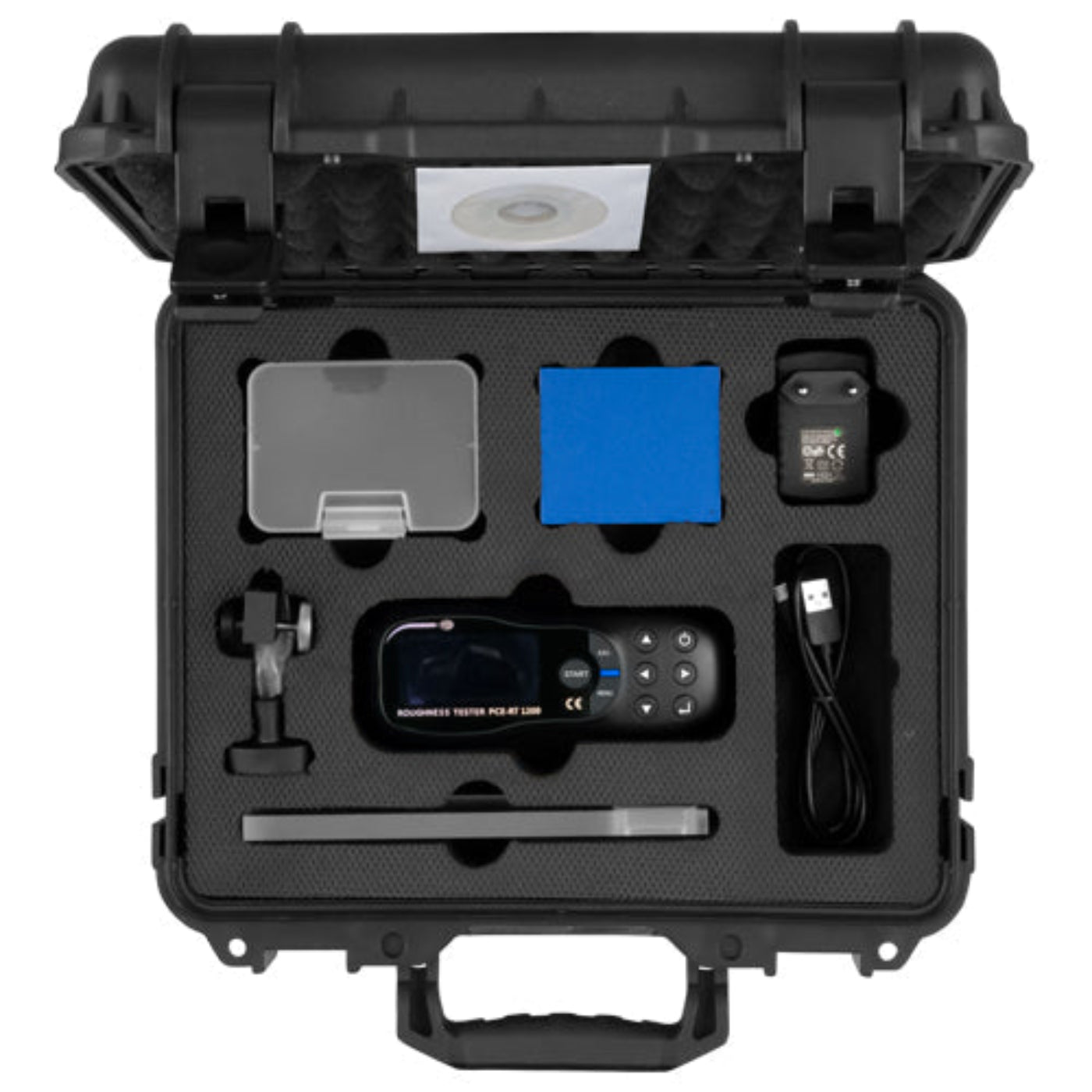

What’s included

• 1 x Profilometer - Roughness Tester PCE-RT 1200
• 1 x Micro-probe
• 1 x Downloadable Software
• 1 x Roughness standard
• 1 x USB cable
• 1 x Charging adapter
• 1 x Carrying case
• 1 x User manual

Manual

PCE-RT 1200 User Manual

PCE-RT 1200 Data Sheet

What Our Experts Think

• Portable and Convenient: The handheld design and rechargeable battery make it easy to carry and use for on-the-go measurements, ideal for fieldwork or mobile applications.

• Comprehensive Surface Roughness Measurement: Measures multiple parameters including Ra, Rz, Rq, and Rt, providing a thorough analysis of surface quality in just one device.

• User-Friendly: Its straightforward operation ensures quick and efficient testing, even for users with minimal experience in surface roughness measurements.

• Ideal for Various Applications: Whether you're testing materials in manufacturing, maintenance, or quality control, this profilometer is versatile enough for a wide range of industries.

Q&A

Q: What is the primary function of the PCE RT 1200?
A: The PCE RT 1200 is a handheld device designed for measuring surface roughness, specifically evaluating parameters like Ra, Rz, Rq, and Rt.

Q: Is the PCE RT 1200 suitable for on-site measurements?
A: Yes, the PCE RT 1200 is ideal for mobile use and on-site measurements, offering portability and ease of use.

Q: How is the PCE RT 1200 powered?
A: The device is powered by a rechargeable battery, making it convenient for use in various locations without the need for a constant power source.

Q: What surface roughness parameters can the PCE RT 1200 measure?
A: The PCE RT 1200 can measure Ra (average roughness), Rz (average maximum height), Rq (root mean square roughness), and Rt (total height of the roughness profile).

Q: What makes the PCE RT 1200 an effective tool for surface testing?
A: Its compact design, user-friendly interface, and the ability to measure multiple surface roughness parameters make it an excellent choice for quick and accurate surface profiling.

Maintenance Tips

• Clean Regularly: Gently wipe the device and probe with a soft, lint-free cloth to prevent dust and debris buildup.

• Calibrate Periodically: Calibrate the profilometer according to the manufacturer's instructions to maintain accurate Ra, Rz, Rq, and Rt readings.

• Inspect Probe: Regularly check the probe for wear or damage and replace if necessary to ensure accurate measurements.

• Battery Care: Fully charge the device before storing it long-term and avoid deep discharges to preserve battery health.

• Store Properly: Keep the device in a cool, dry place, away from extreme temperatures and moisture to prolong its lifespan.
