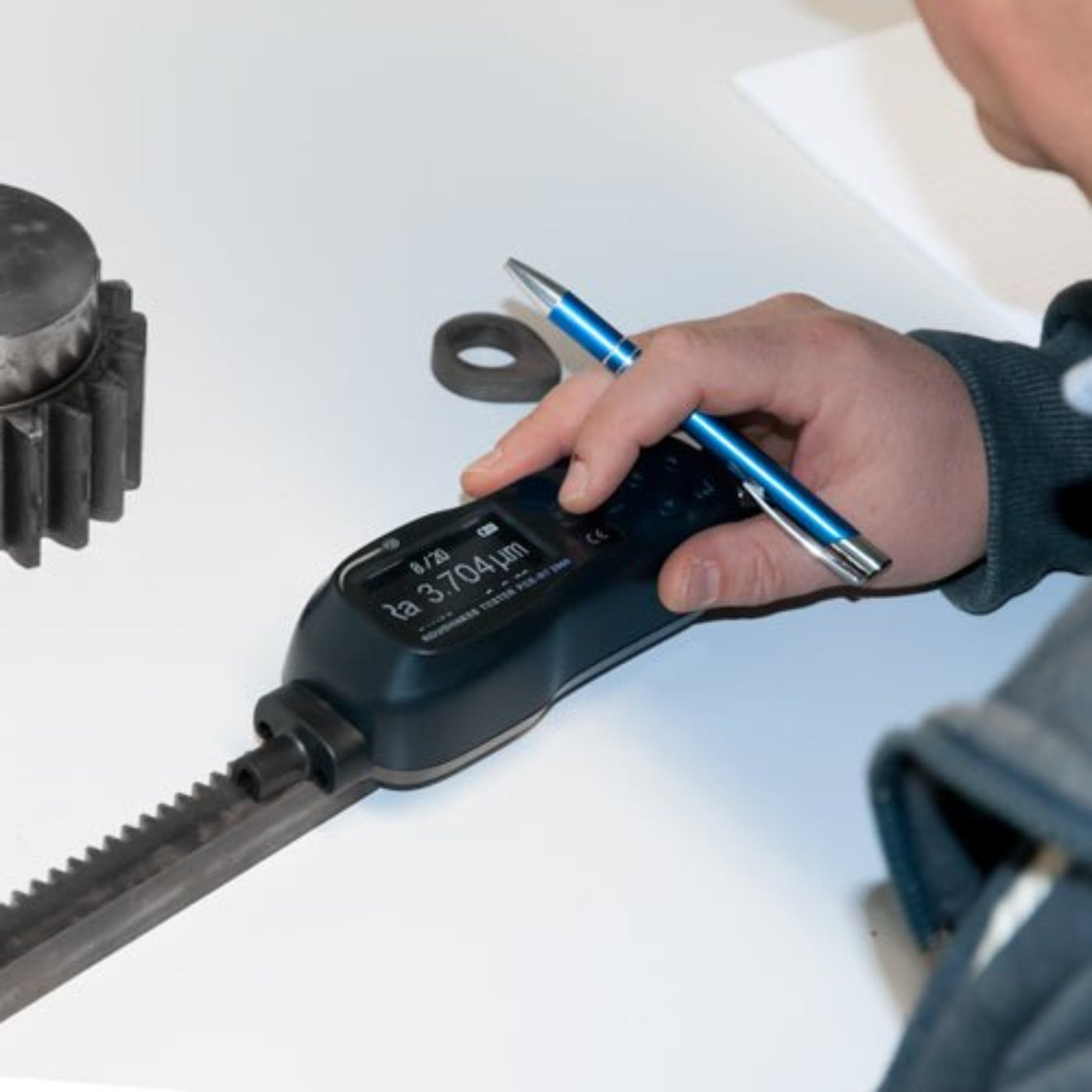

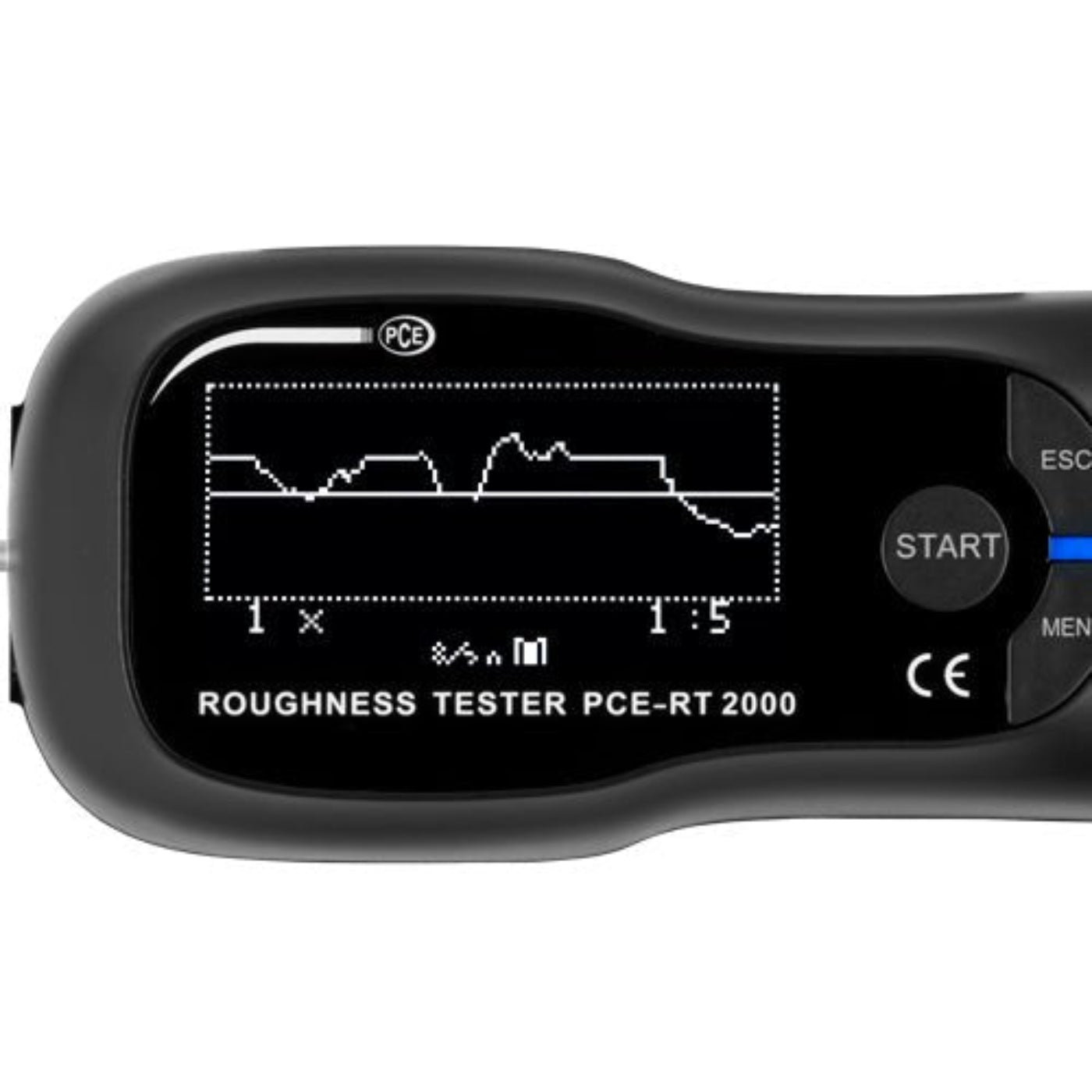

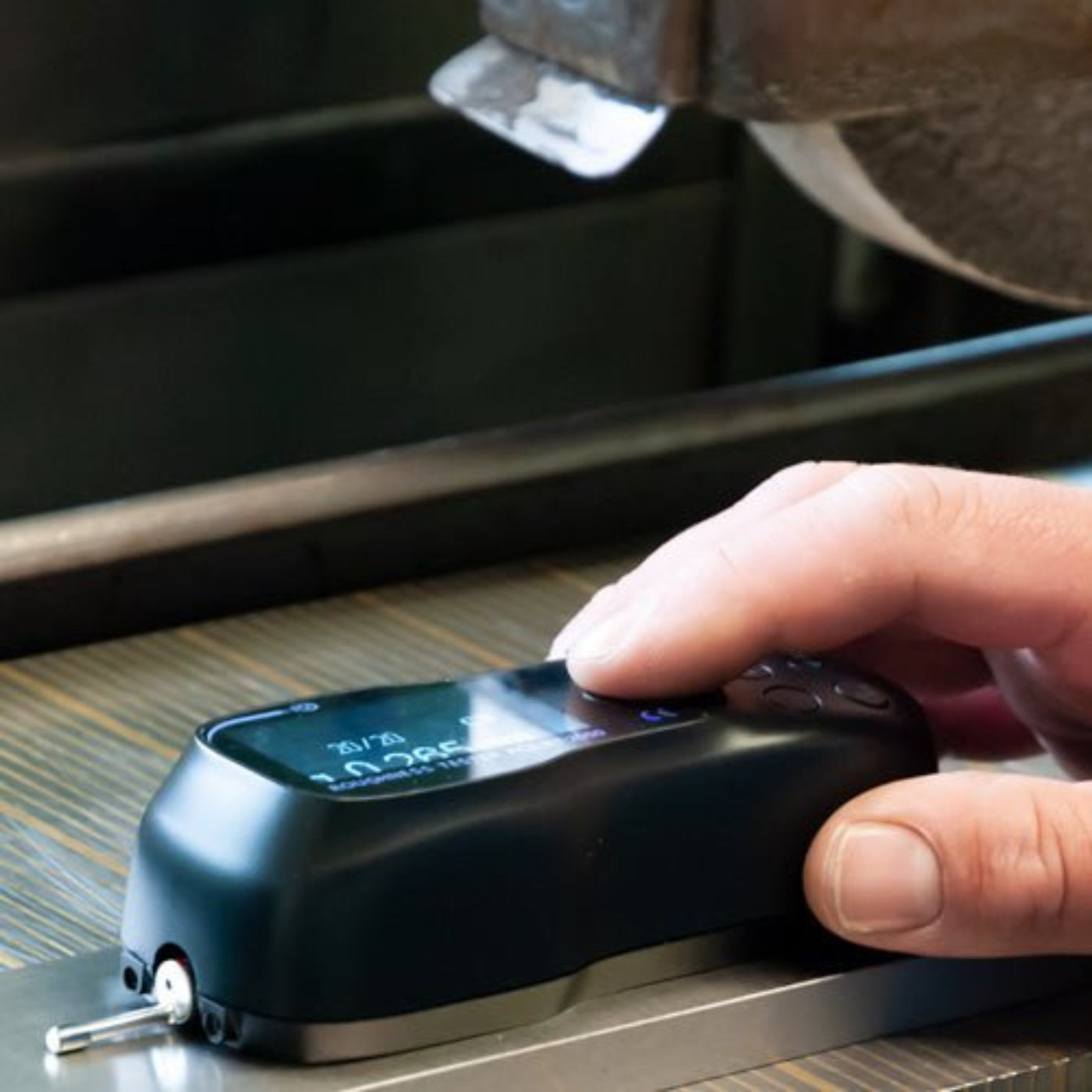

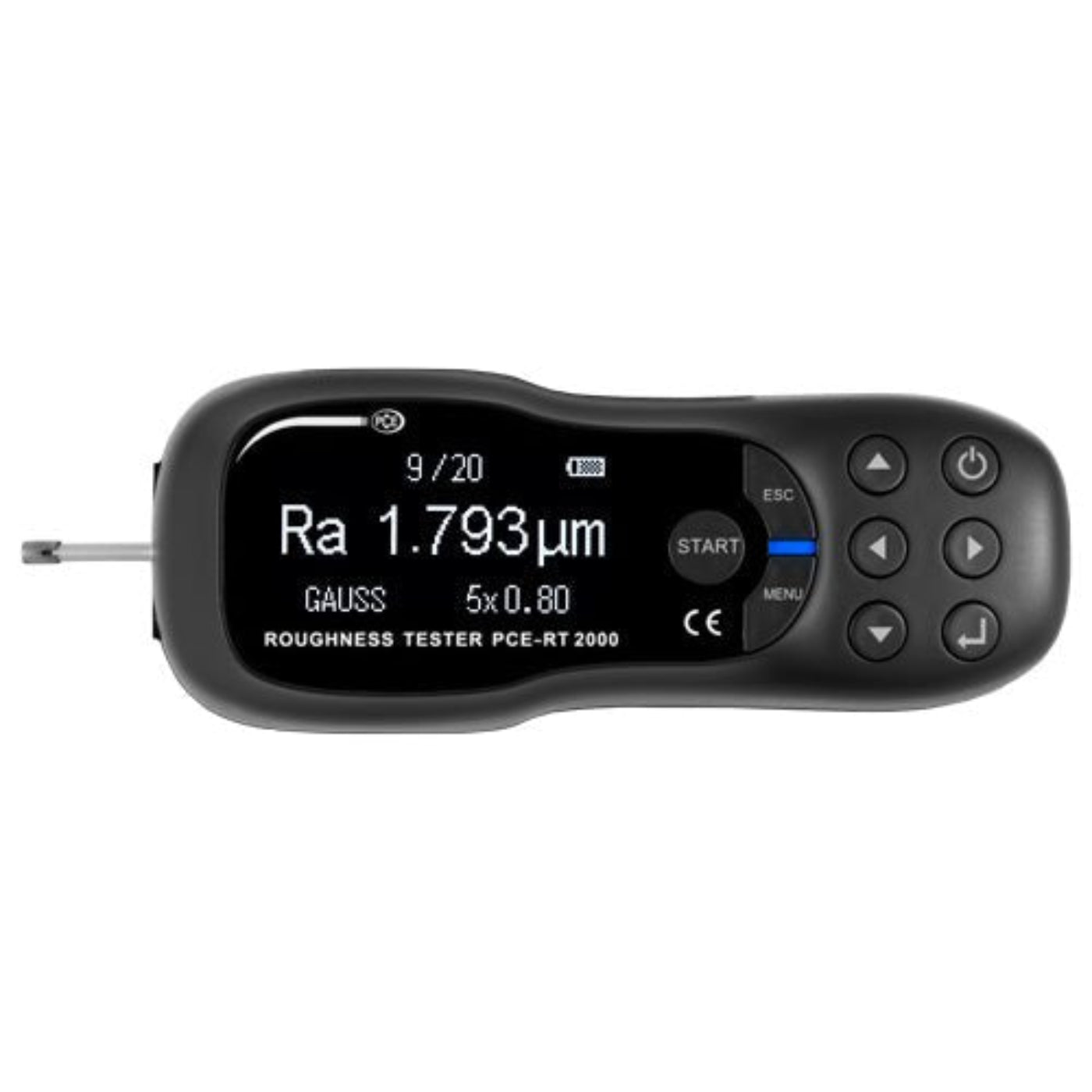

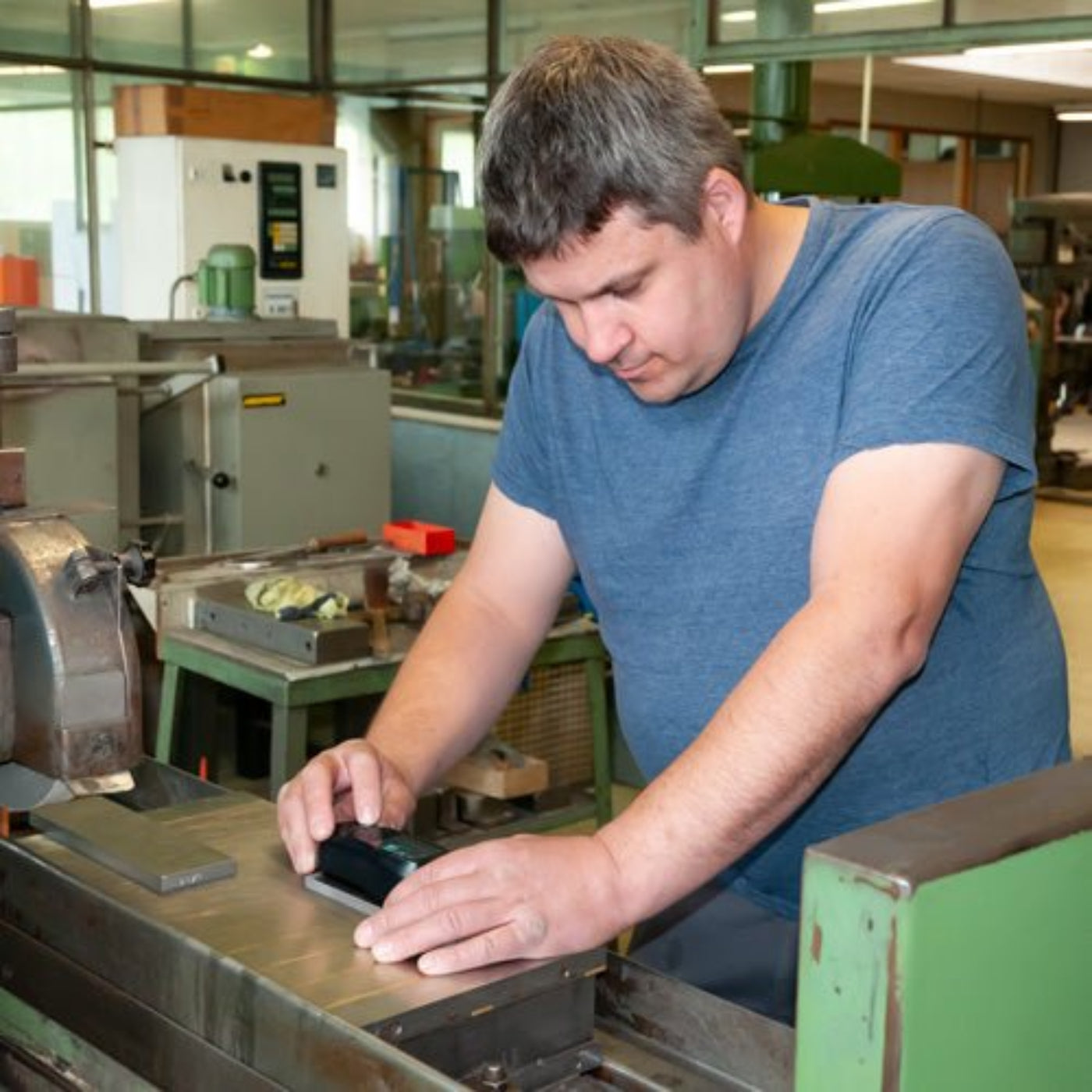

The PCE RT 2000BT 9-Parameter Bluetooth Profilometer Surface Roughness Tester allows for quick and precise measurement of surface roughness across a variety of materials. Simply place the roughness meter on the surface to be tested, and use the positioning device to align it accurately. With just the press of a button, you can initiate the measurement. Once completed, the measured value is displayed on the screen, along with a progress diagram of the surface.

When measuring the surface roughness, there are various measurement parameters that provide information about the roughness of the surface, for example the maximum roughness depth, the mean roughness depth and many other measurement parameters. After a measurement has been carried out, these can be displayed in the data memory of the Bluetooth roughness meter.

After each measurement of the roughness, the recorded measured values ??are saved in the roughness meter with Bluetooth. Up to 20 measurement sequences can be saved with the Bluetooth roughness meter. In order to process or analyze these further, the Bluetooth roughness meter can be connected to a PC via the micro-USB interface and read out, analyzed and further processed using the free software in the download portal.

This roughness meter has a Bluetooth interface. This Bluetooth interface can be used to establish a direct connection with an Android device. This has several advantages. The stored data can be displayed and analyzed directly on the Android device. The measured values ??measured by the Bluetooth roughness meter can also be exported and forwarded by the mobile device. In addition to transferring the measured values, it is also possible to control the Bluetooth roughness meter via the connected mobile device. This means that the measurement parameters can be set directly on the roughness meter with Bluetooth. At the same time, a measurement process can be started with the Bluetooth roughness meter via the Bluetooth interface. This has the particular advantage that, in contrast to starting via the buttons on a roughness meter, no vibrations are transmitted to the Bluetooth roughness meter. As a result, the operator receives a more precise and at the same time more reliable measurement result from the Bluetooth roughness meter.

Highlights

• App connection via Bluetooth
• Fast roughness detection
• Portable
• Large OLED display
• Measurement of Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc

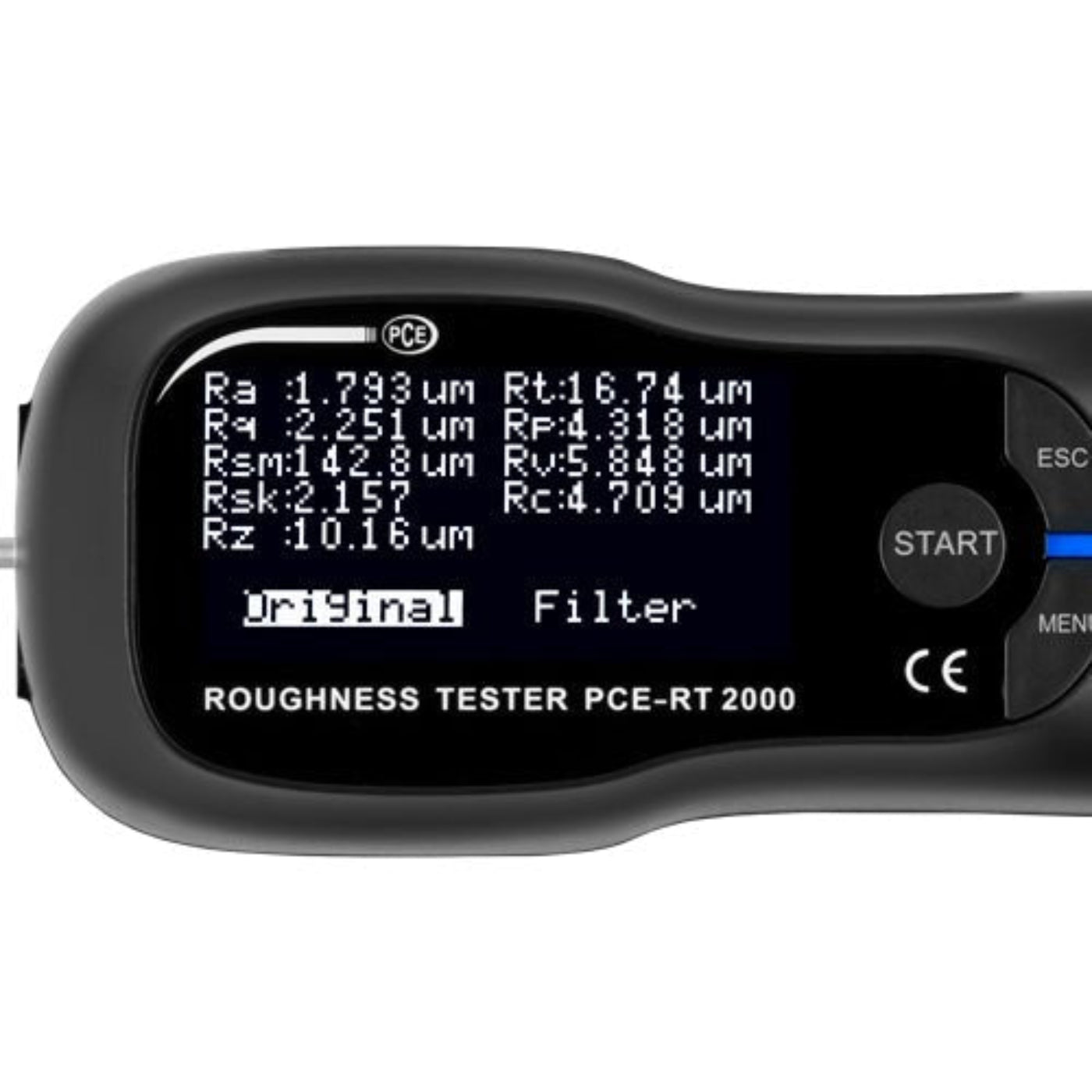

• Numeric and graphic display
• Data memory for 20 measurement processes

Features

• Bluetooth
• Download free app from the Google Play Store
• OLED display
• Measures Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
• Numerical and graphical display of measured values
• Micro USB cable
• 3 different cutoff wavelengths
• PC software
• Statistical functions
• Battery operation

Specifications

• Measurement parameters: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
• Measuring ranges:
• Ra, Rq, Rc: 0.005 µm - 16 µm
• Rz, Rt, Rp, Rv: 0.02 µm - 200 µm
• Rsm: 5 µm - 1000 µm
• Rsk: -1 - 1

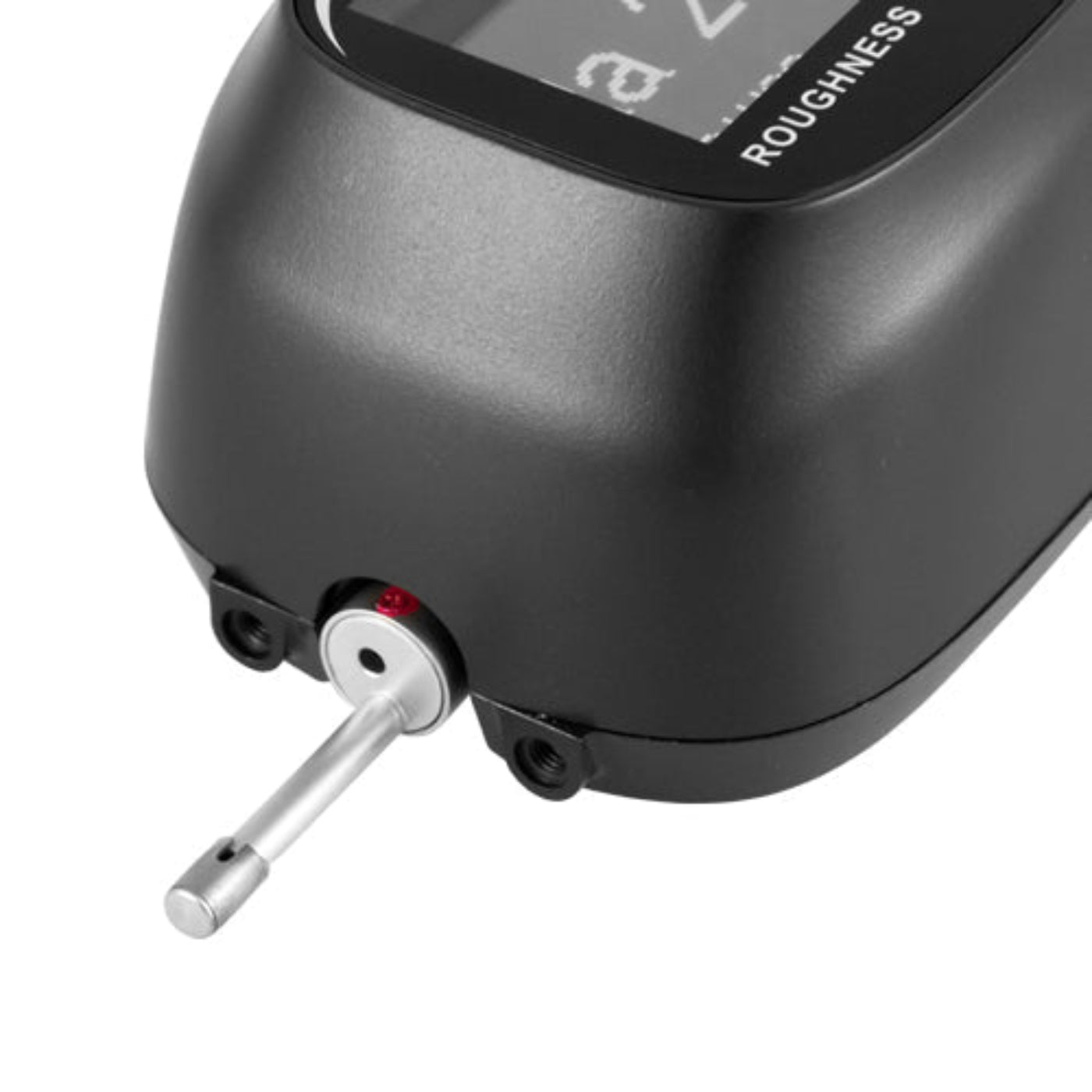

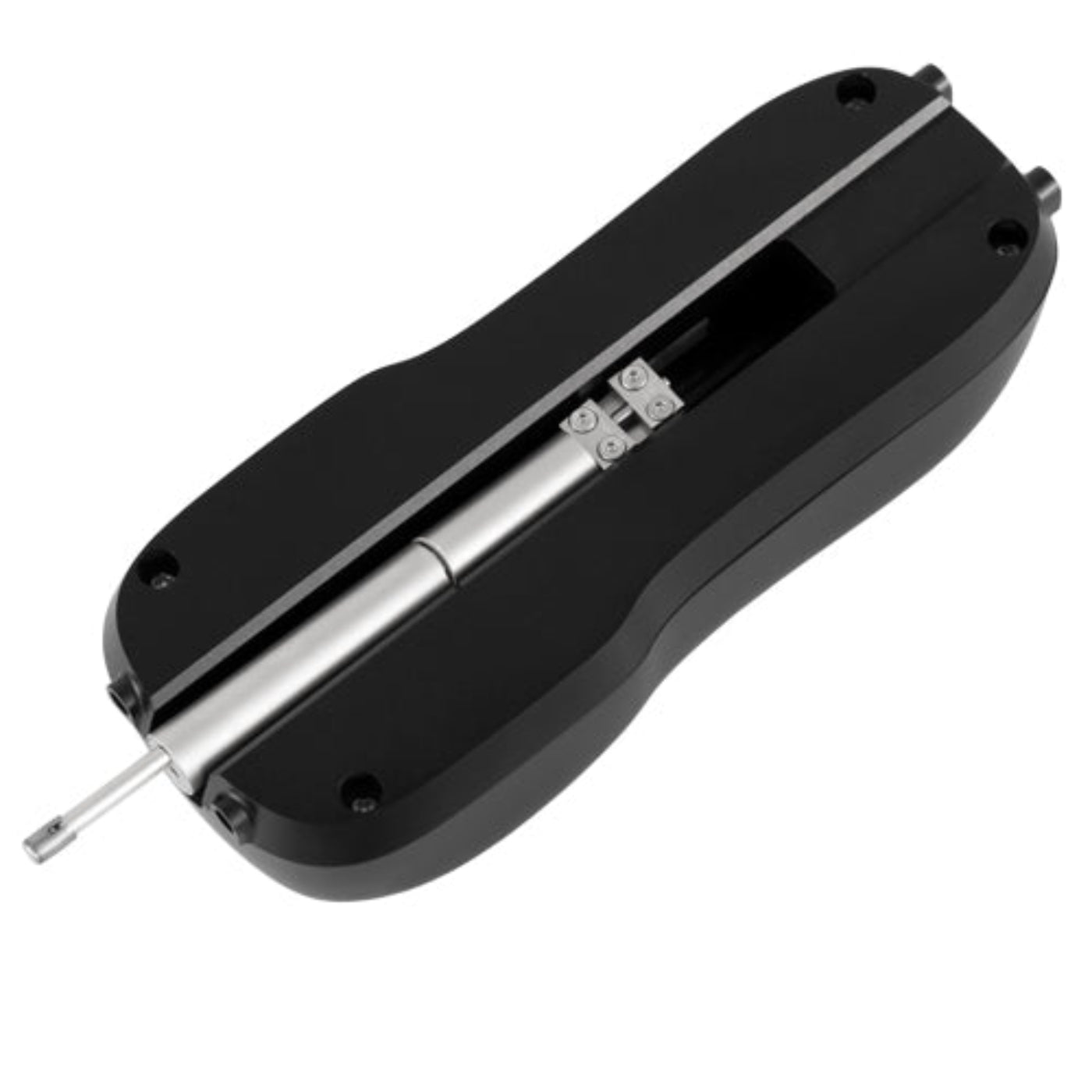

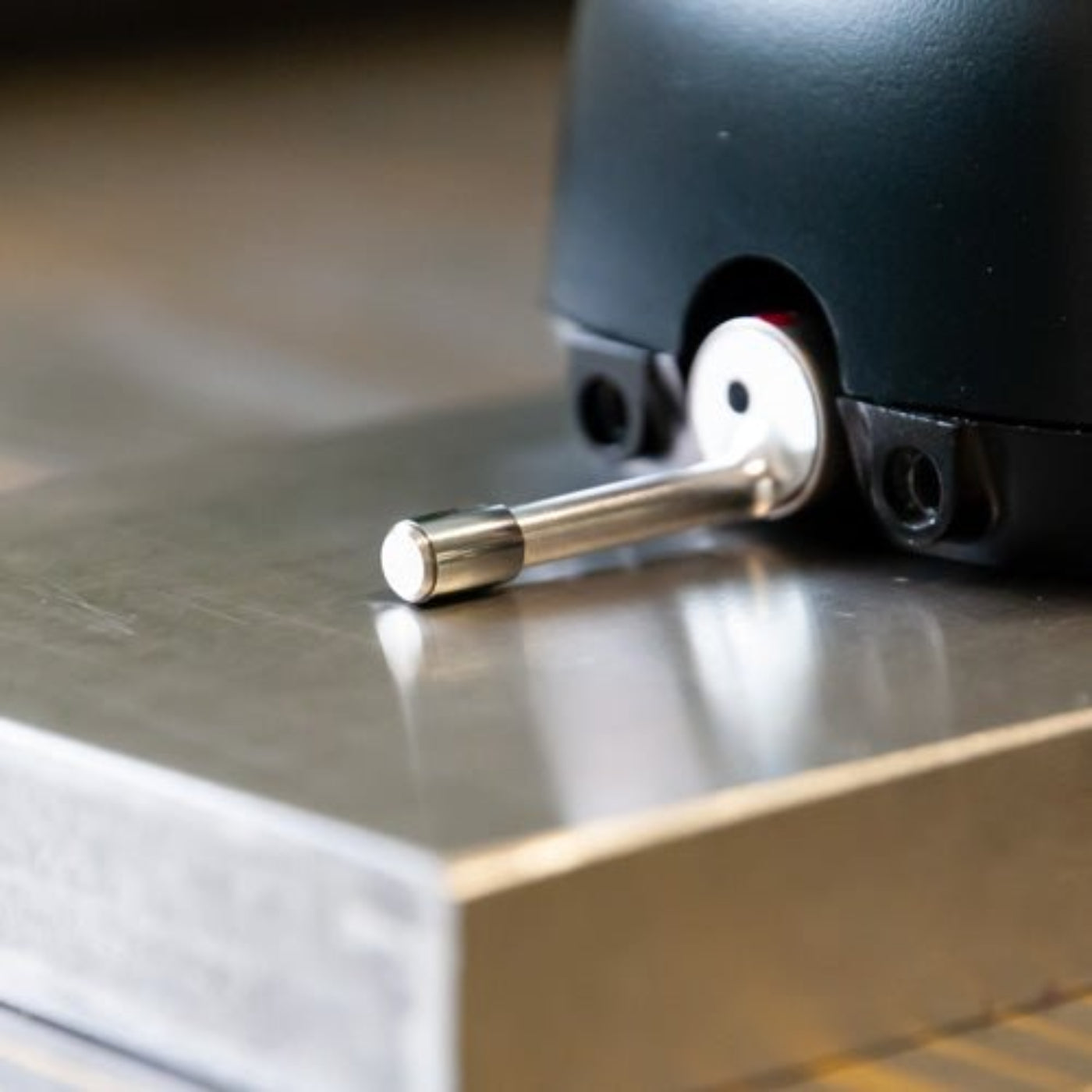

• Radius stylus tip: 5 µm
• Material stylus tip: Diamond, 90° angled
• Max. Recommended force for static measurement: 4 mN (0.4 gf)
• Measuring principle: Inductive
• Radius longitudinal guide bar: 45 mm / 1.8 in
• Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
• Maximum driving distance: 15 mm / 0.6 in
• Cut-off wavelength (cut off):
• 0.135 mm / s at cut-off wavelength: 0.25 mm
• 0.5 mm / s at cut-off wavelength: 0.8 mm
• 1 mm / s at cut-off wavelength: 2.5 mm
• Reversing speed: 1 mm / s
• Measurement accuracy: <± 10%
• Repeatability: <6%
• Display: OLED
• Units: µm / µinch (switchable)

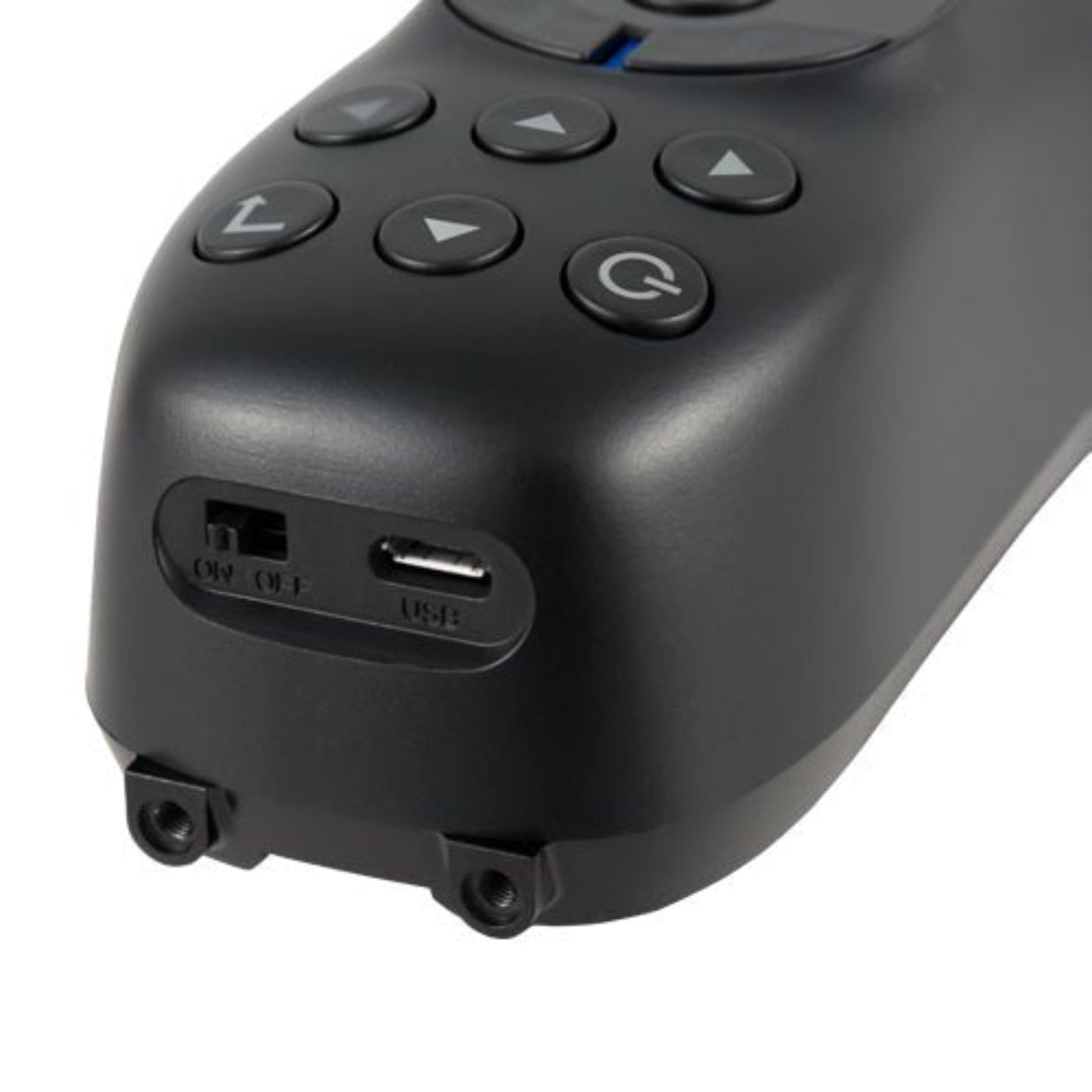

• Interface: Micro USB, Bluetooth.

• Power supply: Rechargeable Li-ion battery

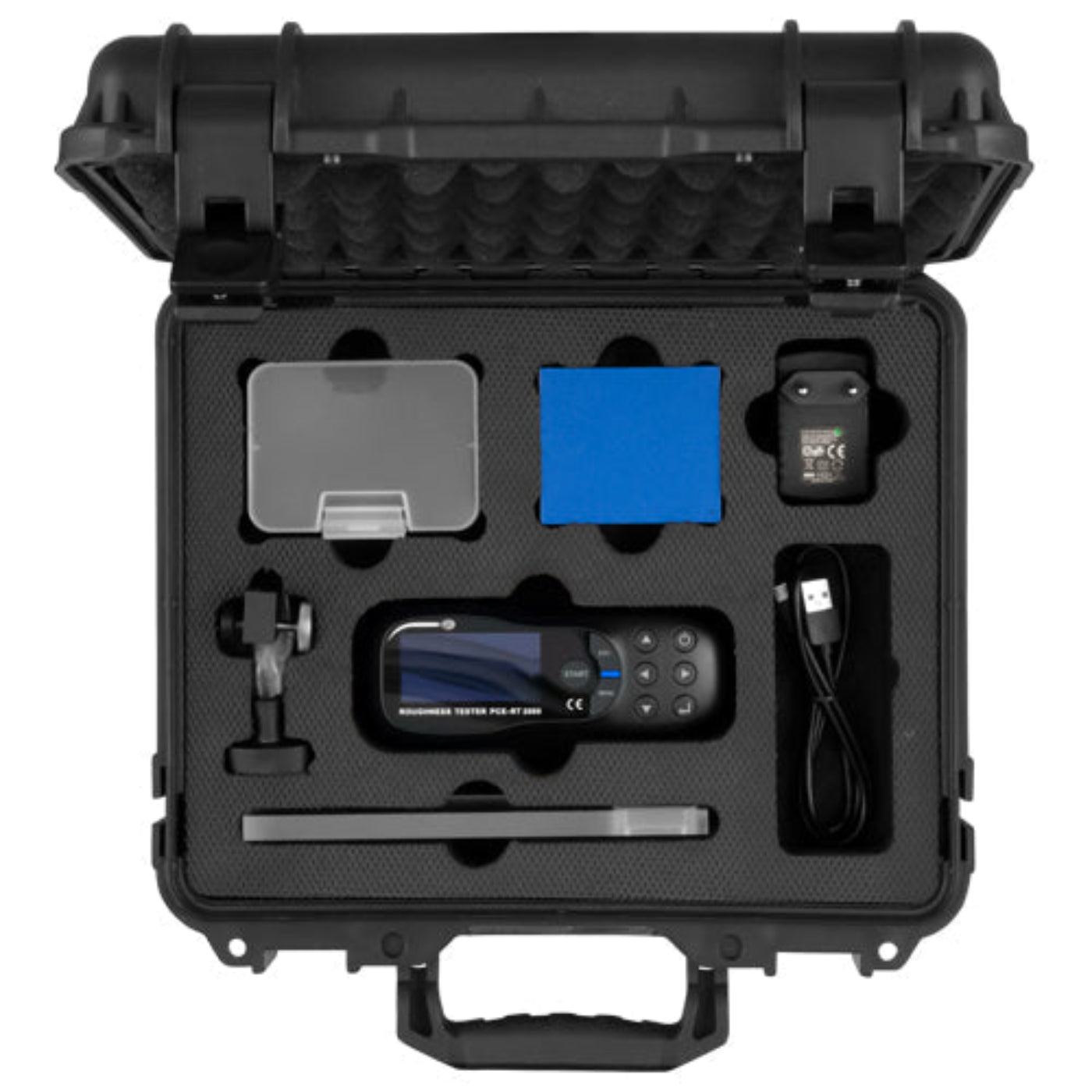

What’s included

• 1 x Profilometer PCE-RT 2000
• 1 x Microprobe
• 1 x Protective cap for buttons

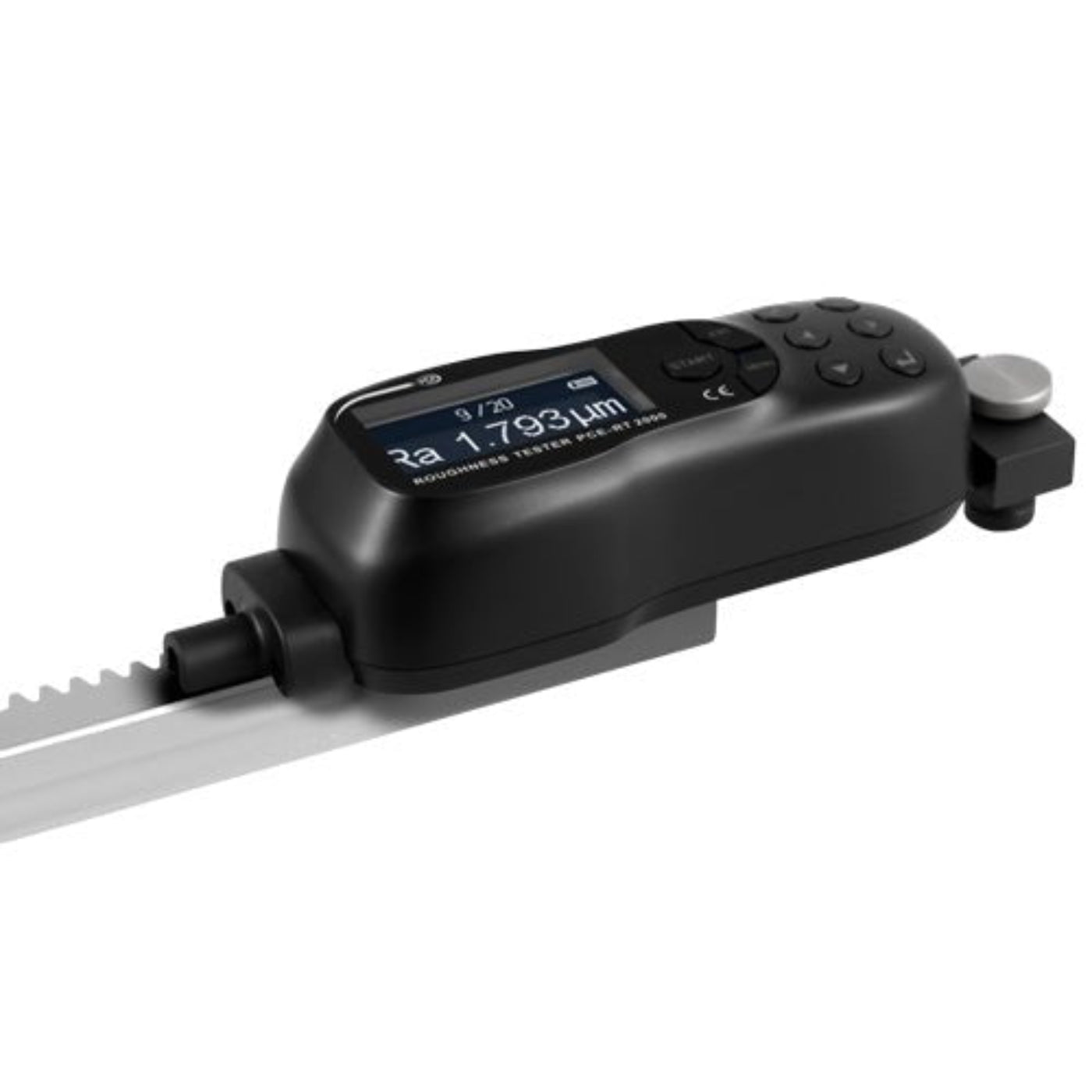

• 1 x Clamping device
• 1 x Software
• 1 x Calibration plate
• 1 x Roughness standard
• 1 x USB cable
• 1 x Charging adapter
• 1 x Transport case
• 1 x User manual

Manual

 PCE-RT 2000BT User Manual

 PCE-RT 2000BT Data Sheet

What Our Experts Think

• Advanced Technology: The Bluetooth connectivity feature allows for easy data transfer, offering more flexibility for recording and sharing results. This makes it ideal for both on-site and remote data analysis.

• Efficient and User-Friendly: The one-button operation simplifies the process, ensuring fast and accurate results even for users with minimal technical experience. It’s perfect for environments where quick feedback is crucial.

• High Precision: With 9 different measurement parameters, this profilometer provides a comprehensive view of surface roughness, ensuring that the data you receive is precise and reliable.

• Visual Feedback: The progress diagram displayed alongside the measurements makes it easier to understand surface quality and to track the measurement process, which is beneficial for quality control.

• Versatile Application: Suitable for a wide range of industries, including manufacturing, automotive, and metalworking, where precise surface quality is critical.

Q&A

Q: What surface parameters can the PCE RT 2000BT measure?
A: The PCE RT 2000BT measures 9 different surface roughness parameters, including Ra (average roughness), Rz (mean roughness depth), and others commonly used for assessing surface texture in various industries.

Q: How is the measurement process with the PCE RT 2000BT?
A: The process is straightforward—place the roughness meter on the surface to be tested, align it using the positioning device, and press a button to initiate the measurement. Once the measurement is complete, the results are displayed on the screen along with a progress diagram of the surface.

Q: Does the PCE RT 2000BT have Bluetooth functionality?
A: Yes, the PCE RT 2000BT features Bluetooth connectivity, allowing you to transfer data to compatible devices for further analysis or reporting.

Q: How does the PCE RT 2000BT help improve surface testing efficiency?
A: The tester is designed for quick and precise measurements. Its easy setup and intuitive operation reduce the time spent on surface roughness testing, making it efficient for use in quality control and production environments.

Q: In what industries is the PCE RT 2000BT most useful?
A: The PCE RT 2000BT is ideal for industries that require precise surface roughness testing, such as automotive manufacturing, aerospace, machining, and materials engineering.

Maintenance Tips

• Clean Regularly: Use a soft, lint-free cloth to wipe the device, ensuring the probe and display are free of dust and debris.

• Calibration: Regularly calibrate the device according to the manufacturer's guidelines to ensure accurate surface roughness measurements.

• Storage: Store the profilometer in a cool, dry location, avoiding extreme temperatures and humidity to prolong its lifespan.

• Inspect Probe: Check the probe for any damage or wear and replace it if necessary to maintain accurate readings.

• Battery Care: Charge the device fully before storing it for an extended period and avoid deep discharges to extend battery life.

• Software Updates: Install any available firmware updates to ensure the device operates optimally with the latest features.
