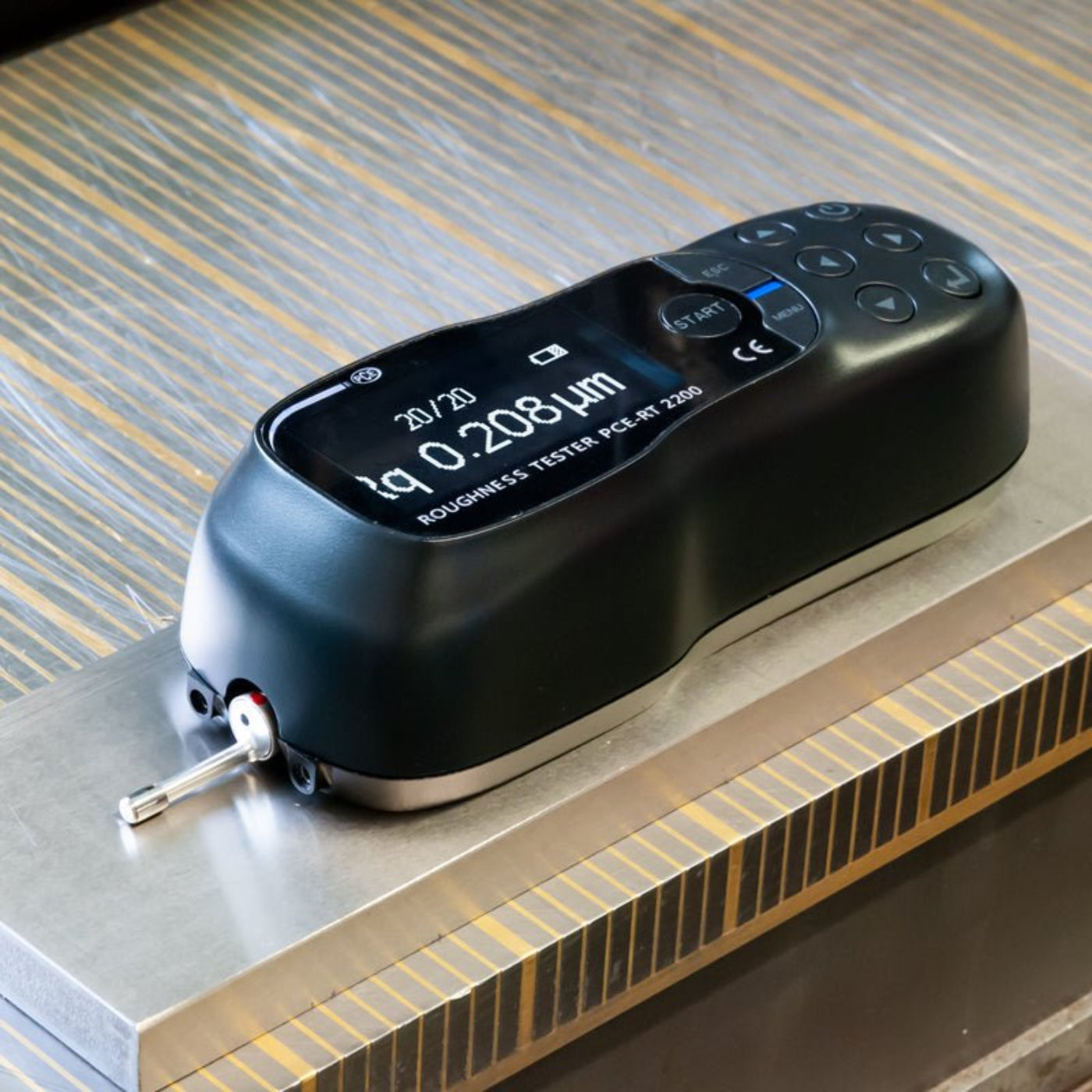

The PCE RT 2200 21-Parameter Profilometer Surface Roughness Tester, featuring a large OLED display, is ideal for quick and precise measurements in both workshop and laboratory settings. Equipped with a DSP chip, the device ensures high-speed control and data processing with low energy consumption. Additionally, it offers a wide range of measurement parameters, including Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry (JIS), Rz (JIS), RP (ASME), Rpm (ASME), Rv (ASME), R3z, R3zmax, Rz1max, Rmr (c), Rdc, and Rmr.

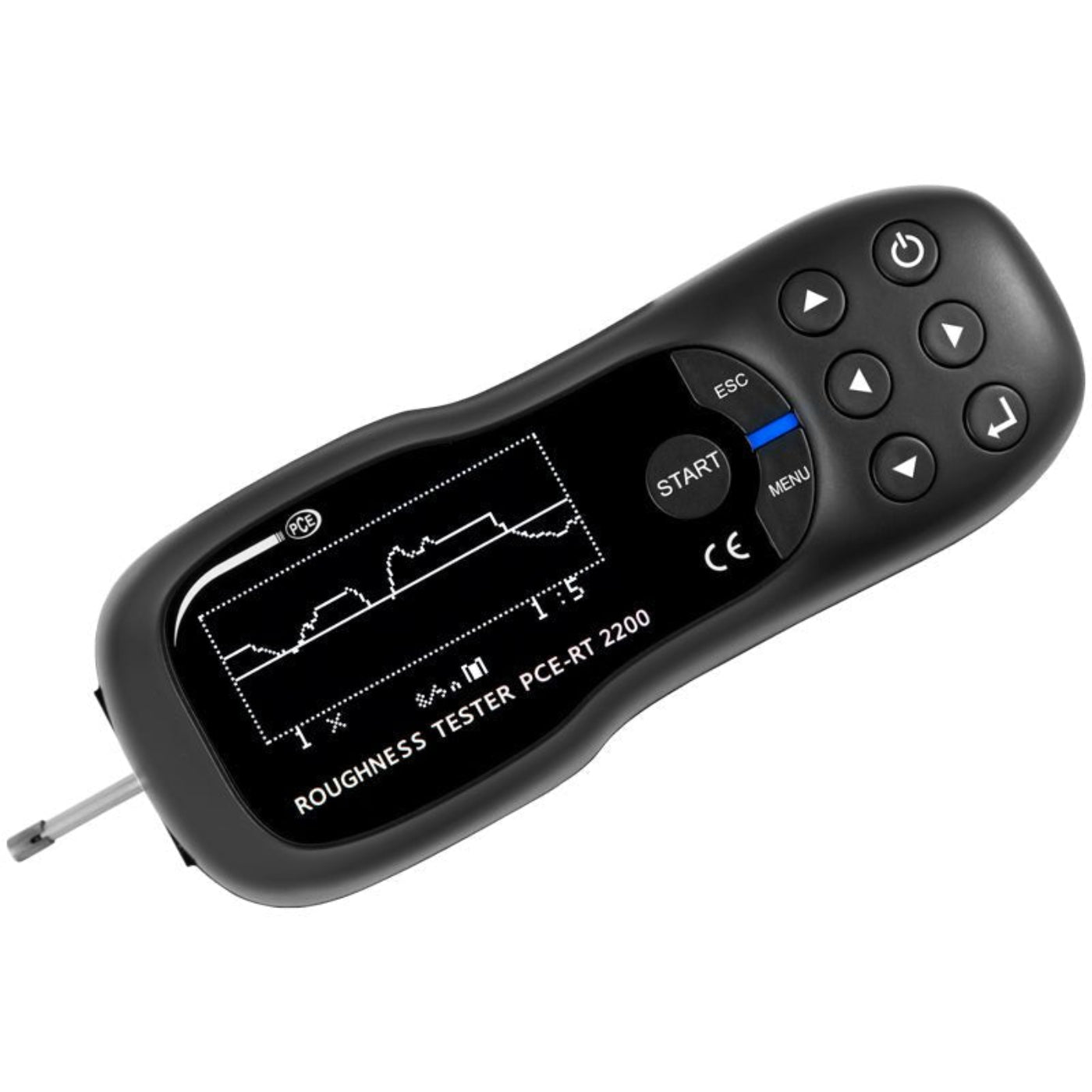

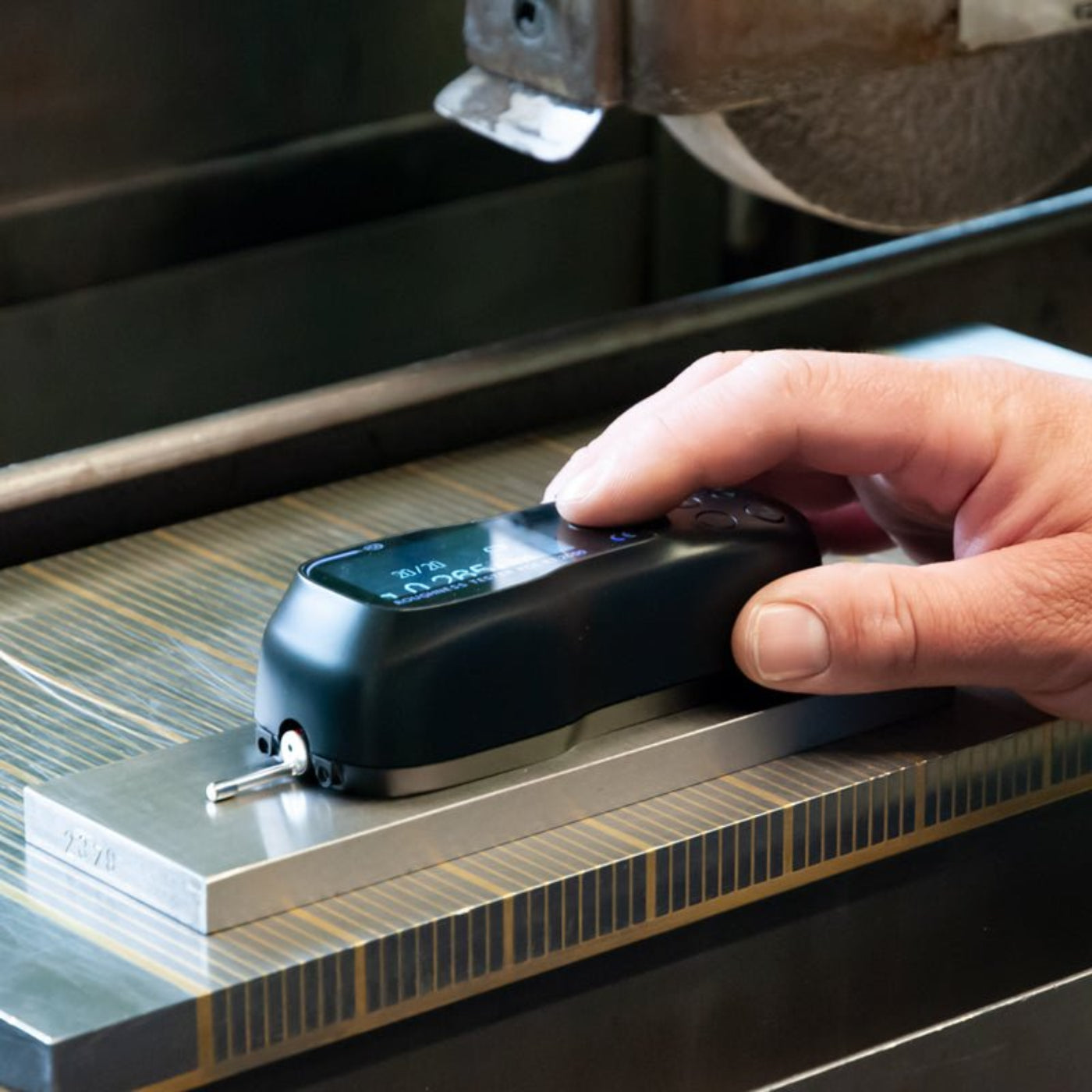

The measurements are automatically stored in the internal memory of the unit. The stored data can then be transferred to a PC via the micro-USB interface on the roughness measuring device and analyzed using the software. It is also possible to have the data displayed on the OLED display of the roughness measuring device after a measurement. Even the wave course can be shown on the display of the roughness meter.

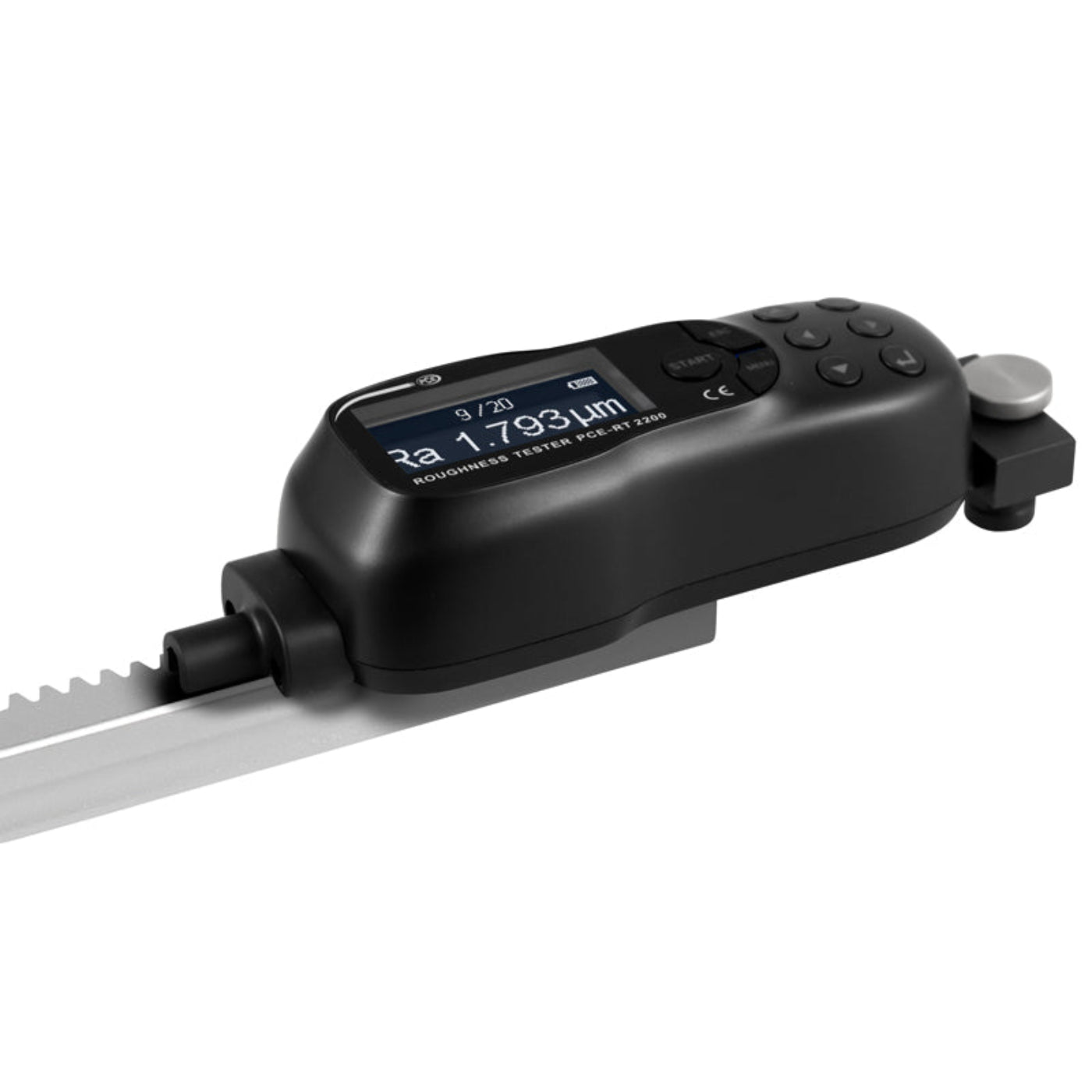

It often happens that the contact surface of the test piece is too small for a roughness measuring device to position the roughness measuring device appropriately for a measurement. For such cases, a positioning adapter is included with this roughness measuring device. As such, this roughness measuring device also allows for measurements on small samples.

Highlights

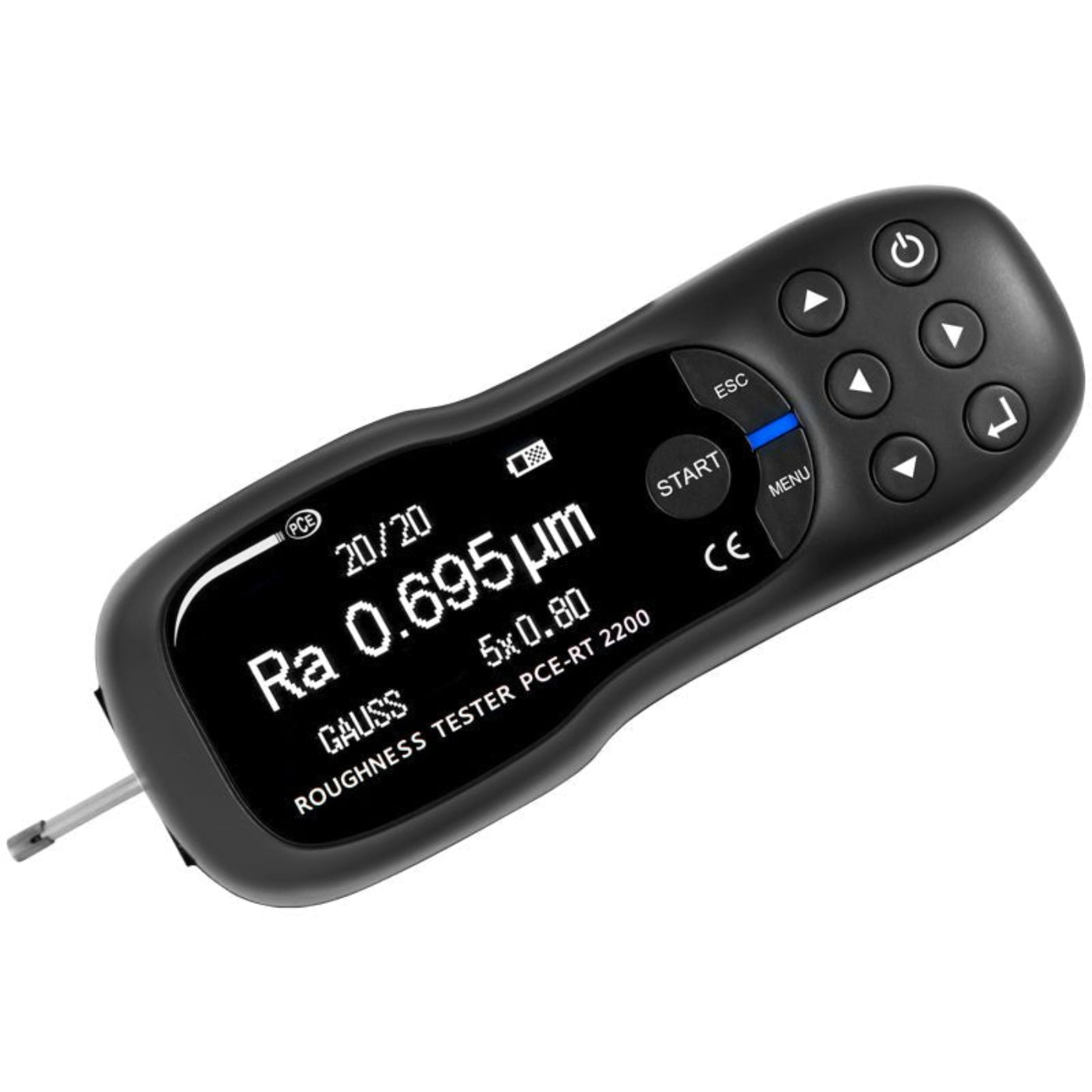

• Large graphic OLED display
• Rechargeable battery
• Storage of up to 20 measurements
• Extensive number of parameters

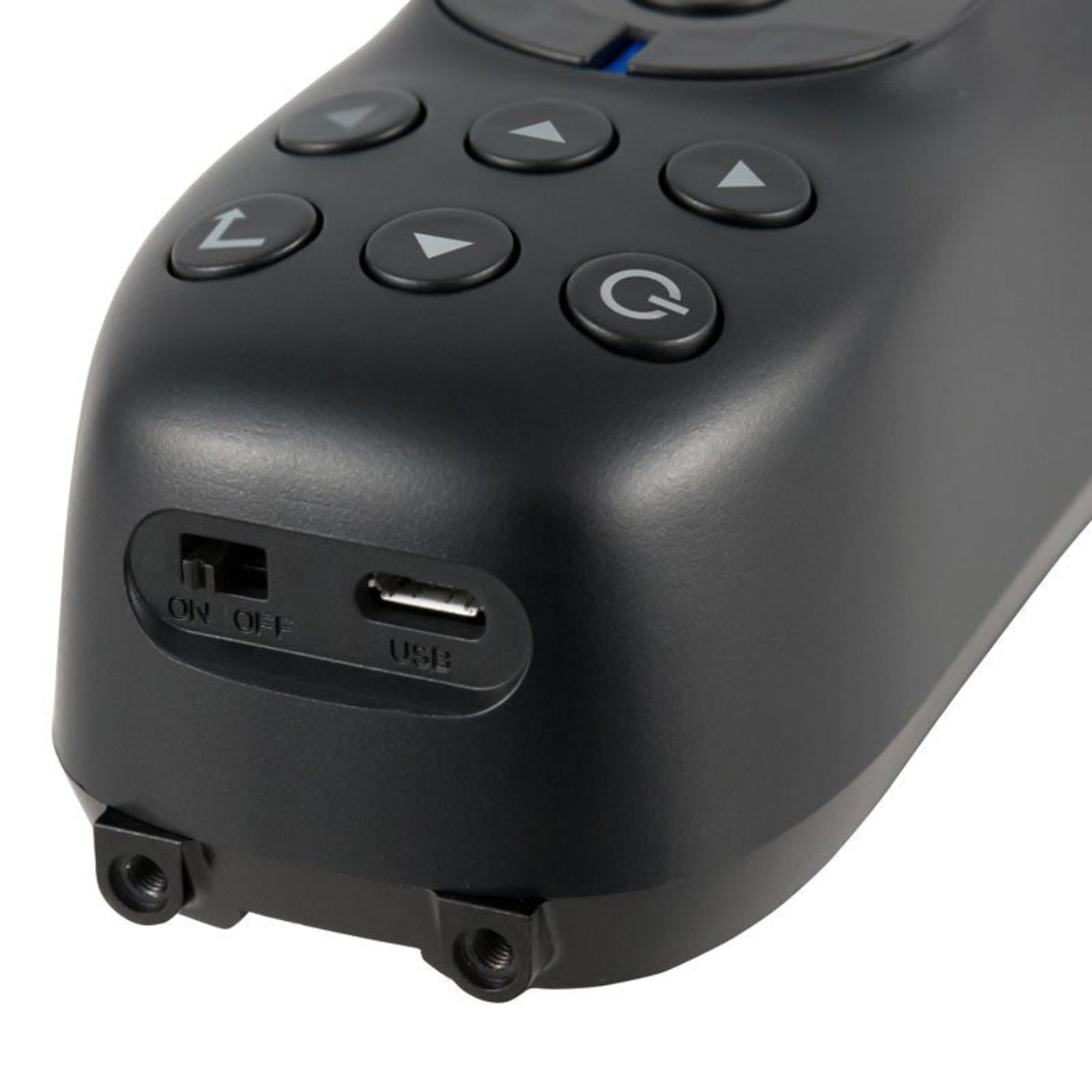

• Micro-USB interface for charging and exporting data.

Features

• Selection of 21 parameters
• Large graphic OLED display
• Fast and accurate measurement
• 3 different cut-off wavelengths
• Micro-USB interface for PC connection
• Storage of 20 measurement curves

Specifications

• Parameters: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry(JIS), Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr.
• Measuring range:
• Ra, Rq, Rc: 0.005 - 16 µm
• Rsm: 5 - 1000 µm
• Rsk: -1 - 1
• Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS),RP(ASME),
• Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max,
• Rdc: 0.02 - 200 µm Rmr(c), Rmr: 0 ... 100 %

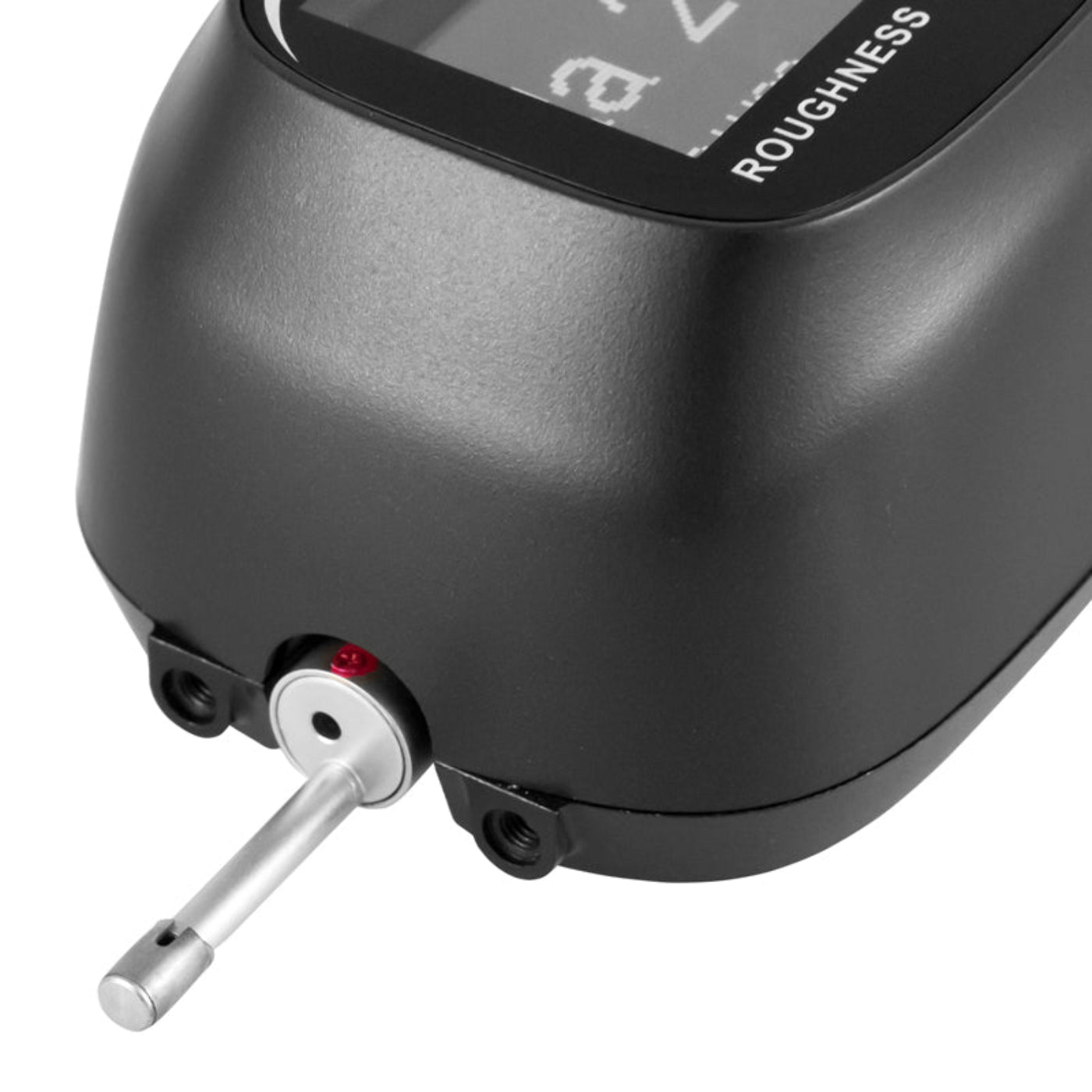

• Probe tip radius: 5 µm
• Probe tip material: diamond, 90° angled
• Max.recommended force: 4 mN (0.4 gf)

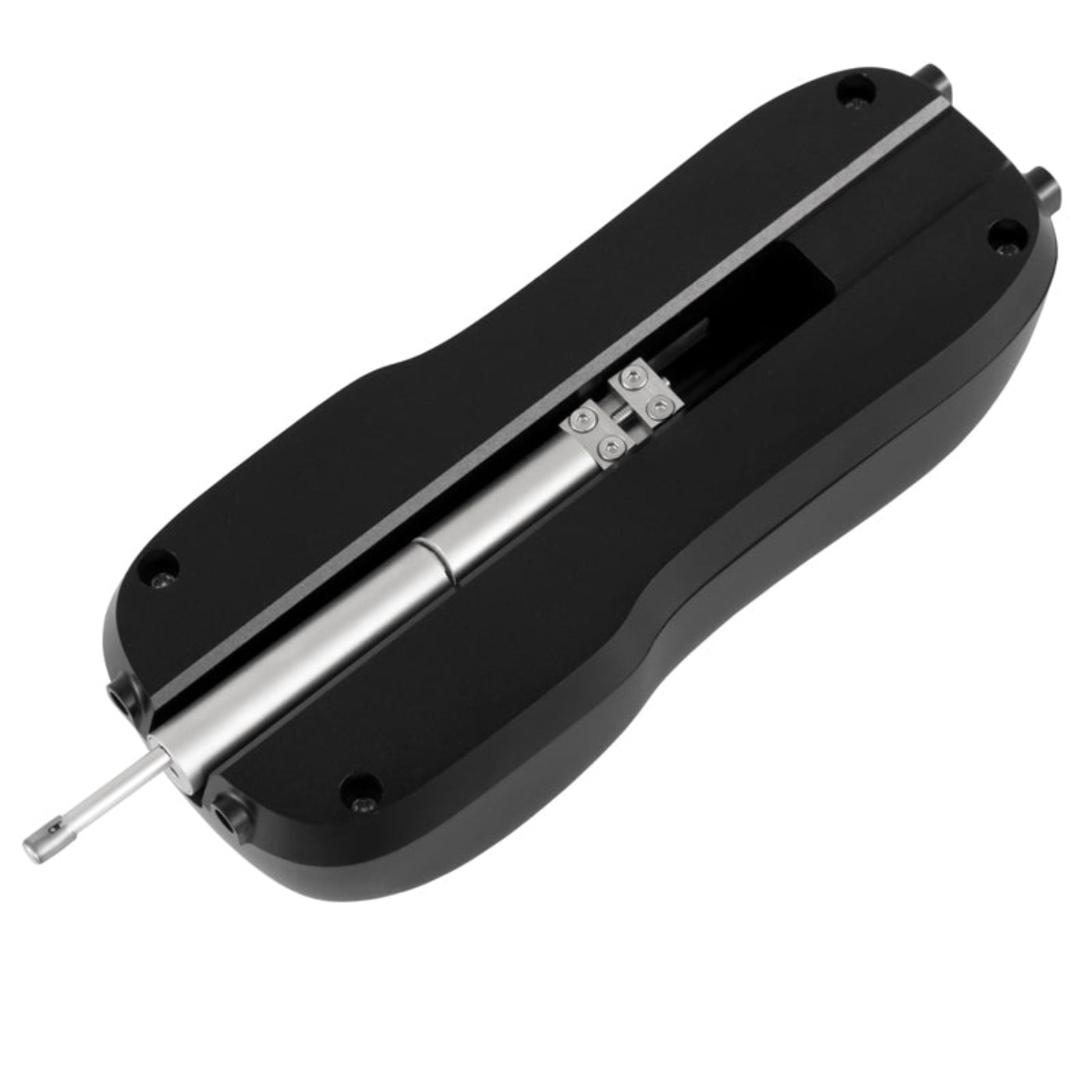

• Measuring principle: inductive
• Radius of the longitudinal guide rail: 45 mm
• Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
• Maximum travel distance: 15 mm
• Cut off wavelength: 0.25 mm / 0.8 mm / 2.5 mm
• Scanning speed:
• 0.135 mm/s at cutoff wavelength: 0.25 mm
• 0.5 mm/s at cutoff wavelength: 0.8 mm
• 1 mm/s at cut-off wavelength: 2.5 mm
• Return speed: 1 mm/s
• Memory: 20 measurement runs with all parameters
• Measurement accuracy: <±10 %
• Repeatability: <6 %
• Display: OLED
• Units: µm / µinch (switchable)
• Interface: Micro USB
• Power supply: rechargeable Li-ion battery

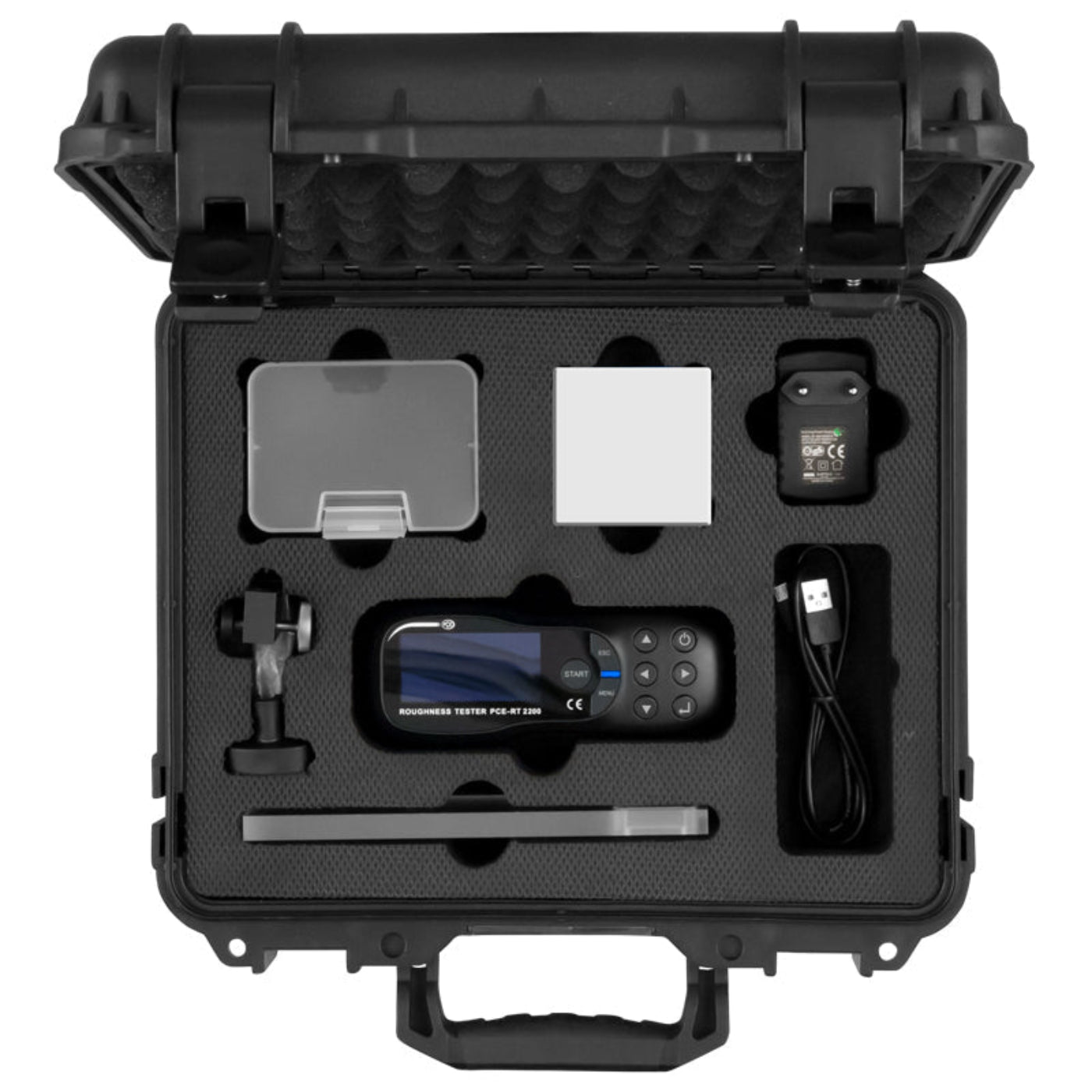

What’s included

• 1 x Profilometer PCE-RT 2200
• 1 x Micro probe
• 1 x Protective cap for probe

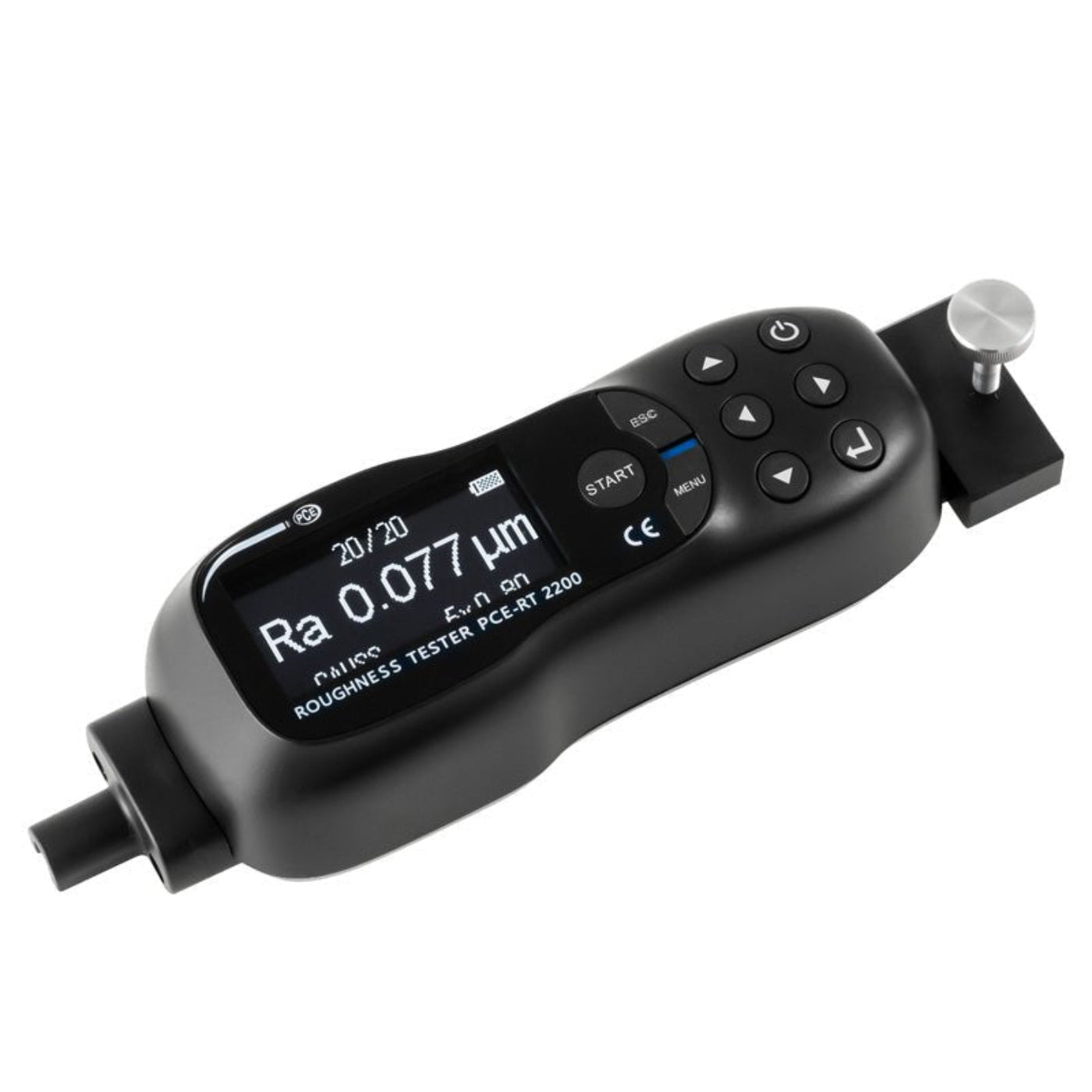

• 1 x Positioning device
• 1 x Calibration plate
• 1 x Roughness standard
• 1 x USB cable
• 1 x Charging adapter
• 1 x Carrying case
• 1 x Instruction manual

Manual

 PCE-RT 2200 User Manual

 PCE-RT 2200 Data Sheet

What Our Experts Think

• Versatile Measurement Range: The PCE RT 2200 offers 21 surface roughness parameters, covering almost all necessary metrics for diverse industries (e.g., automotive, aerospace, and medical devices).

• Precision and Speed: Equipped with an integrated DSP chip, it ensures both high accuracy and fast data processing, making it suitable for large-scale production environments.

• Clear Display: The OLED display provides clear readings in various lighting conditions, enhancing usability in both factory and laboratory settings.

• User-Friendly Interface: Despite the wide range of complex parameters, the interface is intuitive, enabling operators to take measurements without requiring specialized expertise.

• Ideal for Critical Quality Control: Perfect for environments where surface finish quality is paramount, ensuring that parts meet precise specifications before progressing through production.

• Reliable and Durable: Designed for demanding industrial use, it balances high precision with durability, ensuring longevity even in high-volume settings.

Q&A

Q: What parameters can the PCE RT 2200 measure?
A: The PCE RT 2200 can measure a wide range of surface roughness parameters, including Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry (JIS), Rz (JIS), RP (ASME), Rpm (ASME), Rv (ASME), R3z, R3zmax, Rz1max, Rmr (c), Rdc, and Rmr.

Q: What makes this device ideal for workshop and laboratory use?
A: It is designed with a large OLED display for easy readability and features a DSP chip for high-speed control and low-energy consumption, making it efficient for quick and precise measurements.

Q: What settings is this surface roughness tester suitable for?
A: The PCE RT 2200 is ideal for both workshop and laboratory environments, where precise surface roughness measurements are essential.

Q: How does the device operate efficiently?
A: The device utilizes a DSP chip, which ensures fast data processing and control with minimal power usage, making it an energy-efficient tool for surface testing.

Maintenance Tips

• Regular Cleaning: Keep the probe and surface free of dust and debris to ensure accurate measurements. Use a soft, lint-free cloth.

• Calibration: Calibrate the device regularly as per the manufacturer’s recommendations to maintain accuracy.

• Storage: Store in a dry, dust-free environment to protect the device from moisture and contaminants.

• Check Probes: Inspect probes for wear or damage regularly and replace when necessary to ensure precise readings.

• Battery Care: Charge the device fully before storage, and avoid letting the battery fully discharge for extended periods.

• Software Updates: Install firmware updates as they become available to ensure optimal performance.
